As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Buick Regal Grand National United States 3.8L V6 Turbo |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

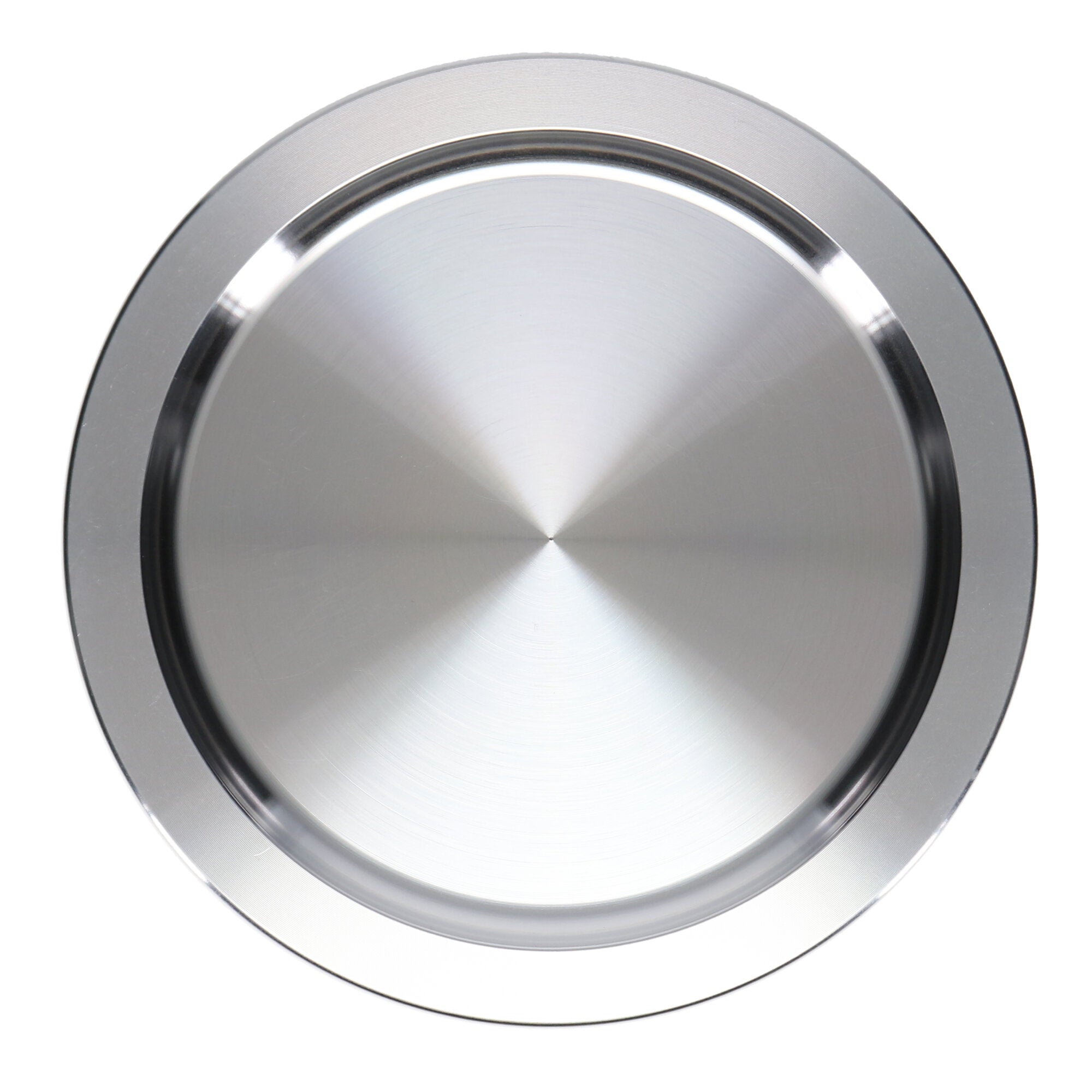

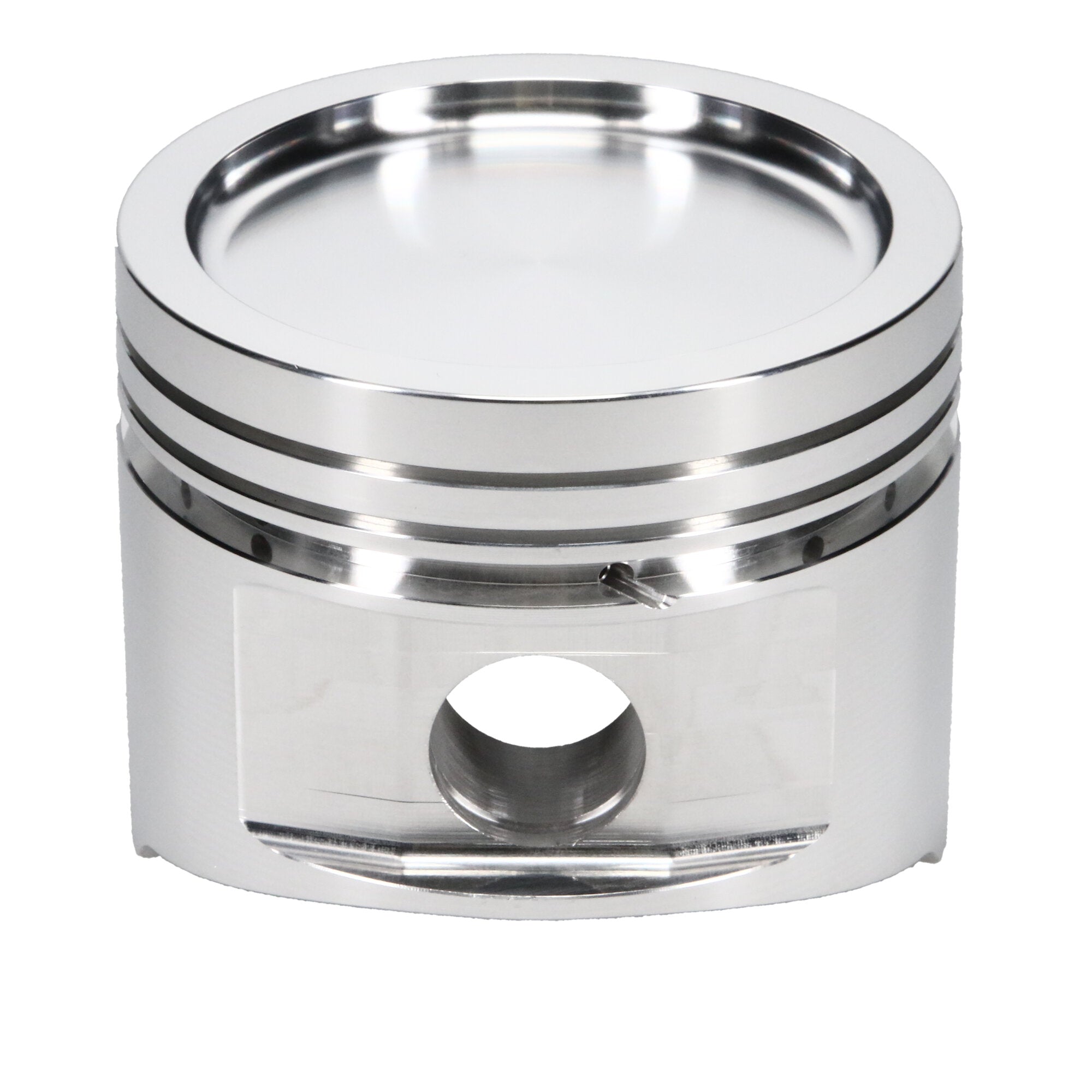

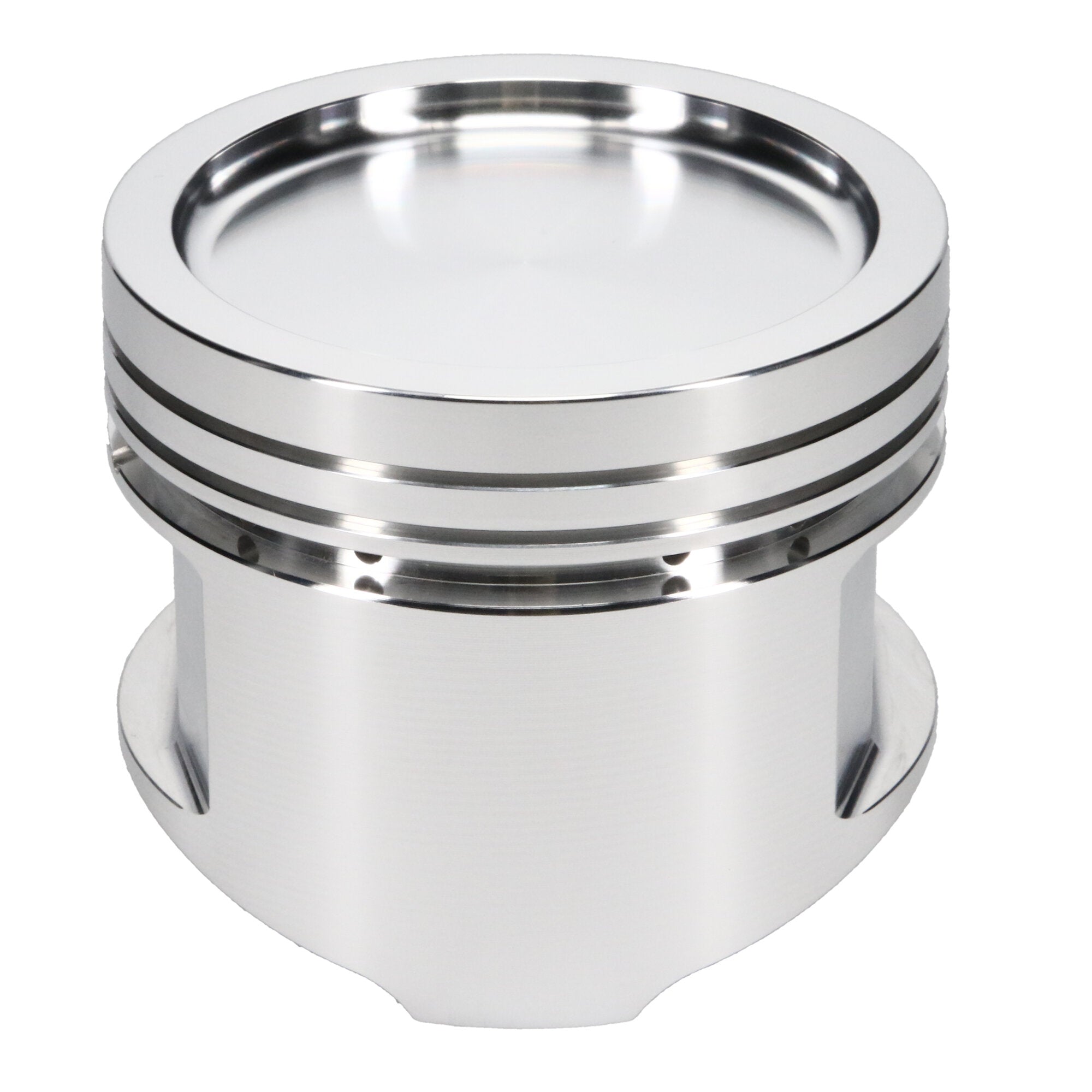

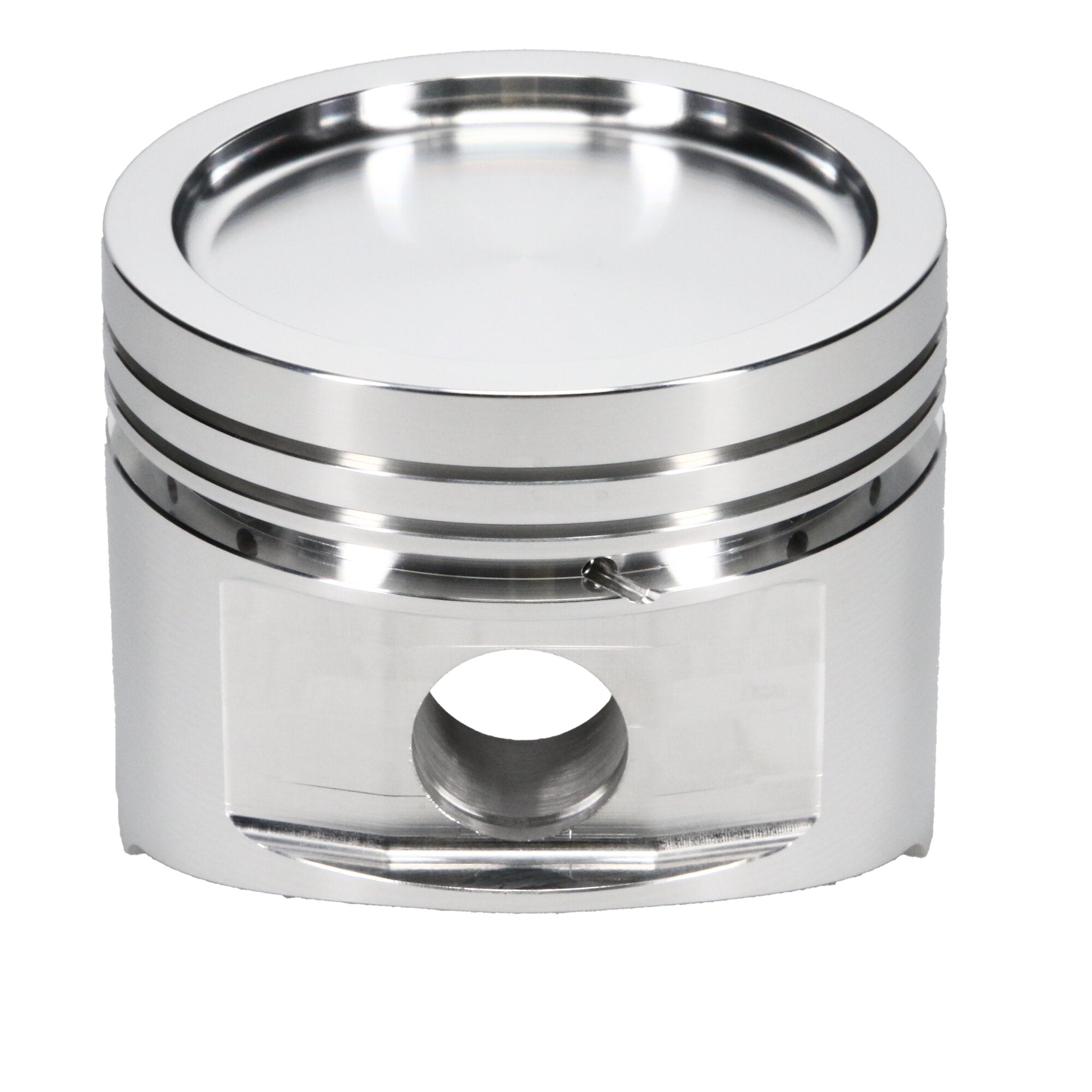

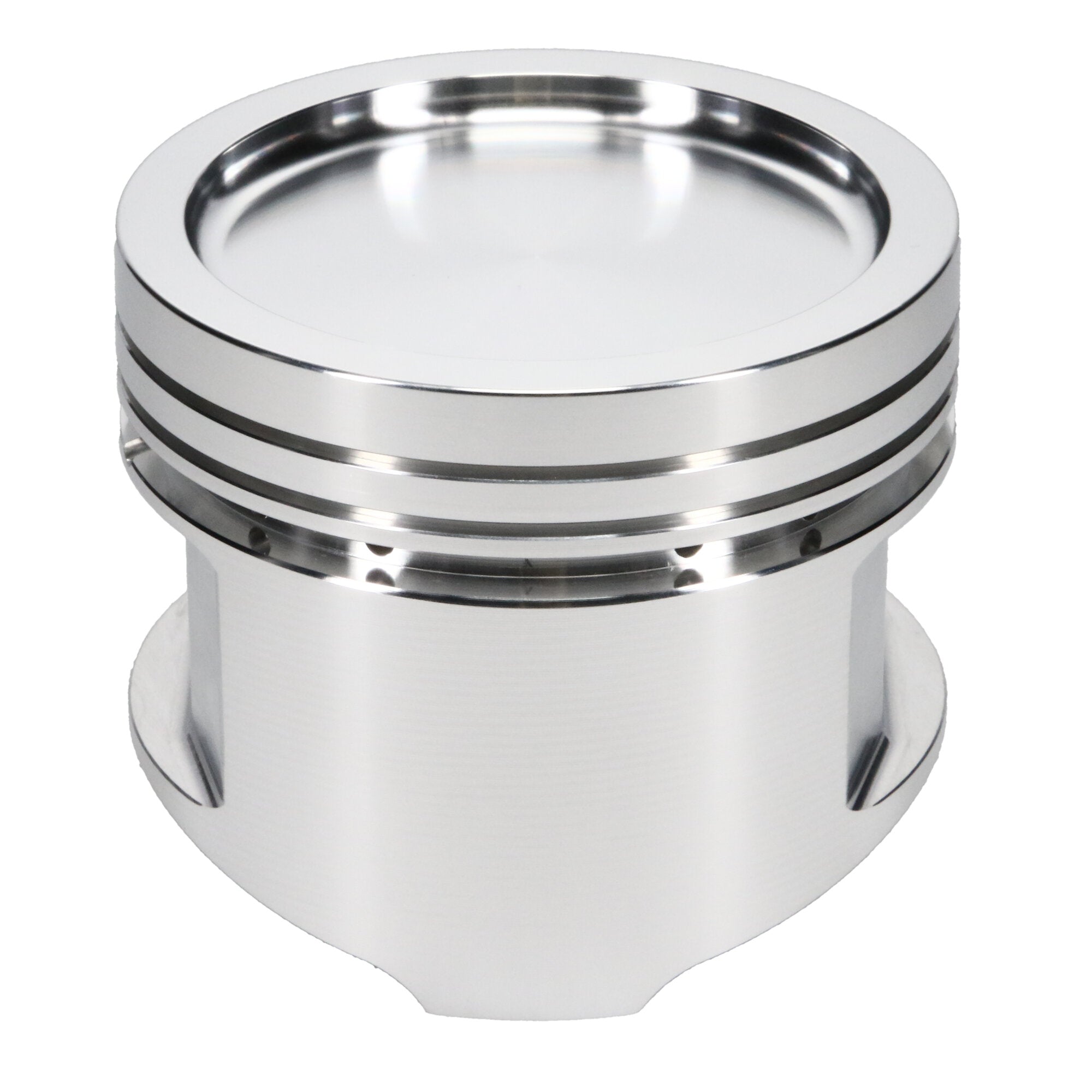

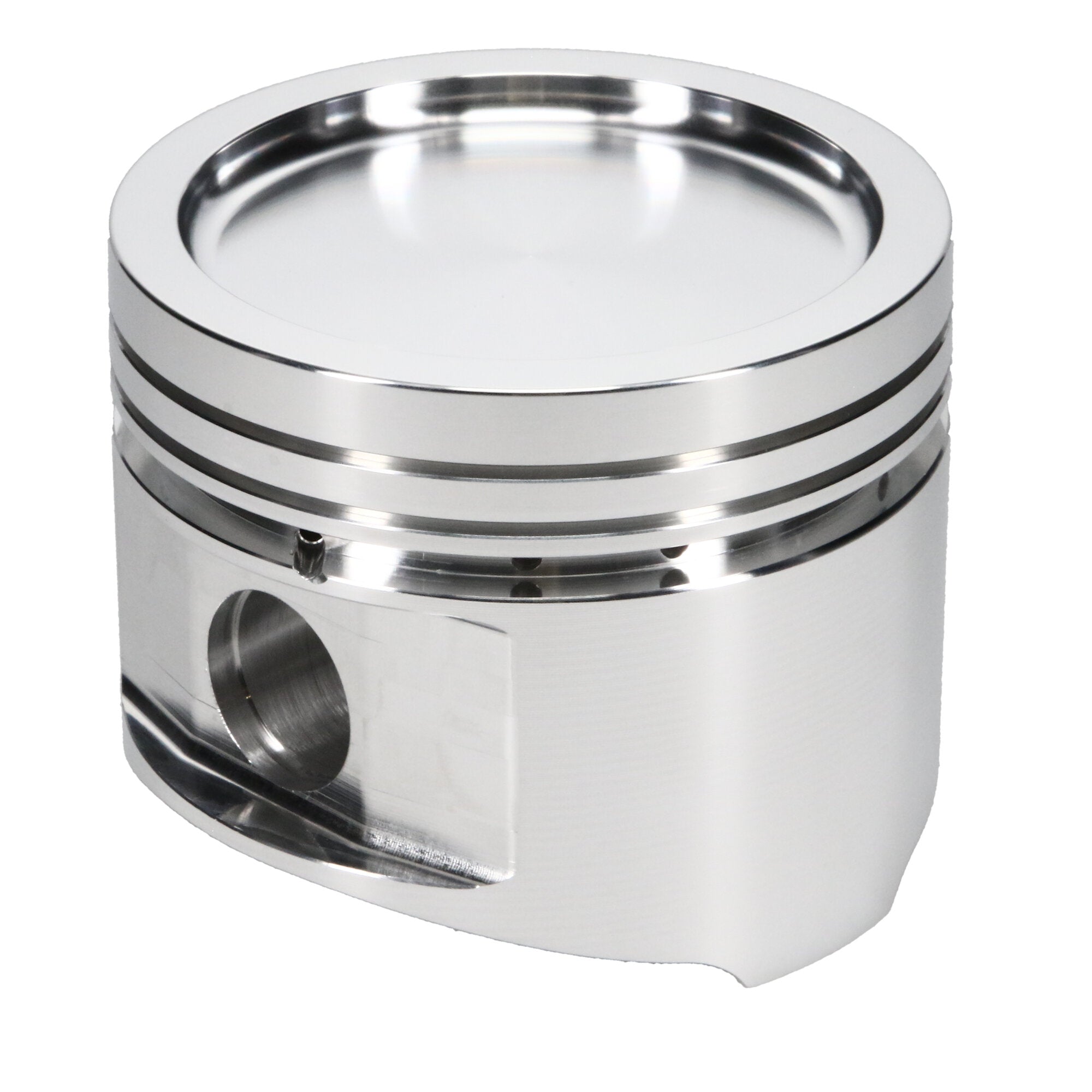

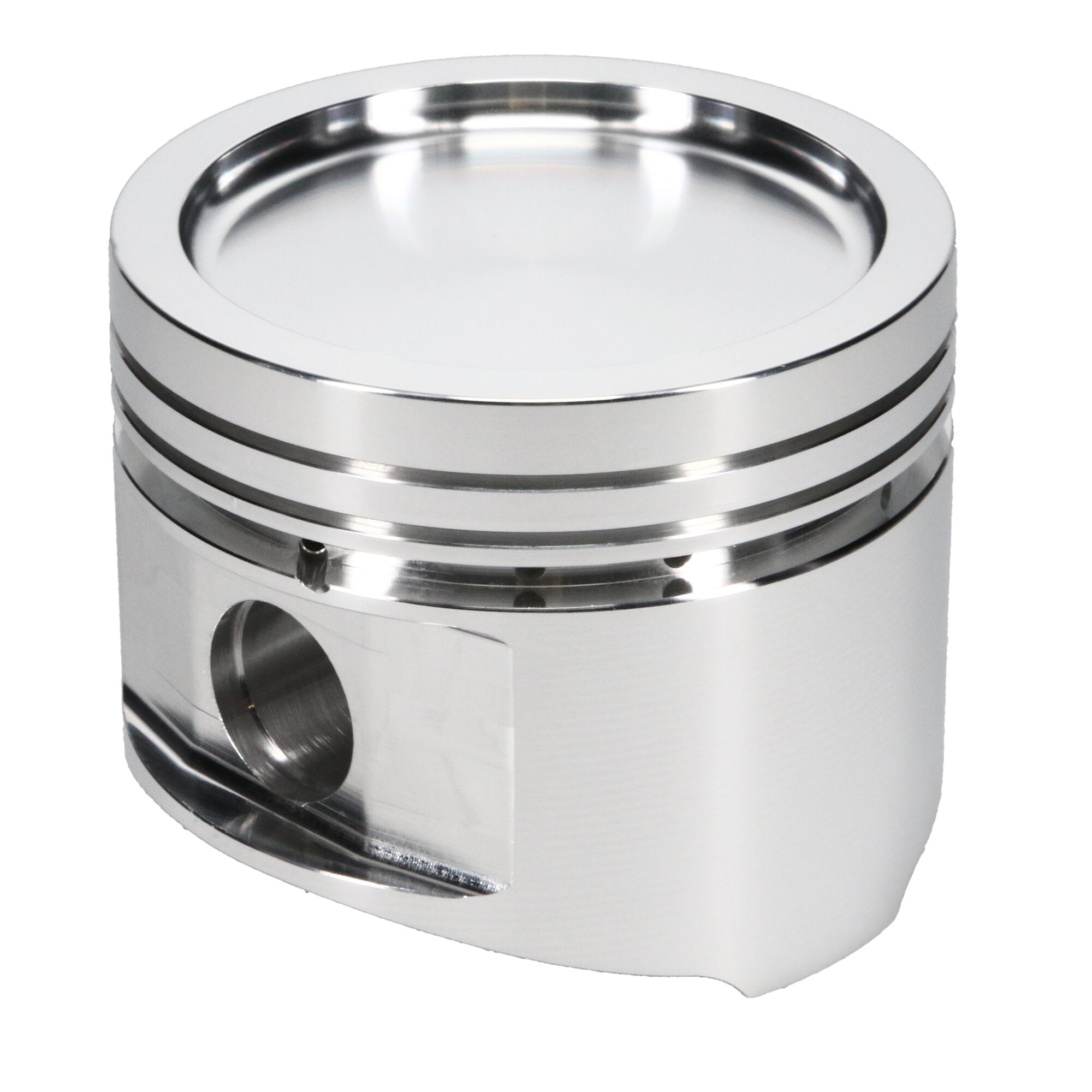

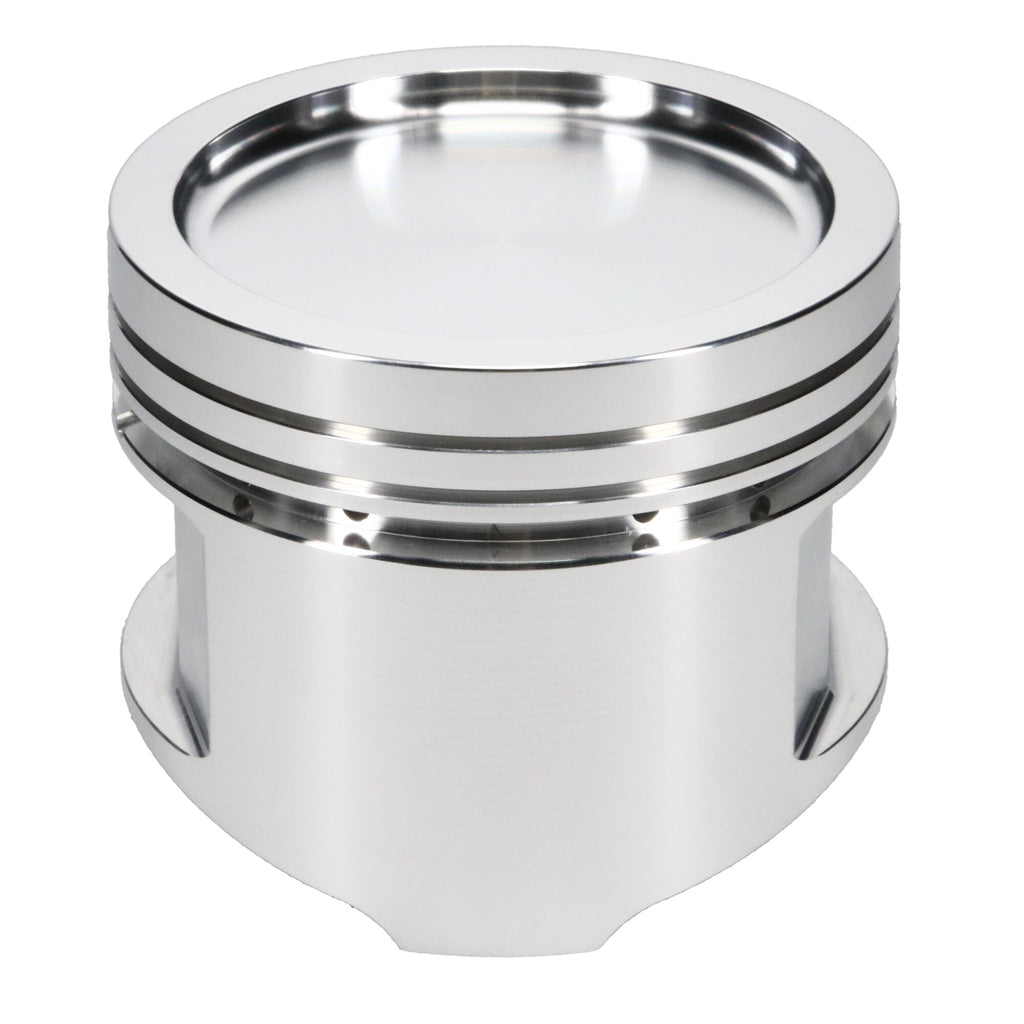

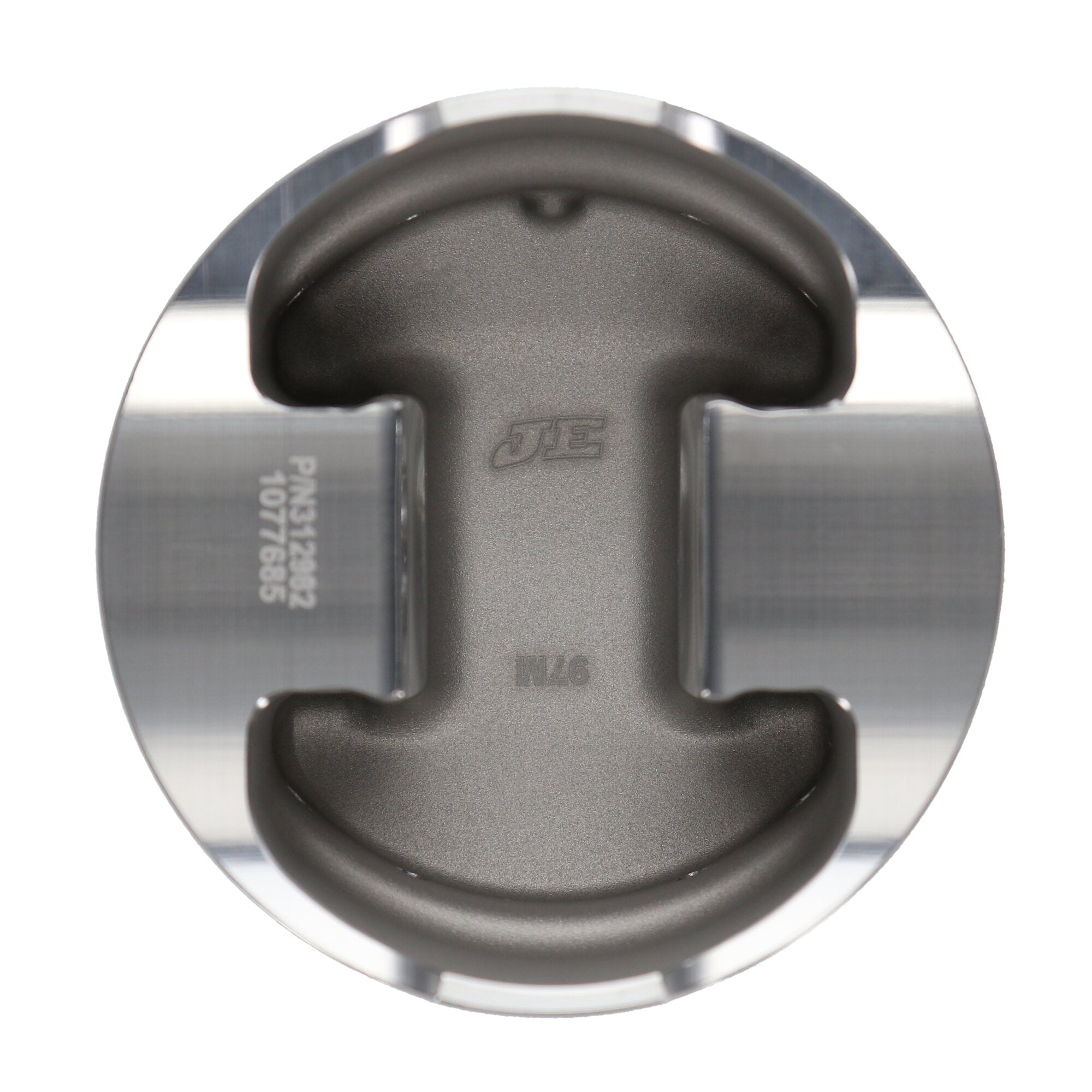

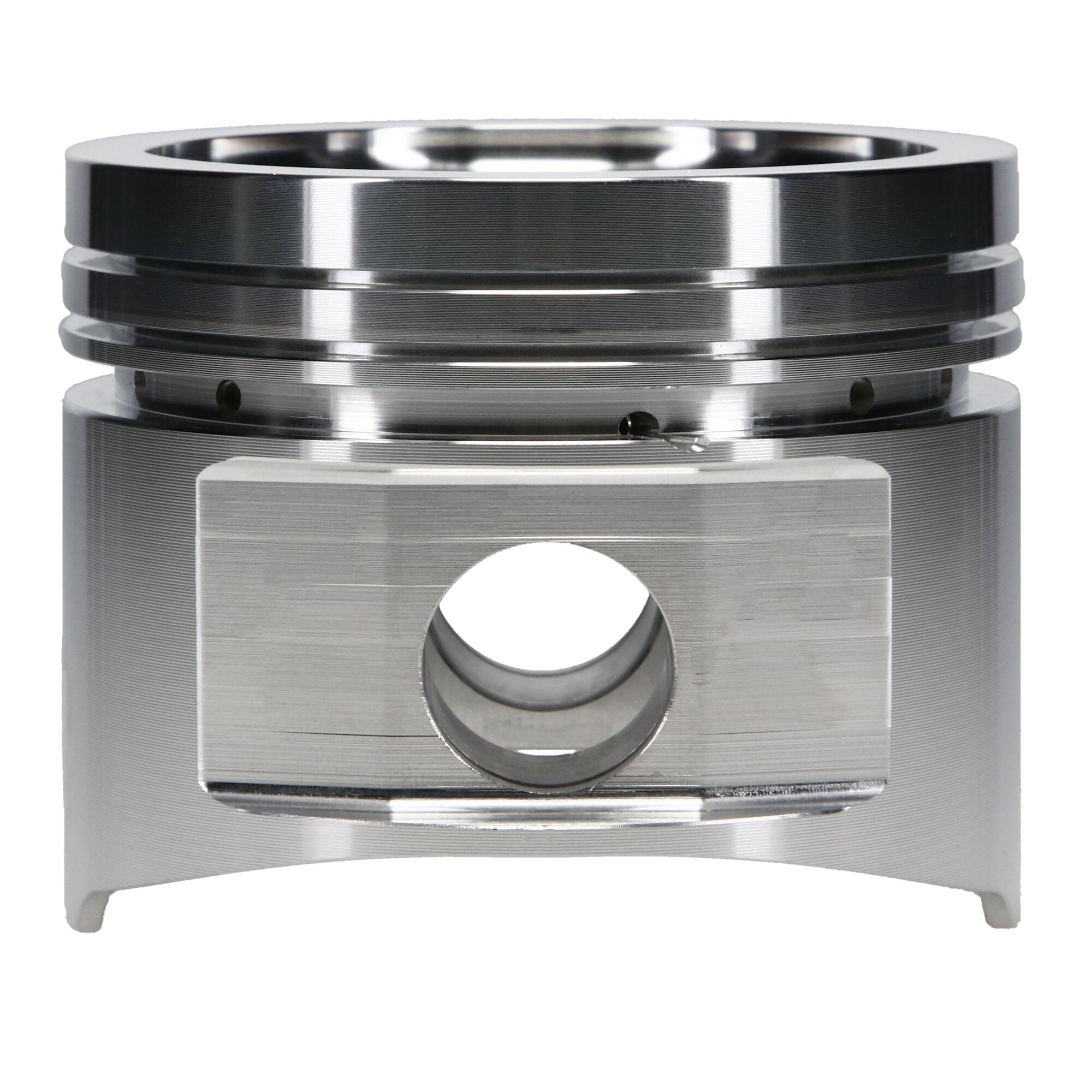

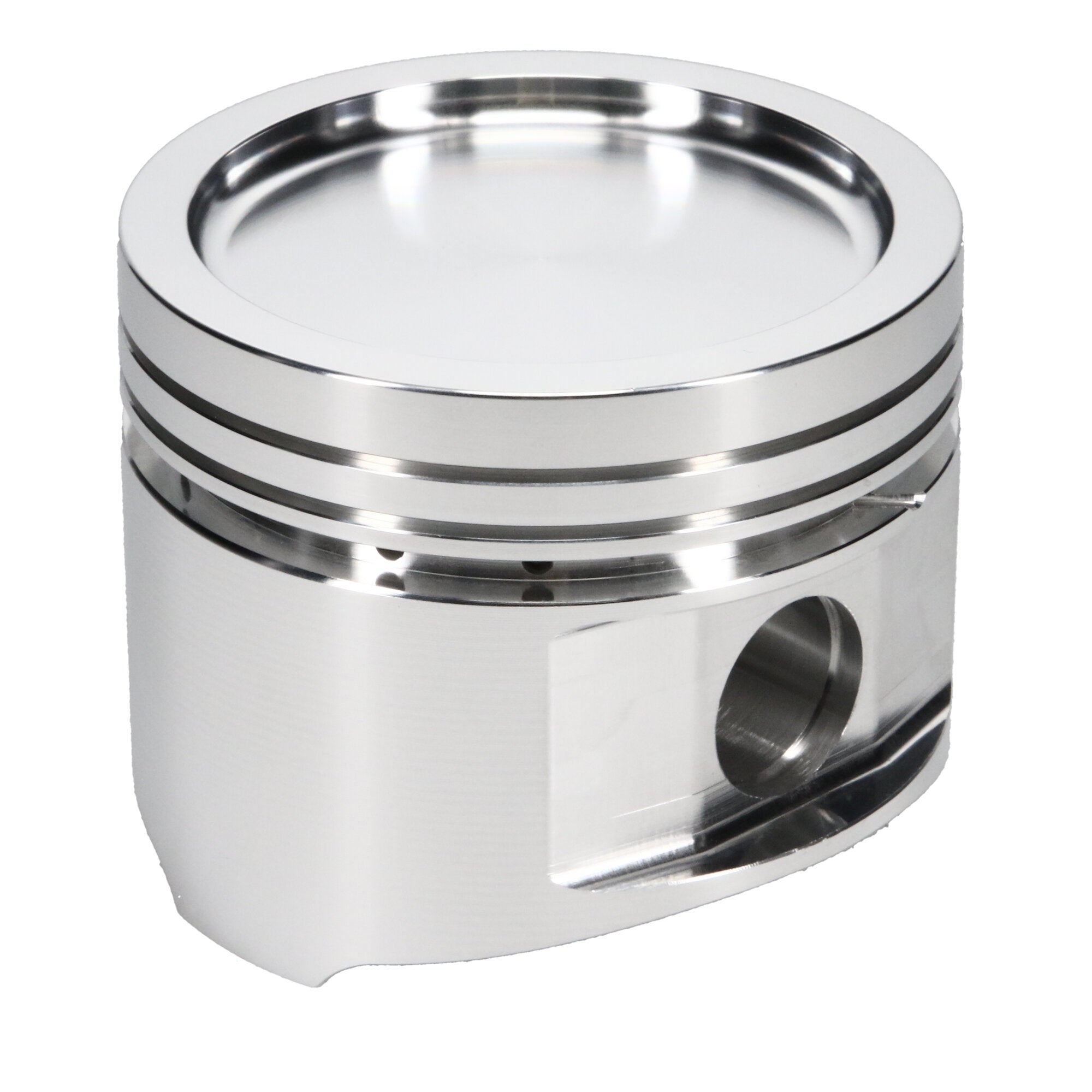

Piston Set, 2618, Inv Dome/Dish, 3.810 Bore, 1.850 CD, 0.940 Pin, Set of 6. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Buick, Grand National, 3.810 in. Bore, 1.850 CD, Inverted Dome/Dish, 6 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Buick V6, 3.810 Bore, Dish, Set of 6 |
| Ringset Included |
No |
| Compression Height |
1.850 |
| Piston Head Type |
Dish |
| Engine - Web |
Grand National |
| Title |
JE Pistons - Buick, Grand National, 3.810 in. Bore, Piston Kit |
| Piston Quantity |
6 |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.160 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Average Weight |
536 |
| Piston Pin Material |
5115 |
| Title - Web |
JE Pistons Buick Grand National Piston Kit - 3.810 in. Bore - 1.850 in. CH, -28.60 CC |
| Cylinder Head |
GRAND NATIONAL |
| Piston Volume |
-28.60 |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Product Market |
Domestic |
| Bore Diameter |
3.810 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Industry |
Automotive |
| Oil Ring Thickness |
0.188 |
| Make |
BUICK |
| Forging Type |
Round |
| Out of Stock Message |
Call for Availability |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.940 |
| Wrist Pin Wall Thickness |
0.160 |
| Wrist Pin Outer Diameter |
0.940 |
| Ring Set Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
927-042-CS |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
J10006-3810-5 |
| Product Type |
Engine Piston Kit |
| Add-On |
940-2750-16-51S |
| Engine |
Grand National |
| Piston Pin Length |
2.750 |
| Make - Web |
Buick |
| Wrist Pin Length |
2.750 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
15.0000 |
