As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Renault F7R CLIO |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

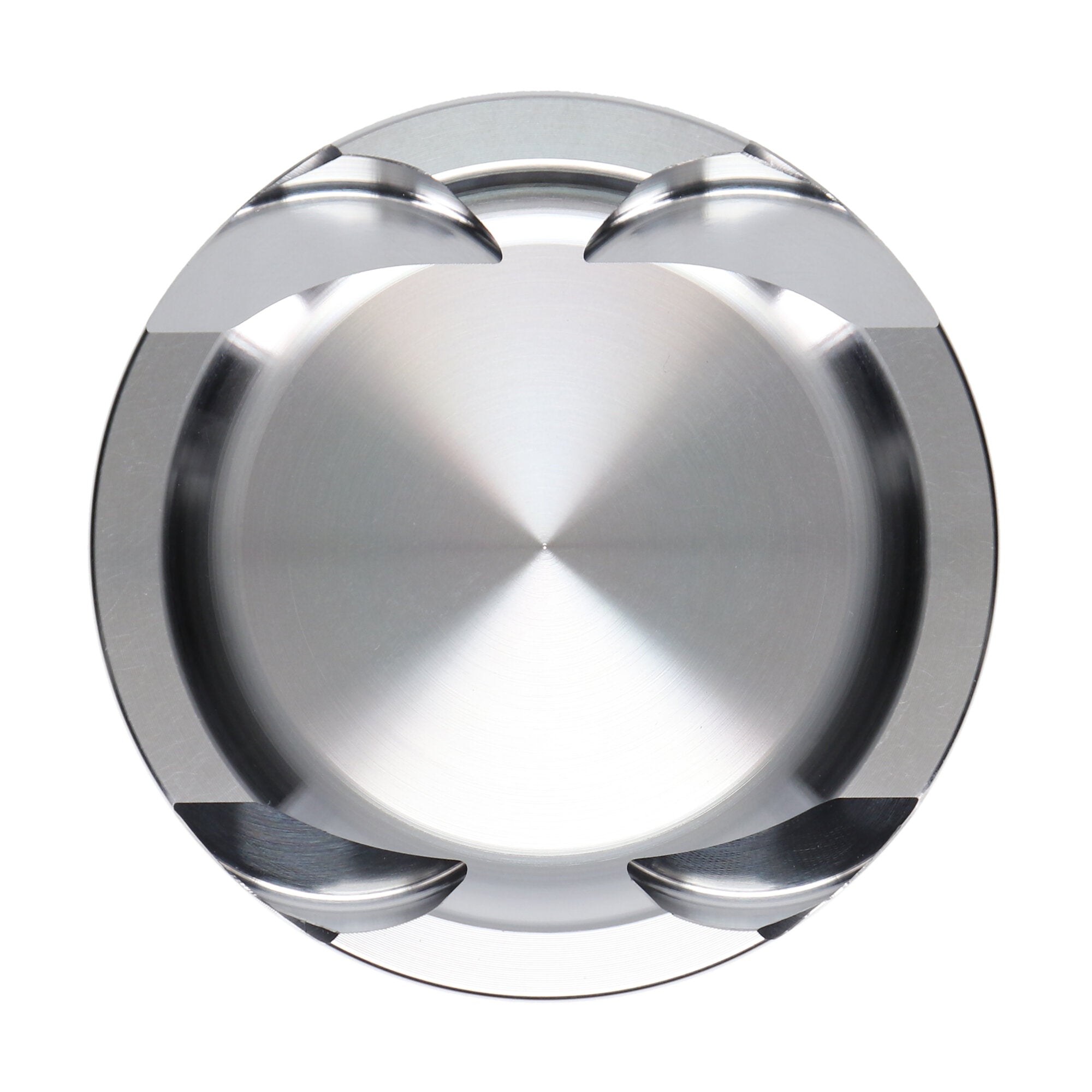

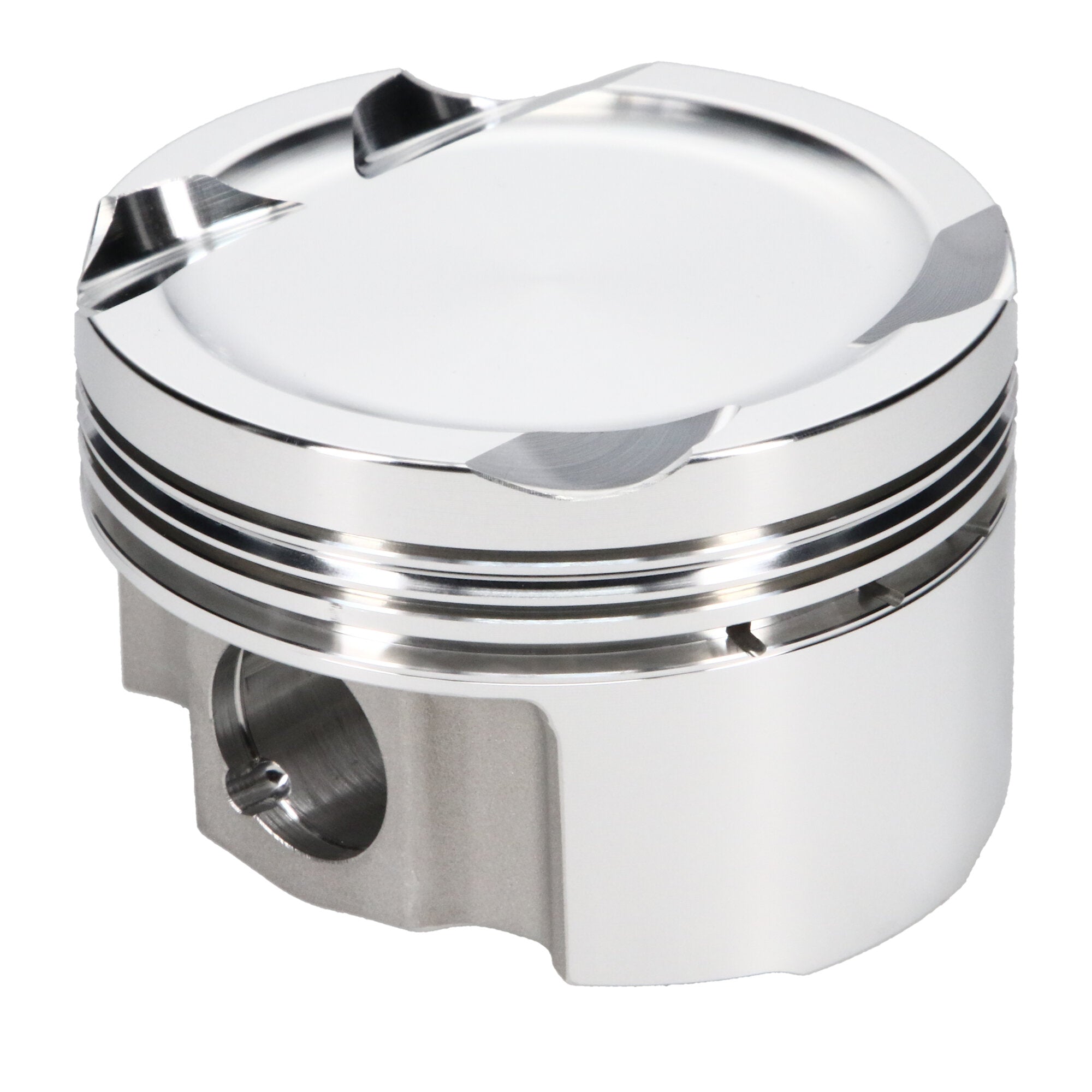

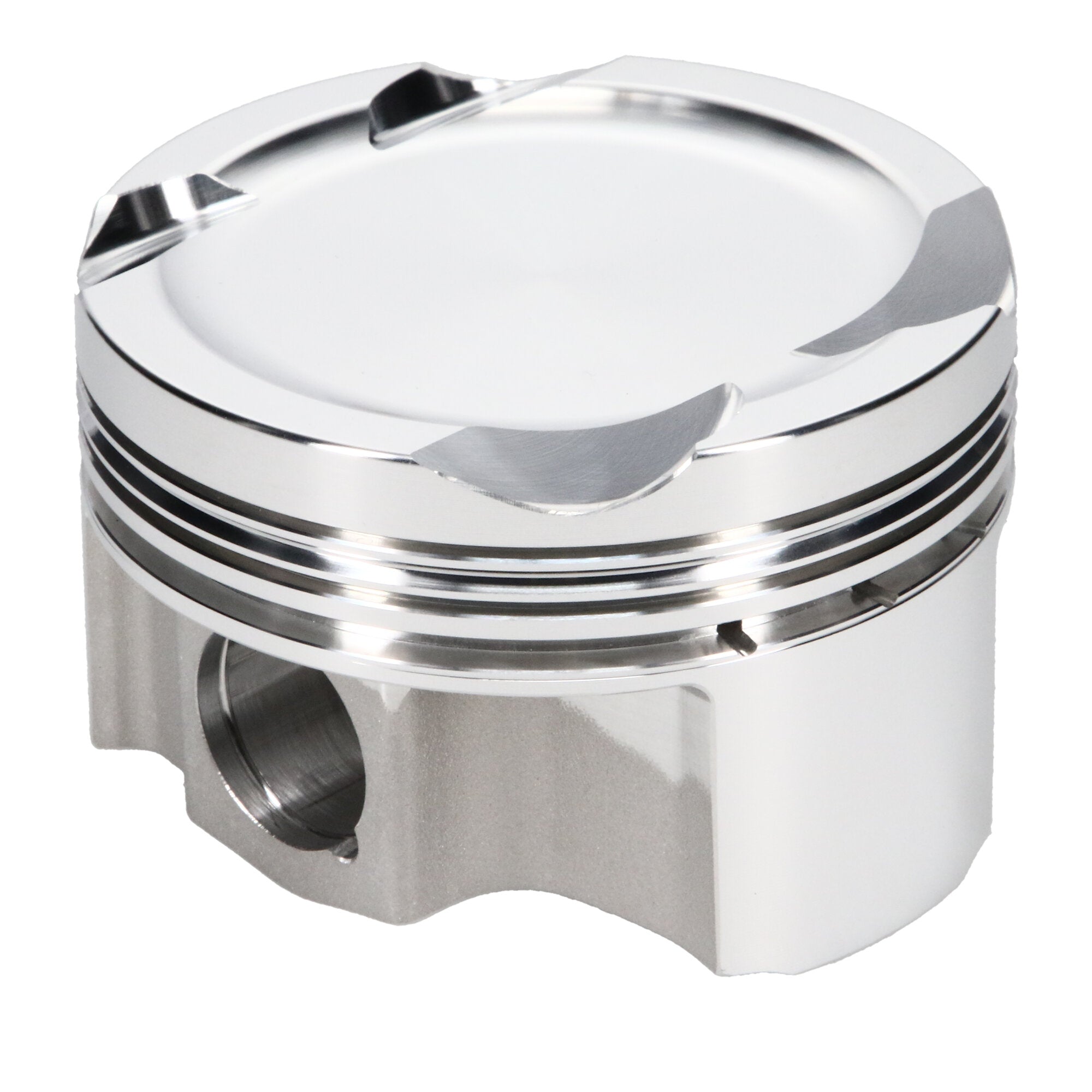

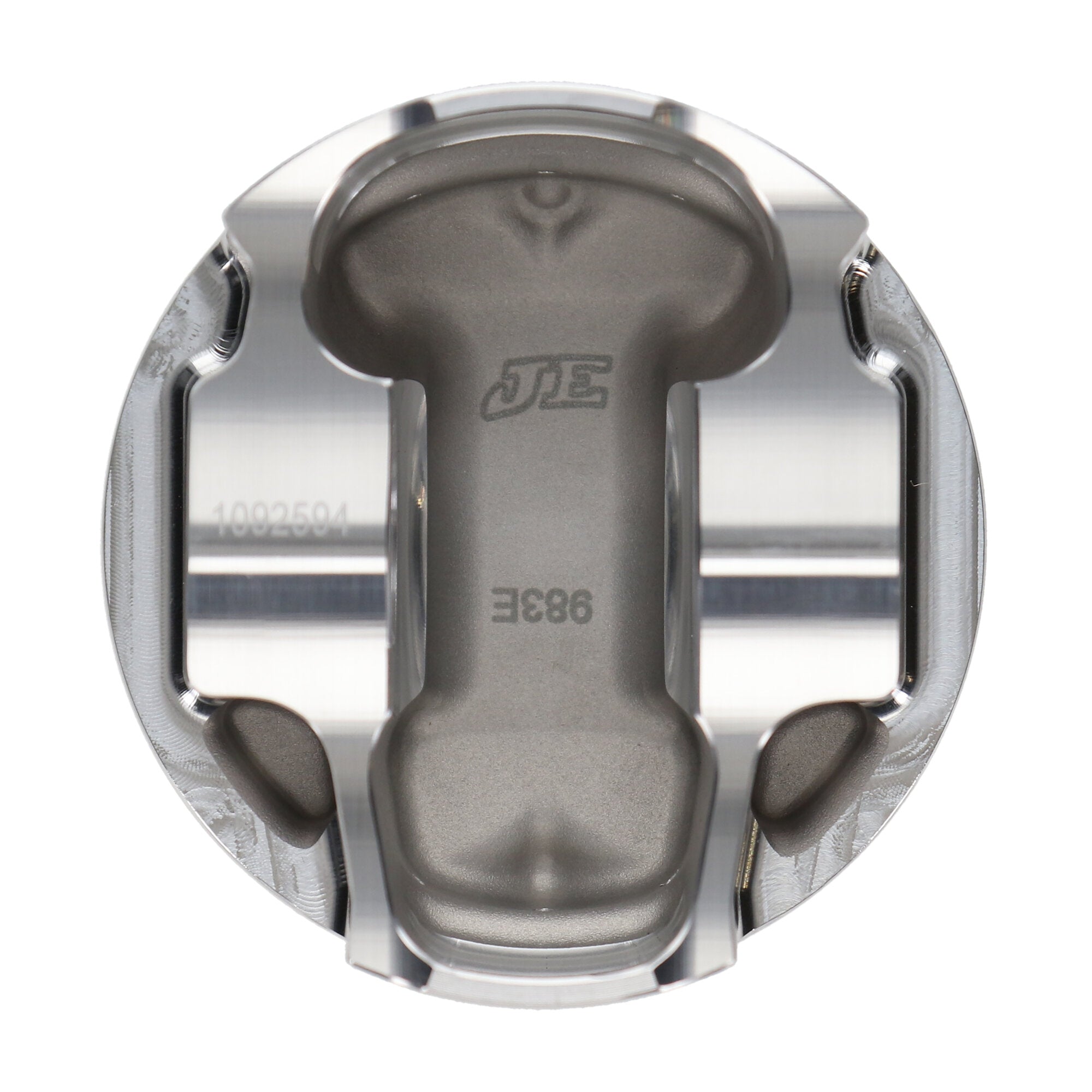

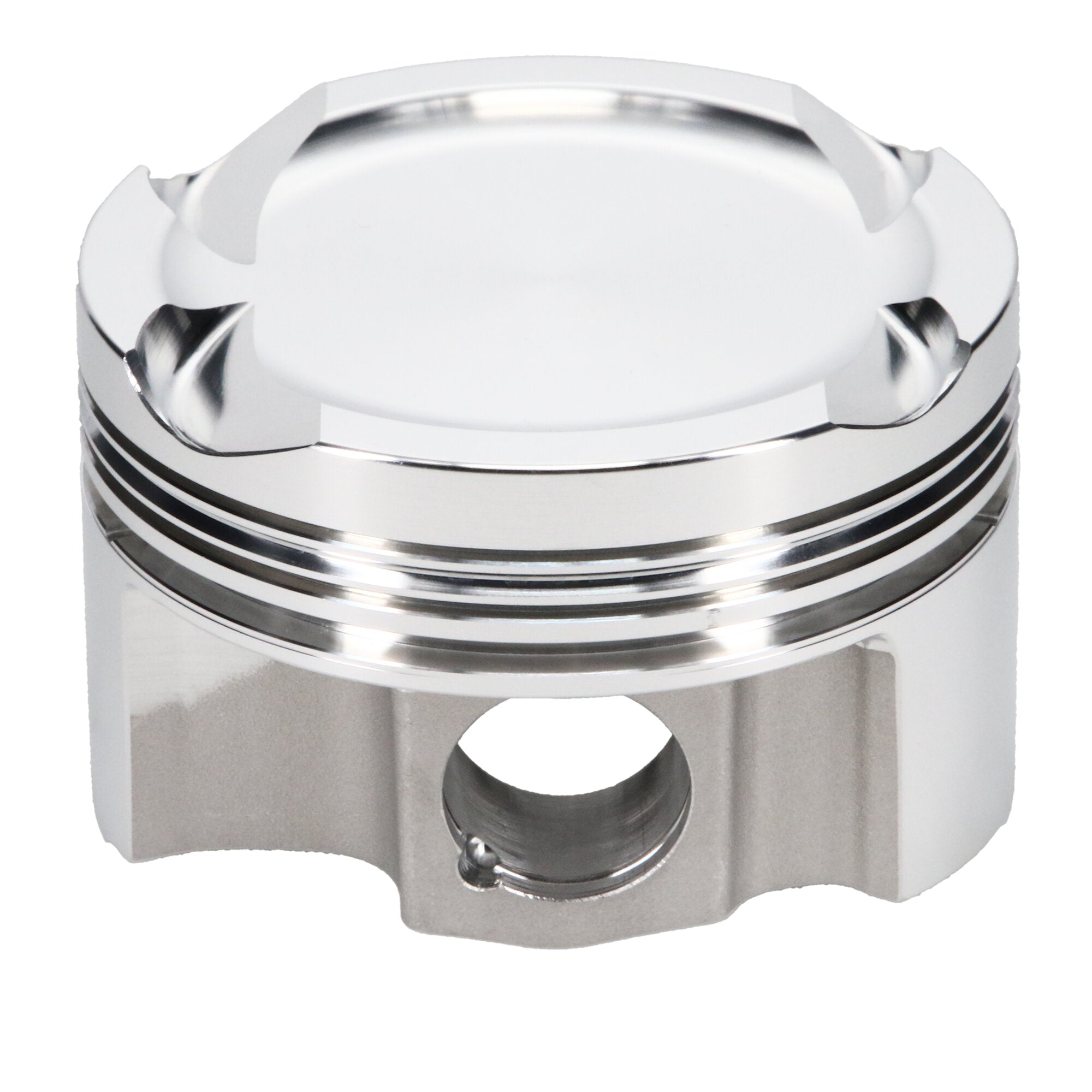

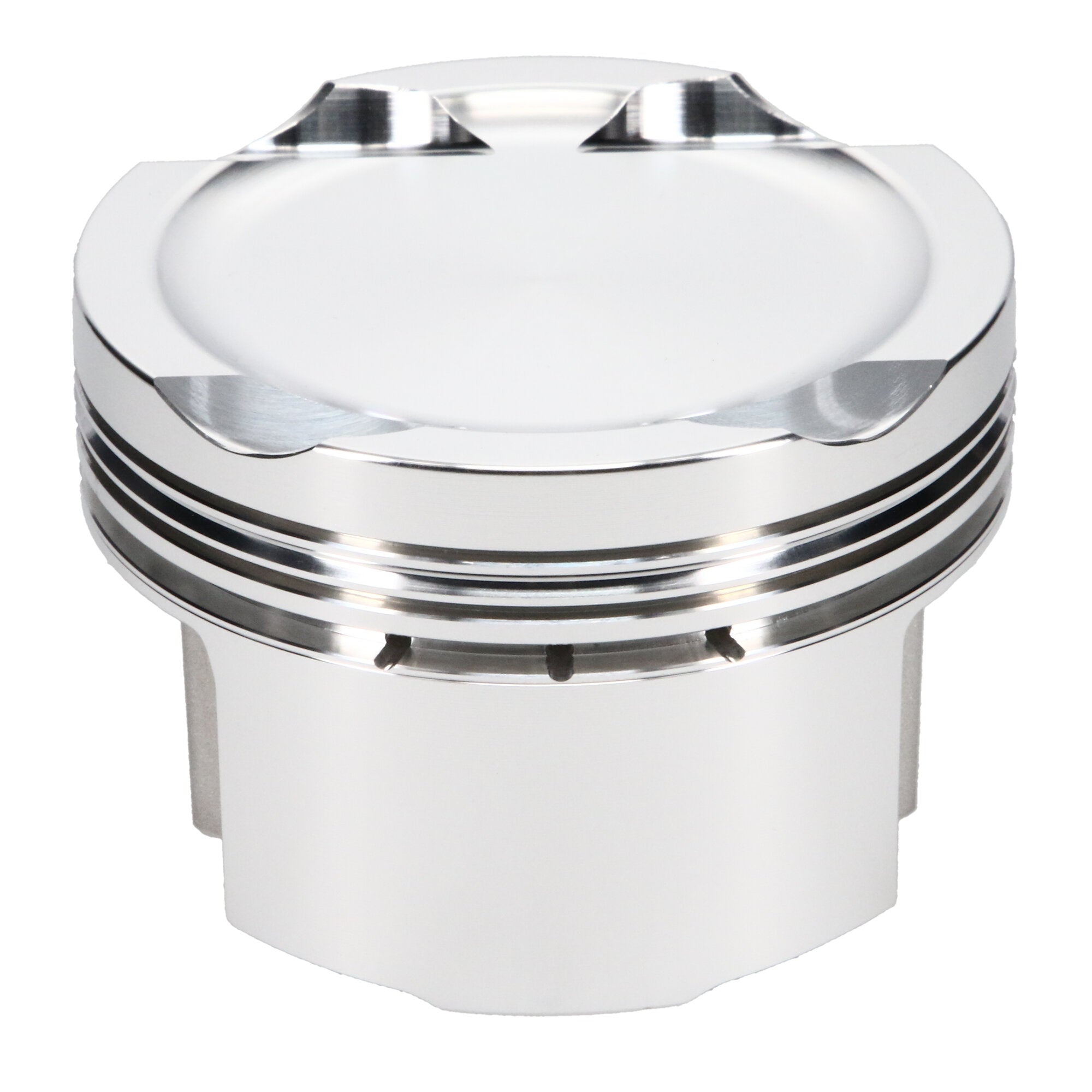

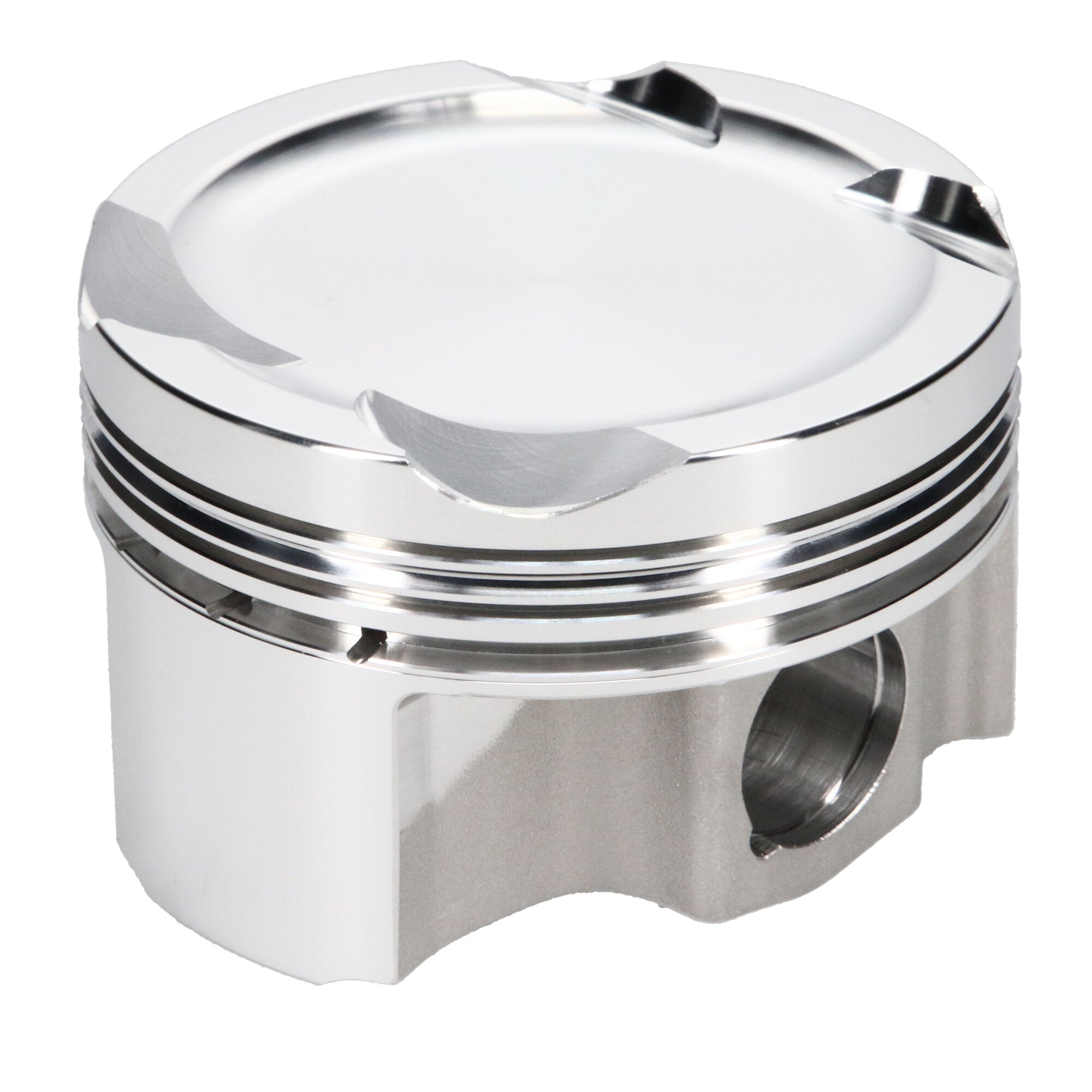

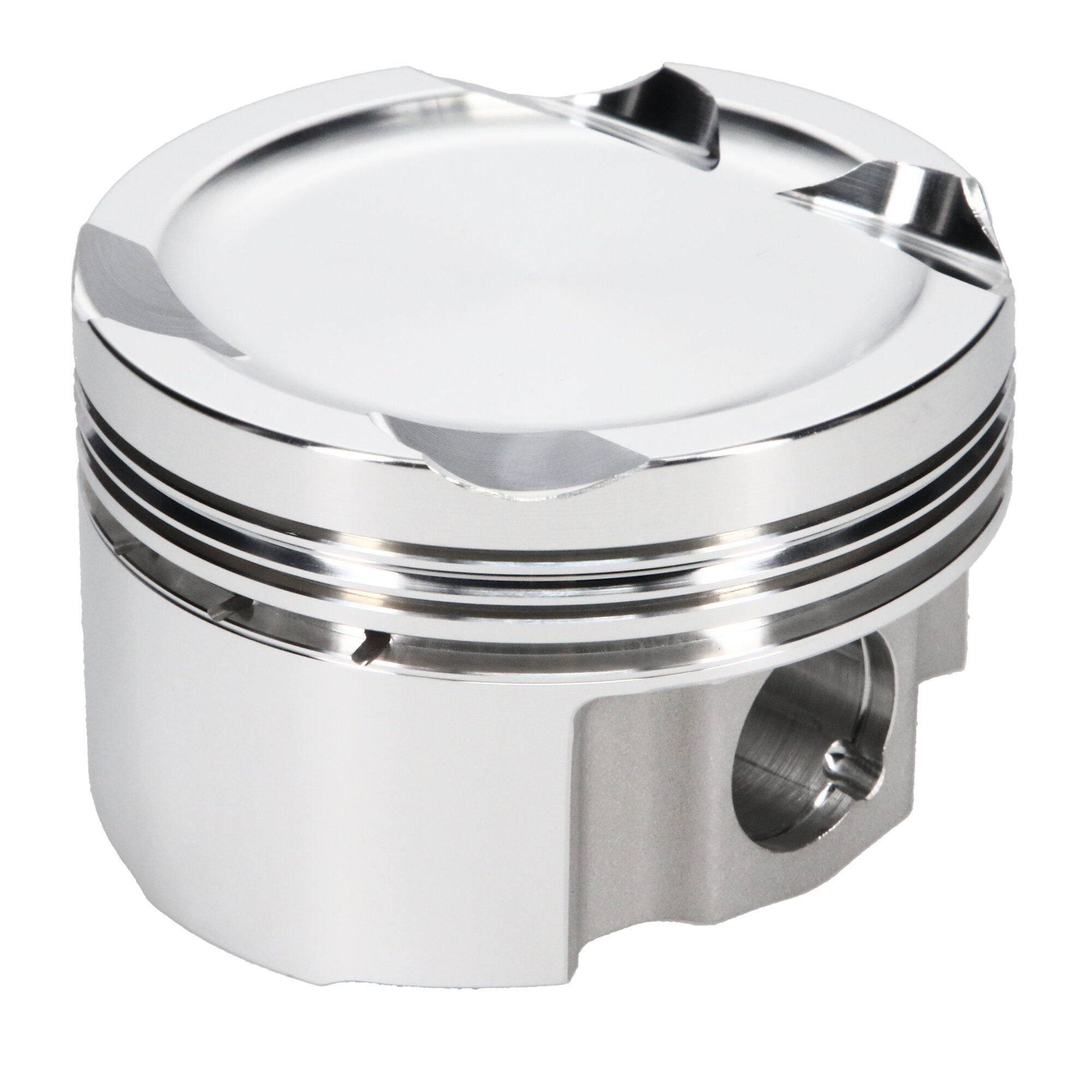

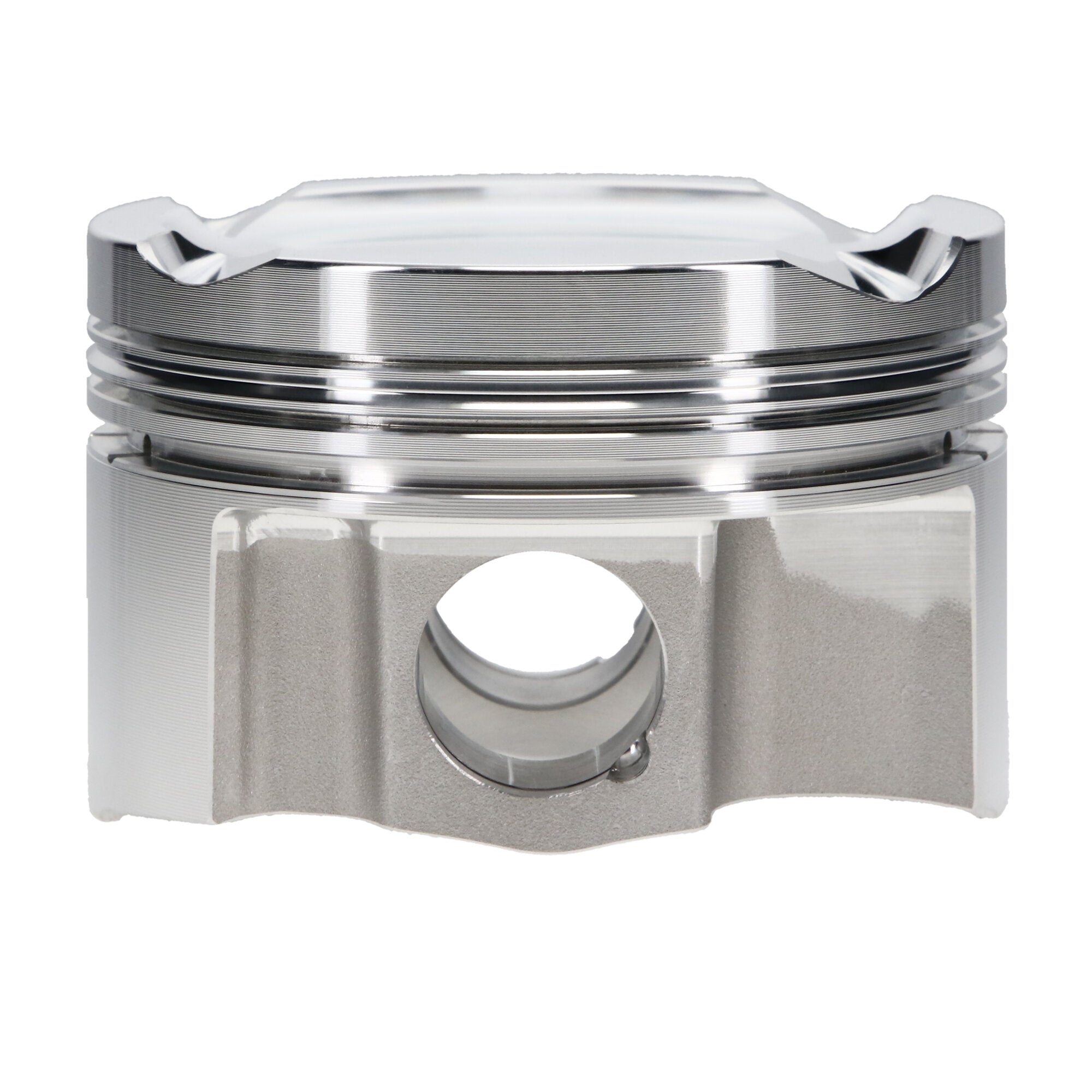

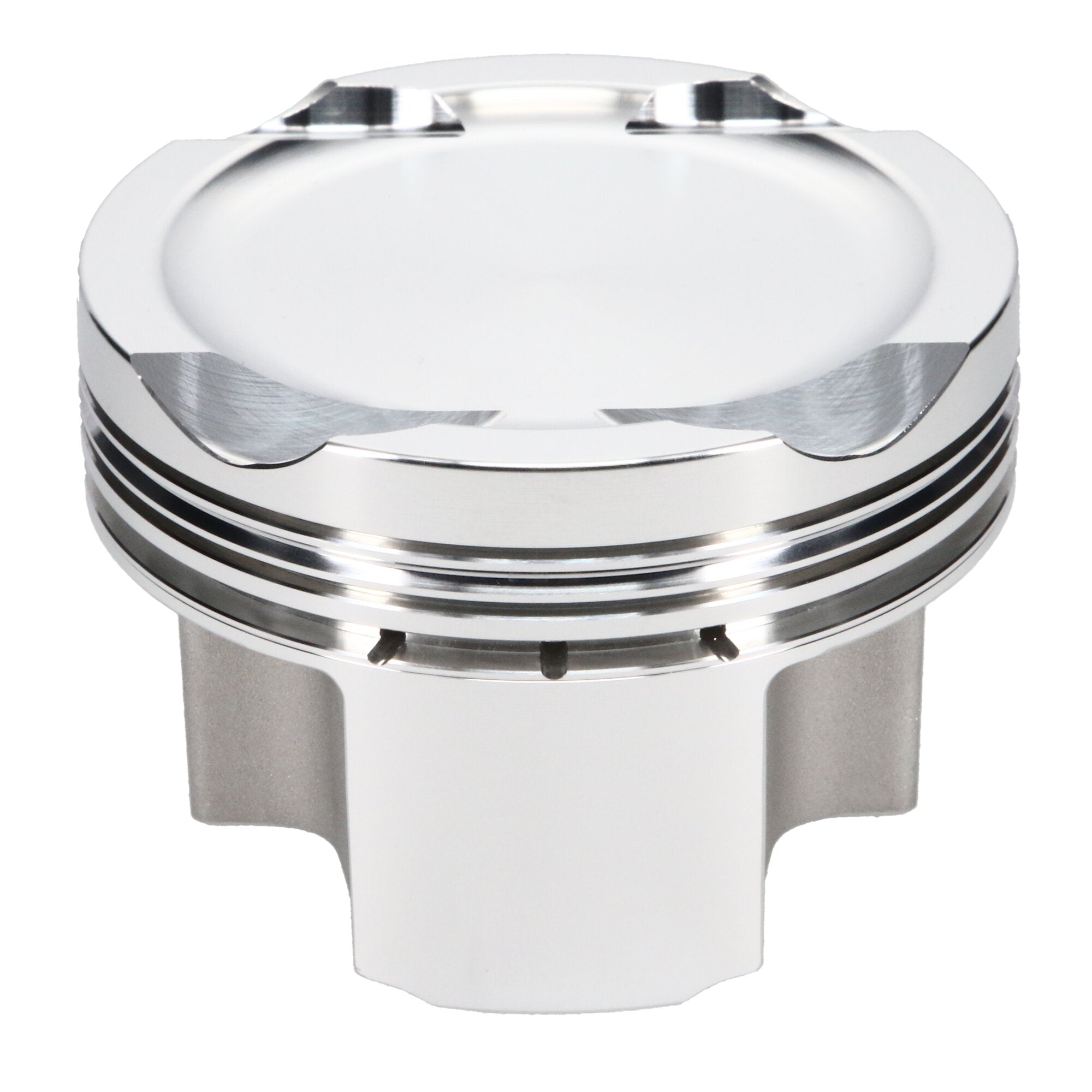

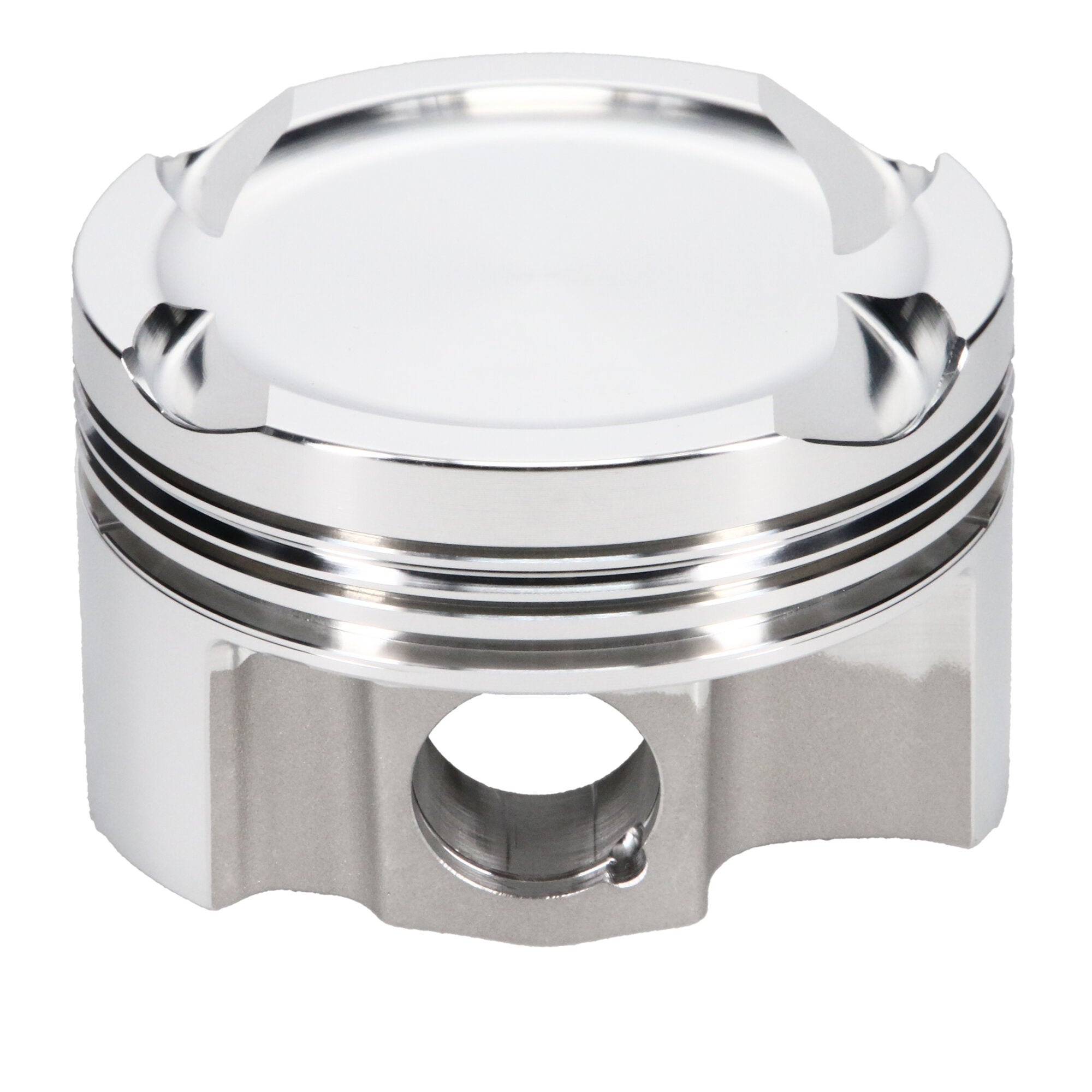

Piston Set, 2618, Inv Dome/Dish, 3.256 Bore, 1.208 CD, 0.827 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Renault, F7R, 3.256 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Renault F7R CLIO, 82.70 Bore, Dish, Set of 4 |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
F7R |
| Add-On |
827-050-MW |
| Add-On |
JG1001-3268 |
| Add-On |
827-2250-15-51C |
| Piston Material |
2618 |
| Industry |
Automotive |
| Make - Web |
Renault |
| Title - Web |
JE Pistons Renault F7R Piston Kit - 82.70 mm Bore - 1.208 in. CH, -15.00 CC |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0480 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Length |
2.250 |
| Bore Diameter |
82.70 |
| Forging Type |
FSR |
| Engine |
F7R |
| Ringset Included |
Yes |
| Oil Ring Thickness |
0.111 |
| Make |
RENAULT |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title |
JE Pistons - Renault, F7R, 82.70 mm Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Product Market |
European |
| Piston Pin Wall Thickness |
0.150 |
| Piston Quantity |
4 |
| Piston Head Type |
Dish |
| Compression Height |
1.208 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Volume |
-15.00 |
| Piston Series |
JE Pistons |
| Piston Average Weight |
290 |
| Piston Pin Outside Diameter |
0.827 |
| Engine Type |
ICE |
| Engine - Web |
F7R |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.827 |
| Ring Set Included |
Yes |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
