As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Renault F7R CLIO |
| Description_DEF |
Engine Piston |
| Description_DES |

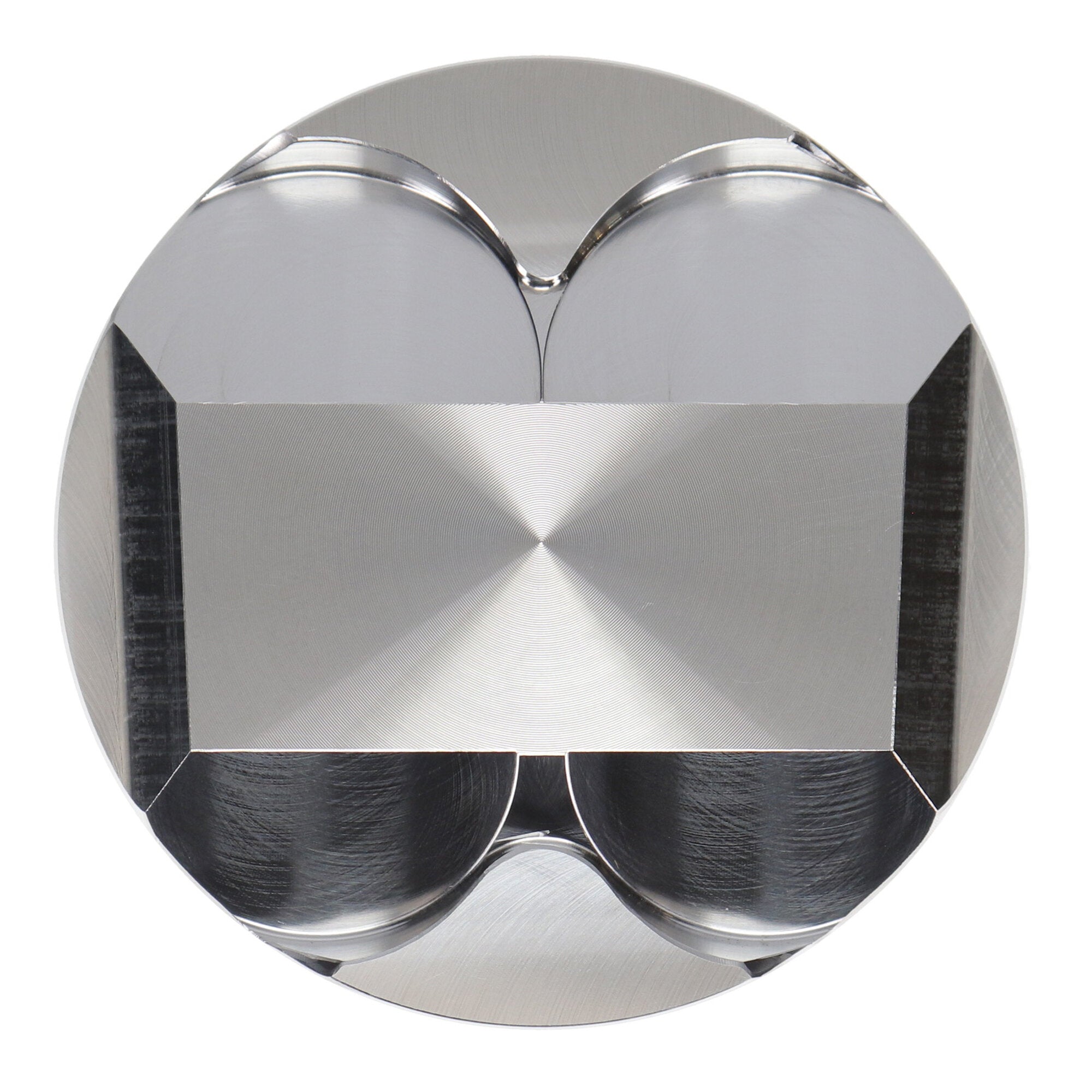

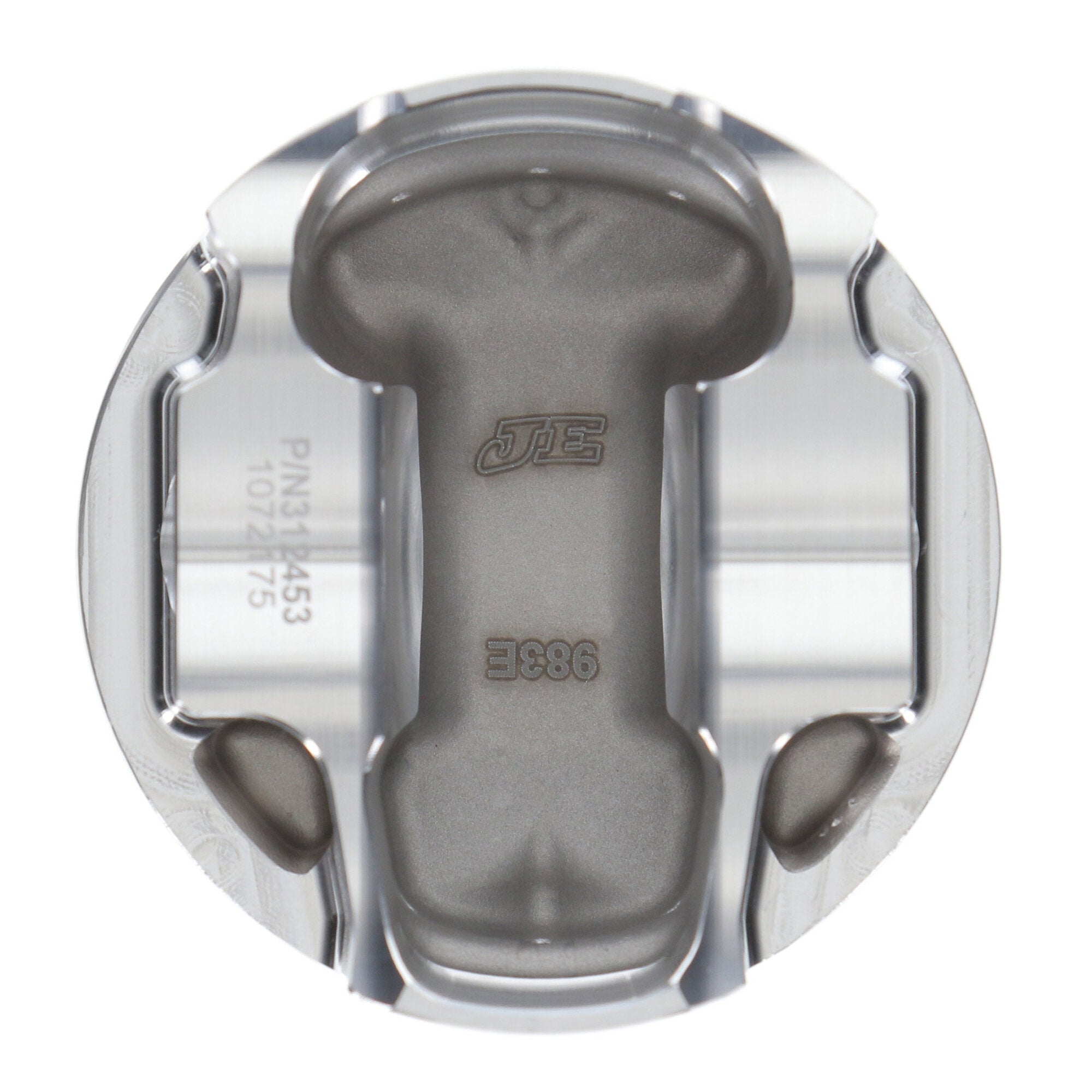

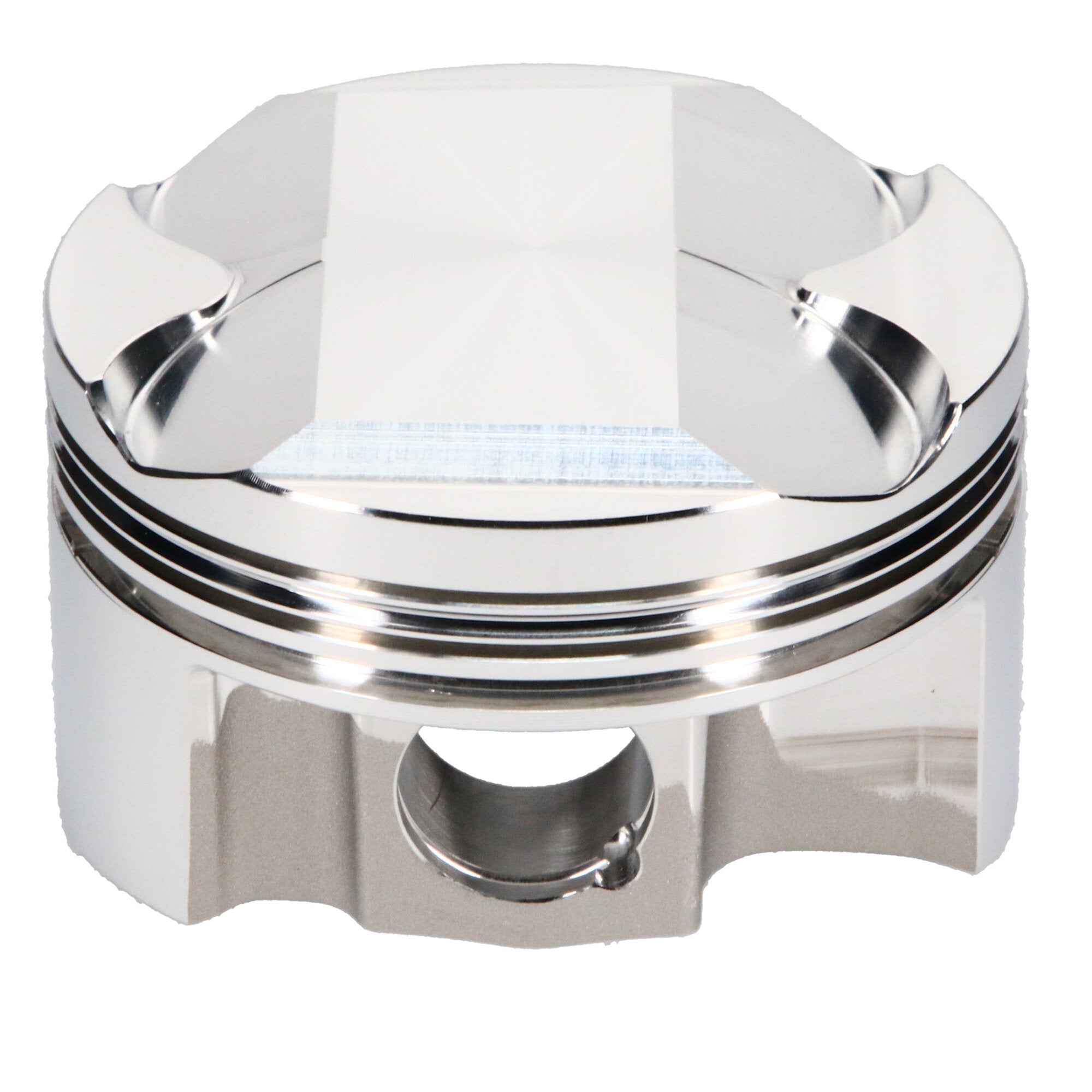

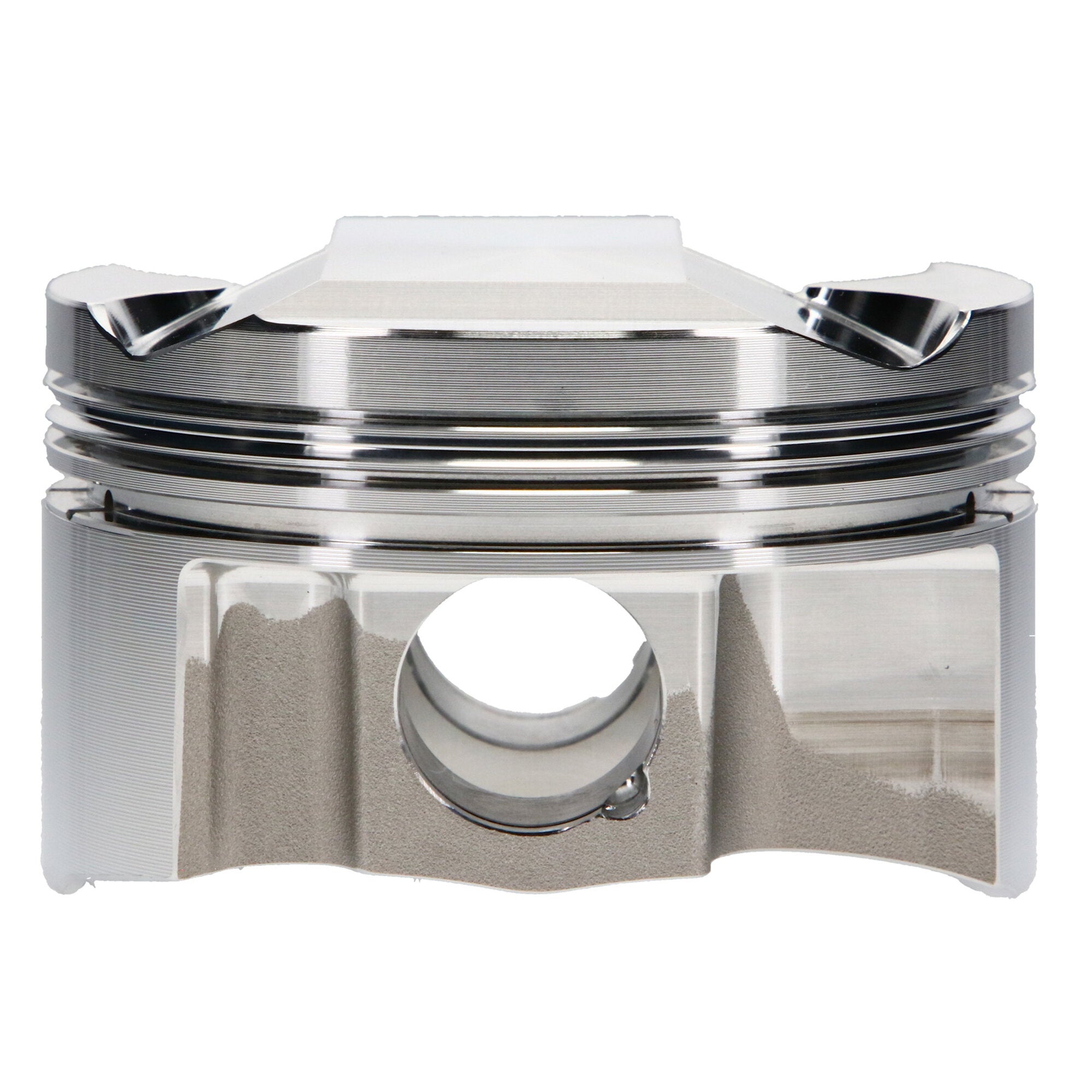

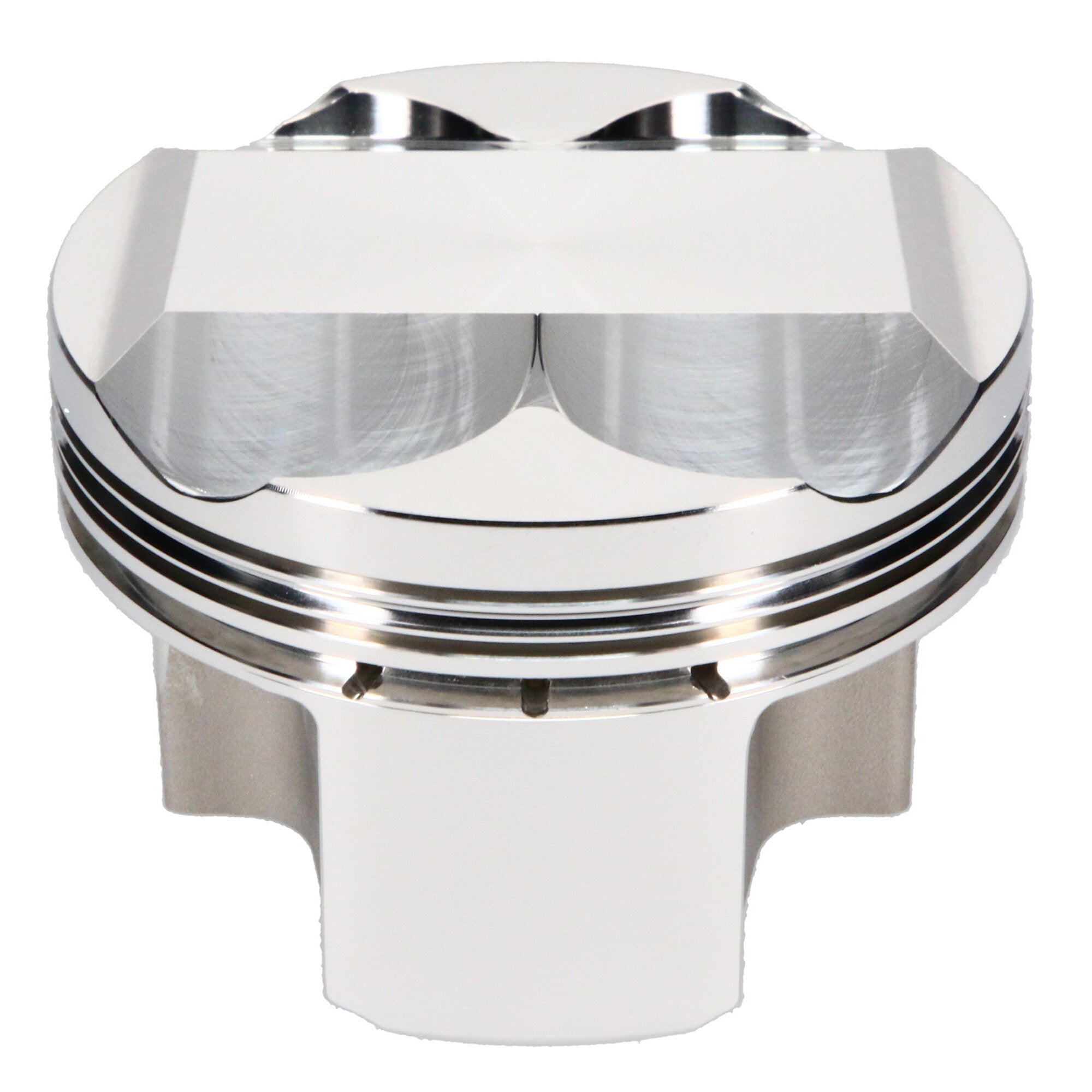

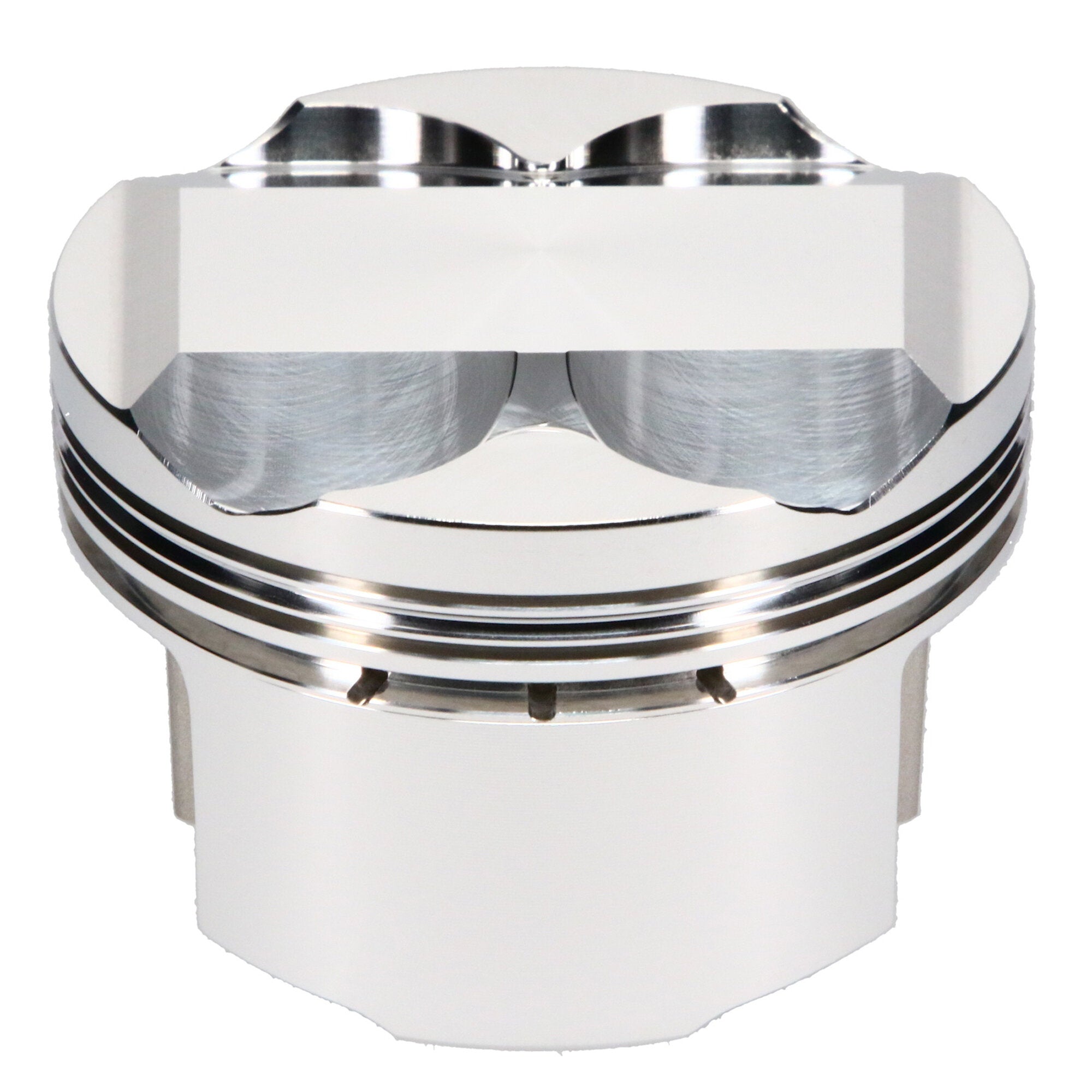

Piston Single, 2618, Dome, 3.307 Bore, 0.984 CD, 0.708 Pin, Set of 1. |
| Description_EXT |
JE, Renault, F7R, 3.307 in. Bore, 12.70:1, Dome, Single Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Renault F7R CLIO, 84.00 Bore, Dome, Set of 1 |
| Description_SHO |
Piston |
| Add-On |
708-2250-12-51C |
| Add-On |
JG1001-3307 |
| Add-On |
708-050-MW |
| Bore Diameter |
84.00 |
| Cylinder Head |
F7R |
| Industry |
Automotive |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>European |
| Make |
RENAULT |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Compression Height |
0.984 |
| Engine |
F7R |
| Engine - Web |
F7R |
| Piston Series |
JE Pistons |
| Piston Pin Wall Thickness |
0.120 |
| Out of Stock Message |
Call for Availability |
| Piston Average Weight |
289 |
| Oil Ring Thickness |
0.111 |
| Piston Quantity |
1 |
| Piston Volume |
11.80 |
| Piston Material |
2618 |
| Piston Pin Material |
5115 |
| Piston Pin Length |
2.250 |
| Piston Pin Outside Diameter |
0.708 |
| Piston Head Type |
Dome |
| Make - Web |
Renault |
| Title |
JE Pistons - Renault, F7R, 84.00 mm Bore, Piston |
| Ringset Included |
Yes |
| Title - Web |
JE Pistons Renault F7R Piston - 84.00 mm Bore - 0.984 in. CH, 11.80 CC |
| Product Type |
Engine Piston |
| Top Compression Ring Thickness |
0.0400 |
| Prop 65 Yes/No |
Yes |
| Product Market |
European |
| Prop 65 (C, R or CR) |
CR |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.120 |
| Wrist Pin Outer Diameter |
0.708 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
