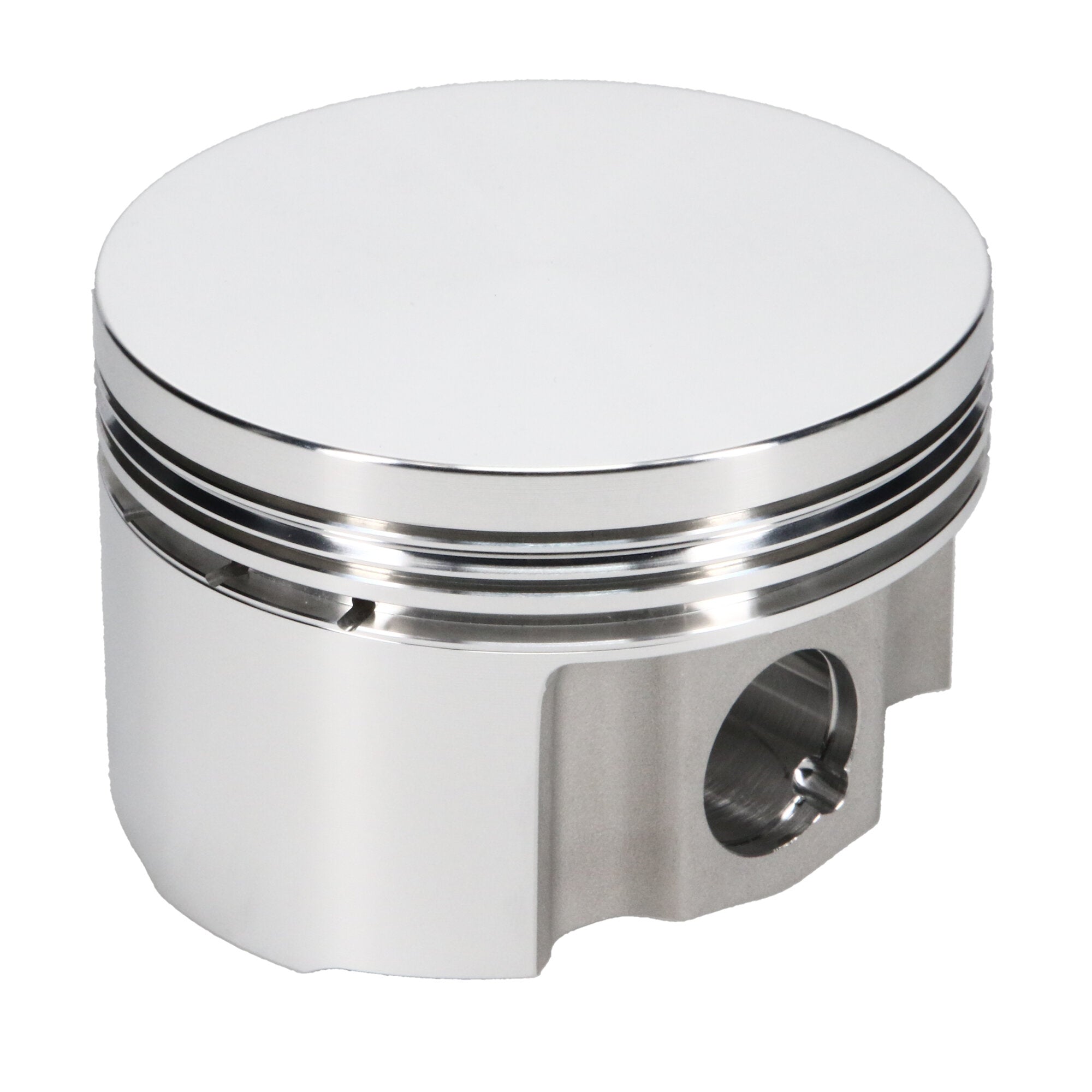

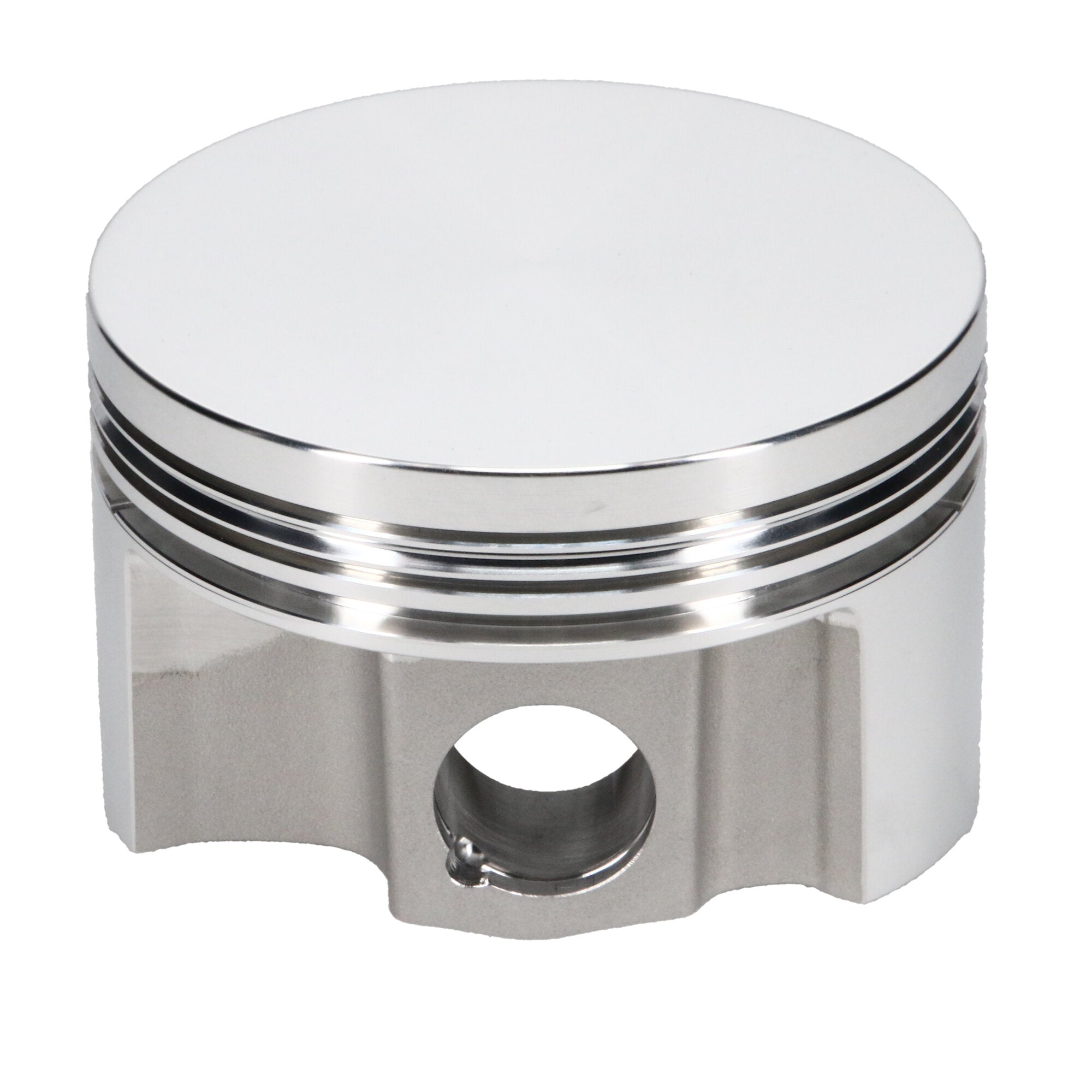

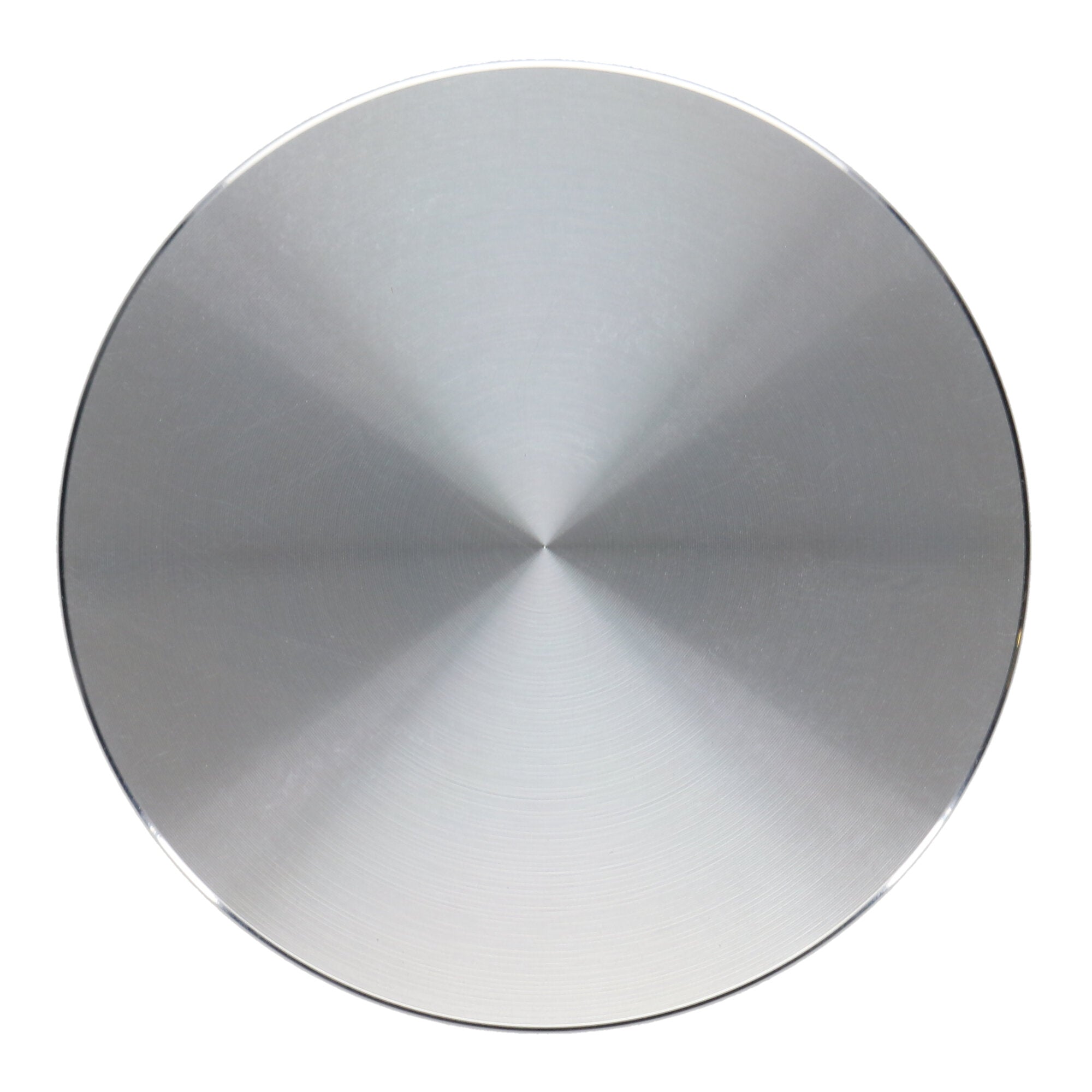

  • JE Pistons 312436S Piston Single, 2618, Flat Top, 3.287 Bore, 1.506 CD, 0.787 Pin, Set of 1.
Sold out
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-3.287-Bore,-1.506-Cd,-0.787-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

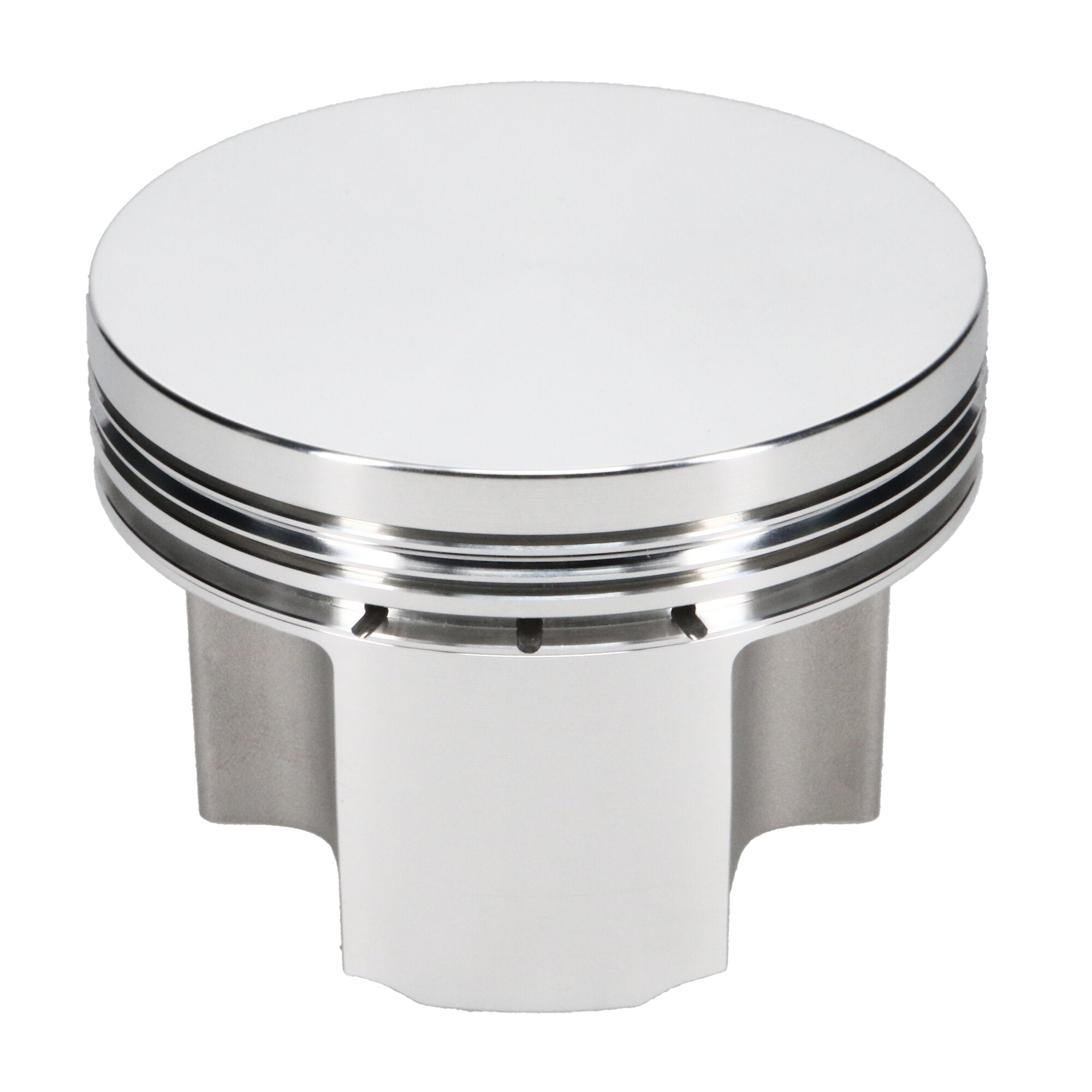

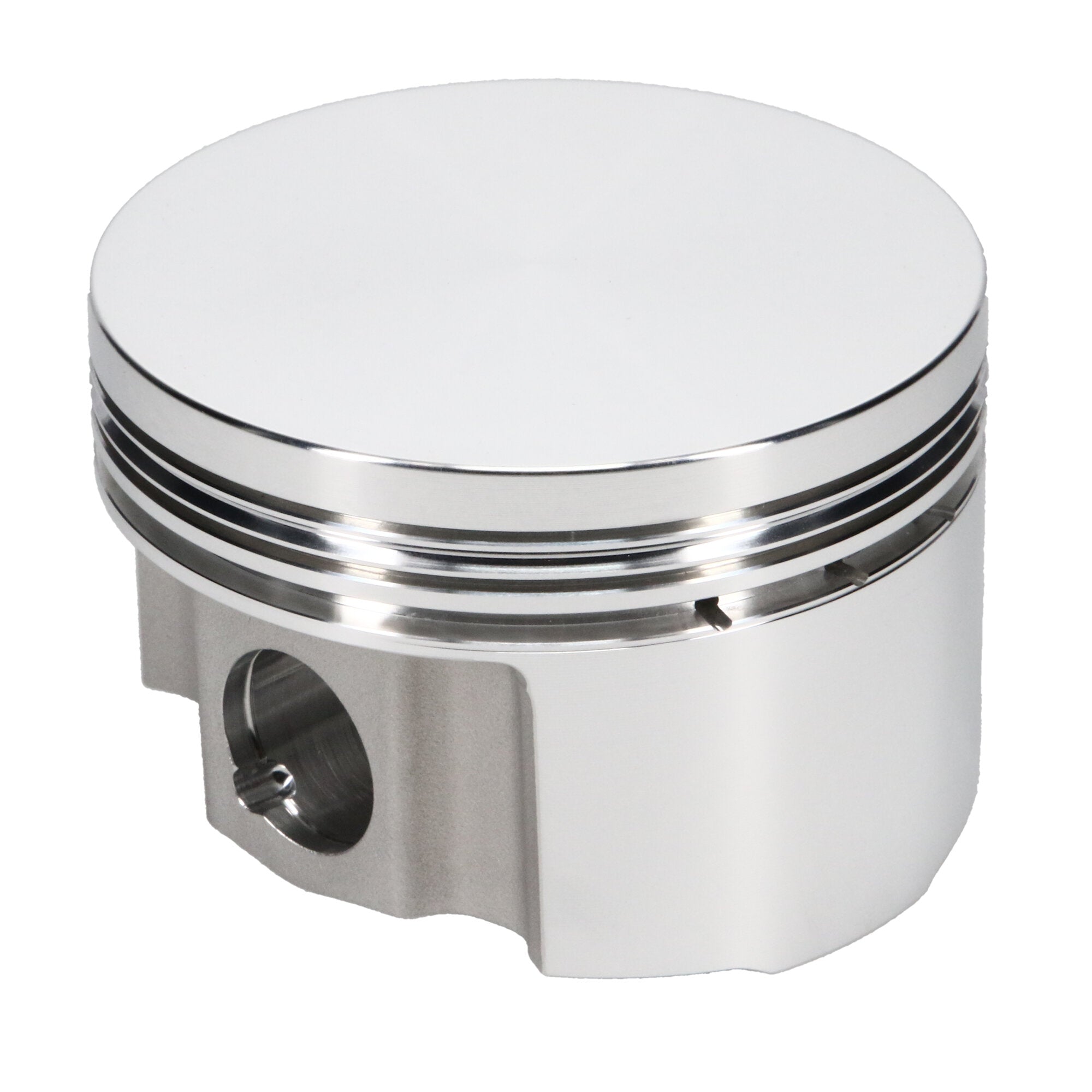

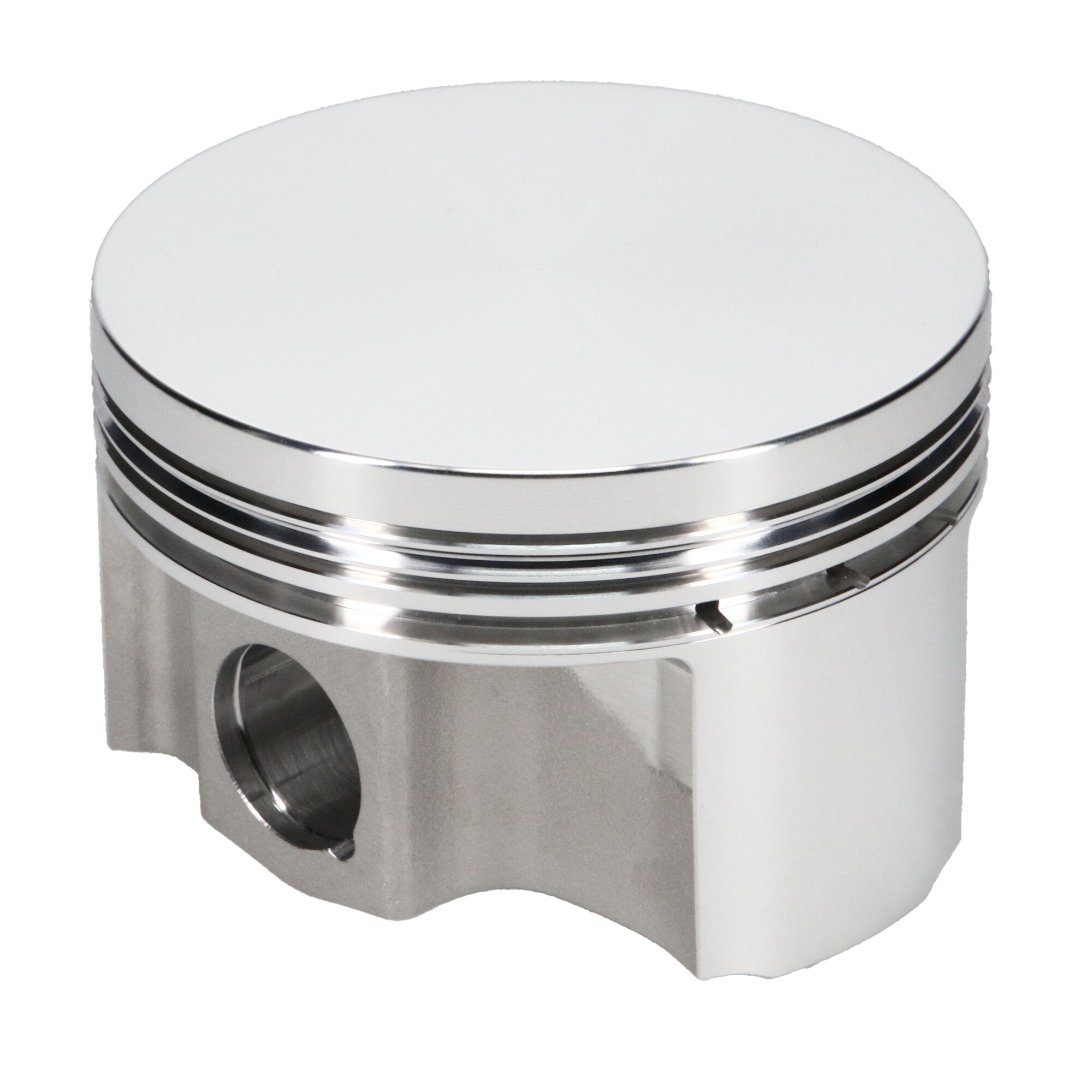

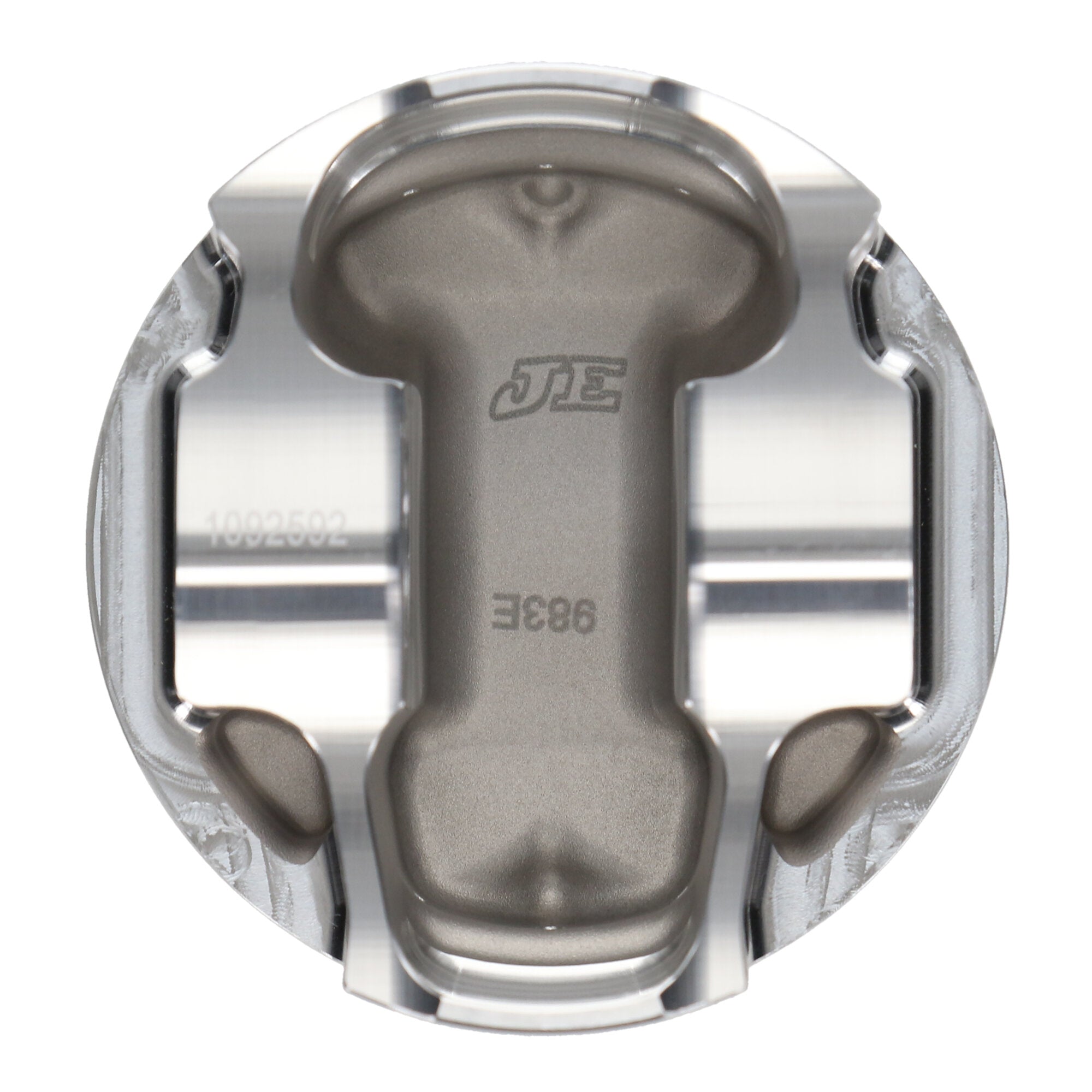

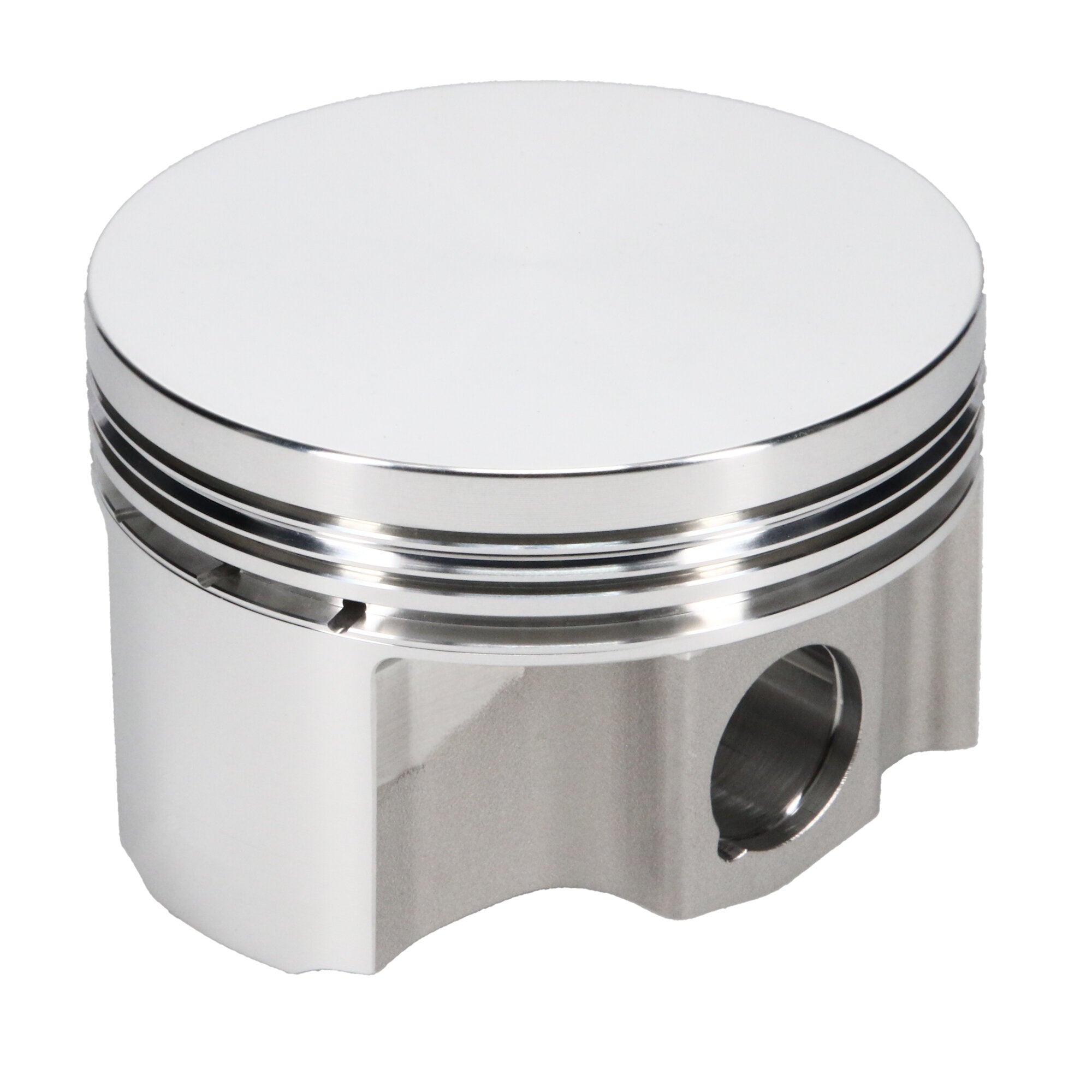

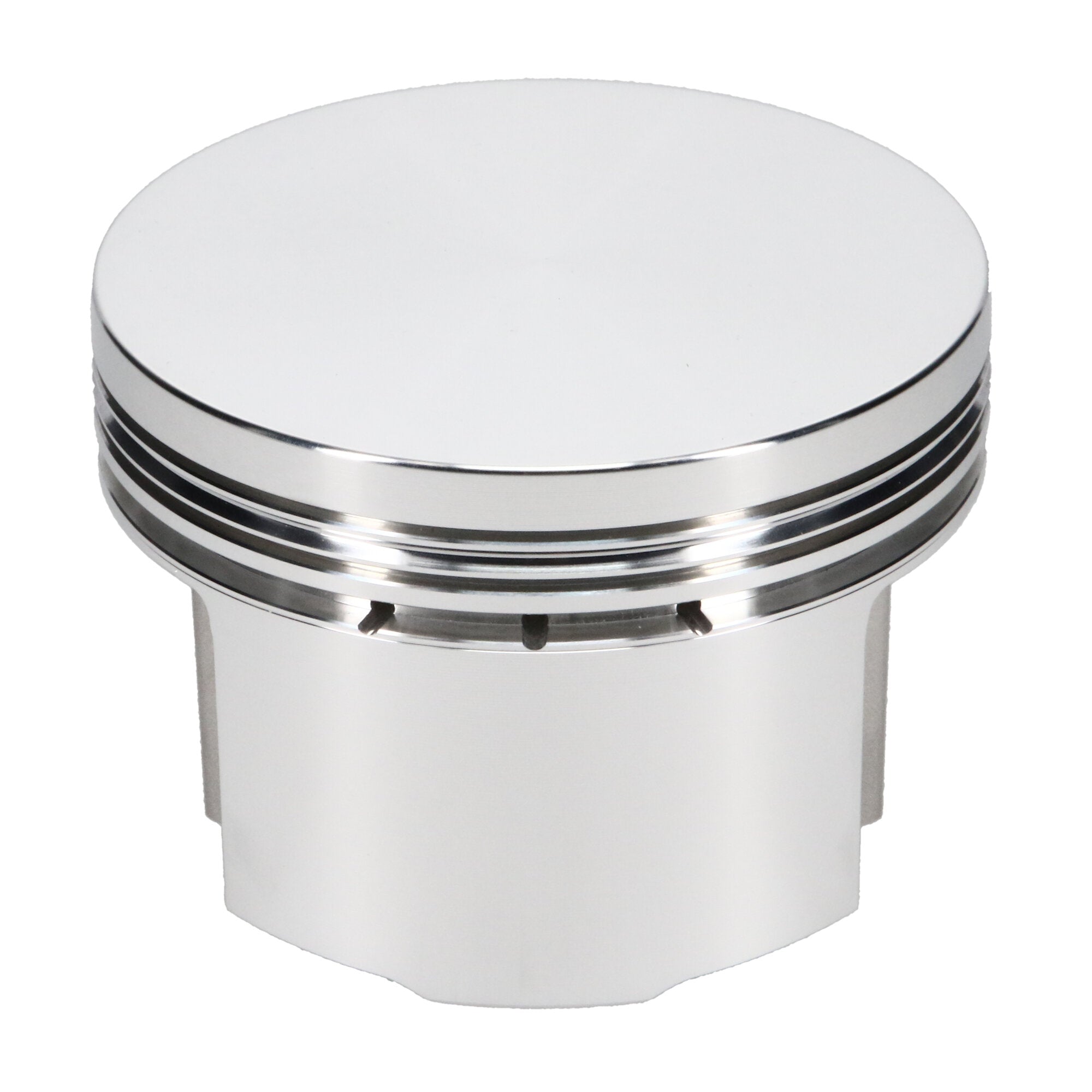

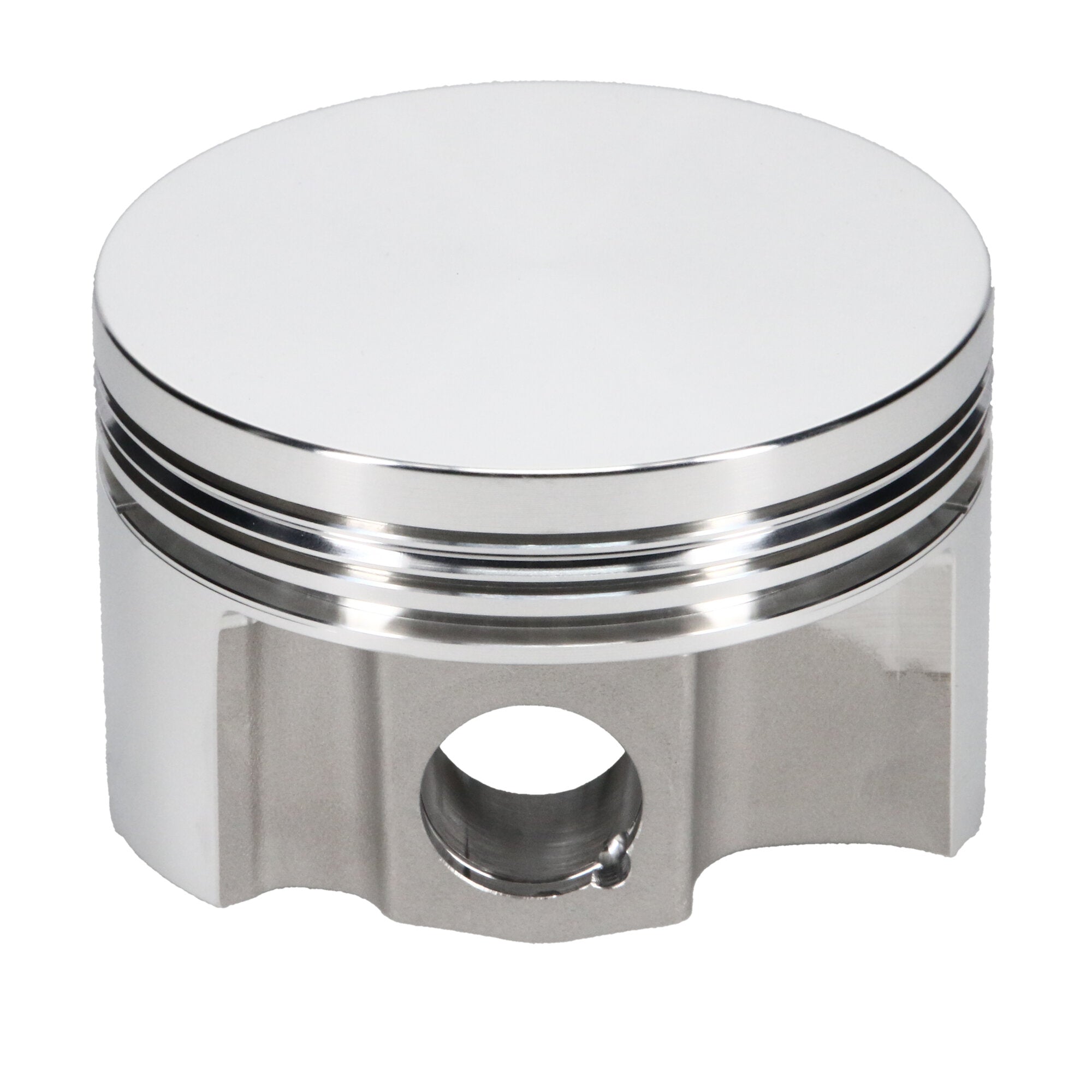

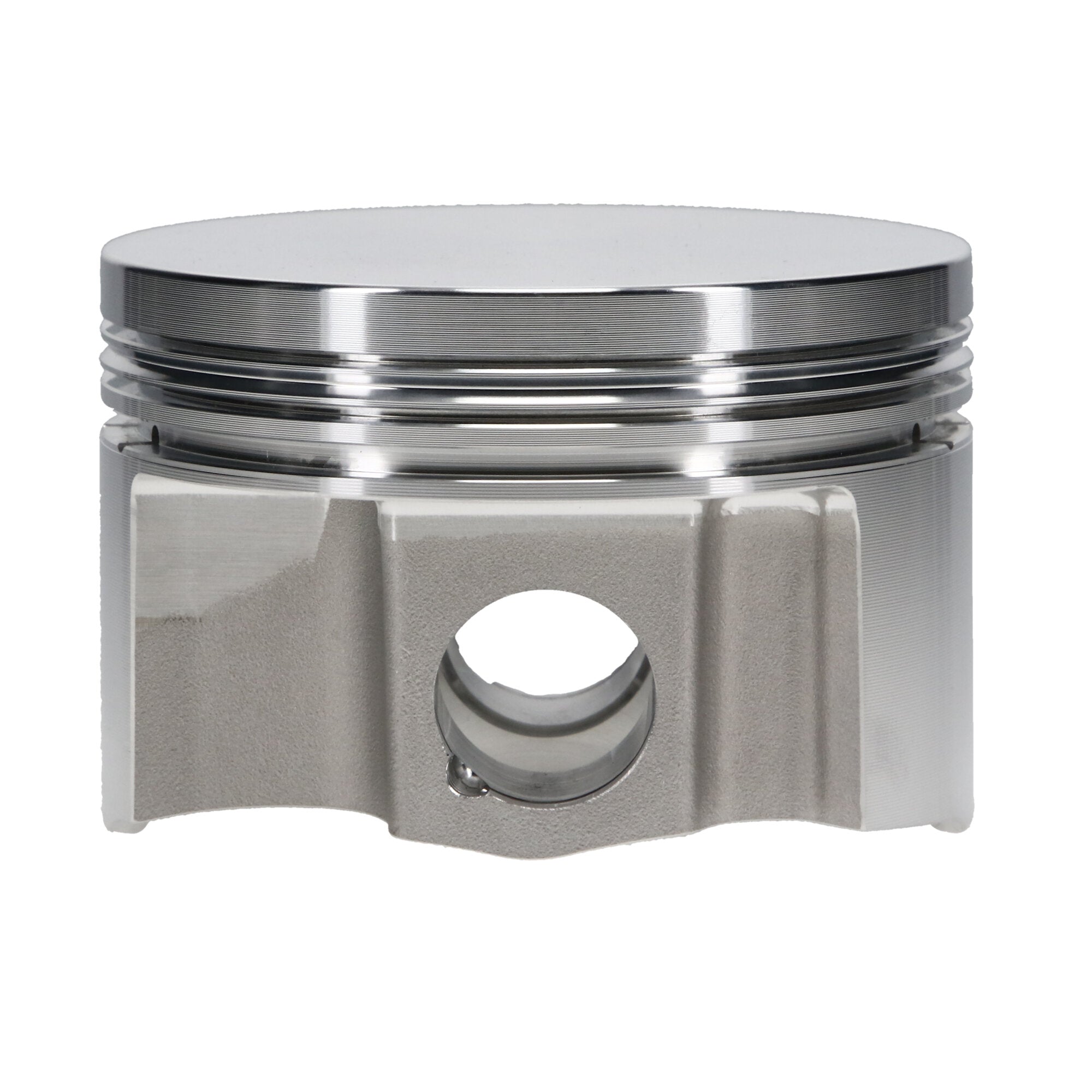

JE Pistons 312436S Piston Single, 2618, Flat Top, 3.287 Bore, 1.506 CD, 0.787 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_312436S
Engine Piston
$451.87
customers are viewing this product
JE Pistons 312128L Piston Single, 2618, Dome, 4.125 Bore, 1.065 CD, 0.927 Pin, Set of 1.
JE Pistons 312128L Piston Single, 2618, Dome, 4.125 Bore, 1.065 CD, 0.927 Pin, Set of 1.
$298.92
JE Pistons 312129L Piston Single, 2618, Dome, 4.130 Bore, 1.065 CD, 0.927 Pin, Set of 1.
JE Pistons 312129L Piston Single, 2618, Dome, 4.130 Bore, 1.065 CD, 0.927 Pin, Set of 1.
$298.92
JE Pistons 312436S Piston Single, 2618, Flat Top, 3.287 Bore, 1.506 CD, 0.787 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Peugeot XU5JA 205
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 3.287 Bore, 1.506 CD, 0.787 Pin, Set of 1.
Description_EXT JE, Peugeot, XU5JA, 3.287 in. Bore, 12.00:1, Flat Top, Single Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_SHO Piston
Description_INV JE Pistons, Piston
Description_TLE Peugeot XU5JA 205, 83.50 Bore, Flat, Set of 1
Add-On JG1001-3287
Add-On 787-050-MW
Add-On 787-2250-18-51C
Bore Diameter 83.50
Make PEUGEOT
Oil Ring Thickness 0.111
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>European
Industry Automotive
Cylinder Head XU5JA
Compression Height 1.506
Engine Type ICE
Engine XU5JA
Forging Type FSR
Engine - Web XU5JA
Make - Web Peugeot
Piston Material 2618
Piston Average Weight 339
Out of Stock Message Call for Availability
Piston Pin Length 2.250
Piston Pin Wall Thickness 0.180
Piston Pin Outside Diameter 0.787
Piston Pin Material 5115
Prop 65 (C, R or CR) CR
Product Type Engine Piston
Piston Head Type Flat
Piston Volume 0.00
Piston Quantity 1
Product Market European
Piston Series JE Pistons
Prop 65 Yes/No Yes
Prop 65 - Short Label Prop 65 Warning Label.JPG
Title JE Pistons - Peugeot, XU5JA, 83.50 mm Bore, Piston
Title - Web JE Pistons Peugeot XU5JA Piston - 83.50 mm Bore - 1.506 in. CH, 0.00 CC
Second Compression Ring Thickness 0.0480
Top Compression Ring Thickness 0.0400
Ringset Included Yes
Wrist Pin Outer Diameter 0.787
Ring Set Included Yes
Wrist Pin Wall Thickness 0.180
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Length 2.250
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
