As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Peugeot XU5JA 205 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

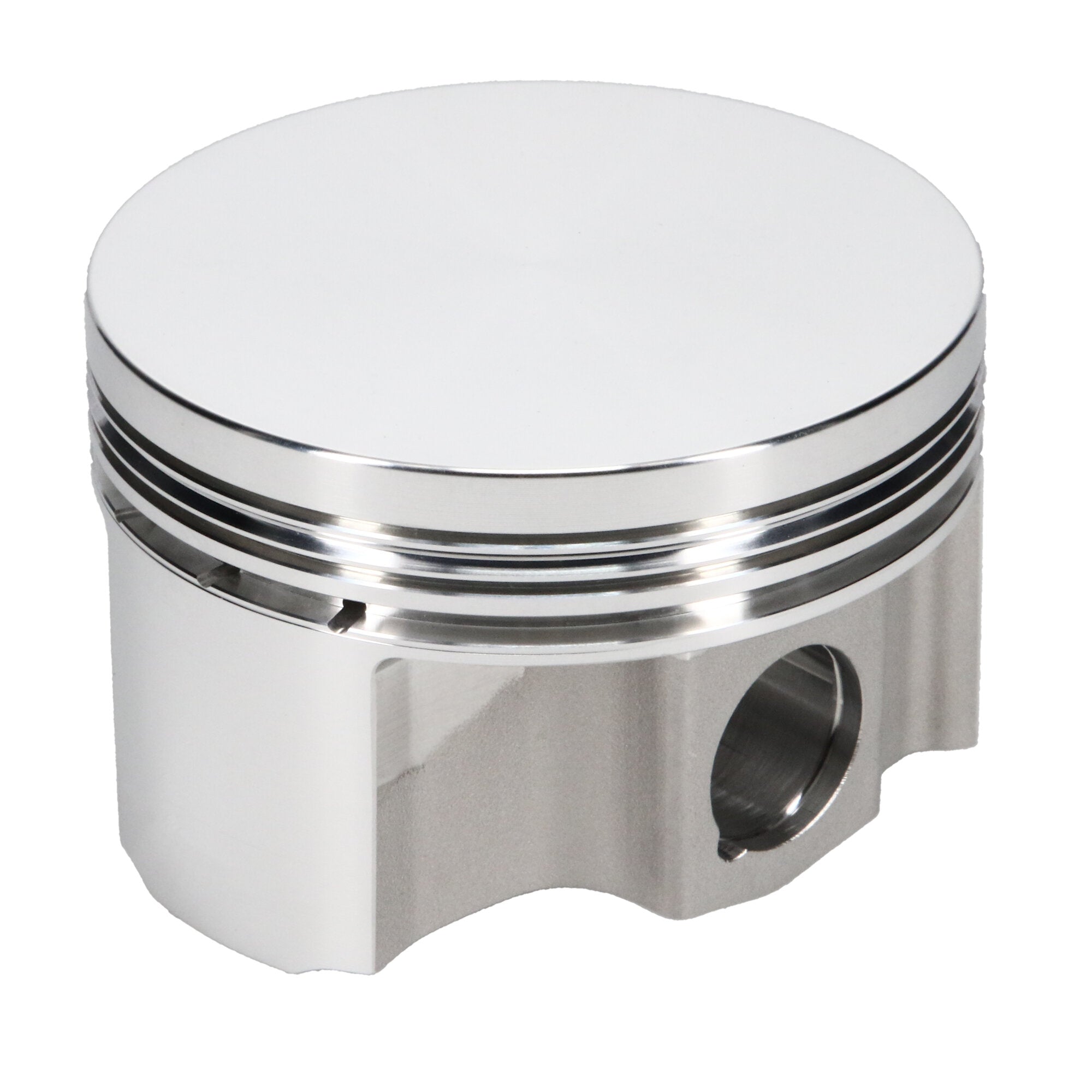

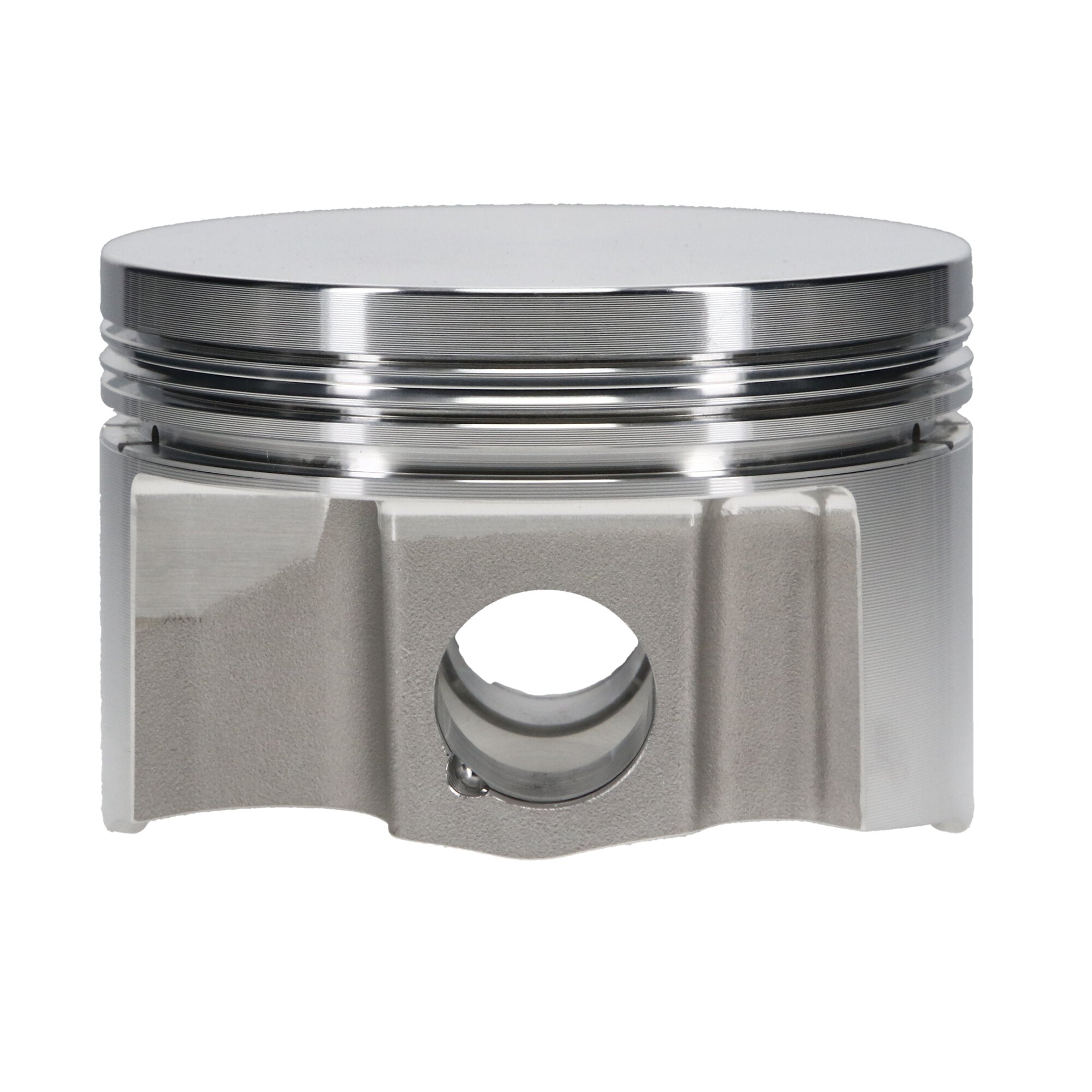

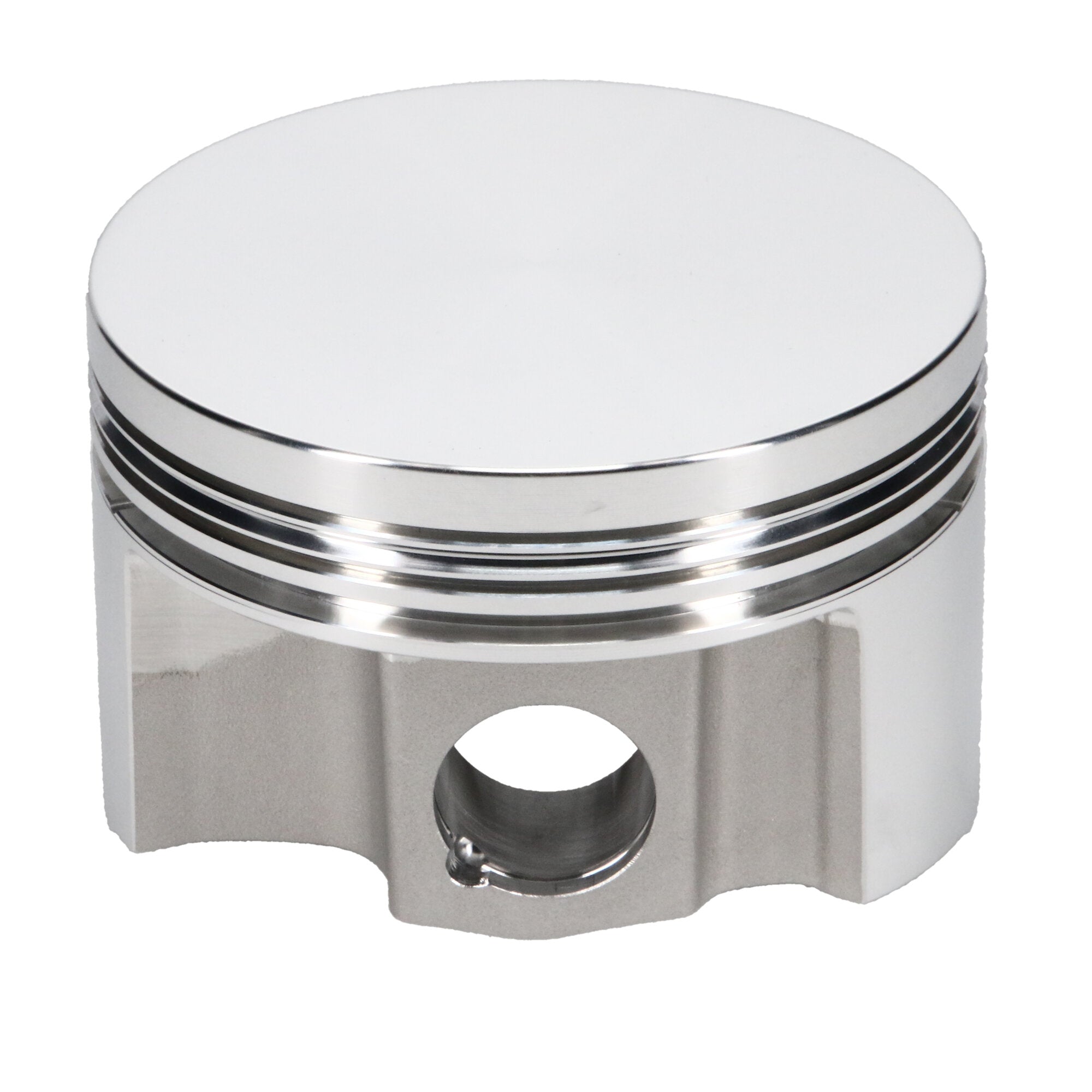

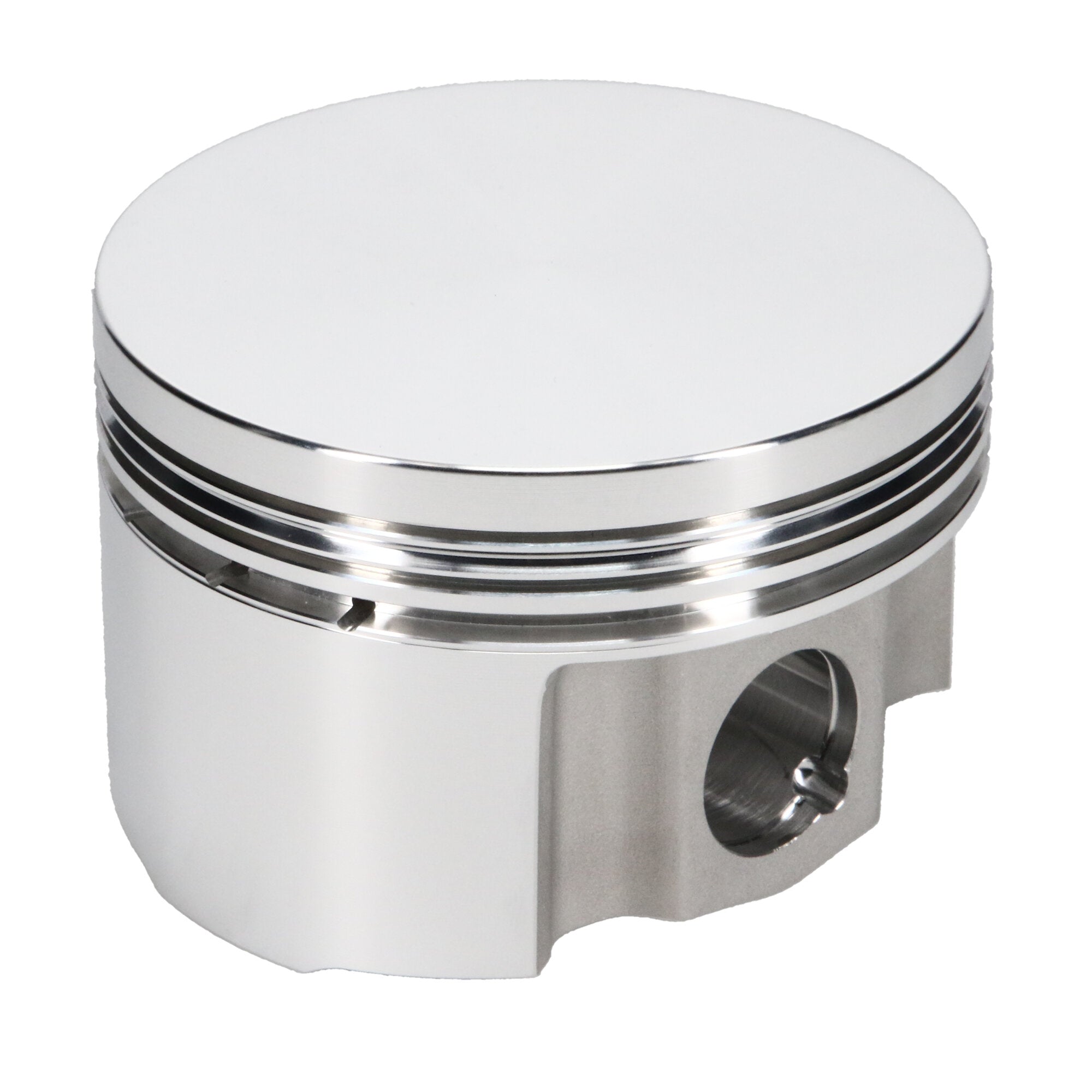

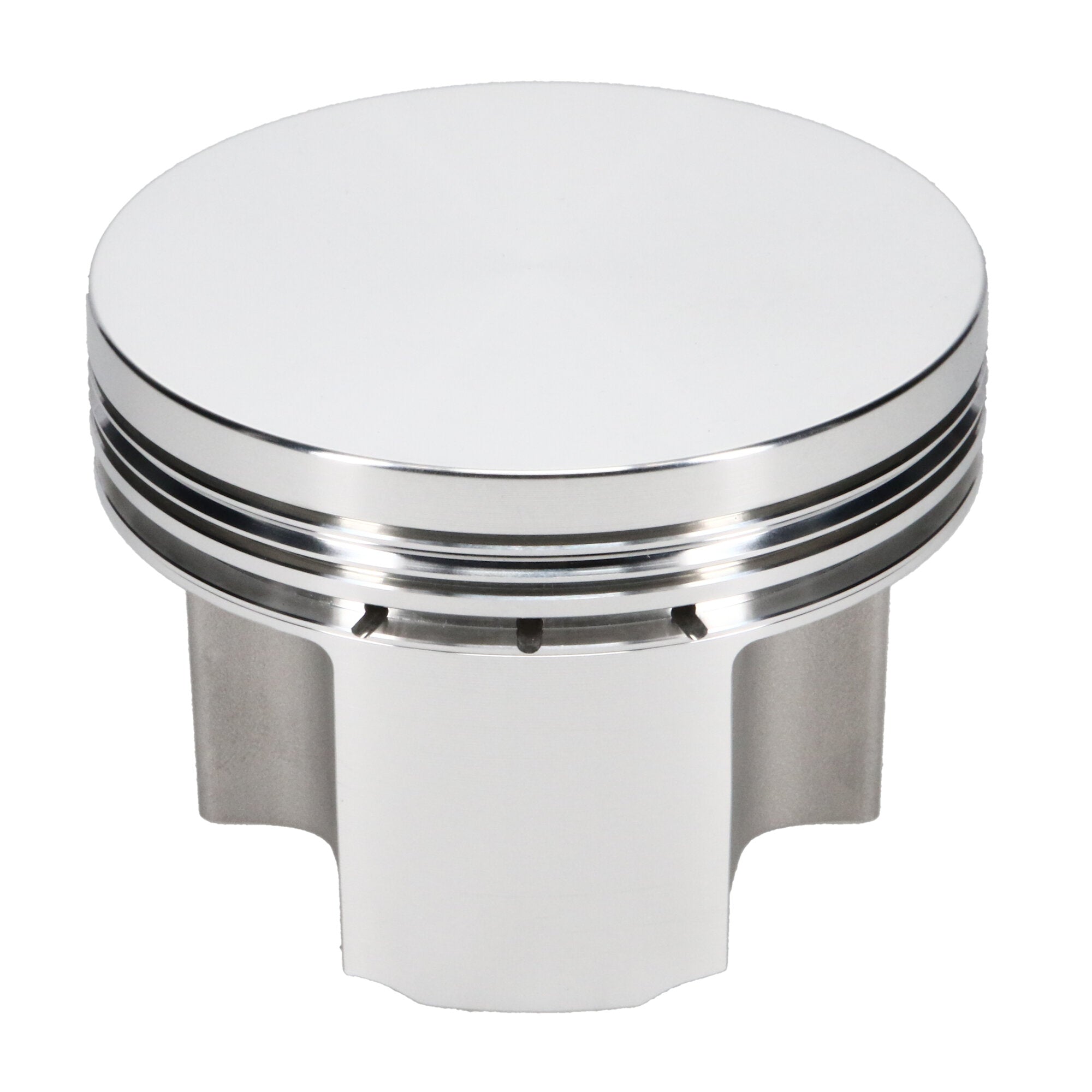

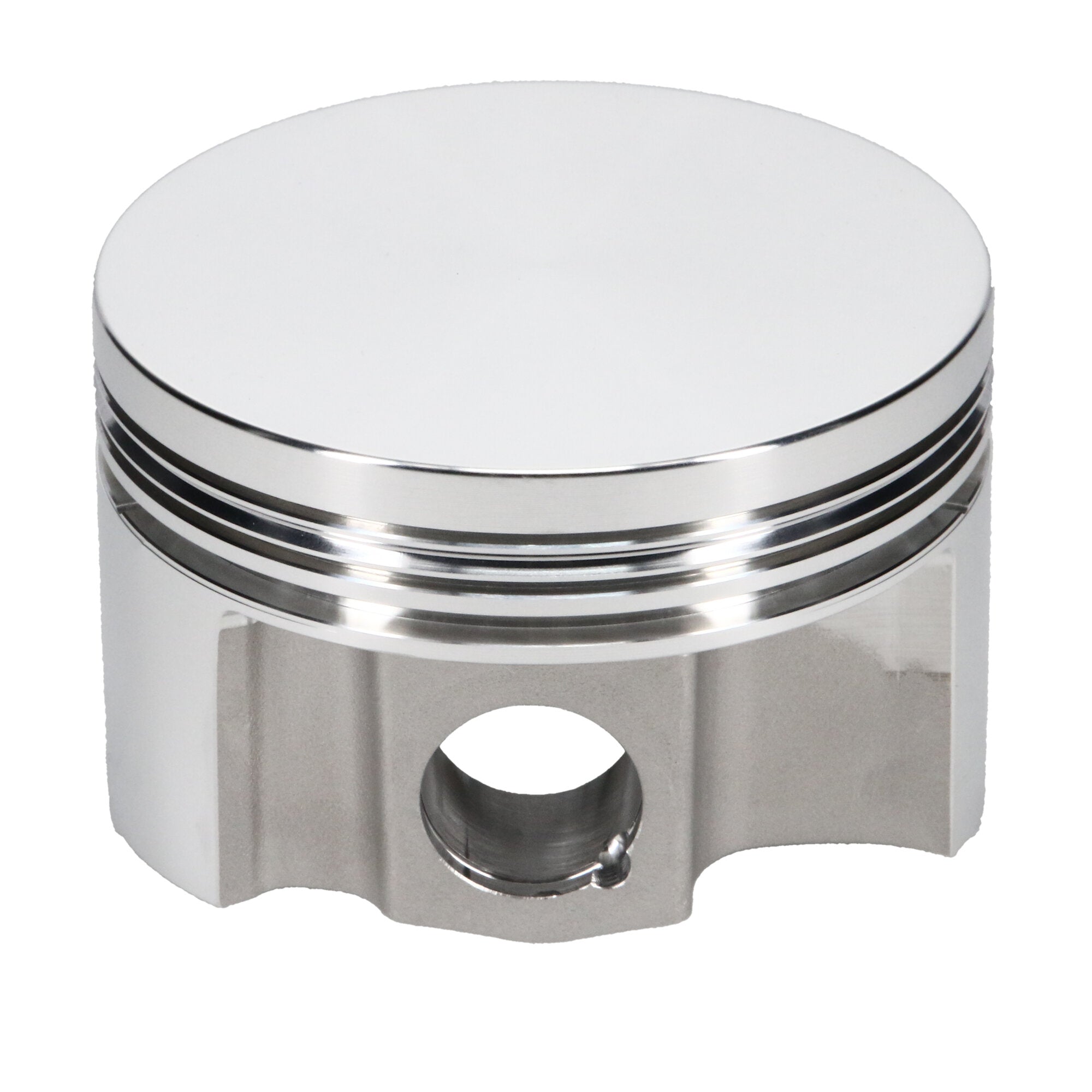

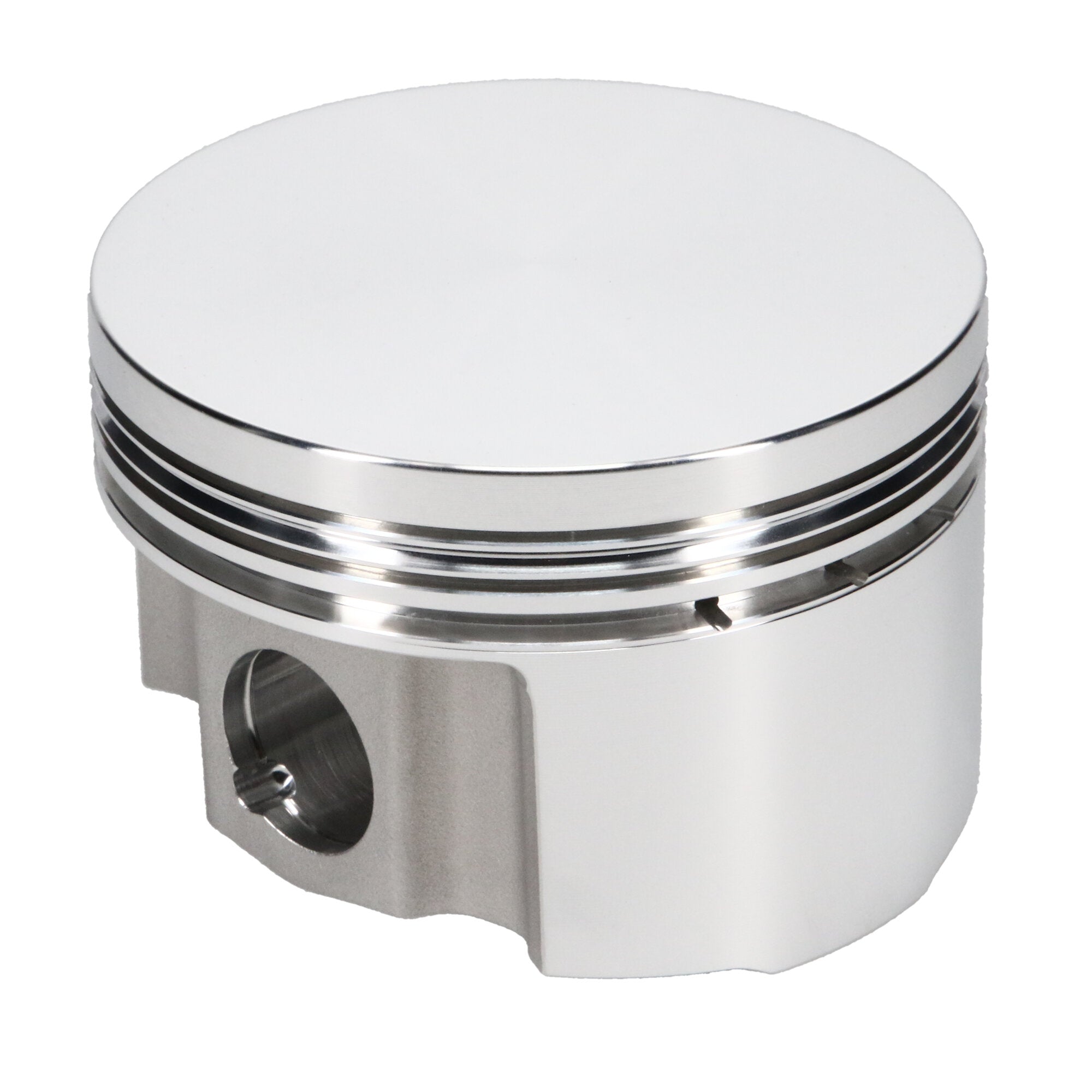

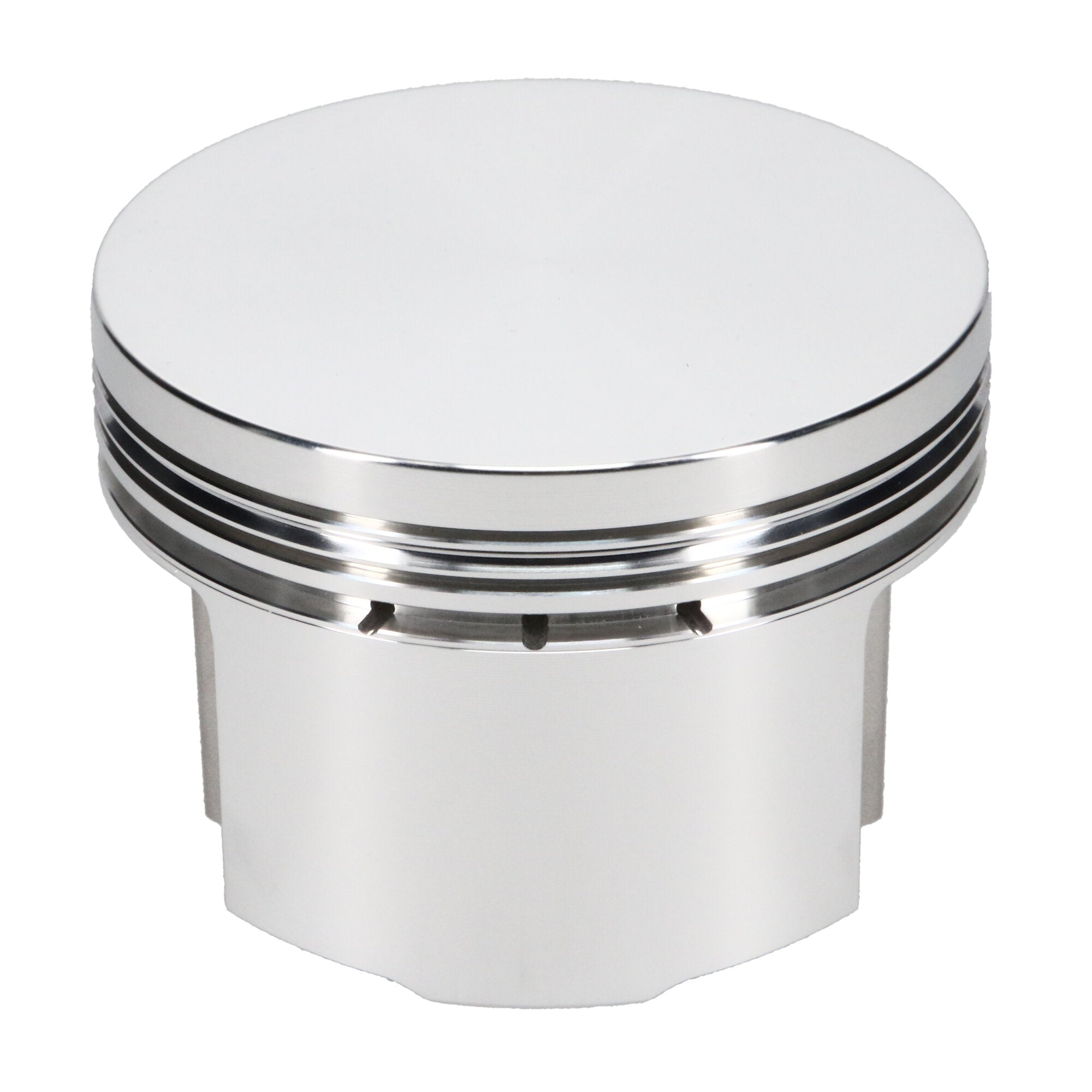

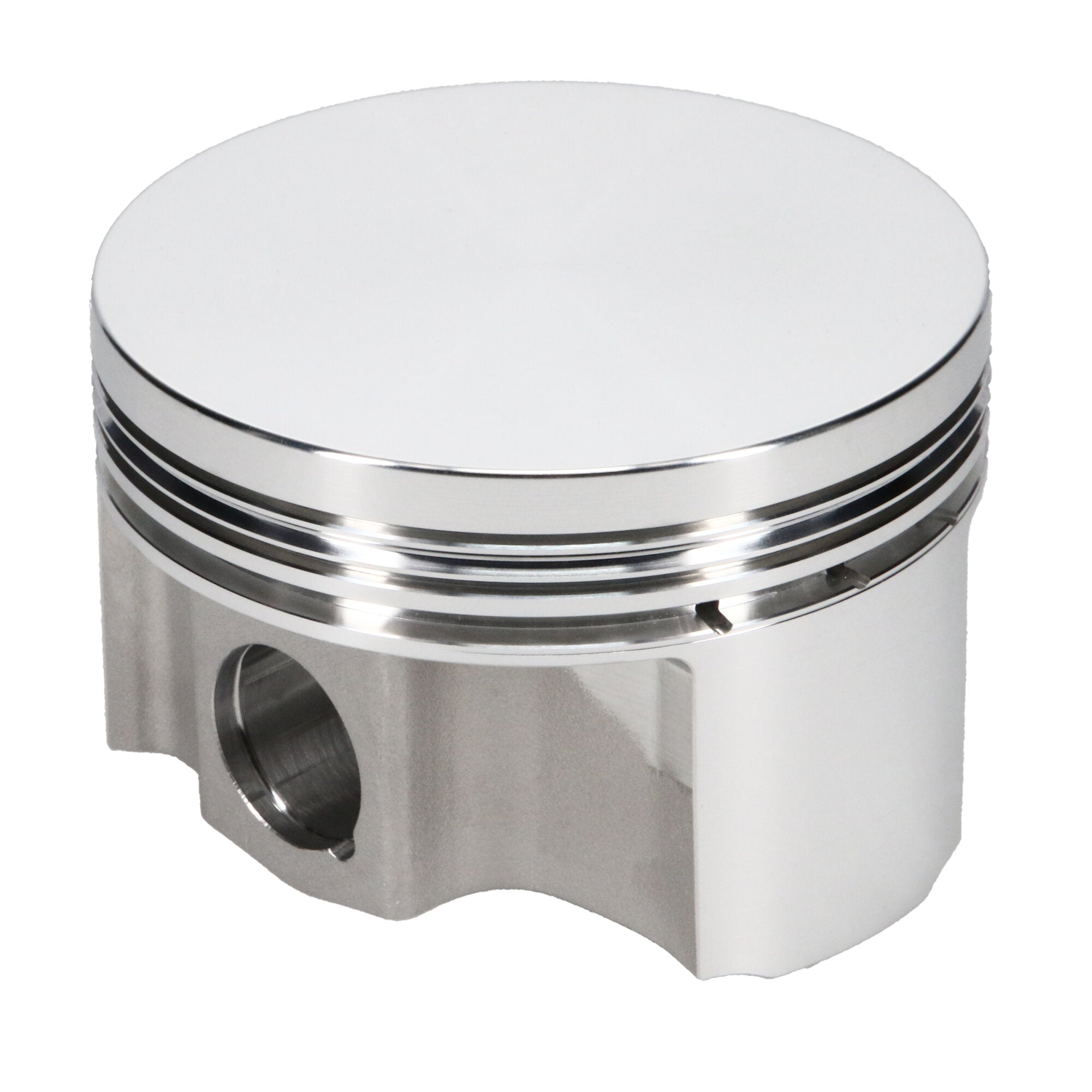

Piston Set, 2618, Flat Top, 3.287 Bore, 1.506 CD, 0.787 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Peugeot, XU5JA, 3.287 in. Bore, 12.00:1, Flat Top, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

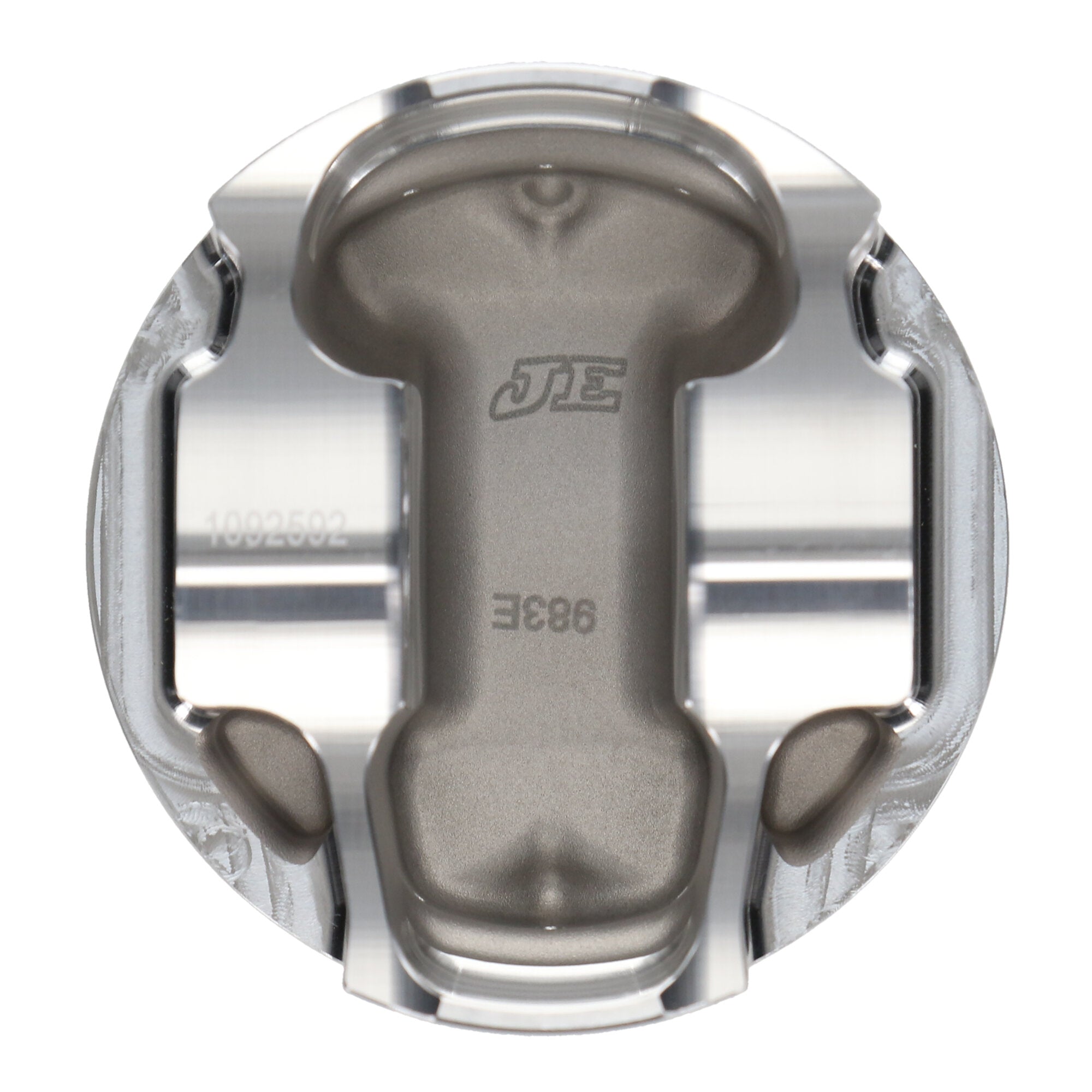

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Peugeot XU5JA 205, 83.50 Bore, Flat, Set of 4 |
| Description_SHO |
Piston Kit |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Peugeot XU5JA Piston Kit - 83.50 mm Bore - 1.506 in. CH, 0.00 CC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Second Compression Ring Thickness |
0.0480 |
| Cylinder Head |
XU5JA |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Make - Web |
Peugeot |
| Piston Pin Length |
2.250 |
| Piston Head Type |

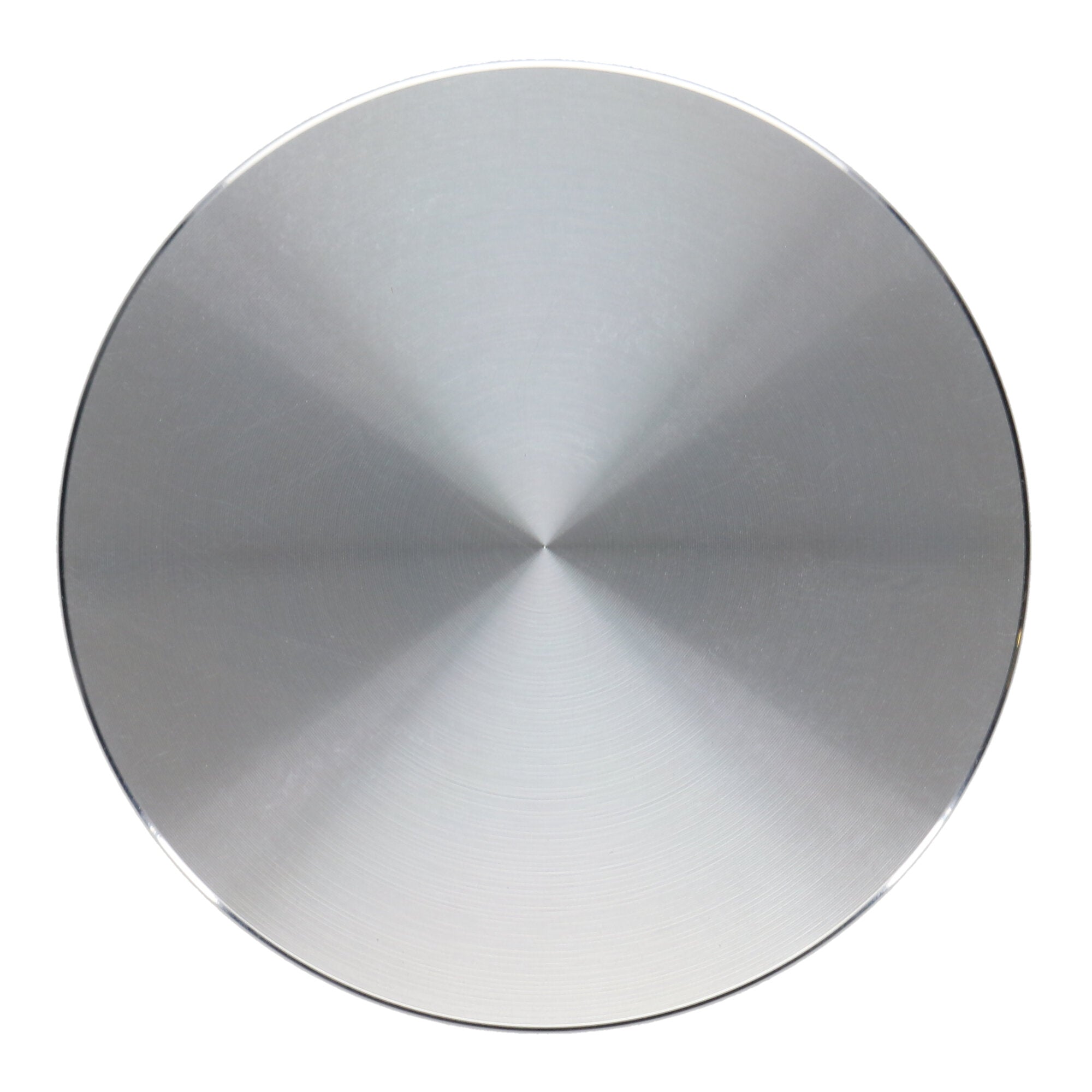

Flat |
| Forging Type |
FSR |
| Title |
JE Pistons - Peugeot, XU5JA, 83.50 mm Bore, Piston Kit |
| Add-On |
787-2250-18-51C |
| Industry |
Automotive |
| Add-On |
787-050-MW |
| Engine |
XU5JA |
| Piston Pin Wall Thickness |
0.180 |
| Add-On |
JG1001-3287 |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.787 |
| Piston Volume |
0.00 |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
4 |
| Make |
PEUGEOT |
| Engine Type |
ICE |
| Top Compression Ring Thickness |
0.0400 |
| Piston Series |
JE Pistons |
| Bore Diameter |
83.50 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.506 |
| Piston Material |
2618 |
| Oil Ring Thickness |
0.111 |
| Piston Average Weight |
339 |
| Product Market |
European |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.787 |
| Engine - Web |
XU5JA |
| Wrist Pin Wall Thickness |
0.180 |
| Ring Set Included |
Yes |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
