As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Fiat 2.0L Turbo 20V |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

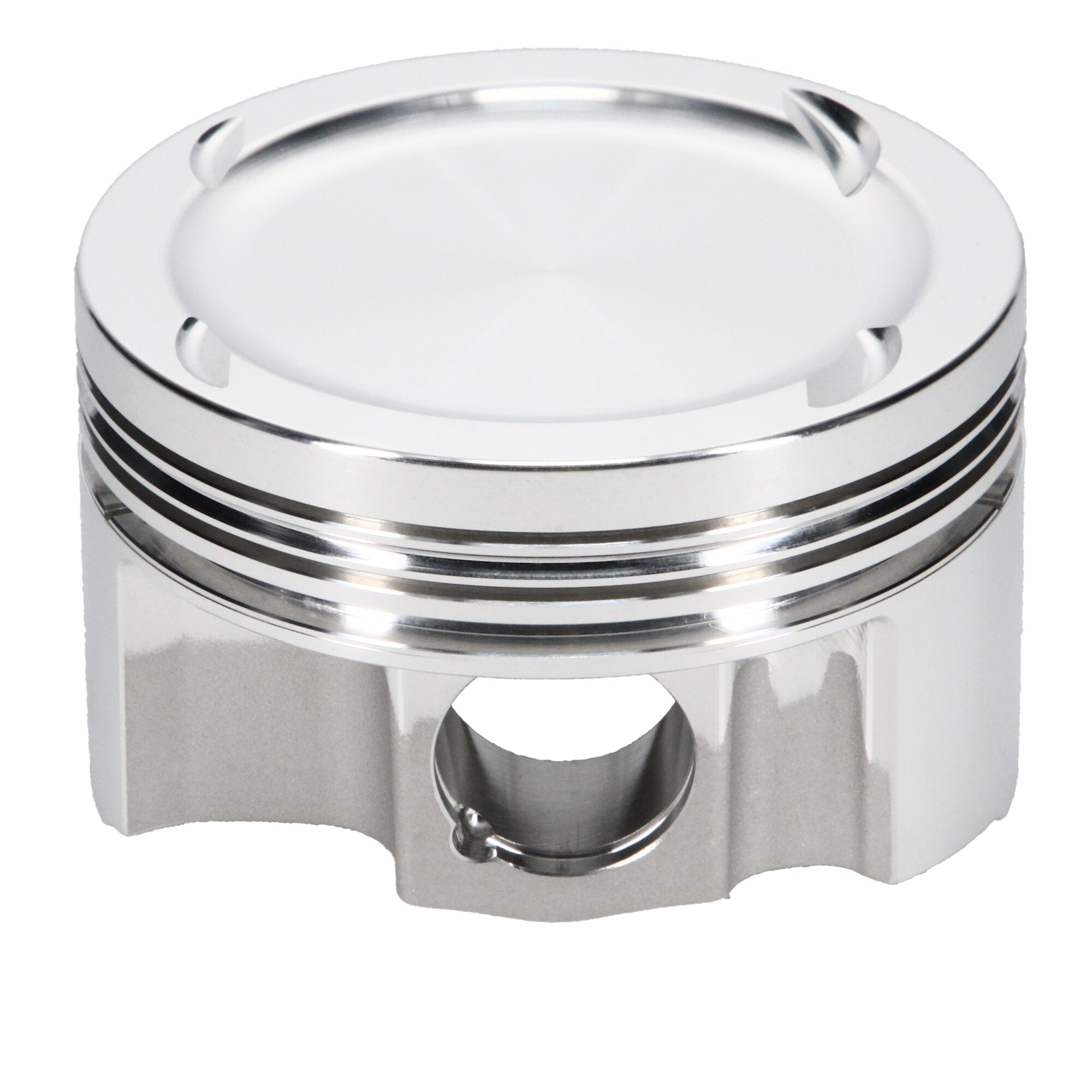

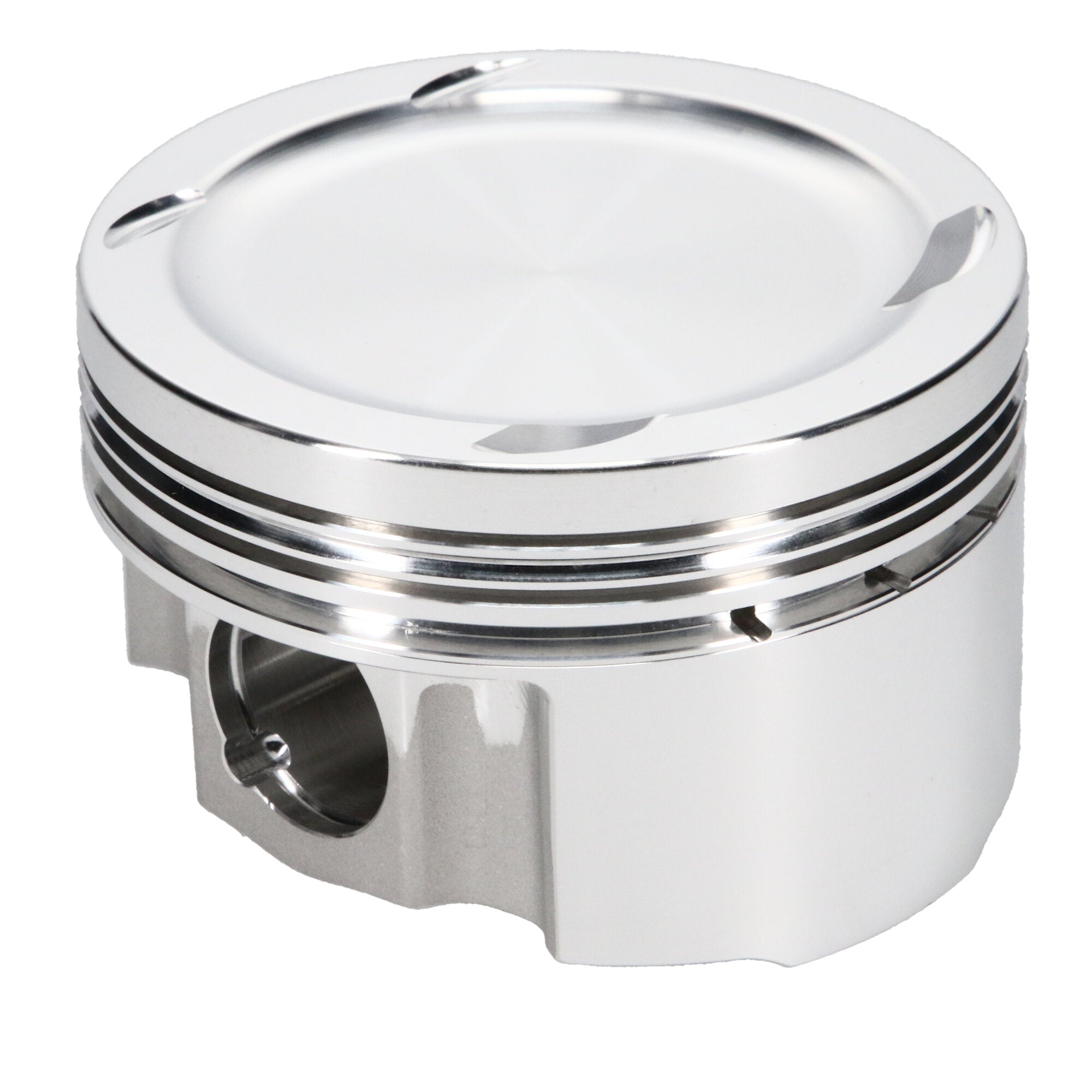

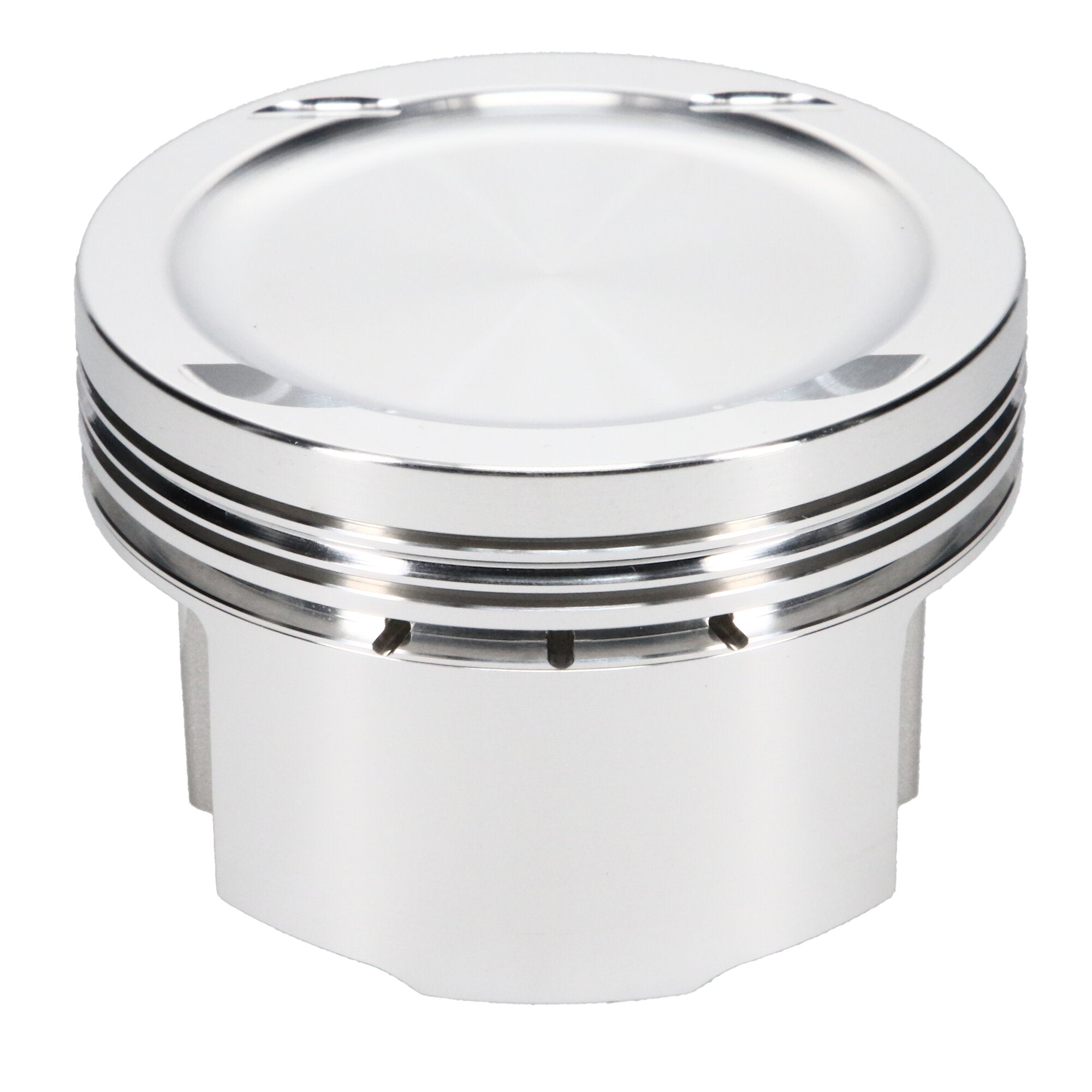

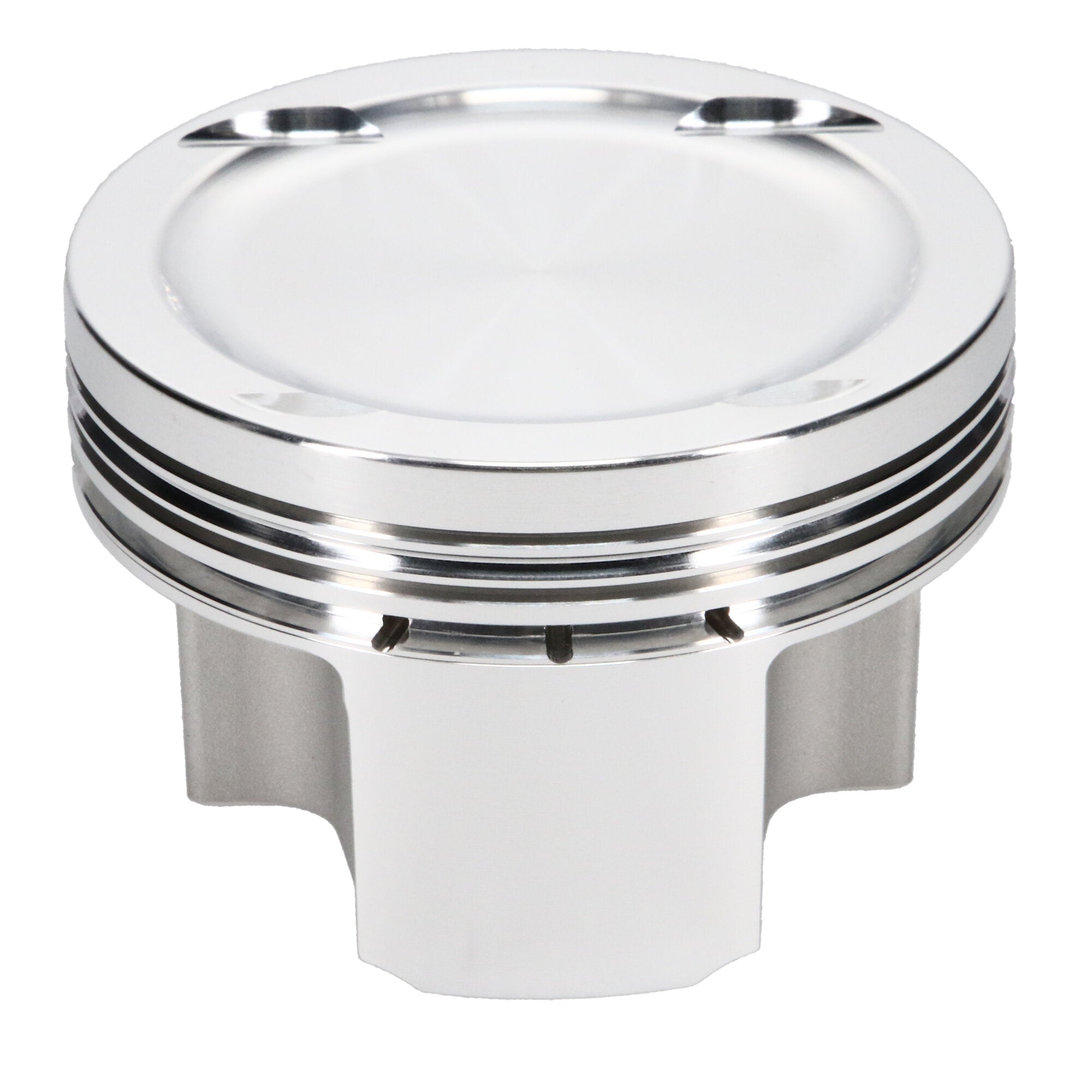

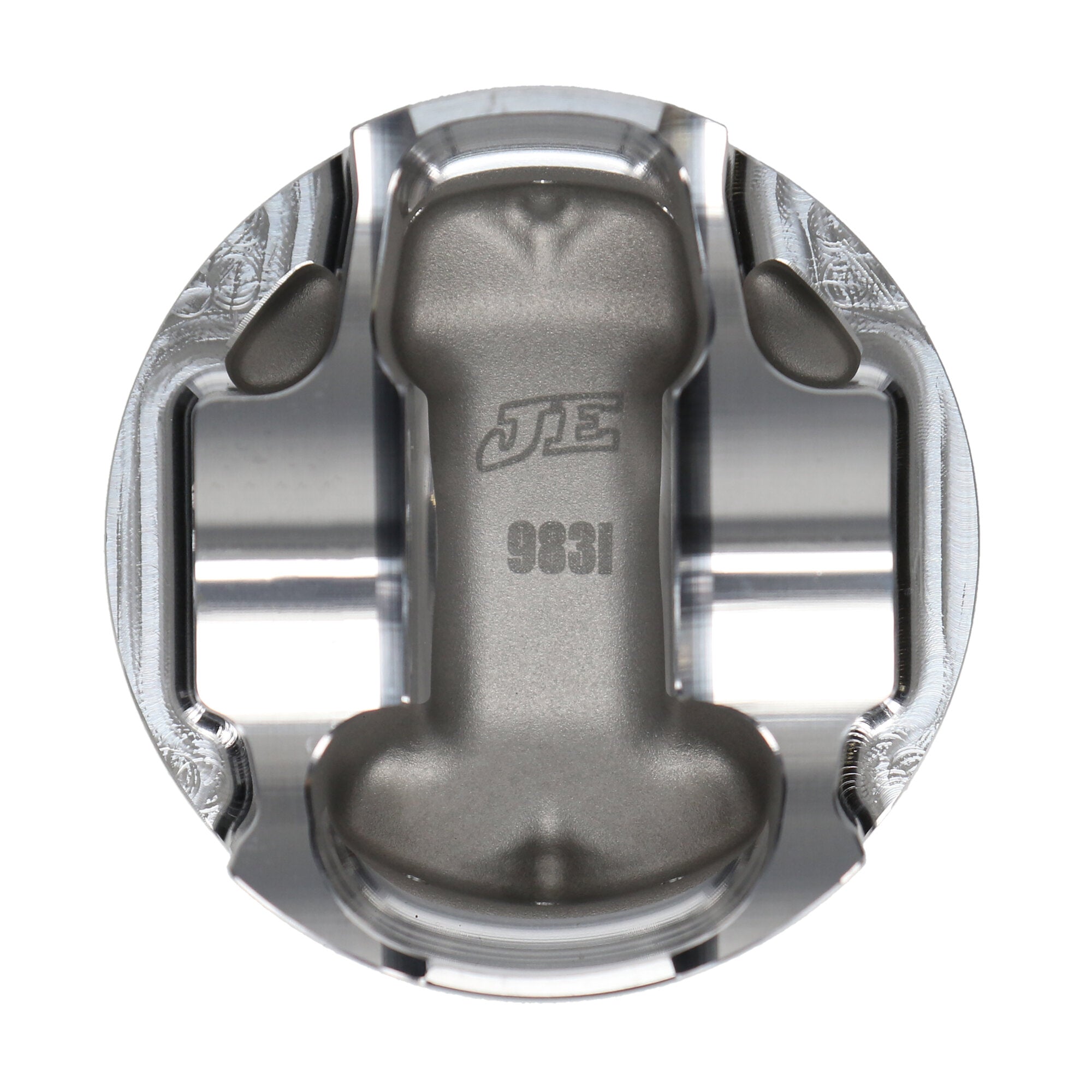

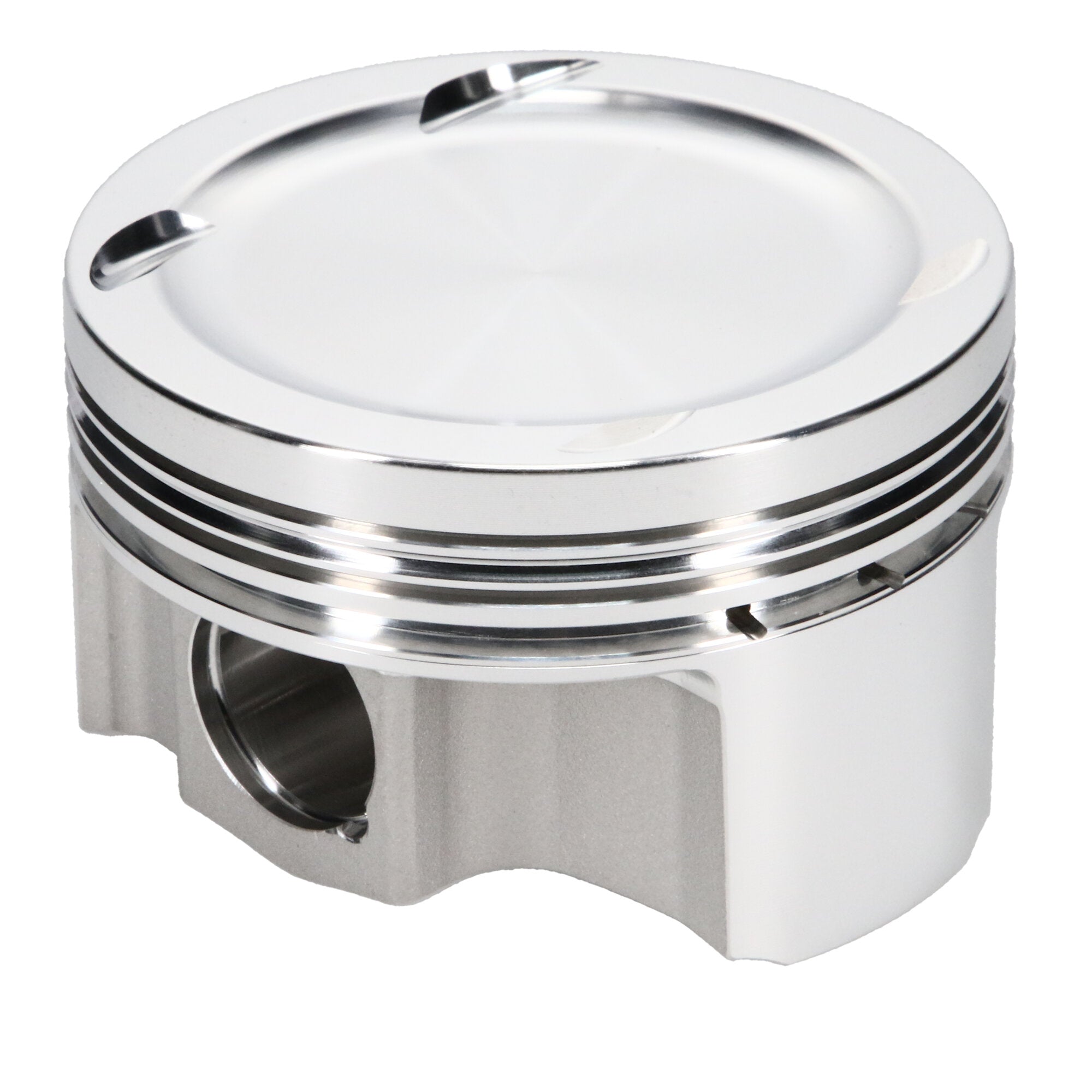

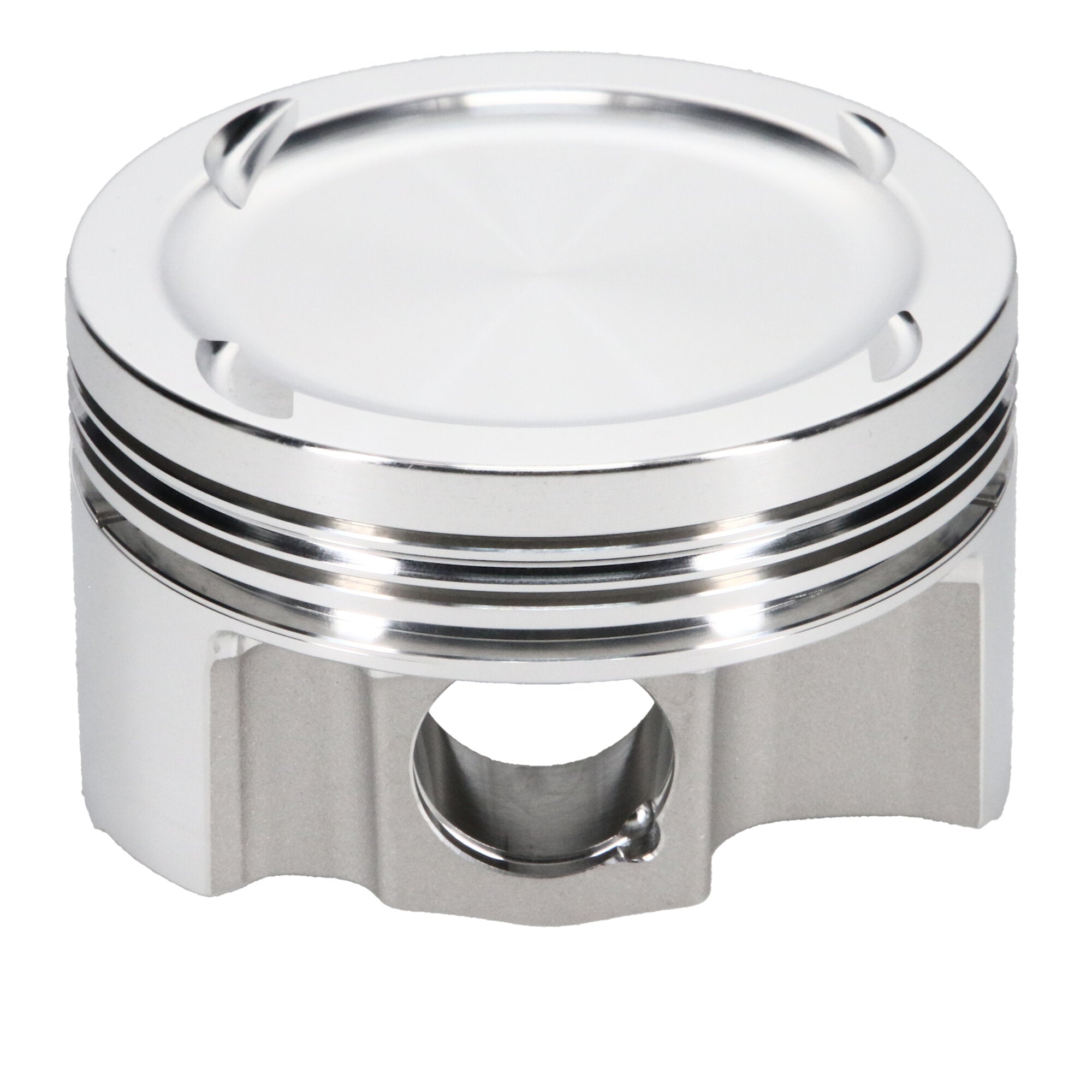

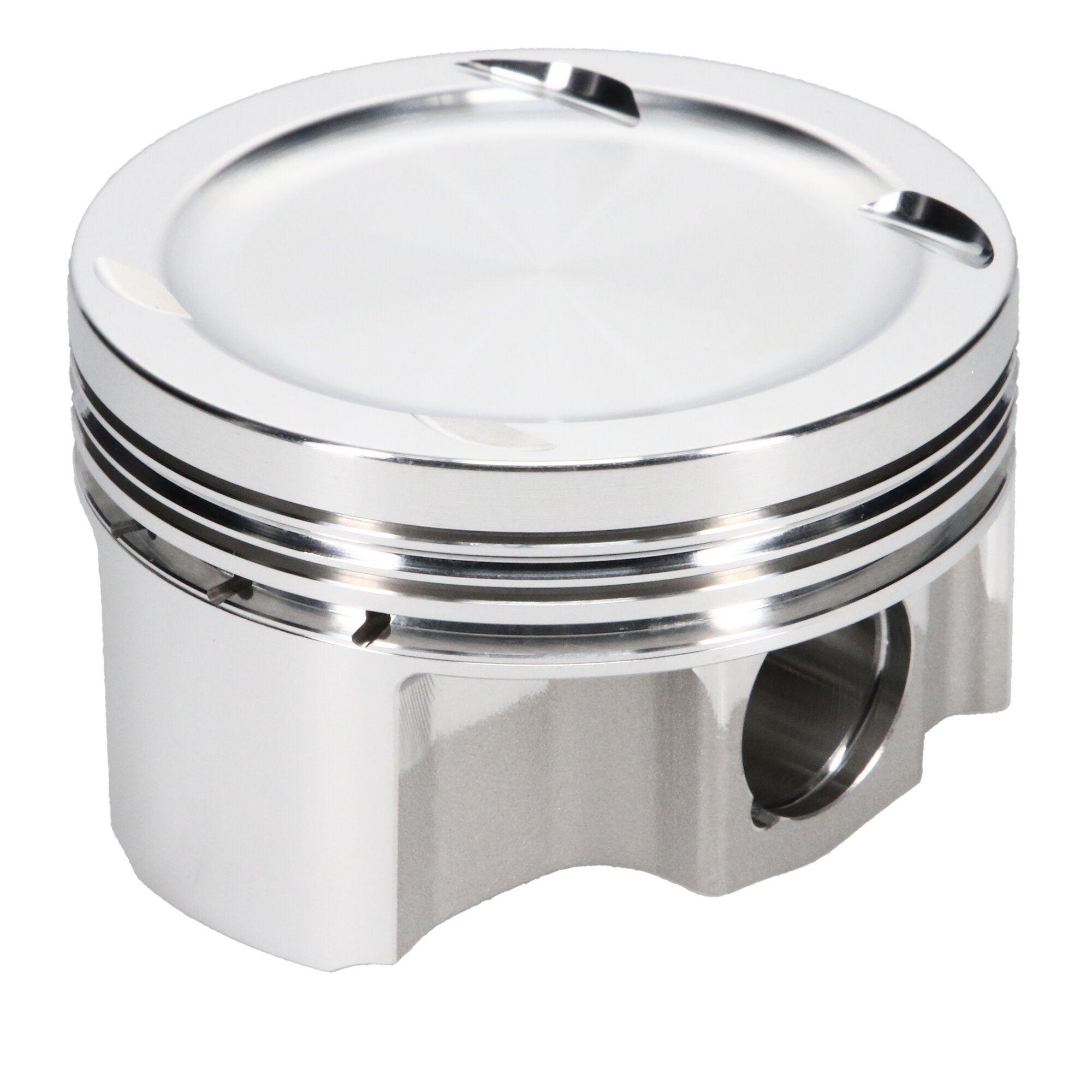

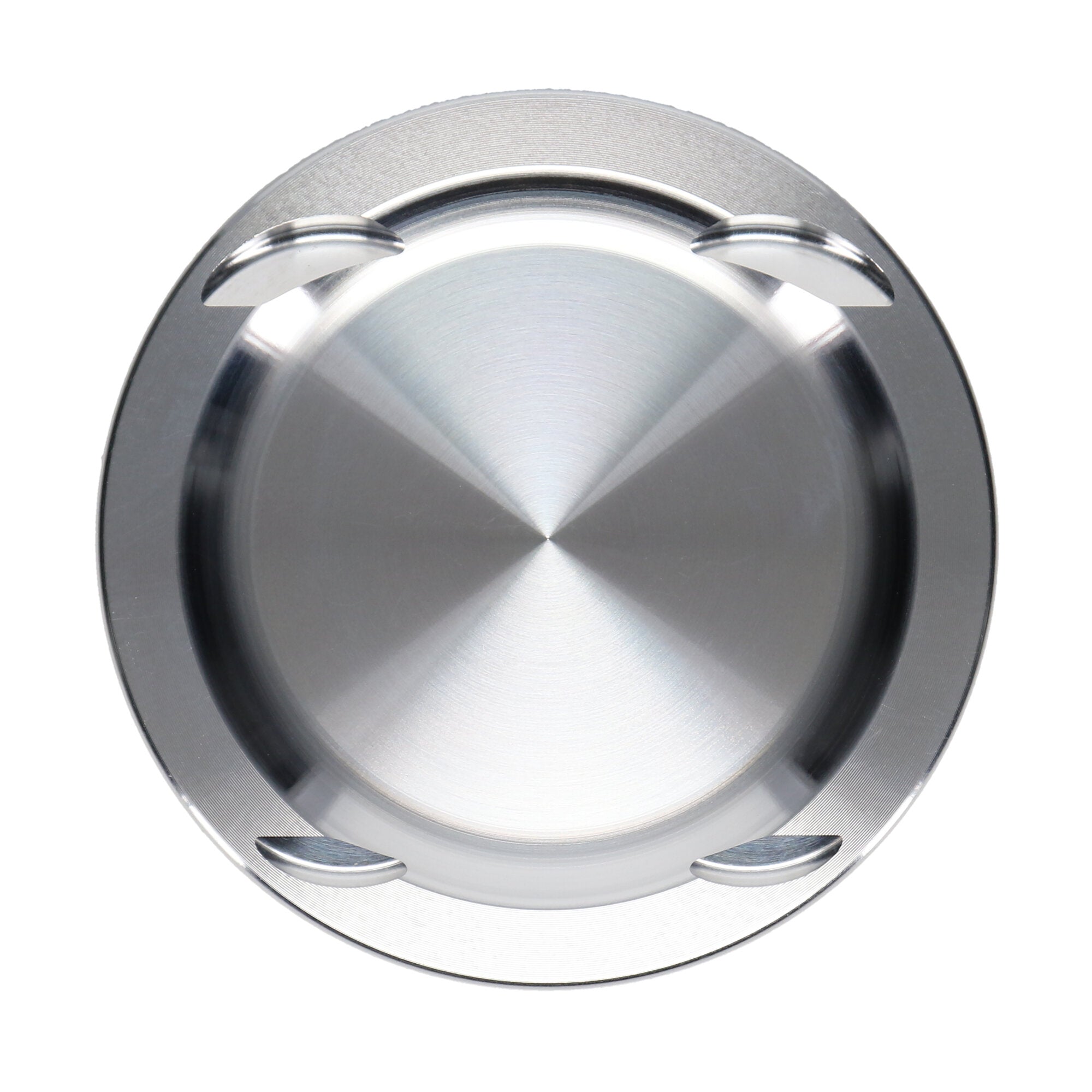

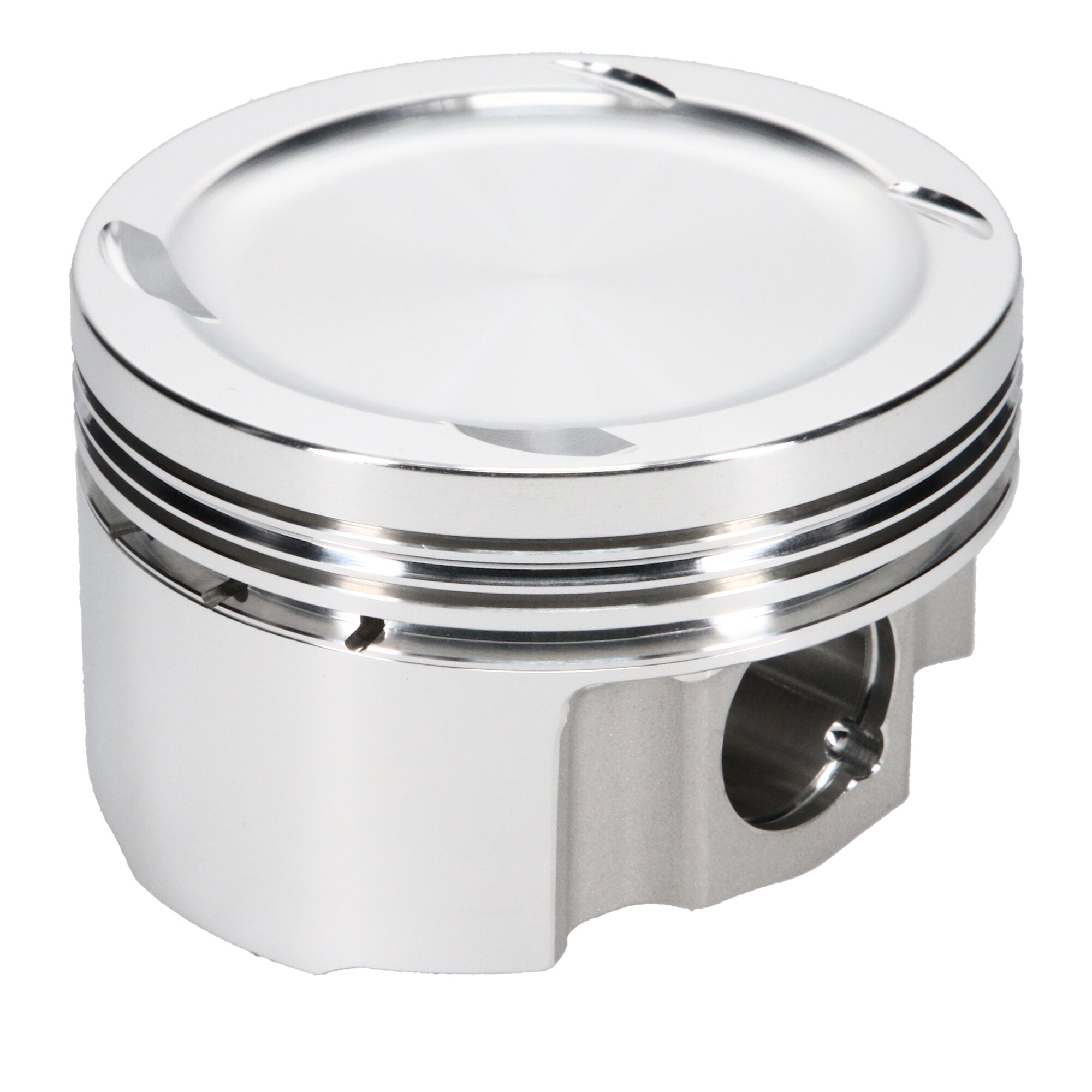

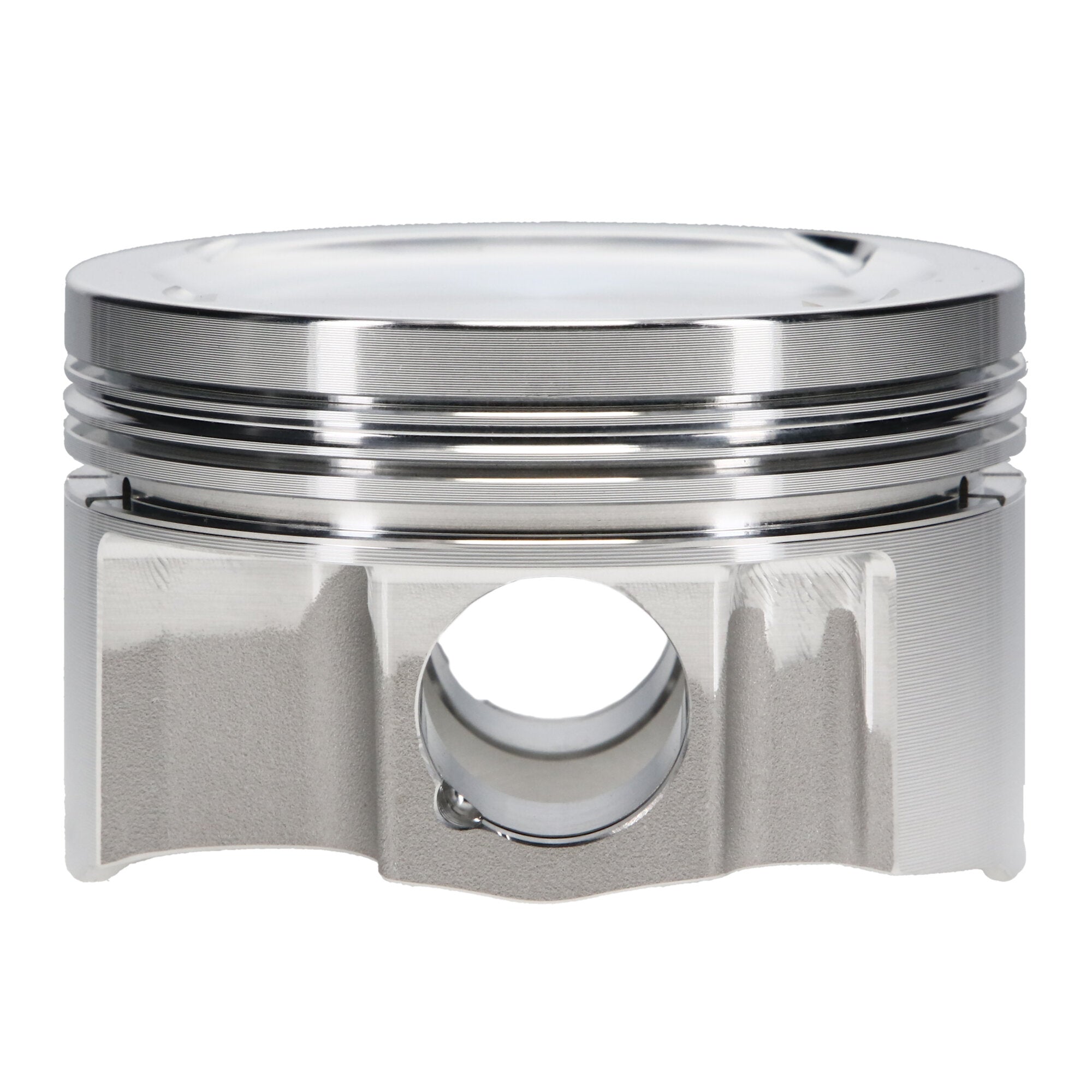

Piston Set, 2618, Inv Dome/Dish, 3.268 Bore, 1.291 CD, 0.866 Pin, Set of 5. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Fiat, 2.0L Turbo 20V, 3.268 in. Bore, 8.00:1, Inverted Dome/Dish, 5 Cyl. Piston Kit |
| Description_TLE |
Fiat 2.0L 20V Turbo, 83.00 Bore, Dish, Set of 5 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Prop 65 Yes/No |
Yes |
| Piston Head Type |

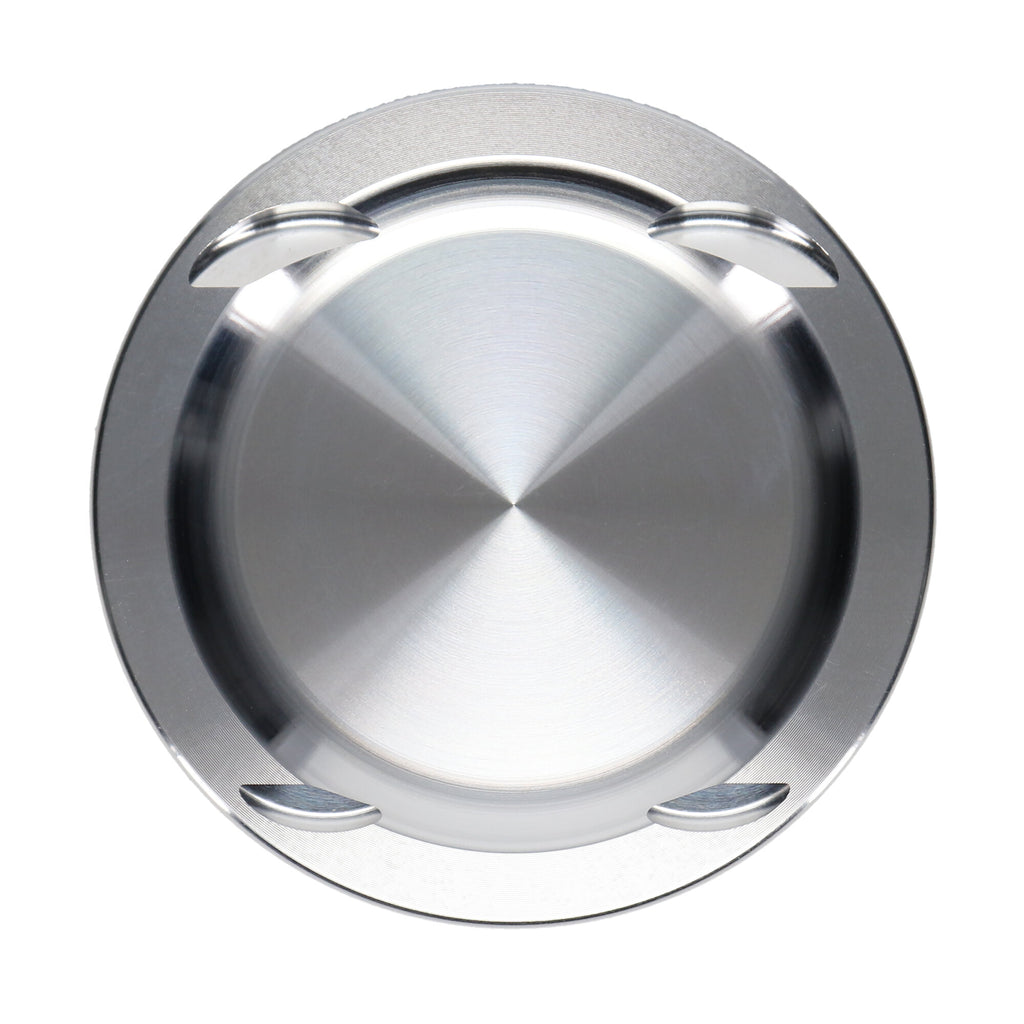

Dish |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Fiat 2.0L Turbo 20V Piston Kit - 83.00 mm Bore - 1.291 in. CH, -8.00 CC |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Length |
2.250 |
| Engine |
2.0L TURBO 20V |
| Piston Average Weight |
305 |
| Forging Type |
FSR |
| Make |
FIAT |
| Engine Type |
ICE |
| Ringset Included |
Yes |
| Oil Ring Thickness |
0.111 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Make - Web |
Fiat |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
FIAT COUPE 2.0 |
| Piston Volume |
-8.00 |
| Piston Material |
2618 |
| Compression Height |
1.291 |
| Add-On |
866-2250-15-51C |
| Piston Pin Outside Diameter |
0.866 |
| Title |
JE Pistons - Fiat, 2.0L Turbo 20V, 83.00 mm Bore, Piston Kit |
| Bore Diameter |
83.00 |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Add-On |
JG1001-3268 |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
866-063-MW |
| Piston Quantity |
5 |
| Piston Pin Material |
5115 |
| Top Compression Ring Thickness |
0.0400 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Product Market |
European |
| Wrist Pin Length |
2.250 |
| Engine - Web |
2.0L Turbo 20V |
| Wrist Pin Outer Diameter |
0.866 |
| Ring Set Included |
Yes |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
5.0000 |
