As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Fiat 176A |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

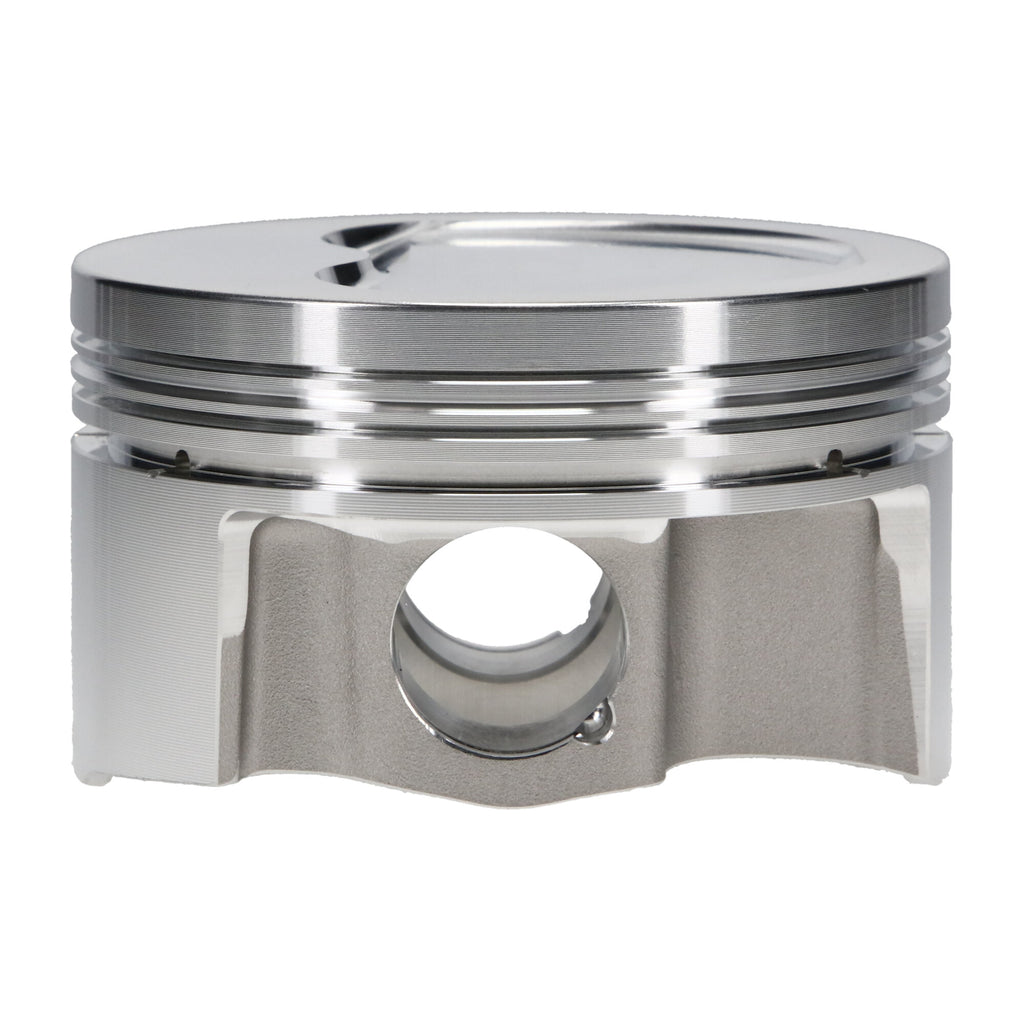

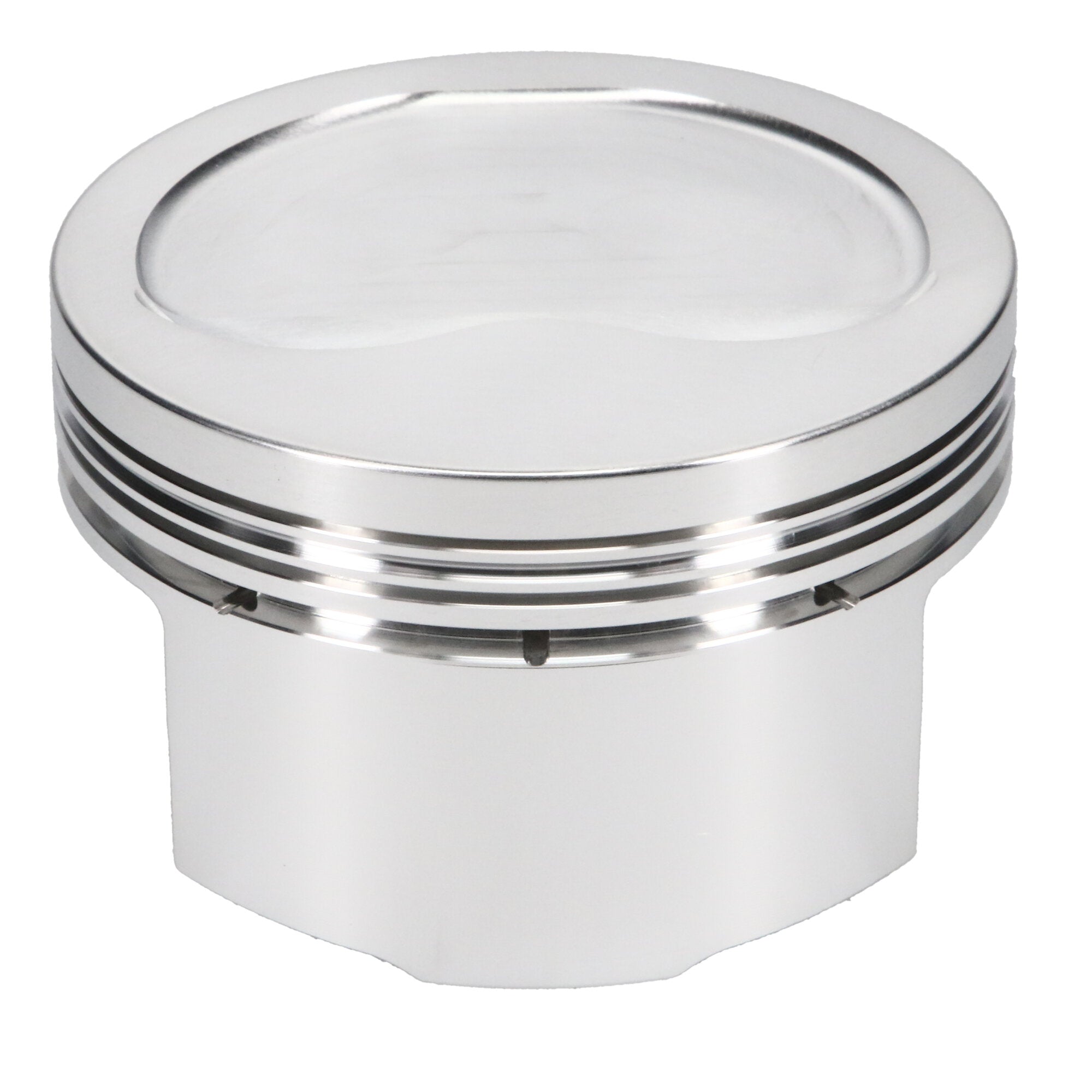

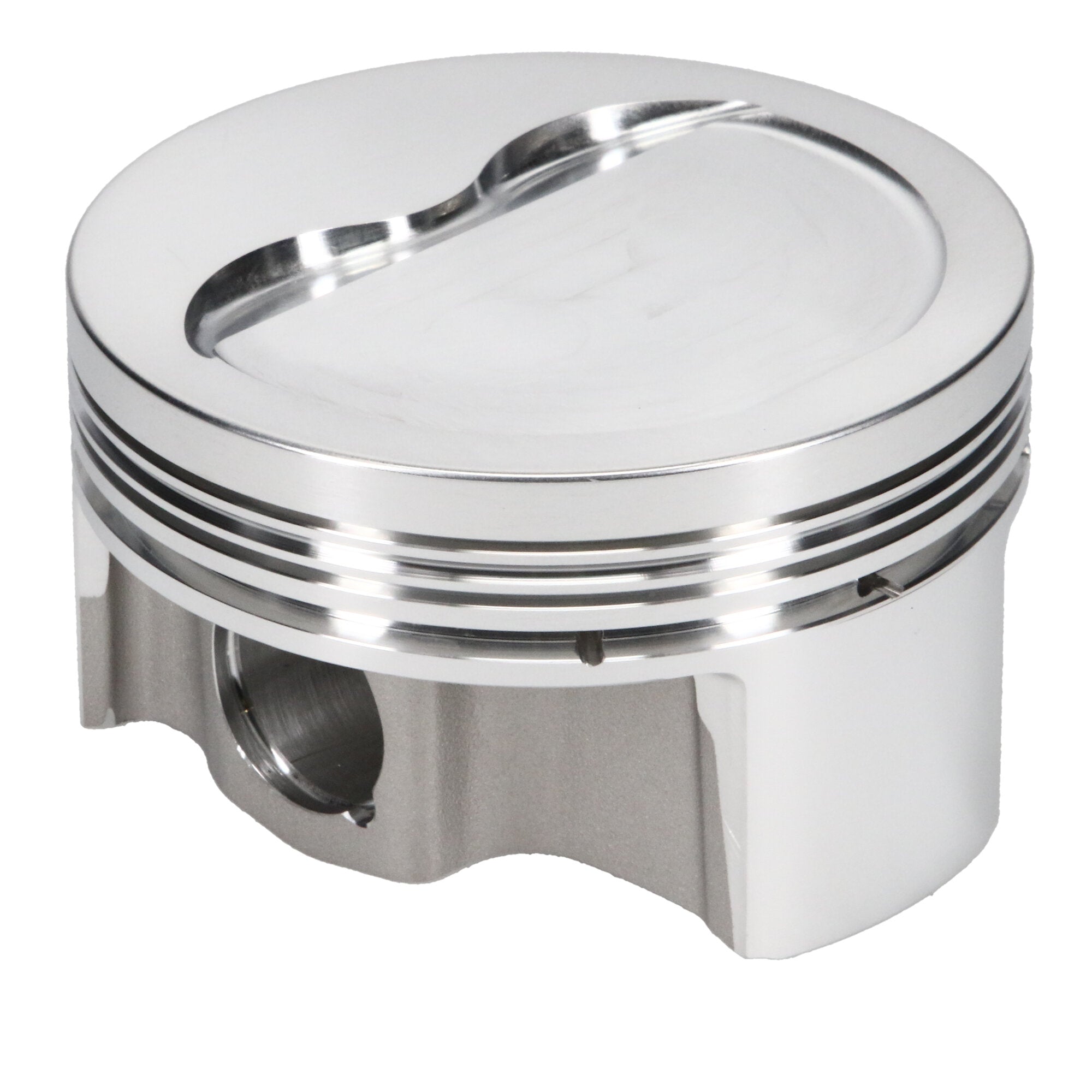

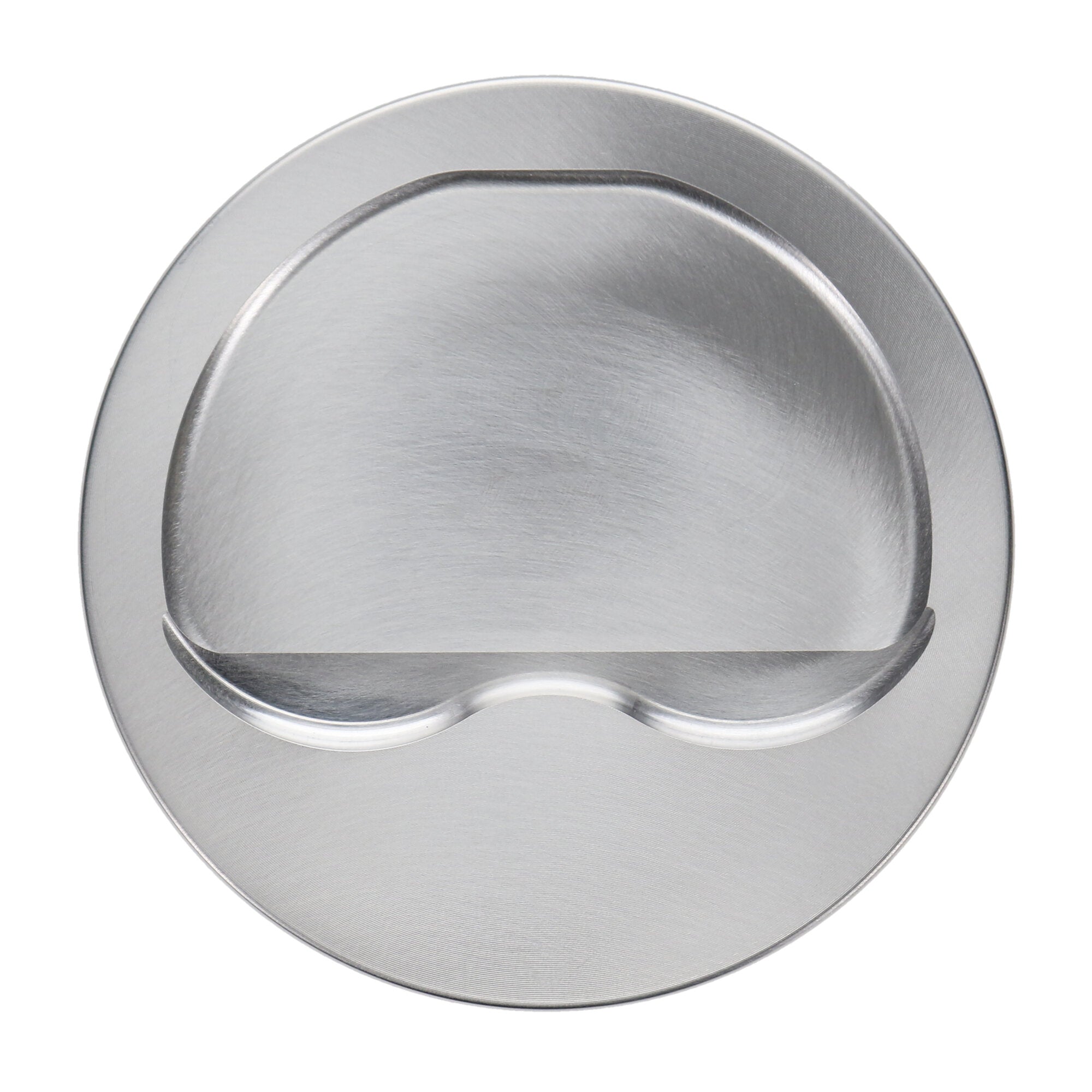

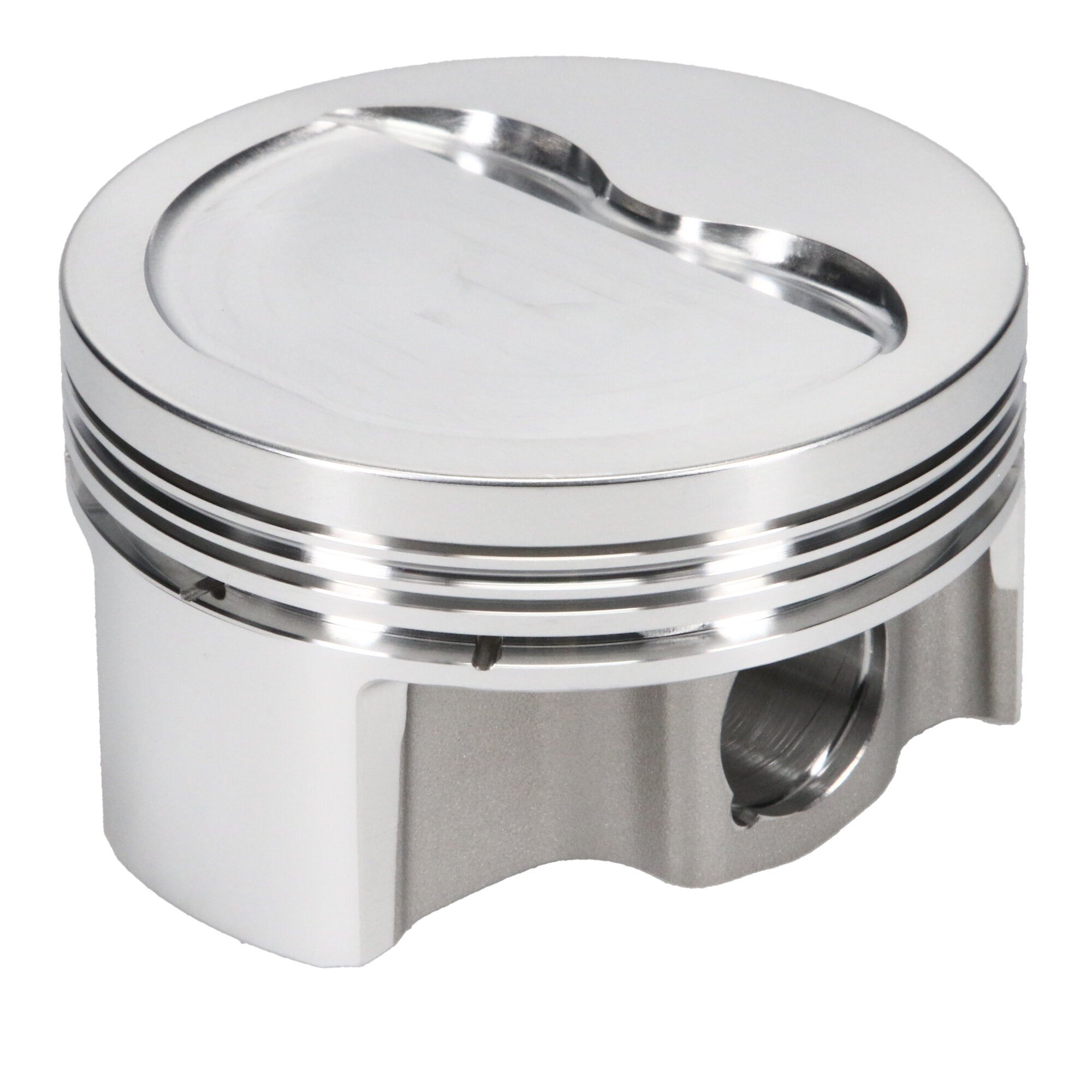

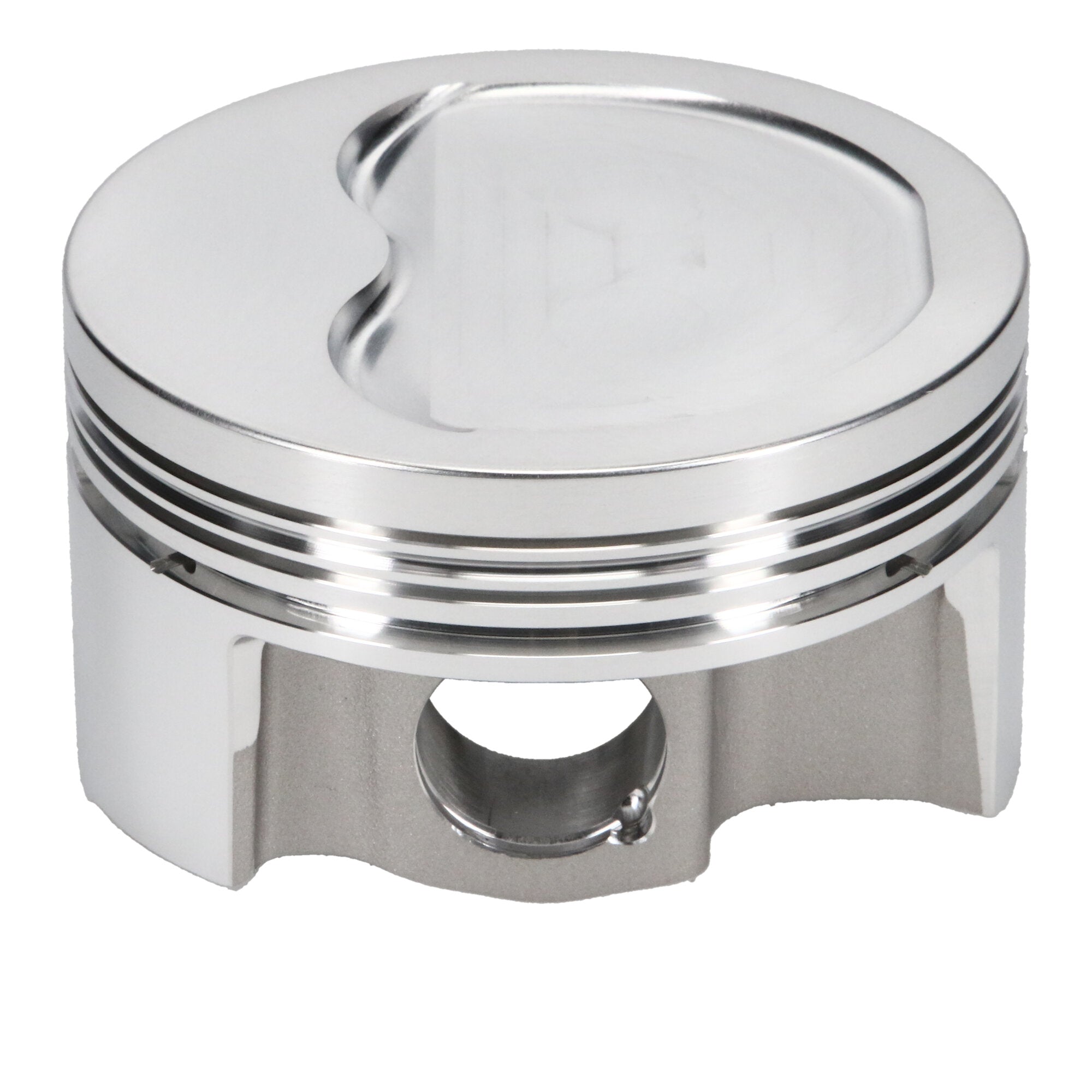

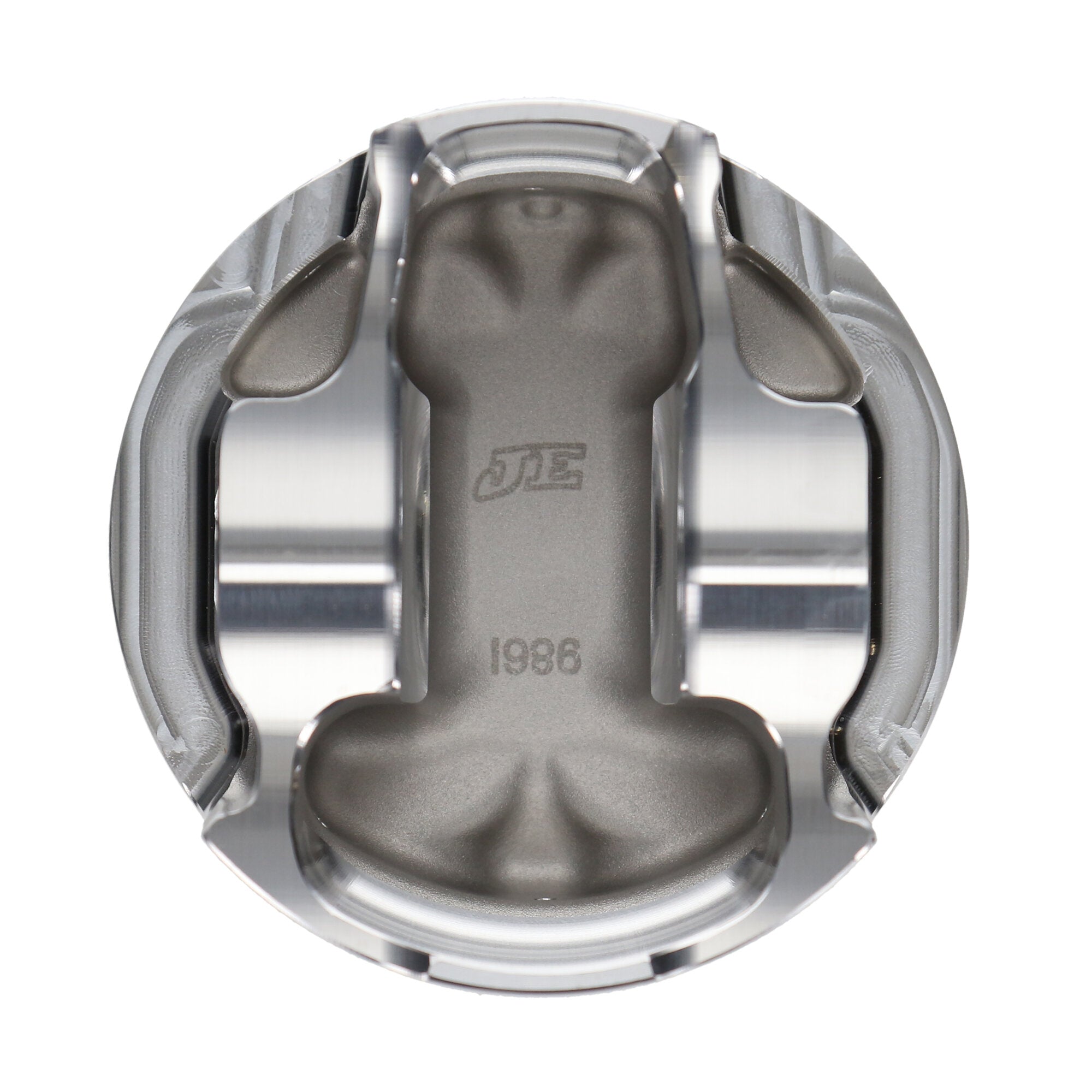

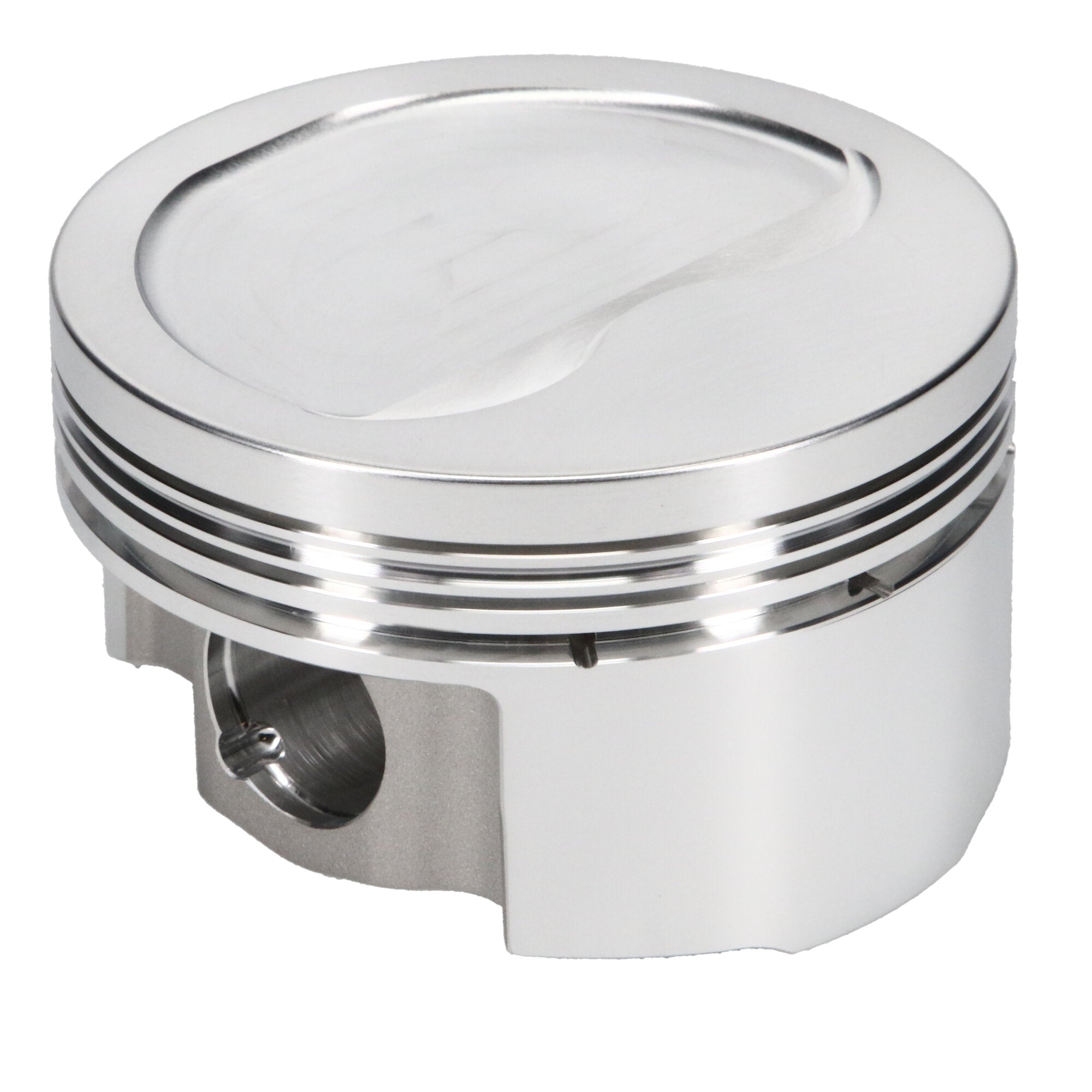

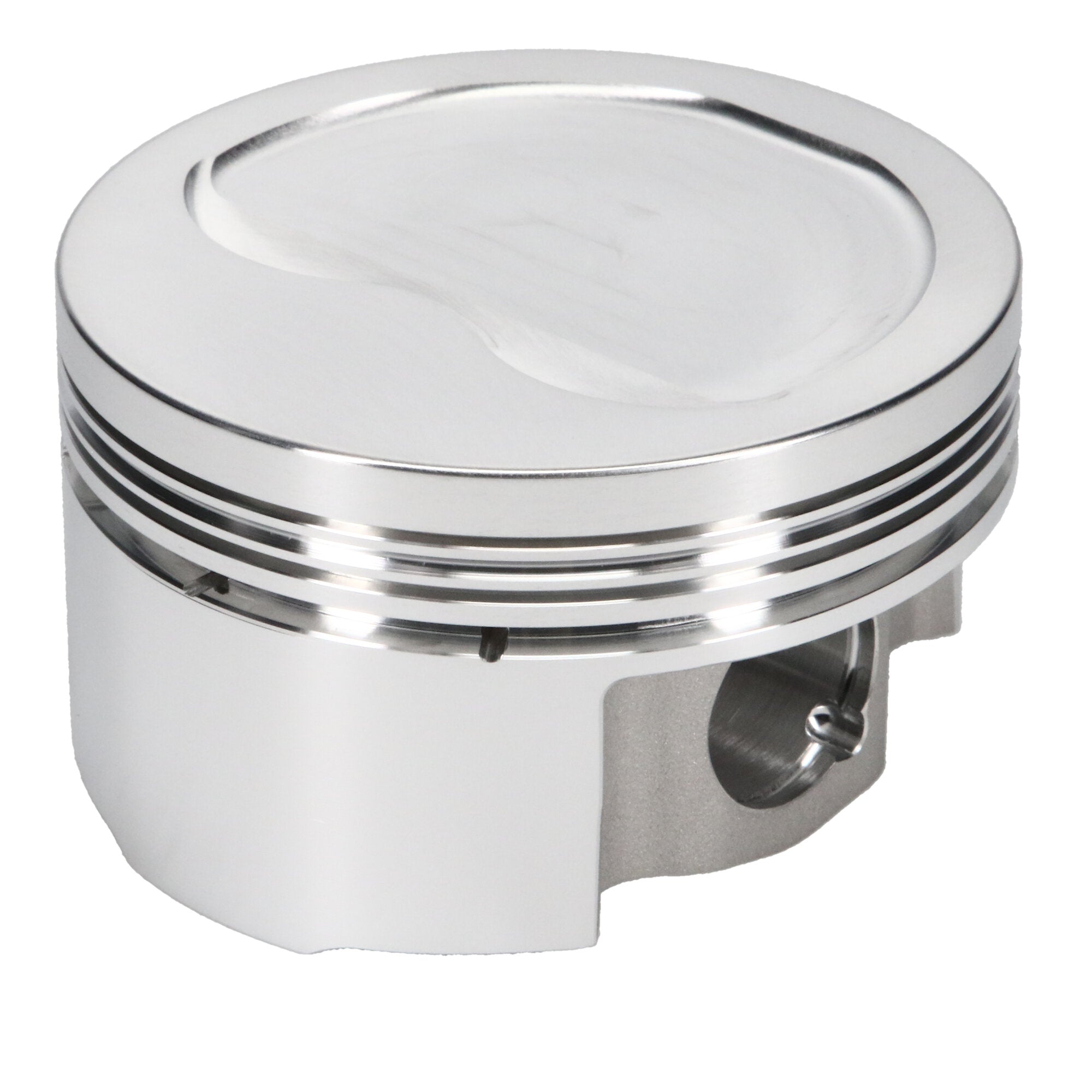

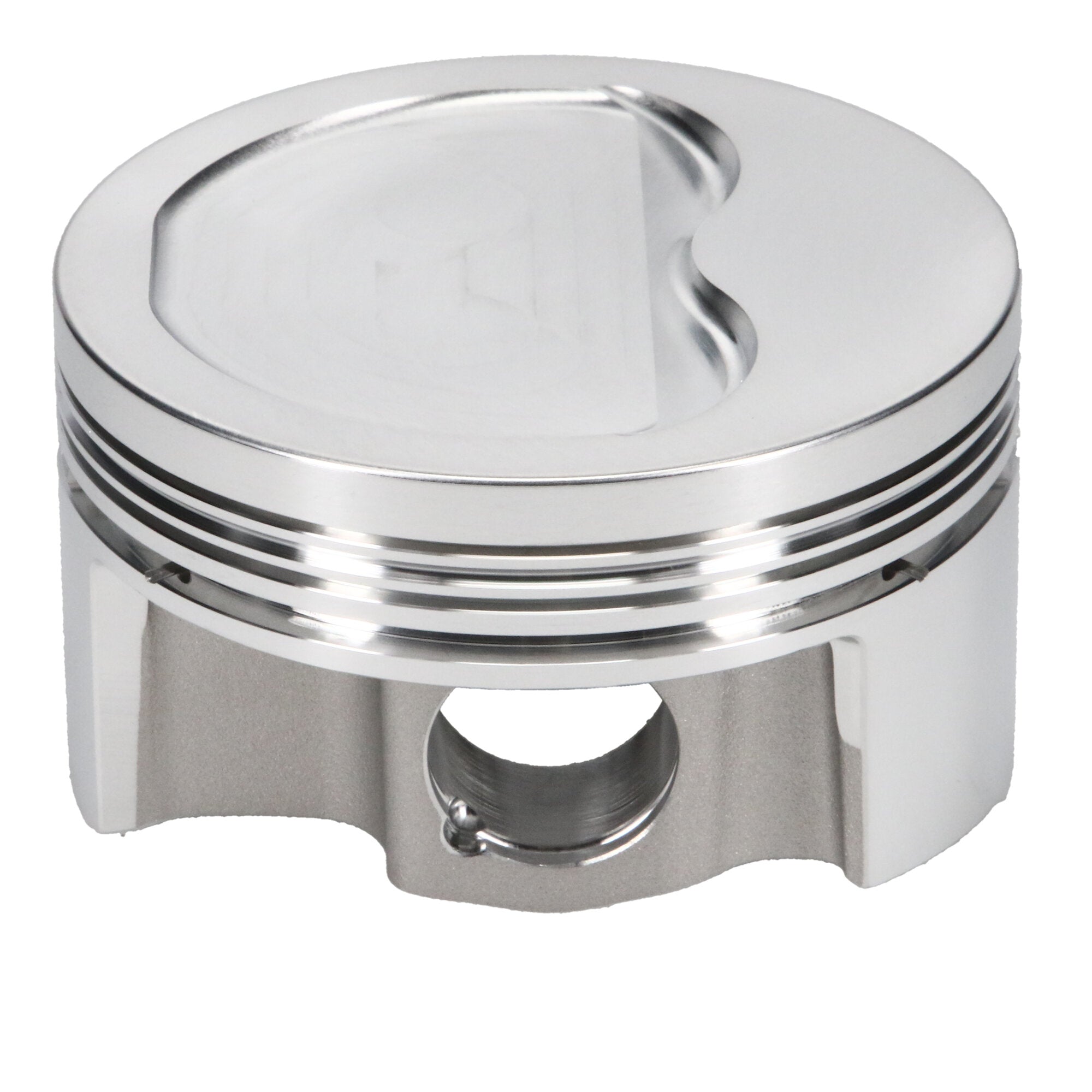

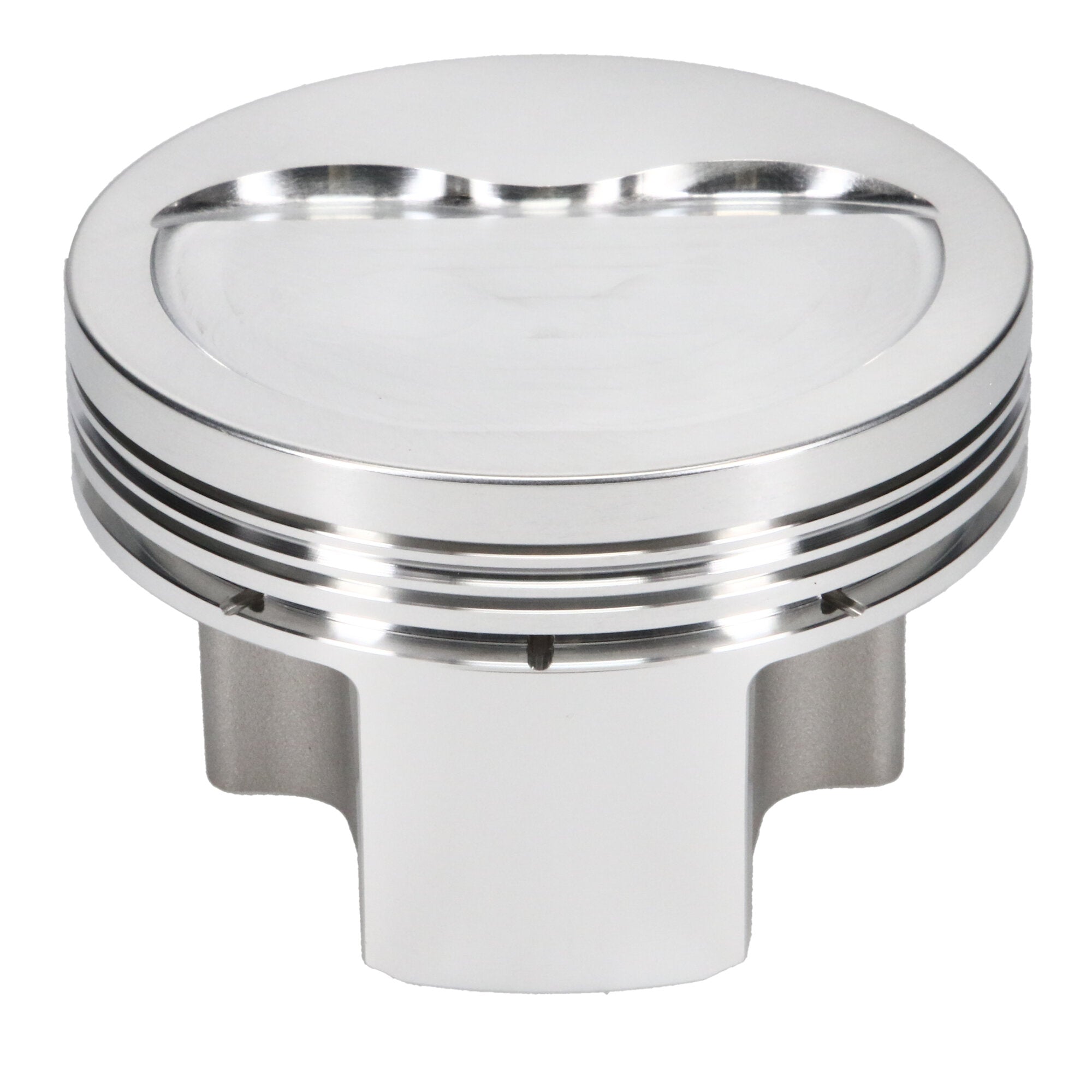

Piston Set, 2618, Inv Dome/Dish, 3.209 Bore, 1.344 CD, 0.866 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Fiat, 176A, 3.209 in. Bore, 7.80:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_TLE |
Fiat 176A - 1.4L, 81.50 Bore, Dish, Set of 4 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Piston Volume |
-3.70 |
| Piston Pin Outside Diameter |
0.866 |
| Bore Diameter |
81.50 |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Prop 65 Yes/No |
Yes |
| Piston Average Weight |
297 |
| Product Market |
European |
| Title - Web |
JE Pistons Fiat 176A Piston Kit - 81.50 mm Bore - 1.344 in. CH, -3.70 CC |
| Wrist Pin Length |
2.250 |
| Add-On |
JG1001-3209 |
| Piston Material |
2618 |
| Title |
JE Pistons - Fiat, 176A, 81.50 mm Bore, Piston Kit |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-2250-15-51C |
| Add-On |
866-063-MW |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
Yes |
| Cylinder Head |
176A |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Engine |
176A |
| Top Compression Ring Thickness |
0.0400 |
| Piston Quantity |
4 |
| Compression Height |
1.344 |
| Make - Web |
Fiat |
| Engine - Web |
176A |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make |
FIAT |
| Piston Pin Material |
5115 |
| Ringset Included |
Yes |
| Piston Pin Wall Thickness |
0.150 |
| Piston Head Type |
Dish |
| Oil Ring Thickness |
0.111 |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Piston Series |
JE Pistons |
| Wrist Pin Outer Diameter |
0.866 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
