As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Fiat 159A |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

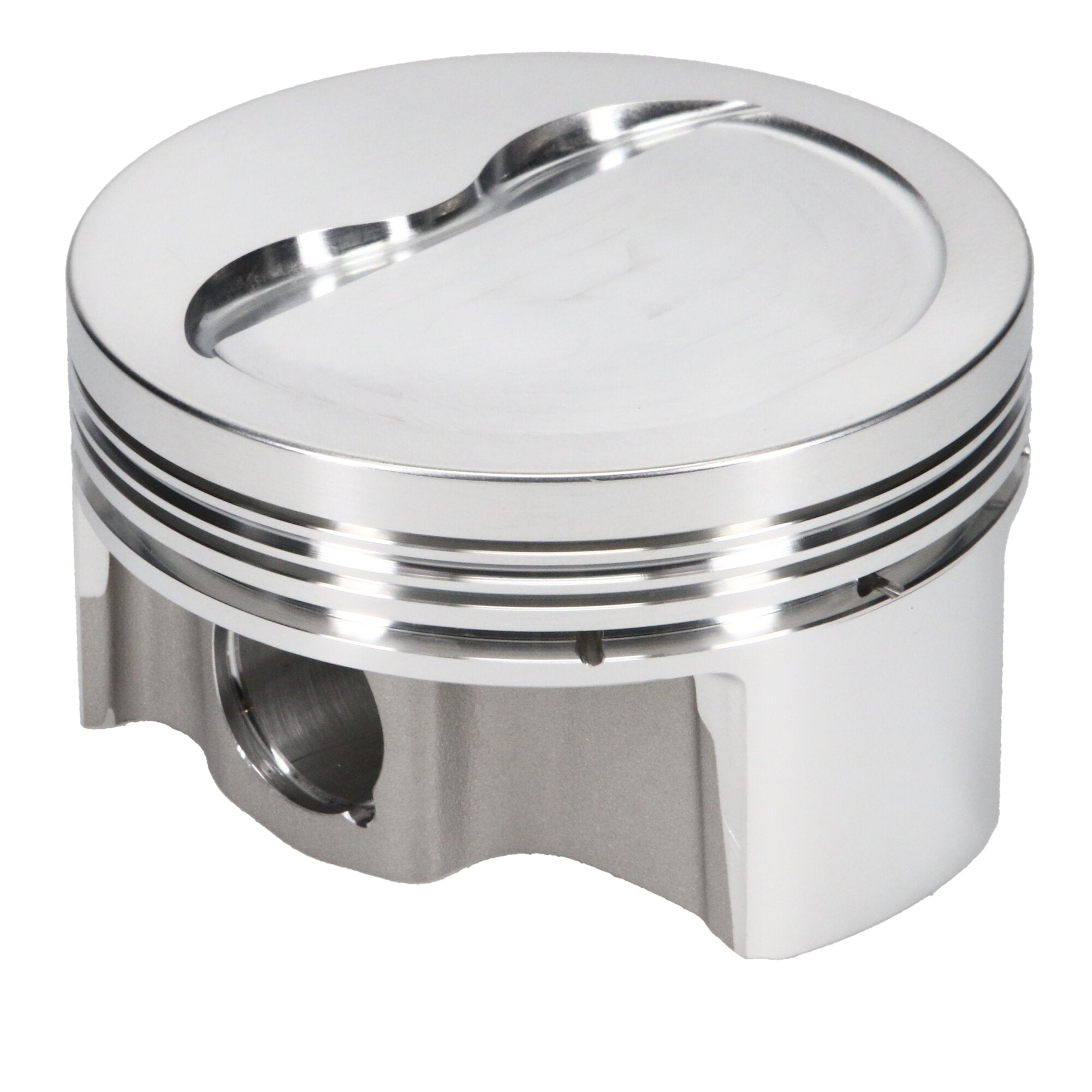

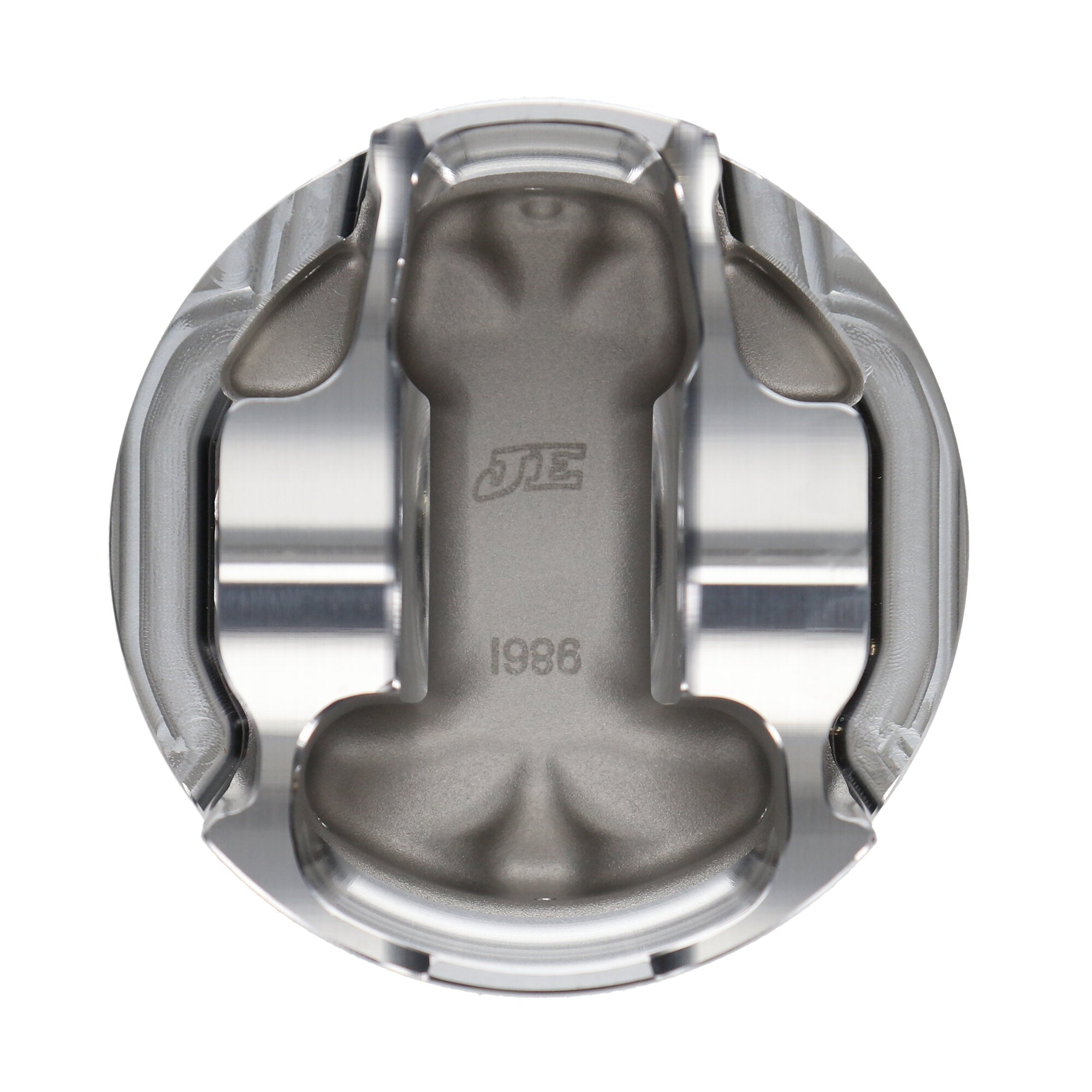

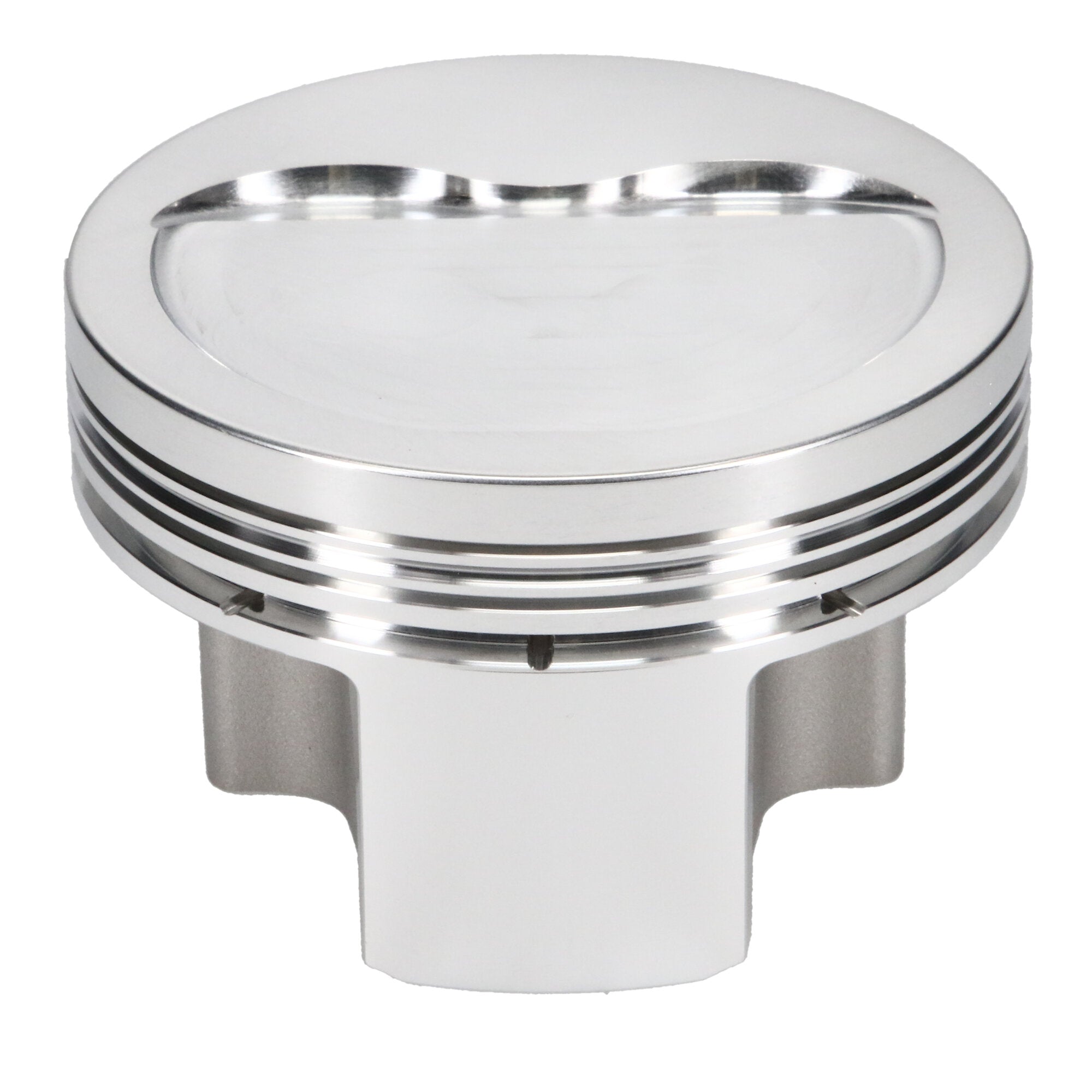

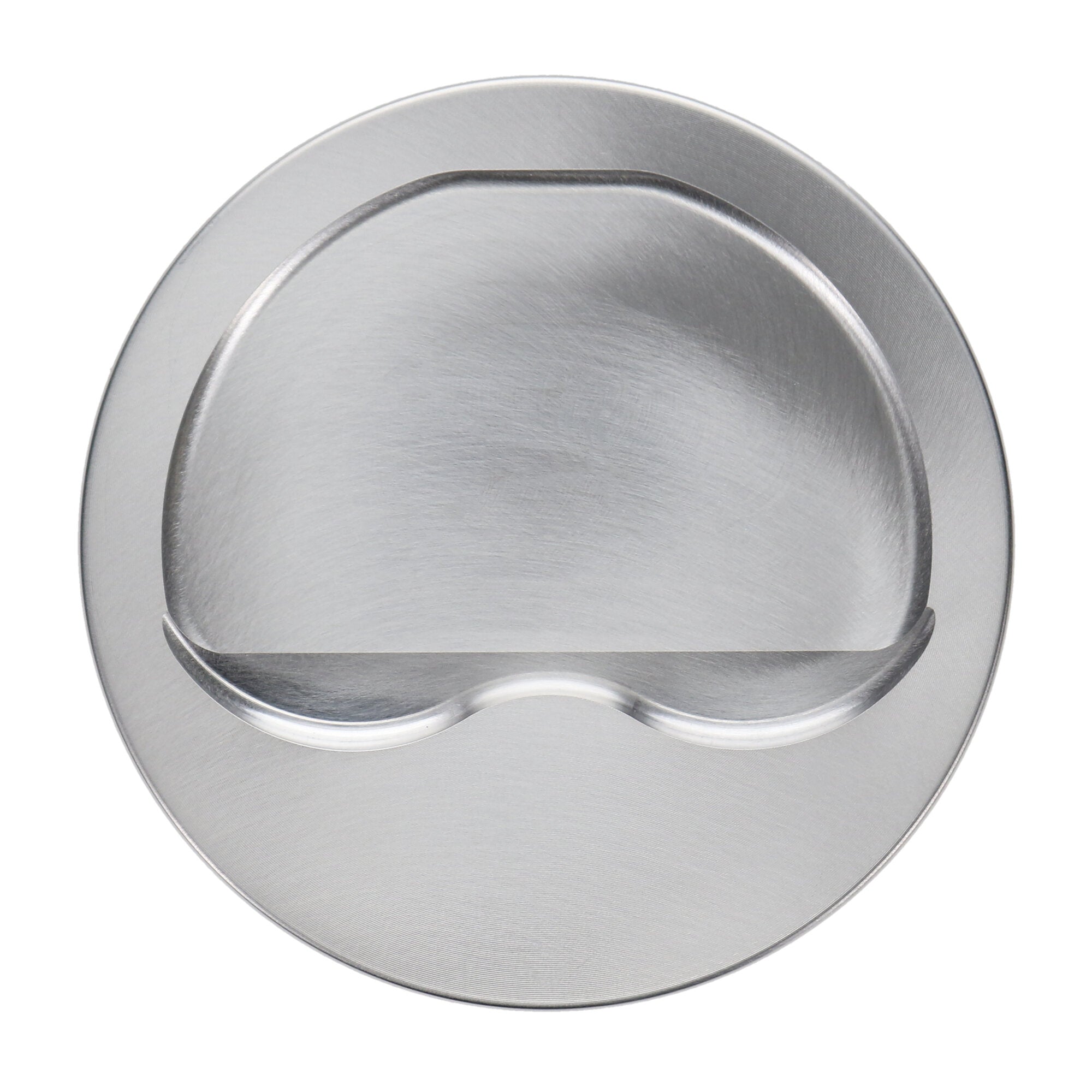

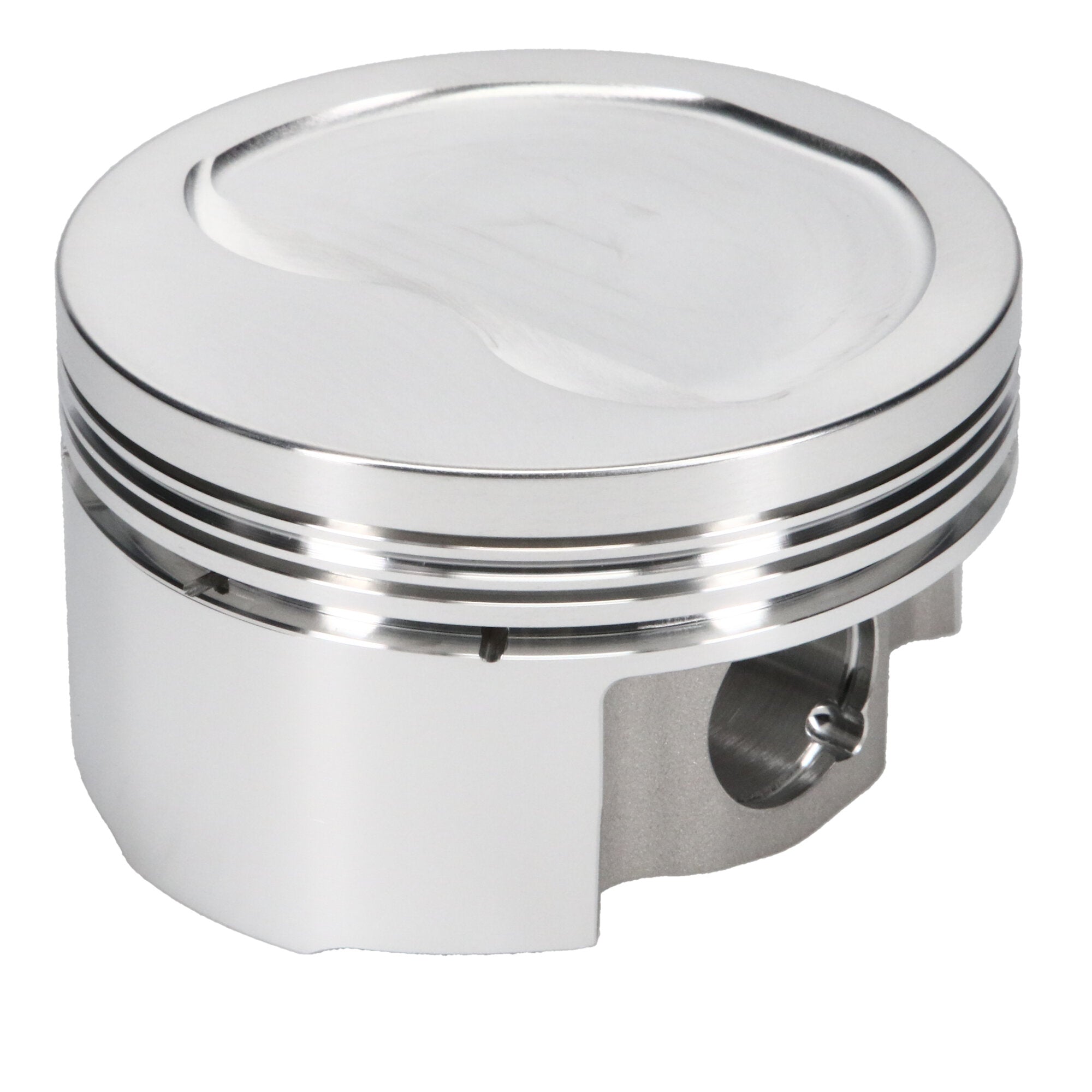

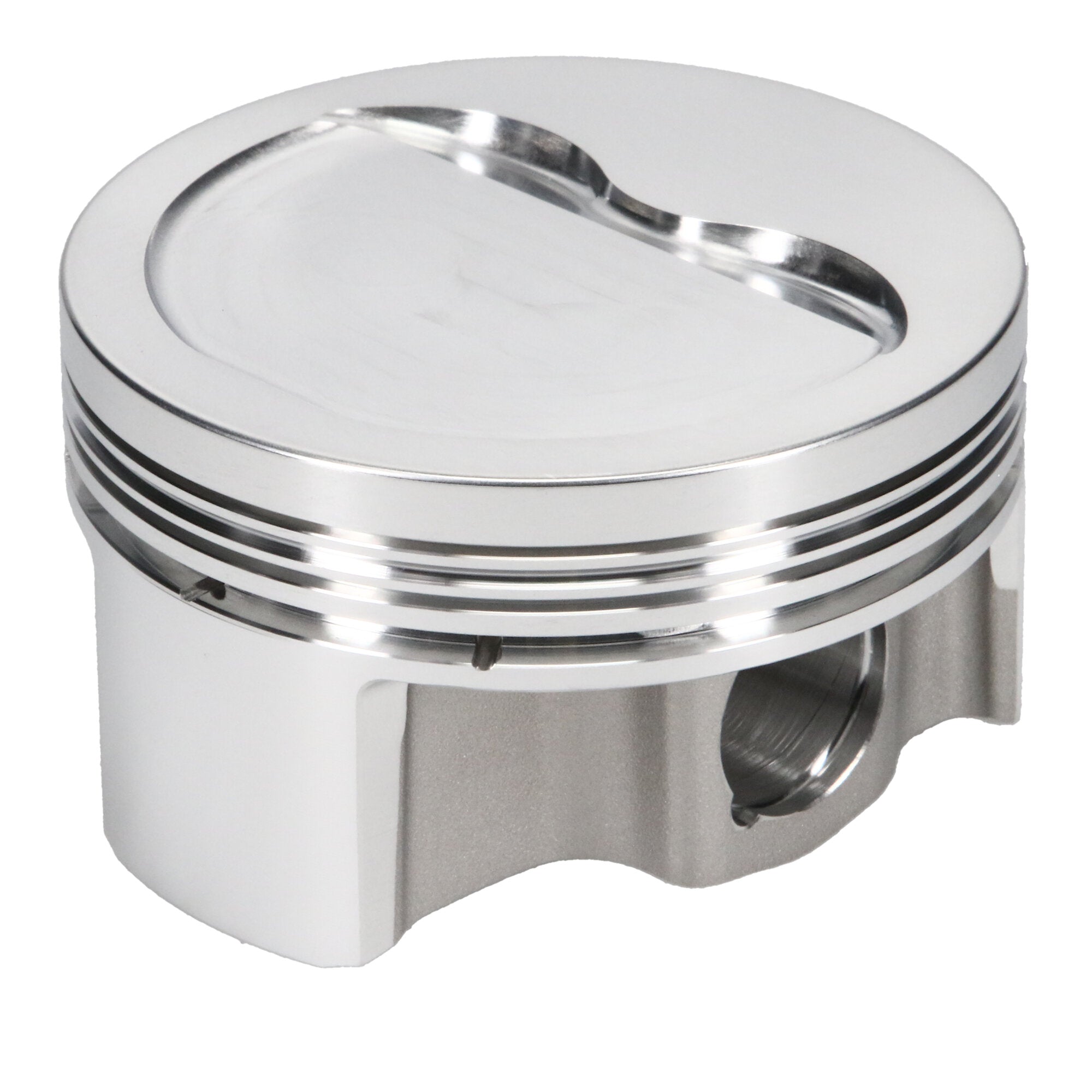

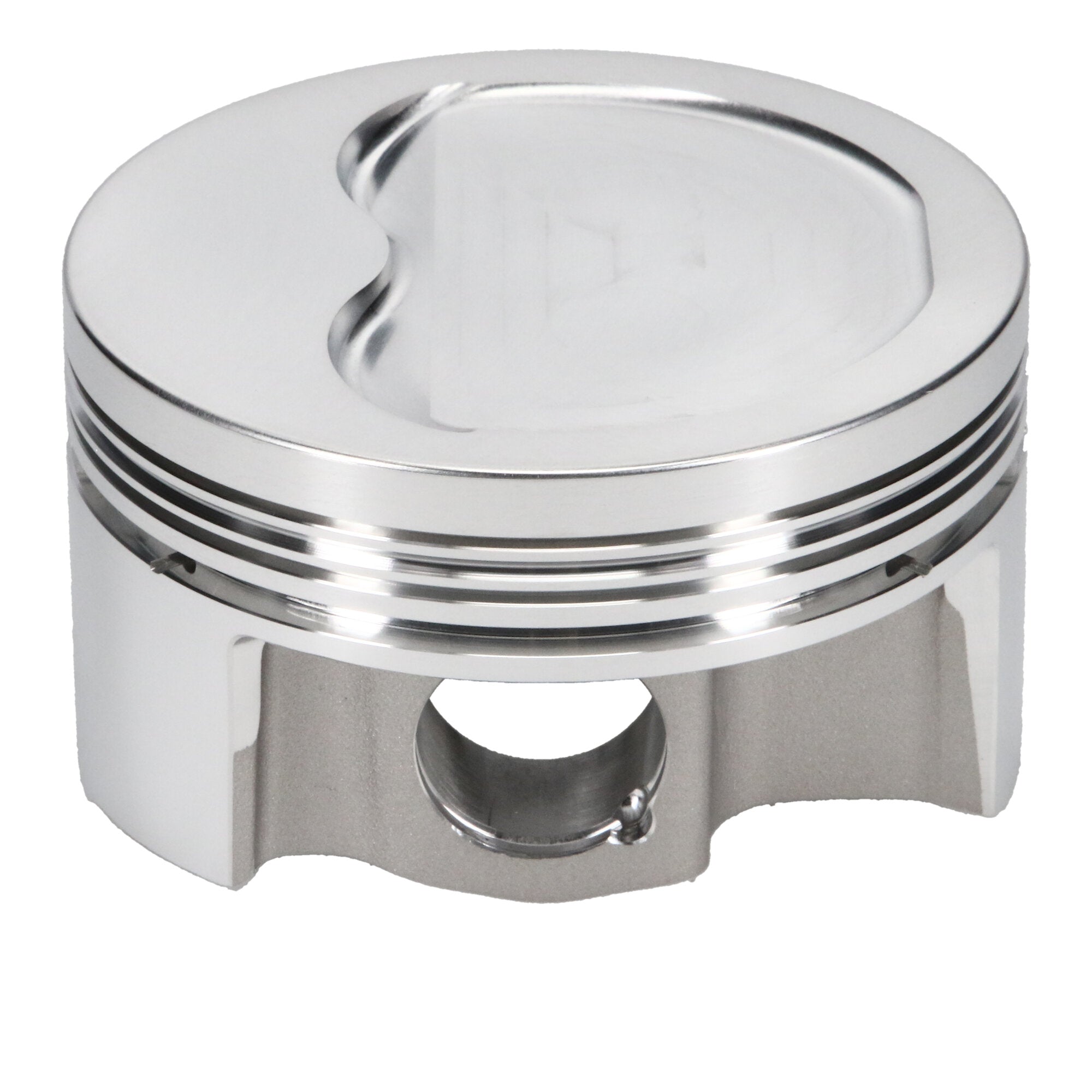

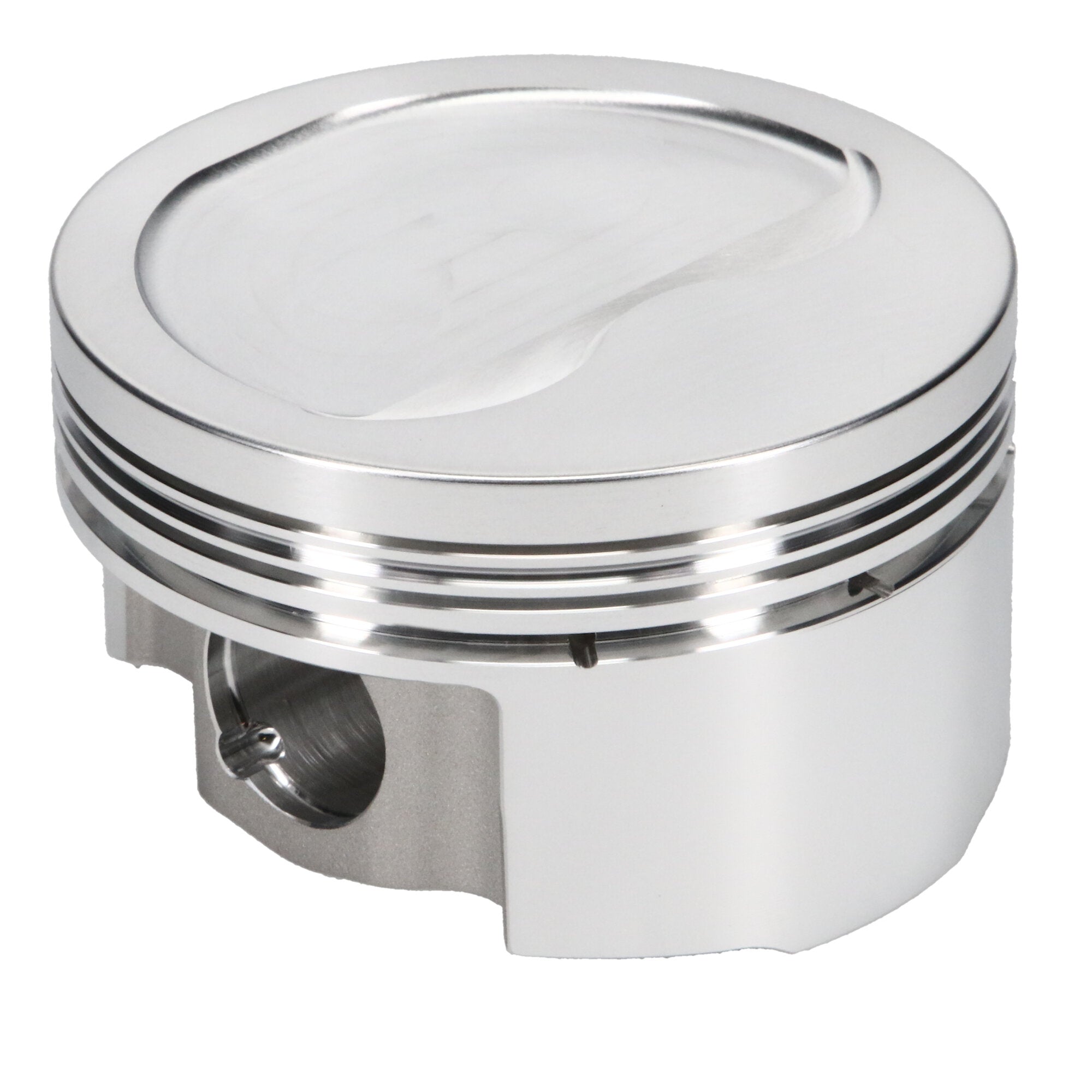

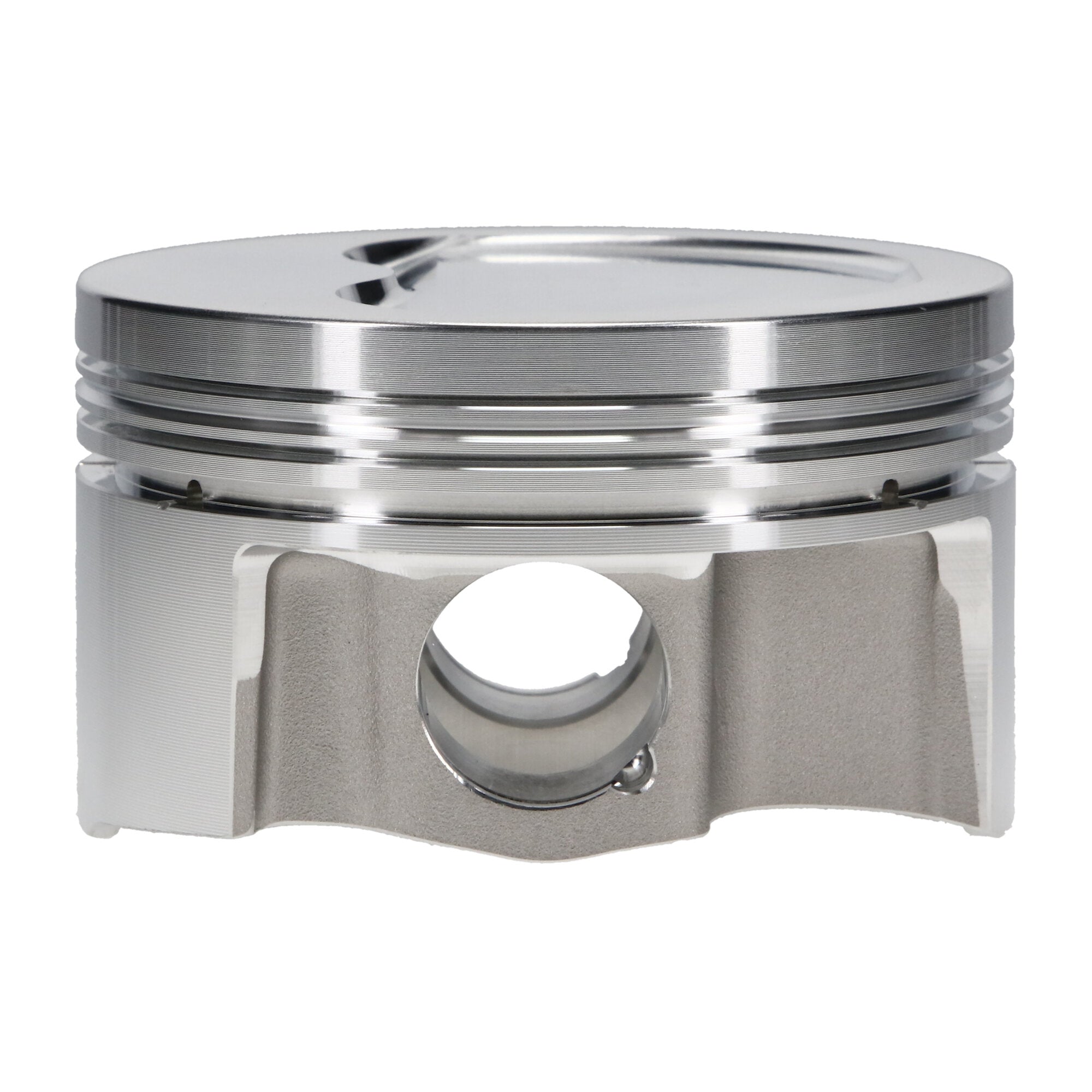

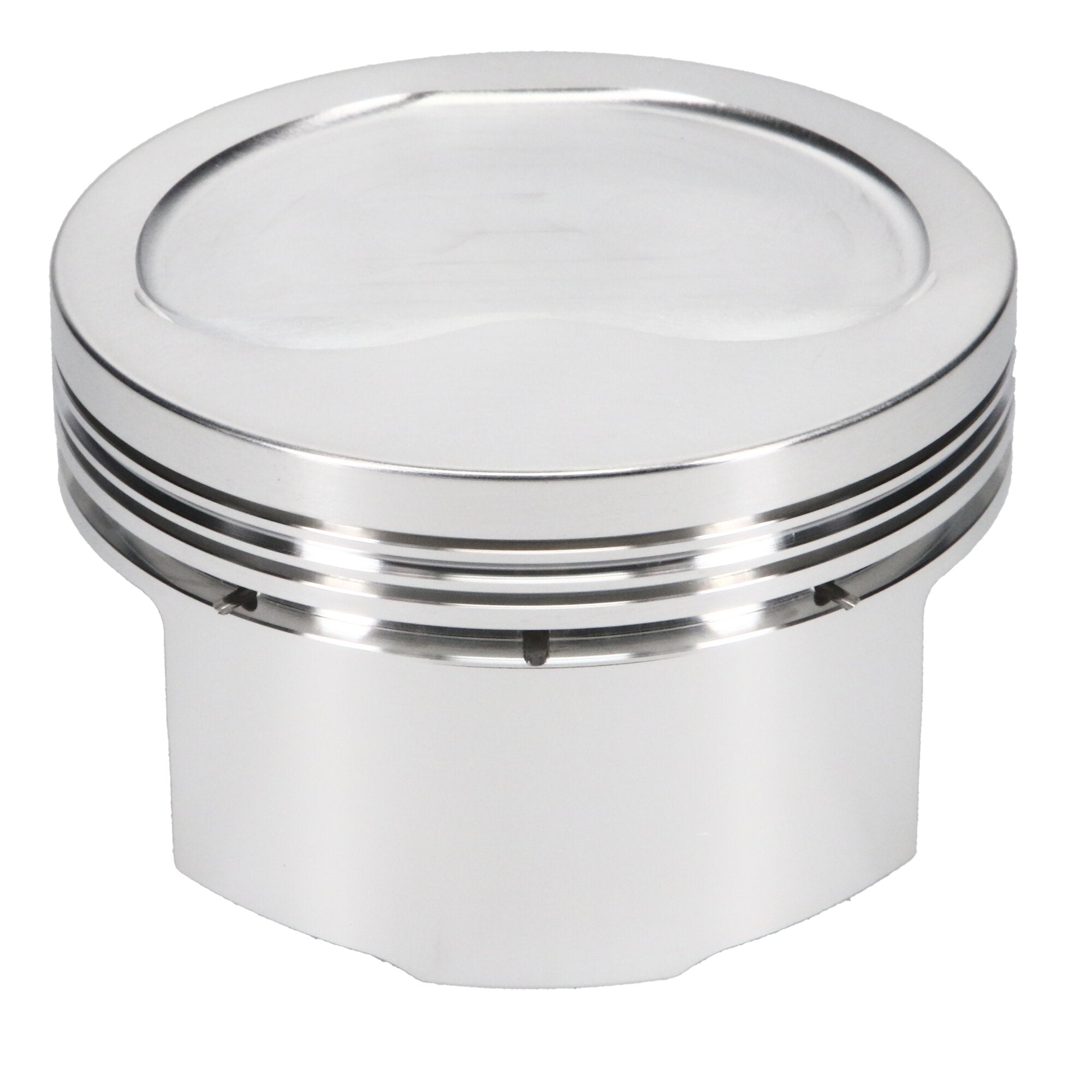

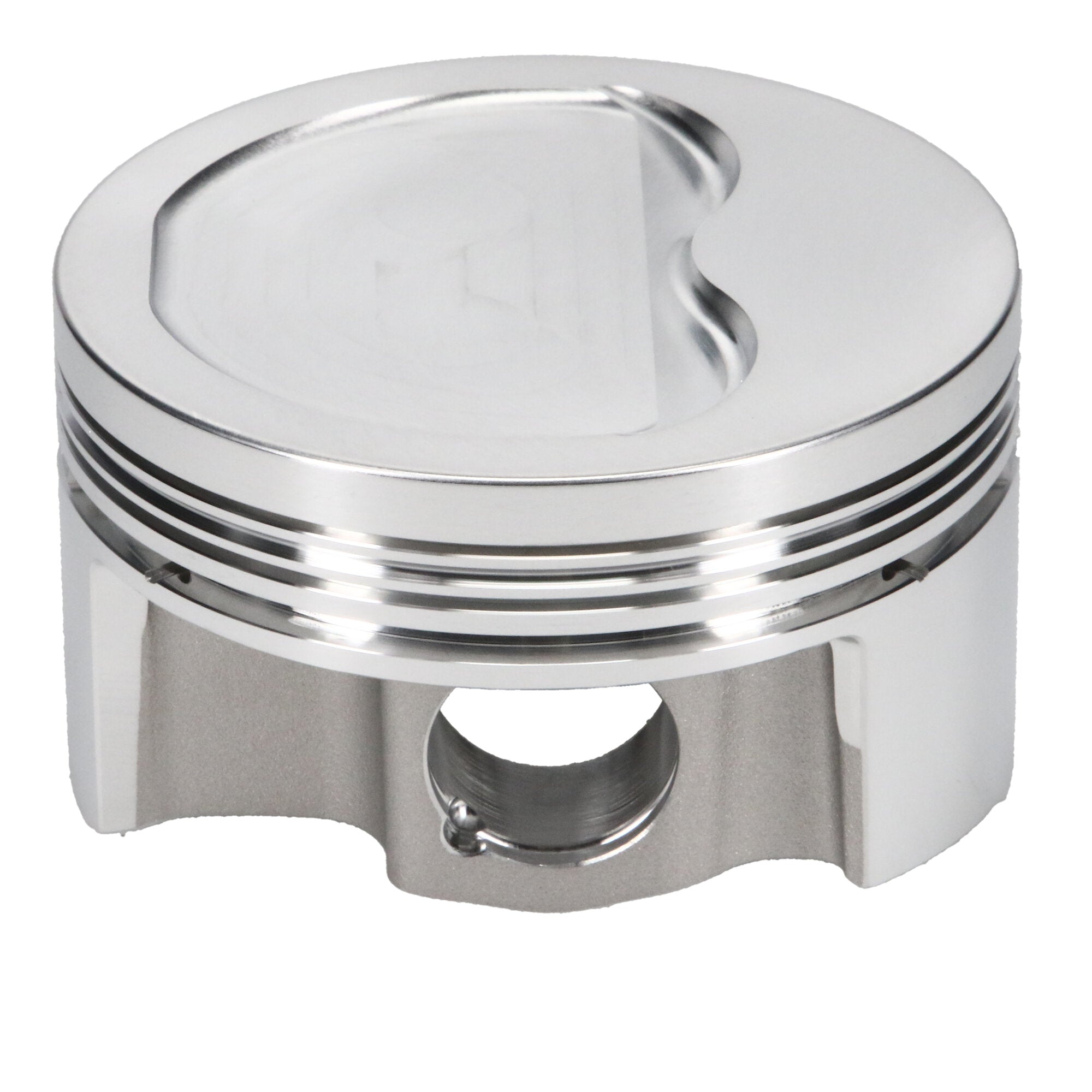

Piston Set, 2618, Inv Dome/Dish, 3.445 Bore, 1.311 CD, 0.866 Pin, Set of 4. |
| Description_EXT |
JE, Fiat, 159A, 3.445 in. Bore, 9.20:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Fiat 159A, 87.50 Bore, Dish, Set of 4 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine |
159A |
| Oil Ring Thickness |
0.111 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Length |
2.250 |
| Forging Type |
FSR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Fiat |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Engine Type |
ICE |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
87.50 |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Prop 65 Yes/No |
Yes |
| Piston Average Weight |
332 |
| Product Market |
European |
| Title - Web |
JE Pistons Fiat 159A Piston Kit - 87.50 mm Bore - 1.311 in. CH, -4.40 CC |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Add-On |
866-063-MW |
| Title |
JE Pistons - Fiat, 159A, 87.50 mm Bore, Piston Kit |
| Make |
FIAT |
| Industry |
Automotive |
| Piston Material |
2618 |
| Add-On |
JG1001-3445 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Volume |
-4.40 |
| Compression Height |
1.311 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Pin Outside Diameter |
0.866 |
| Piston Quantity |
4 |
| Top Compression Ring Thickness |
0.0400 |
| Add-On |
866-2250-15-51C |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Cylinder Head |
159A |
| Engine - Web |
159A |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
