As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Citroen VTS C2 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

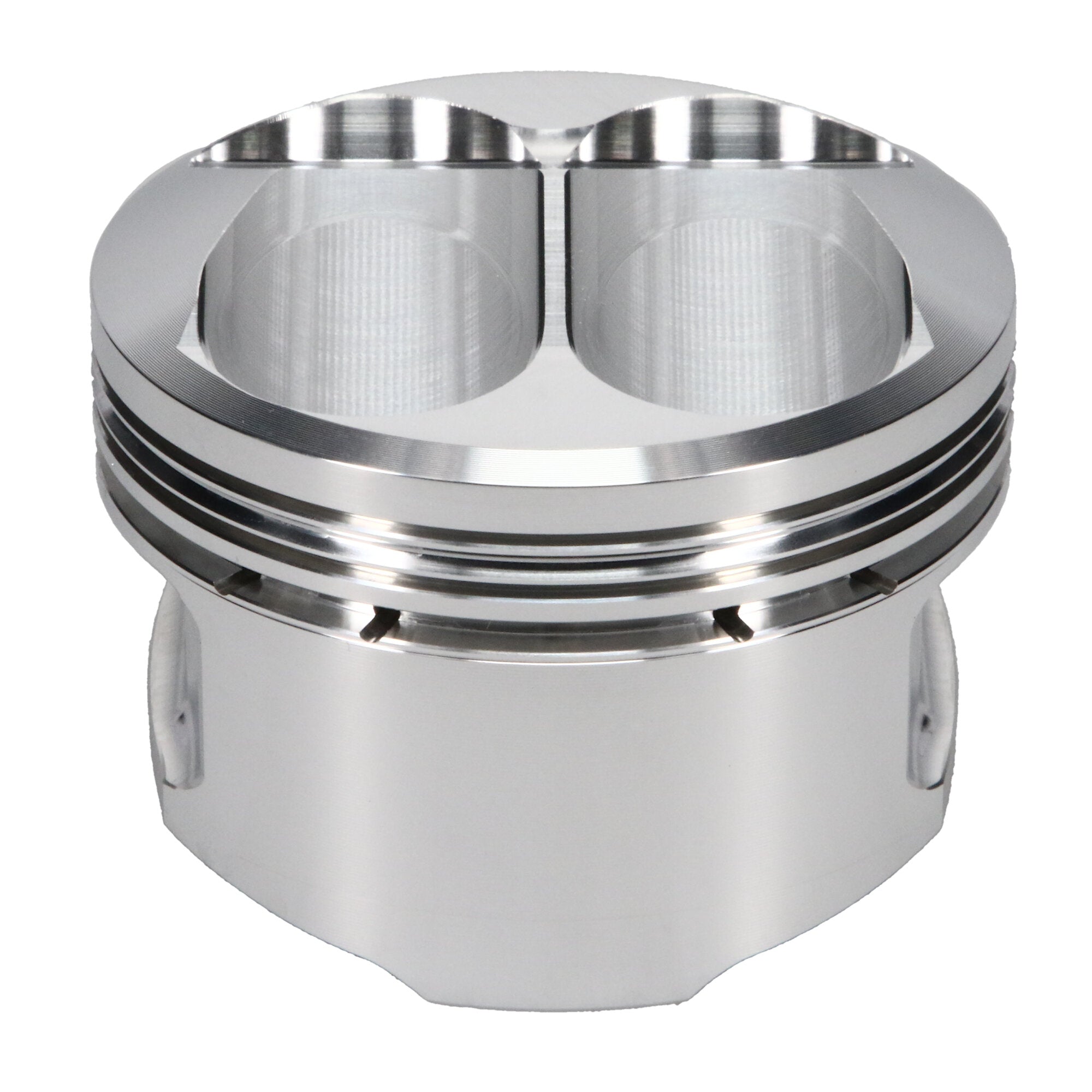

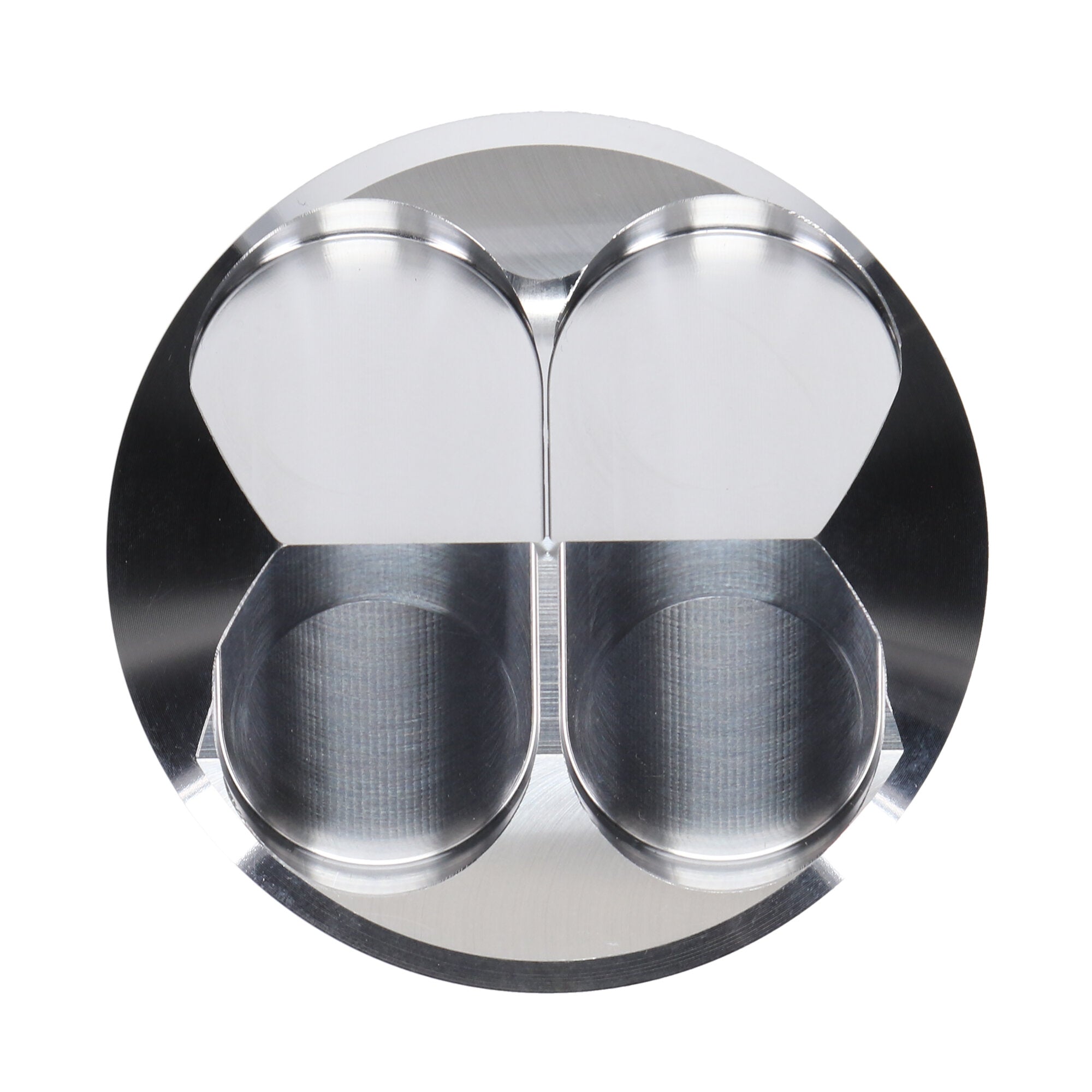

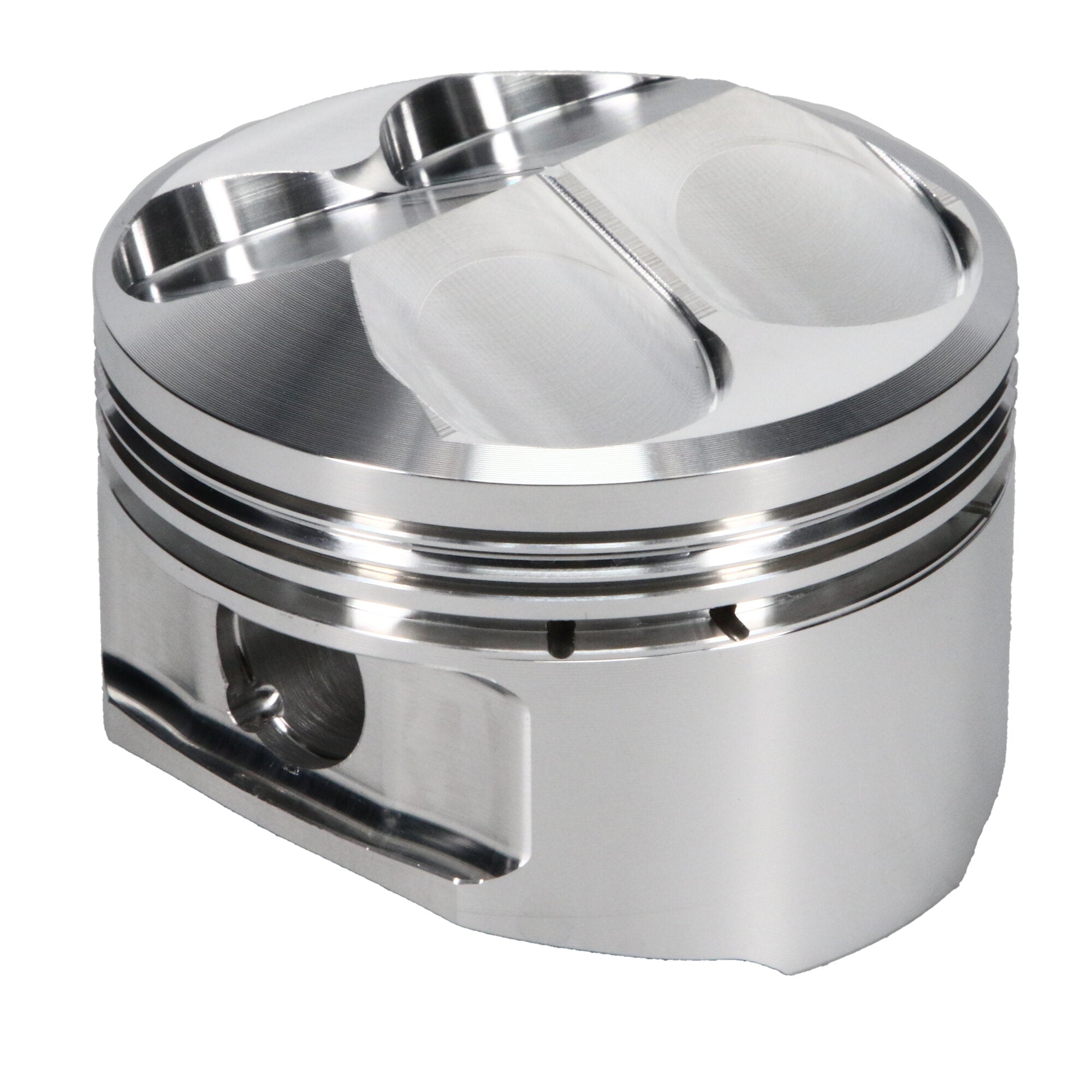

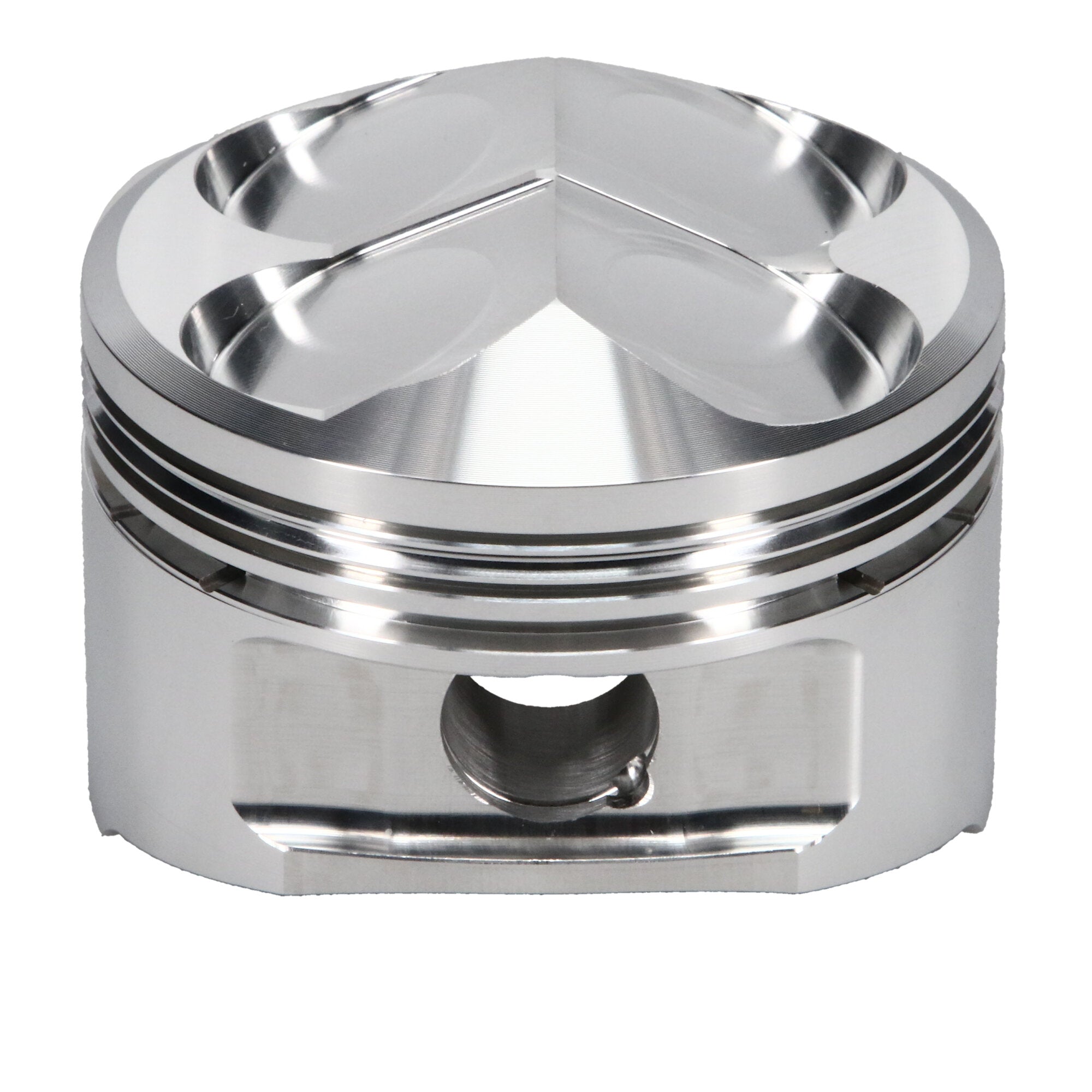

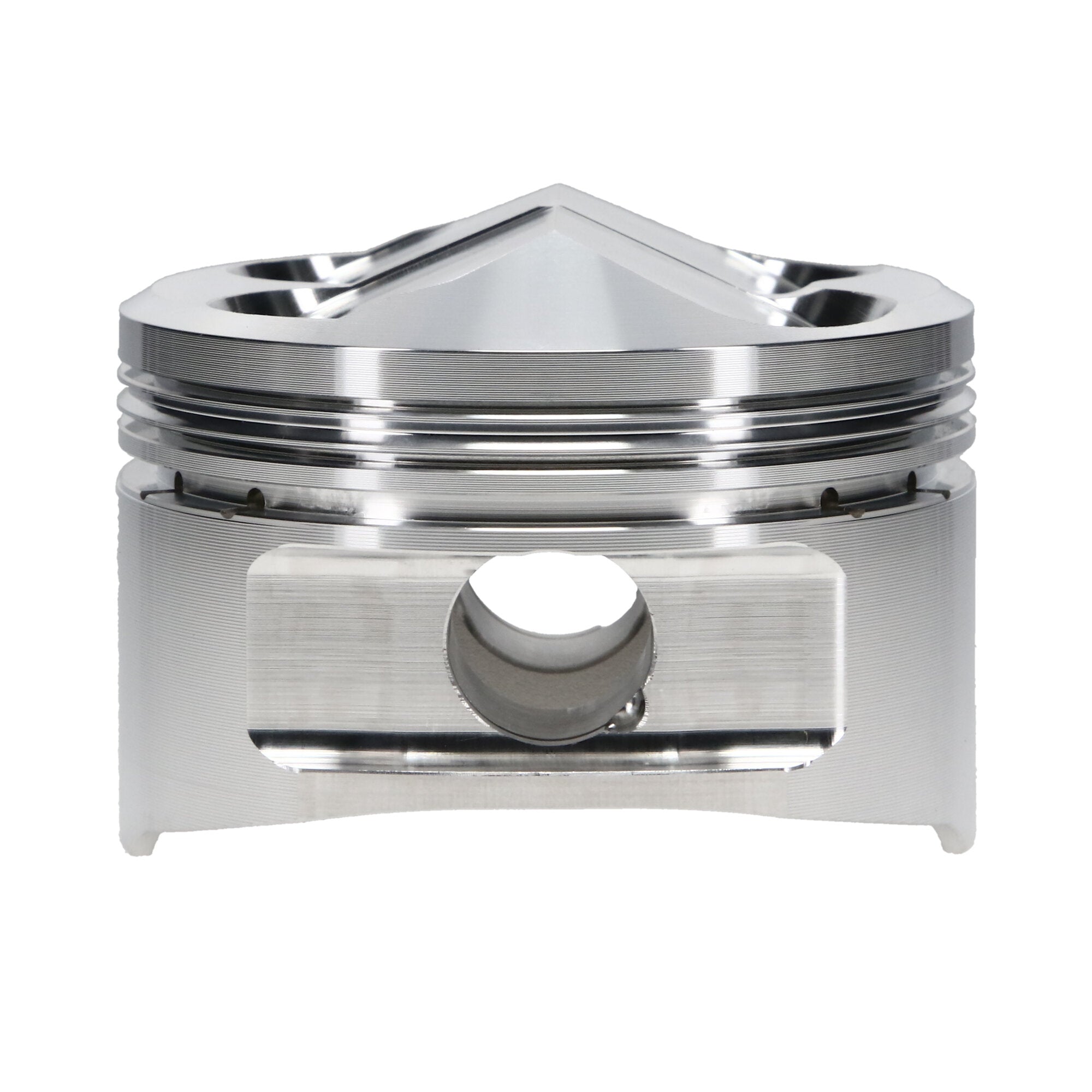

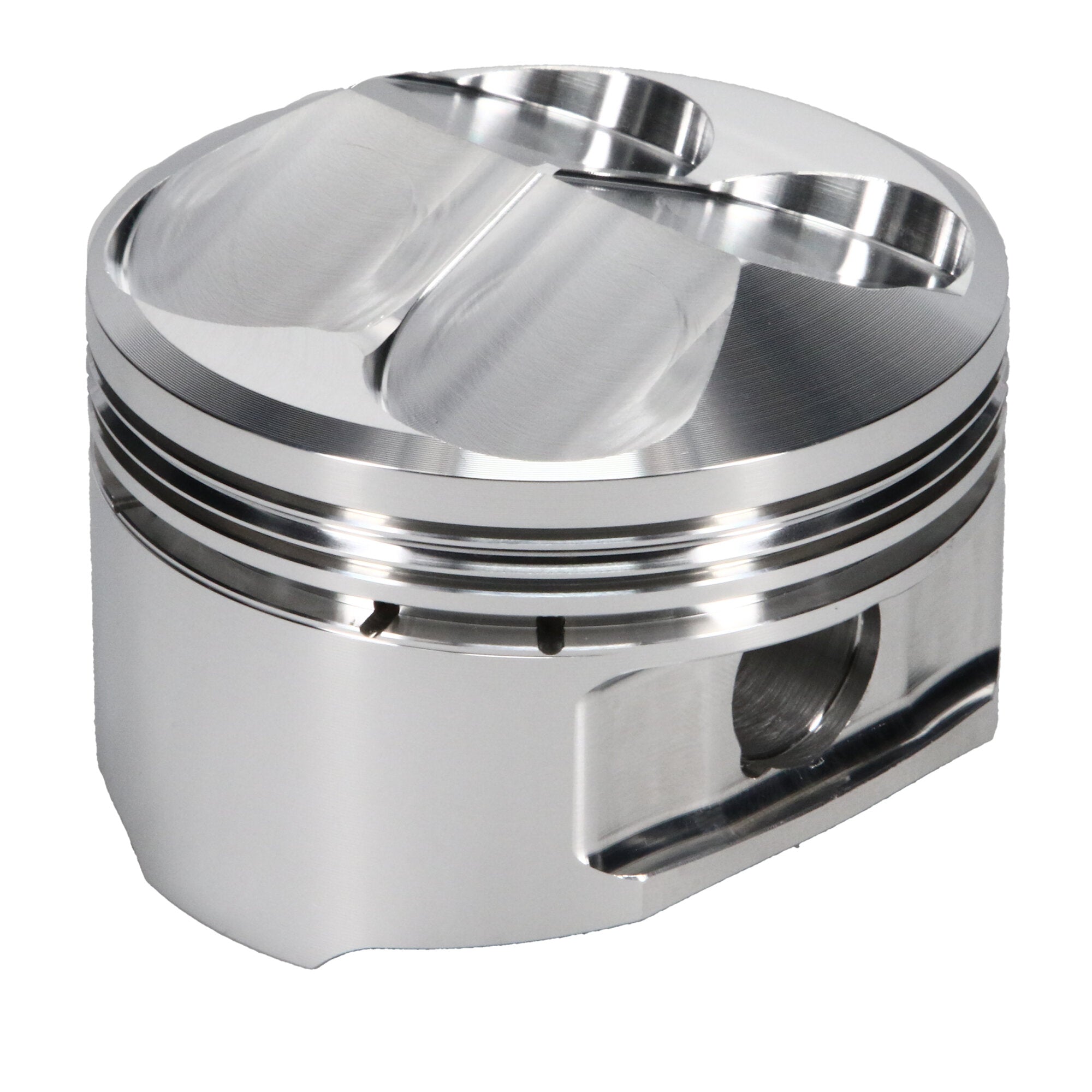

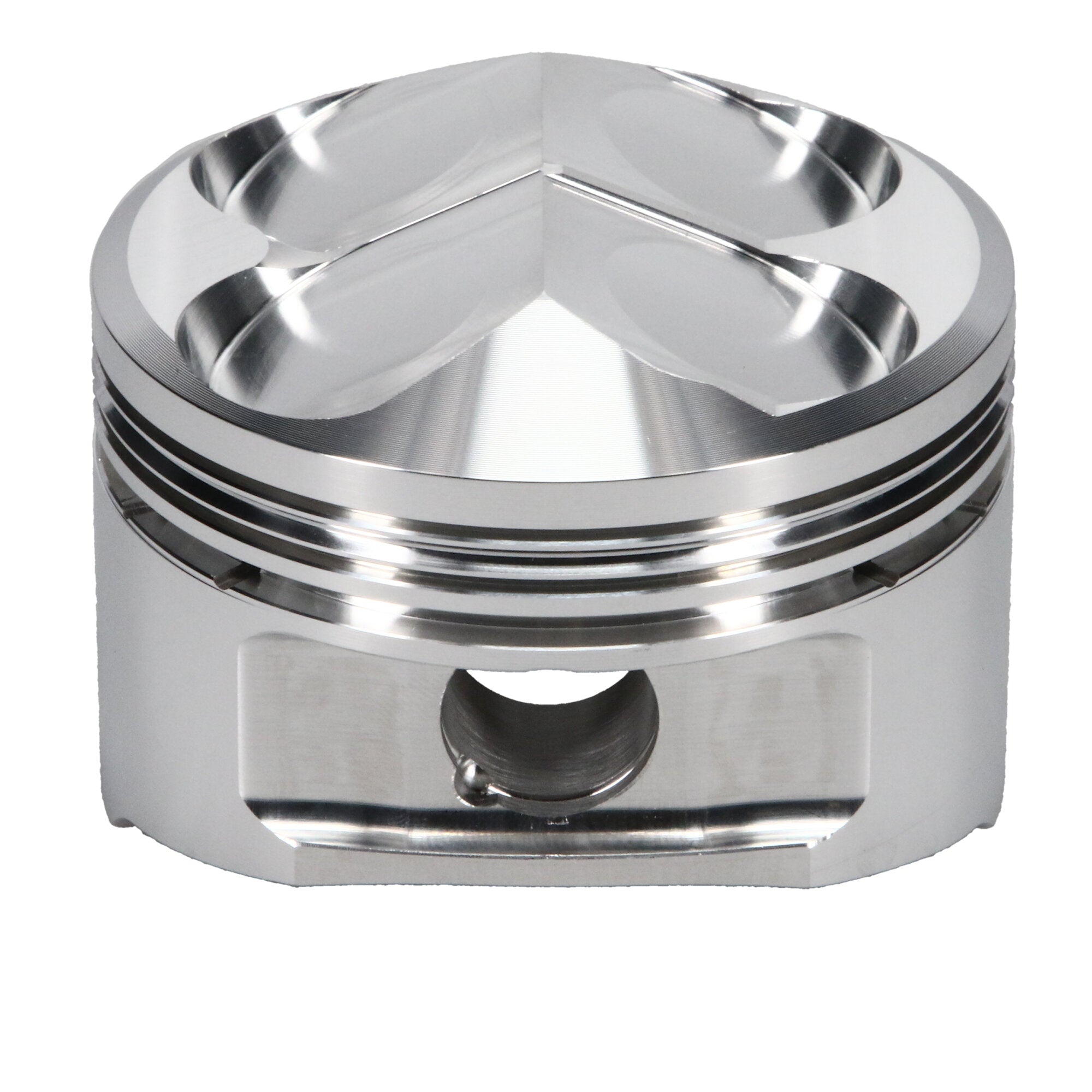

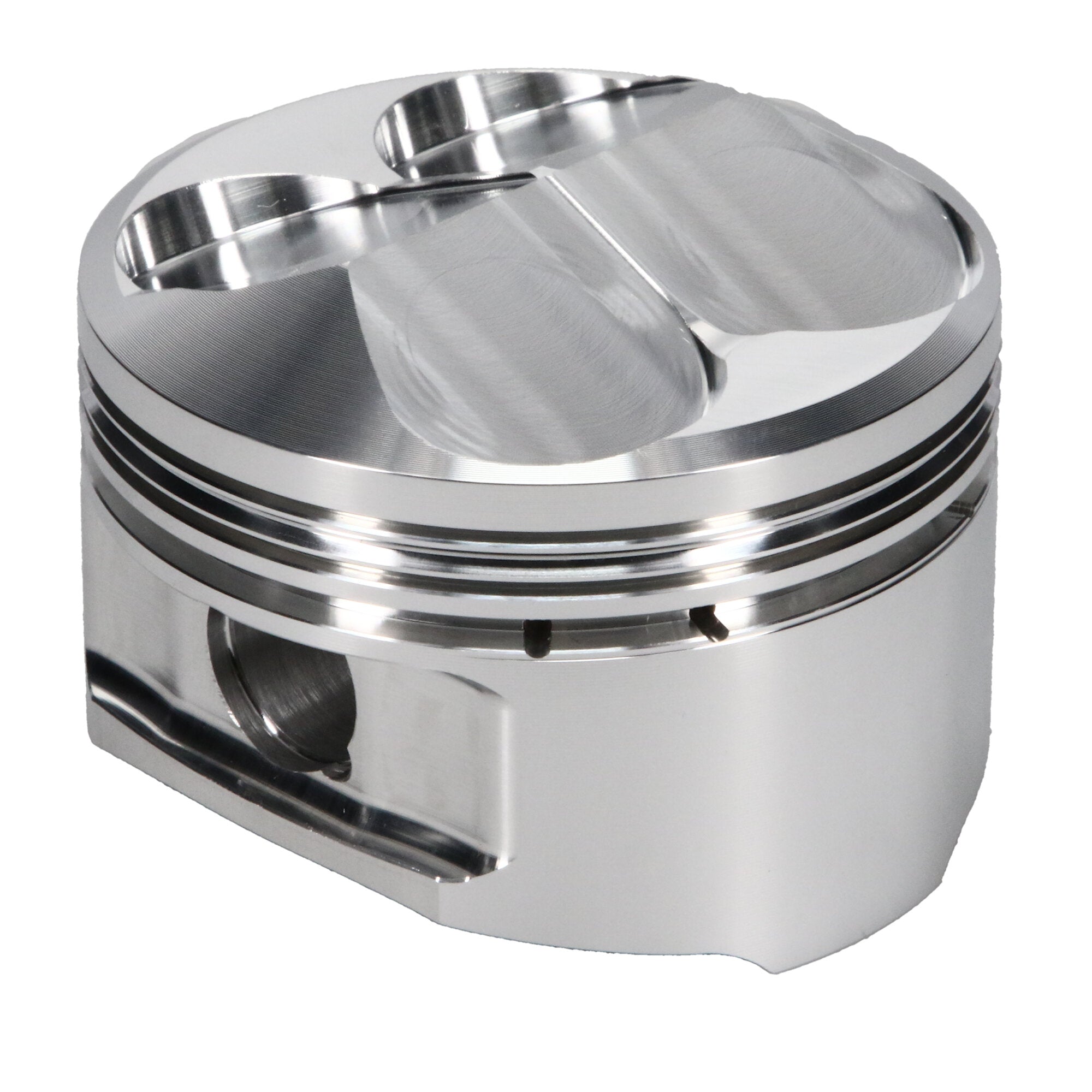

JE, Citroen, VTS C2, 3.098 in. Bore, 11.30:1, Dome, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.098 Bore, 1.106 CD, 0.708 Pin, Set of 4. |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Citroen VTS C2, 78.70 Bore, Dome, Set of 4 |
| Piston Volume |
7.60 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Add-On |
708-050-MW |
| Add-On |
JG1001-3110 |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
708-2250-12-51C |
| Cylinder Head |
C2 VTS |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Product Type |
Engine Piston Kit |
| Make - Web |
Citroen |
| Wrist Pin Length |
2.250 |
| Prop 65 Yes/No |
Yes |
| Engine |
VTS C2 |
| Piston Pin Length |
2.250 |
| Title - Web |
JE Pistons Citroen VTS C2 Piston Kit - 78.70 mm Bore - 1.106 in. CH, 7.60 CC |
| Out of Stock Message |
Call for Availability |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Top Compression Ring Thickness |
0.0400 |
| Piston Pin Wall Thickness |
0.120 |
| Forging Type |
Round |
| Make |
CITROEN |
| Product Market |
Sport Compact |
| Title |
JE Pistons - Citroen, VTS C2, 78.70 mm Bore, Piston Kit |
| Oil Ring Thickness |
0.111 |
| Piston Pin Outside Diameter |
0.708 |
| Compression Height |
1.106 |
| Bore Diameter |
78.70 |
| Piston Pin Material |
5115 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Ringset Included |
Yes |
| Piston Head Type |
Dome |
| Piston Average Weight |
260 |
| Piston Quantity |
4 |
| Wrist Pin Wall Thickness |
0.120 |
| Wrist Pin Outer Diameter |
0.708 |
| Engine - Web |
VTS C2 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
