As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LS |
| Description_DES |

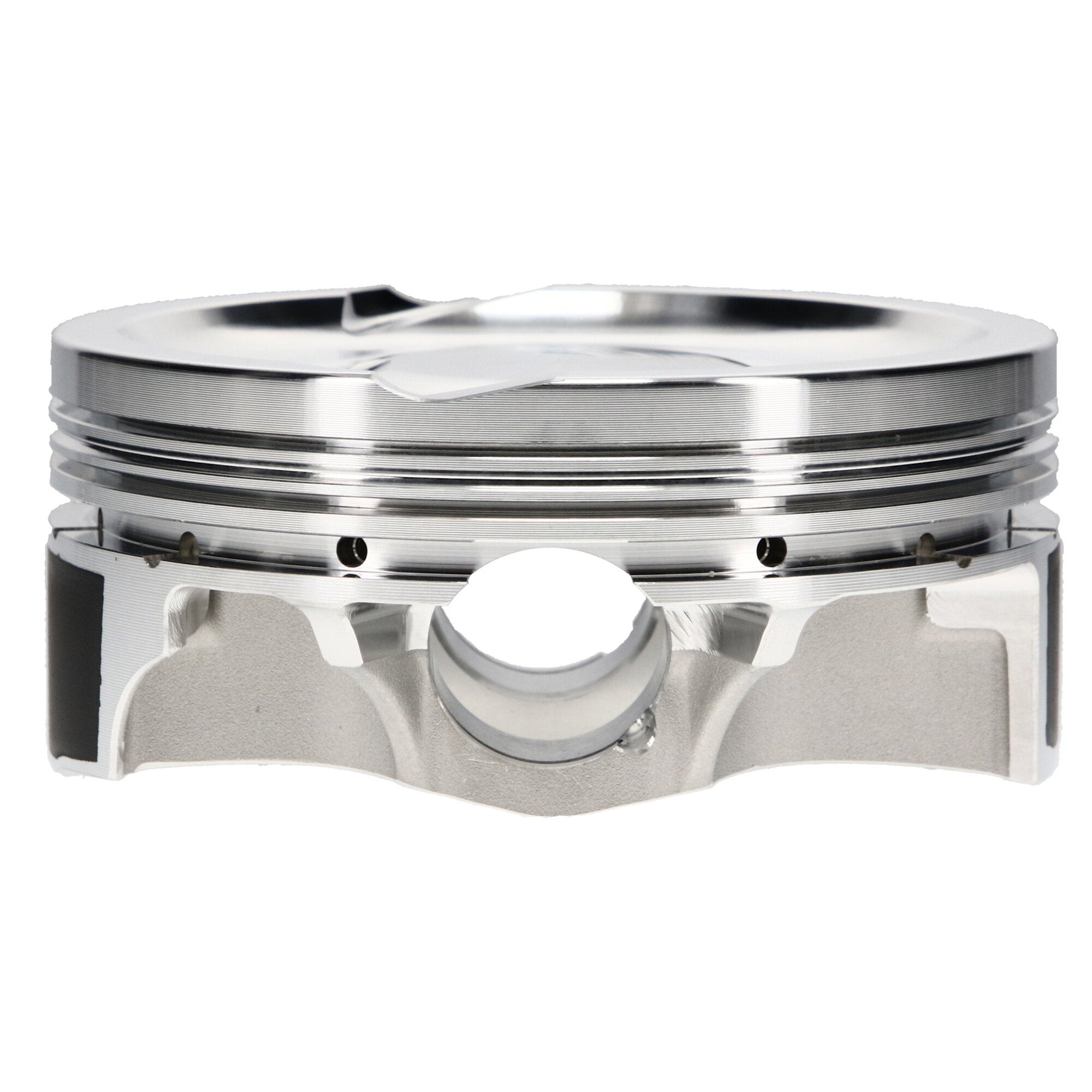

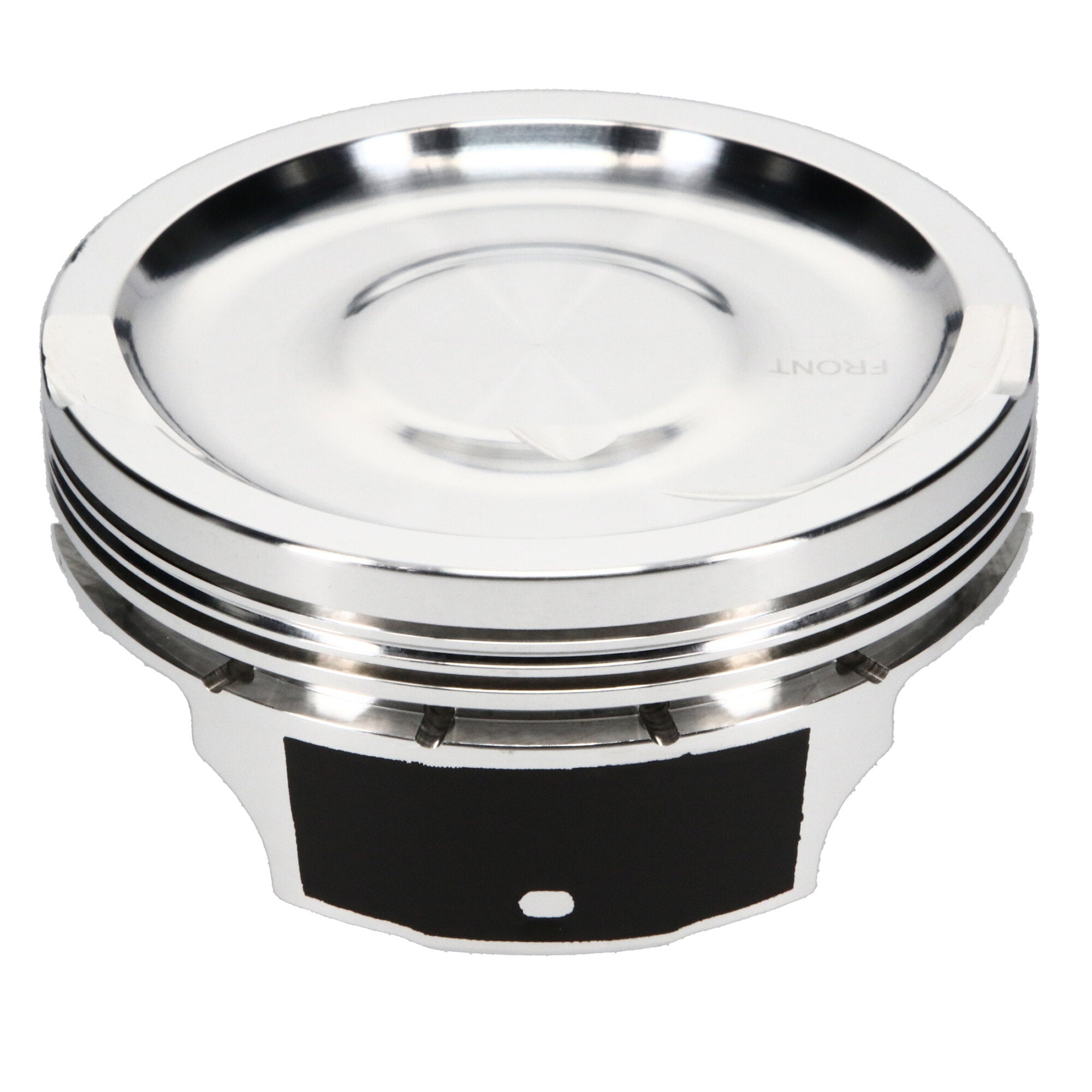

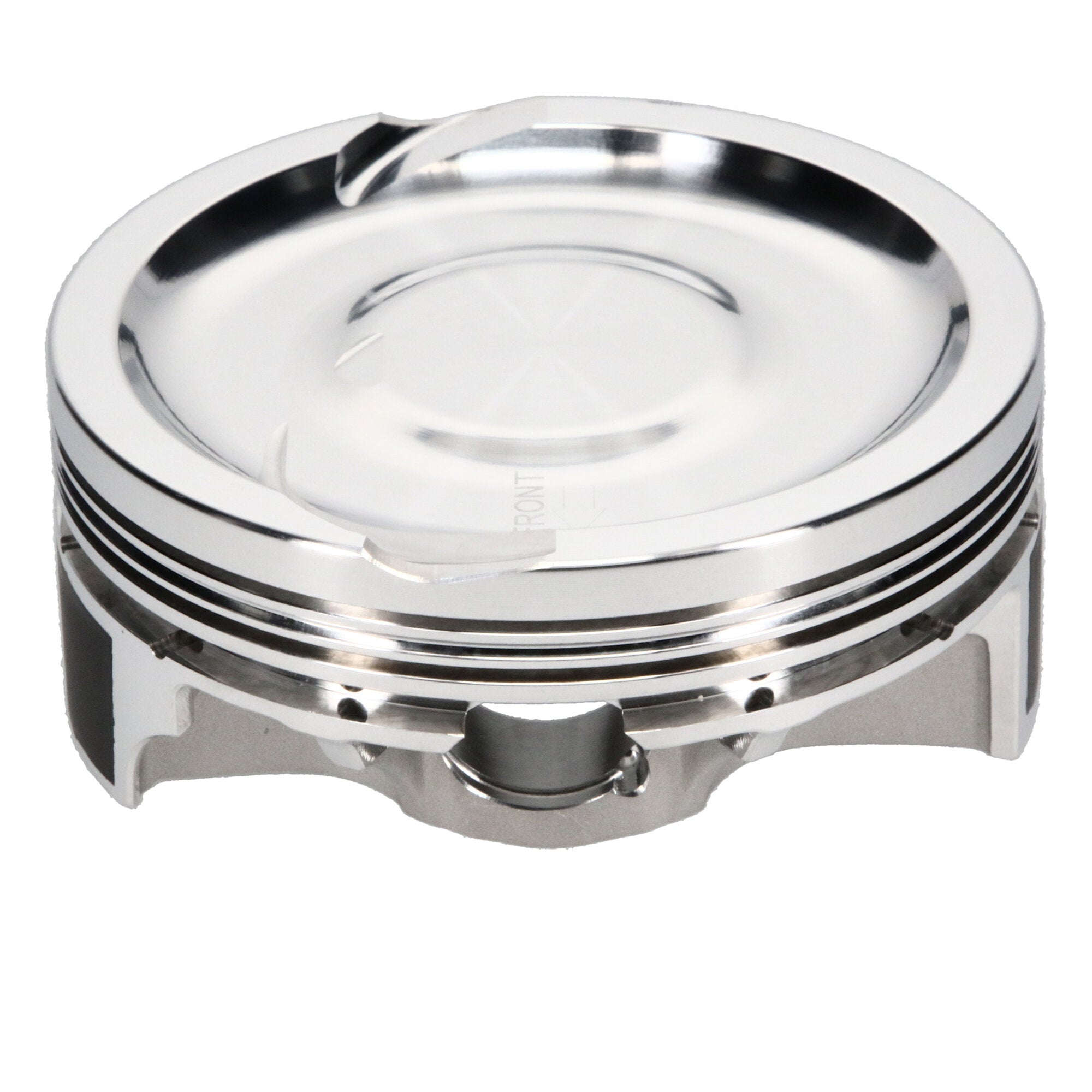

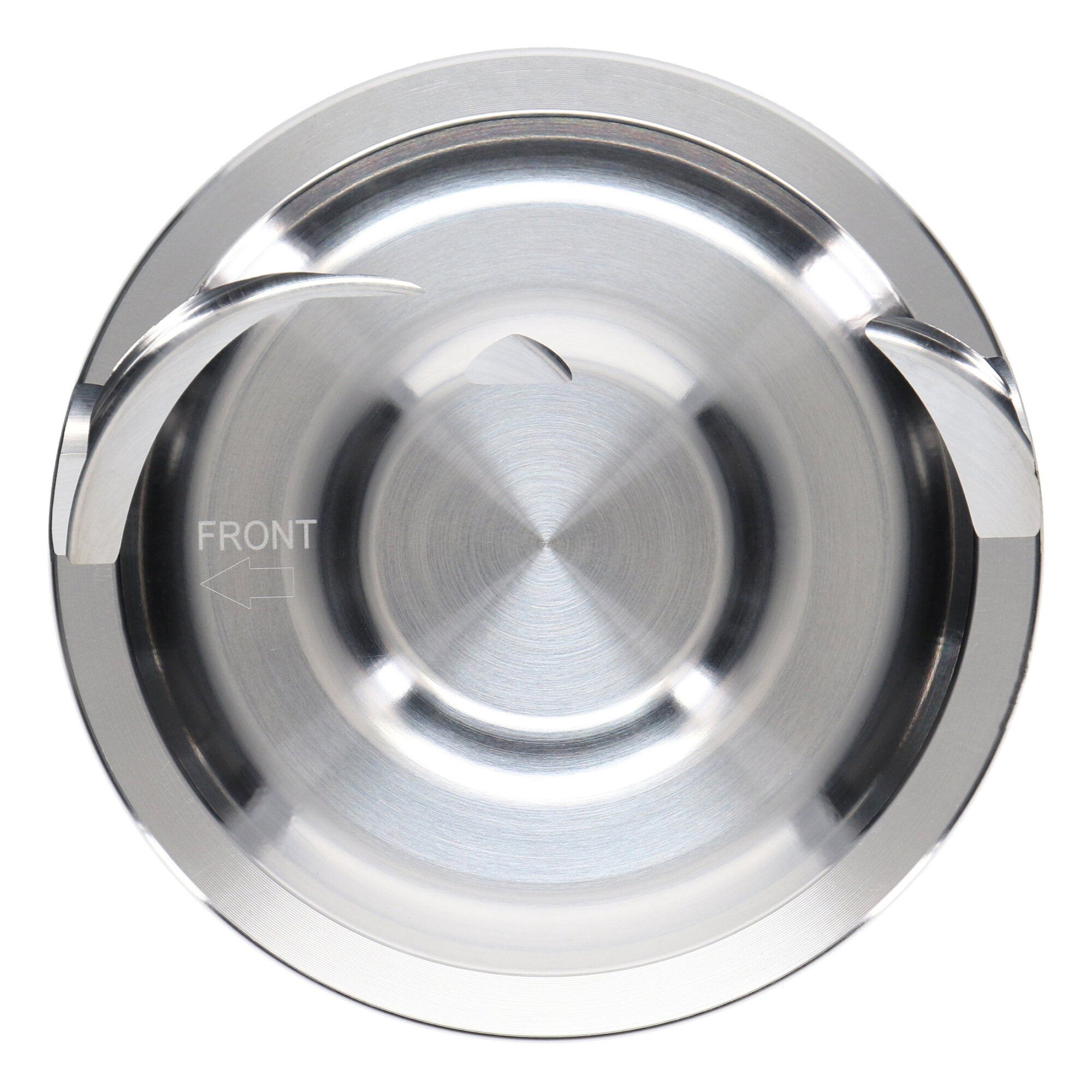

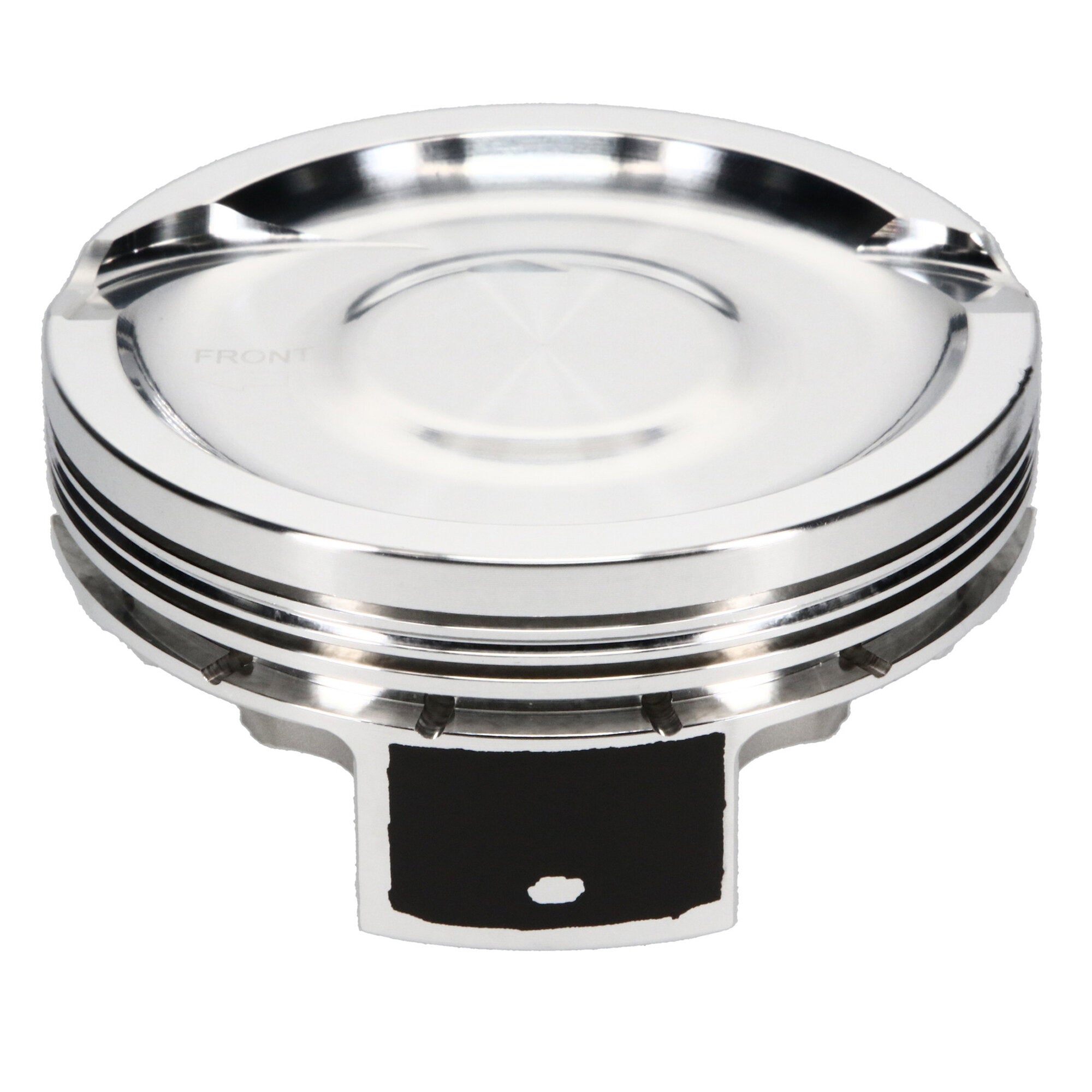

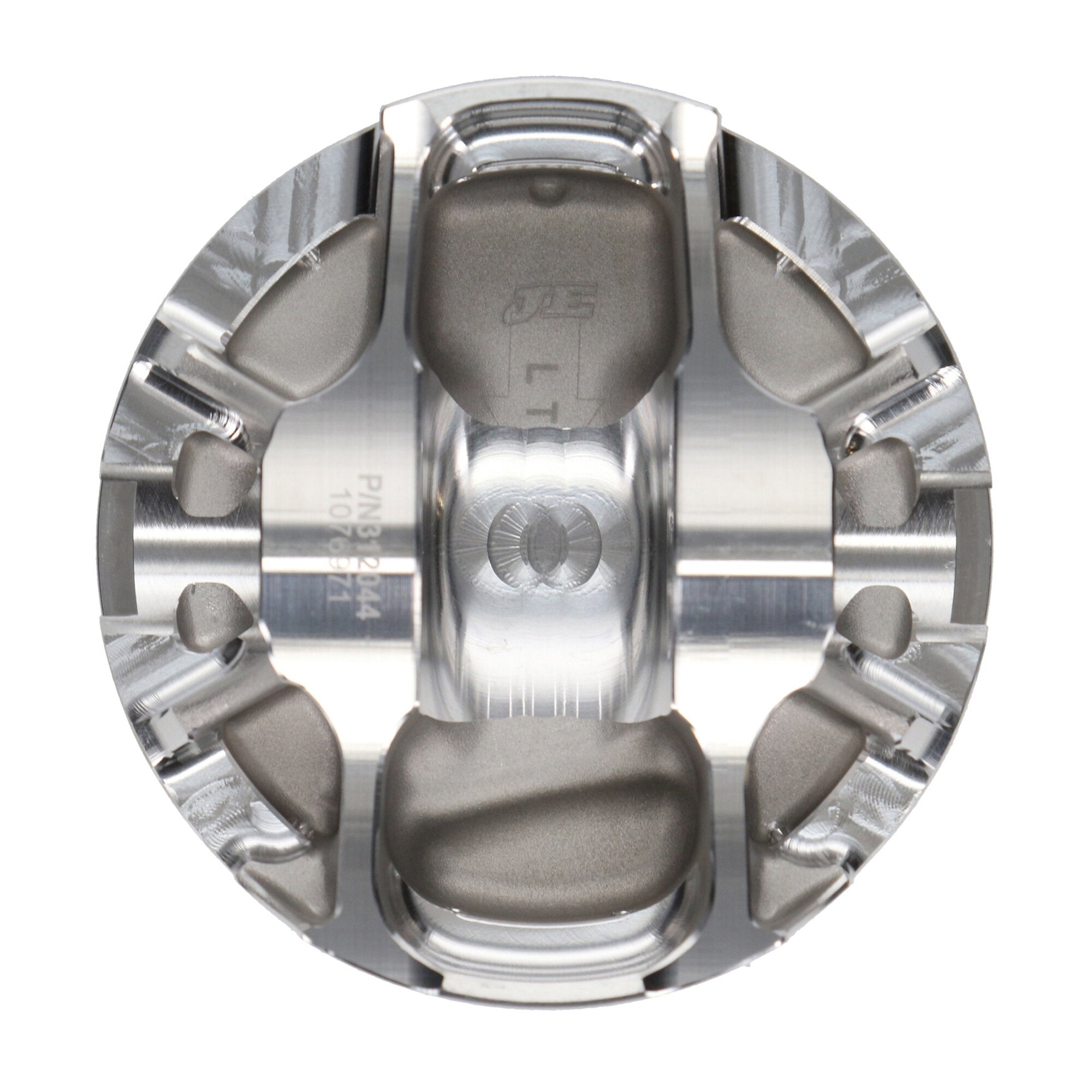

Piston Single, 2618, Inv Dome/Dish, 4.010 Bore, 1.340 CD, 0.945 Pin, Set of 1. |
| Description_DEF |
Engine Piston |
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Chevrolet, LS Gen III/IV, 4.010 in. Bore, 1.340 CD, Inverted Dome/Dish, Left Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston |
| Description_TLE |
Chevrolet LS, 4.010 Bore, Dish, Set of 1 |
| Add-On |
JG3108-4010-4 |
| Add-On |
945-2250-15-51C |
| Add-On |
945-073-MW |
| Cylinder Head |
LS 12 DEG/15 DEG COMBO VR |
| Compression Height |
1.340 |
| Engine |
LS Gen III/IV |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Bore Diameter |
4.010 |
| Engine - Web |
LS Gen III/IV |
| Oil Ring Thickness |
0.1175 |
| Forging Type |
FSR |
| Piston Material |
2618 |
| Industry |
Automotive |
| Make |
CHEVROLET |
| Piston Average Weight |
435 |
| Engine Type |
ICE |
| Out of Stock Message |
Call for Availability |
| Piston Head Type |
Dish |
| Make - Web |
Chevrolet |
| Piston Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Chevrolet LS Gen III/IV Piston - 4.010 in. Bore - 1.340 in. CH, -16.80 CC |
| Second Compression Ring Thickness |
0.0600 |
| Title |
JE Pistons - Chevrolet, LS Gen III/IV, 4.010 in. Bore, Piston |
| Piston Pin Wall Thickness |
0.150 |
| Top Compression Ring Thickness |
0.0480 |
| Ringset Included |
No |
| Piston Orientation |
Left |
| Product Market |
Domestic |
| Piston Series |
JE Pistons |
| Product Type |
Engine Piston |
| Piston Pin Outside Diameter |
0.945 |
| Piston Quantity |
1 |
| Piston Pin Material |
5115 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-16.80 |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.945 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
