As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LS |
| Description_DEF |
Engine Piston |
| Description_DES |

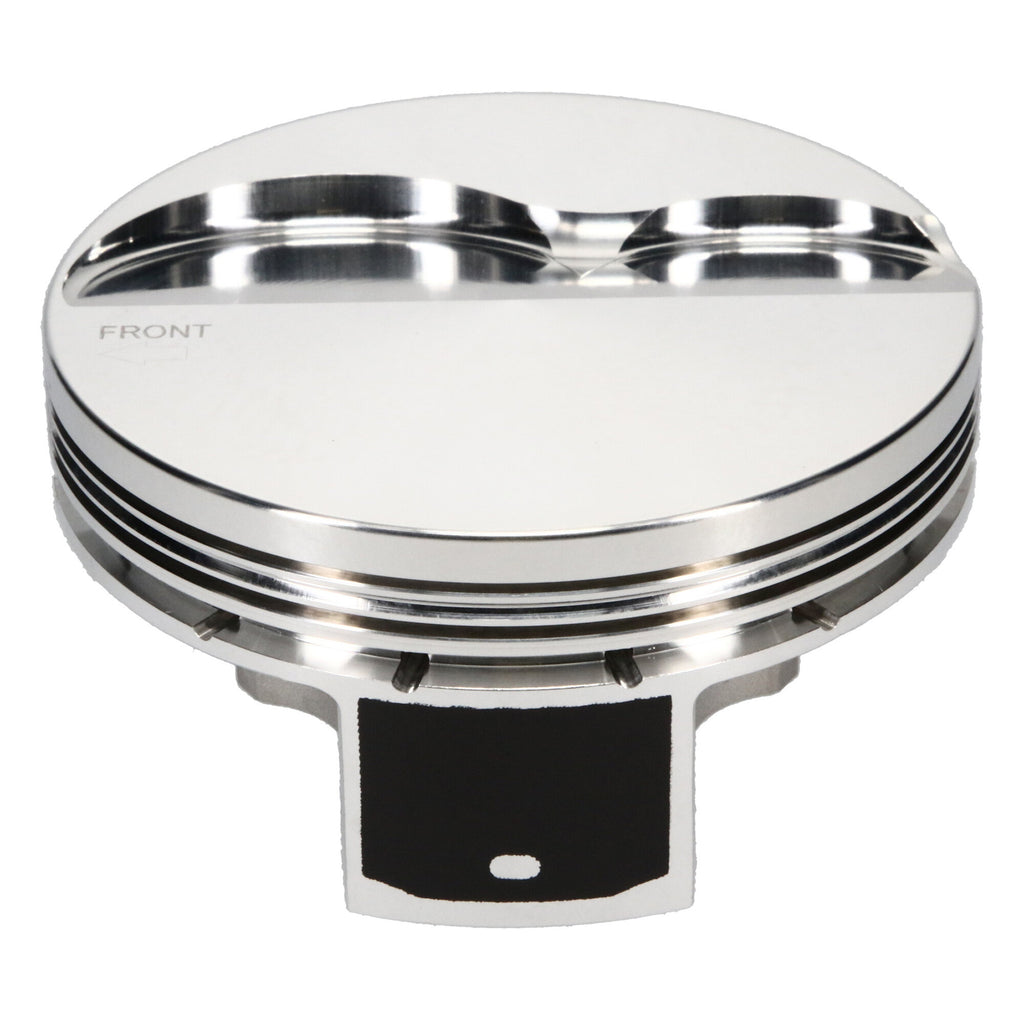

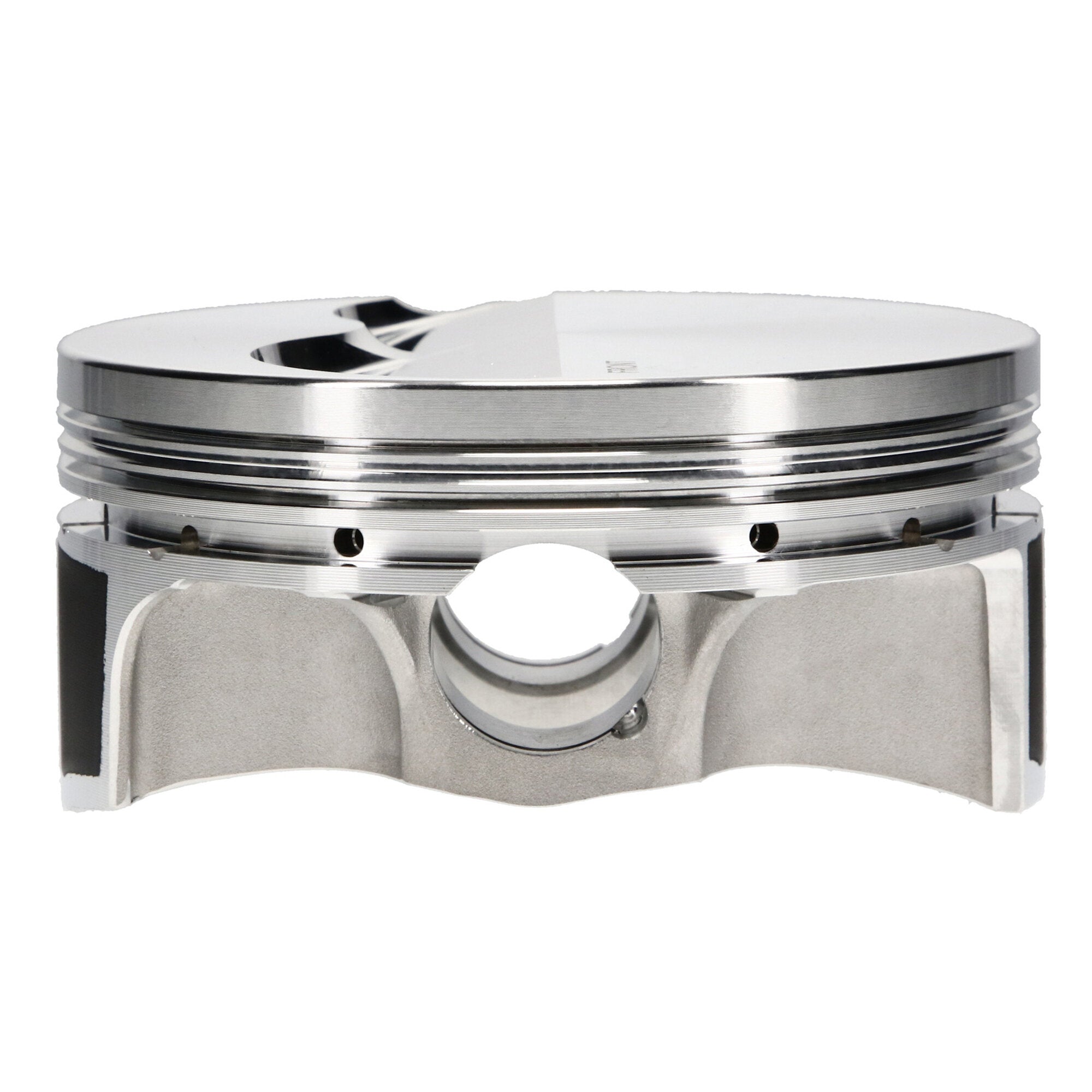

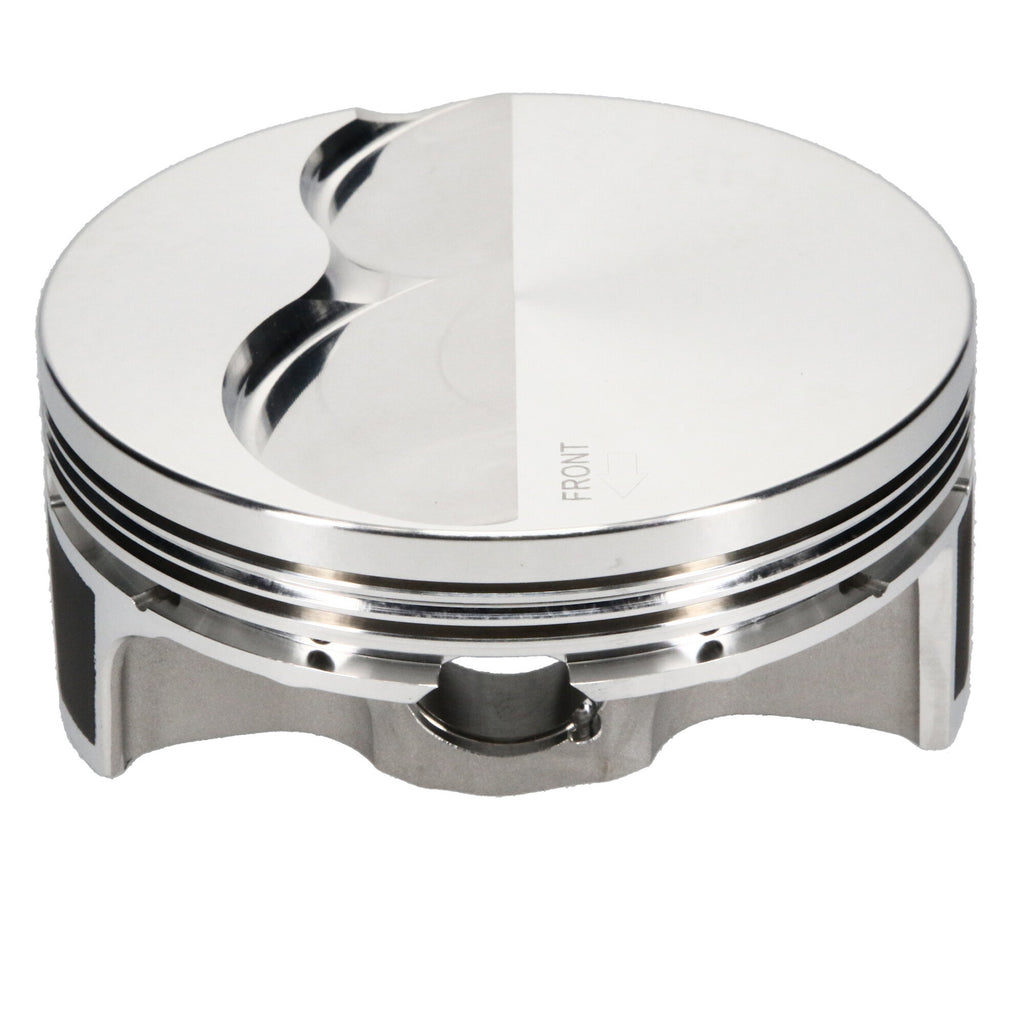

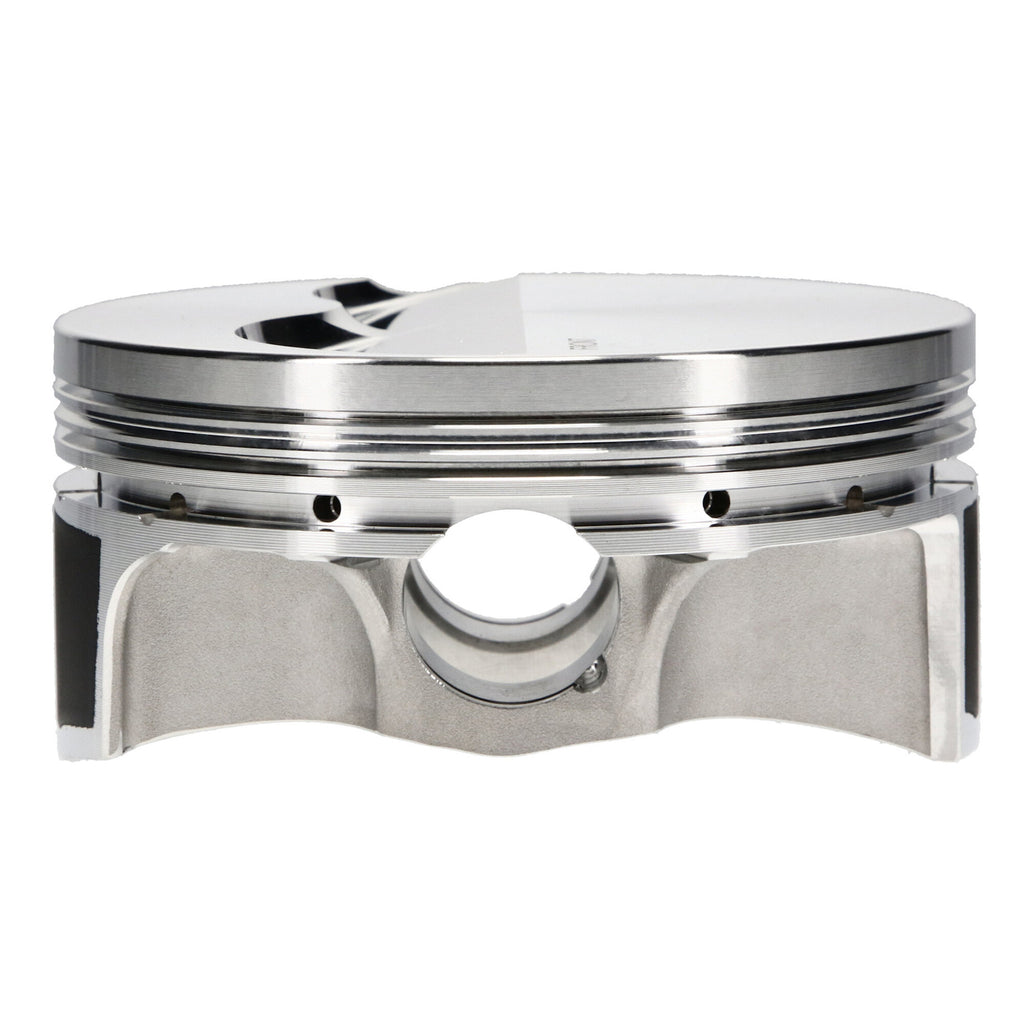

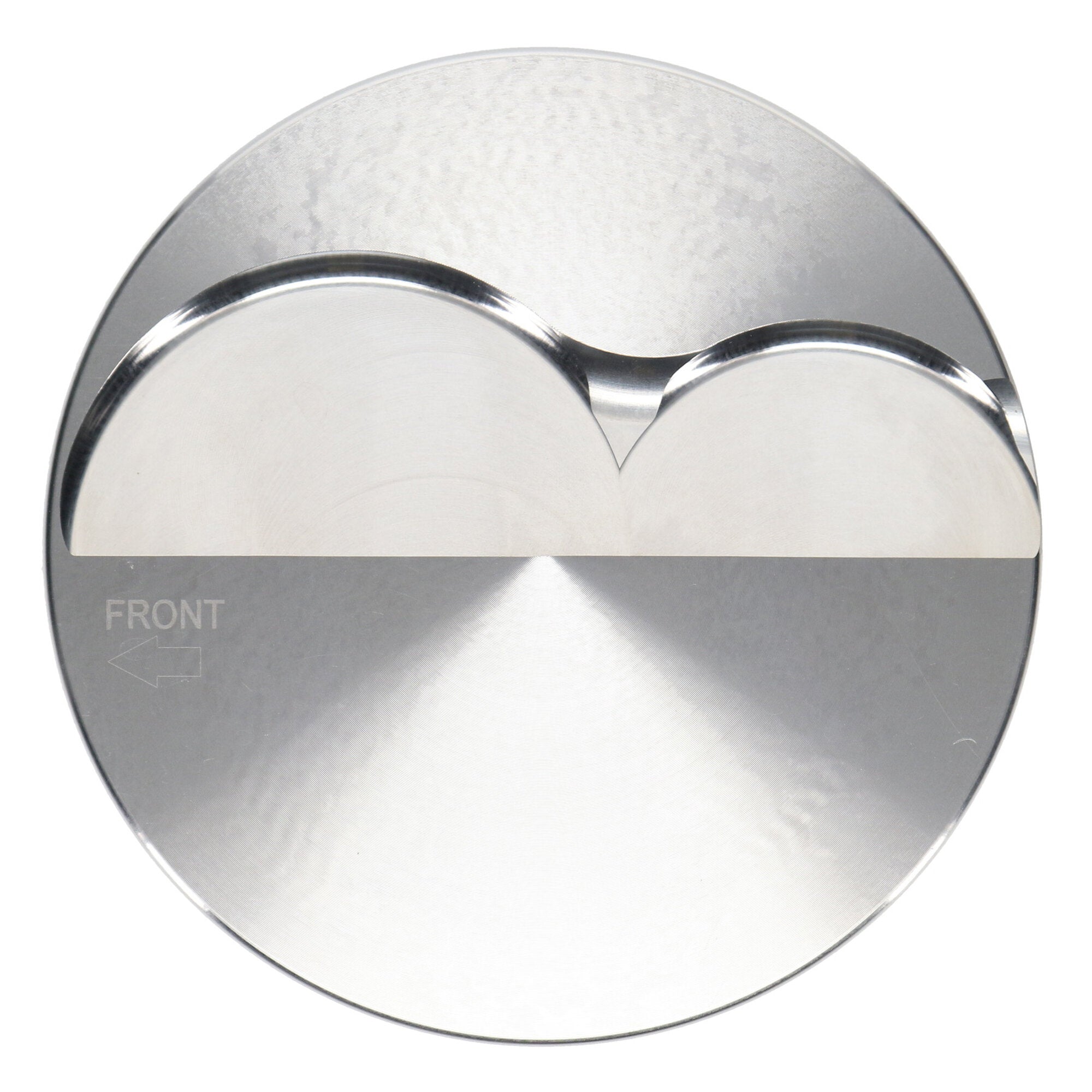

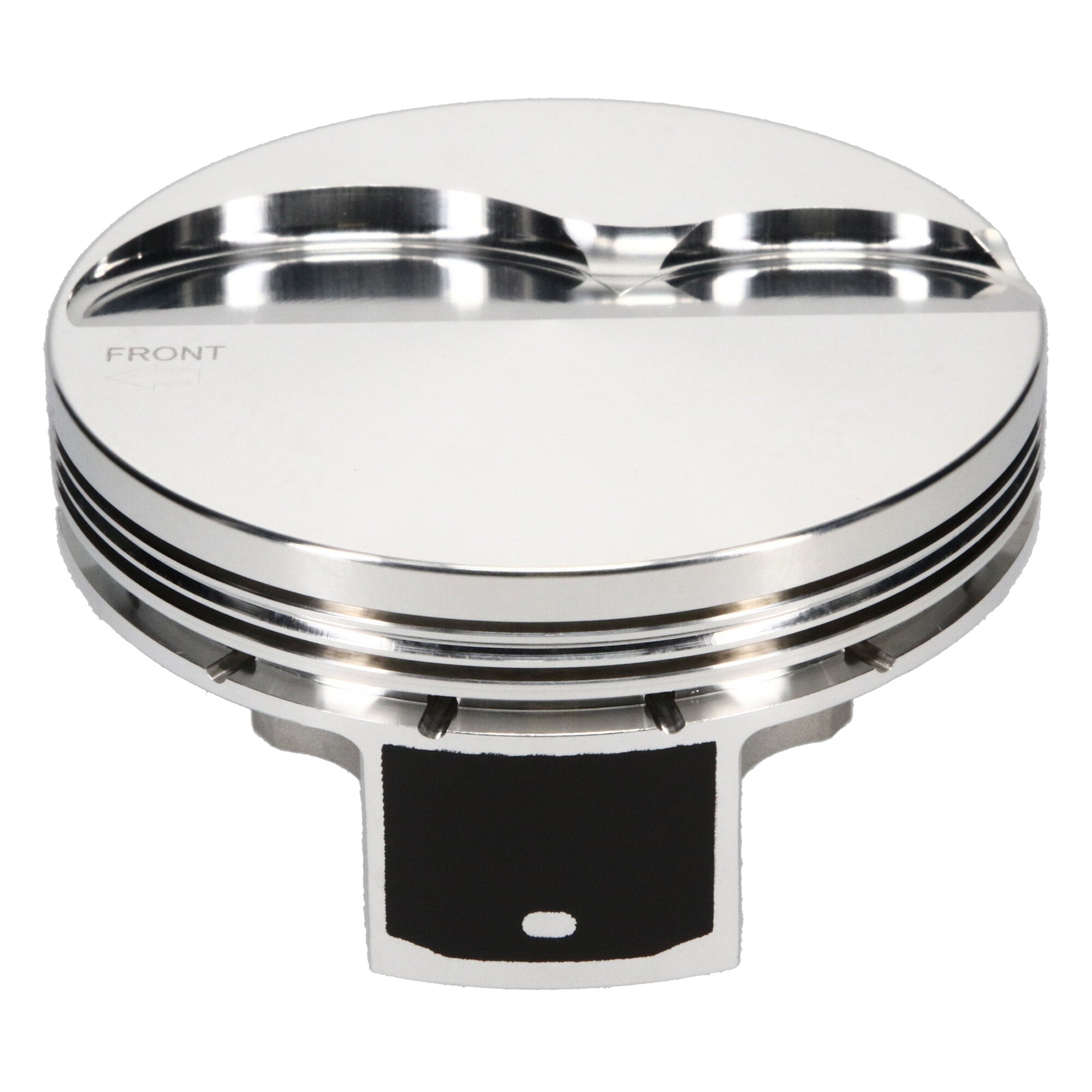

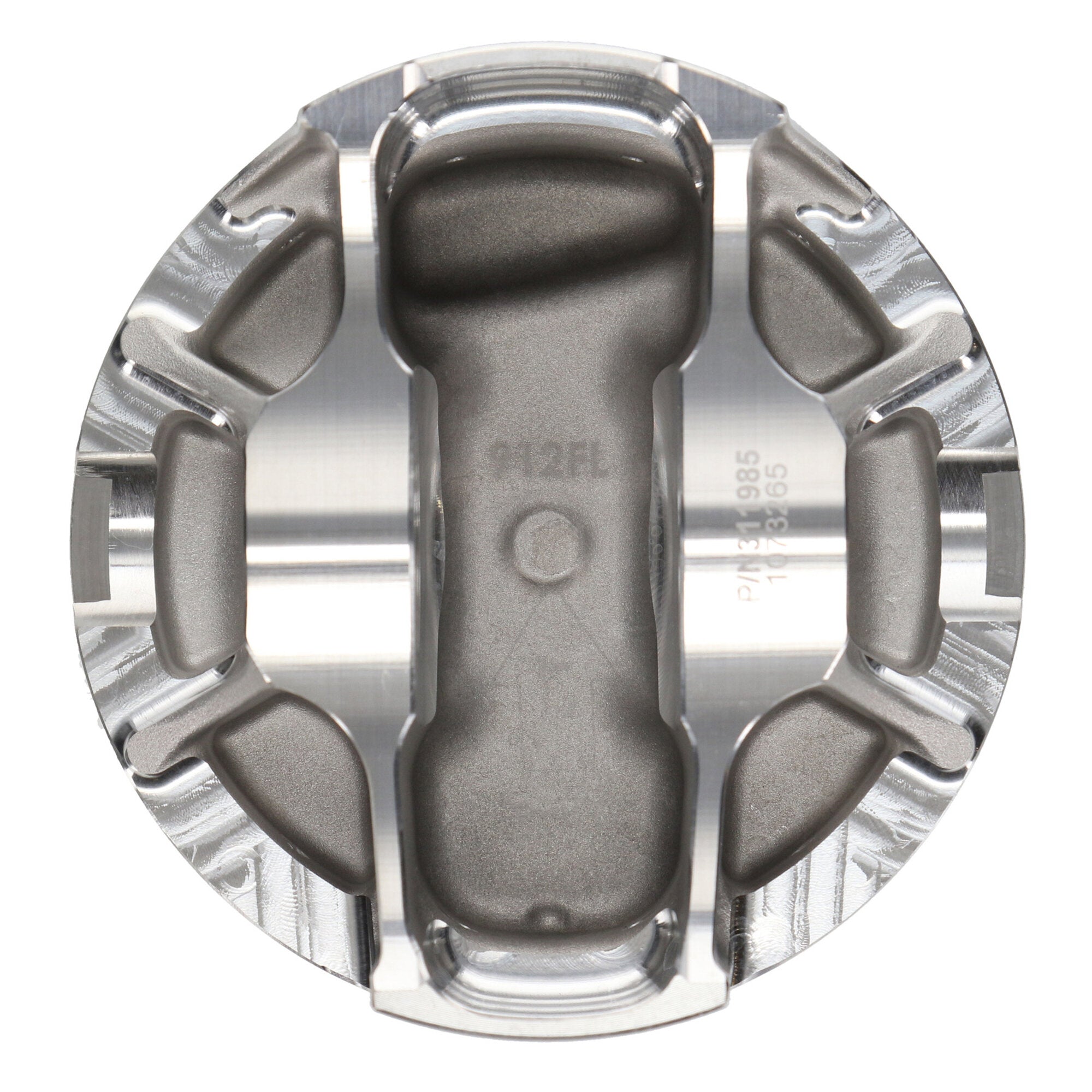

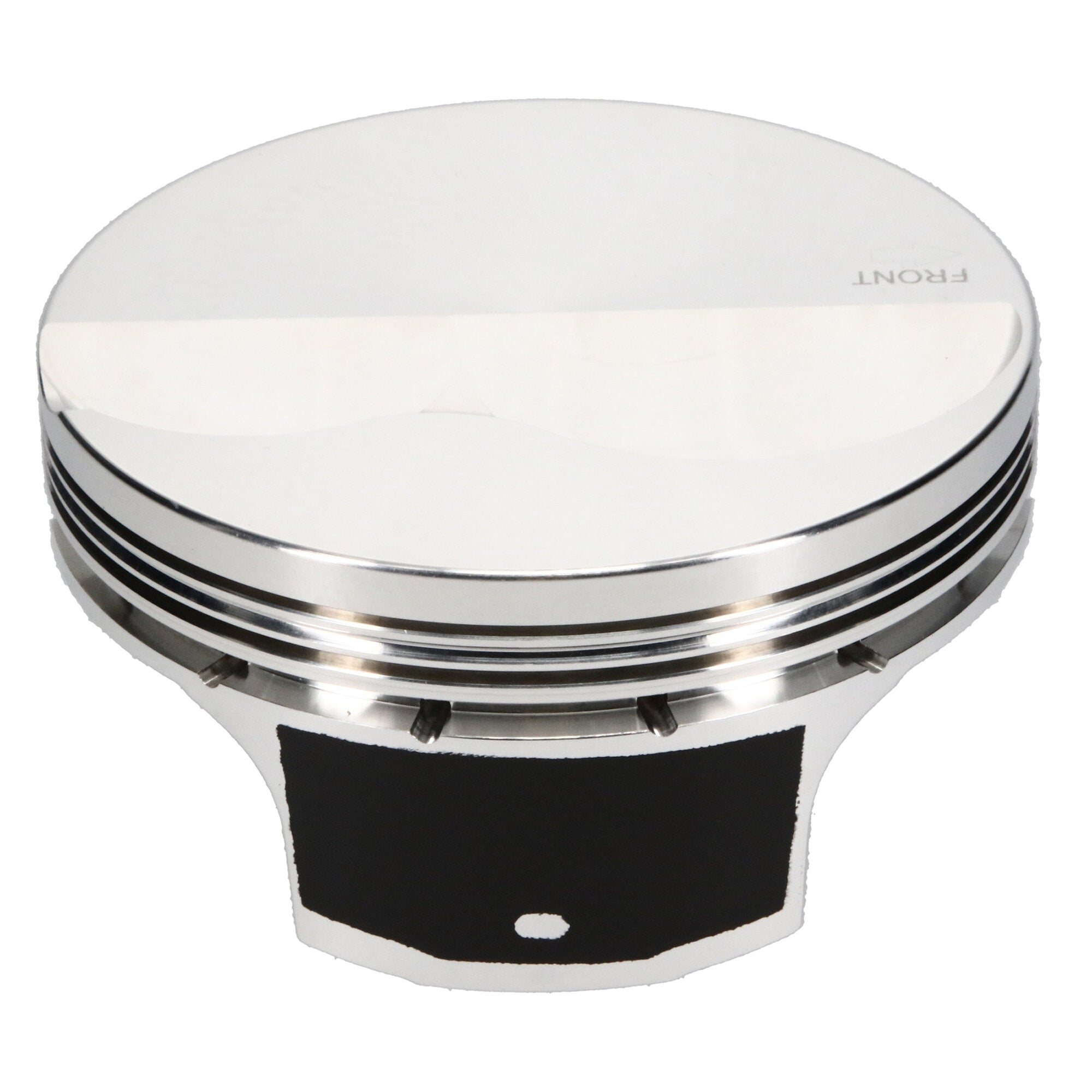

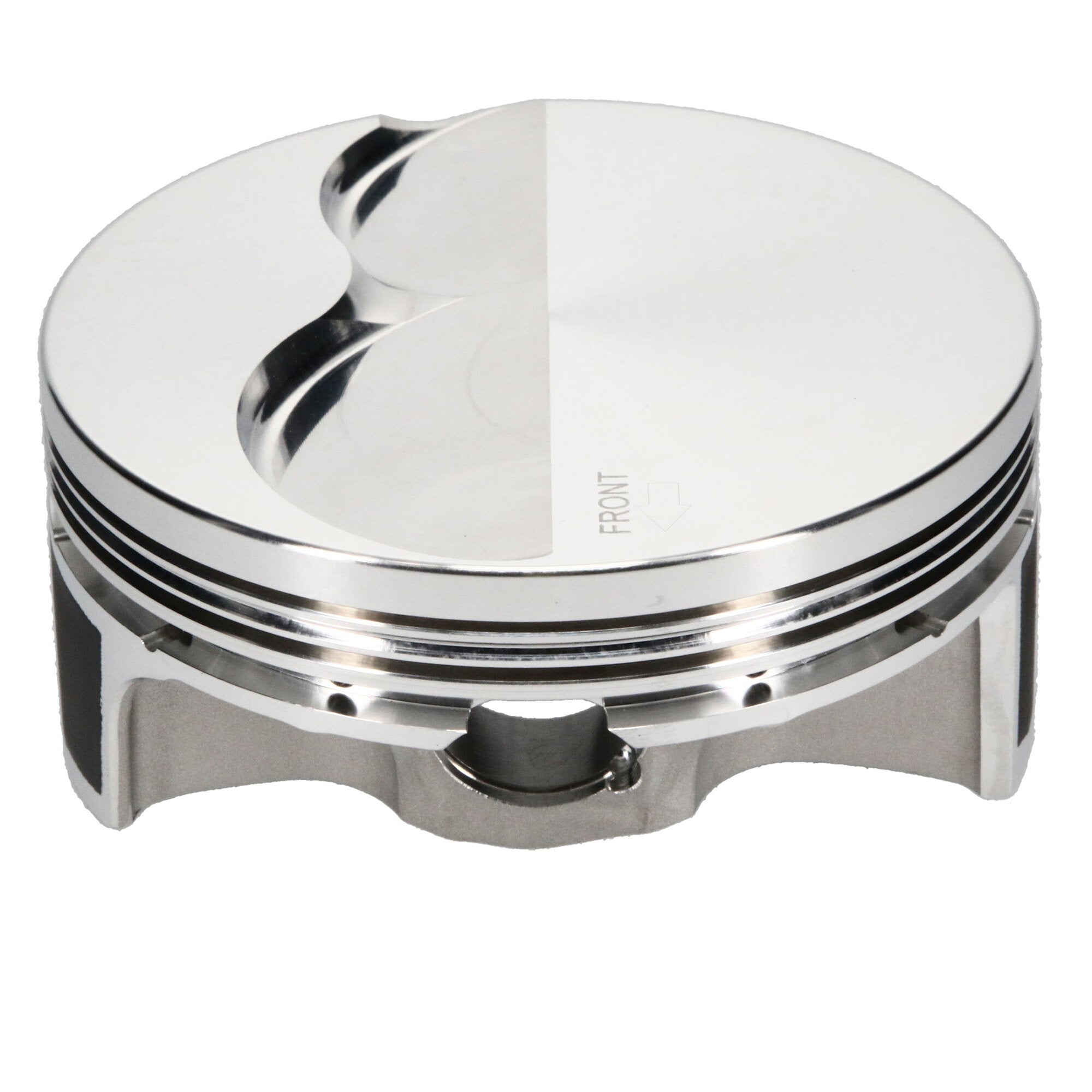

Piston Single, 2618, Flat Top, 4.135 Bore, 1.304 CD, 0.927 Pin, Set of 1. |
| Description_EXT |
JE, Chevrolet, LS Gen III/IV, 4.135 in. Bore, 1.304 CD, Flat Top, Right Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet LS, 4.135 Bore, Flat, Set of 1 |
| Add-On |
JG31F8-4135-2 |
| Add-On |
927-2250-15-51C |
| Add-On |
927-073-MW |
| Cylinder Head |
LS 12 DEG/15 DEG COMBO VR |
| Compression Height |
1.304 |
| Engine |
LS Gen III/IV |
| Bore Diameter |
4.135 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Oil Ring Thickness |
0.1175 |
| Make |
CHEVROLET |
| Engine Type |
ICE |
| Piston Average Weight |
443 |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Forging Type |
FSR |
| Make - Web |
Chevrolet |
| Engine - Web |
LS Gen III/IV |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.0480 |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Chevrolet LS Gen III/IV Piston - 4.135 in. Bore - 1.304 in. CH, -5.00 CC |
| Second Compression Ring Thickness |
0.0600 |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.927 |
| Title |
JE Pistons - Chevrolet, LS Gen III/IV, 4.135 in. Bore, Piston |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Material |
5115 |
| Piston Head Type |
Flat |
| Product Type |
Engine Piston |
| Ringset Included |
No |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Piston Orientation |
Right |
| Piston Quantity |
1 |
| Piston Volume |
-5.00 |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
