As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LS |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

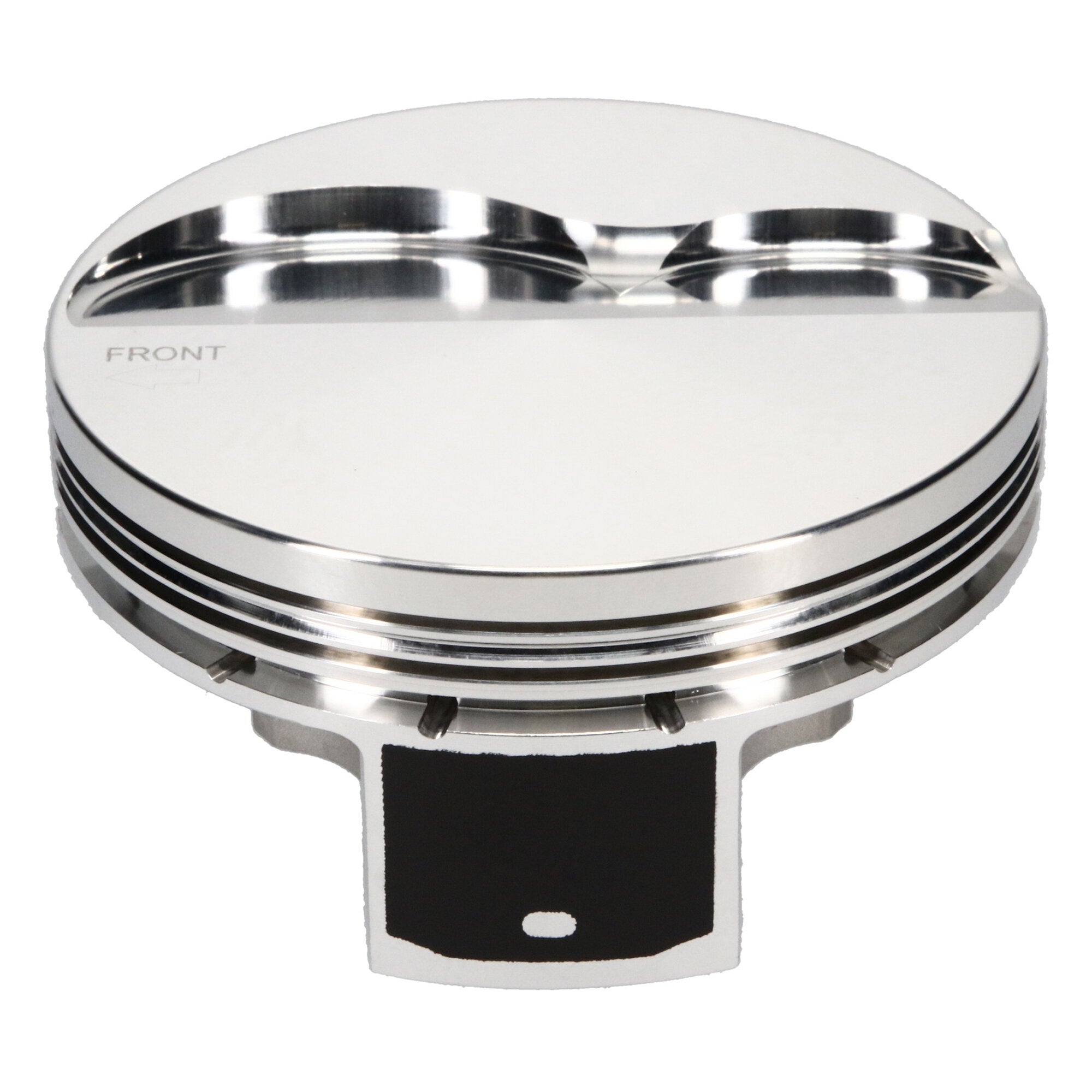

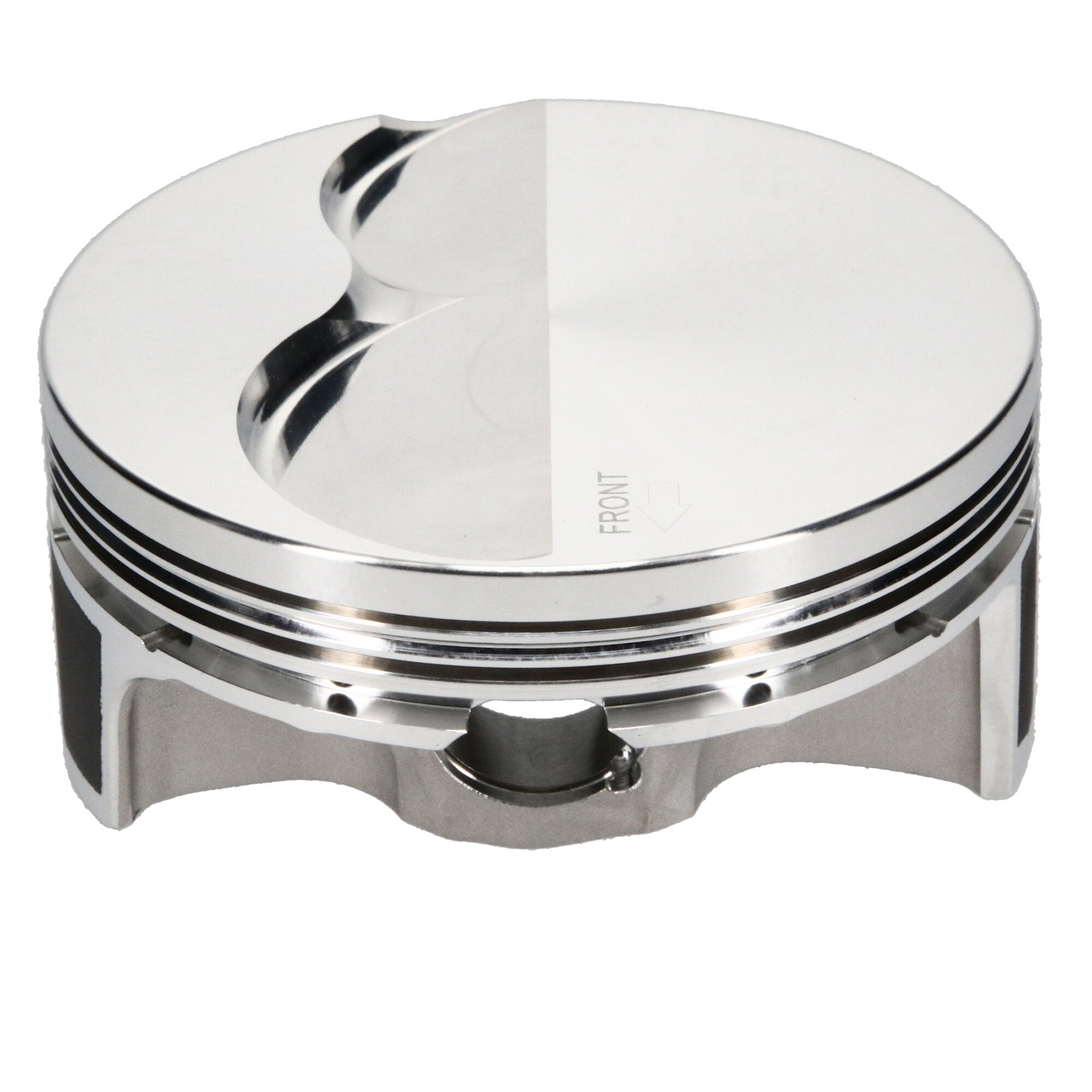

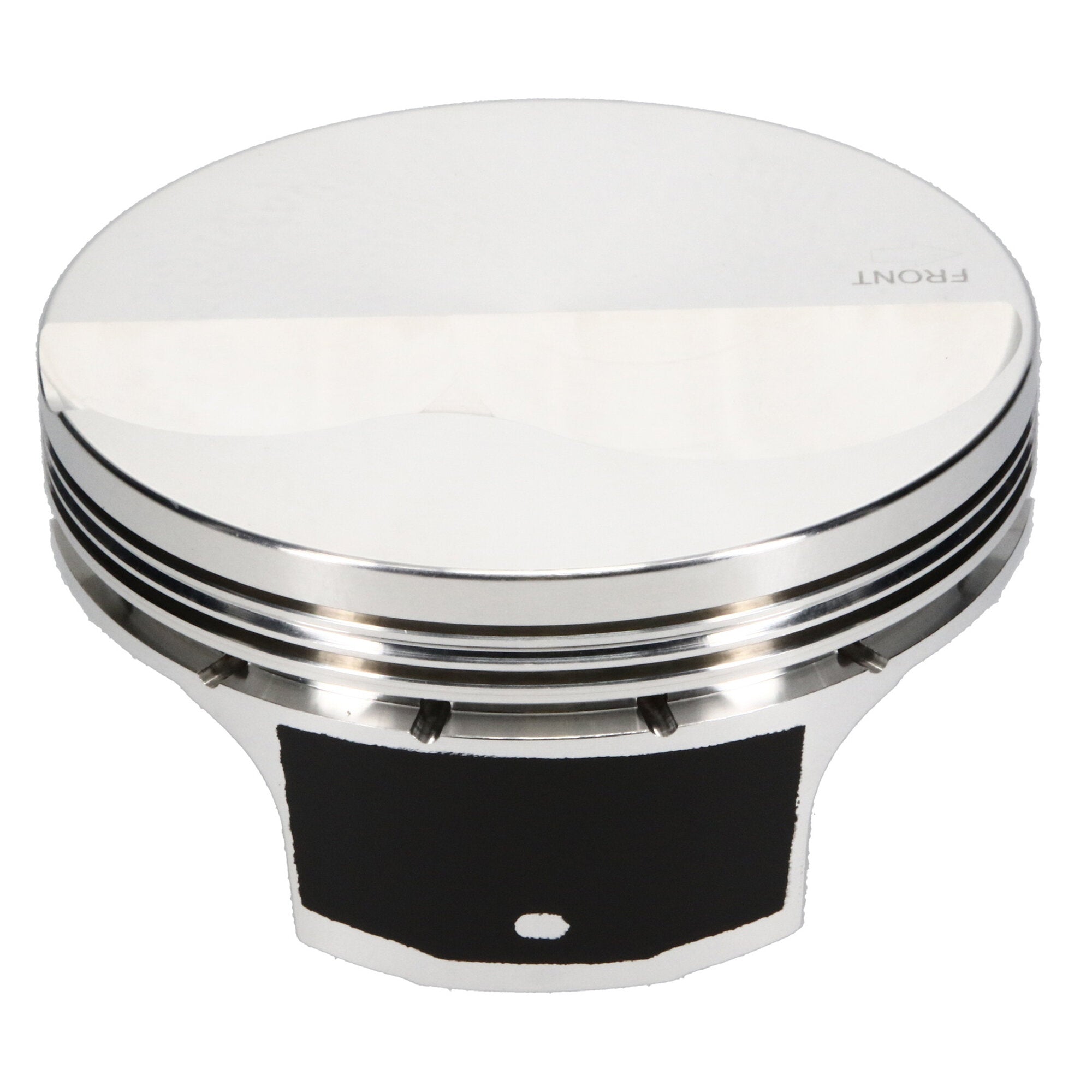

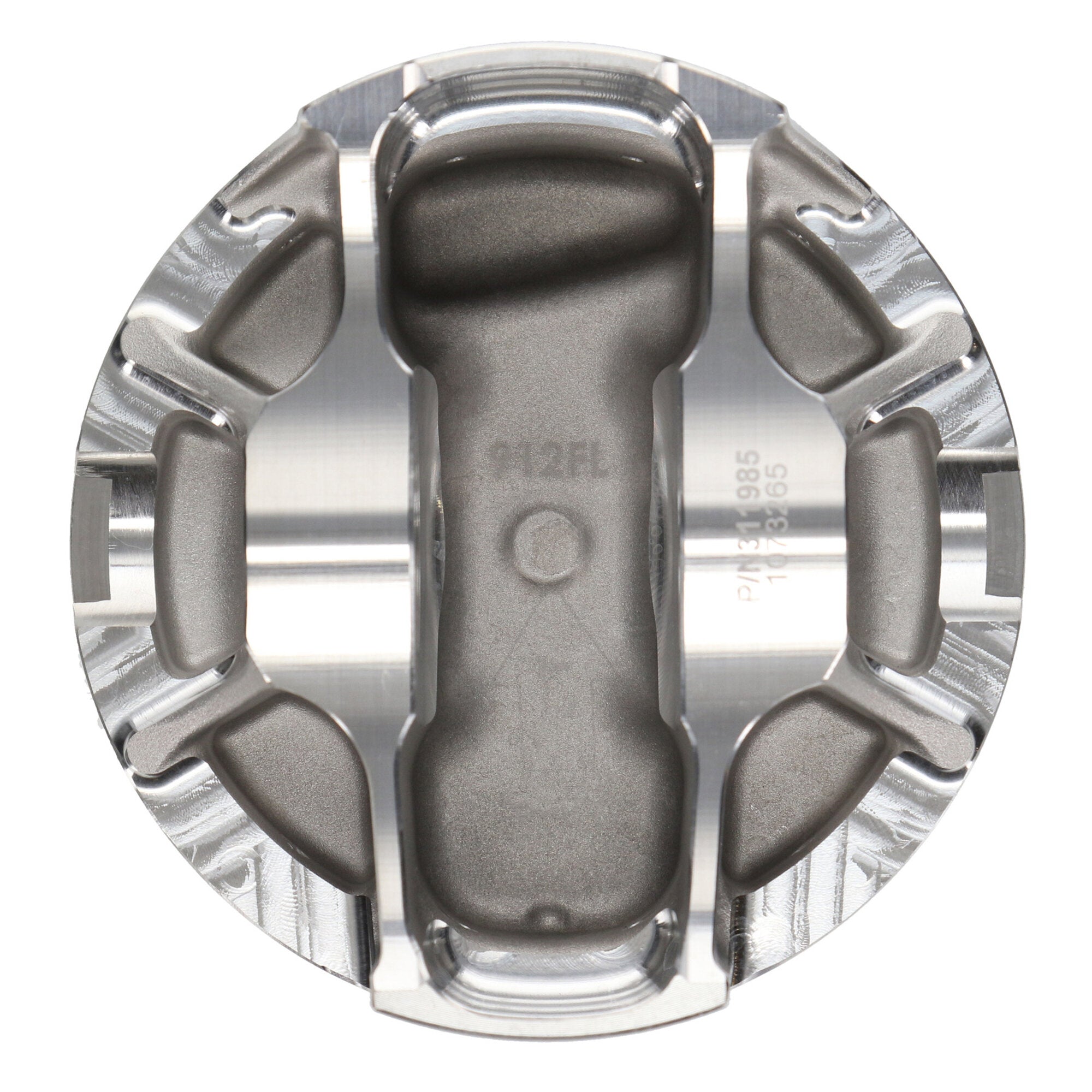

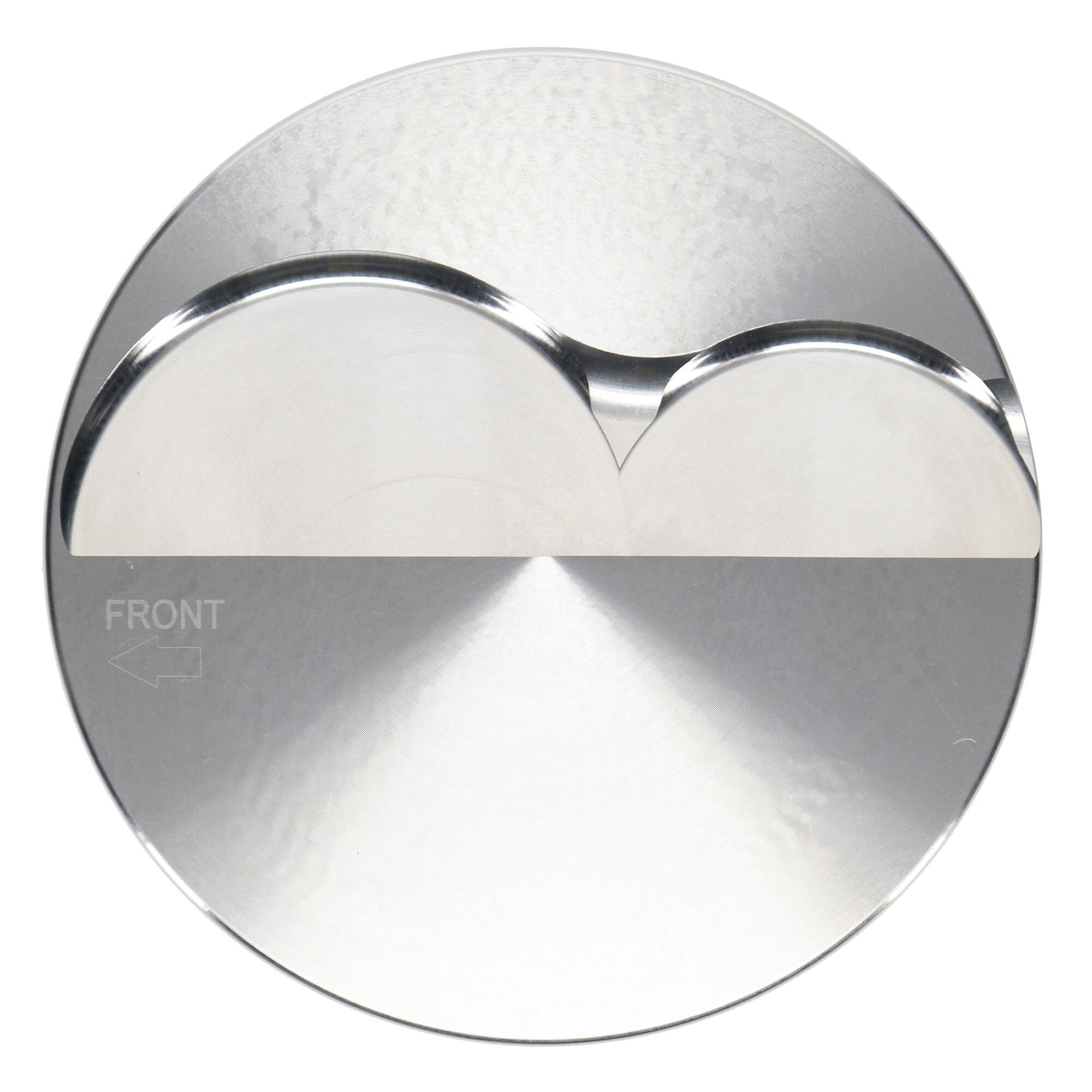

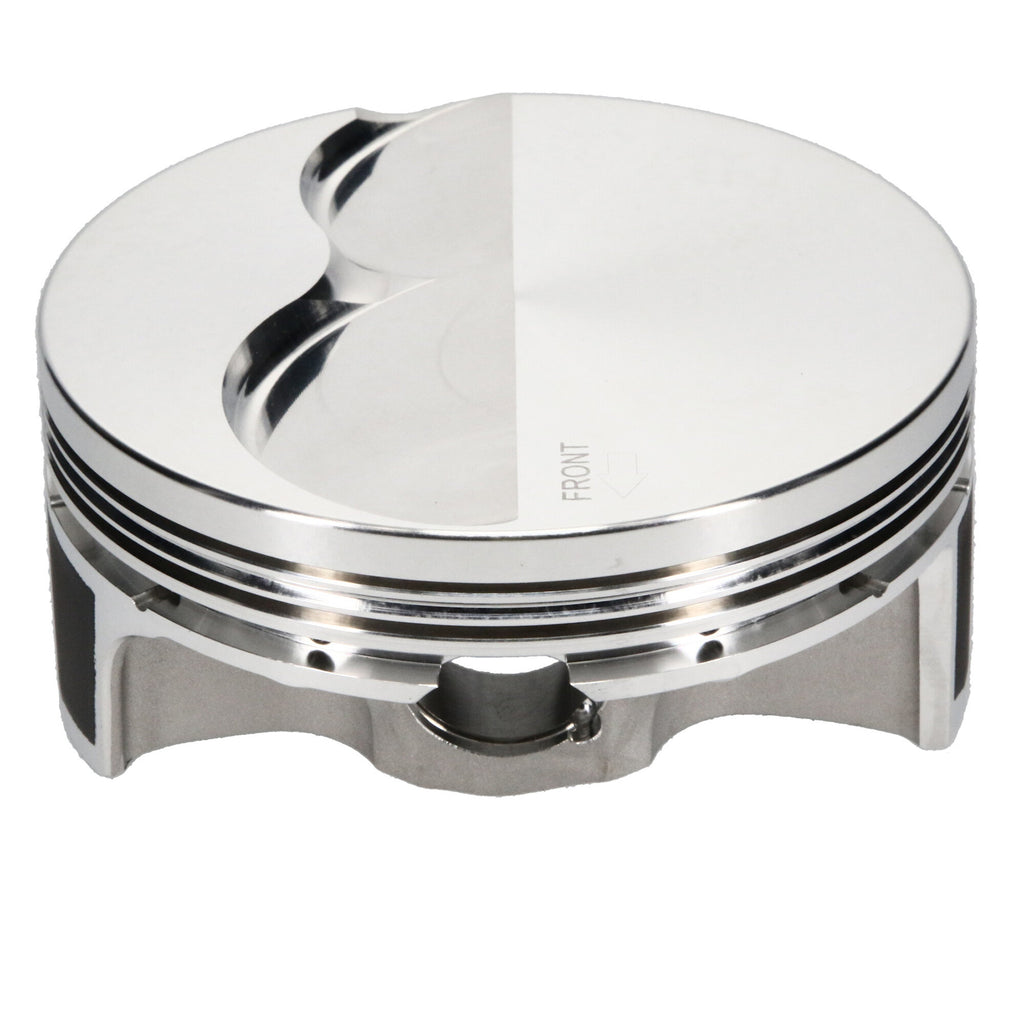

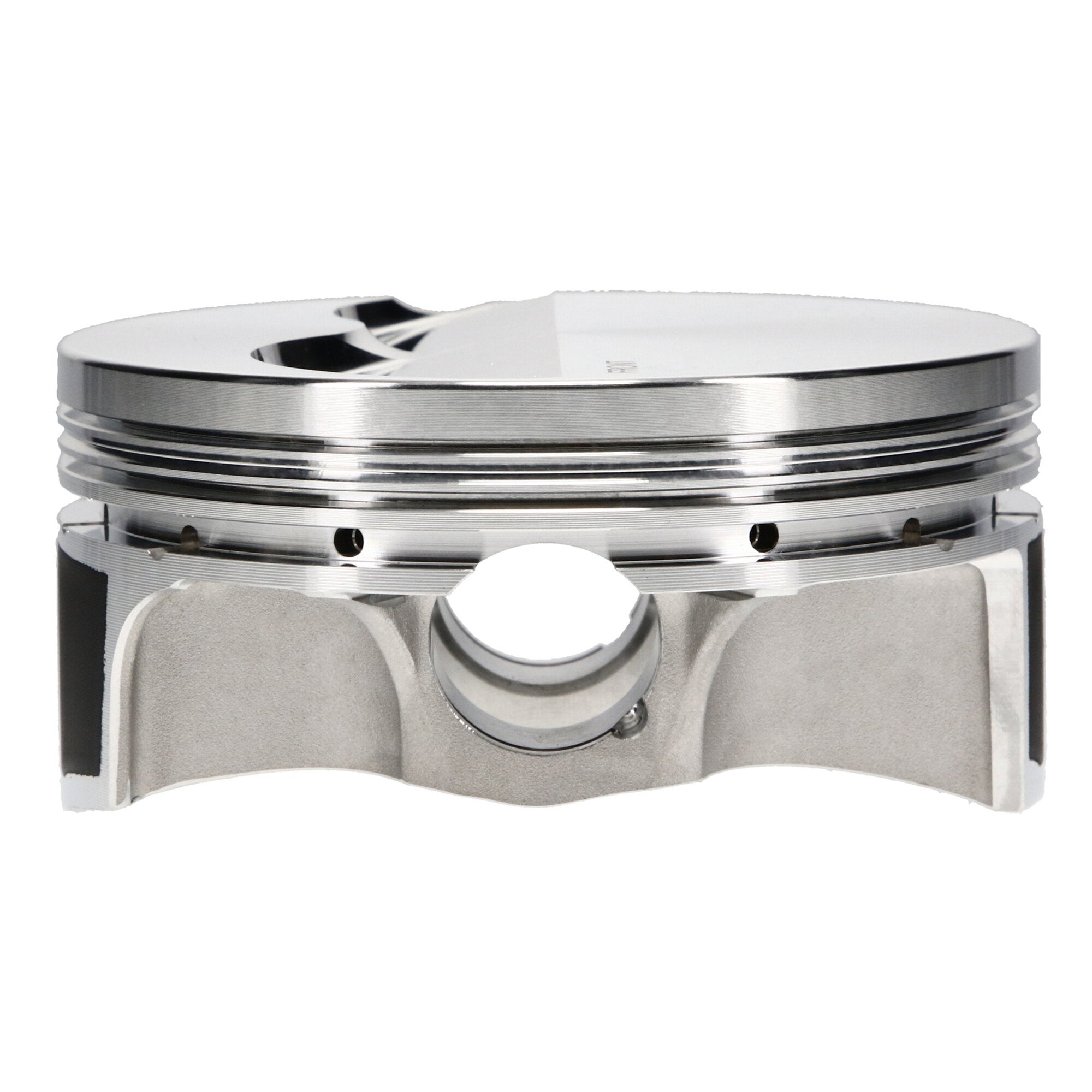

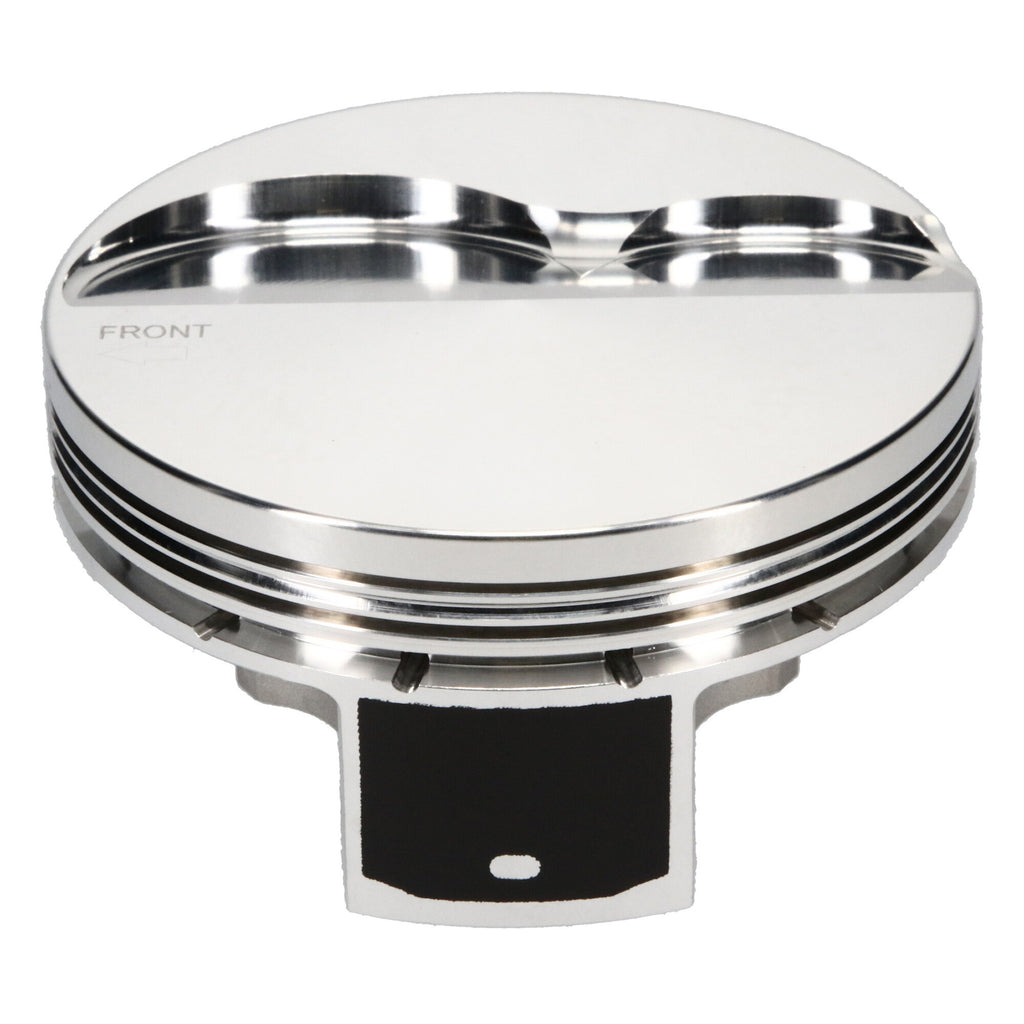

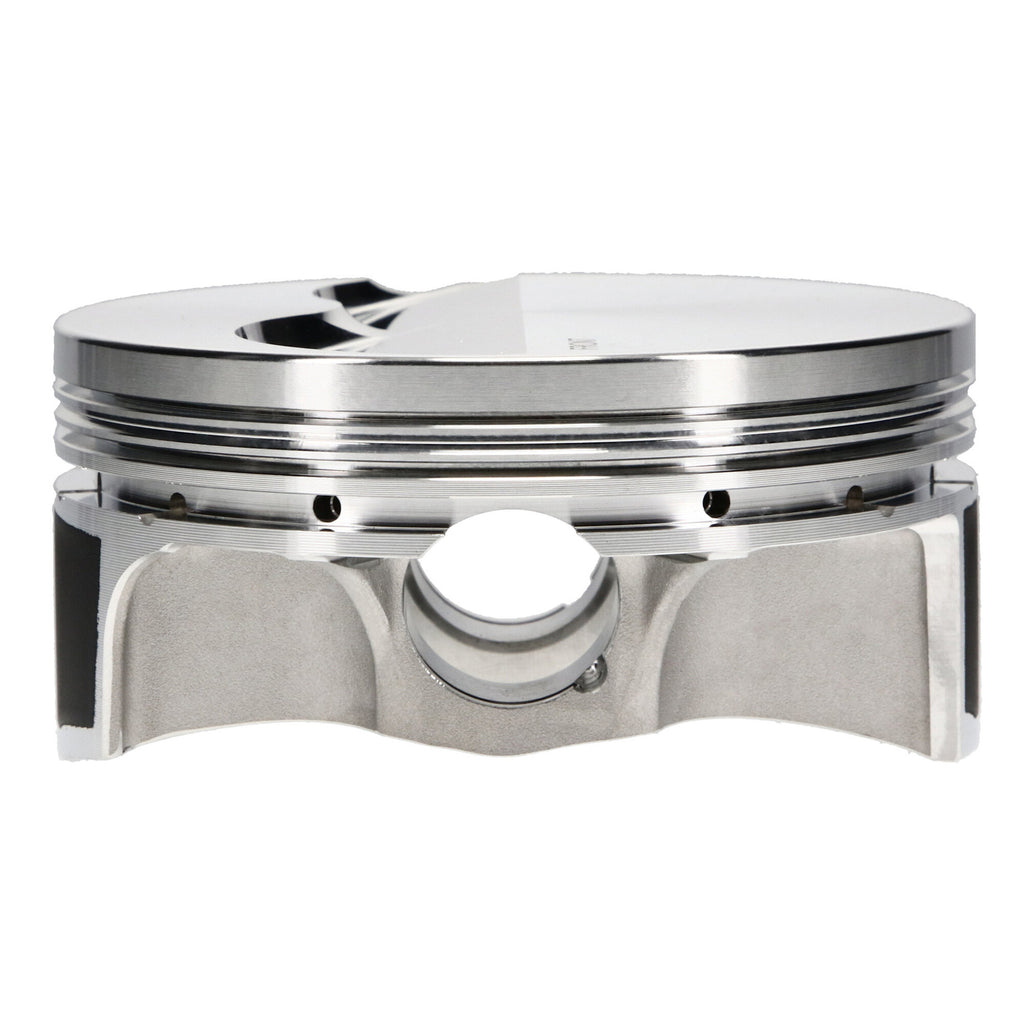

Piston Set, 2618, Flat Top, 4.010 Bore, 1.340 CD, 0.945 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, LS Gen III/IV, 4.010 in. Bore, 1.340 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet LS, 4.010 Bore, Flat, Set of 8 |
| Compression Height |
1.340 |
| Ringset Included |
No |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Engine - Web |
LS Gen III/IV |
| Engine Type |
ICE |
| Piston Quantity |
8 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Flat |
| Bore Diameter |
4.010 |
| Piston Pin Outside Diameter |
0.945 |
| Piston Pin Material |
5115 |
| Piston Average Weight |
415 |
| Oil Ring Thickness |
0.1175 |
| Title |
JE Pistons - Chevrolet, LS Gen III/IV, 4.010 in. Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0480 |
| Product Market |
Domestic |
| Make |
CHEVROLET |
| Wrist Pin Outer Diameter |
0.945 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Volume |
-5.00 |
| Engine |
LS Gen III/IV |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.250 |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Title - Web |
JE Pistons Chevrolet LS Gen III/IV Piston Kit - 4.010 in. Bore - 1.340 in. CH, -5.00 CC |
| Cylinder Head |
LS 12 DEG/15 DEG COMBO VR |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0600 |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
JG3108-4010-4 |
| Add-On |
945-073-MW |
| Add-On |
945-2250-15-51C |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
