As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet LS |
| Description_DEF |
Engine Piston |
| Description_DES |

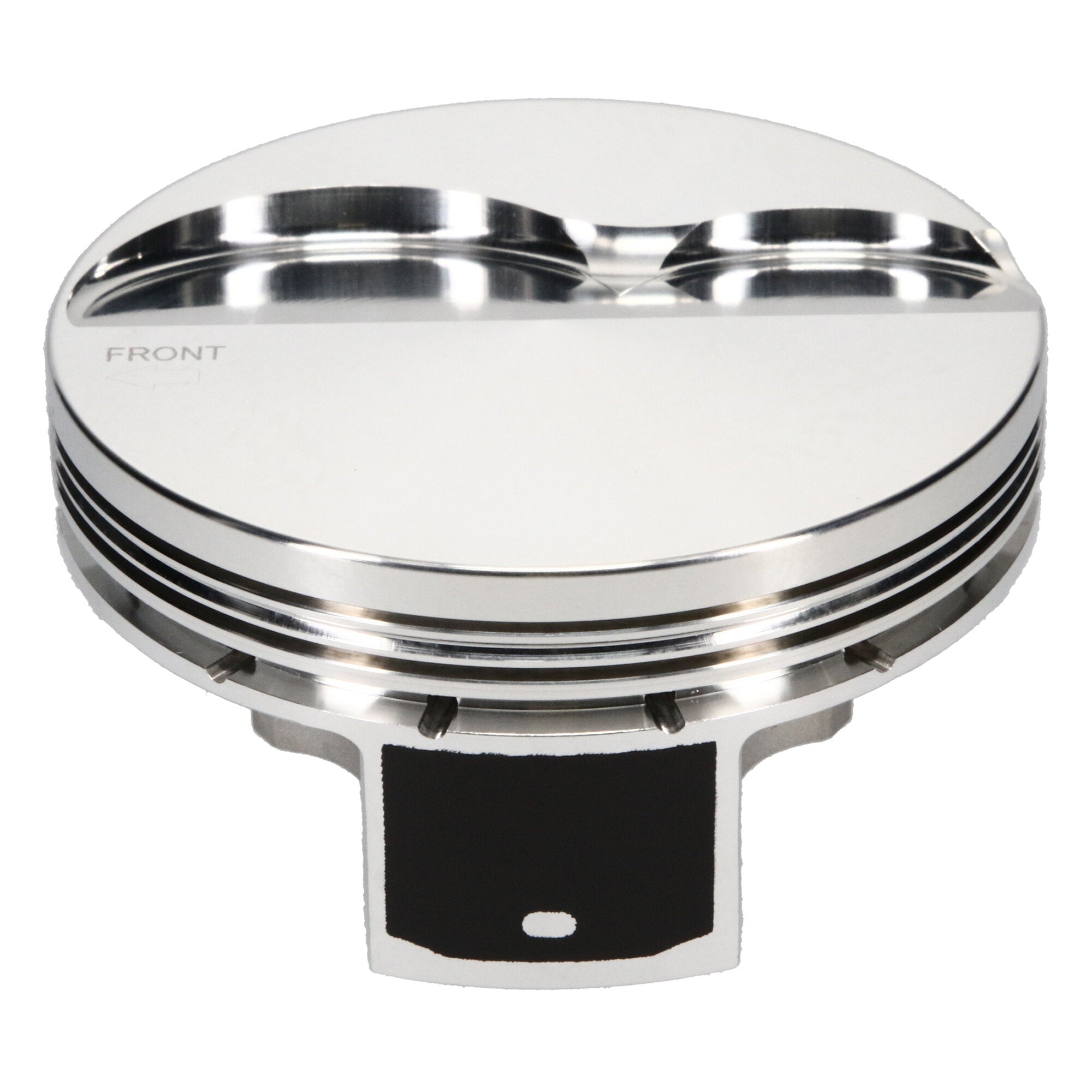

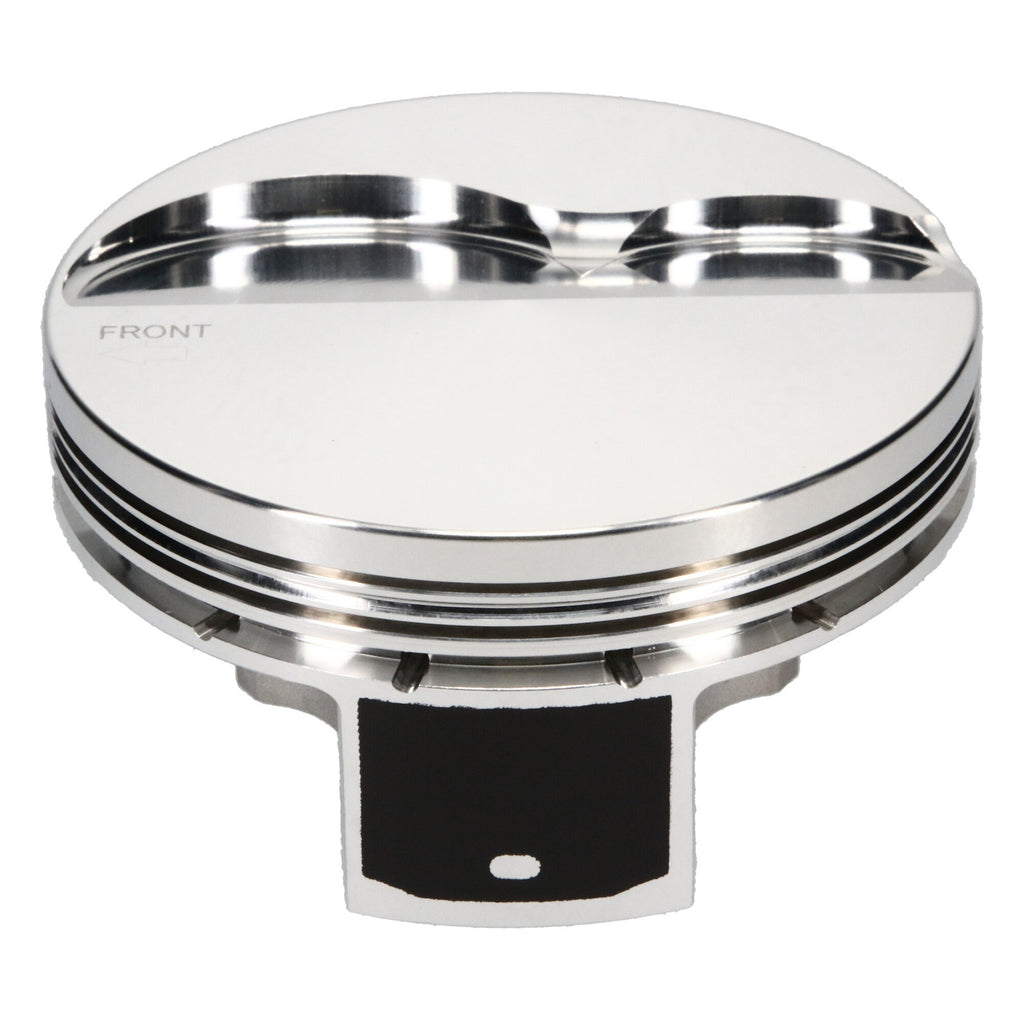

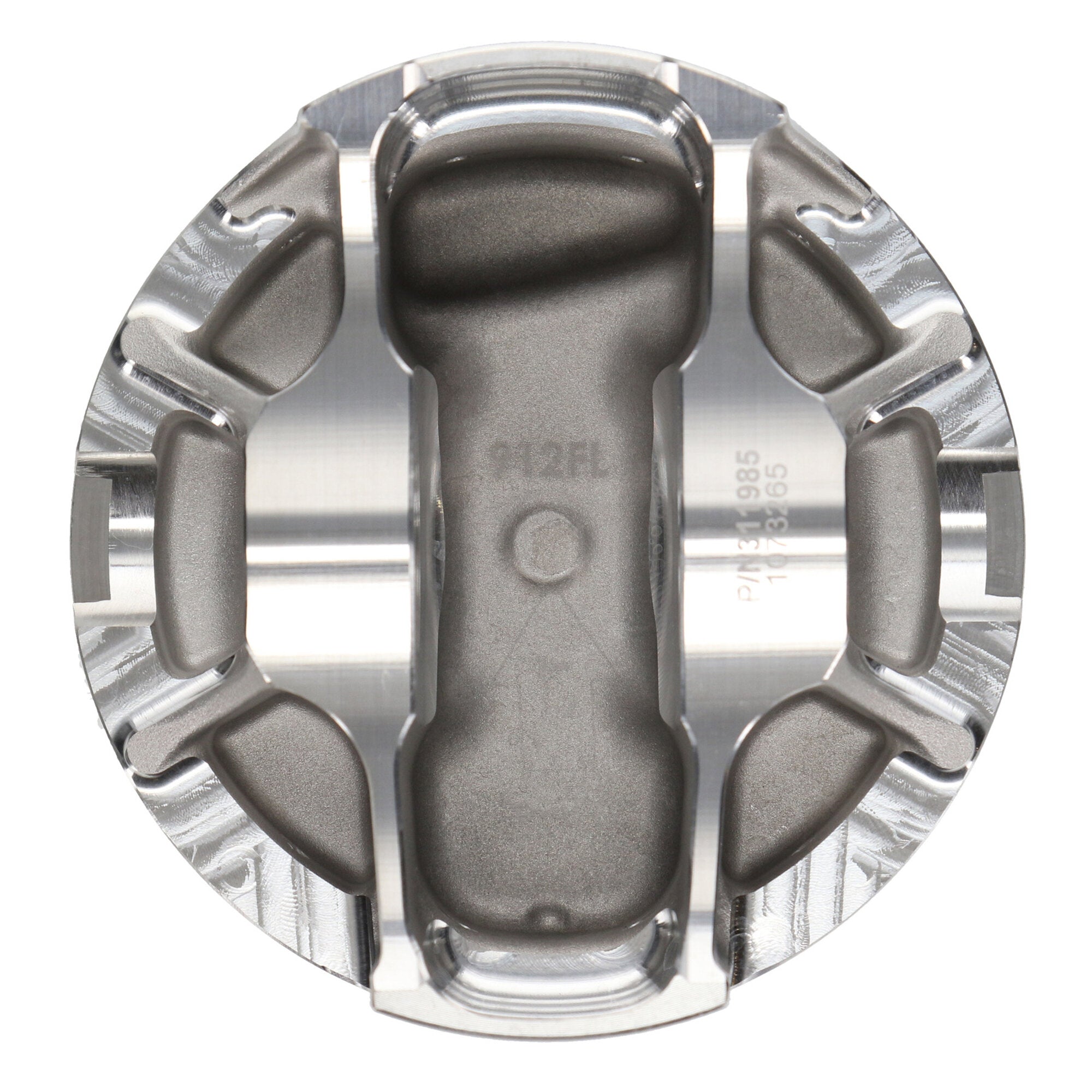

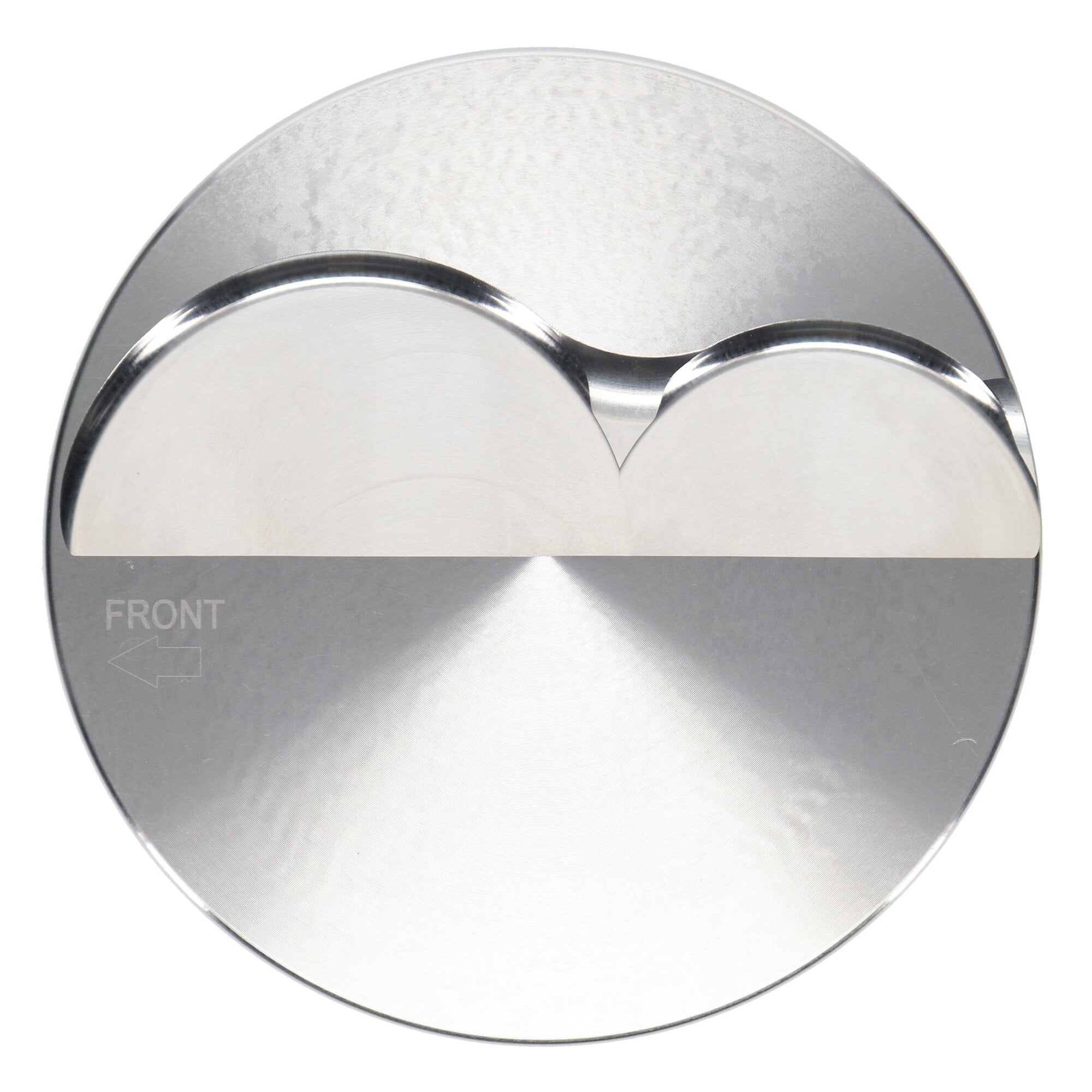

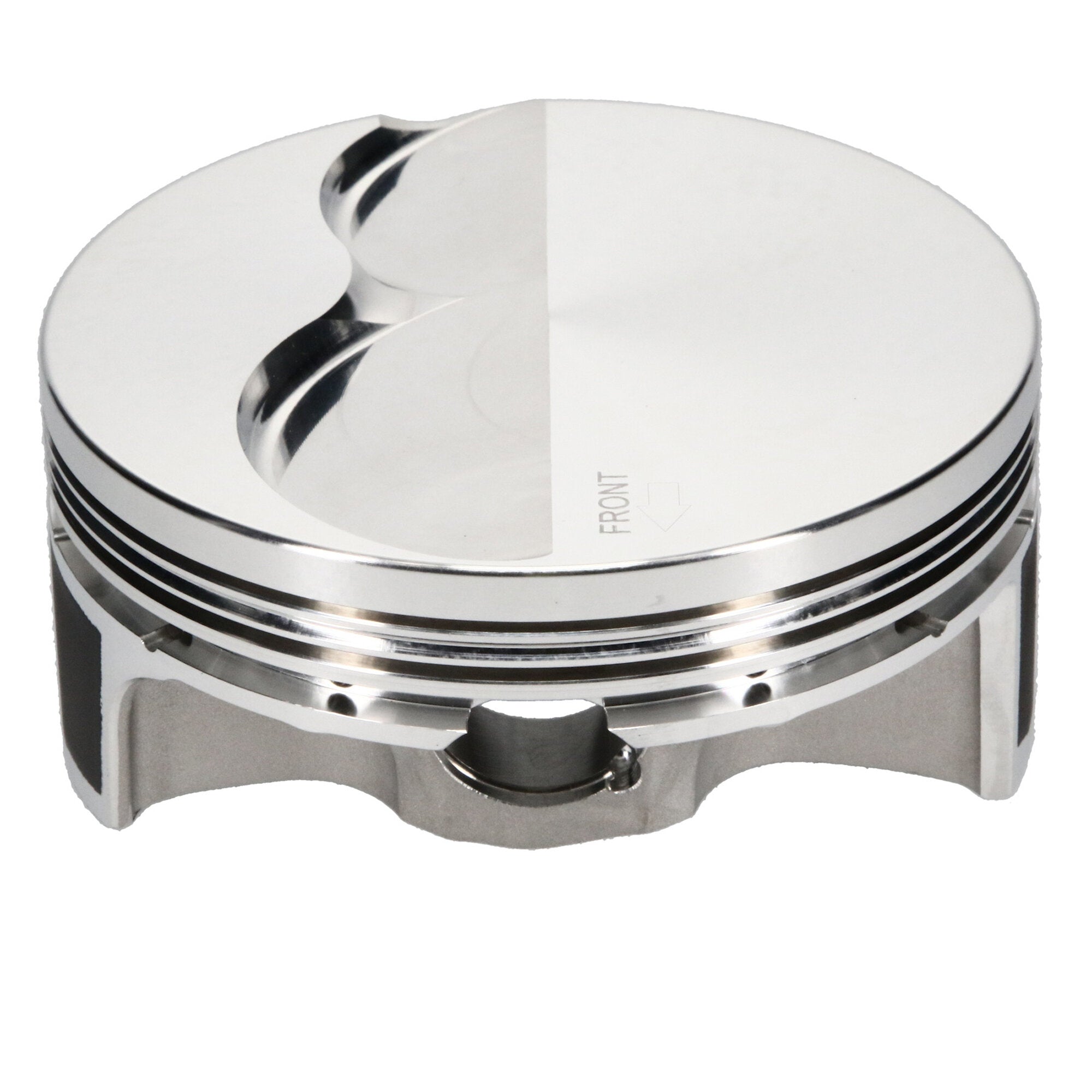

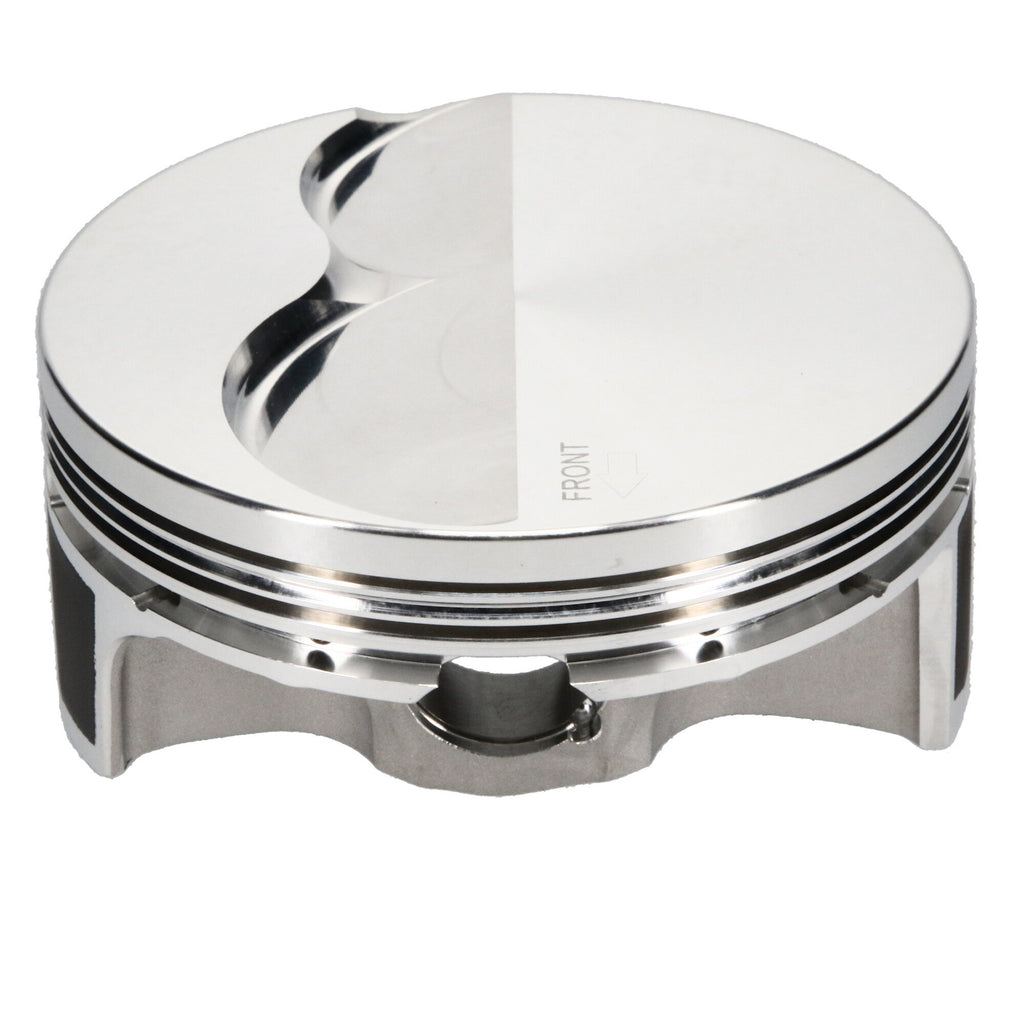

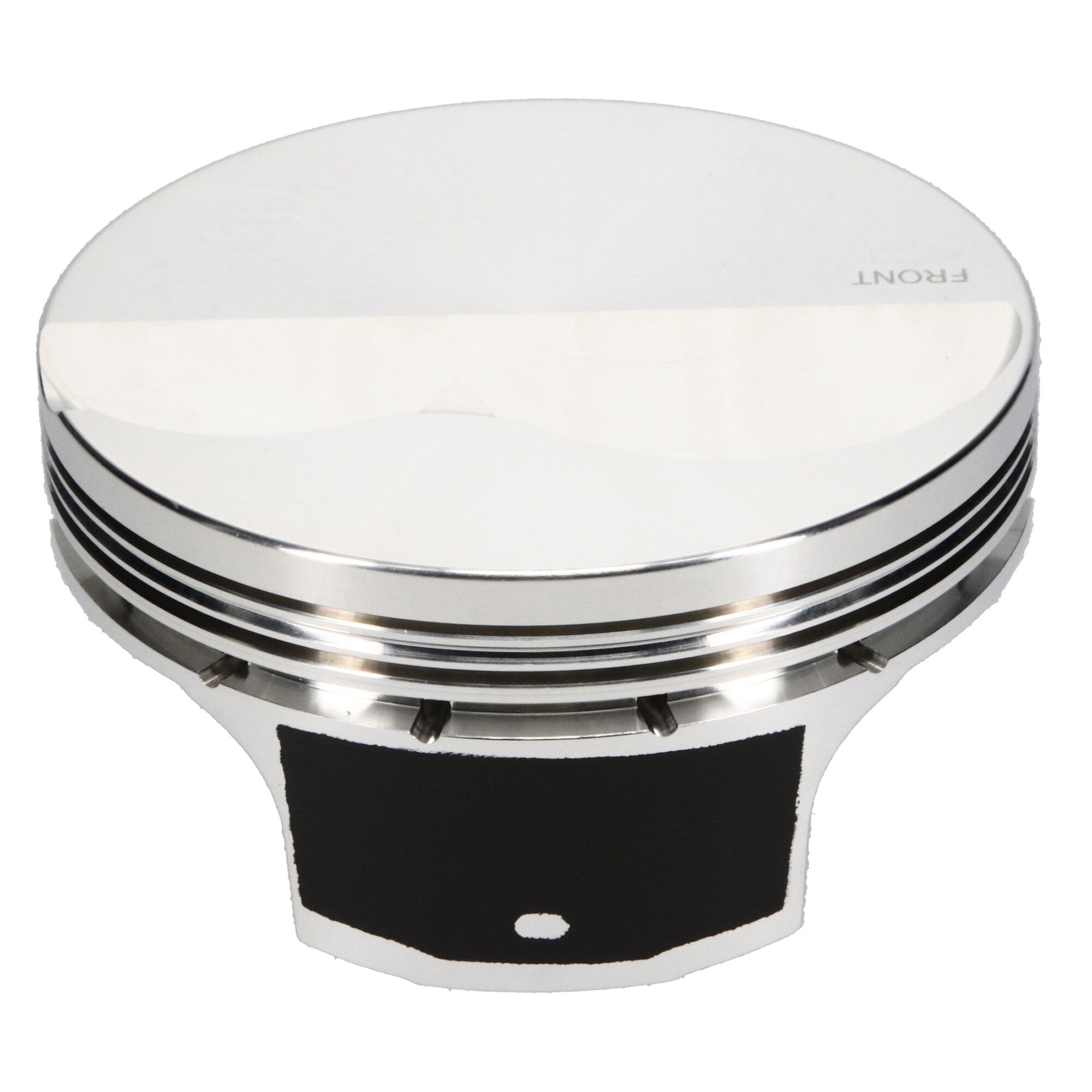

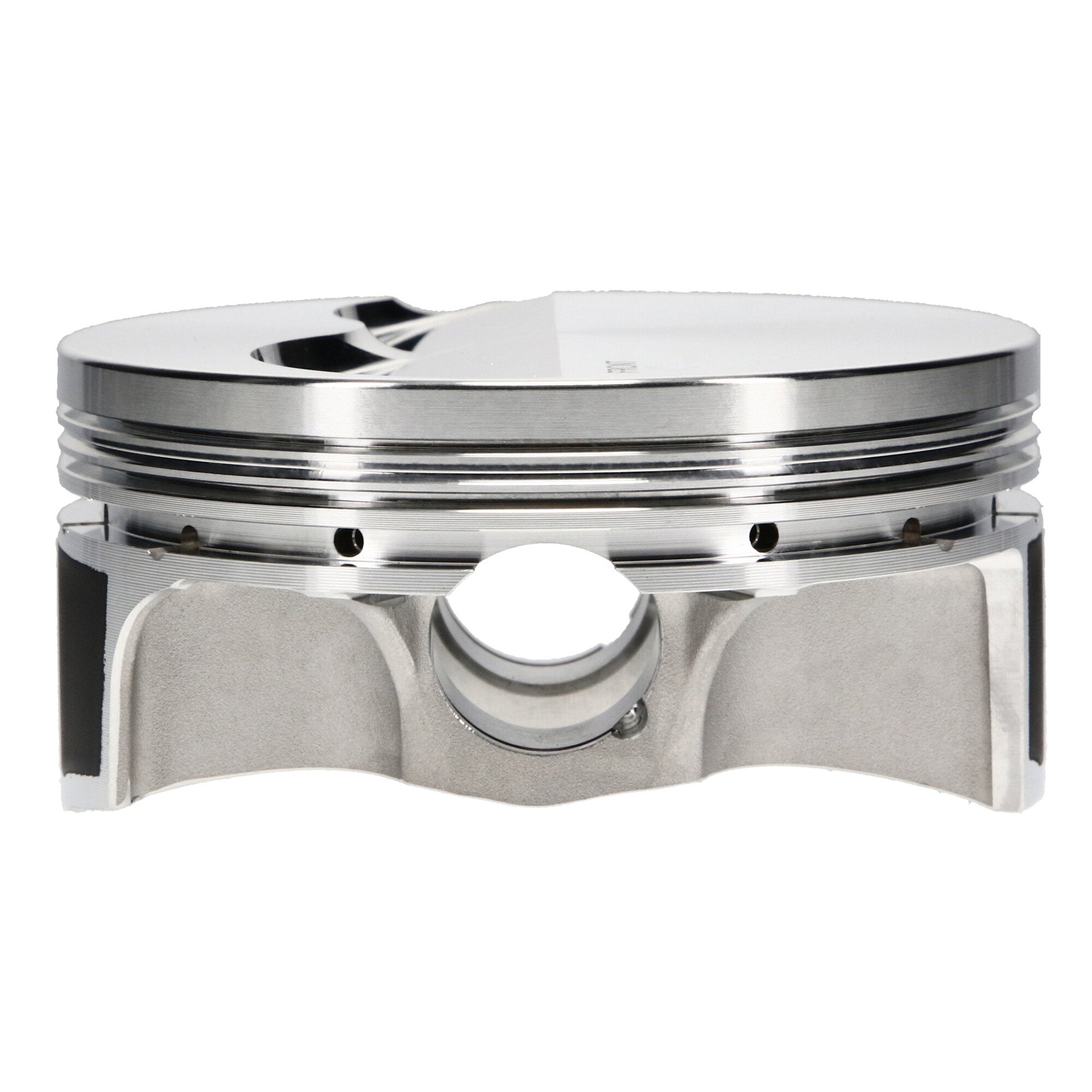

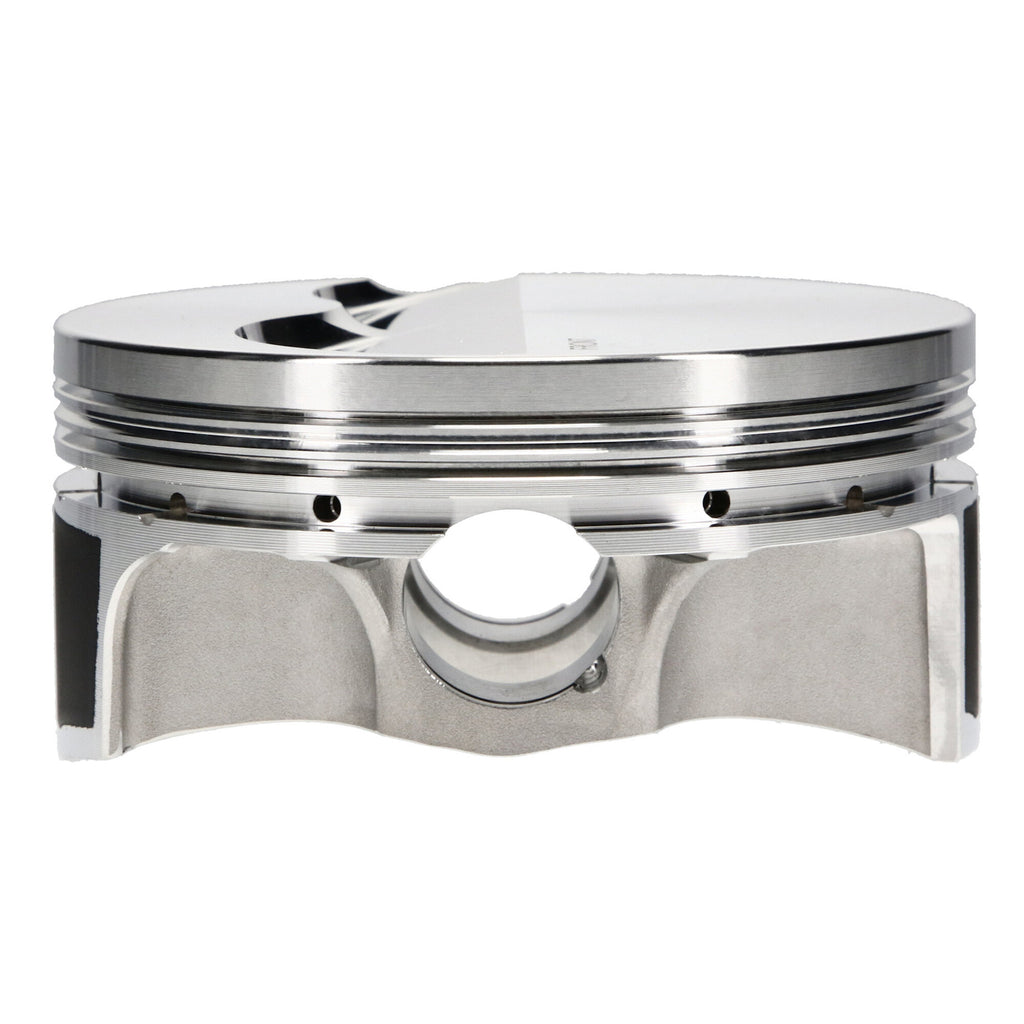

Piston Single, 2618, Flat Top, 4.005 Bore, 1.340 CD, 0.945 Pin, Set of 1. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, LS Gen III/IV, 4.005 in. Bore, 1.340 CD, Flat Top, Left Piston |
| Description_SHO |
Piston |
| Description_TLE |
Chevrolet LS, 4.005 Bore, Flat, Set of 1 |
| Add-On |
945-073-MW |
| Add-On |
JG3108-4000-7 |
| Add-On |
945-2250-15-51C |
| Bore Diameter |
4.005 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Engine |
LS Gen III/IV |
| Compression Height |
1.340 |
| Cylinder Head |
LS 12 DEG/15 DEG COMBO VR |
| Engine - Web |
LS Gen III/IV |
| Piston Material |
2618 |
| Piston Volume |
-5.00 |
| Piston Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston |
| Out of Stock Message |
Call for Availability |
| Piston Quantity |
1 |
| Oil Ring Thickness |
0.1175 |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.945 |
| Piston Pin Material |
5115 |
| Piston Orientation |
Left |
| Make |
CHEVROLET |
| Industry |
Automotive |
| Piston Average Weight |
411 |
| Piston Pin Length |
2.250 |
| Product Market |
Domestic |
| Piston Head Type |
Flat |
| Make - Web |
Chevrolet |
| Title |
JE Pistons - Chevrolet, LS Gen III/IV, 4.005 in. Bore, Piston |
| Ringset Included |
No |
| Second Compression Ring Thickness |
0.0600 |
| Top Compression Ring Thickness |
0.0480 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Chevrolet LS Gen III/IV Piston - 4.005 in. Bore - 1.340 in. CH, -5.00 CC |
| Wrist Pin Length |
2.250 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.945 |
| Ring Set Included |
No |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
