As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 Sprint Brodix 11X |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

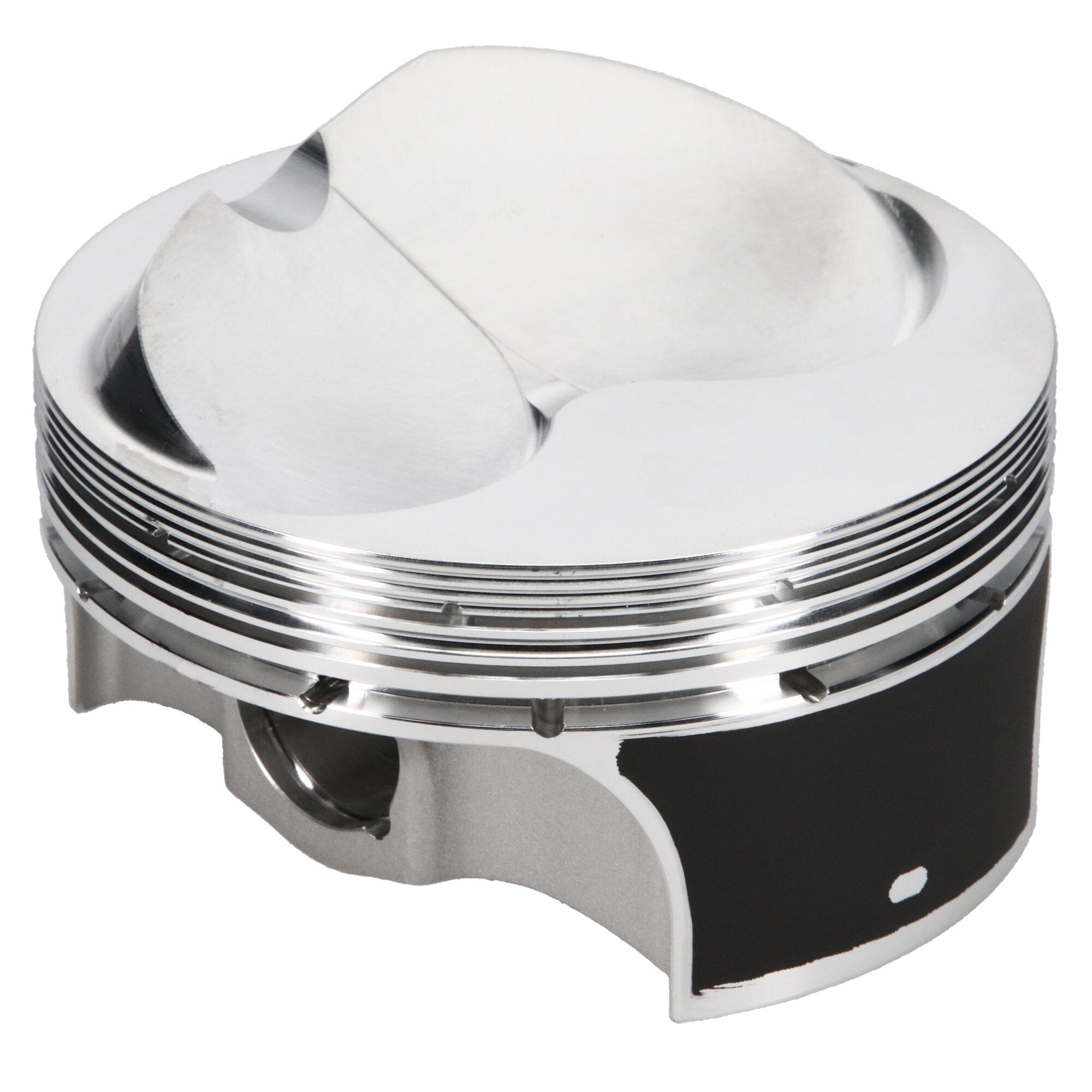

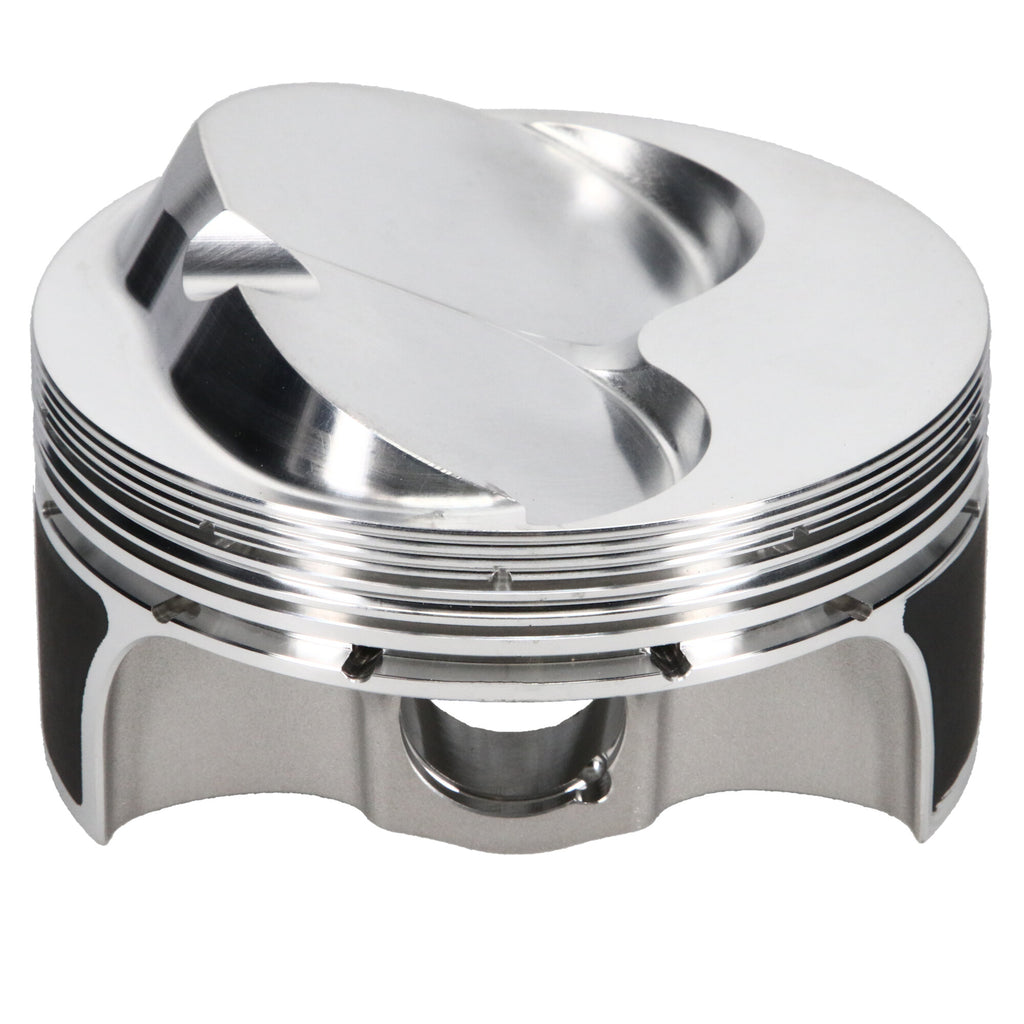

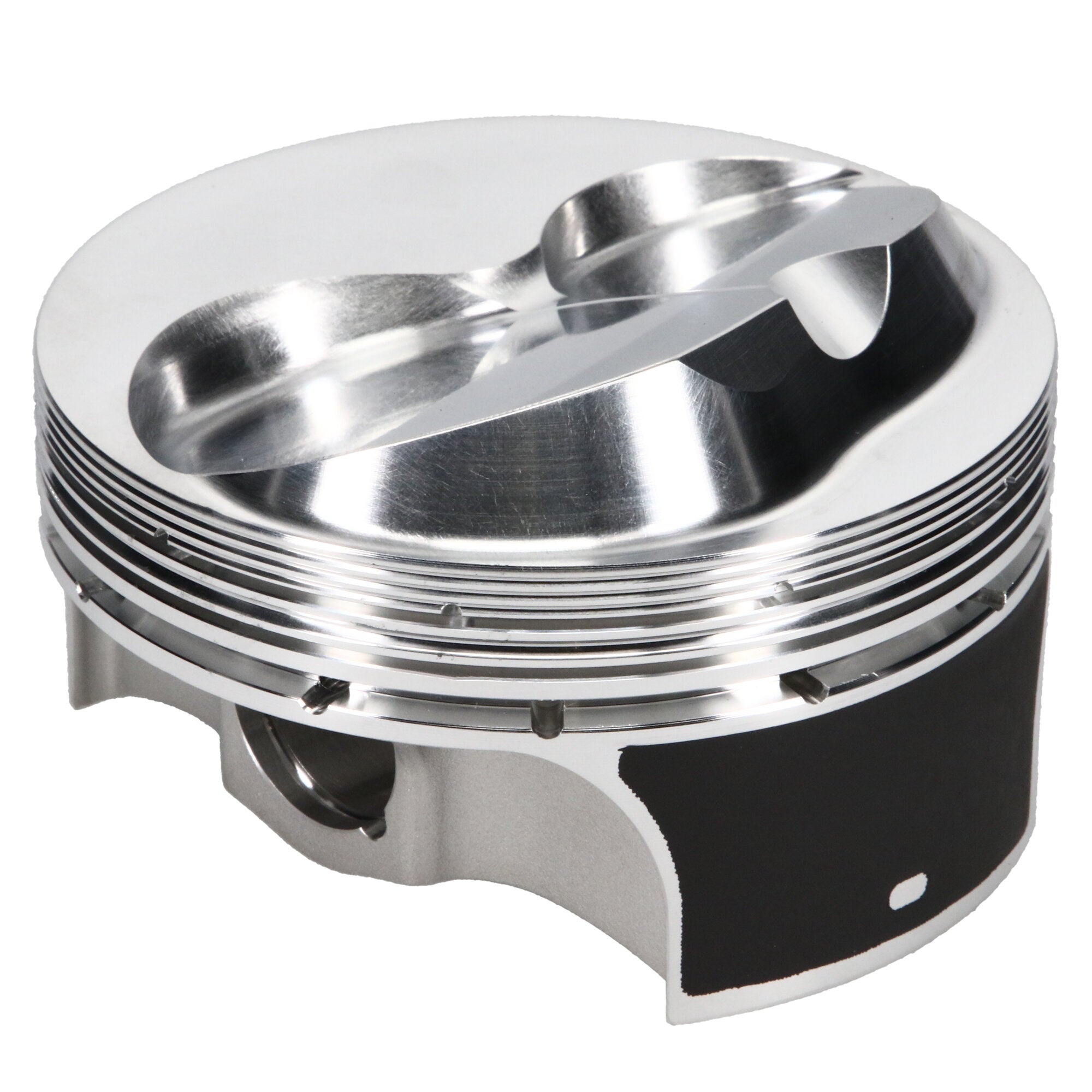

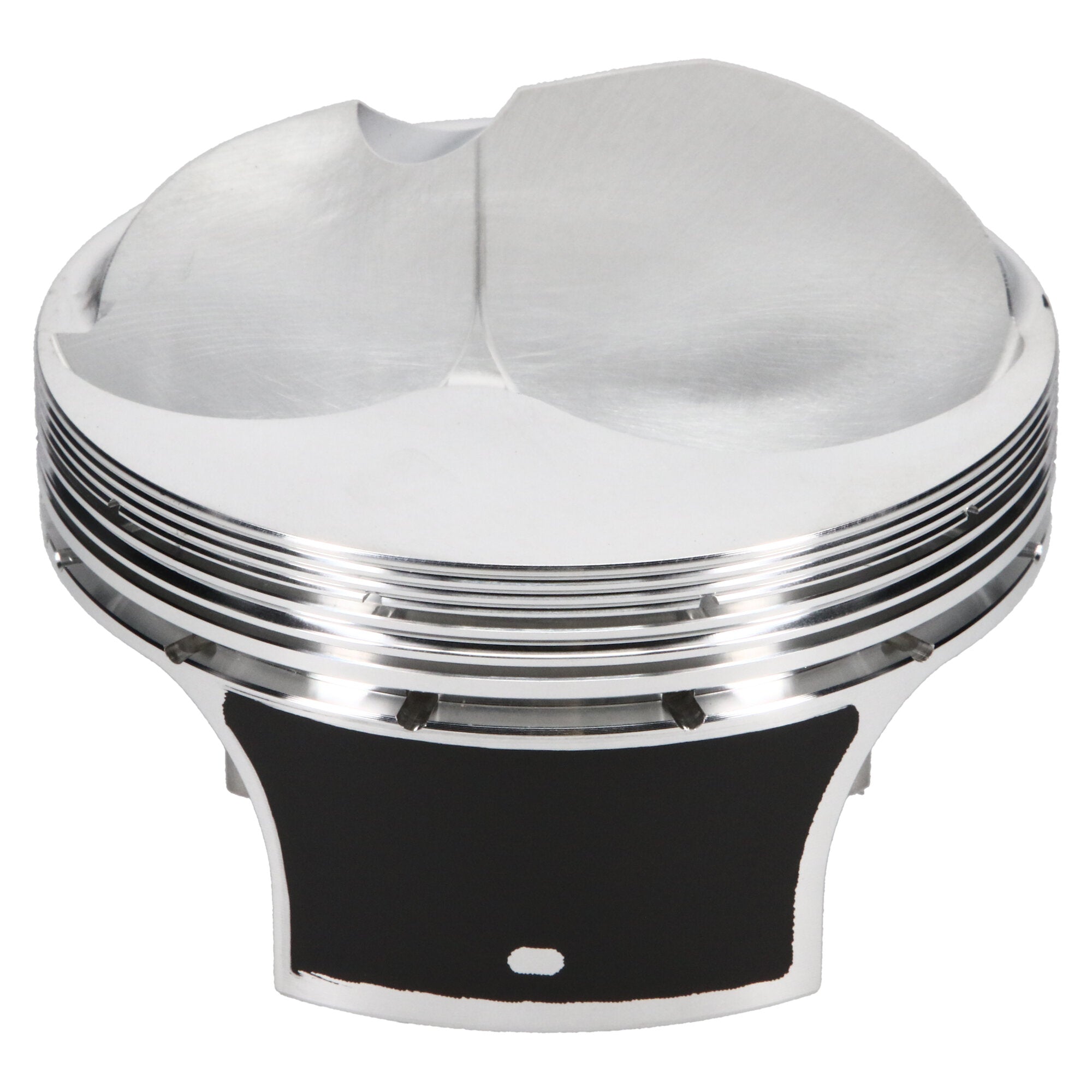

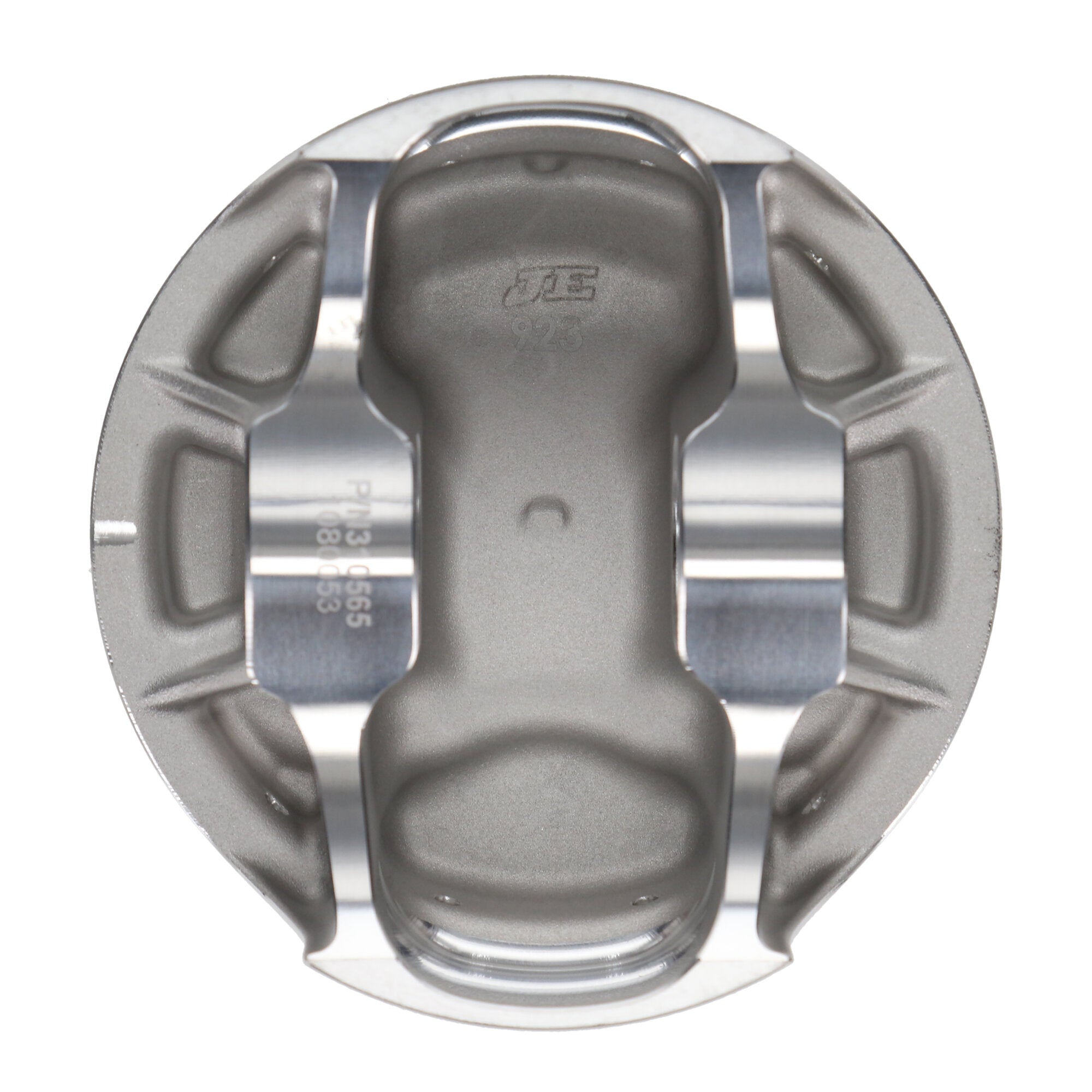

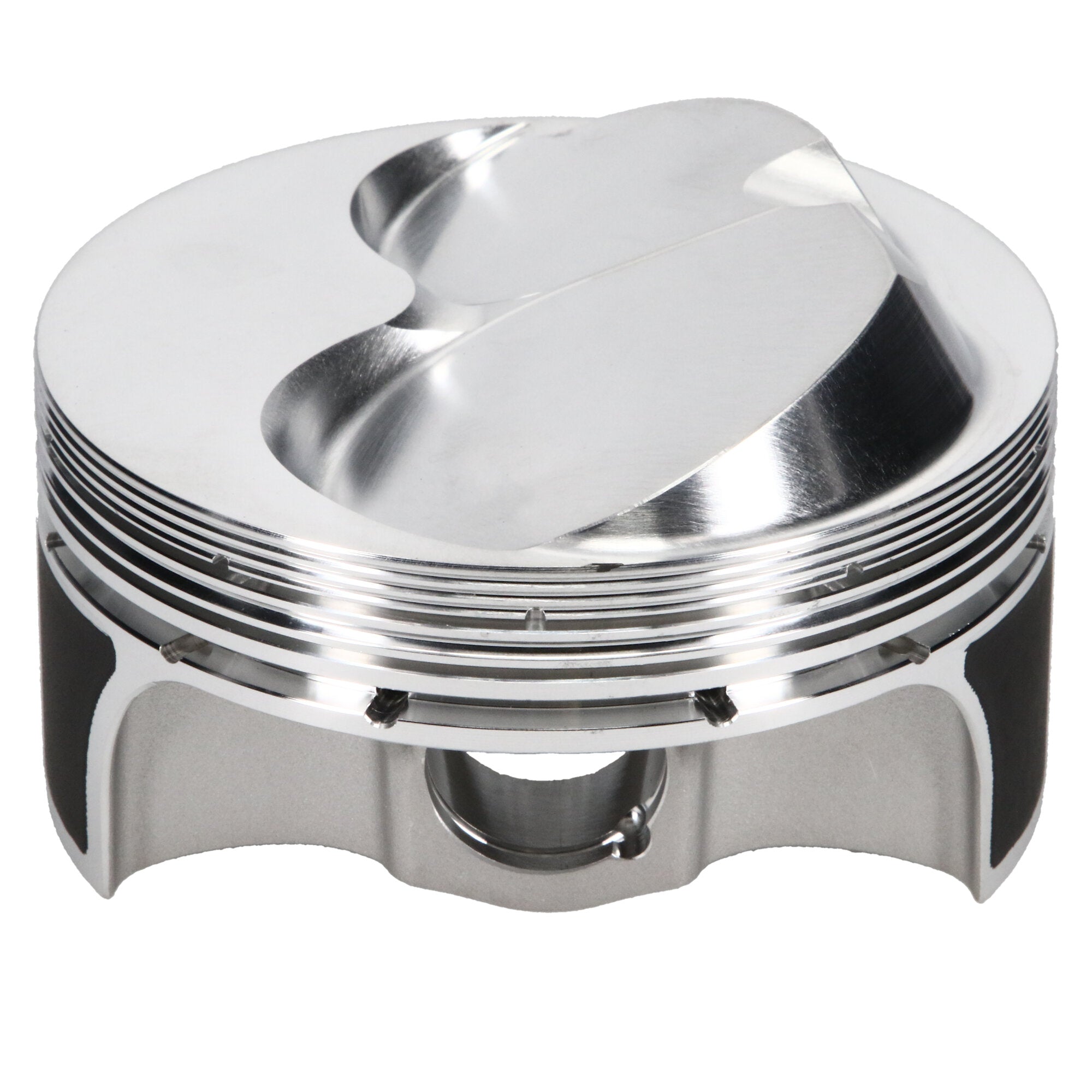

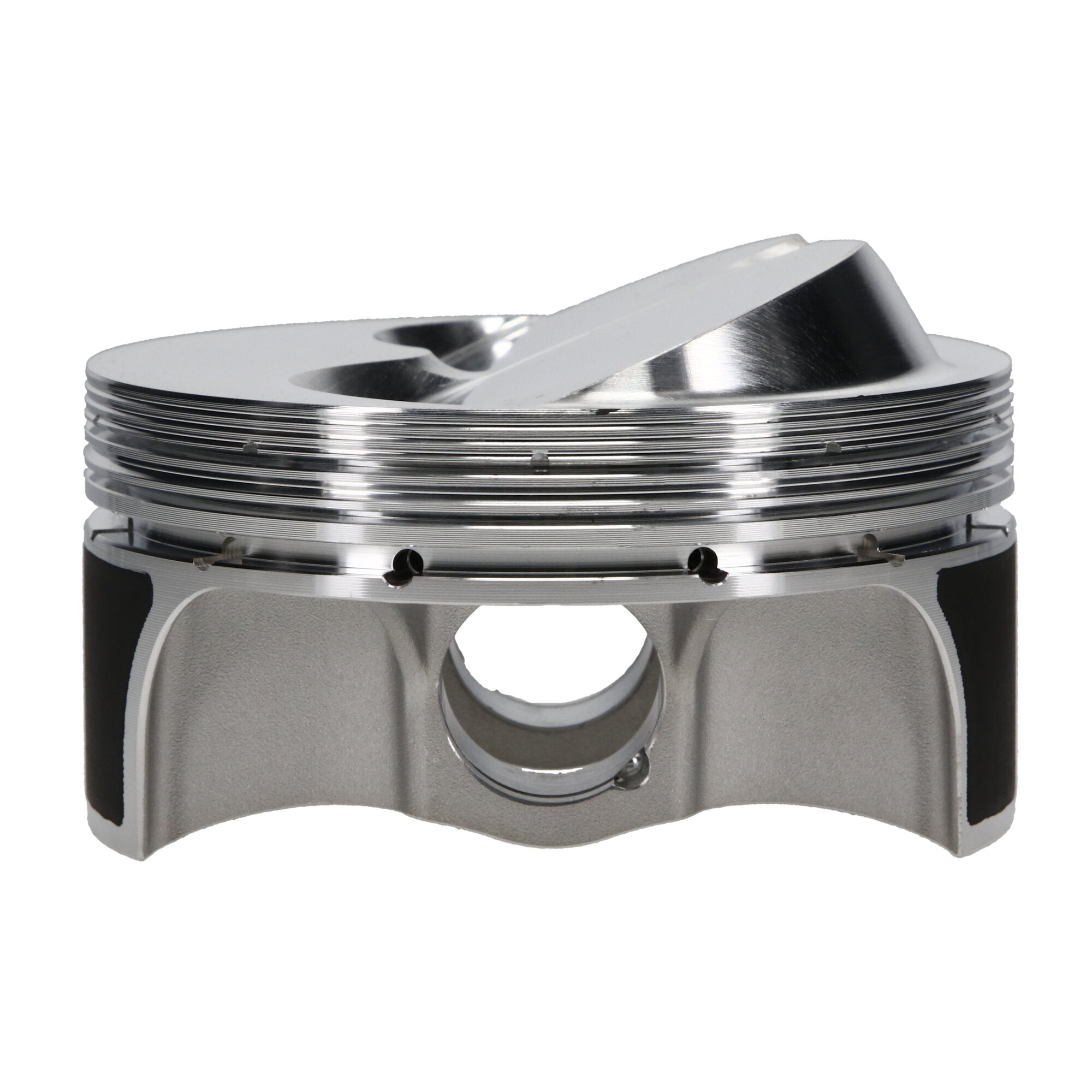

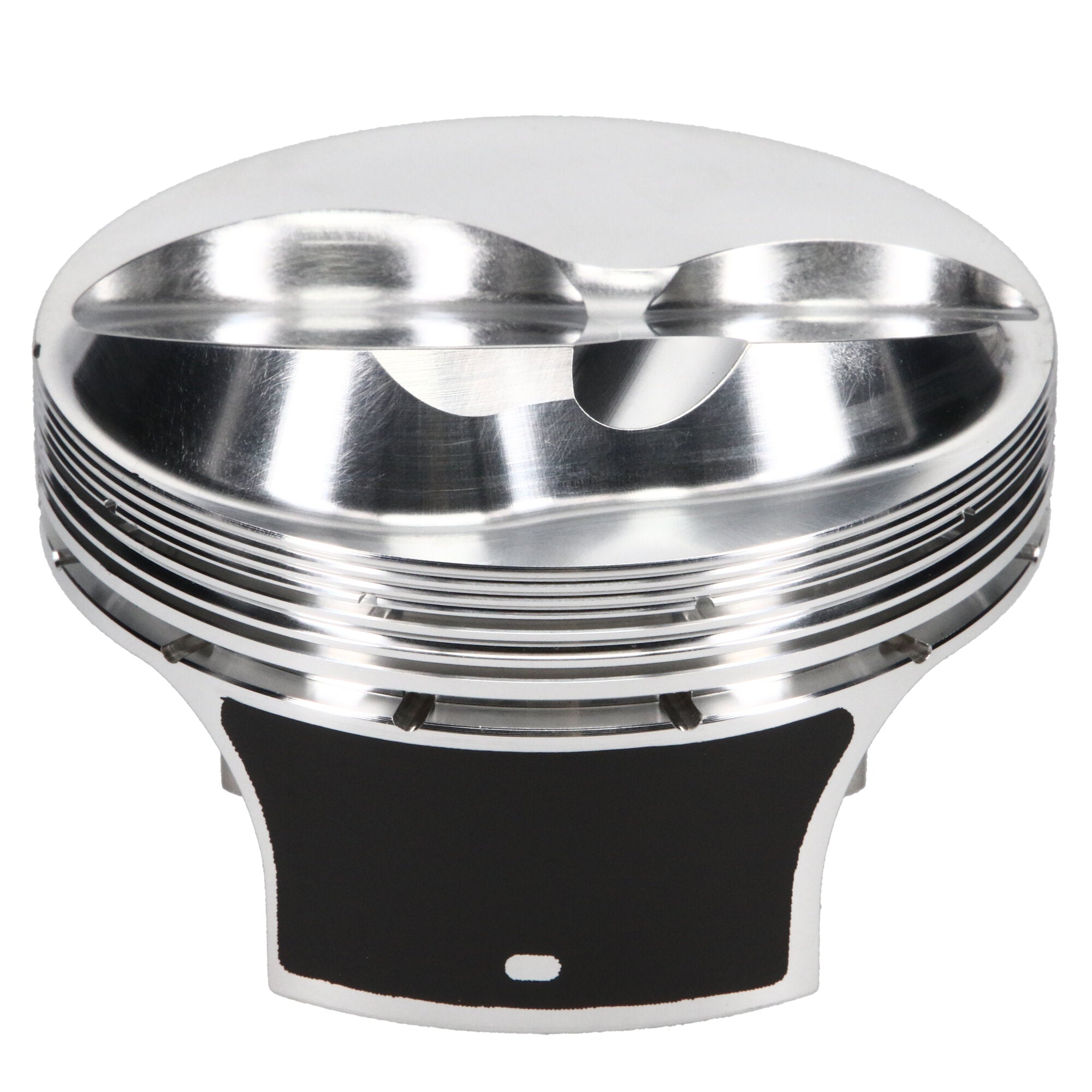

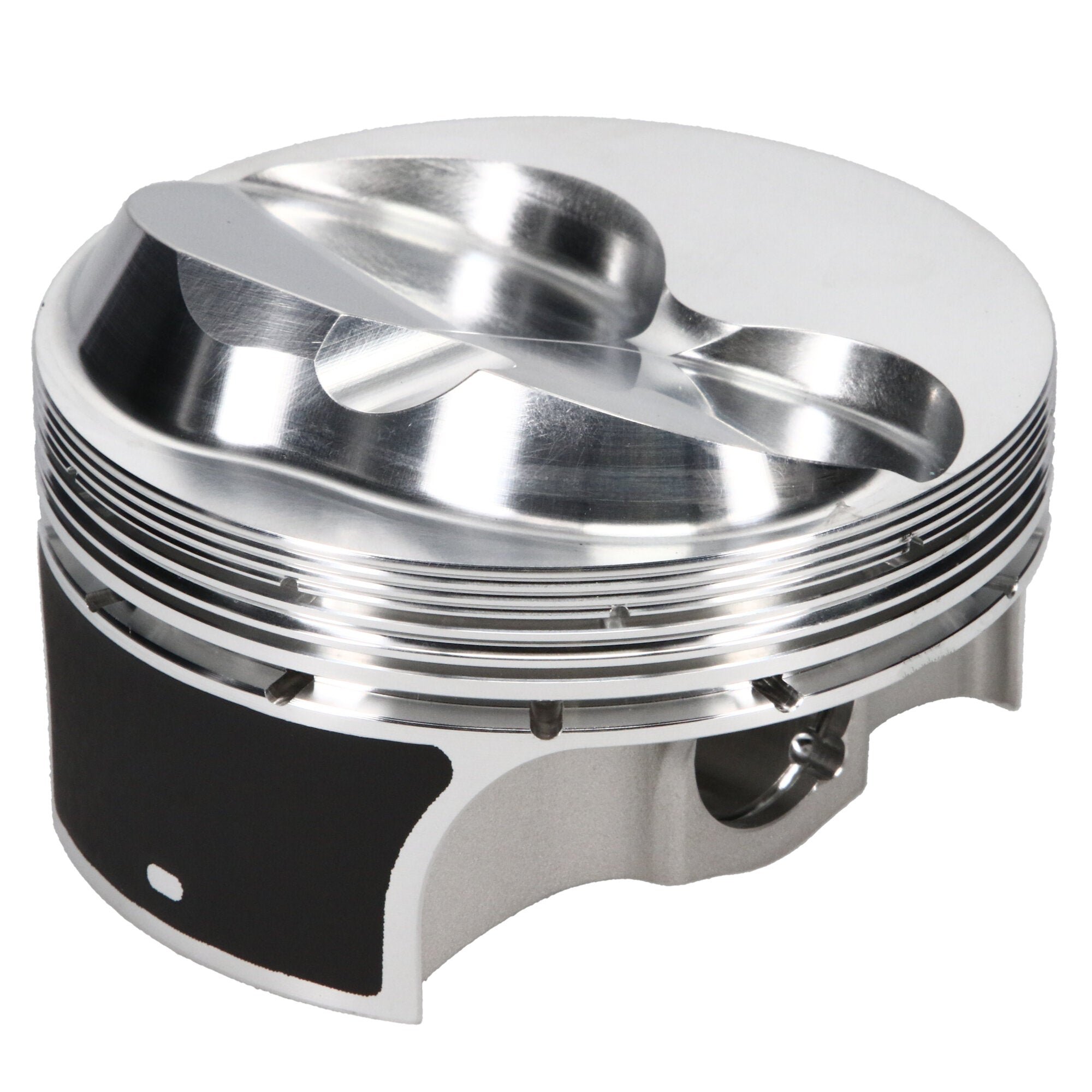

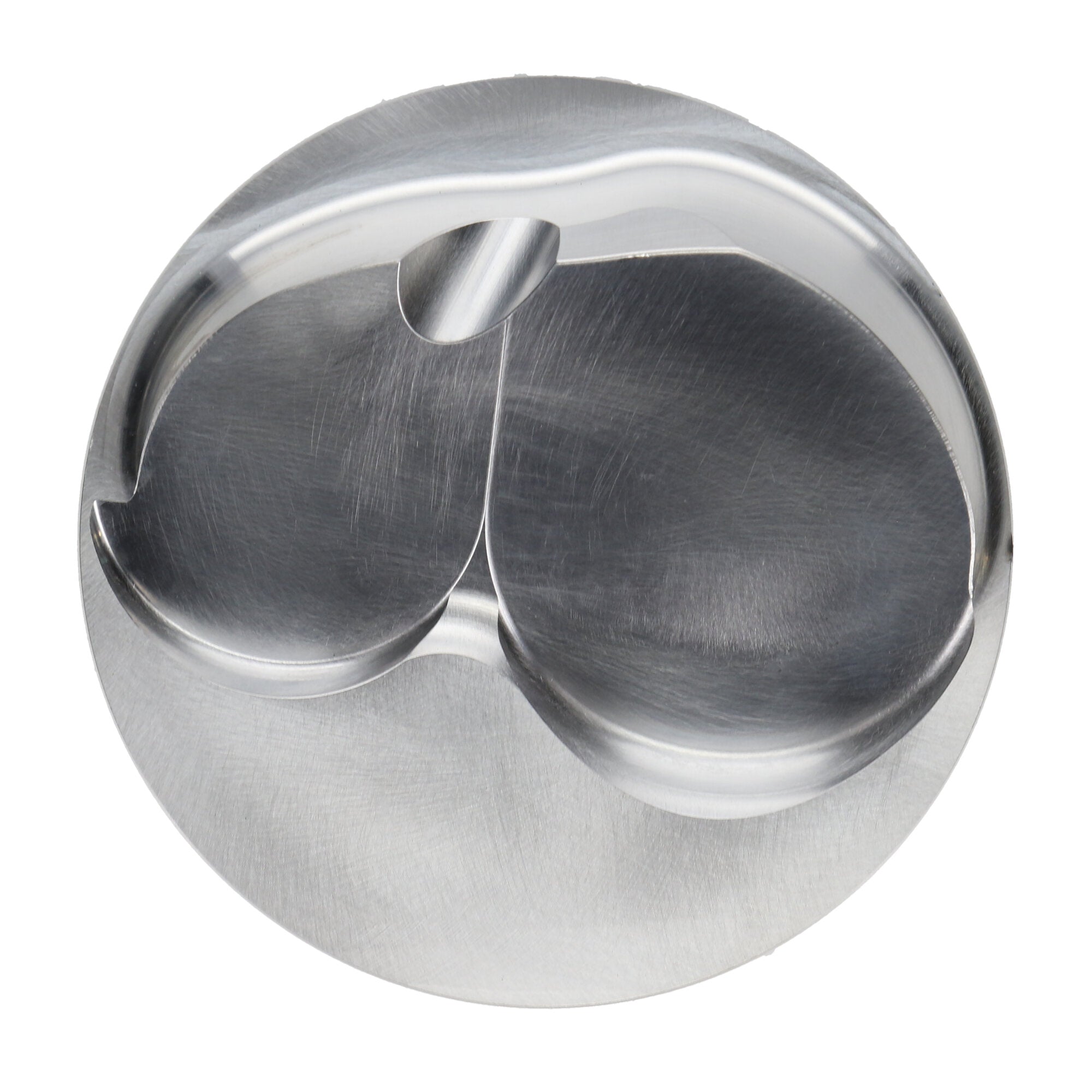

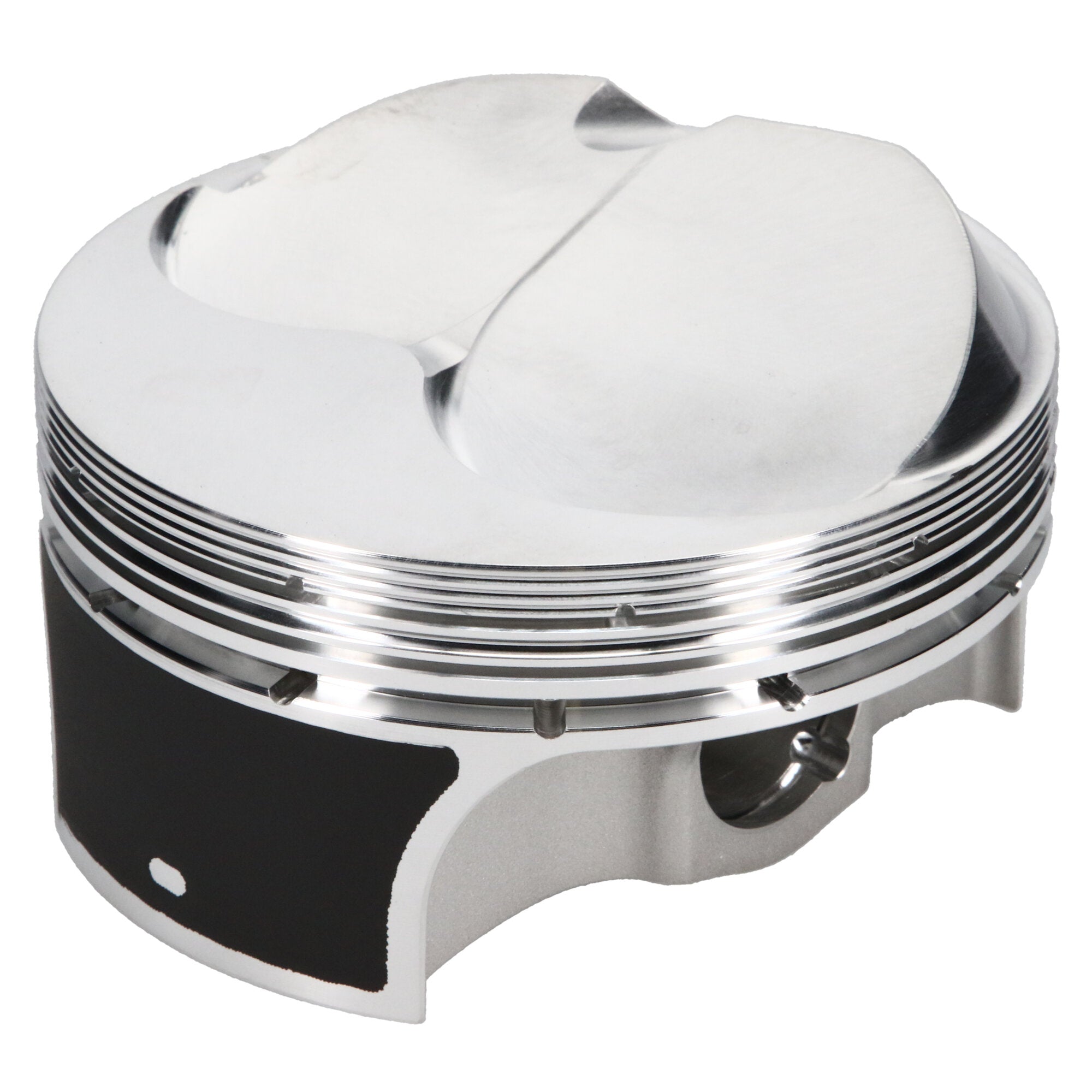

Piston Set, 2618, Dome, 4.045 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.045 in. Bore, 1.250 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 360 BRODIX 11X, 4.045 Bore, Dome, Set of 8 |
| Ring Set Included |
No |
| Piston Series |
JE Pistons |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.170 |
| Engine Type |
ICE |
| Piston Quantity |
8 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.045 in. Bore, Piston Kit |
| Make |
CHEVROLET |
| Piston Volume |
14.00 |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.927 |
| Compression Height |
1.250 |
| Top Compression Ring Thickness |
0.0435 |
| Forging Type |
FSR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Oil Ring Thickness |
0.119 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.250 |
| Cylinder Head |
PRO ACTION 23 DEG |
| Prop 65 (C, R or CR) |
CR |
| Bore Diameter |
4.045 |
| Piston Material |
2618 |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.170 |
| Piston Average Weight |
444 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Make - Web |
Chevrolet |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0440 |
| Add-On |
J71408-4040-5 |
| Prop 65 Yes/No |
Yes |
| Add-On |
927-2250-17-51C |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.045 in. Bore - 1.250 in. CH, 14.00 CC |
| Out of Stock Message |
Call for Availability |
| Add-On |
927-073-MW |
| Engine |
Small Block |
| Piston Head Type |
Dome |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
