As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 Sprint Brodix 11X |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

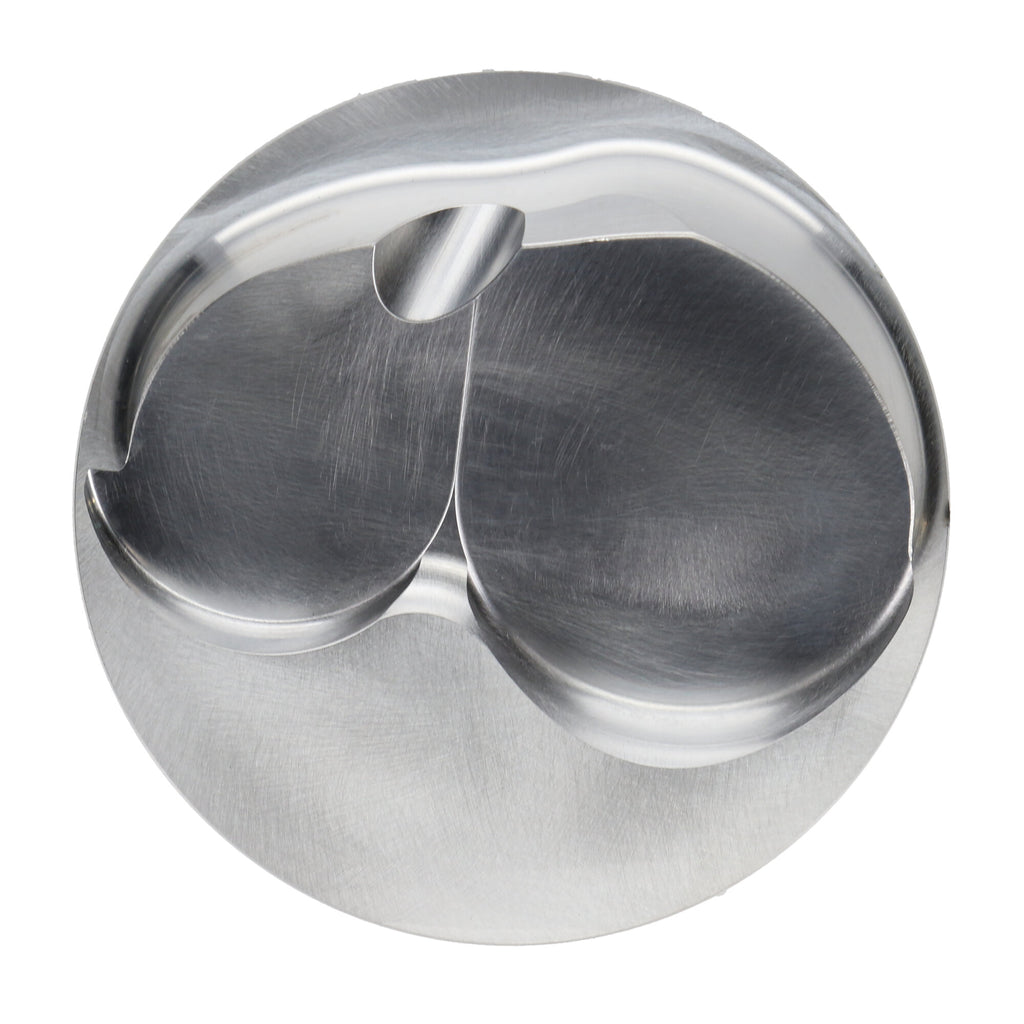

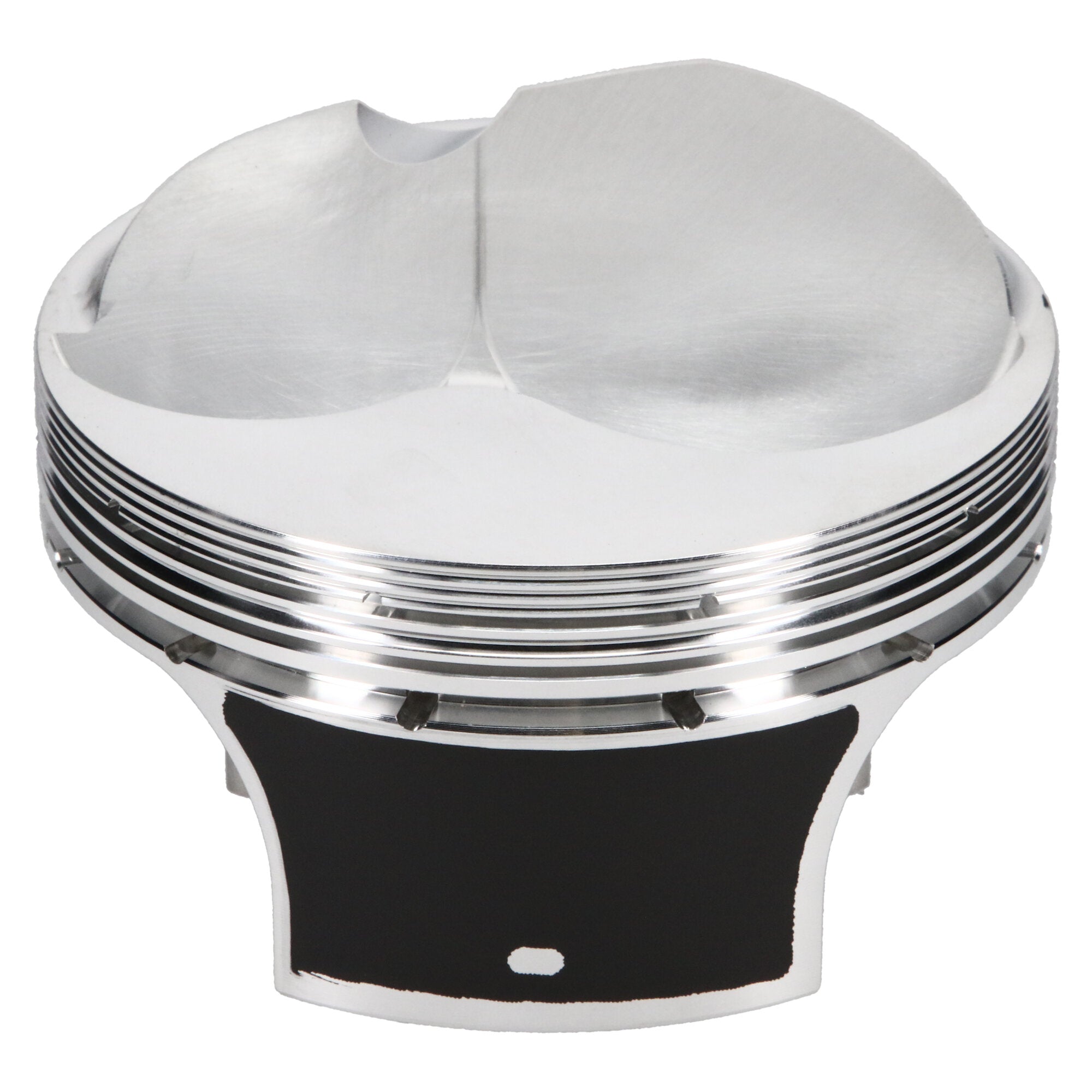

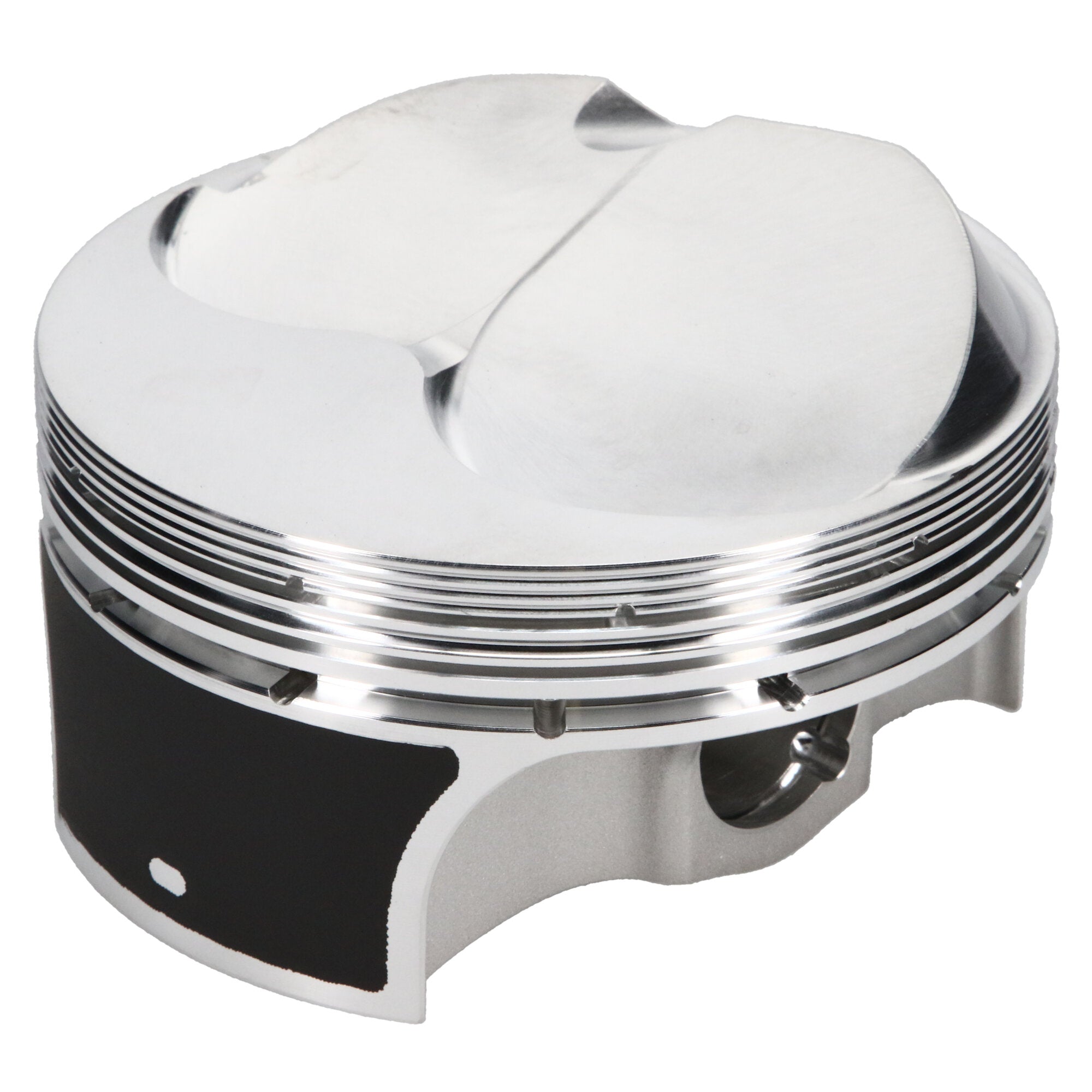

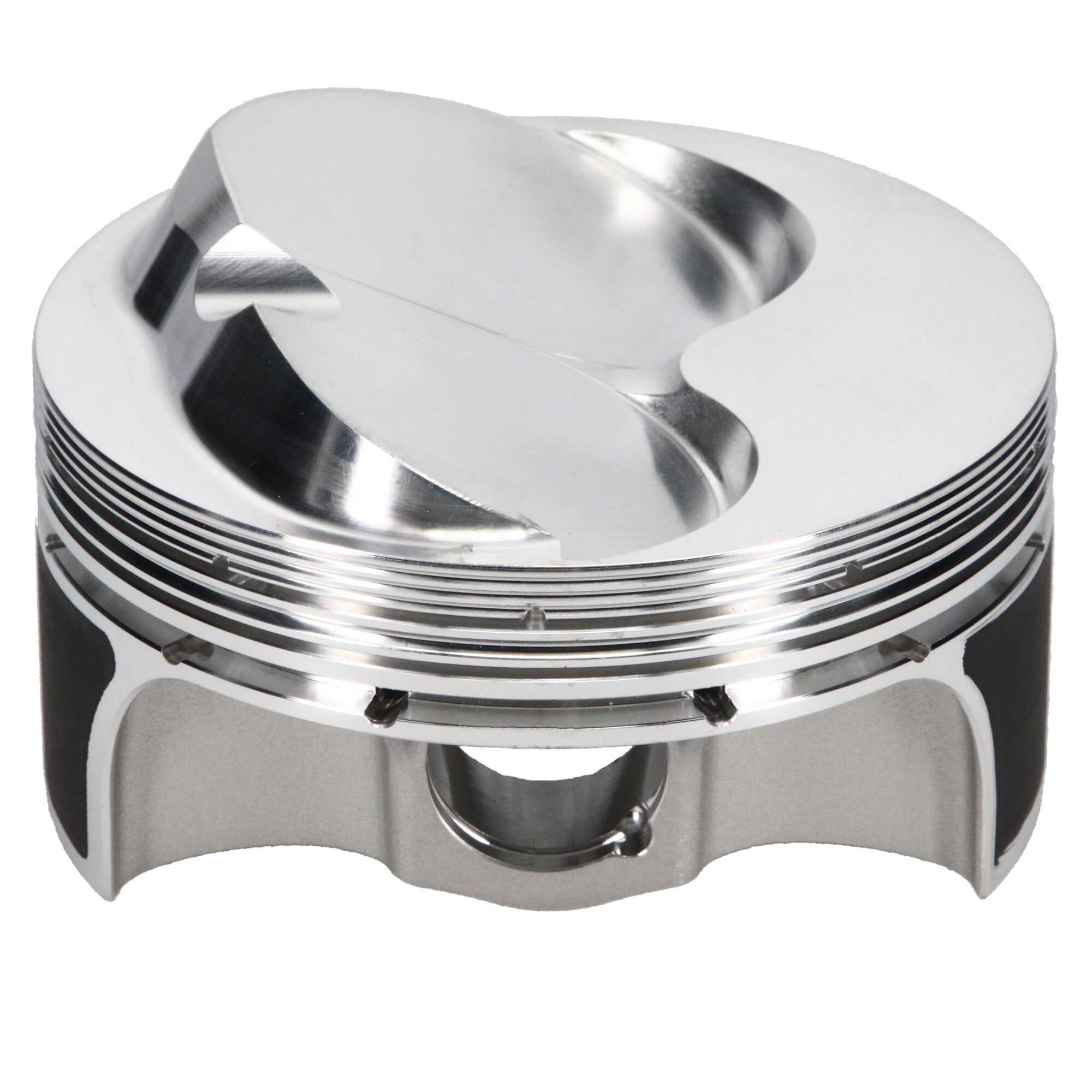

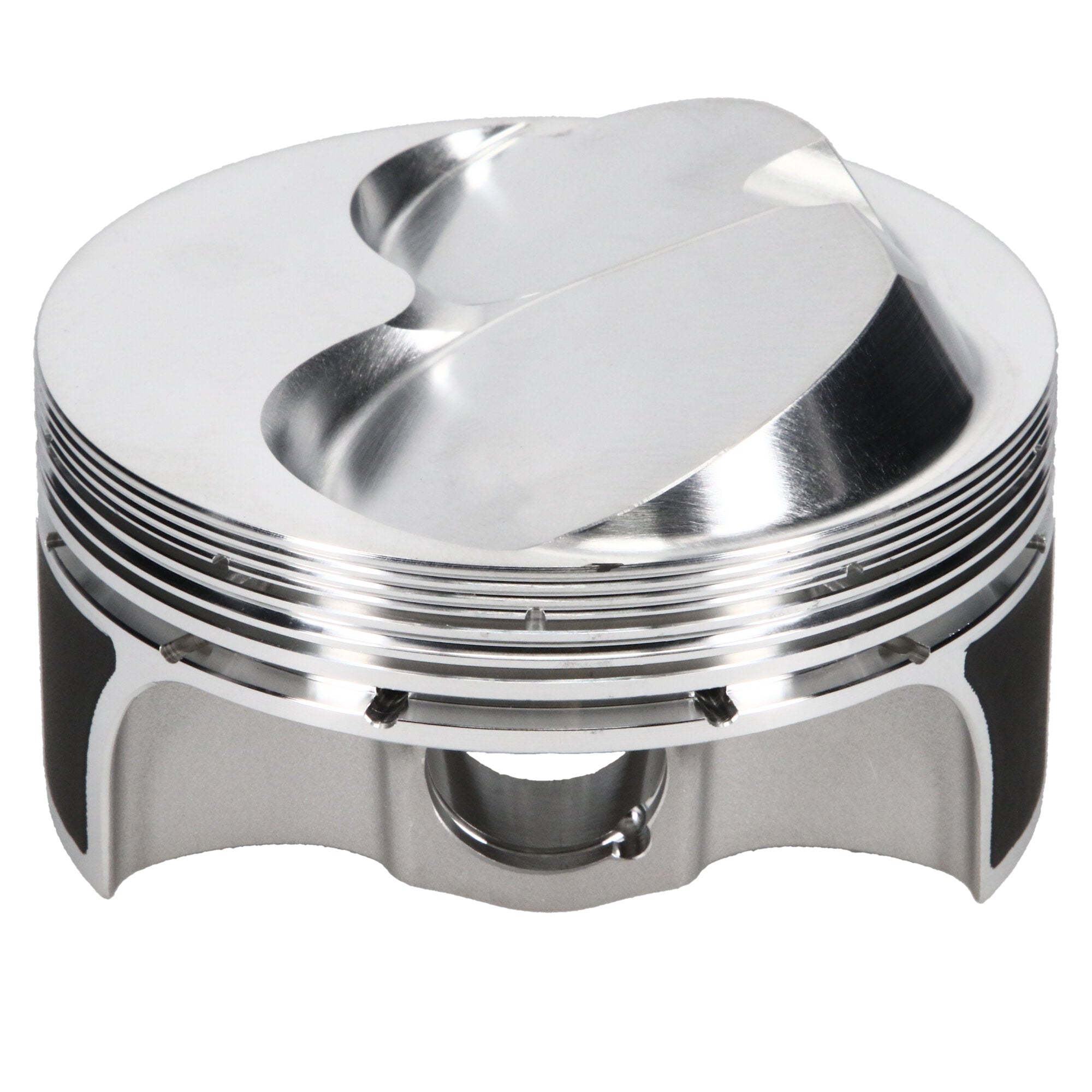

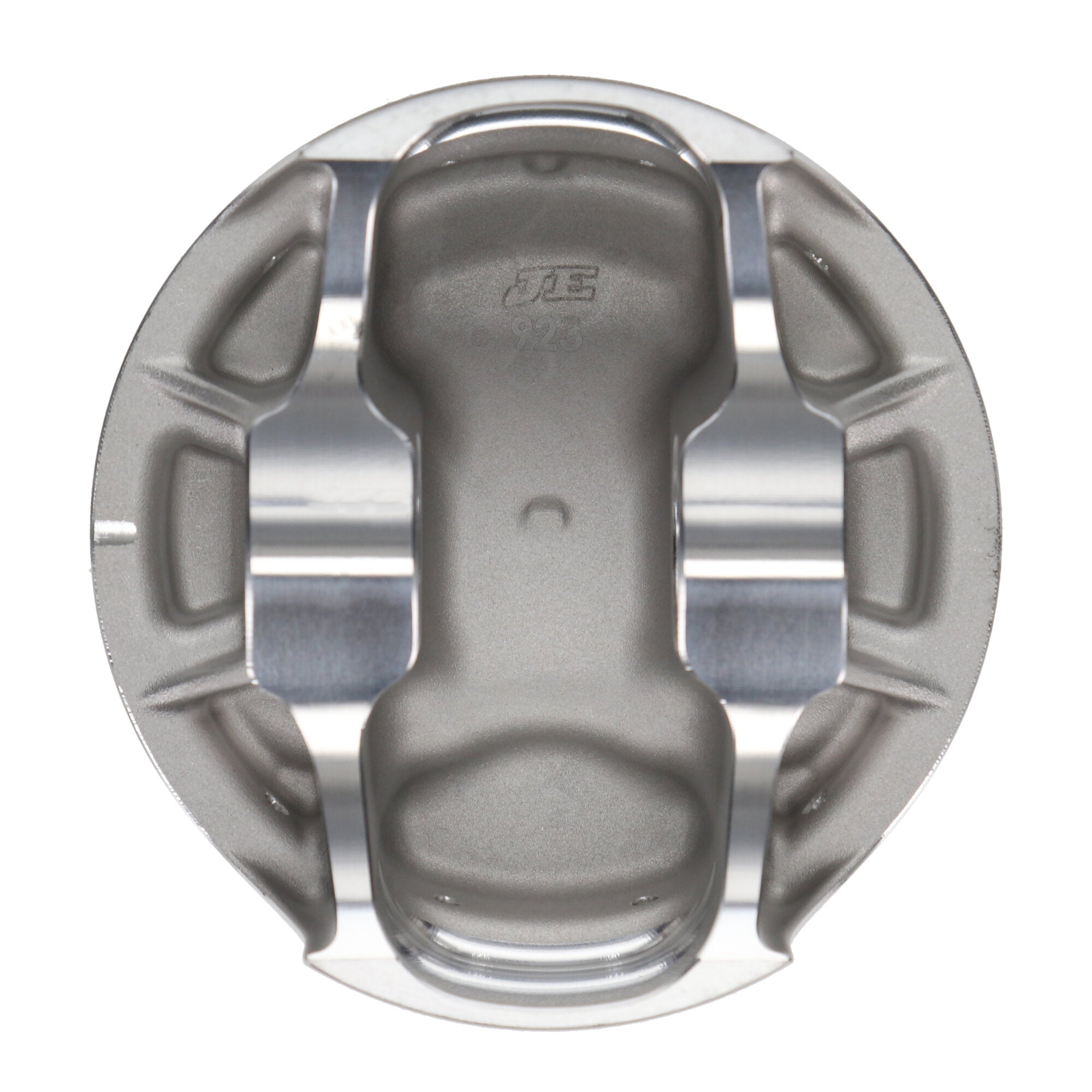

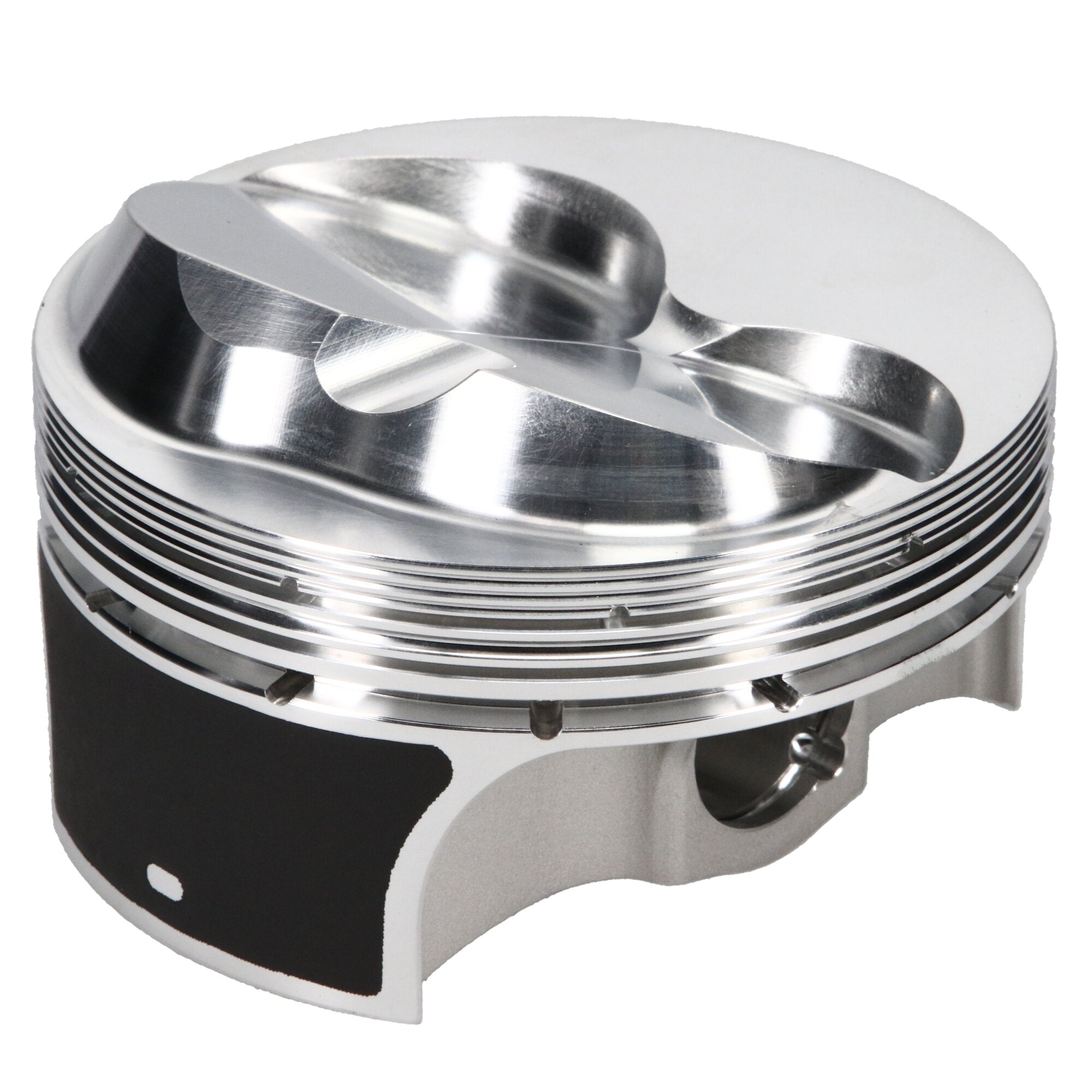

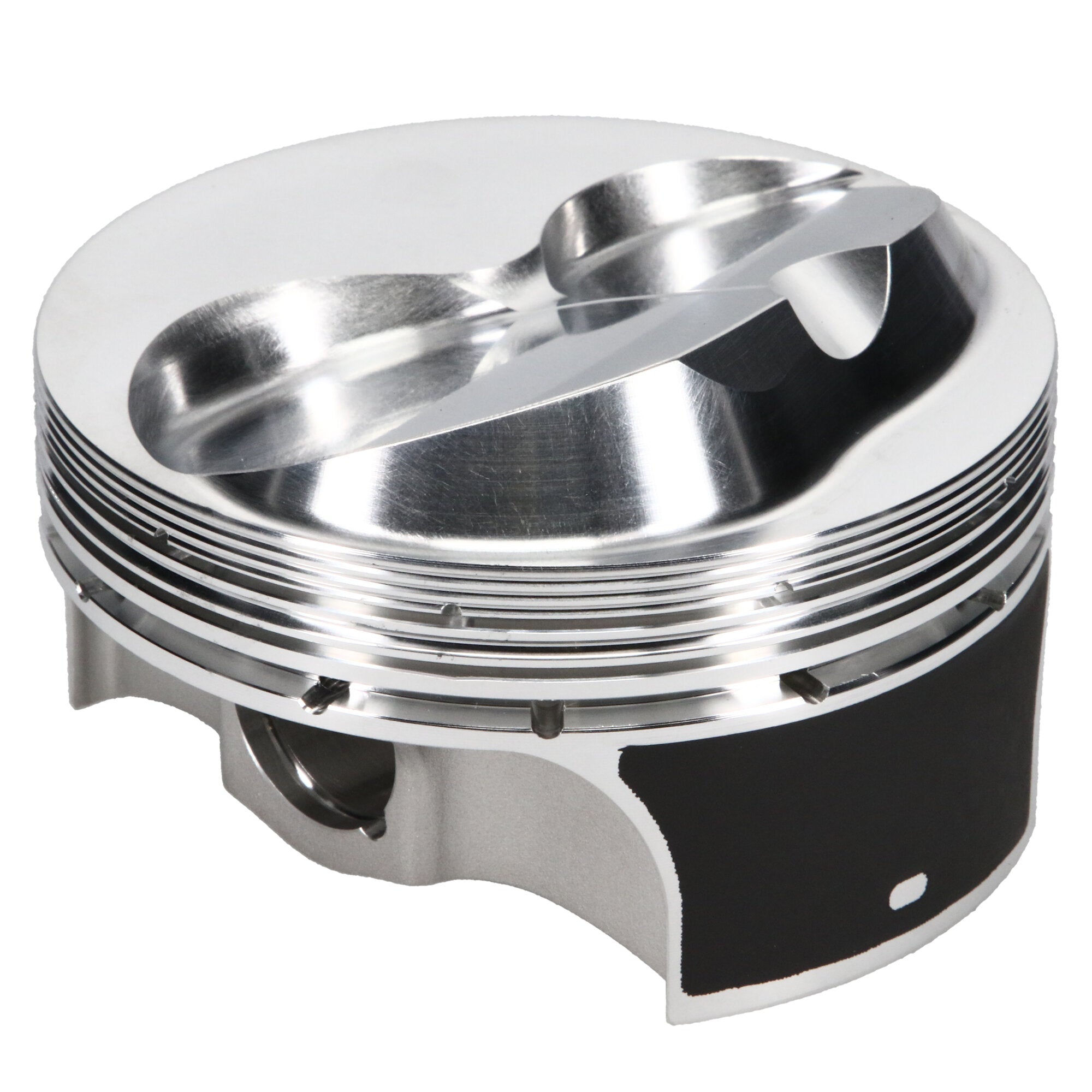

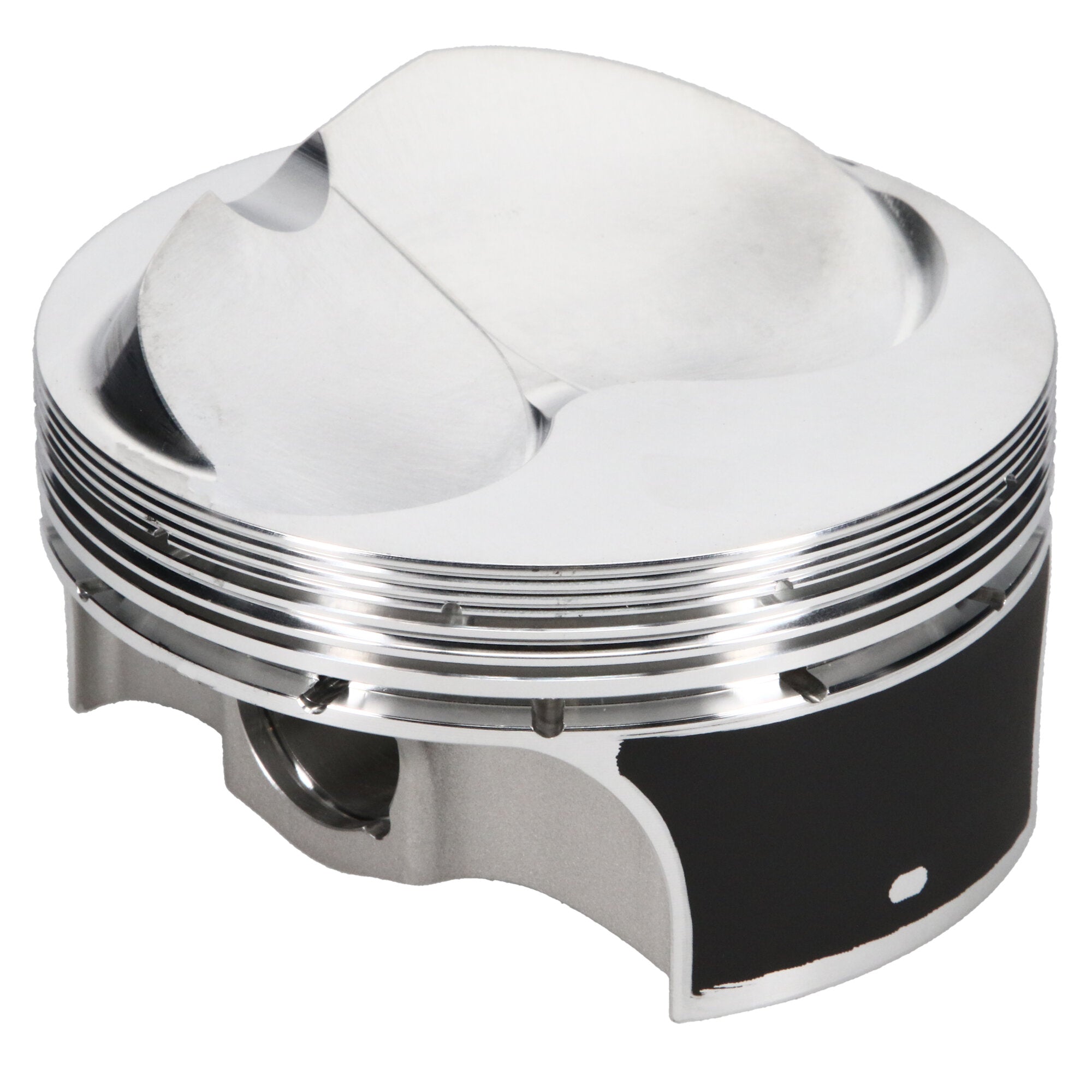

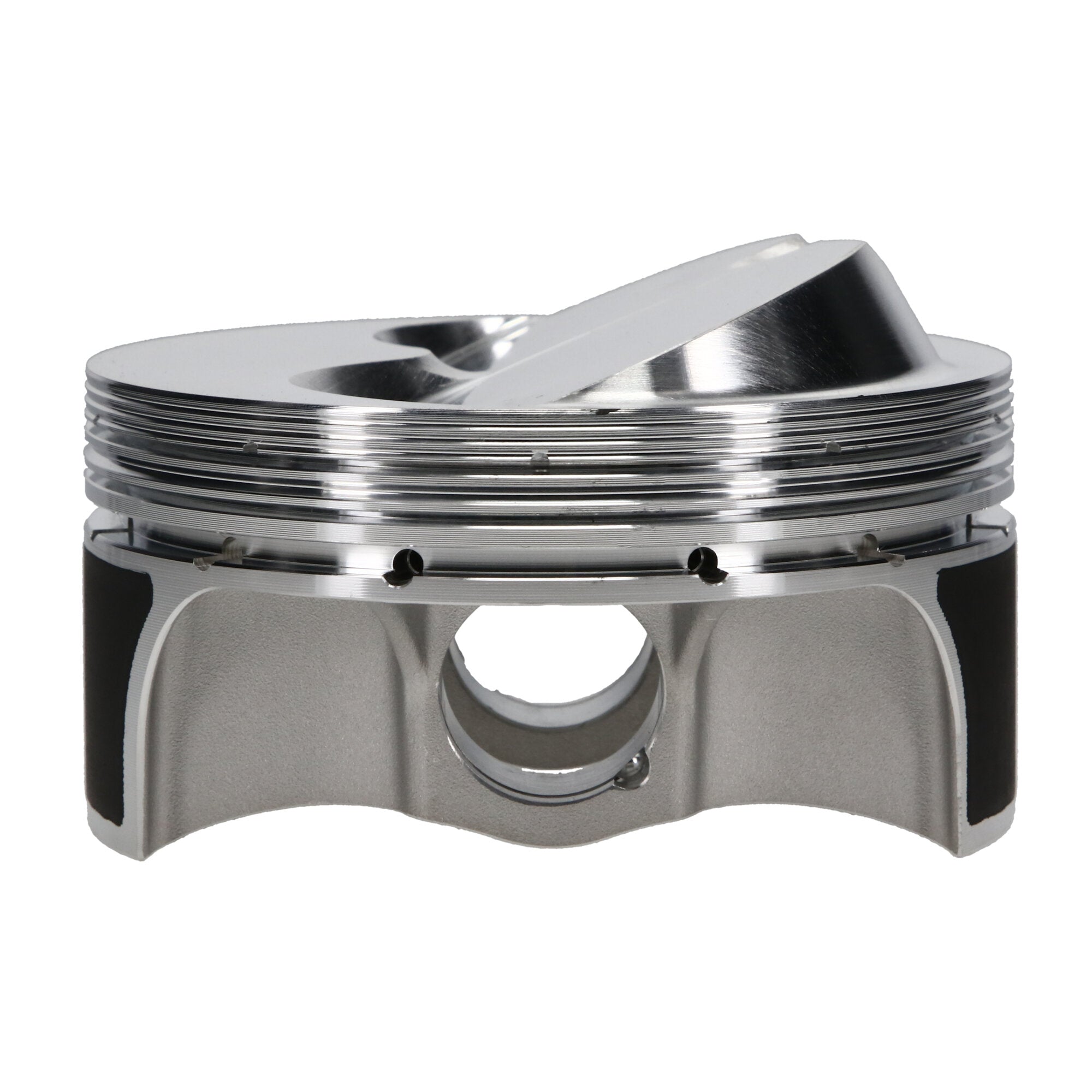

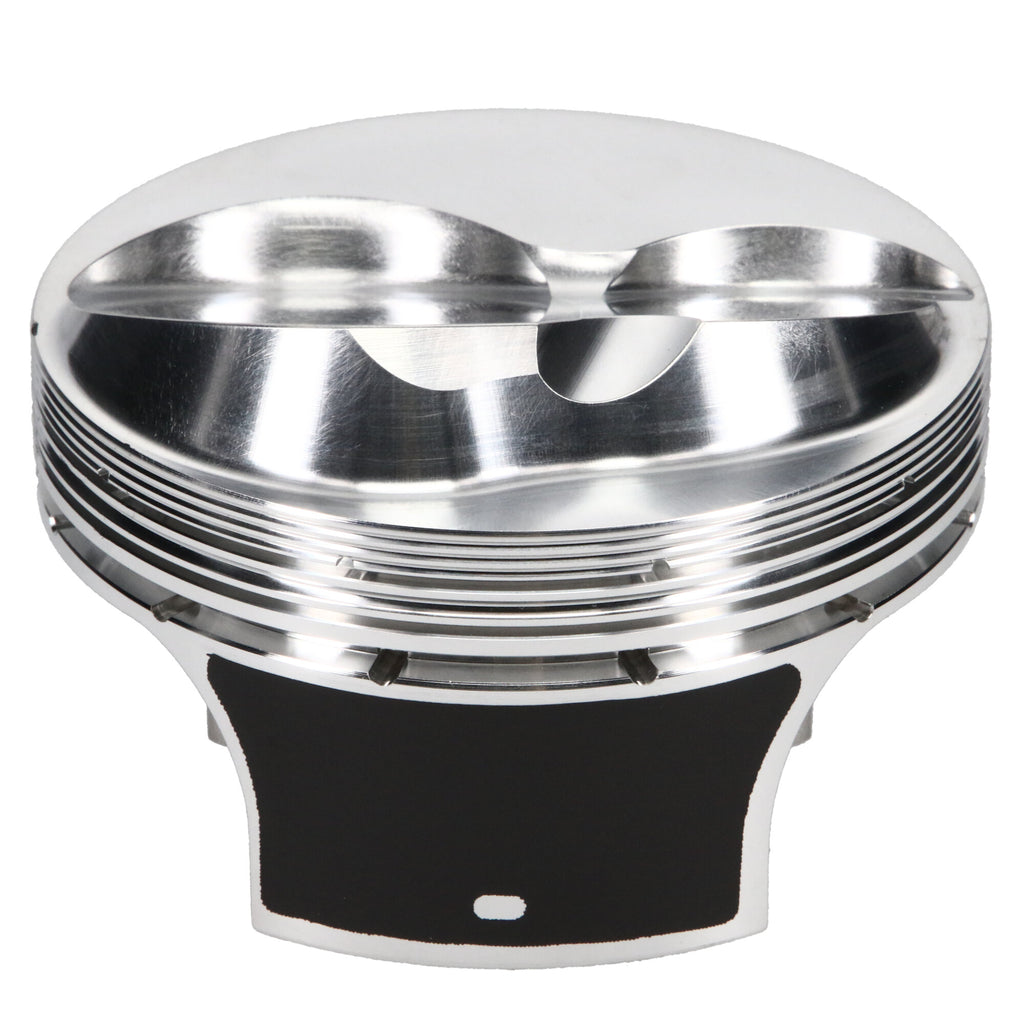

Piston Set, 2618, Dome, 4.035 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.035 in. Bore, 1.250 CD, Dome, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 360 BRODIX 11X, 4.035 Bore, Dome, Set of 8 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Second Compression Ring Thickness |
0.0440 |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.035 in. Bore - 1.250 in. CH, 14.00 CC |
| Engine |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
J71408-4030-5 |
| Add-On |
927-073-MW |
| Add-On |
927-2250-17-51C |
| Make - Web |
Chevrolet |
| Cylinder Head |
PRO ACTION 23 DEG |
| Piston Head Type |
Dome |
| Engine Type |
ICE |
| Title |
JE Pistons - Chevrolet, Small Block, 4.035 in. Bore, Piston Kit |
| Piston Pin Length |
2.250 |
| Ringset Included |
No |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Average Weight |
440 |
| Oil Ring Thickness |
0.119 |
| Piston Volume |
14.00 |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Bore Diameter |
4.035 |
| Industry |
Automotive |
| Piston Quantity |
8 |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Make |
CHEVROLET |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.170 |
| Compression Height |
1.250 |
| Piston Material |
2618 |
| Top Compression Ring Thickness |
0.0435 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.170 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
