As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 Sprint Brodix 11X |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

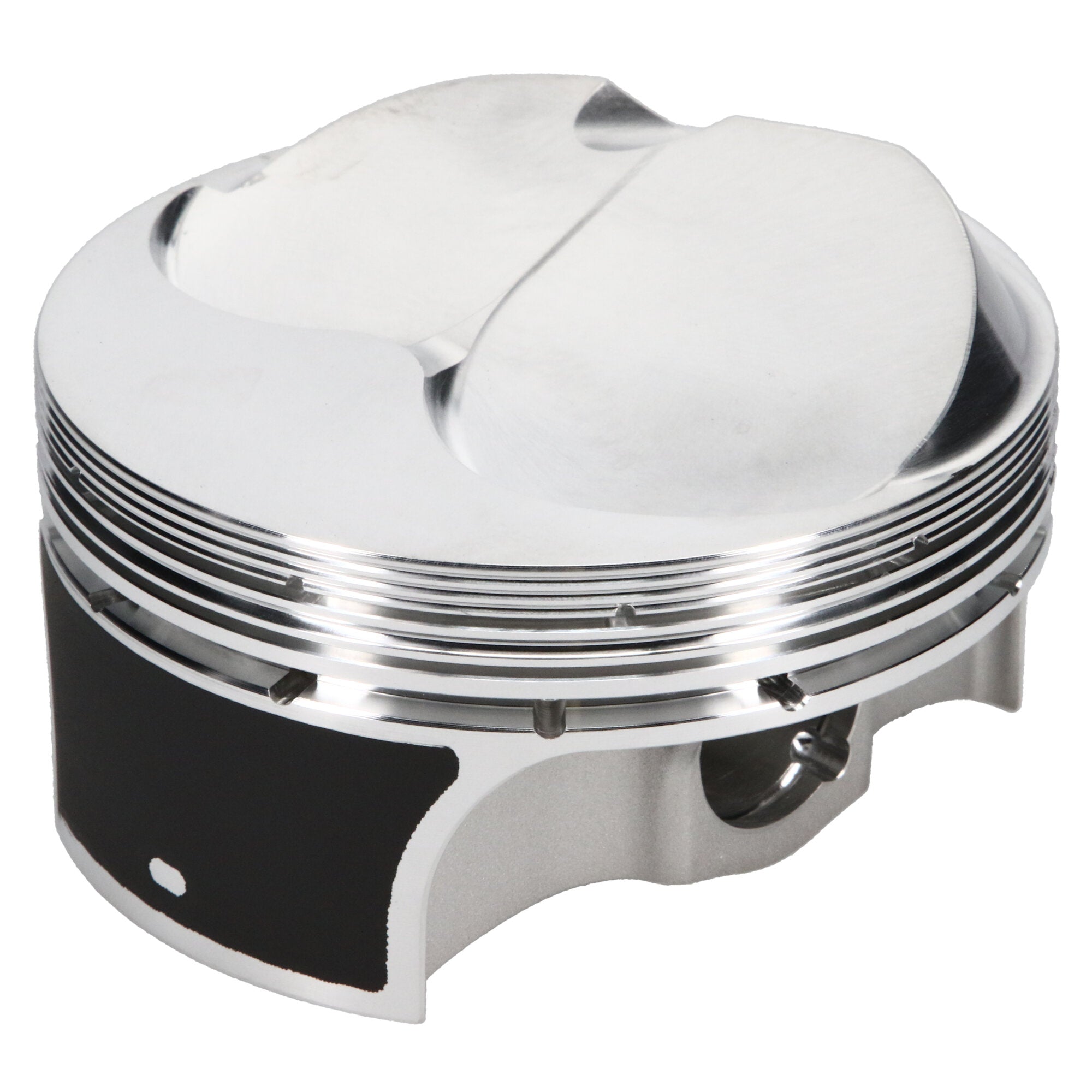

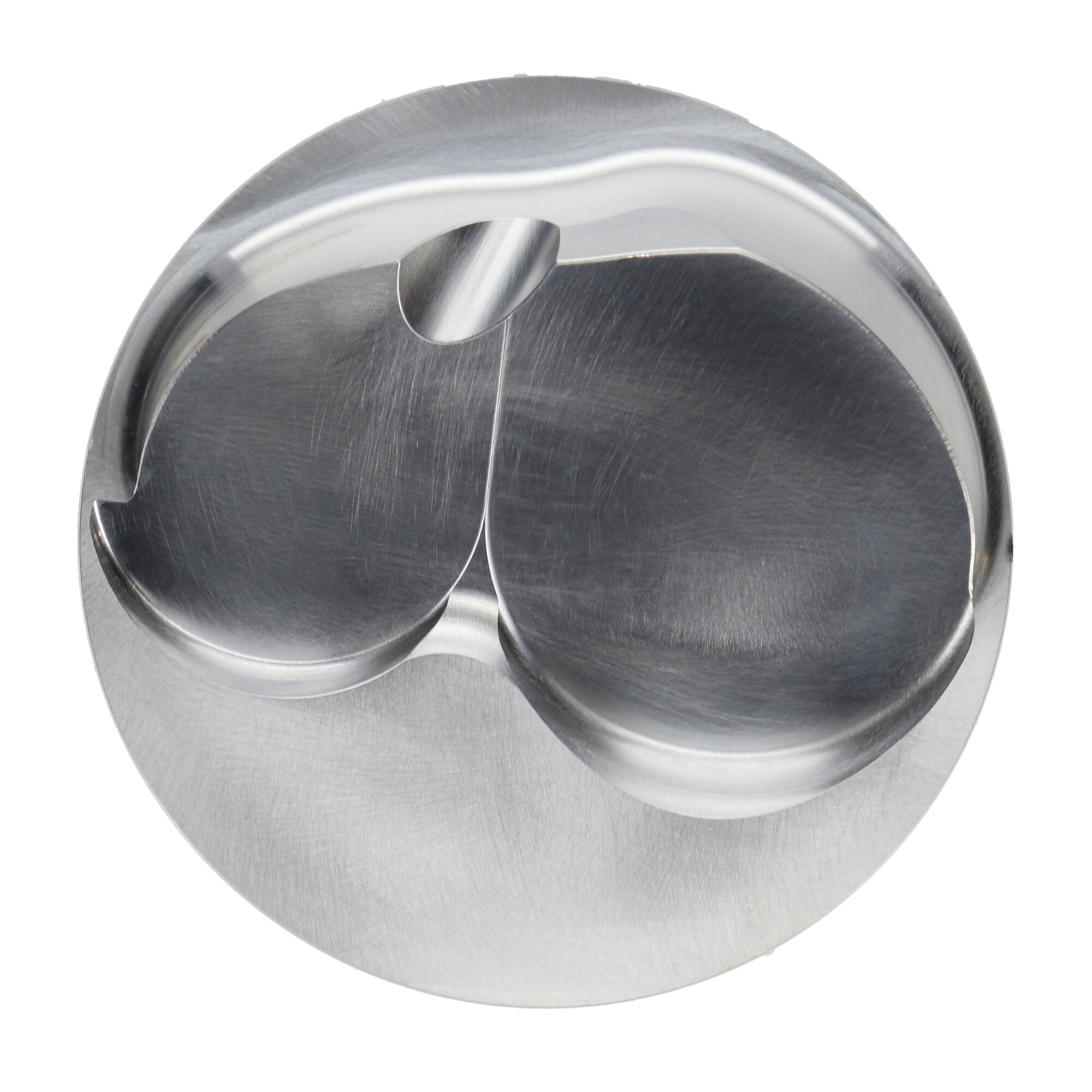

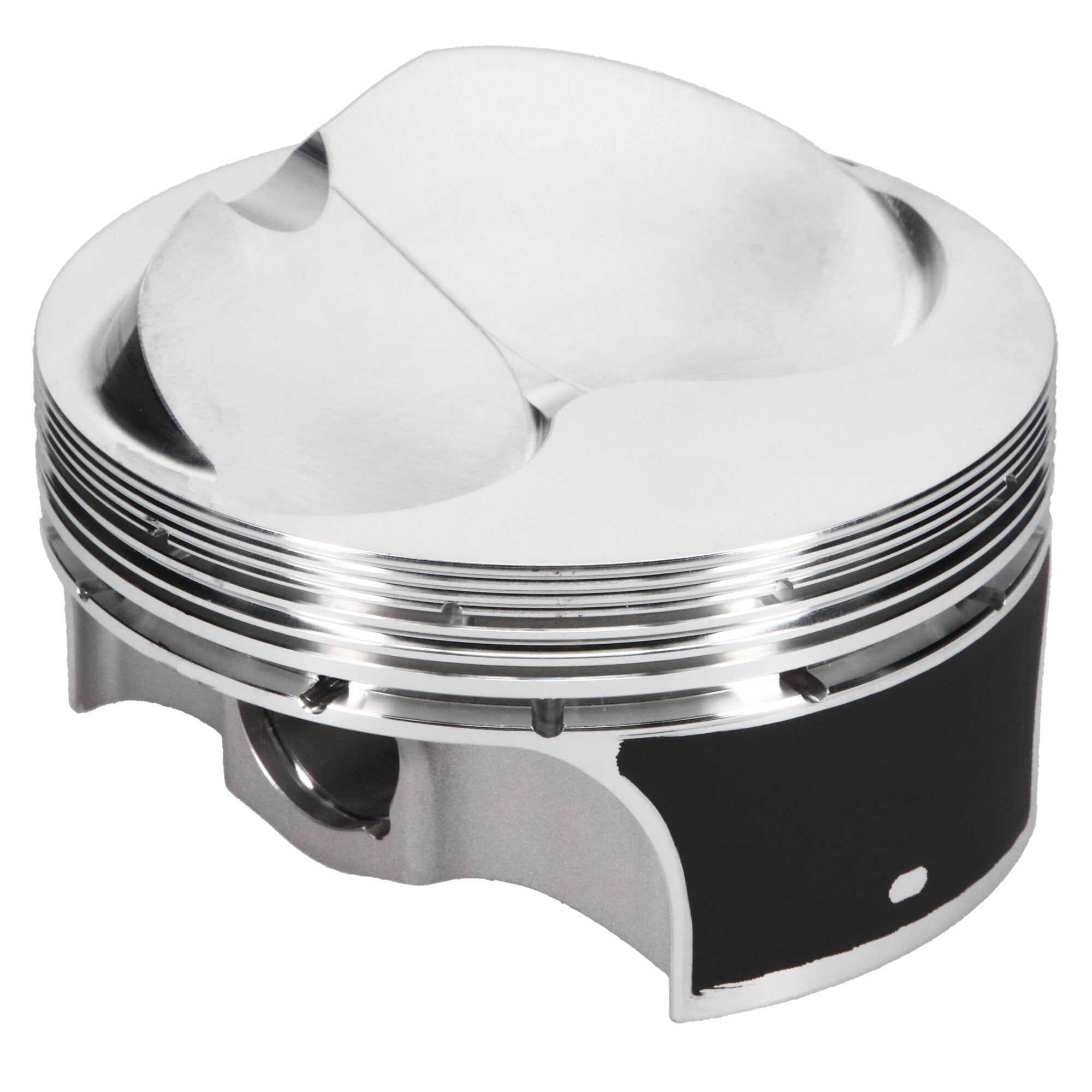

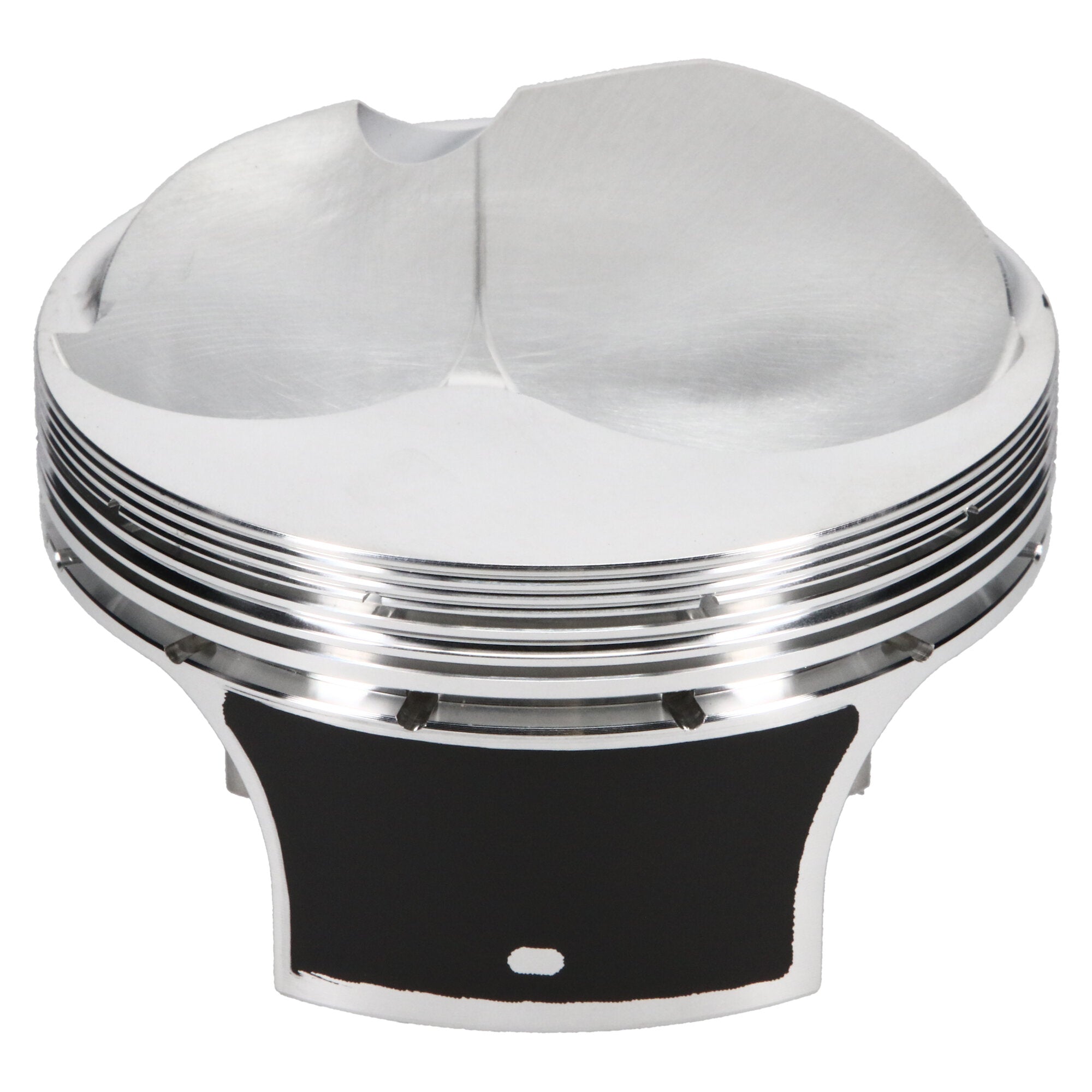

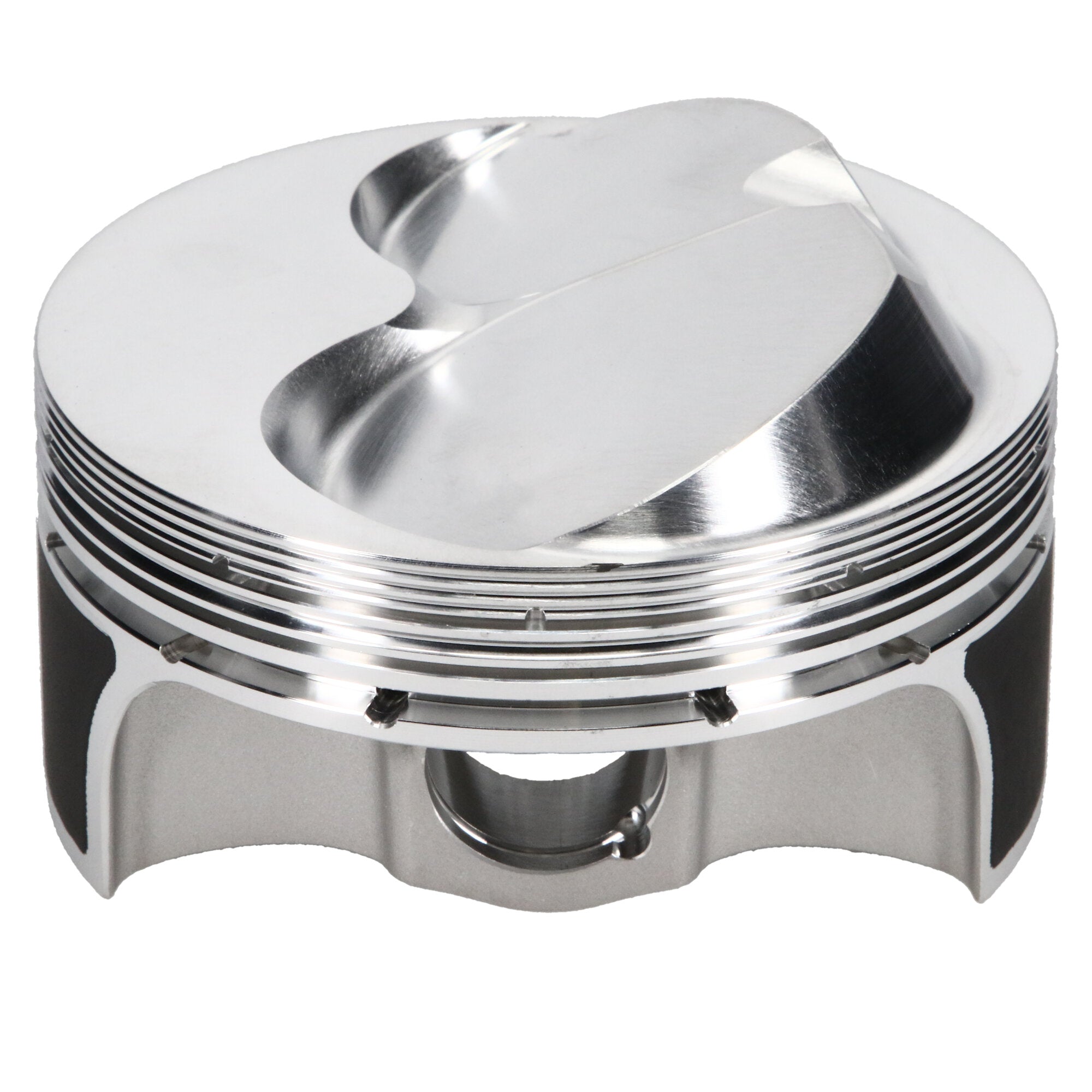

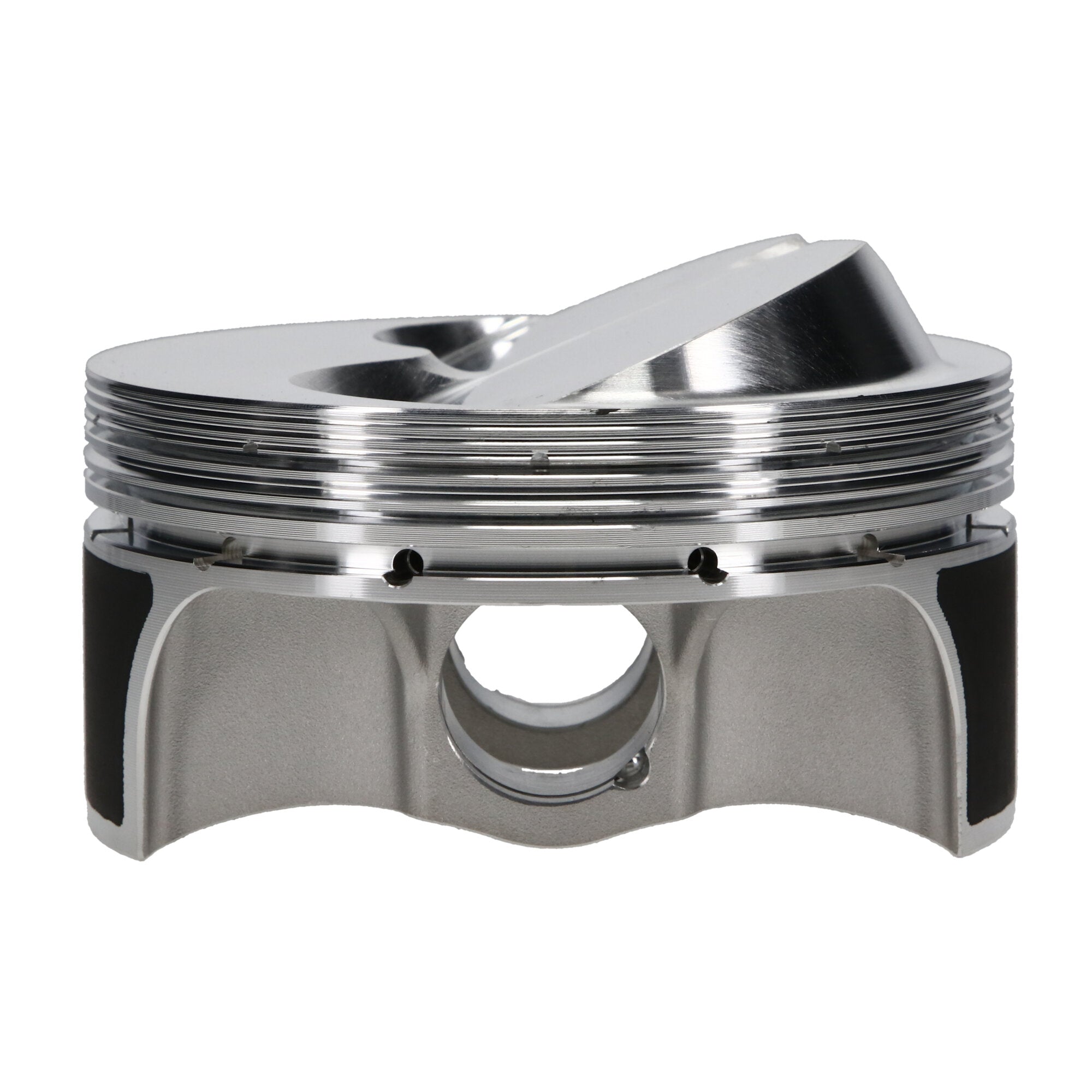

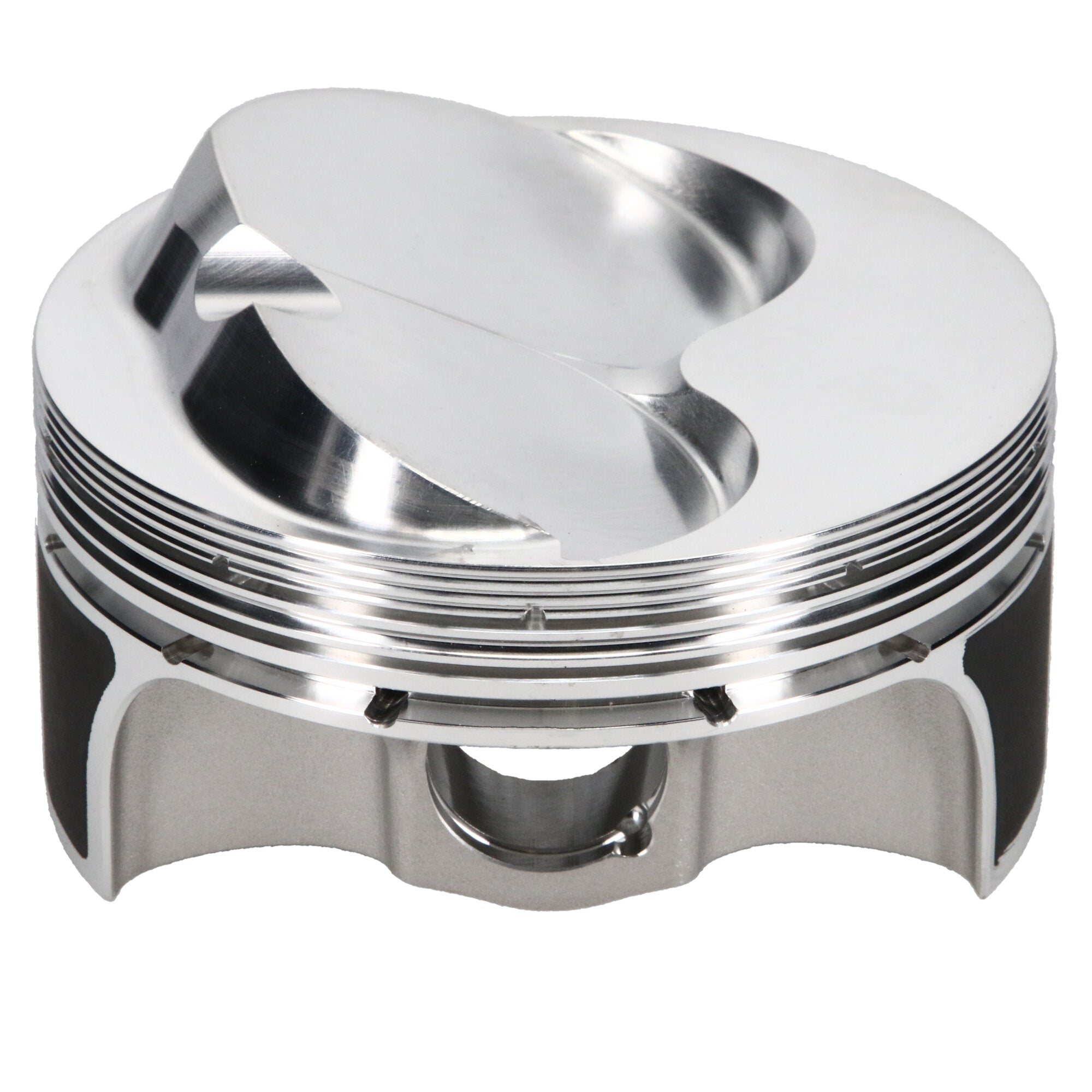

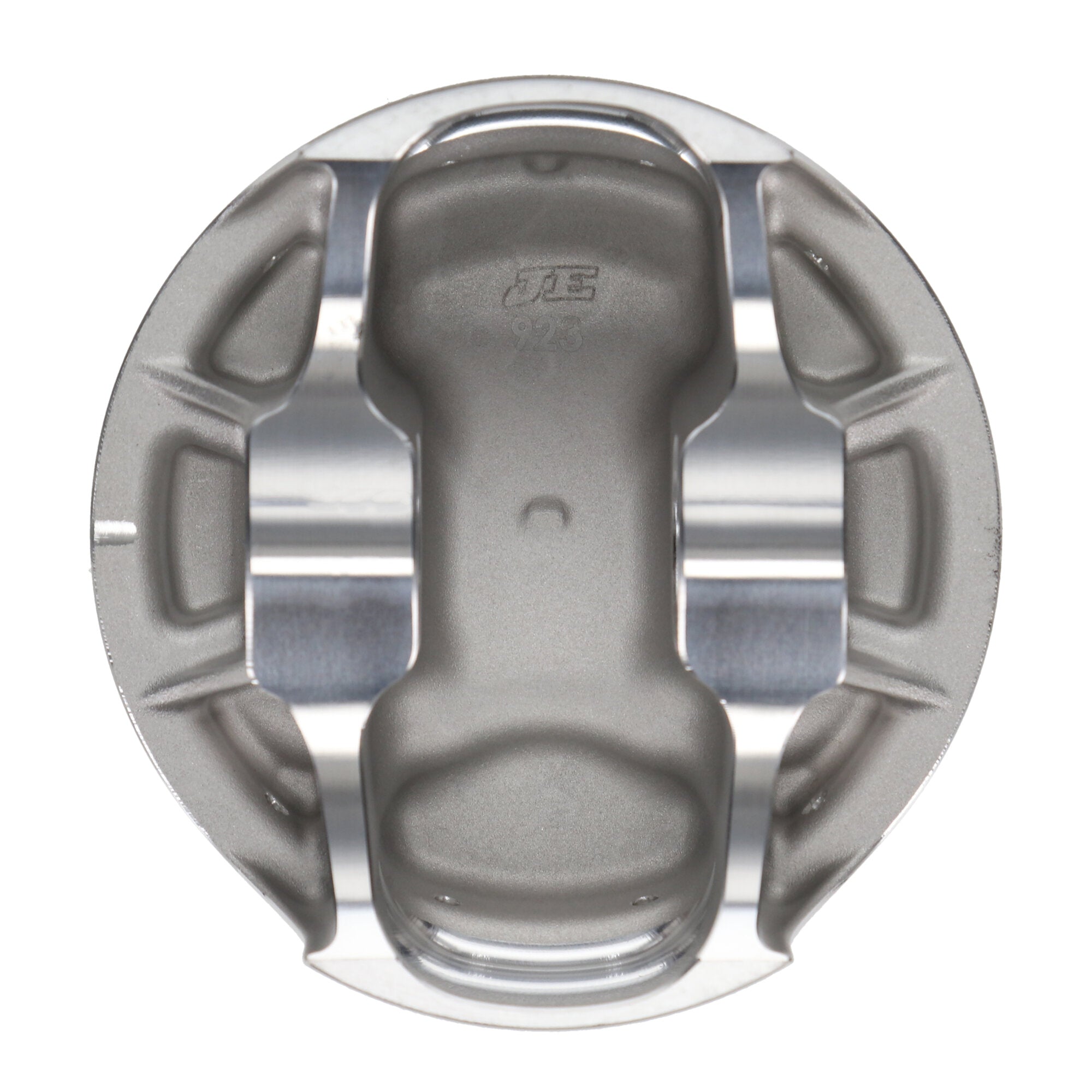

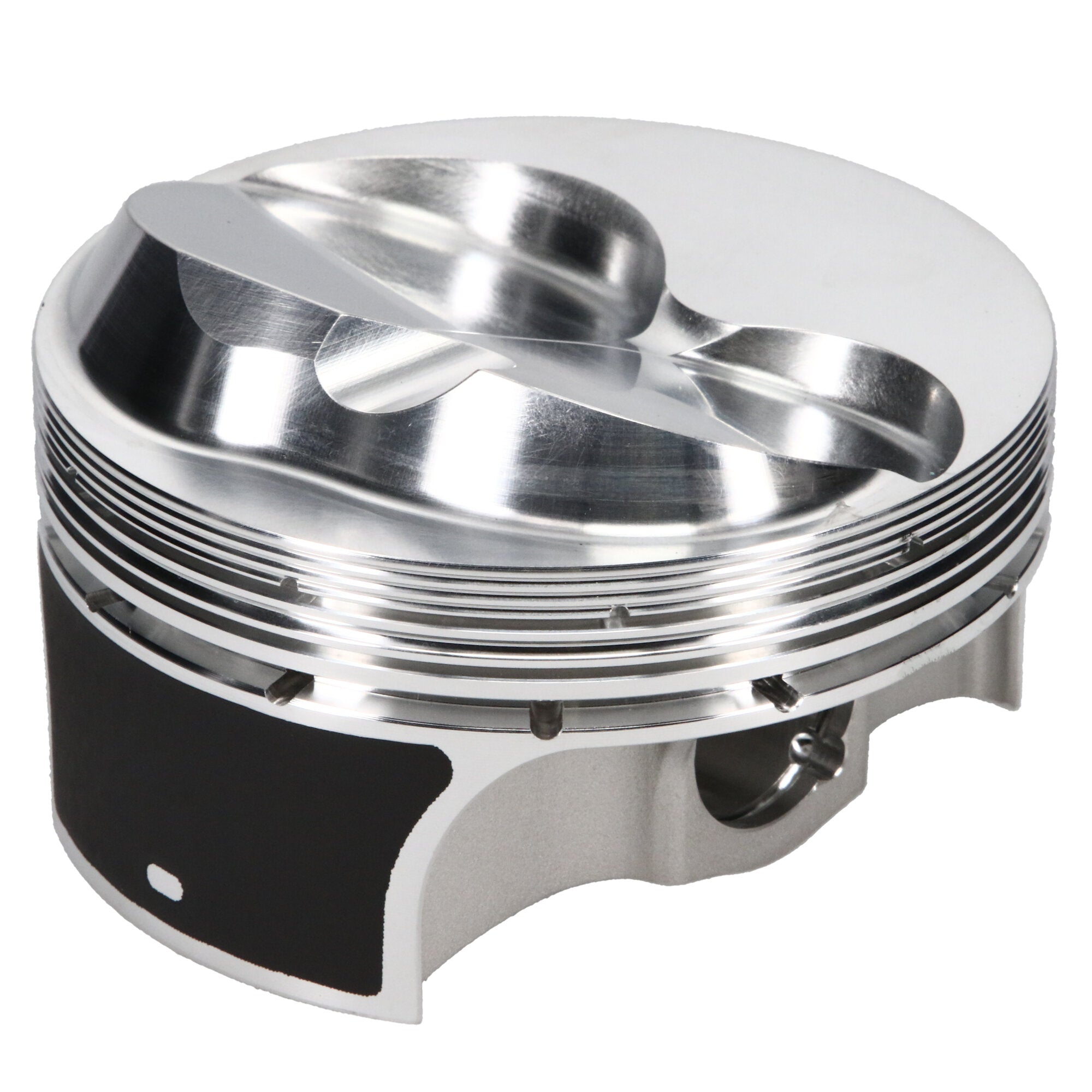

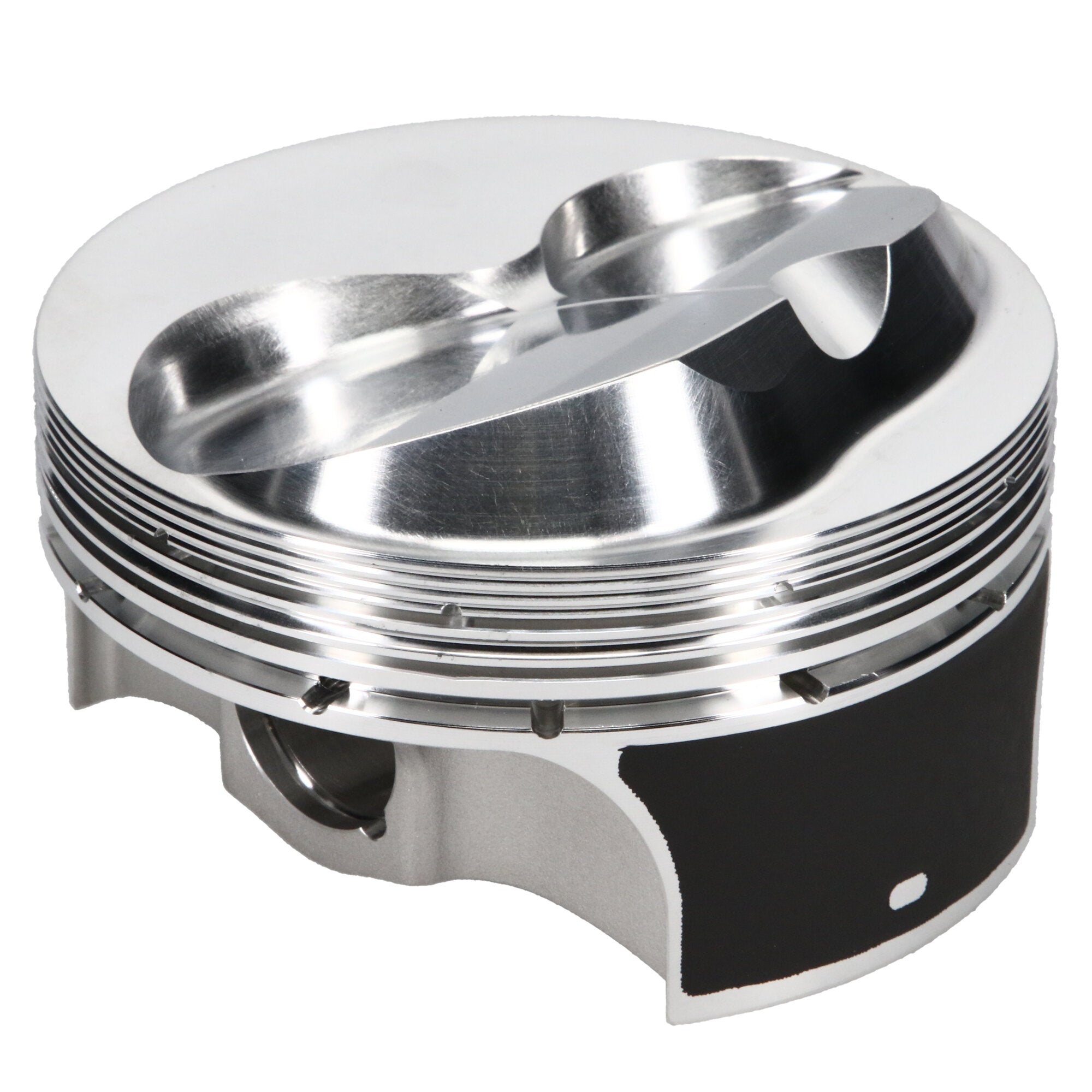

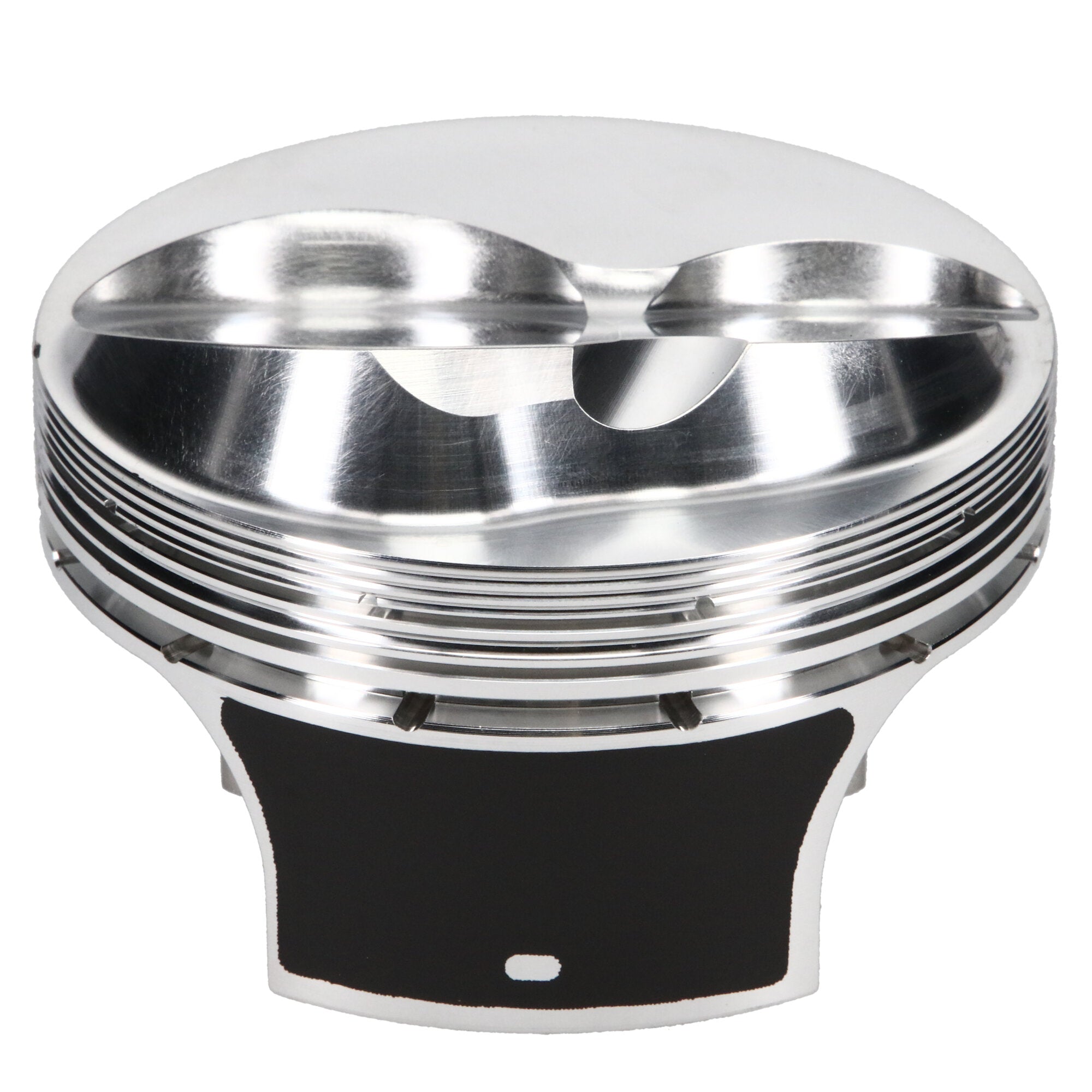

Piston Set, 2618, Dome, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.250 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 360 BRODIX 11X, 4.030 Bore, Dome, Set of 8 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.170 |
| Piston Quantity |
8 |
| Piston Pin Wall Thickness |
0.170 |
| Engine Type |
ICE |
| Make |
CHEVROLET |
| Piston Volume |
14.00 |
| Ring Set Included |
No |
| Piston Pin Outside Diameter |
0.927 |
| Forging Type |
FSR |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.250 |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Top Compression Ring Thickness |
0.0435 |
| Ringset Included |
No |
| Title |
JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Piston Average Weight |
442 |
| Oil Ring Thickness |
0.119 |
| Bore Diameter |
4.030 |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Outer Diameter |
0.927 |
| Make - Web |
Chevrolet |
| Engine - Web |
Small Block |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0440 |
| Add-On |
927-073-MW |
| Add-On |
J71408-4030-5 |
| Piston Pin Length |
2.250 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
PRO ACTION 23 DEG |
| Piston Material |
2618 |
| Piston Head Type |
Dome |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.250 in. CH, 14.00 CC |
| Industry |
Automotive |
| Add-On |
927-2250-17-51C |
| Engine |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
