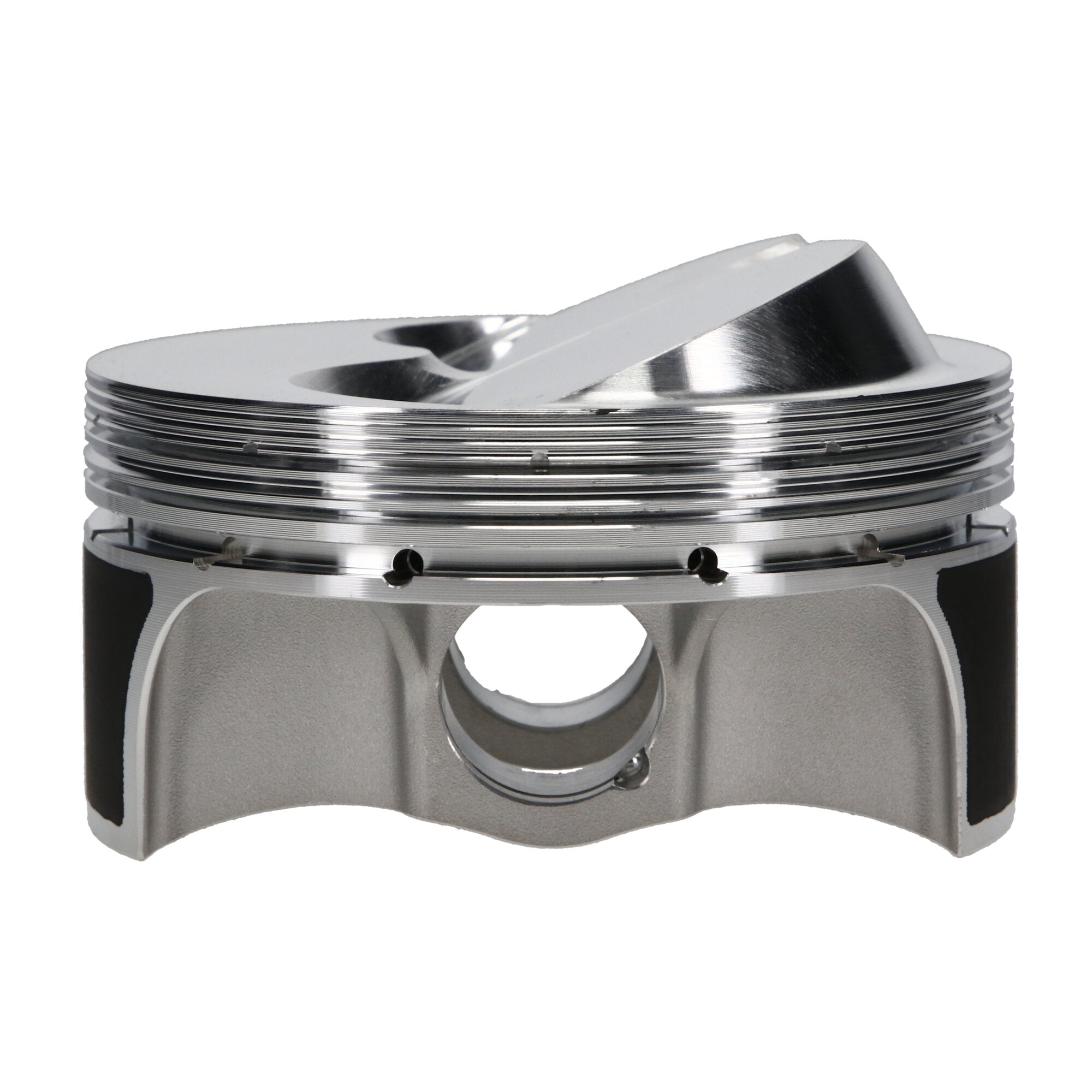

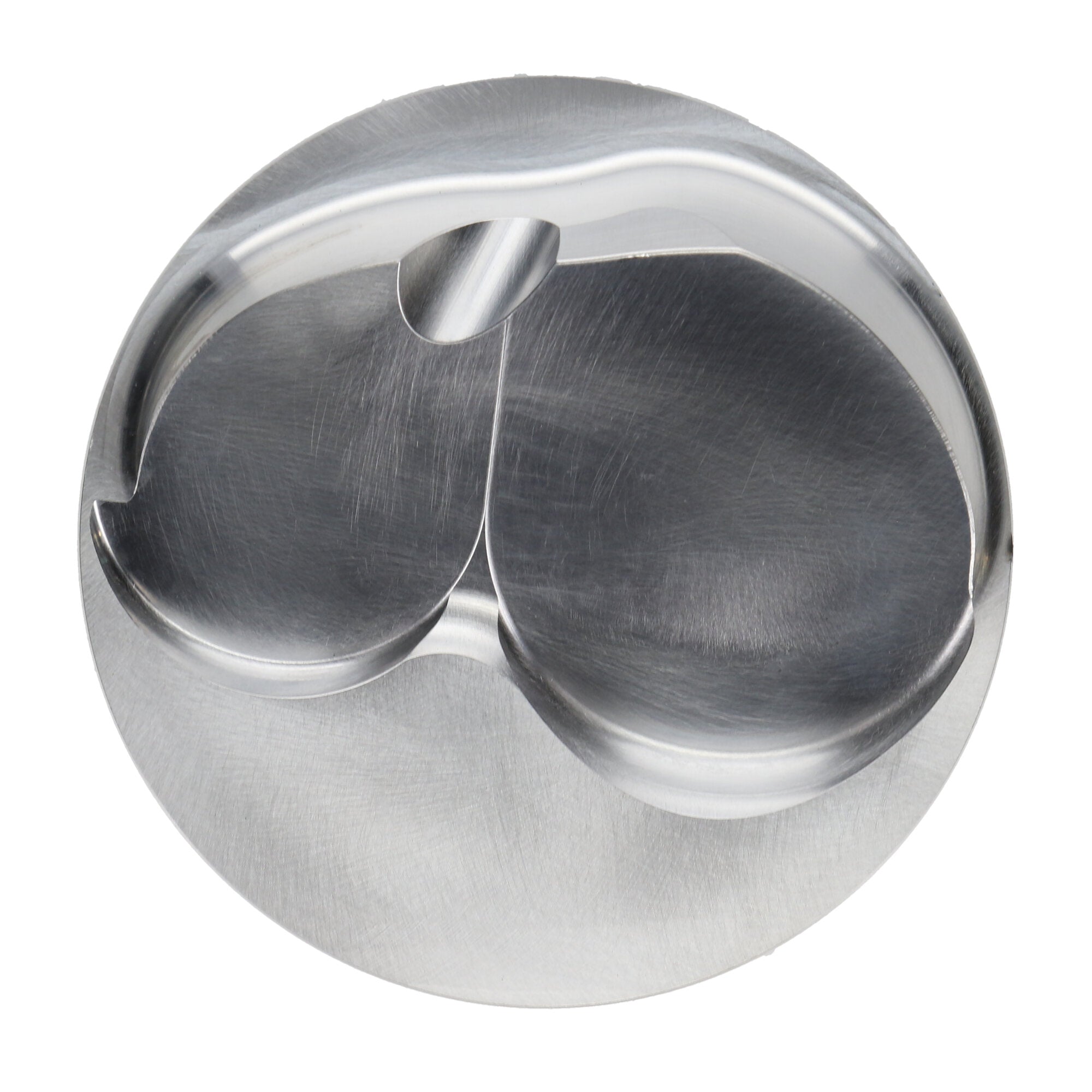

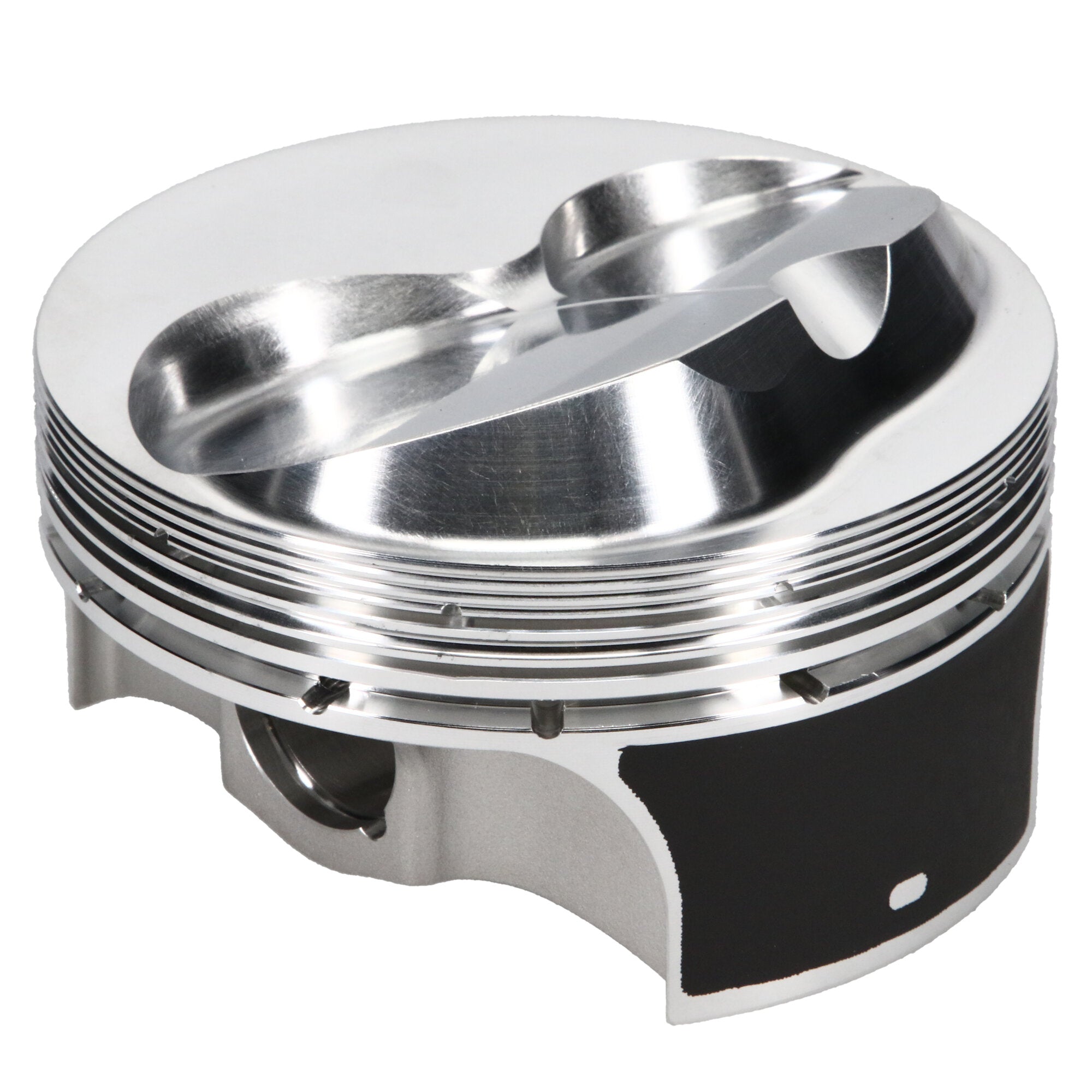

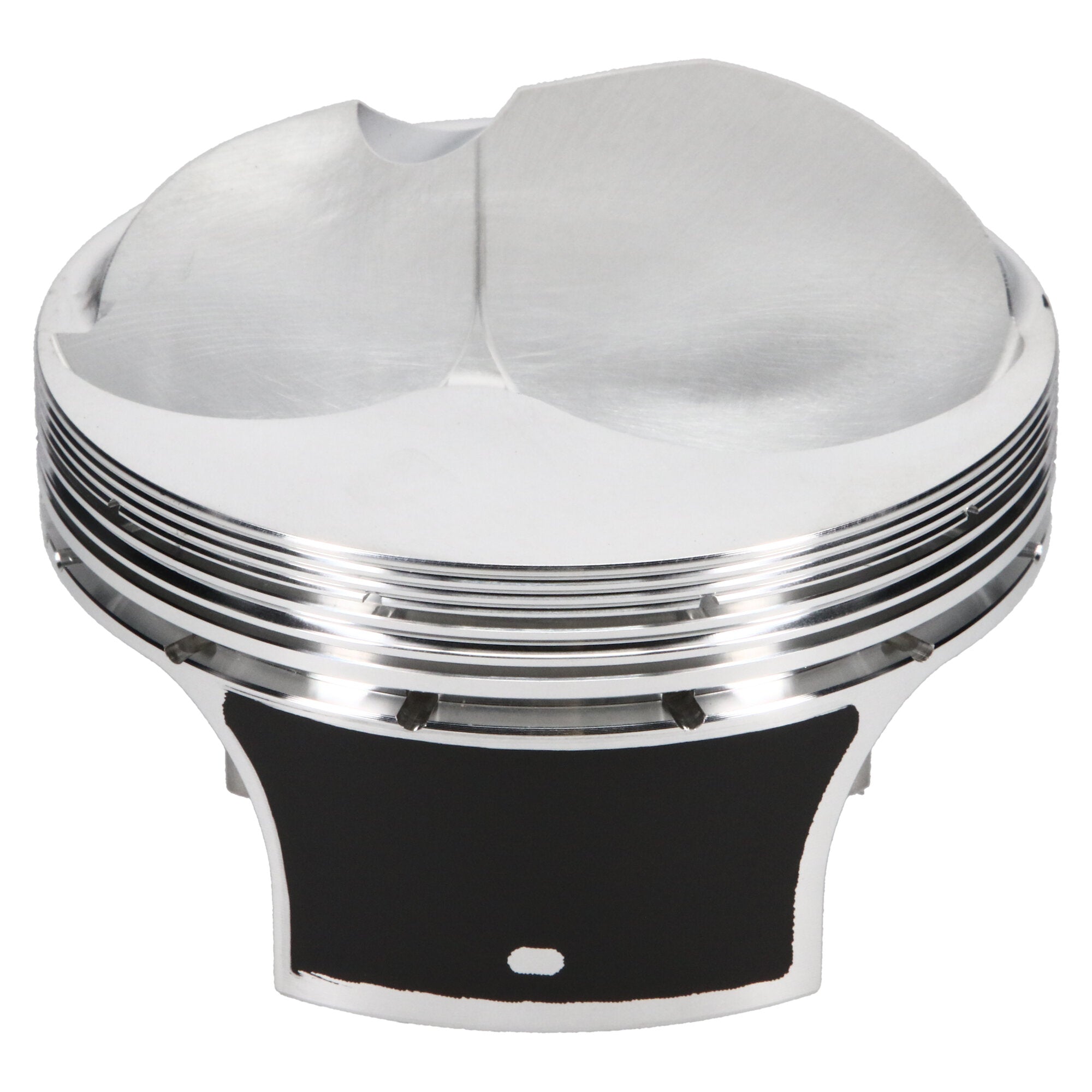

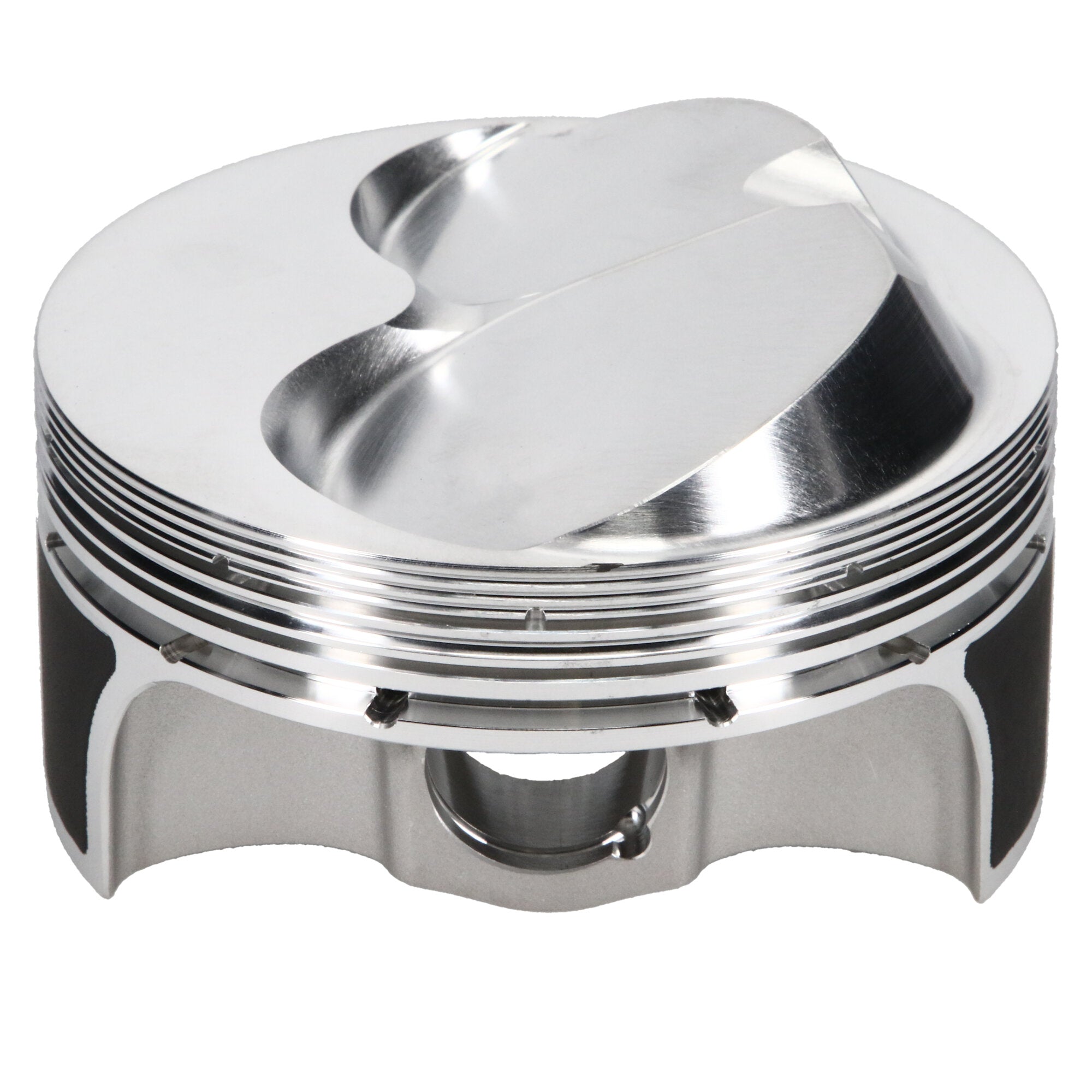

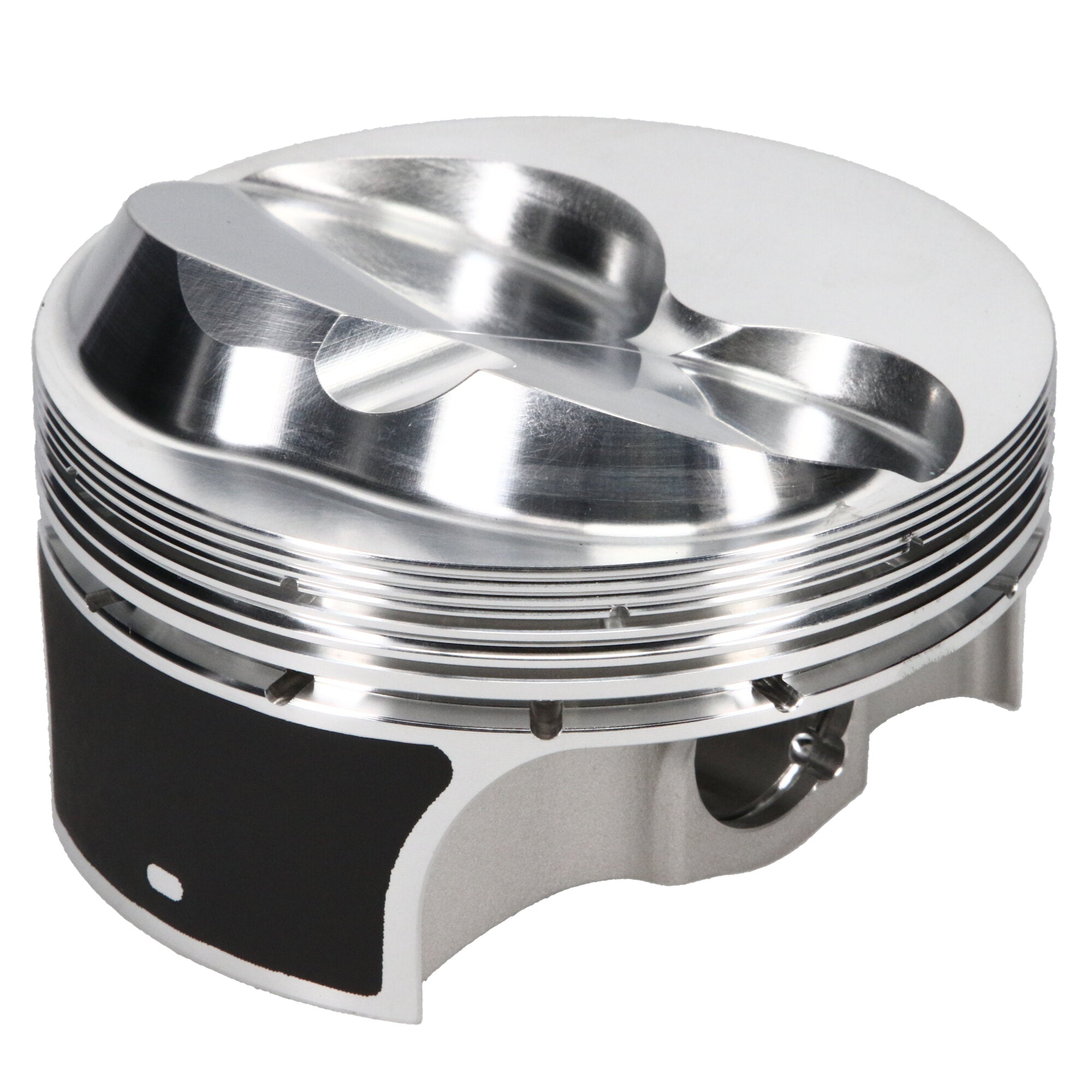

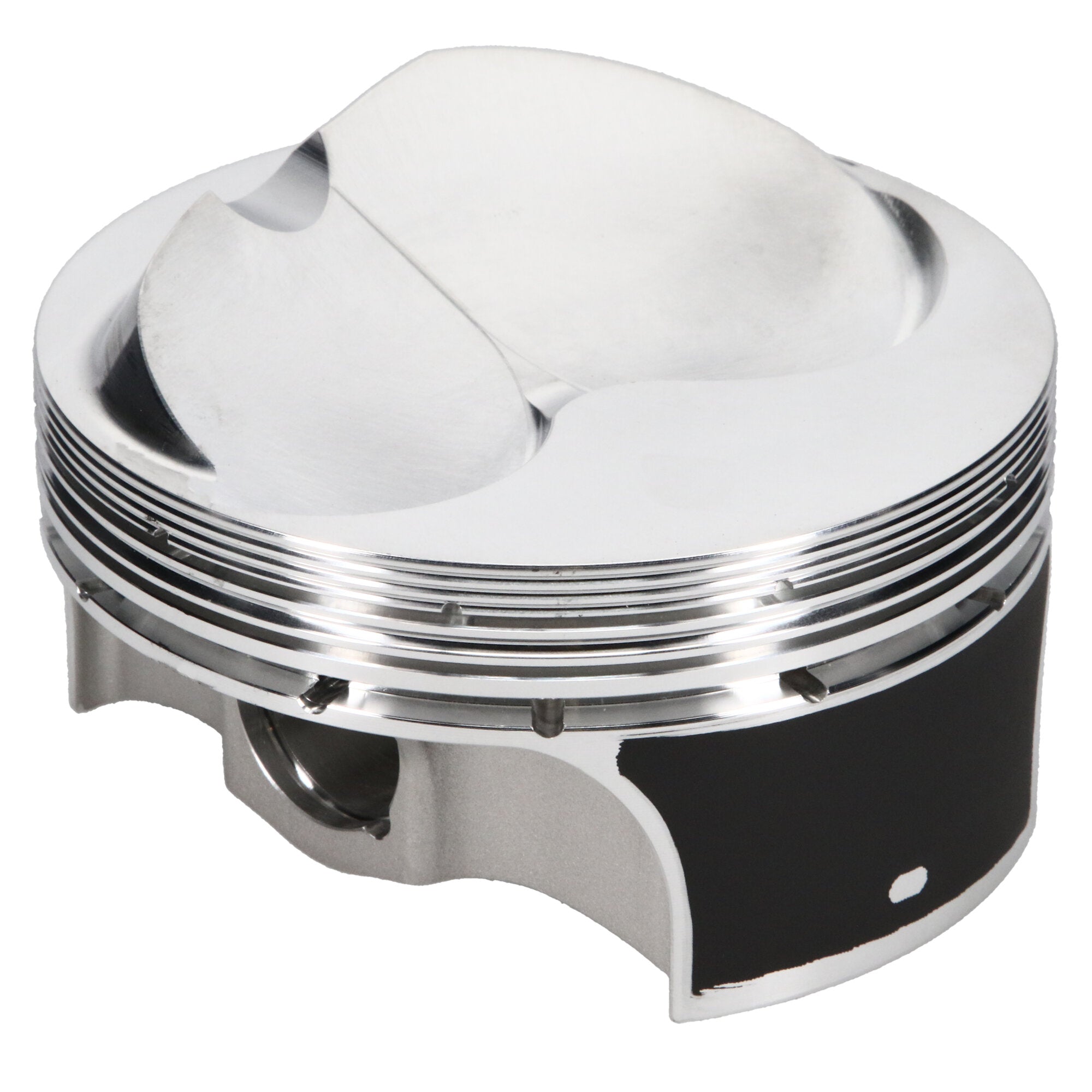

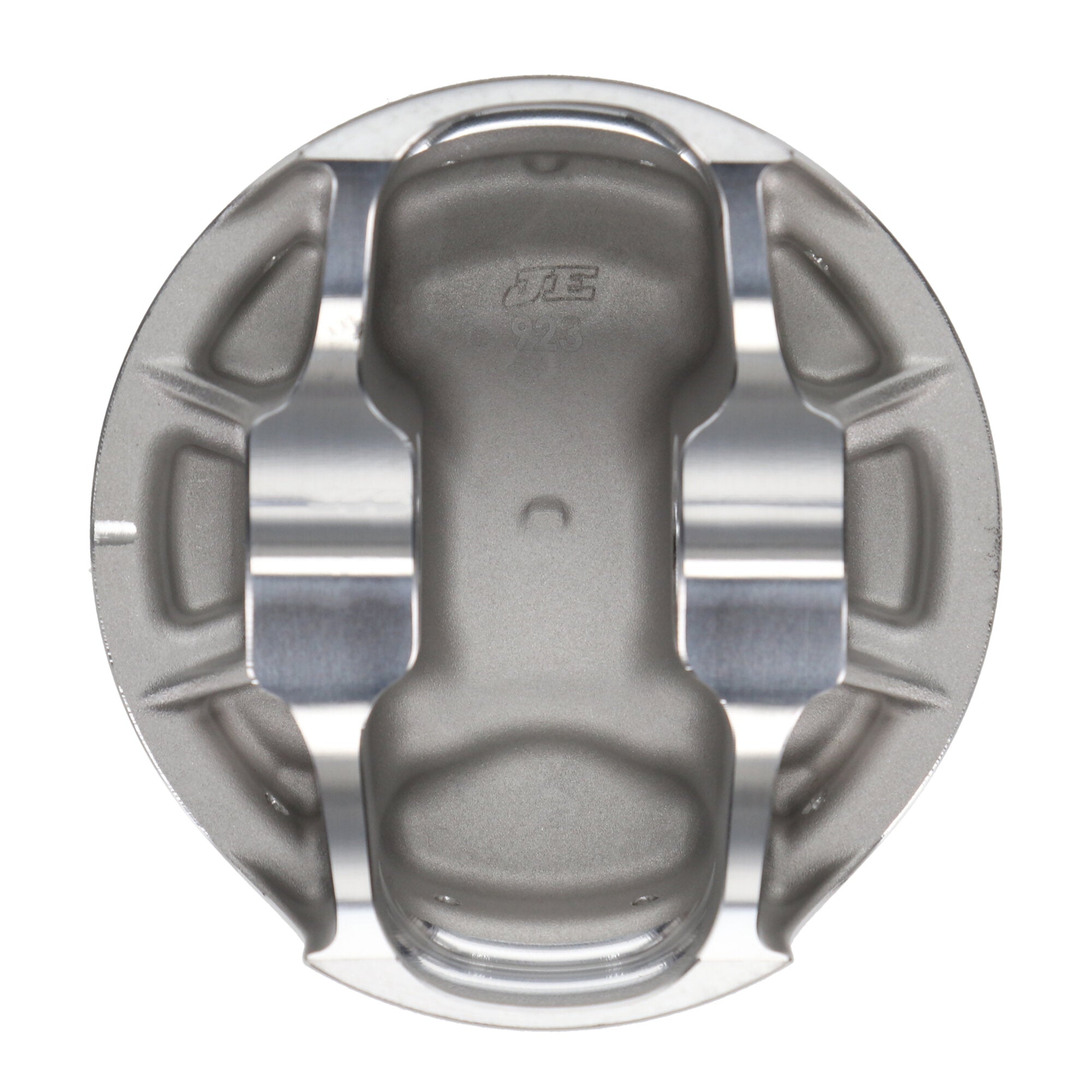

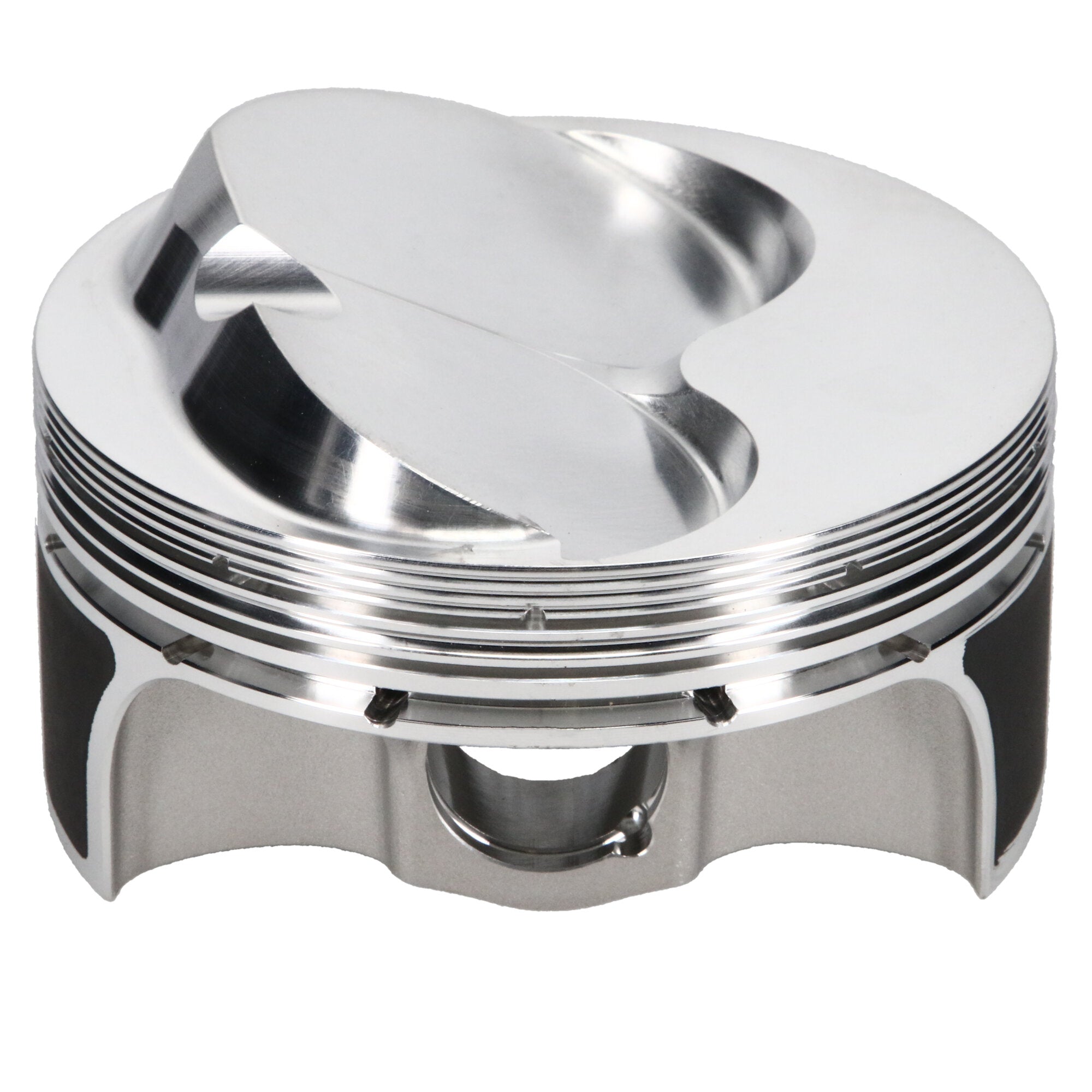

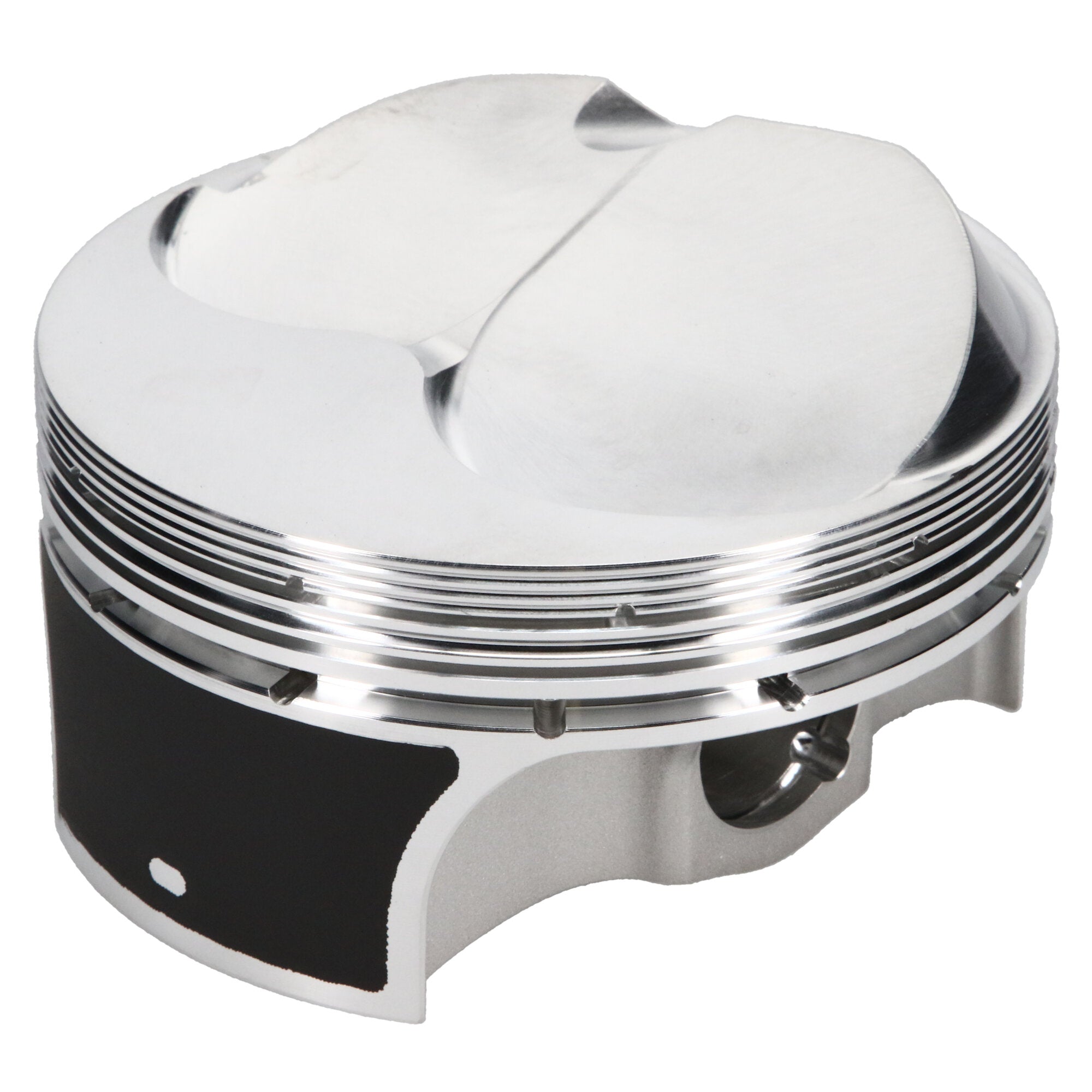

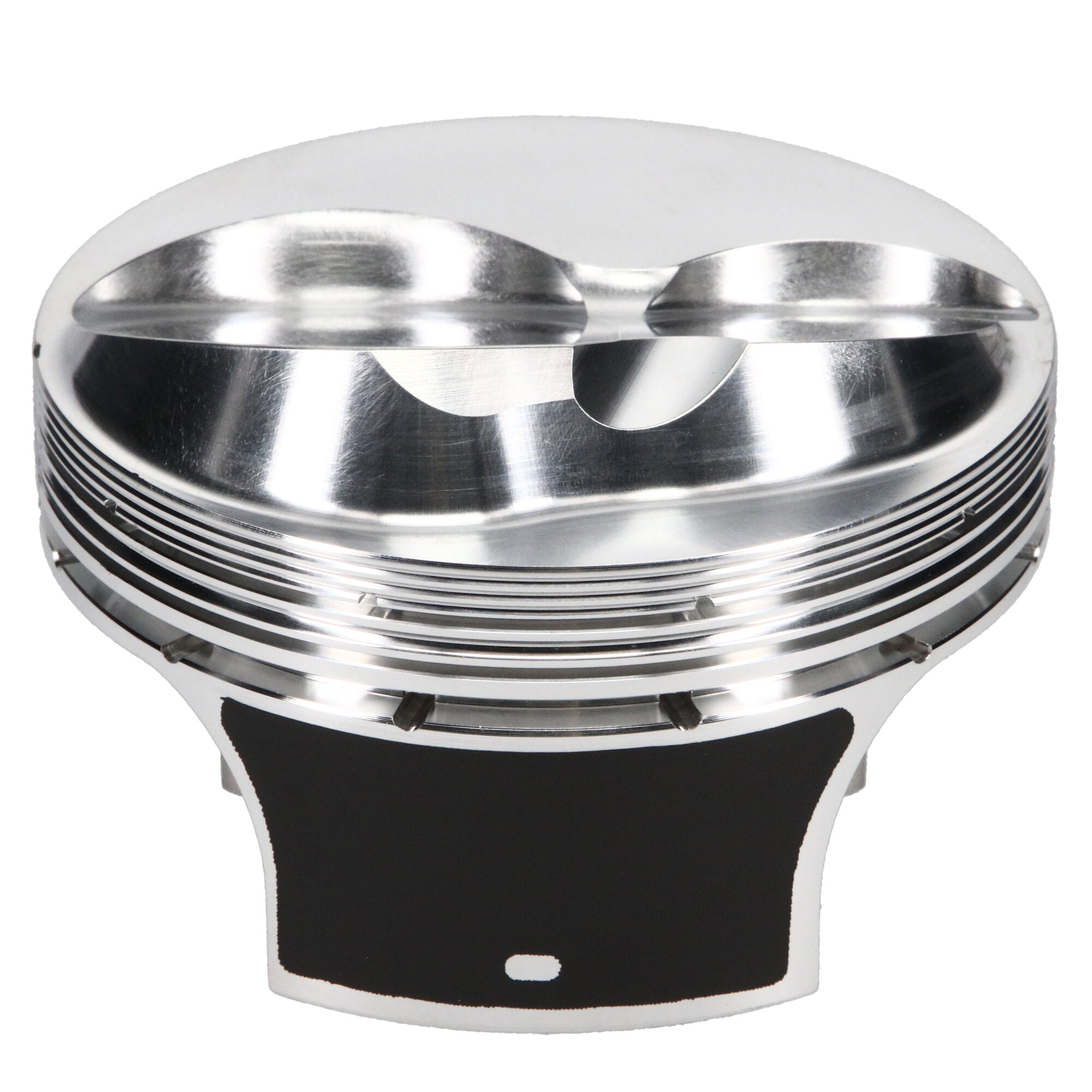

JE Pistons 310561L Piston Single, 2618, Dome, 4.020 Bore, 1.250 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_310561L
Engine Piston
$343.75
customers are viewing this product
JE Pistons 310564R Piston Single, 2618, Dome, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 1.
JE Pistons 310564R Piston Single, 2618, Dome, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 310563L Piston Single, 2618, Dome, 4.035 Bore, 1.250 CD, 0.927 Pin, Set of 1.
JE Pistons 310563L Piston Single, 2618, Dome, 4.035 Bore, 1.250 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 310561L Piston Single, 2618, Dome, 4.020 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet 360 Sprint Brodix 11X
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Dome, 4.020 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_INV JE Pistons, Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_EXT JE, Chevrolet, Small Block Chevrolet, 4.020 in. Bore, 1.250 CD, Dome, Left Piston
Description_SHO Piston
Description_TLE Chevrolet 360 BRODIX 11X, 4.020 Bore, Dome, Set of 1
Add-On 927-2250-17-51C
Add-On J71408-4020-5
Add-On 927-073-MW
Bore Diameter 4.020
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Engine Type ICE
Compression Height 1.250
Forging Type FSR
Engine Small Block
Cylinder Head PRO ACTION 23 DEG
Engine - Web Small Block
Oil Ring Thickness 0.119
Make CHEVROLET
Piston Material 2618
Industry Automotive
Piston Pin Wall Thickness 0.170
Piston Pin Length 2.250
Piston Average Weight 435
Out of Stock Message Call for Availability
Piston Pin Outside Diameter 0.927
Piston Quantity 1
Piston Volume 14.00
Piston Orientation Left
Piston Pin Material 5115
Piston Series JE Pistons
Piston Head Type Dome
Product Market Domestic
Make - Web Chevrolet
Top Compression Ring Thickness 0.0435
Second Compression Ring Thickness 0.0440
Prop 65 Yes/No Yes
Product Type Engine Piston
Title JE Pistons - Chevrolet, Small Block, 4.020 in. Bore, Piston
Title - Web JE Pistons Chevrolet Small Block Piston - 4.020 in. Bore - 1.250 in. CH, 14.00 CC
Ringset Included No
Prop 65 (C, R or CR) CR
Ring Set Included No
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Length 2.250
Wrist Pin Wall Thickness 0.170
Wrist Pin Outer Diameter 0.927
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
