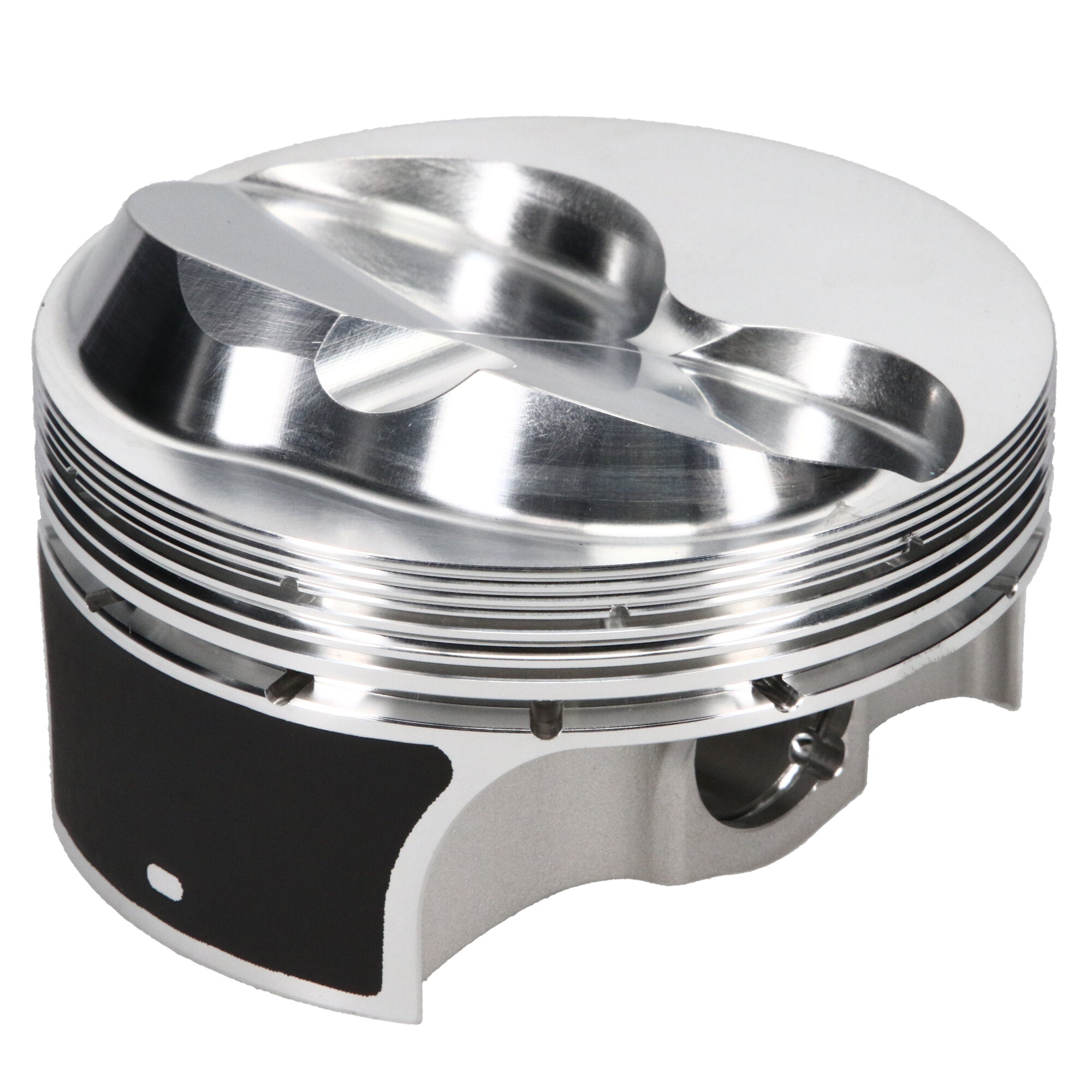

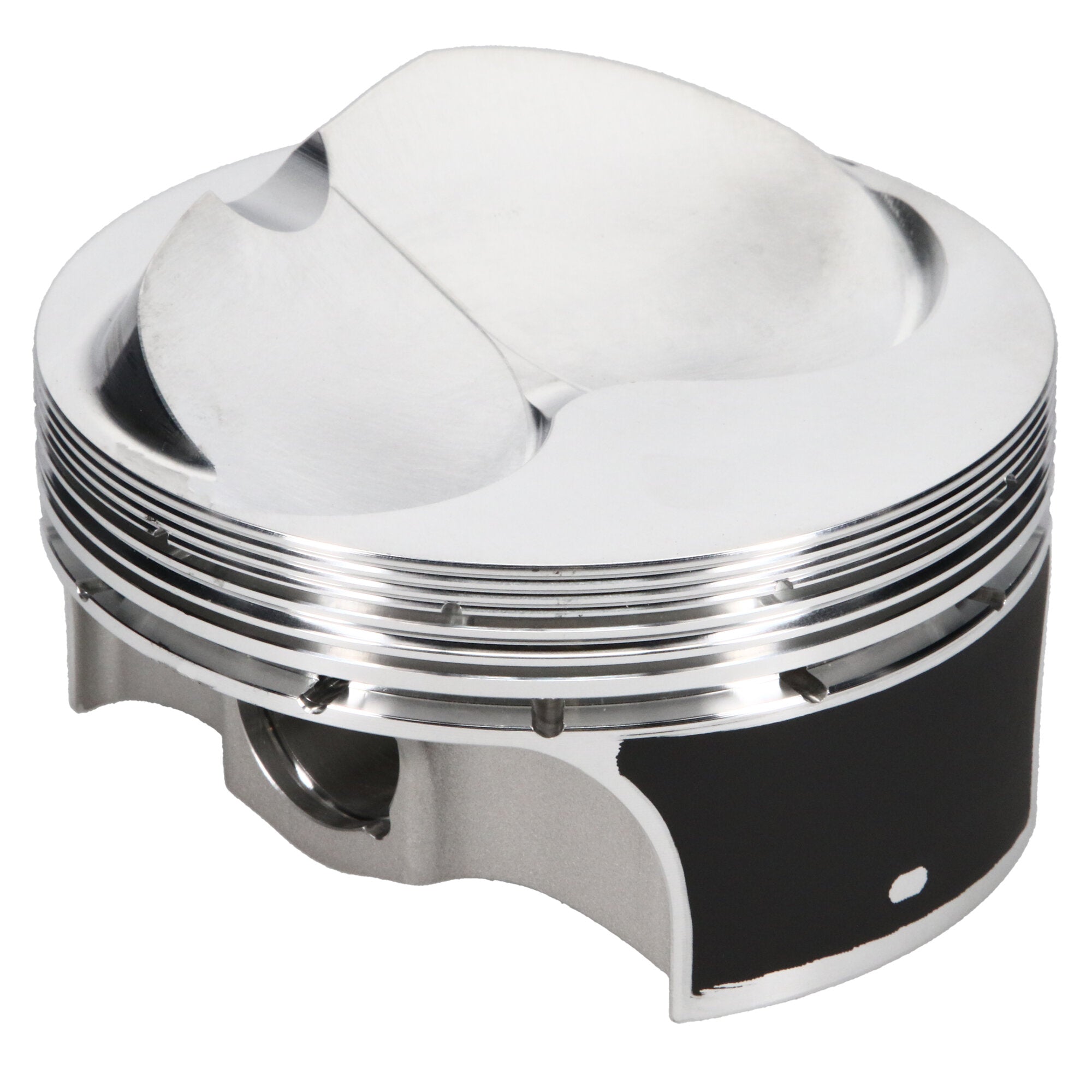

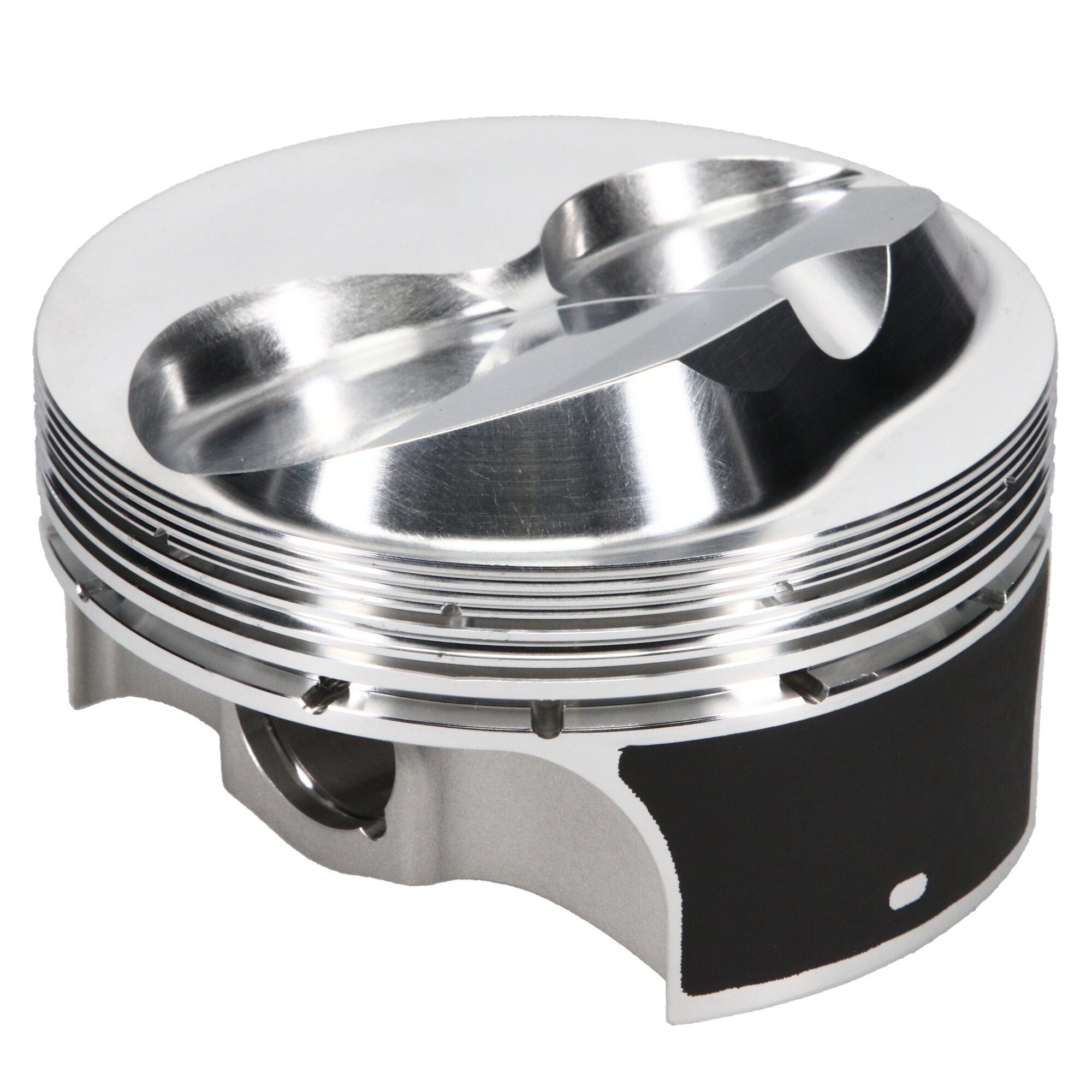

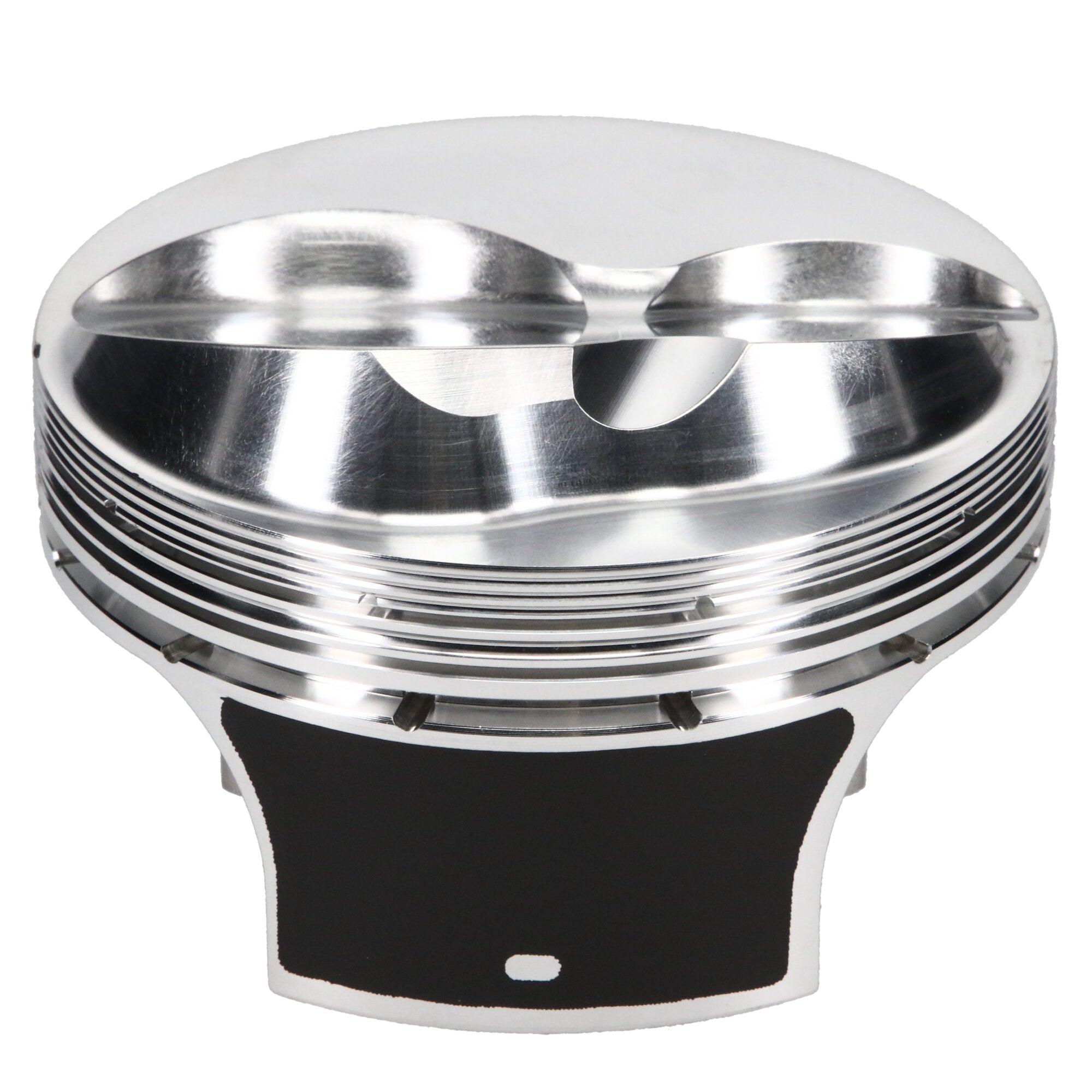

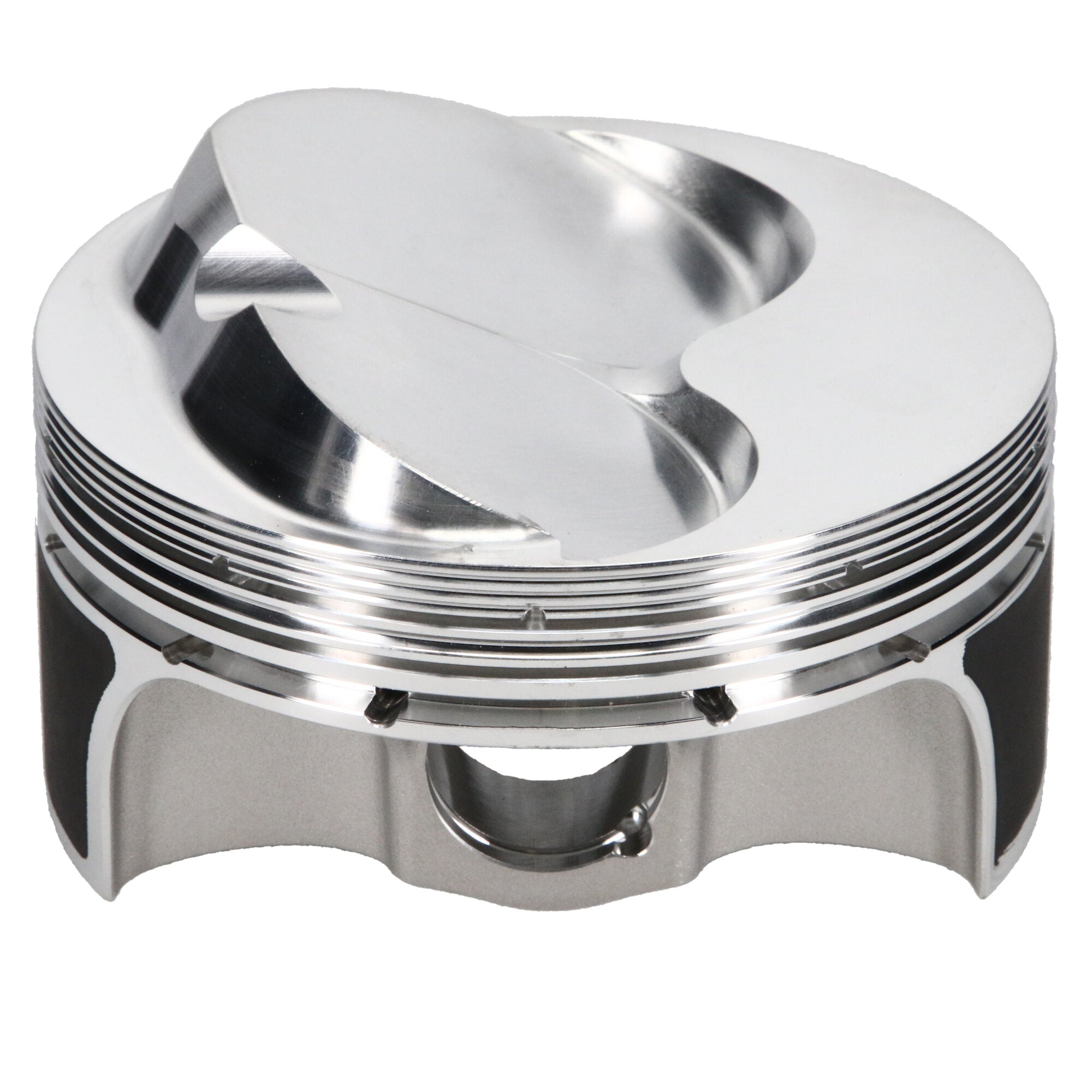

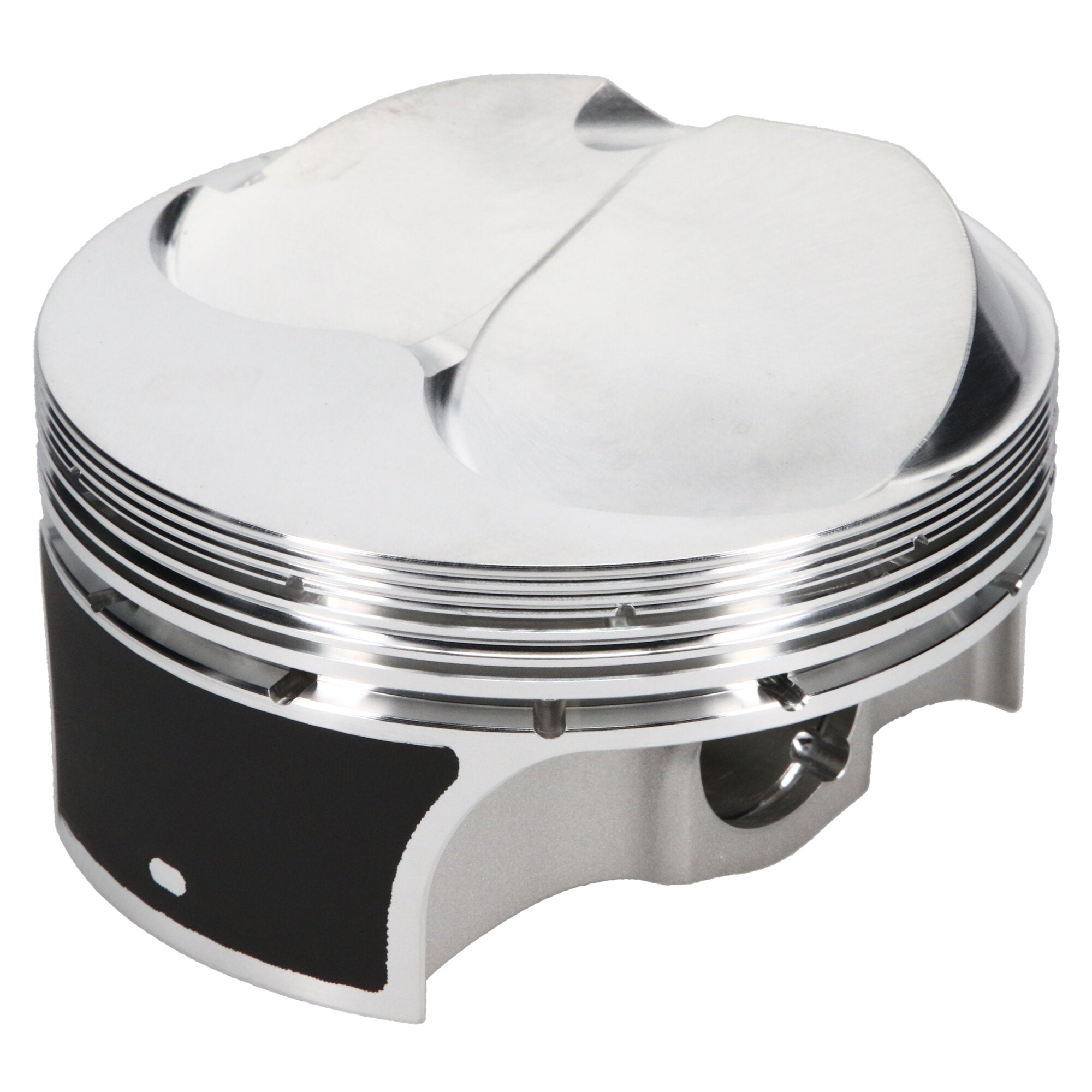

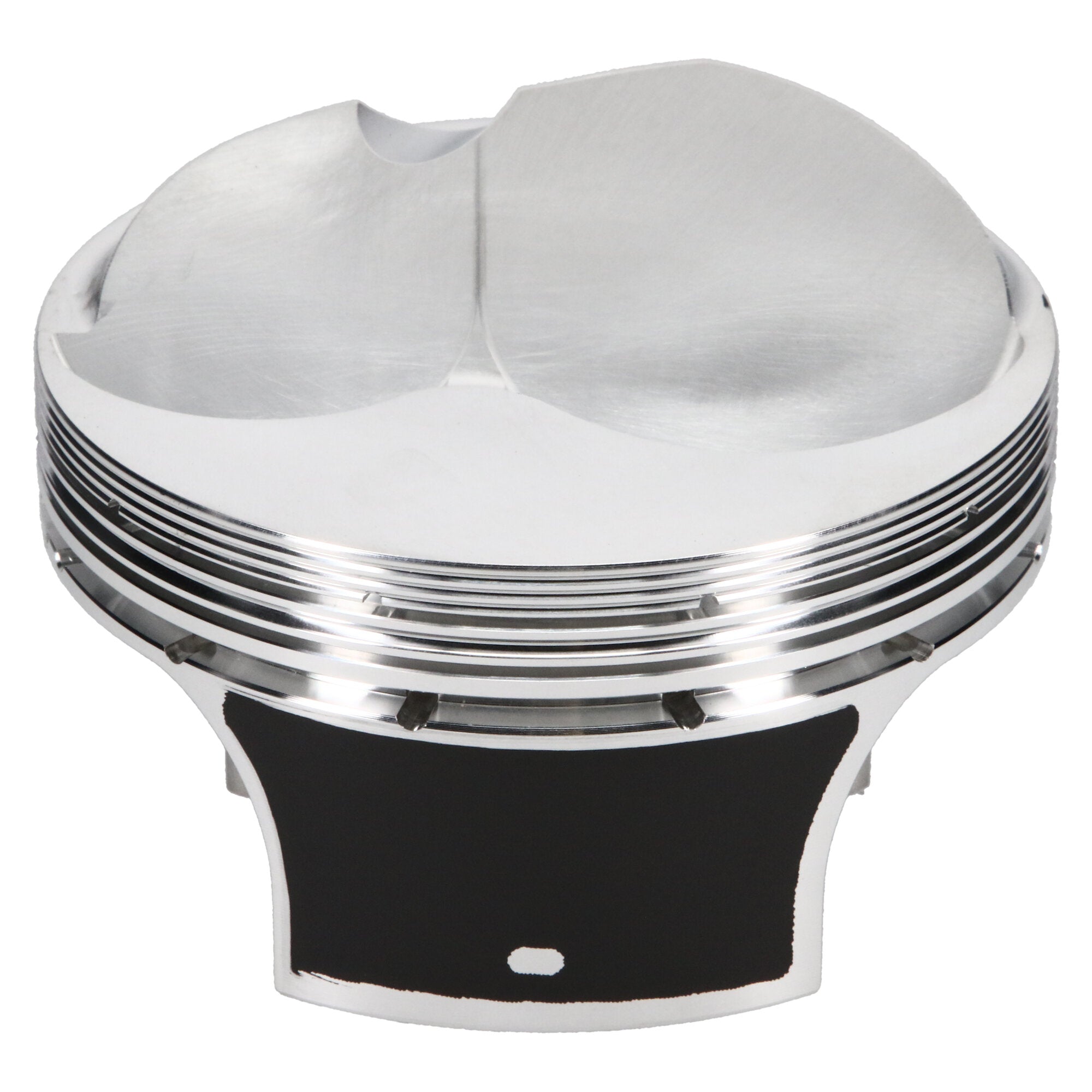

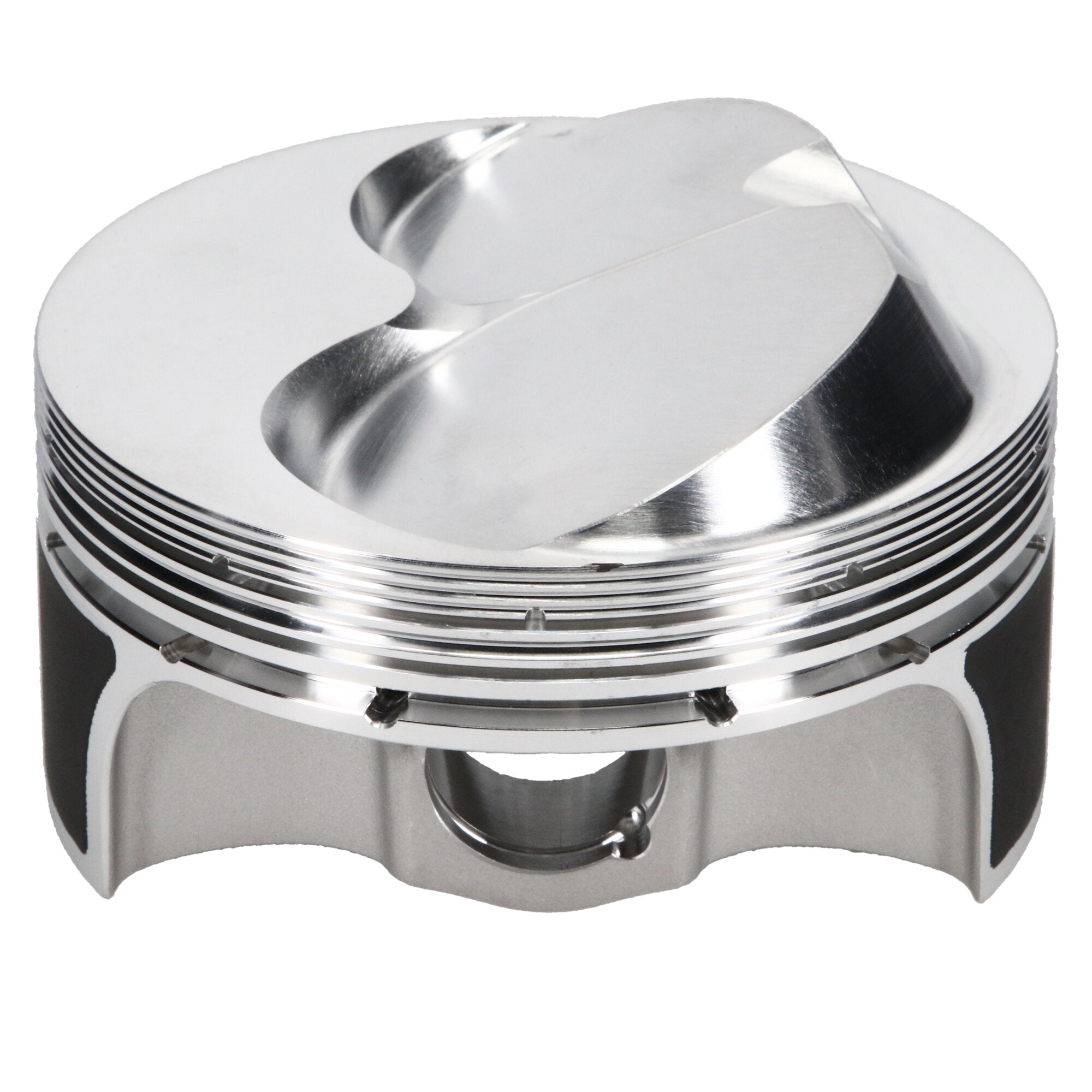

Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.005-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

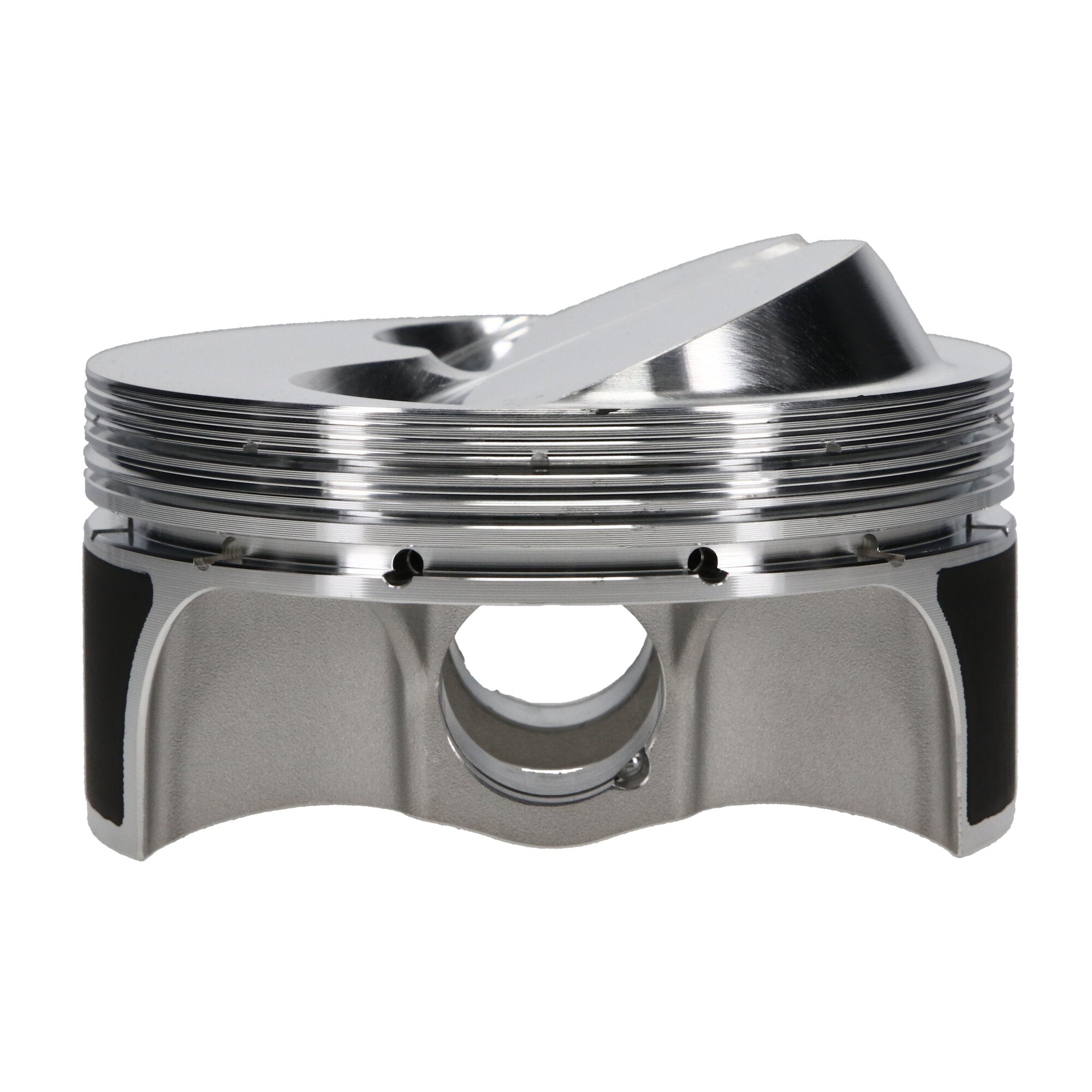

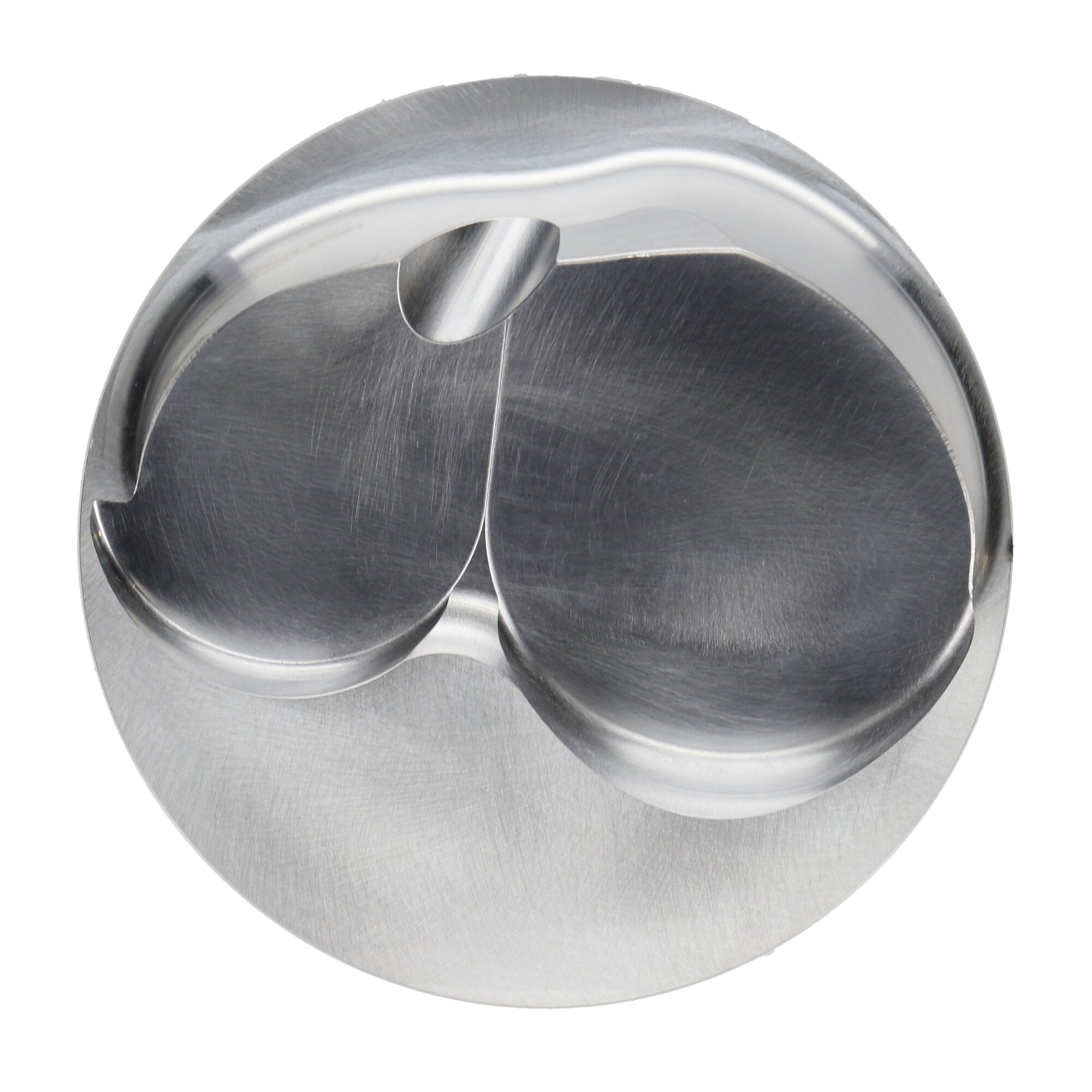

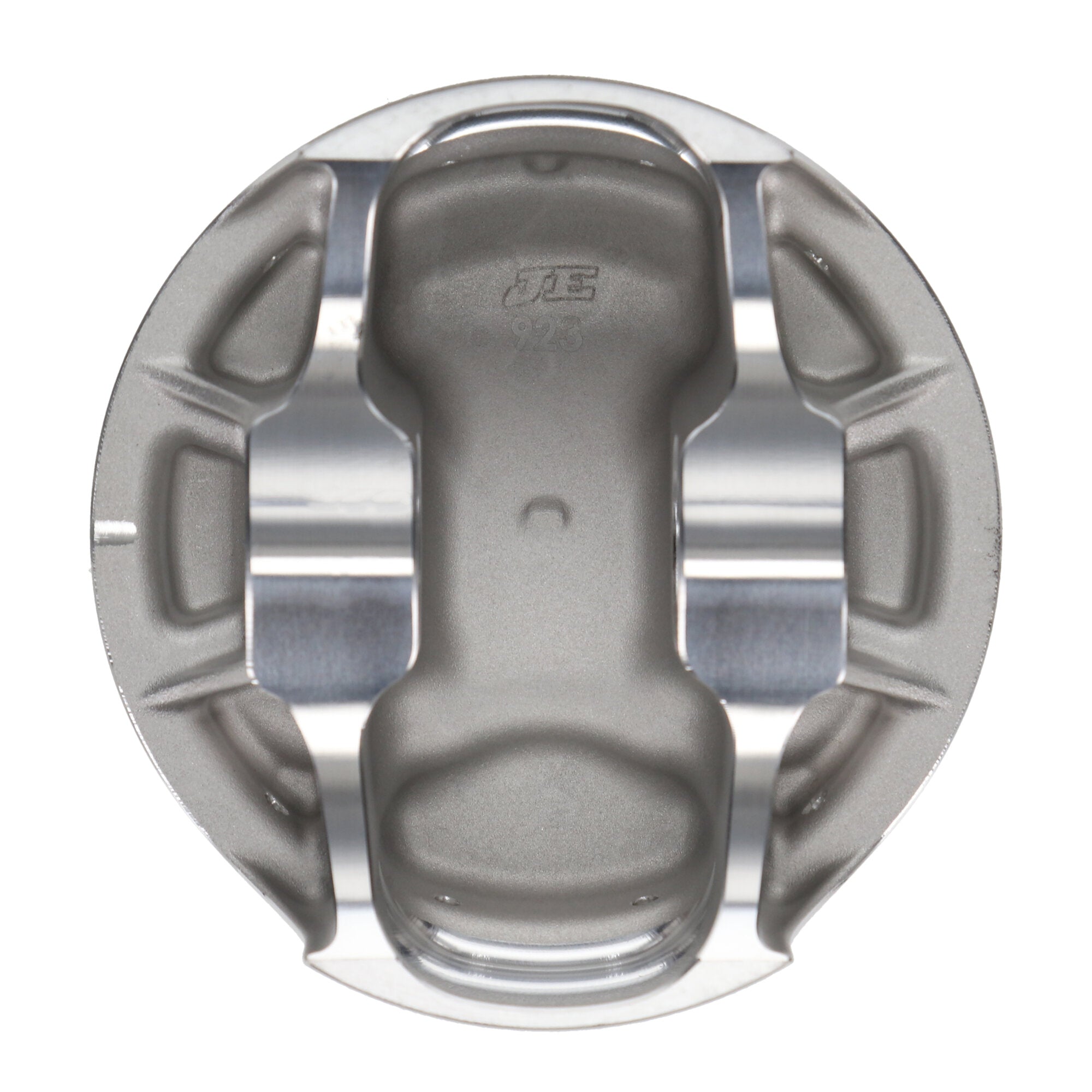

JE Pistons 310560L Piston Single, 2618, Dome, 4.005 Bore, 1.250 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_310560L
Engine Piston
$343.75
customers are viewing this product
JE Pistons 310938L Piston Single, 2618, Inv Dome/Dish, 3.937 Bore, 1.209 CD, 0.905 Pin, Set of 1.
JE Pistons 310938L Piston Single, 2618, Inv Dome/Dish, 3.937 Bore, 1.209 CD, 0.905 Pin, Set of 1.
$451.87
JE Pistons 309342S Piston Single, 2618, Inv Dome/Dish, 3.425 Bore, 1.176 CD, 0.866 Pin, Set of 1.
JE Pistons 309342S Piston Single, 2618, Inv Dome/Dish, 3.425 Bore, 1.176 CD, 0.866 Pin, Set of 1.
$451.87
JE Pistons 310560L Piston Single, 2618, Dome, 4.005 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet 360 Sprint Brodix 11X
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Dome, 4.005 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_EXT JE, Chevrolet, Small Block Chevrolet, 4.005 in. Bore, 1.250 CD, Dome, Left Piston
Description_INV JE Pistons, Piston
Description_TLE Chevrolet 360 BRODIX 11X, 4.005 Bore, Dome, Set of 1
Description_SHO Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Add-On 927-073-MW
Add-On J71408-4000-5
Add-On 927-2250-17-51C
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Bore Diameter 4.005
Cylinder Head PRO ACTION 23 DEG
Engine Small Block
Compression Height 1.250
Engine - Web Small Block
Out of Stock Message Call for Availability
Piston Head Type Dome
Piston Material 2618
Forging Type FSR
Oil Ring Thickness 0.119
Engine Type ICE
Make CHEVROLET
Industry Automotive
Piston Average Weight 434
Make - Web Chevrolet
Title - Web JE Pistons Chevrolet Small Block Piston - 4.005 in. Bore - 1.250 in. CH, 14.00 CC
Product Market Domestic
Piston Quantity 1
Product Type Engine Piston
Title JE Pistons - Chevrolet, Small Block, 4.005 in. Bore, Piston
Piston Pin Outside Diameter 0.927
Prop 65 Yes/No Yes
Second Compression Ring Thickness 0.0440
Piston Volume 14.00
Piston Orientation Left
Prop 65 (C, R or CR) CR
Piston Pin Material 5115
Piston Series JE Pistons
Top Compression Ring Thickness 0.0435
Ringset Included No
Piston Pin Length 2.250
Piston Pin Wall Thickness 0.170
Wrist Pin Length 2.250
Wrist Pin Outer Diameter 0.927
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Ring Set Included No
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Wall Thickness 0.170
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
