As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda K20/K24 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

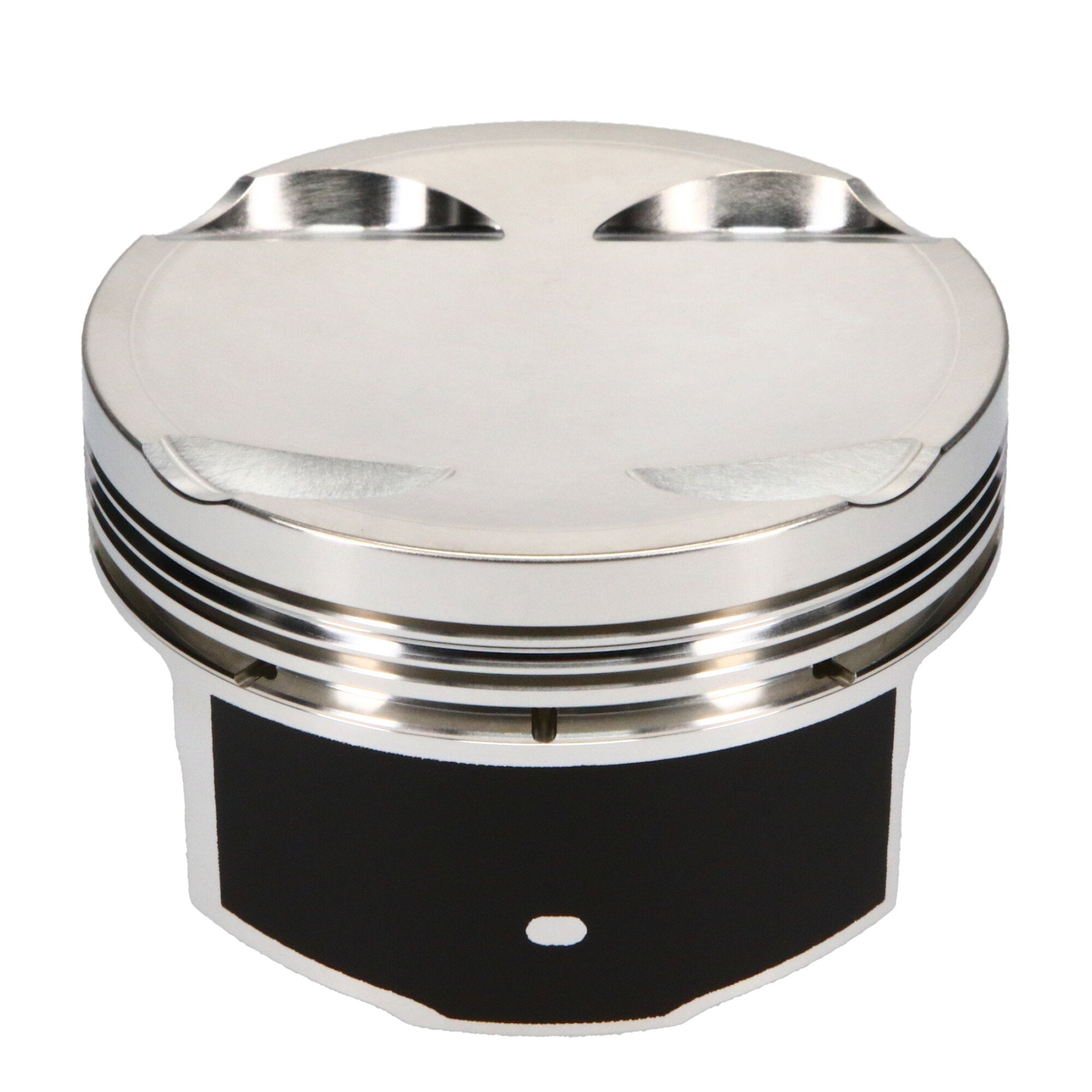

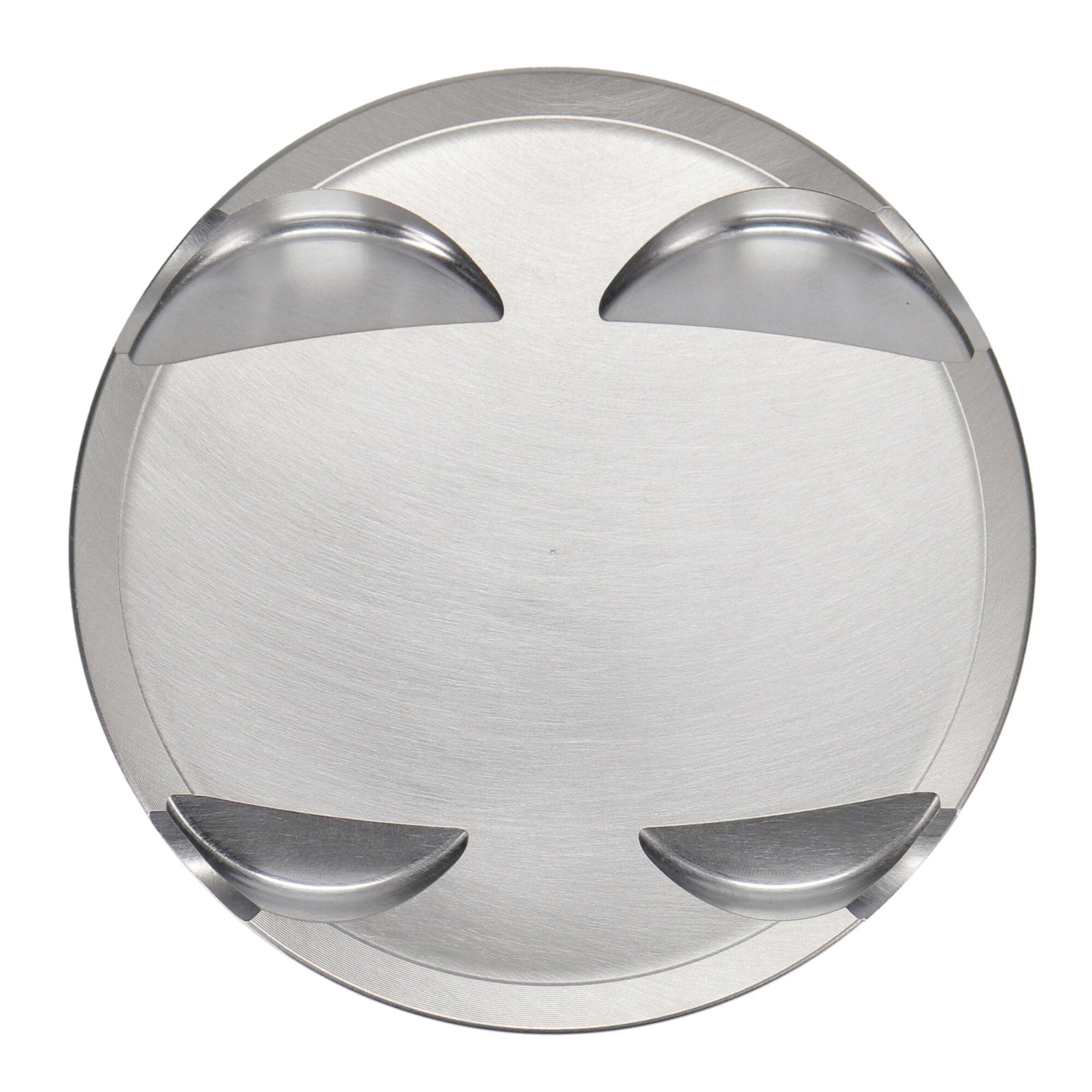

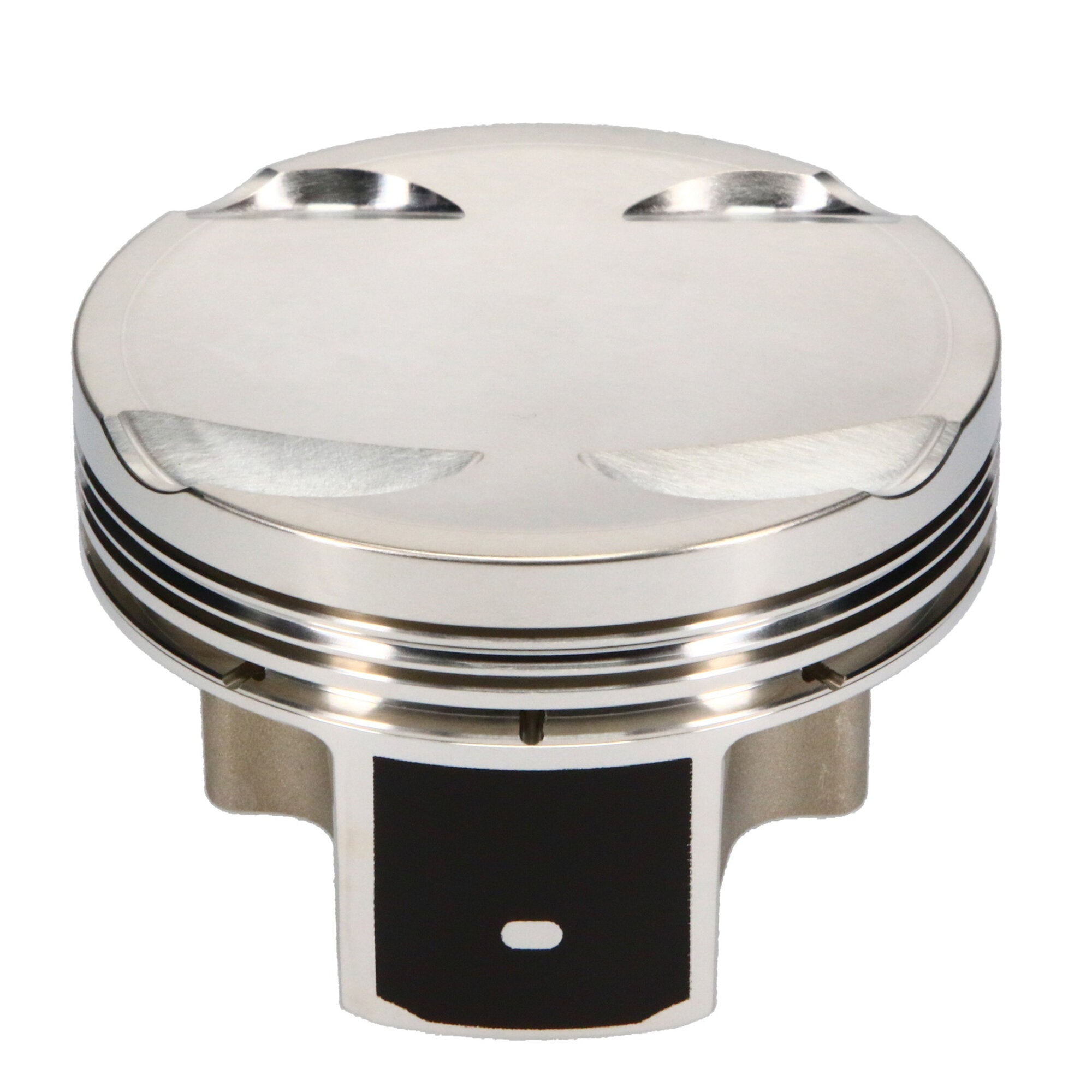

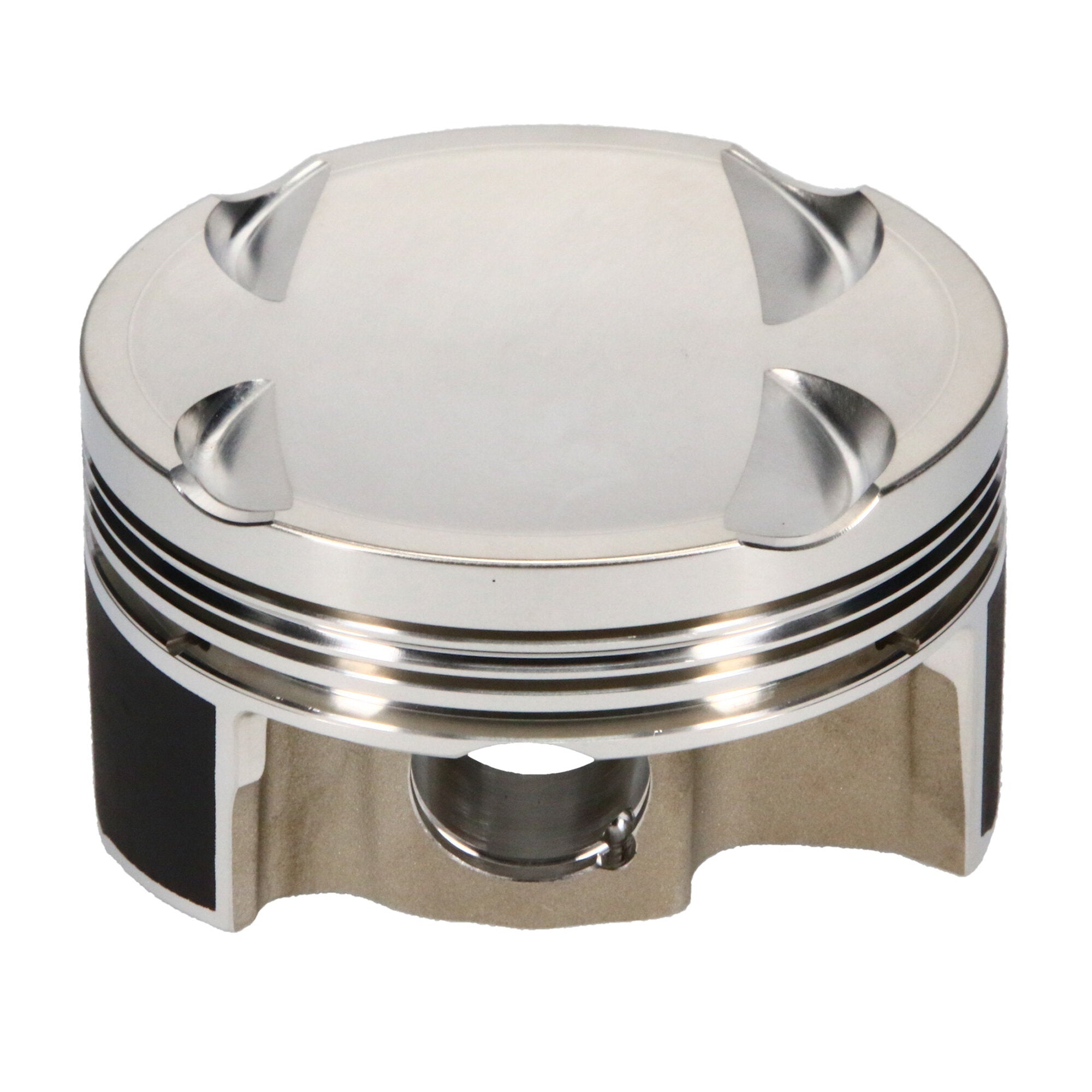

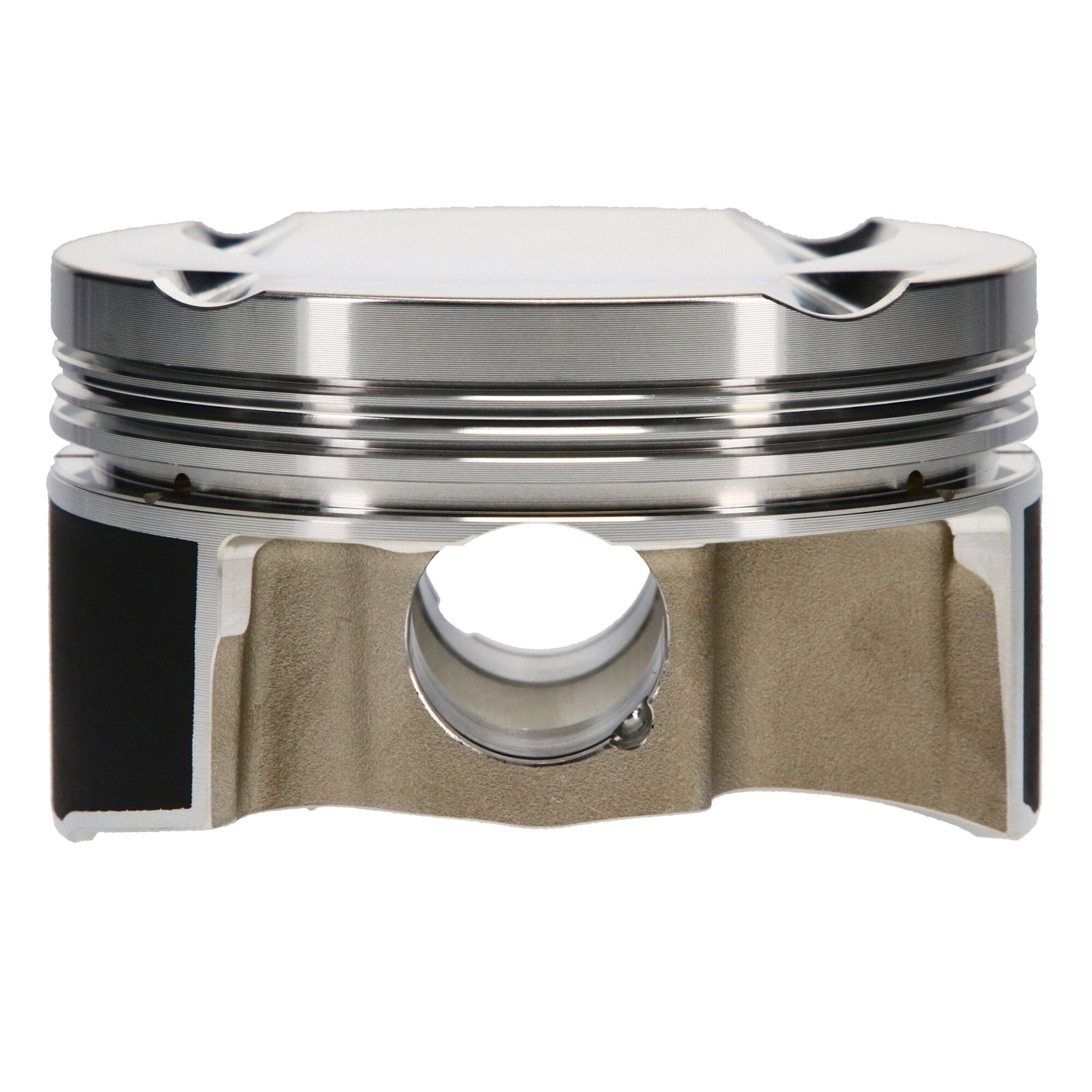

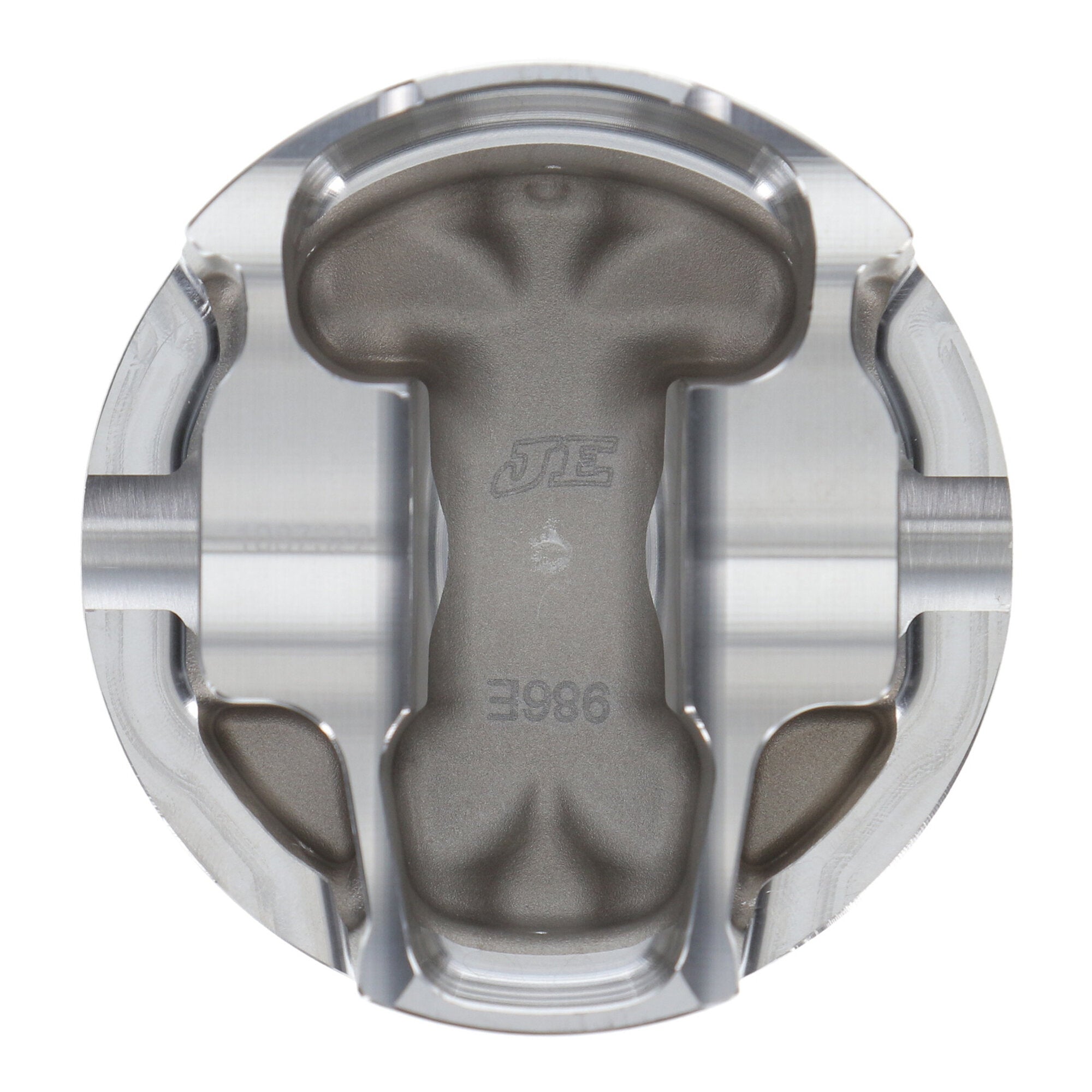

Piston Set, 2618, Inv Dome/Dish, 3.465 Bore, 1.176 CD, 0.866 Pin, Set of 4. |
| Description_EXT |
JE, Acura, K Series, 3.465 in. Bore, 10.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
Honda K20/K24, 88.00 Bore, Dish, Set of 4 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Product Market |
Sport Compact |
| Piston Volume |
8.70 |
| Bore Diameter |
88.00 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Piston Pin Outside Diameter |
0.866 |
| Wrist Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
JG1001-3465 |
| Piston Quantity |
4 |
| Title - Web |
JE Pistons Acura K Series Piston Kit - 88.00 mm Bore - 1.176 in. CH, 8.70 CC |
| Cylinder Head |
K20 |
| Add-On |
866-063-MW |
| Out of Stock Message |
Call for Availability |
| Add-On |
866-2250-15-51C |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Ring Set Included |
Yes |
| Top Compression Ring Thickness |
0.0400 |
| Piston Head Type |
Dish |
| Title |
JE Pistons - Acura, K Series, 88.00 mm Bore, Piston Kit |
| Piston Material |
2618 |
| Piston Pin Length |
2.250 |
| Compression Height |
1.176 |
| Ringset Included |
Yes |
| Piston Average Weight |
320 |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Make - Web |
Acura |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
K Series |
| Piston Series |
JE Pistons |
| Forging Type |
FSR |
| Make |
ACURA |
| Piston Pin Material |
5115 |
| Engine |
K Series |
| Oil Ring Thickness |
0.111 |
| Wrist Pin Outer Diameter |
0.866 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
