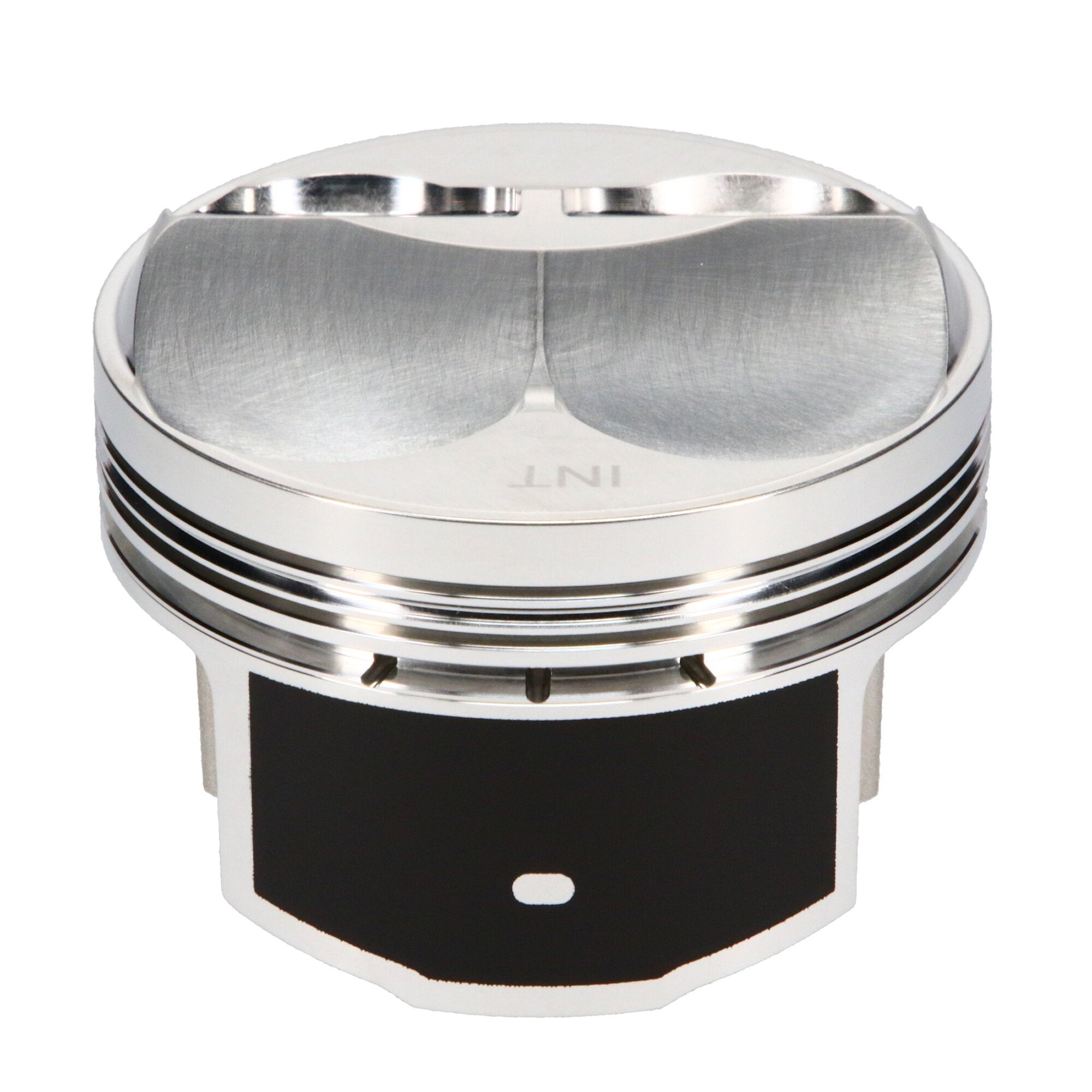

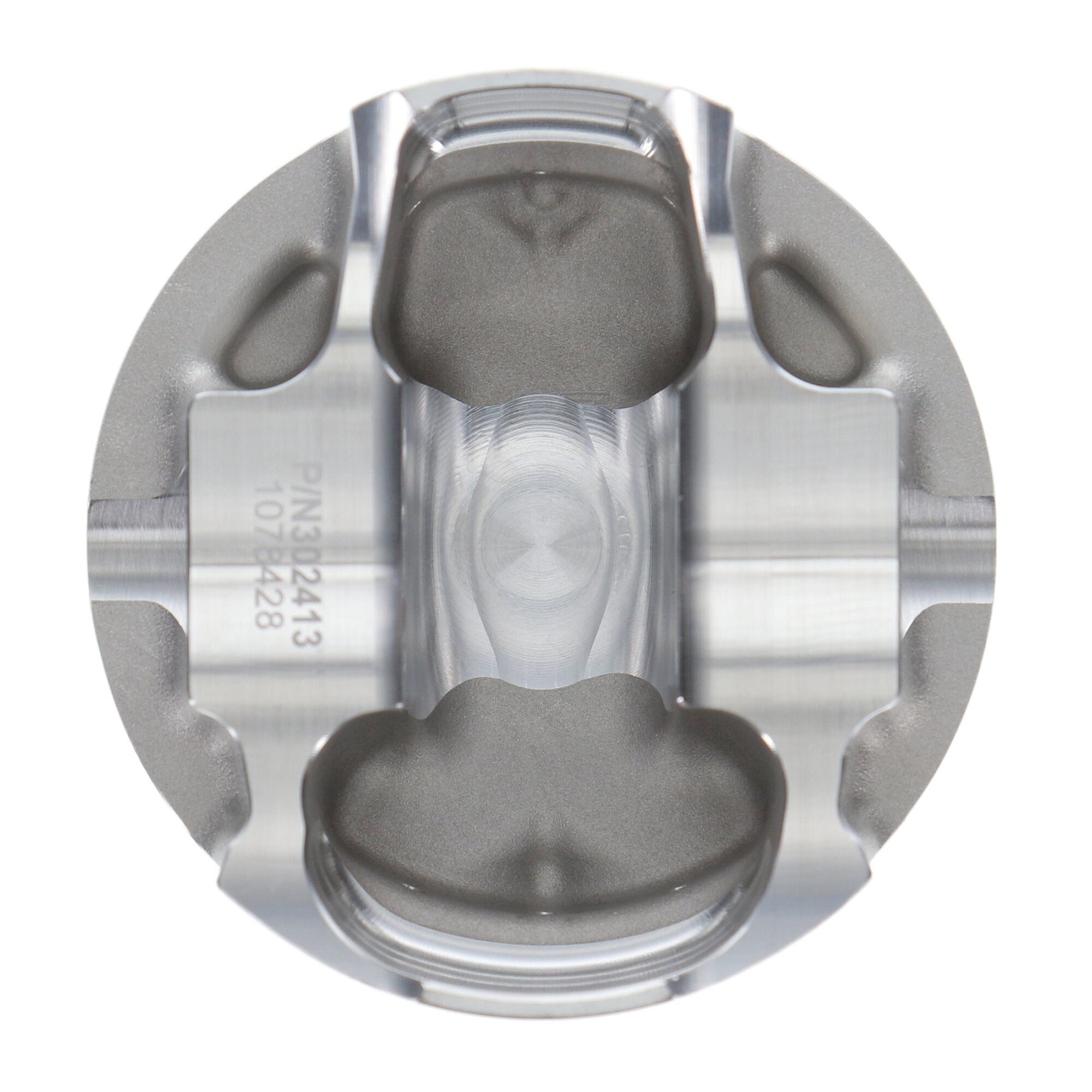

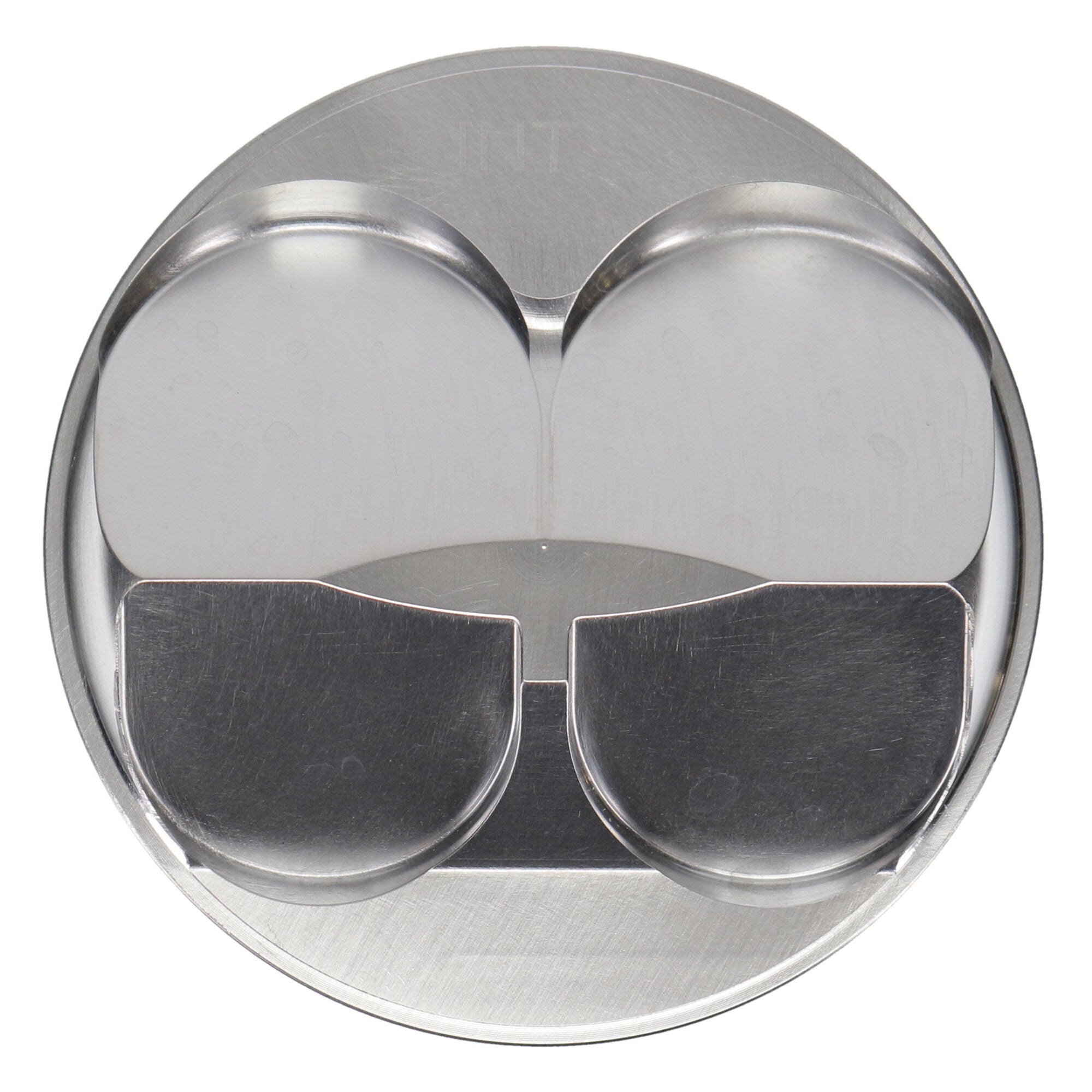

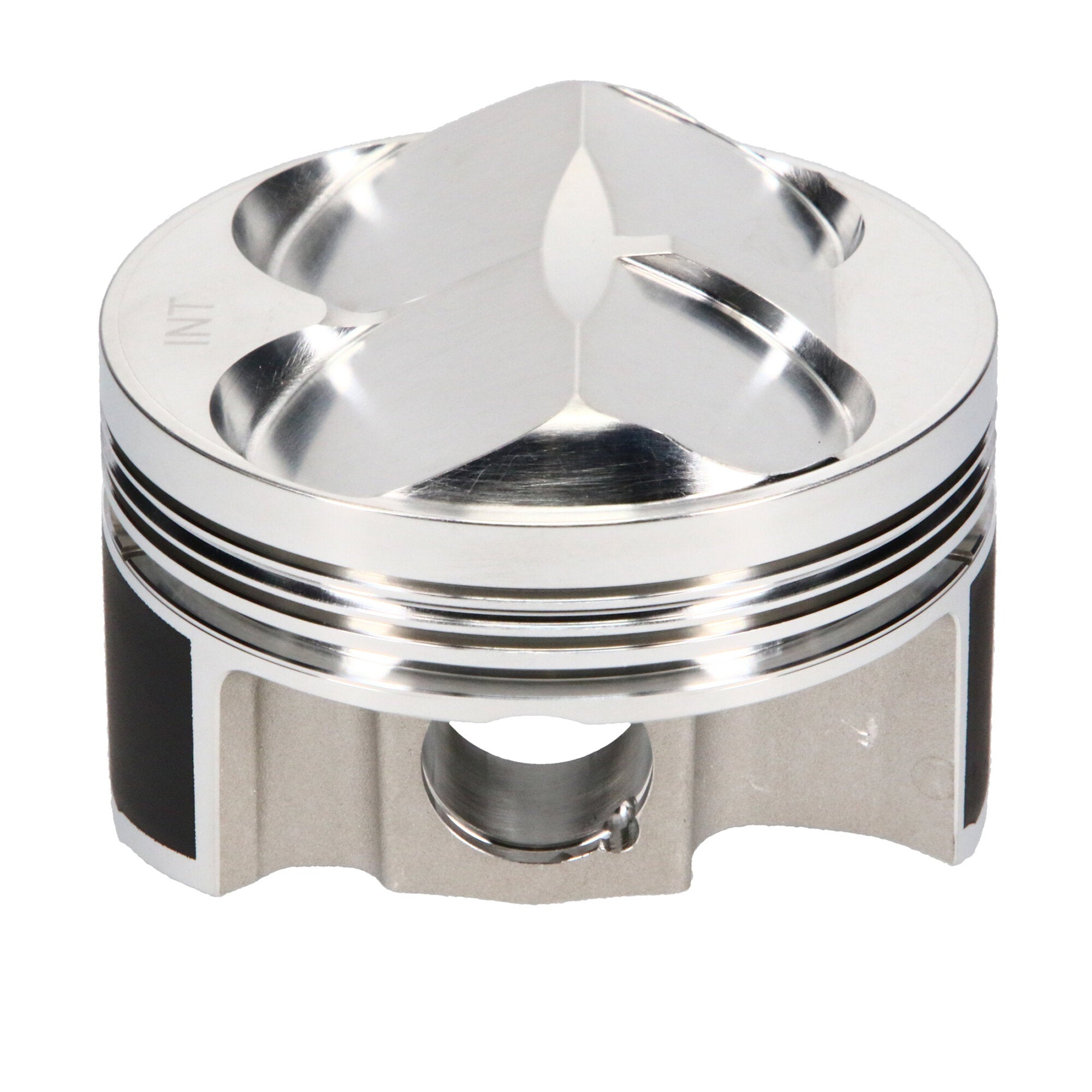

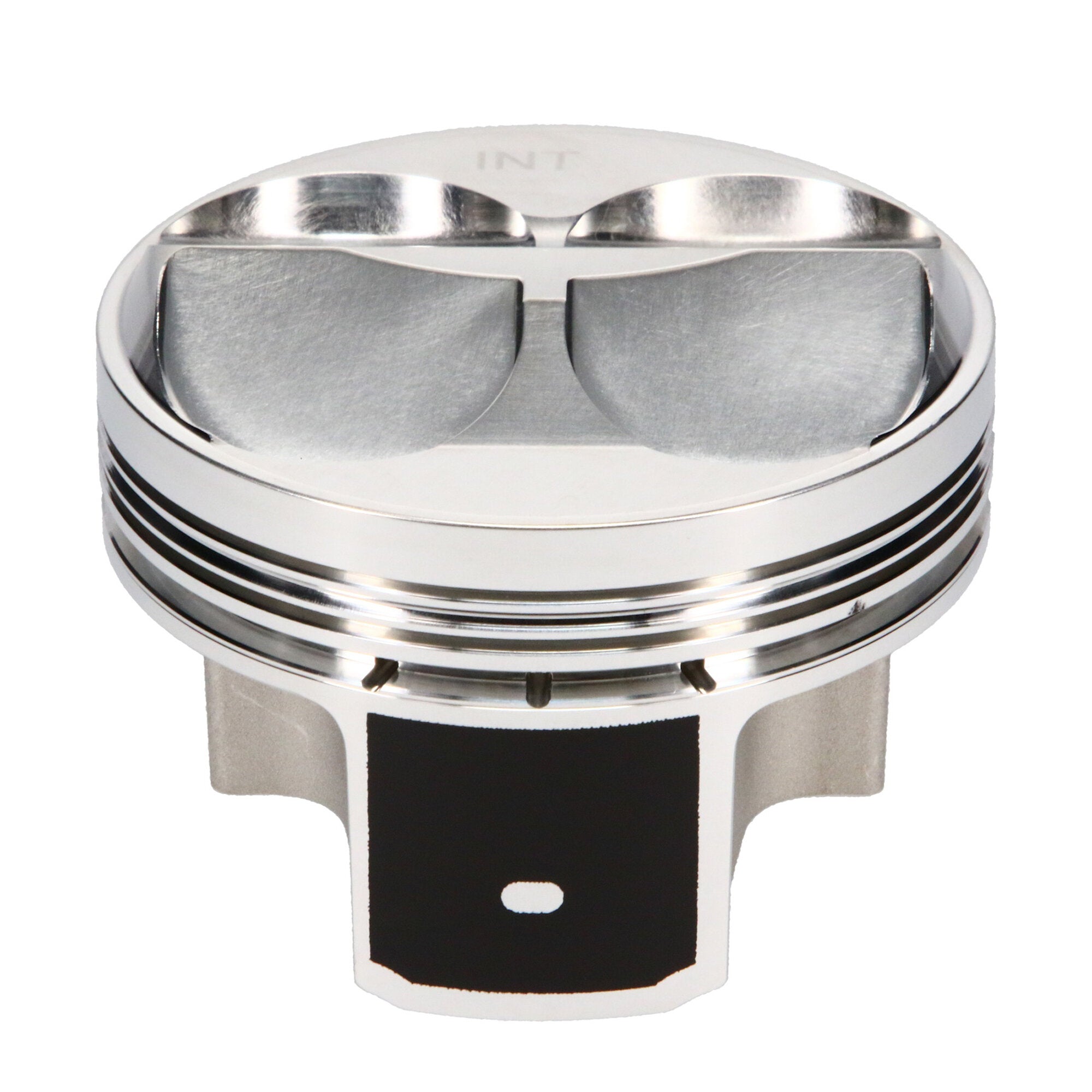

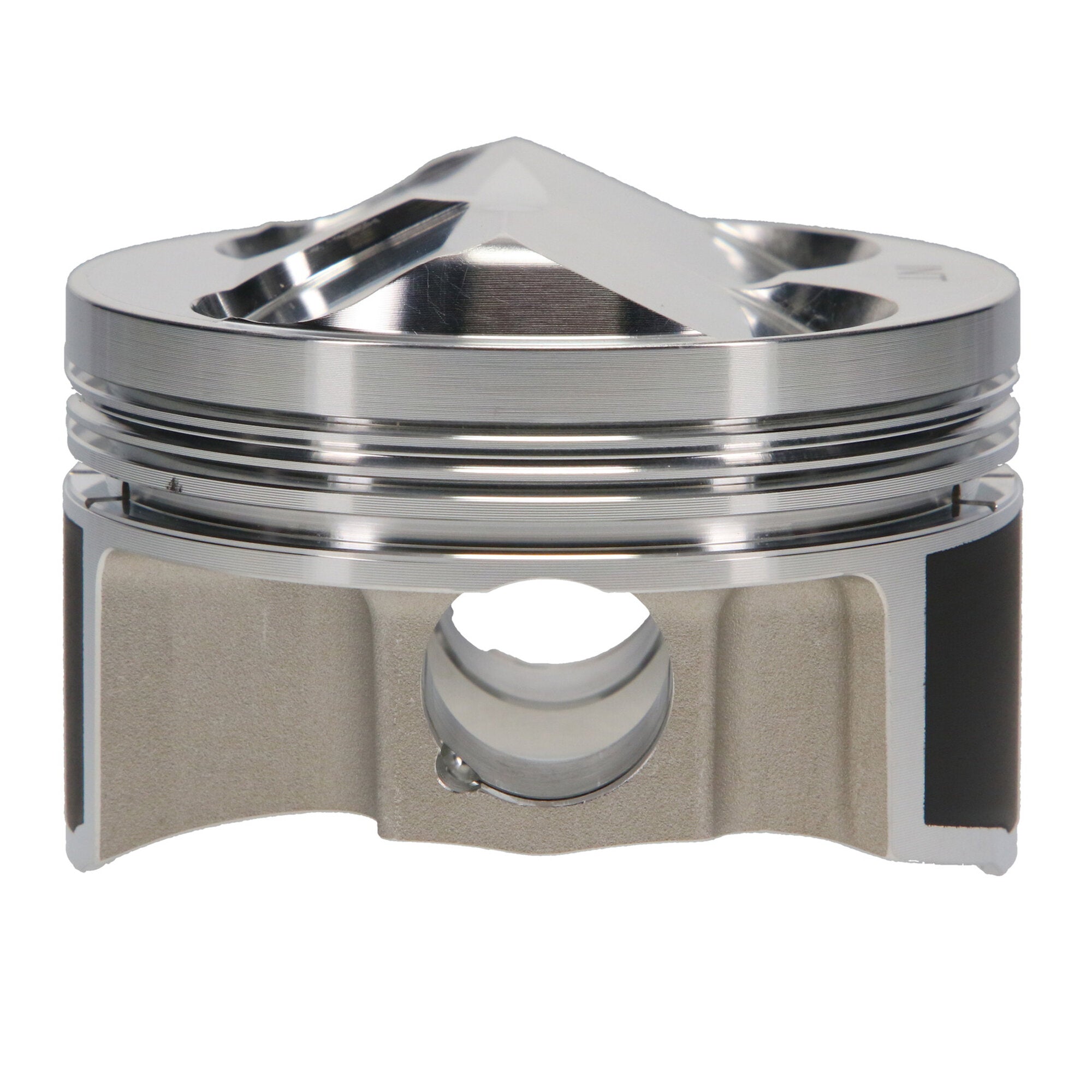

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda B18C1 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Honda, B Series, 3.189 in. Bore, 12.50:1, Dome, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Dome, 3.189 Bore, 1.181 CD, 0.827 Pin, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda B18C1, 81.00 Bore, Dome, Set of 4 |
| Cylinder Head |
B18C |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.0480 |
| Piston Material |
2618 |
| Wrist Pin Length |
2.250 |
| Piston Volume |
9.40 |
| Product Type |
Engine Piston Kit |
| Add-On |
827-063-MW |
| Add-On |
JG1001-3189 |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Add-On |
827-2250-15-51C |
| Make - Web |
Honda |
| Ring Set Included |
Yes |
| Piston Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Honda B Series Piston Kit - 81.00 mm Bore - 1.181 in. CH, 9.40 CC |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
B Series |
| Top Compression Ring Thickness |
0.0400 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dome |
| Product Market |
Sport Compact |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Average Weight |
308 |
| Ringset Included |
Yes |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.827 |
| Oil Ring Thickness |
0.111 |
| Bore Diameter |
81.00 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Make |
HONDA |
| Piston Quantity |
4 |
| Title |
JE Pistons - Honda, B Series, 81.00 mm Bore, Piston Kit |
| Engine Type |
ICE |
| Forging Type |
FSR |
| Compression Height |
1.181 |
| Engine - Web |
B Series |
| Wrist Pin Outer Diameter |
0.827 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
