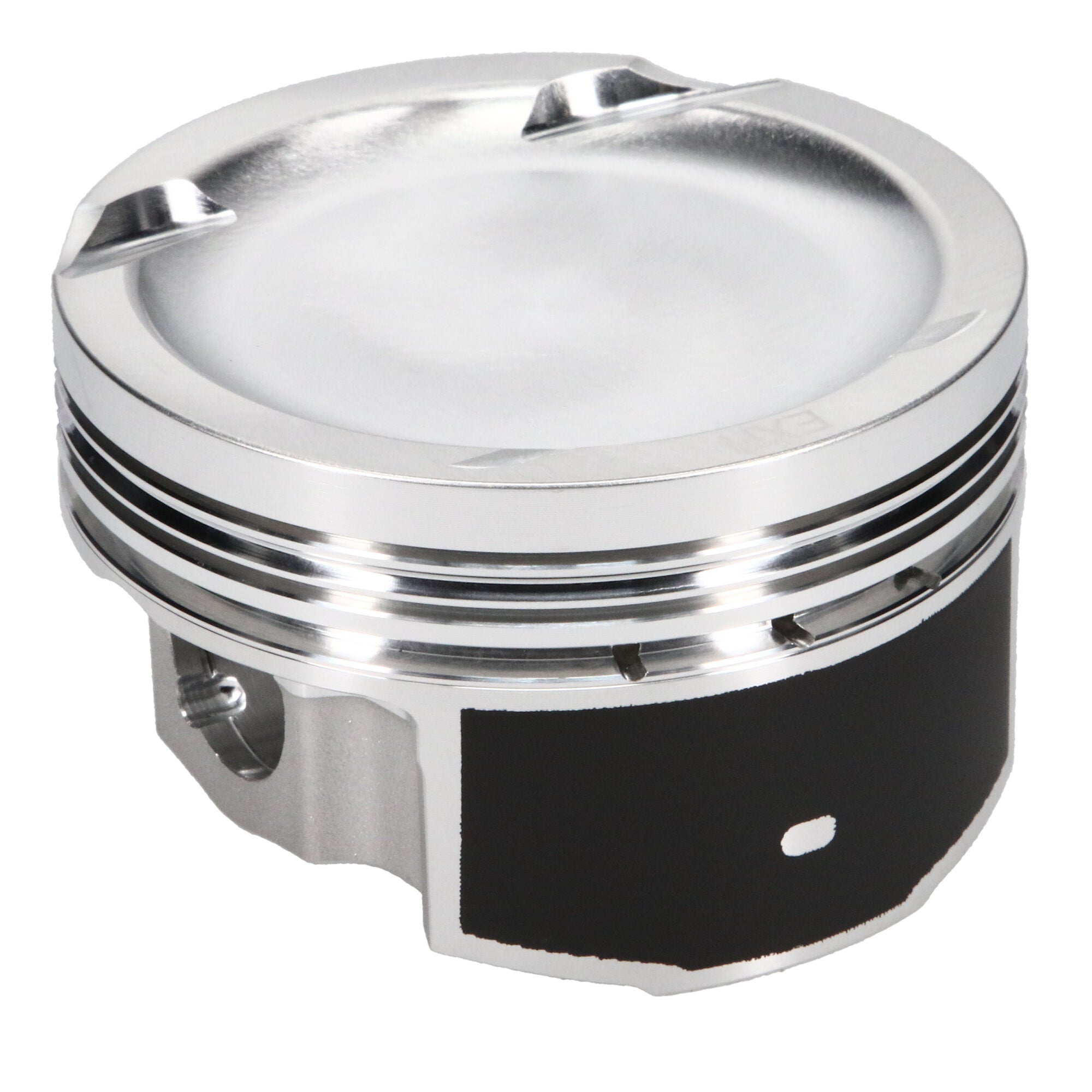

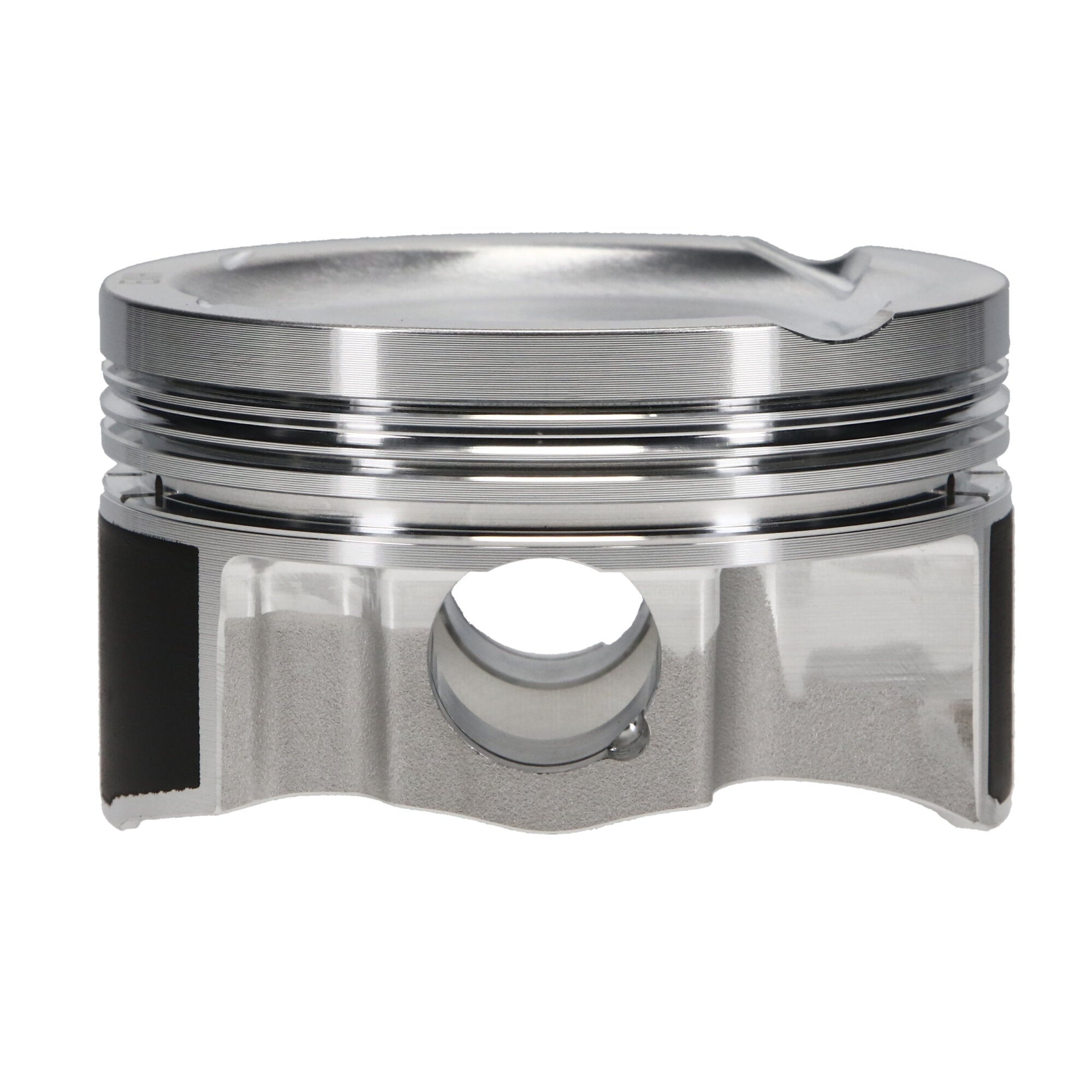

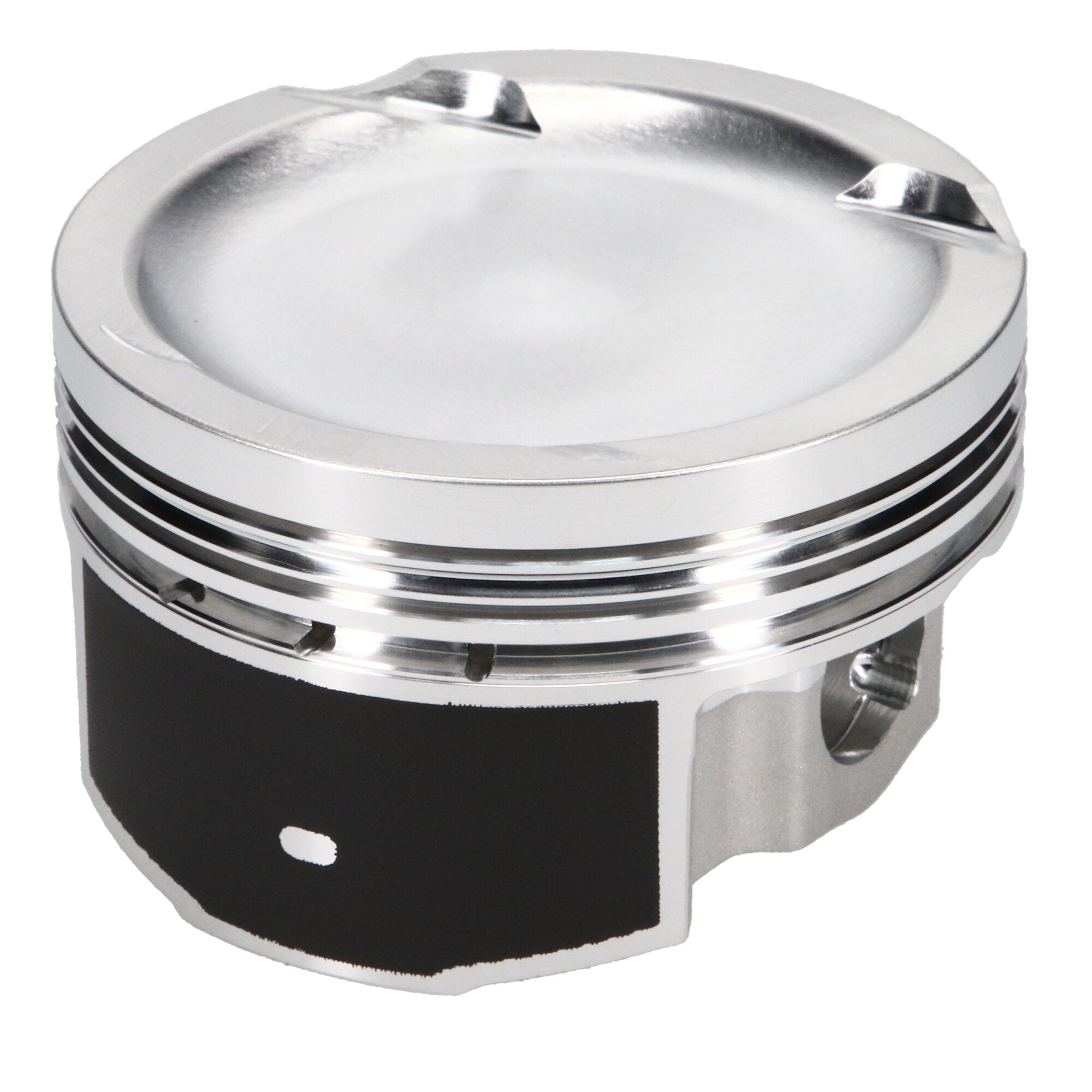

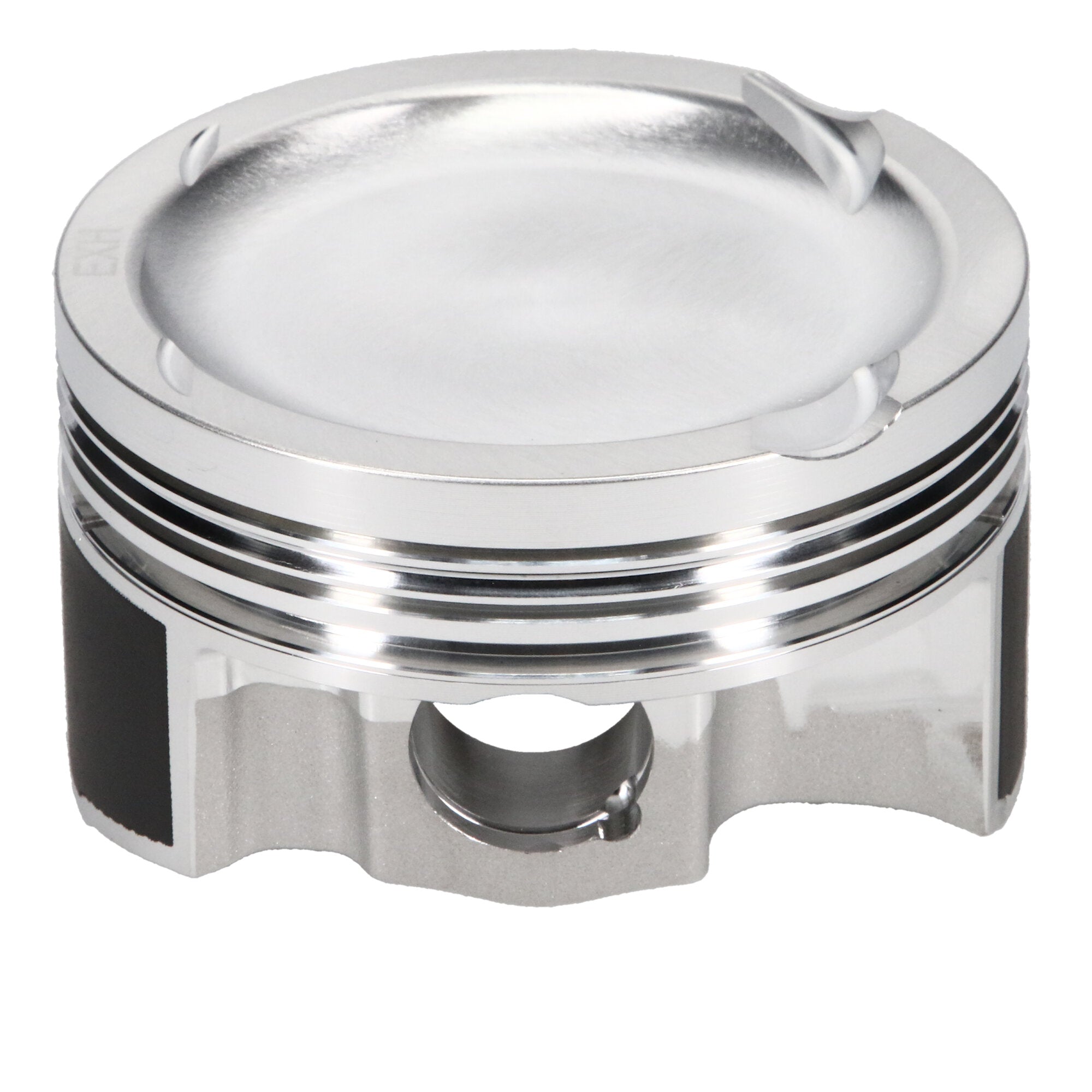

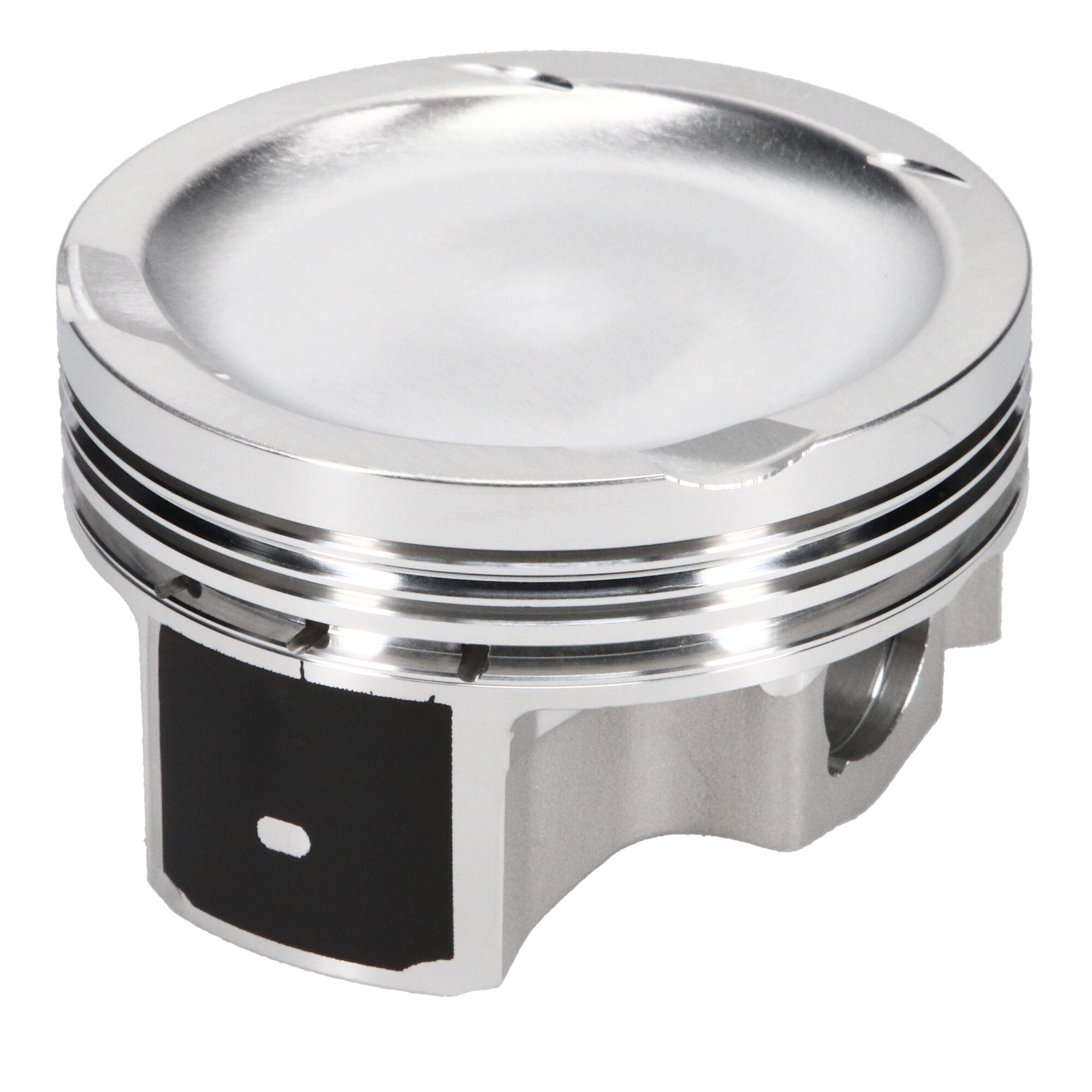

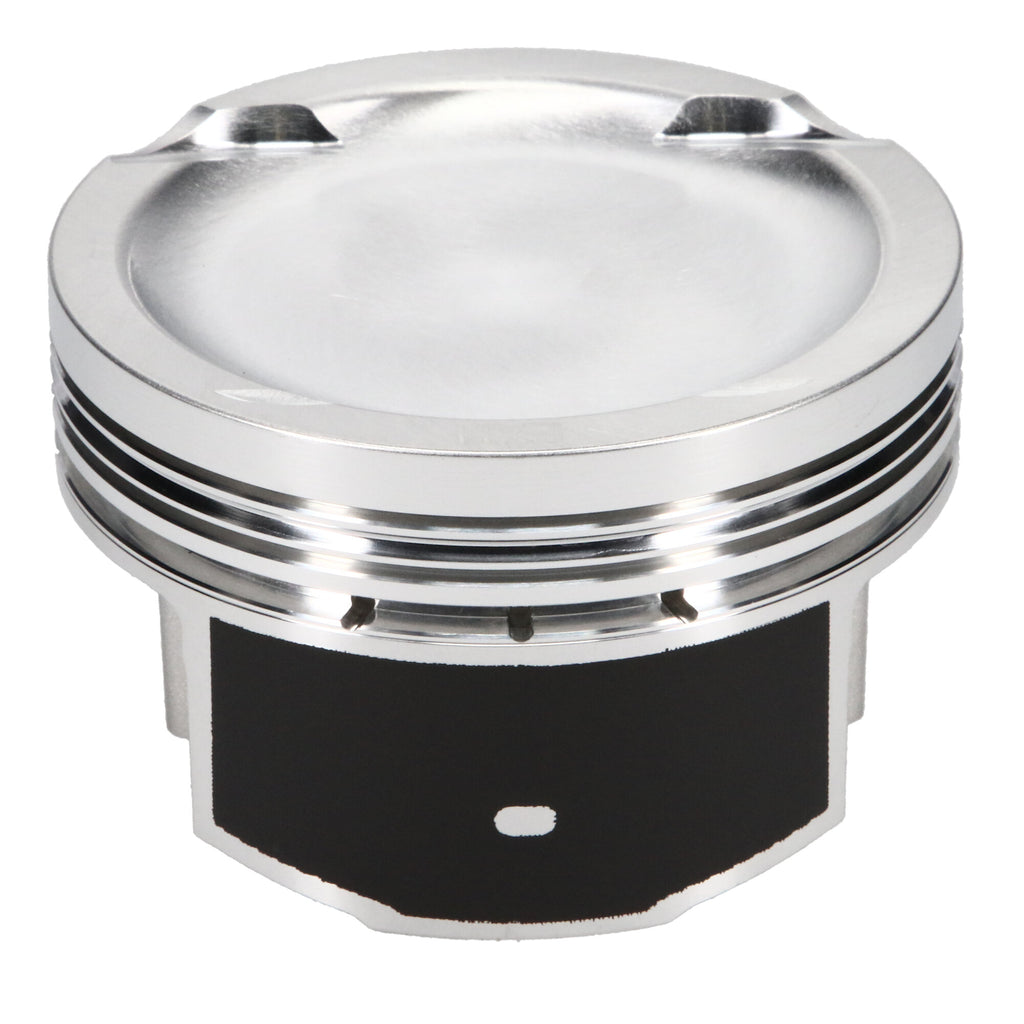

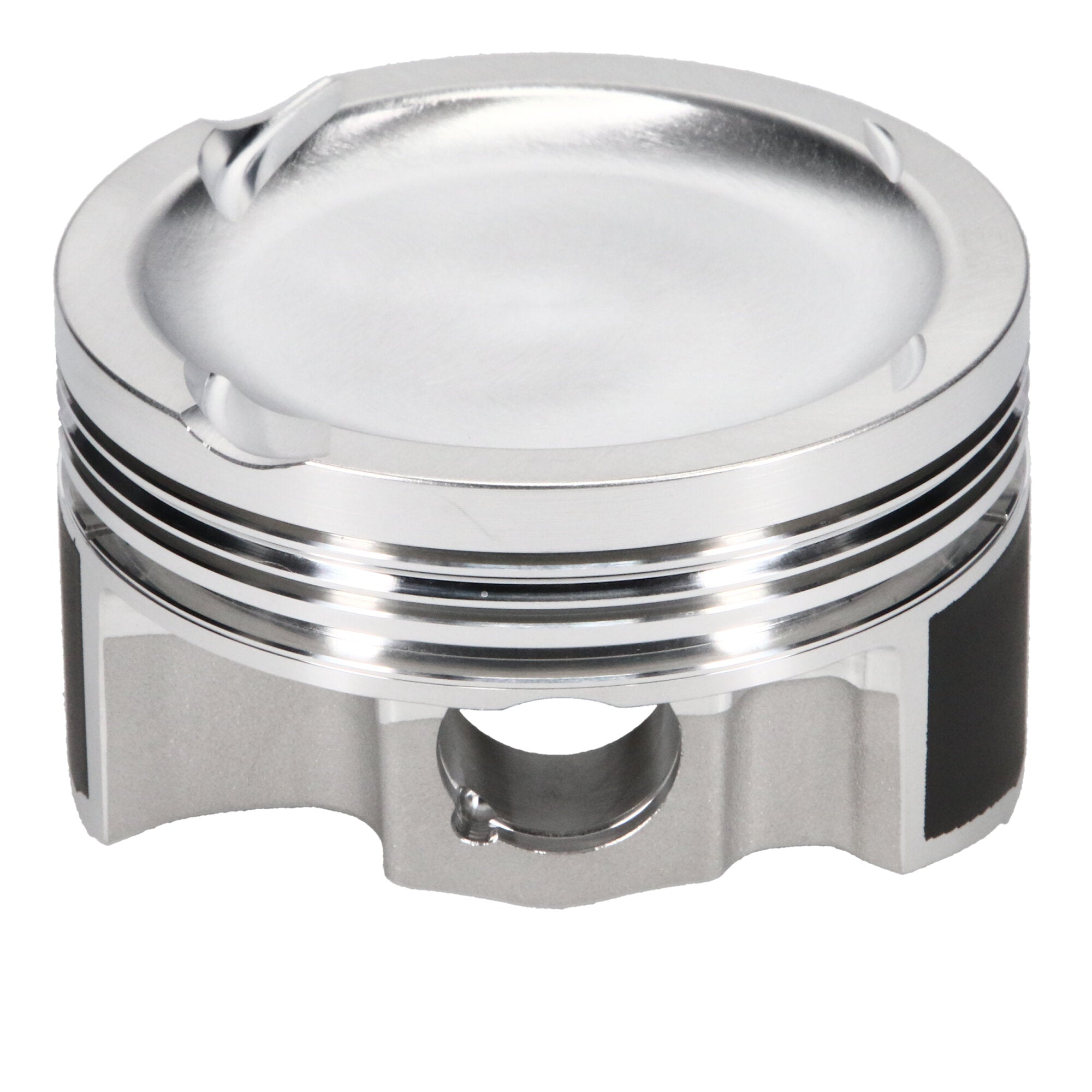

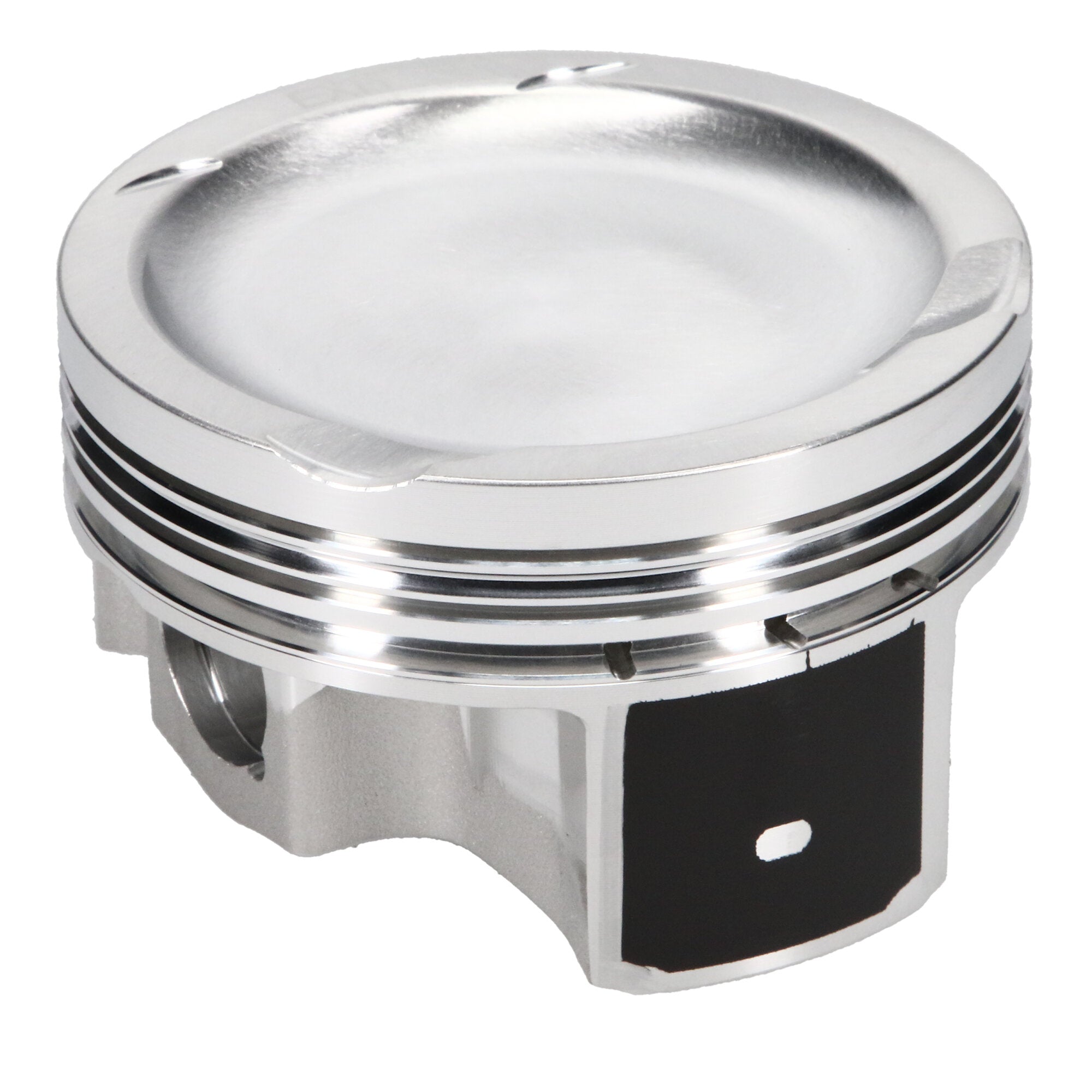

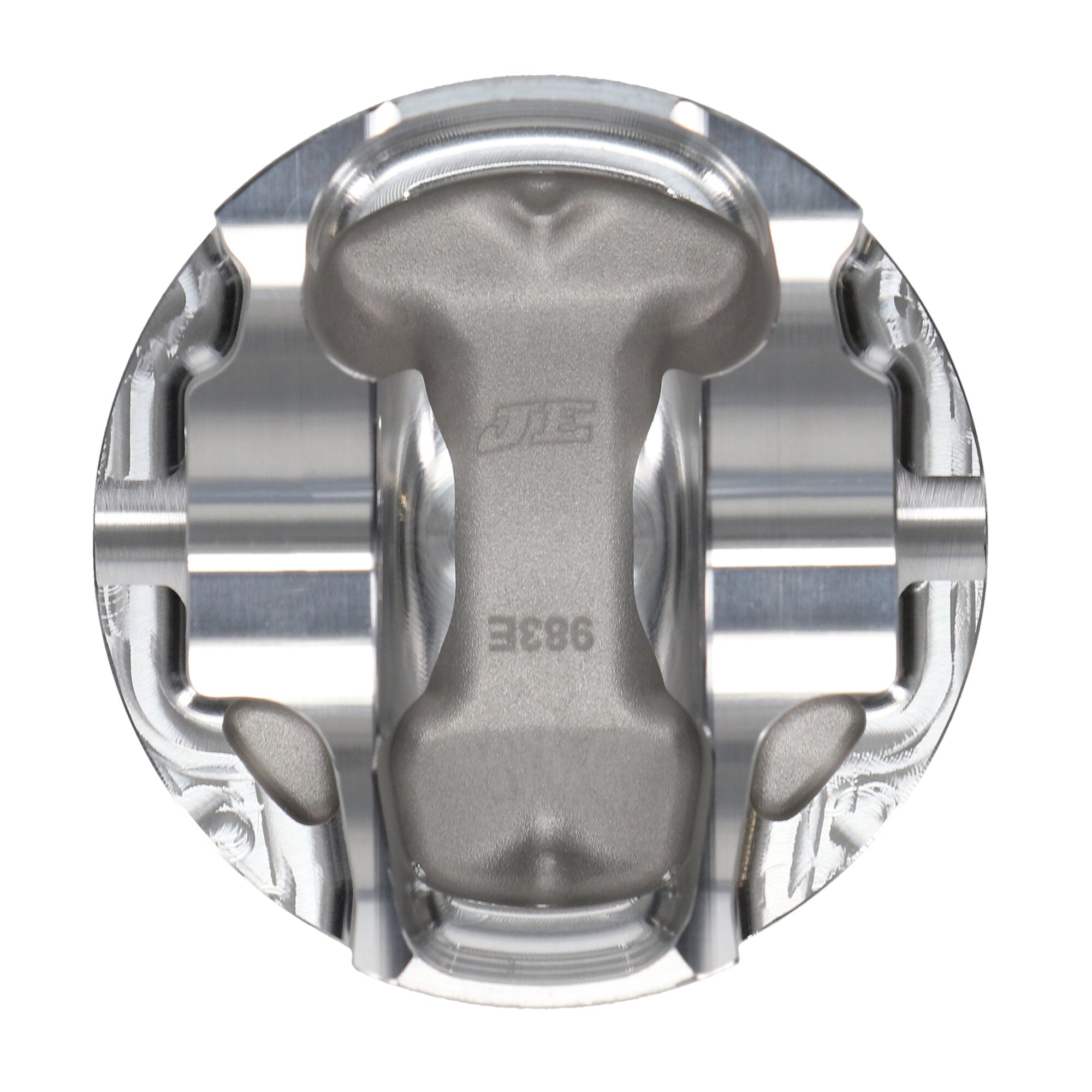

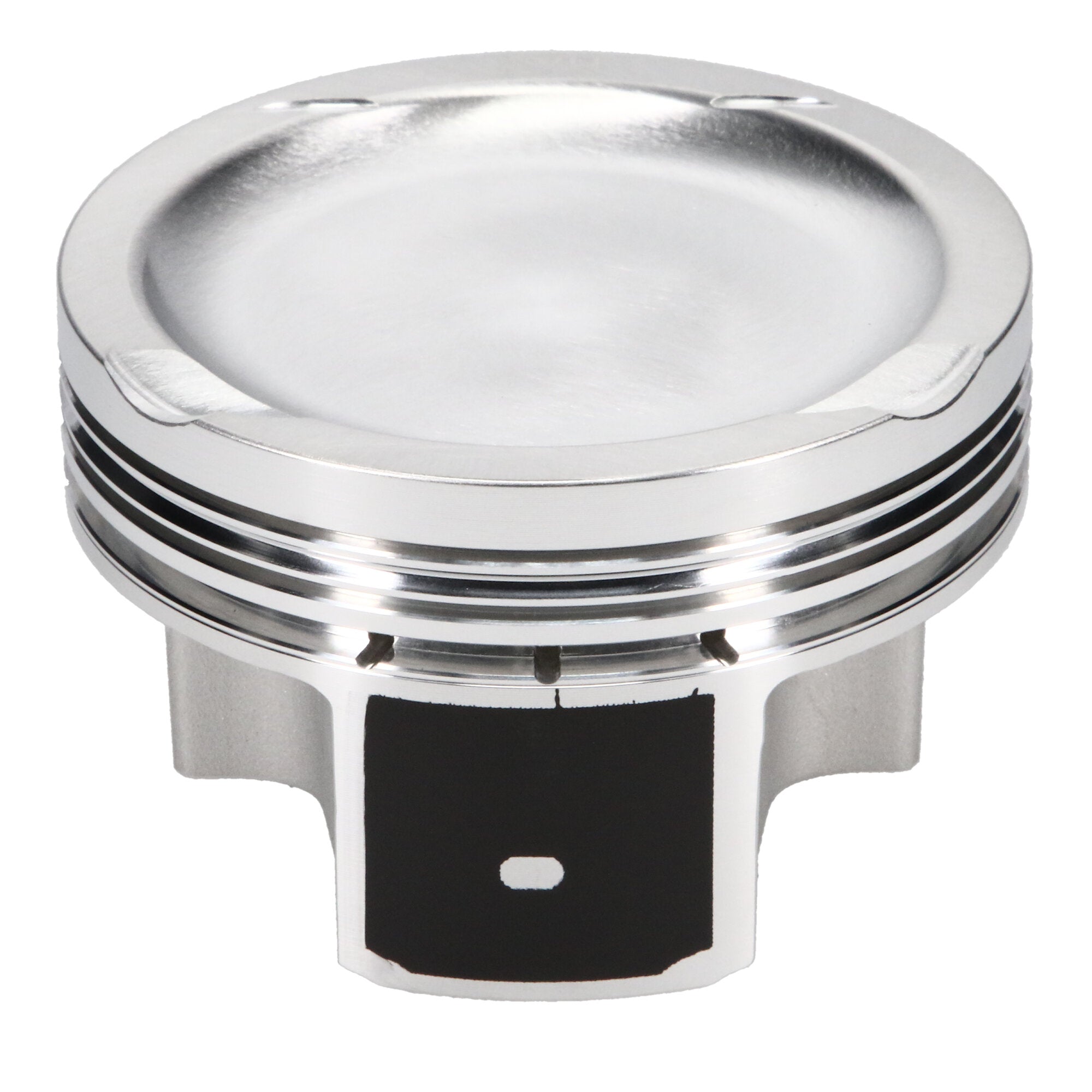

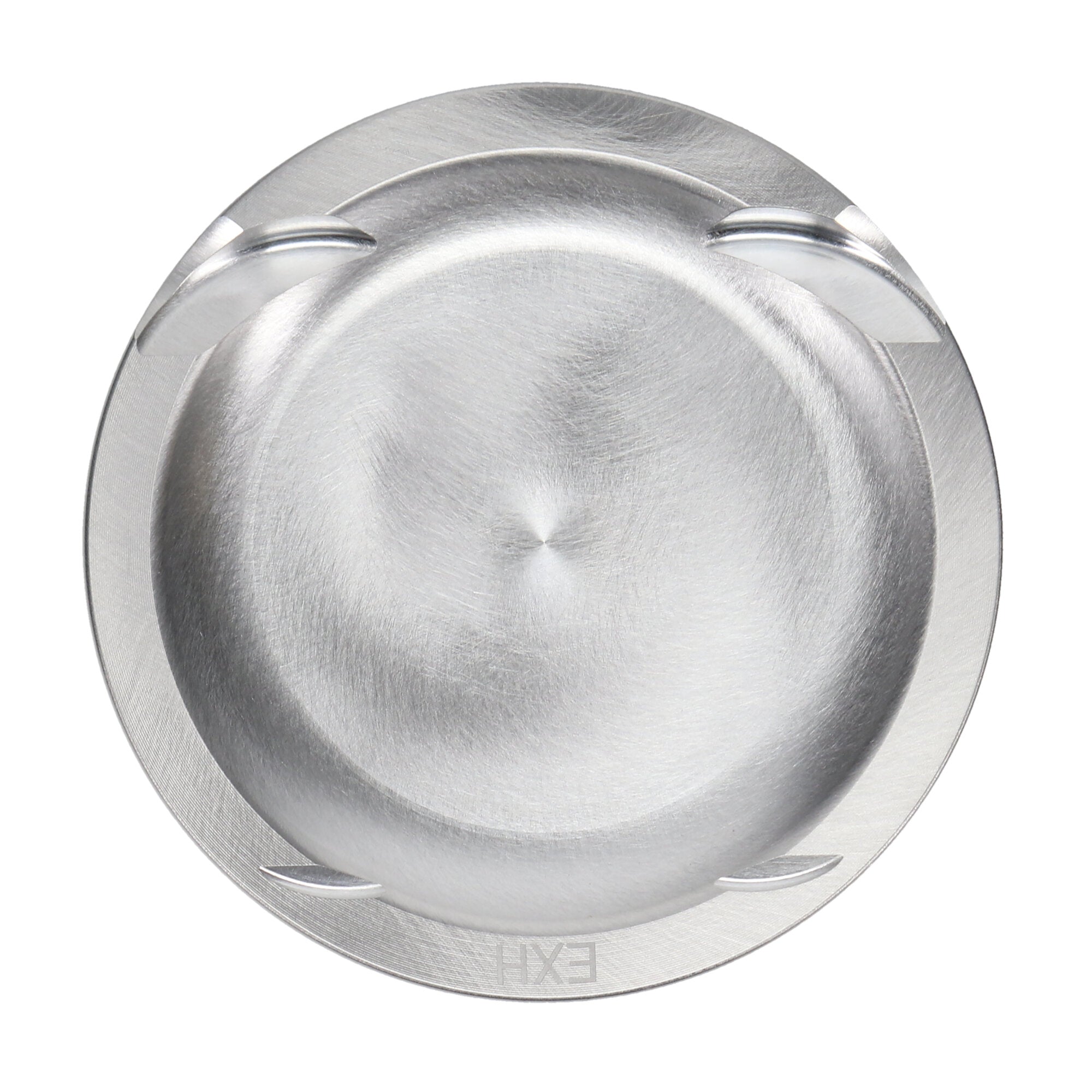

JE Pistons 302349 Piston Set, 2618, Flat Top, 3.287 Bore, 1.165 CD, 0.787 Pin, Set of 4.

2 sold in last 8 days
JE Pistons
ds_BHXG_302349
Engine Piston Kit
$1,534.39
customers are viewing this product
JE Pistons 302411 Piston Set, 2618, Flat Top, 3.307 Bore, 1.181 CD, 0.827 Pin, Set of 4.
JE Pistons 302411 Piston Set, 2618, Flat Top, 3.307 Bore, 1.181 CD, 0.827 Pin, Set of 4.
$1,449.14
JE Pistons 298617 Piston Set, 4032, Flat Top, 4.080 Bore, 1.340 CD, 0.945 Pin, Set of 8.
JE Pistons 298617 Piston Set, 4032, Flat Top, 4.080 Bore, 1.340 CD, 0.945 Pin, Set of 8.
$1,585.80
JE Pistons 302349 Piston Set, 2618, Flat Top, 3.287 Bore, 1.165 CD, 0.787 Pin, Set of 4.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Volkswagen 2.0T FSI 04-08
Description_DEF Engine Piston Kit
Description_DES Piston Set, 2618, Flat Top, 3.287 Bore, 1.165 CD, 0.787 Pin, Set of 4.
Description_EXT JE, VW, 2.0T FSI - 04-08 - 20mm Pin, 3.287 in. Bore, 10.50:1, Flat Top, 4 Cyl. Piston Kit
Description_SHO Piston Kit
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Description_INV JE Pistons, Piston Kit
Description_TLE Volkswagen 2.0L Turbo, 83.50 Bore, Flat, Set of 4
Wrist Pin Length 2.250
Product Type Engine Piston Kit
Product Market European
Wrist Pin Wall Thickness 0.180
Piston Volume -2.40
Ring Set Included Yes
Engine - Web 2.0T FSI
Piston Quantity 4
Bore Diameter 83.50
Piston Pin Wall Thickness 0.180
Top Compression Ring Thickness 0.0400
Piston Average Weight 294
Piston Pin Material 5115
Industry Automotive
Add-On 787-050-MW
Make VOLKSWAGEN
Compression Height 1.165
Add-On JG1001-3287
Add-On 787-2250-18-51C
Cylinder Head 2.0 TFSI
Title JE Pistons - Volkswagen, 2.0T FSI, 83.50 mm Bore, Piston Kit
Oil Ring Thickness 0.111
Prop 65 (C, R or CR) CR
Category Hierarchy Auto>JE Pistons>Piston Kits>European
Piston Pin Outside Diameter 0.787
Piston Material 2618
Wrist Pin Outer Diameter 0.787
Piston Series JE Pistons
Forging Type FSR
Engine 2.0T FSI 04-08 20 mm Pin
Prop 65 Yes/No Yes
Second Compression Ring Thickness 0.0480
Engine Type ICE
Out of Stock Message Call for Availability
Ringset Included Yes
Title - Web JE Pistons Volkswagen 2.0T FSI Piston Kit - 83.50 mm Bore - 1.165 in. CH, -2.40 CC
Piston Head Type Flat
Piston Pin Length 2.250
Engine Detail 2.0T FSI 04-08 20 mm Pin
Make - Web Volkswagen
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Length 5.0000
Width 9.0000
Height 5.0000
Weight 7.0000
