As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0T FSI 04-08 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

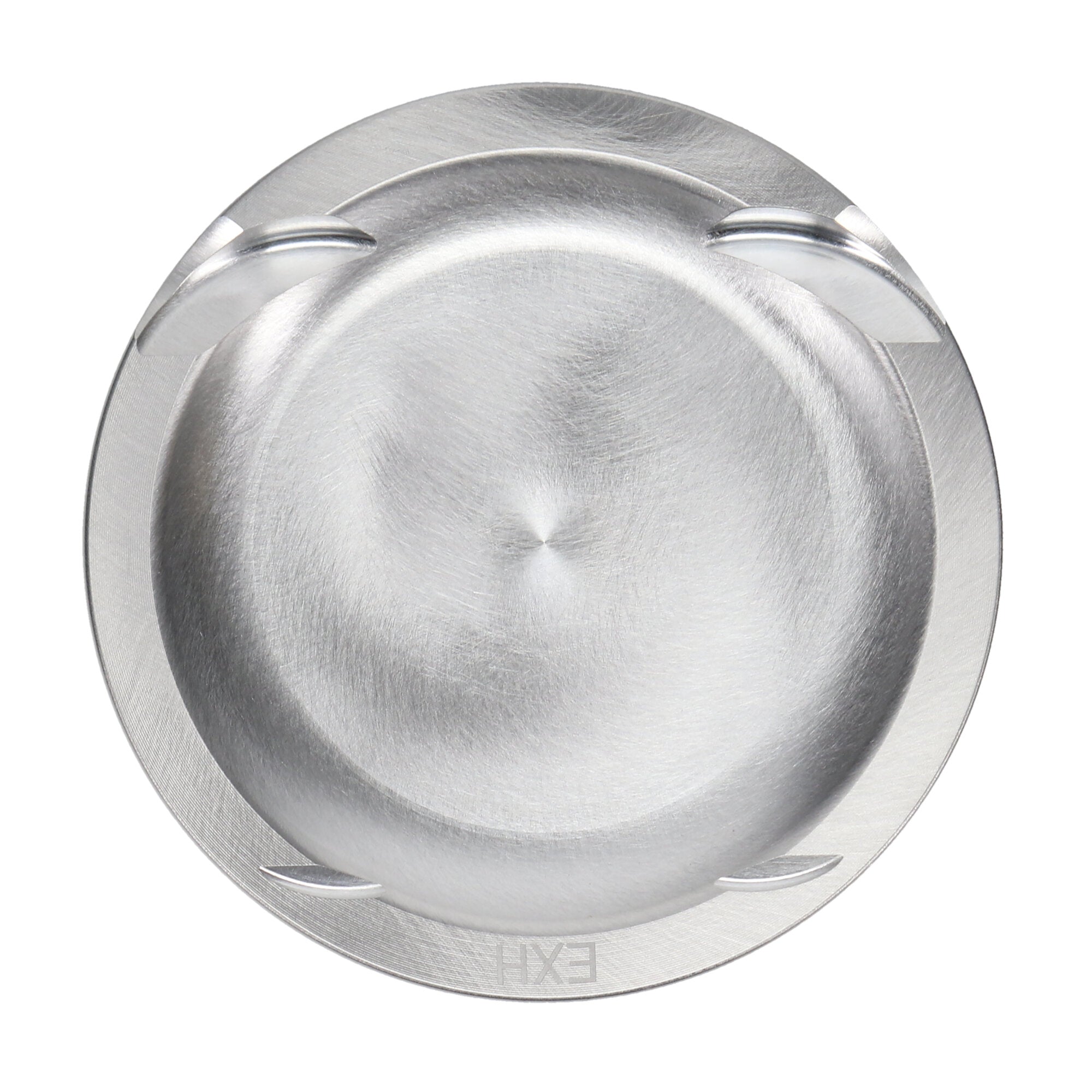

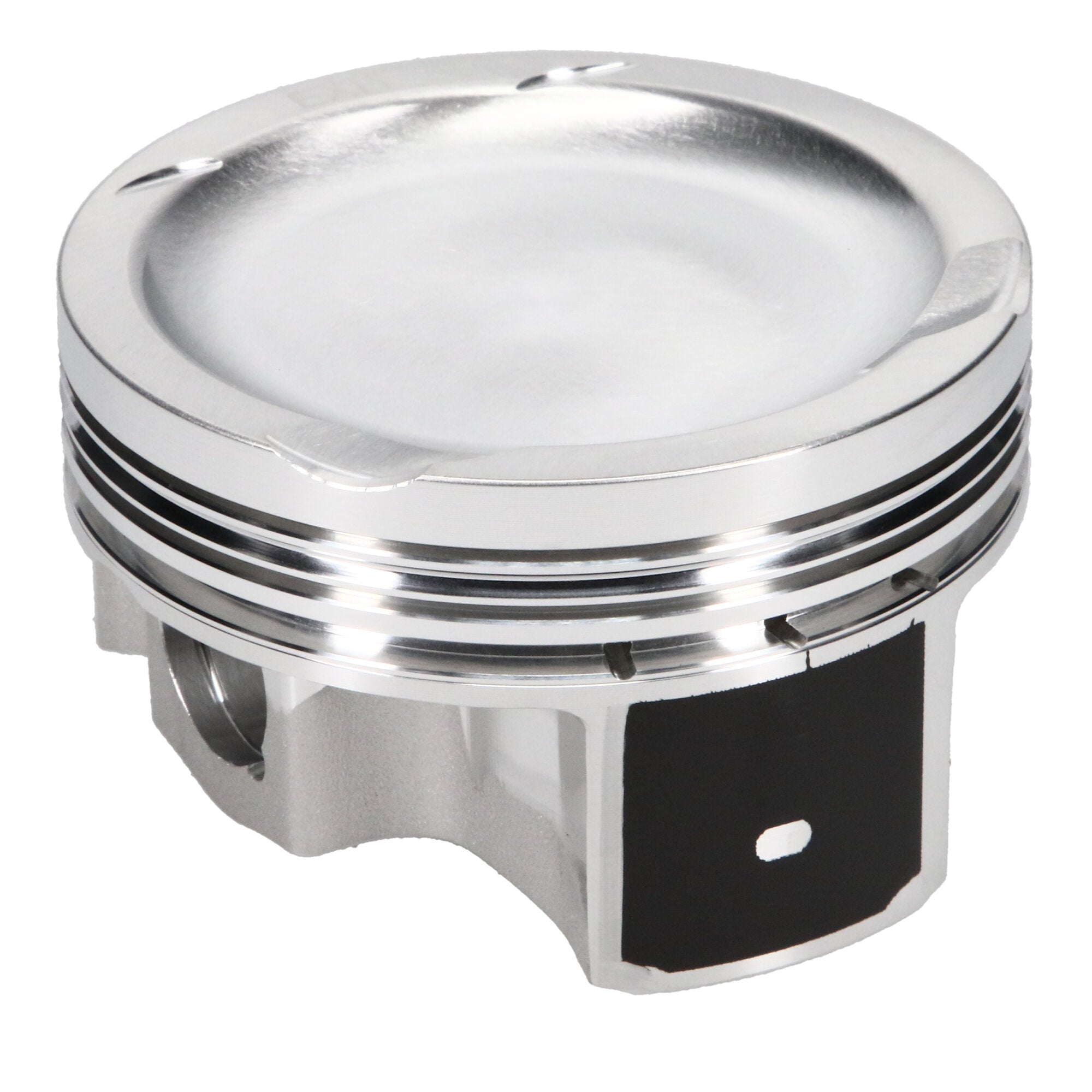

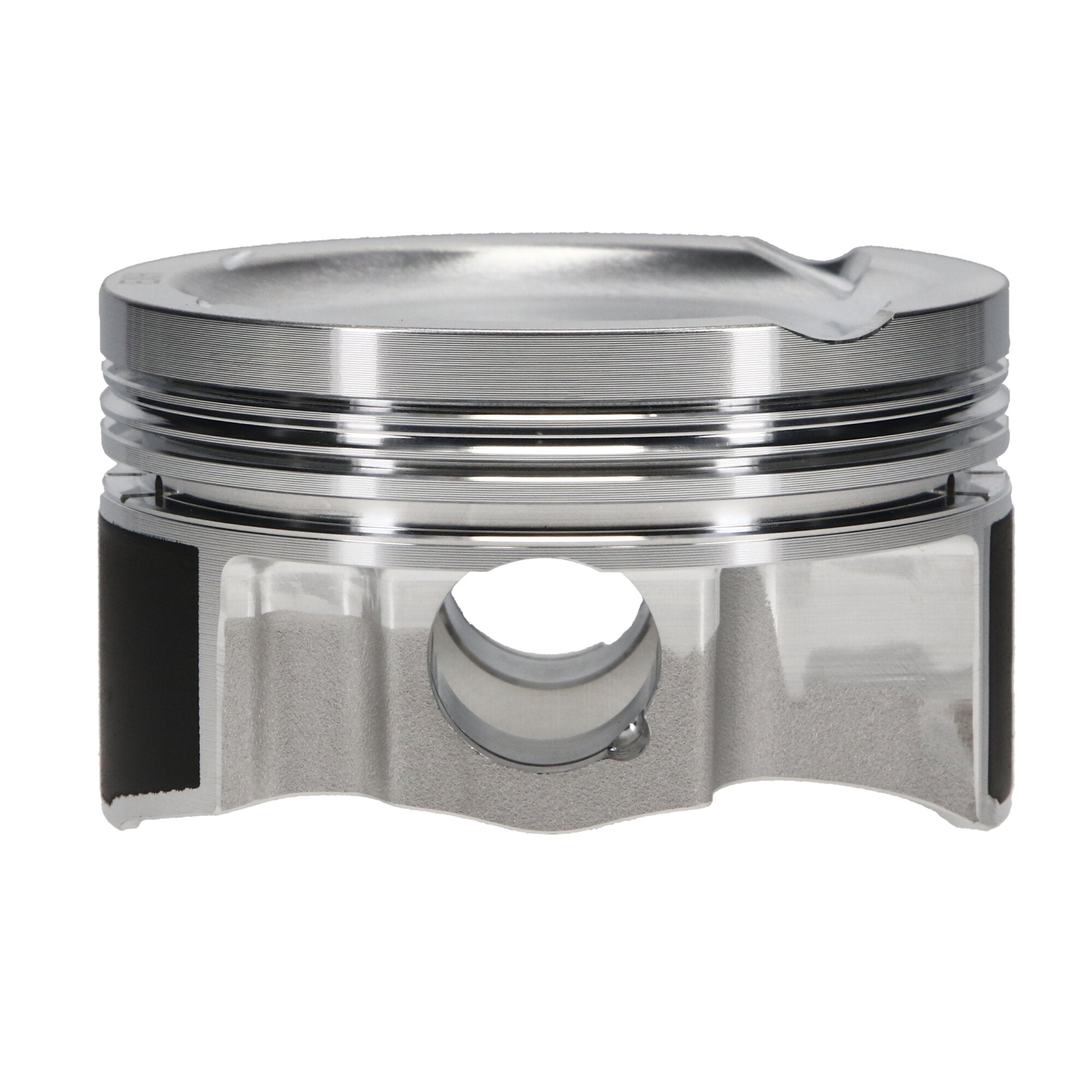

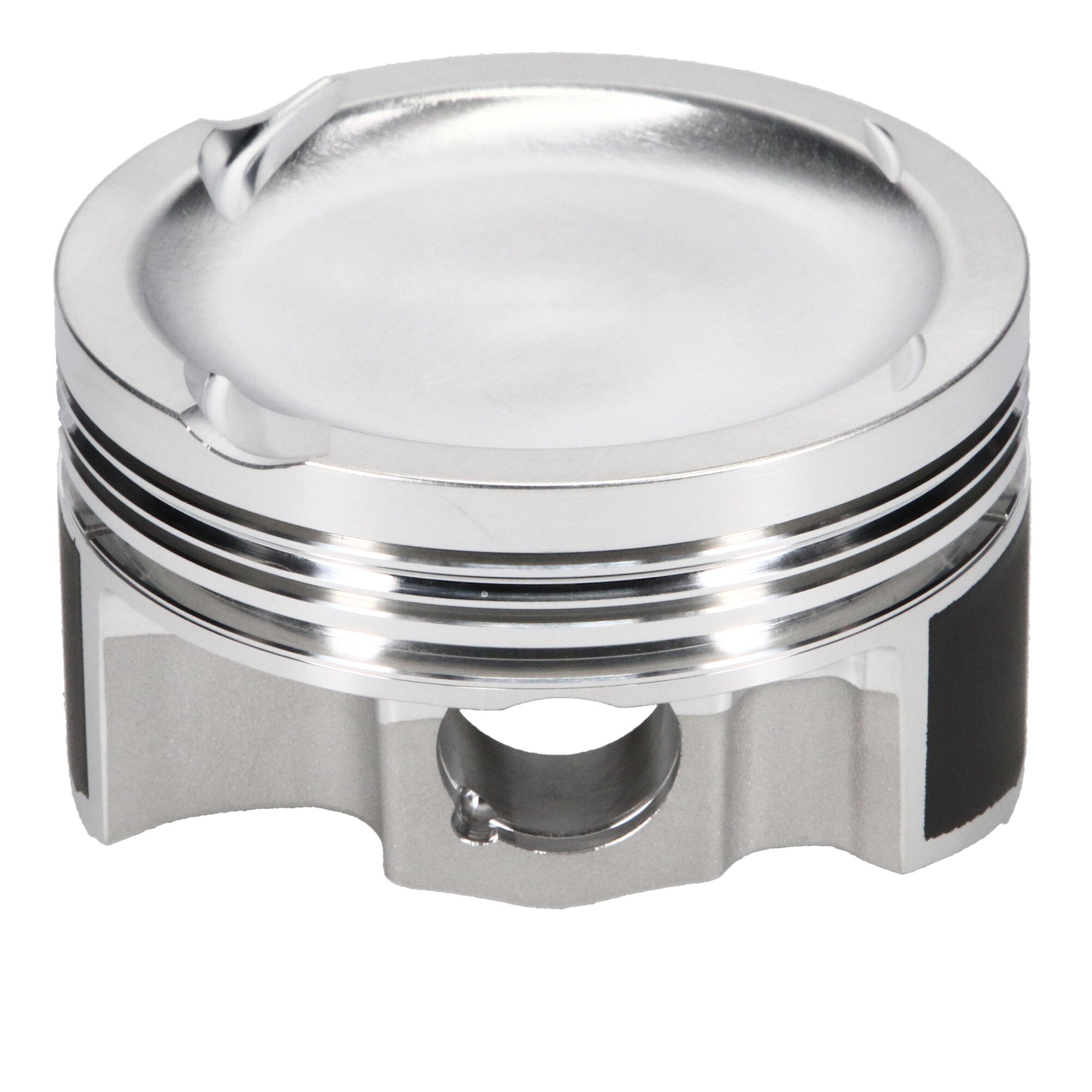

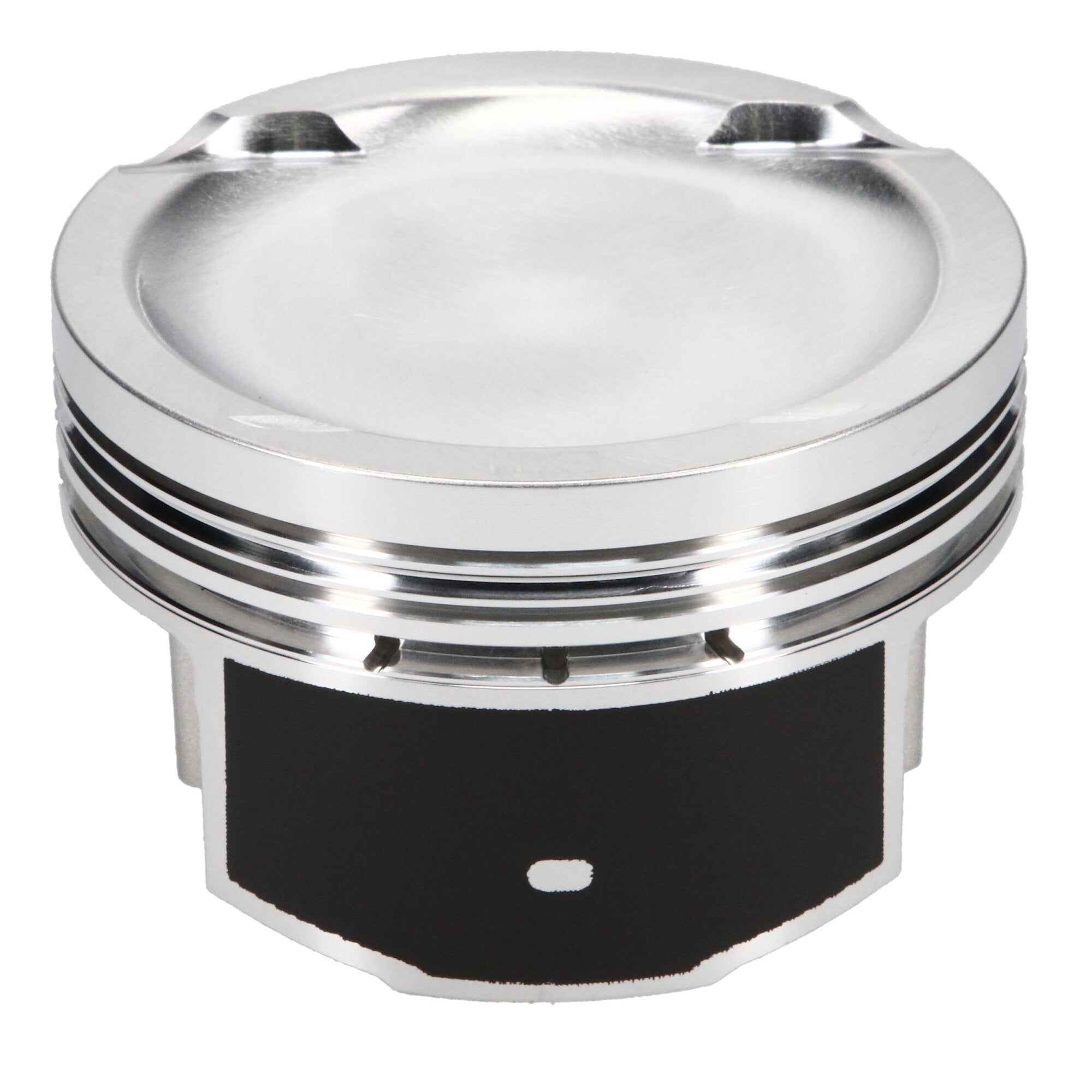

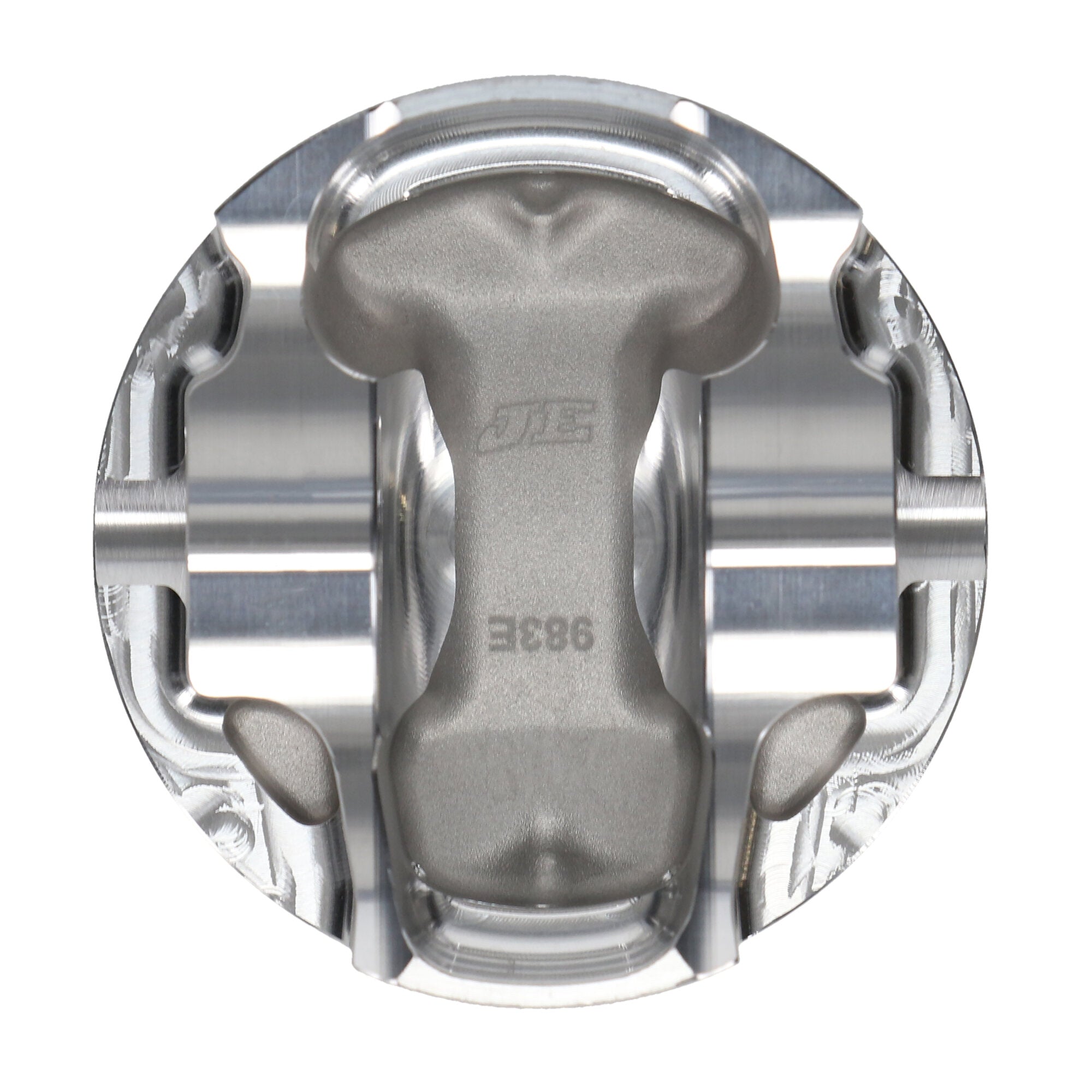

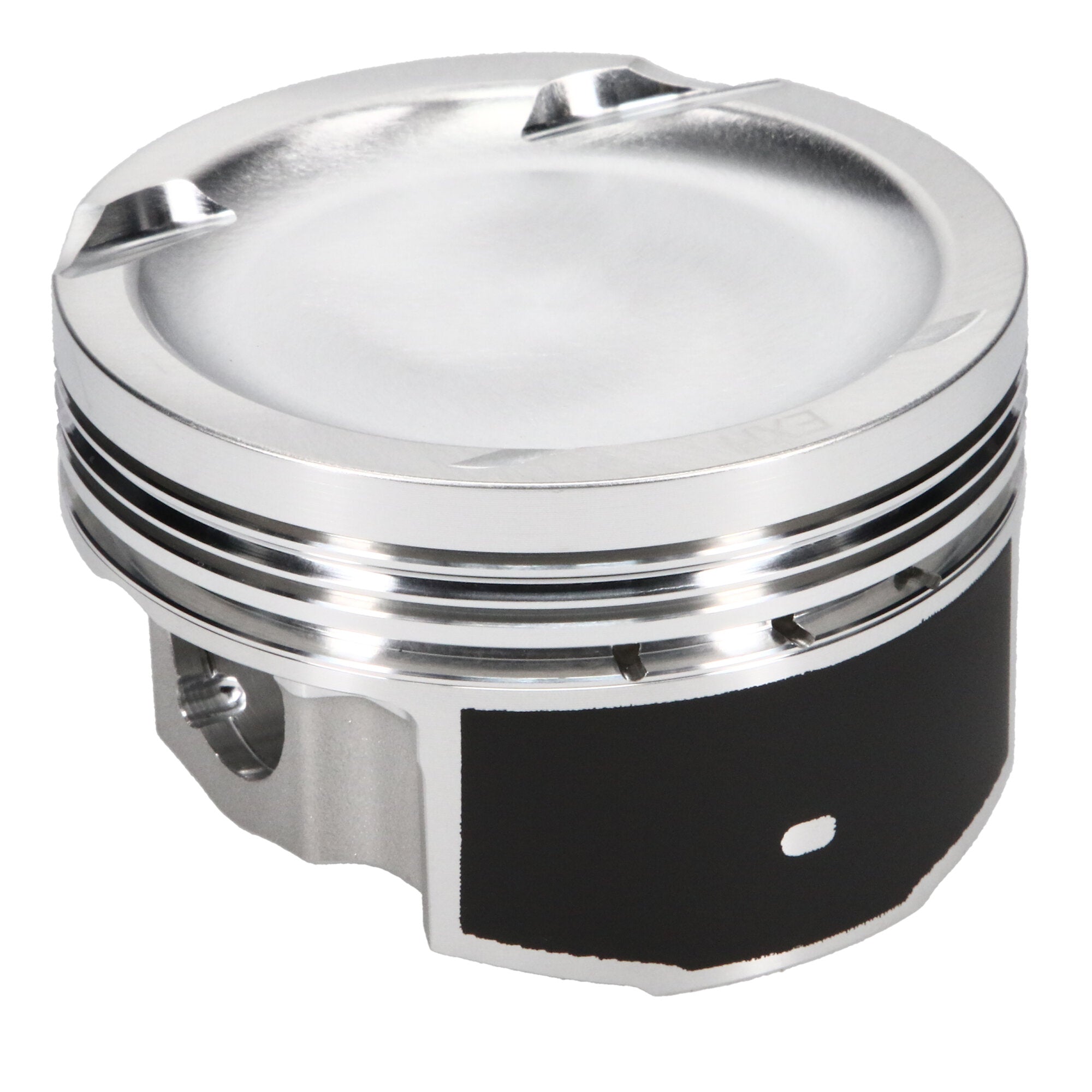

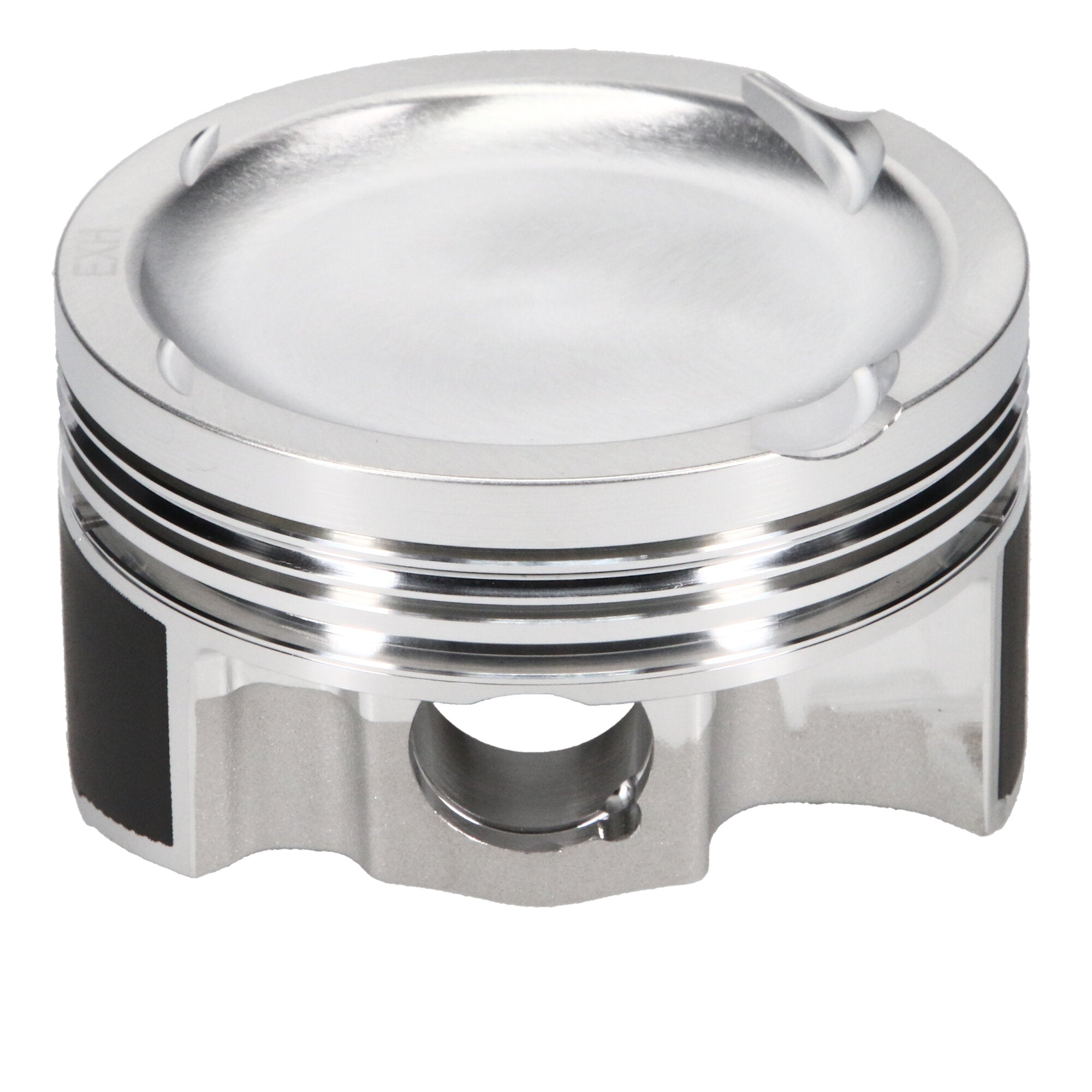

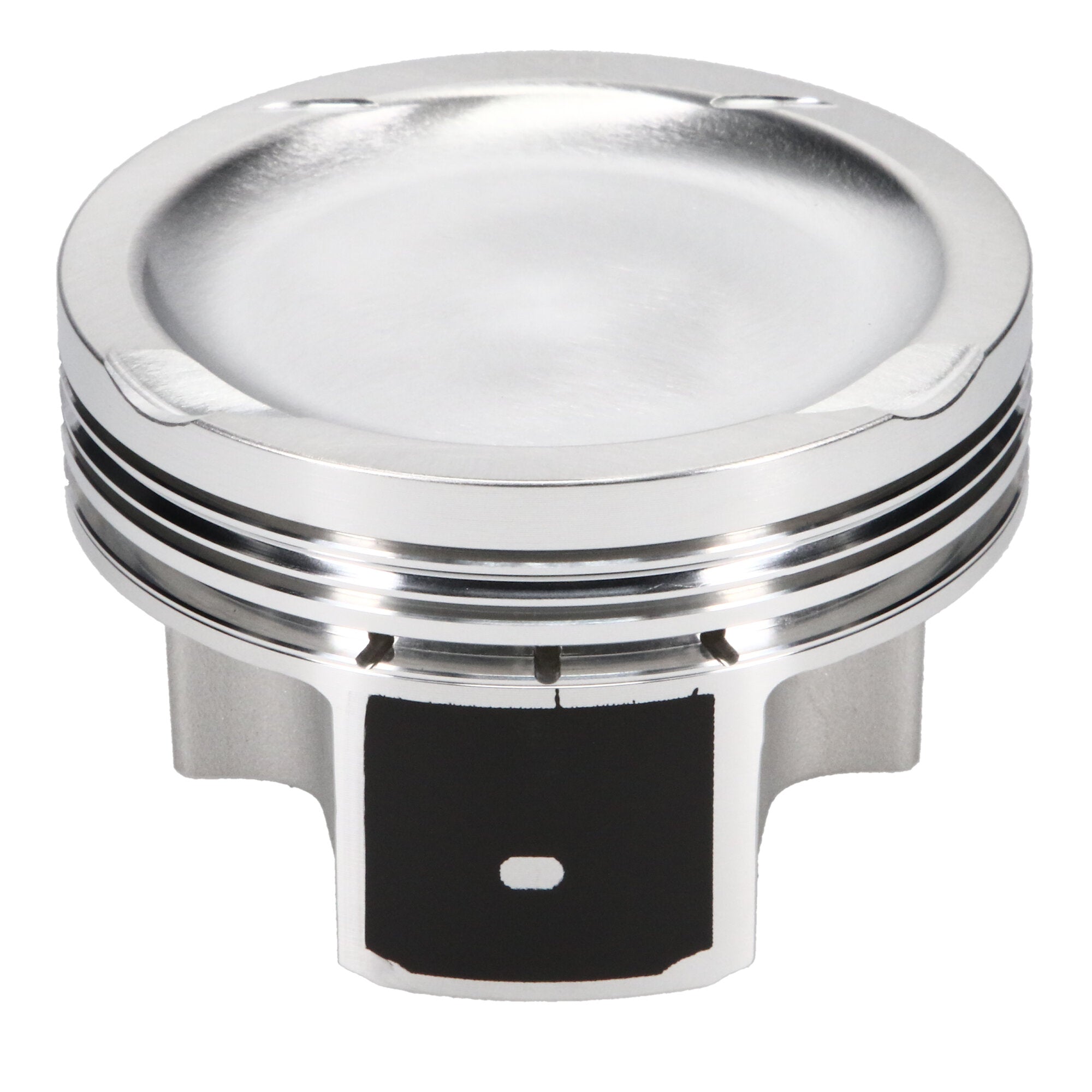

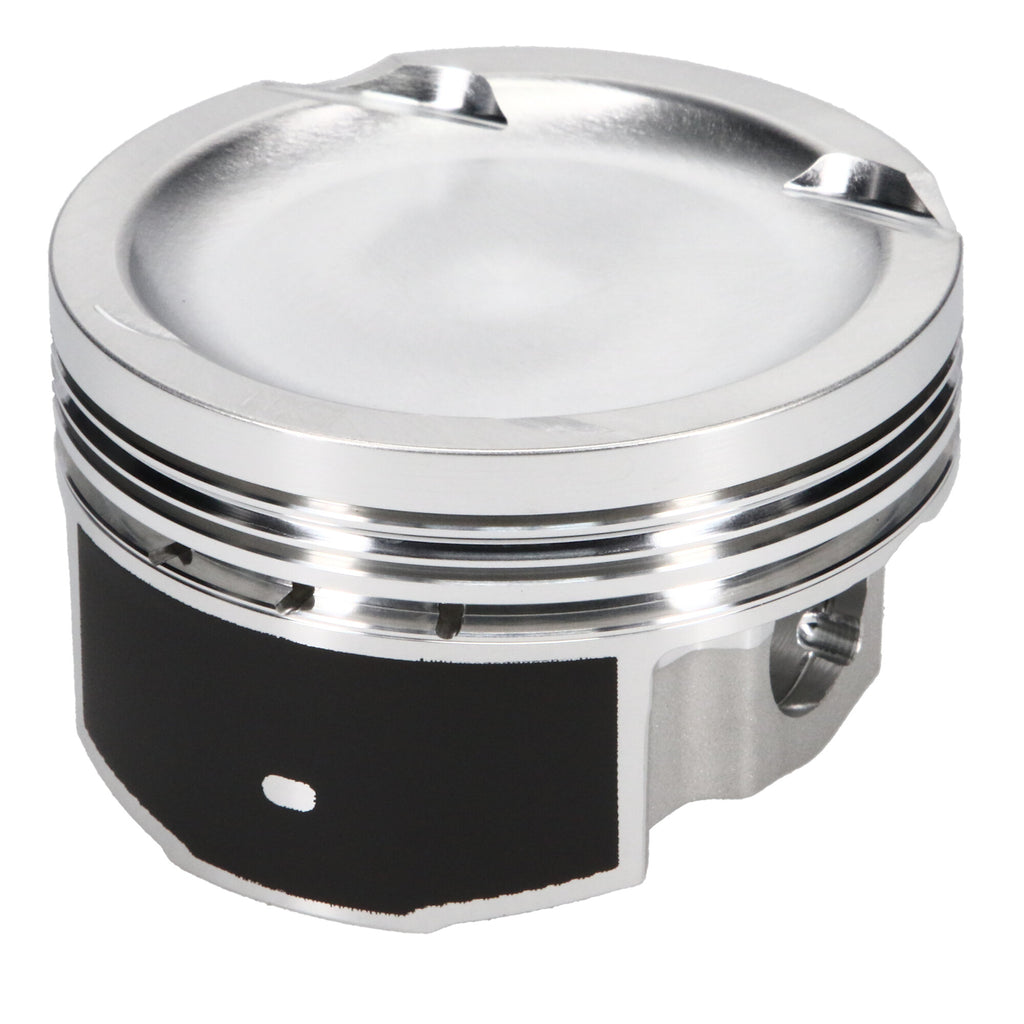

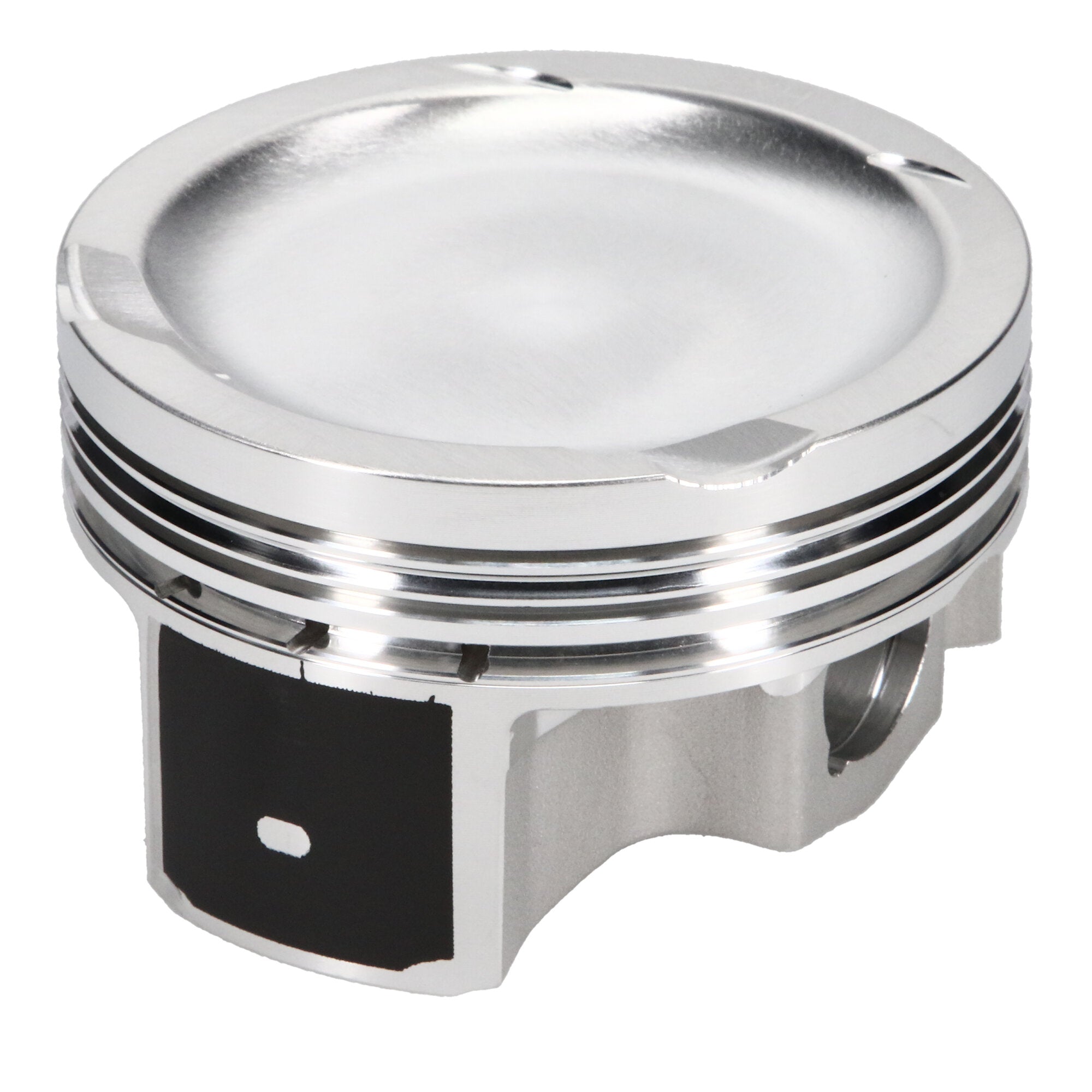

Piston Set, 2618, Inv Dome/Dish, 3.268 Bore, 1.165 CD, 0.787 Pin, Set of 4. |
| Description_EXT |
JE, VW, 2.0T FSI - 04-08 - 20mm Pin, 3.268 in. Bore, 9.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
Volkswagen 2.0L Turbo, 83.00 Bore, Dish, Set of 4 |
| Ring Set Included |
Yes |
| Product Market |
European |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Wrist Pin Length |
2.250 |
| Piston Average Weight |
282 |
| Top Compression Ring Thickness |
0.0400 |
| Piston Quantity |
4 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Volkswagen, 2.0T FSI, 83.00 mm Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.787 |
| Piston Volume |
-8.00 |
| Make - Web |
Volkswagen |
| Engine - Web |
2.0T FSI |
| Add-On |
787-2250-18-51C |
| Cylinder Head |
2.0 TFSI |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
787-050-MW |
| Bore Diameter |
83.00 |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Piston Pin Material |
5115 |
| Add-On |
JG1001-3268 |
| Title - Web |
JE Pistons Volkswagen 2.0T FSI Piston Kit - 83.00 mm Bore - 1.165 in. CH, -8.00 CC |
| Engine Detail |
2.0T FSI 04-08 20 mm Pin |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.180 |
| Forging Type |
FSR |
| Piston Series |
JE Pistons |
| Engine |
2.0T FSI 04-08 20 mm Pin |
| Piston Head Type |
Dish |
| Piston Pin Length |
2.250 |
| Compression Height |
1.165 |
| Make |
VOLKSWAGEN |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.787 |
| Wrist Pin Wall Thickness |
0.180 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
