As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0T FSI 04-08 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

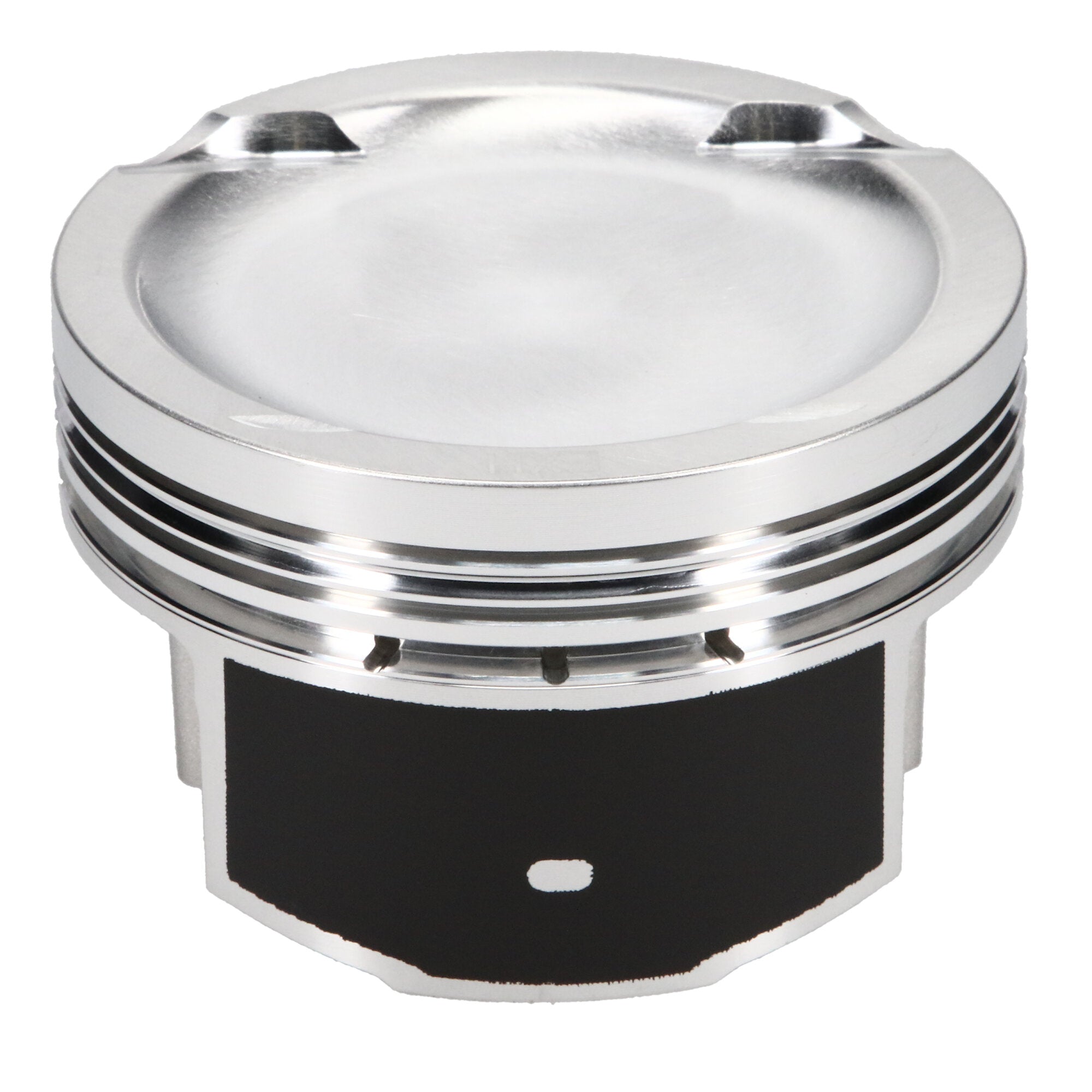

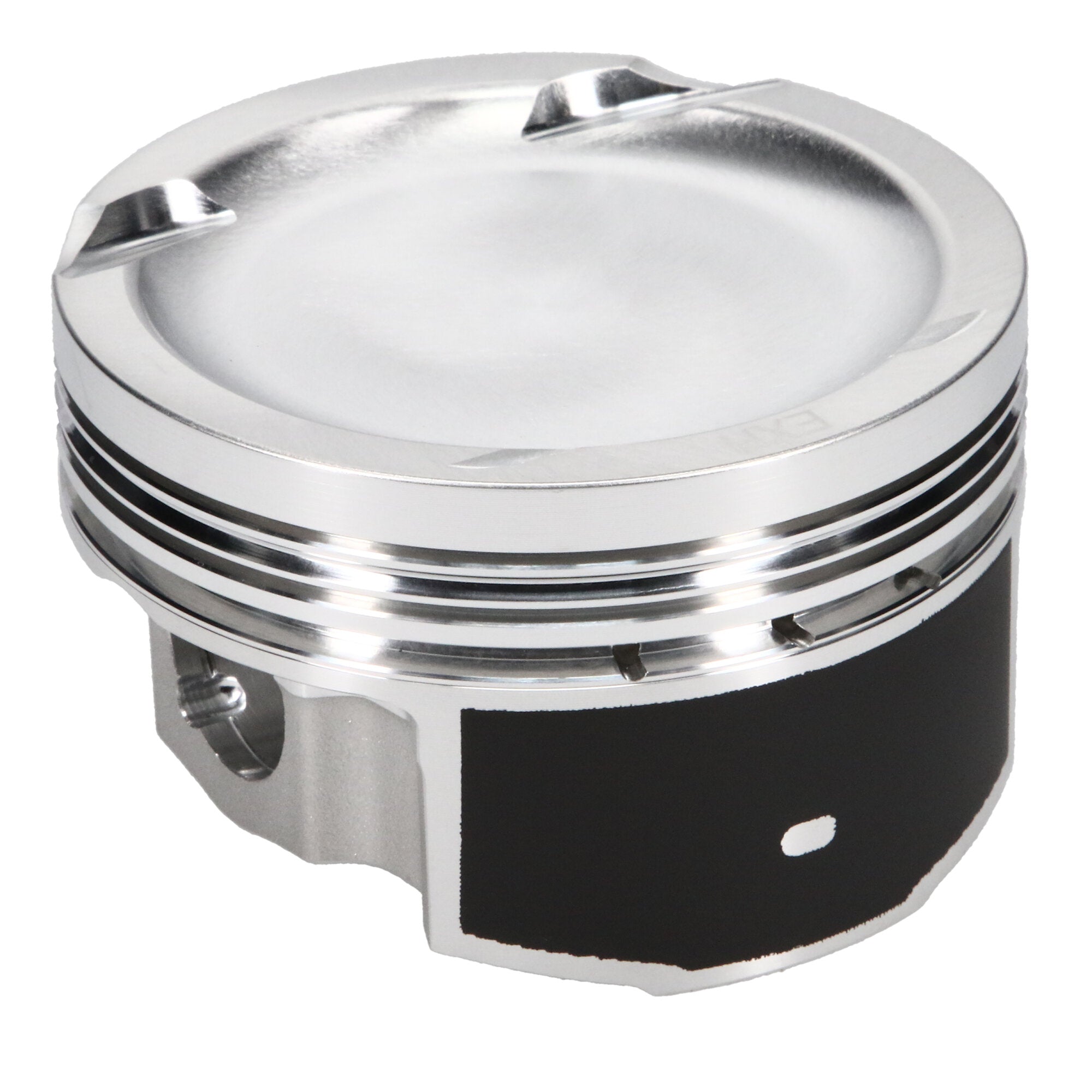

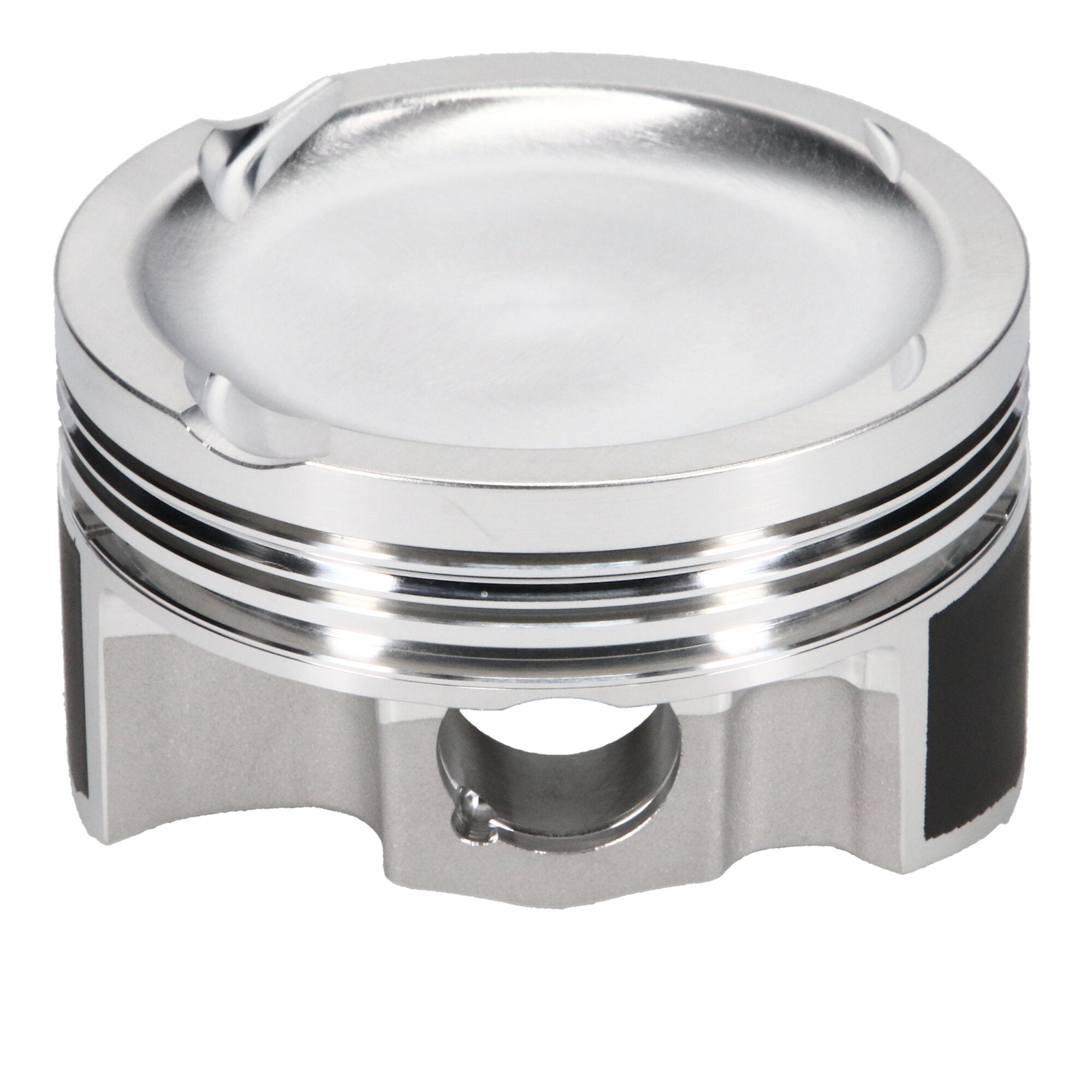

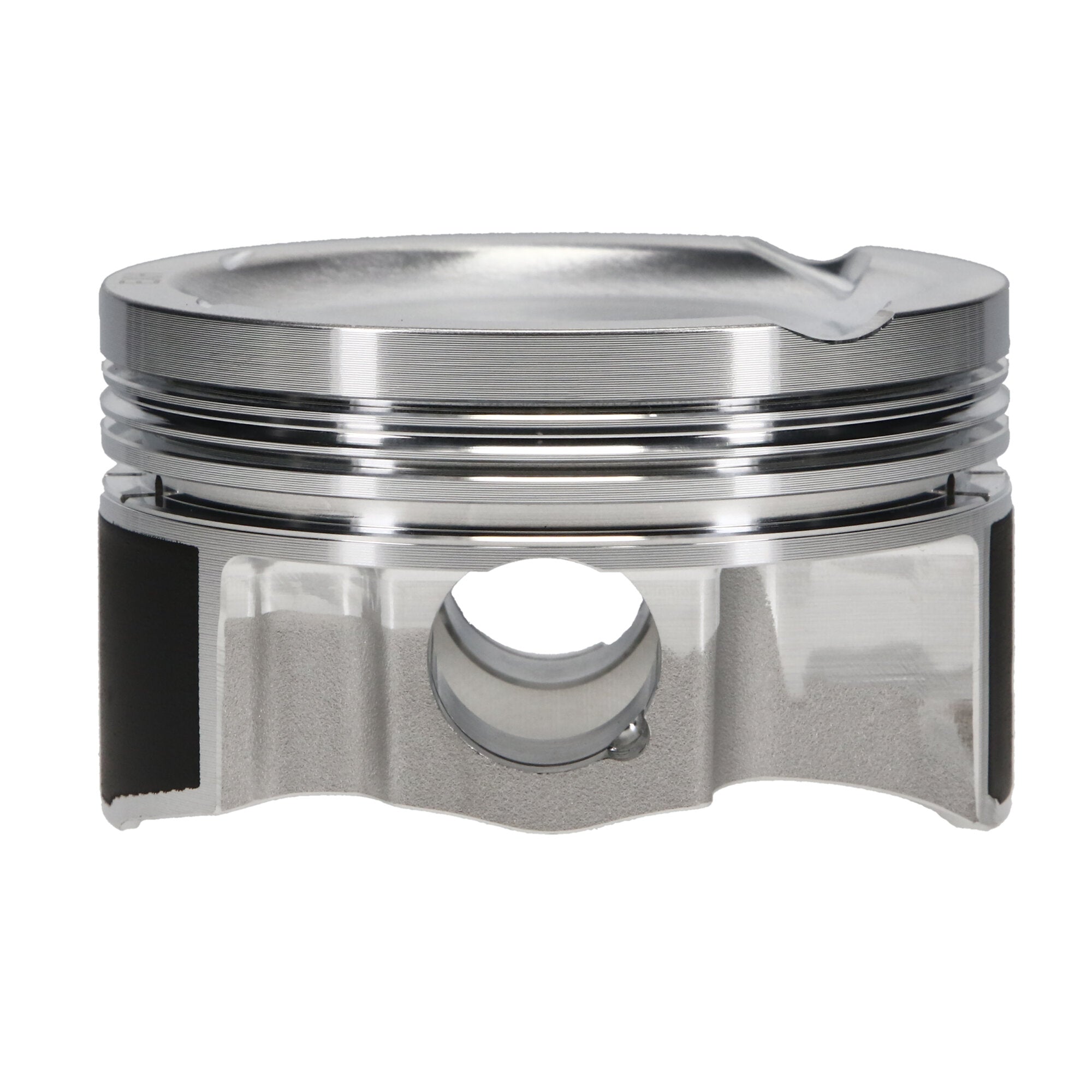

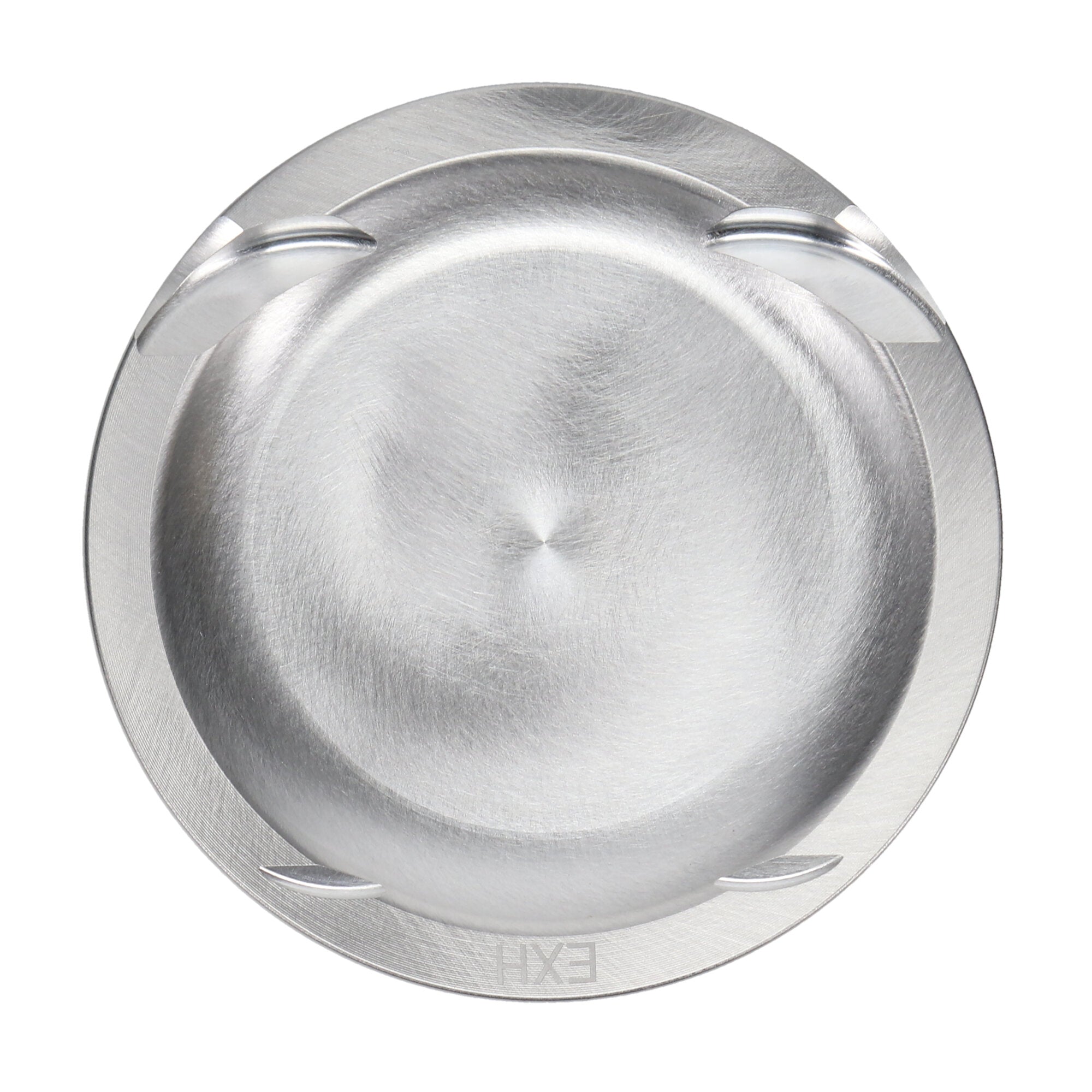

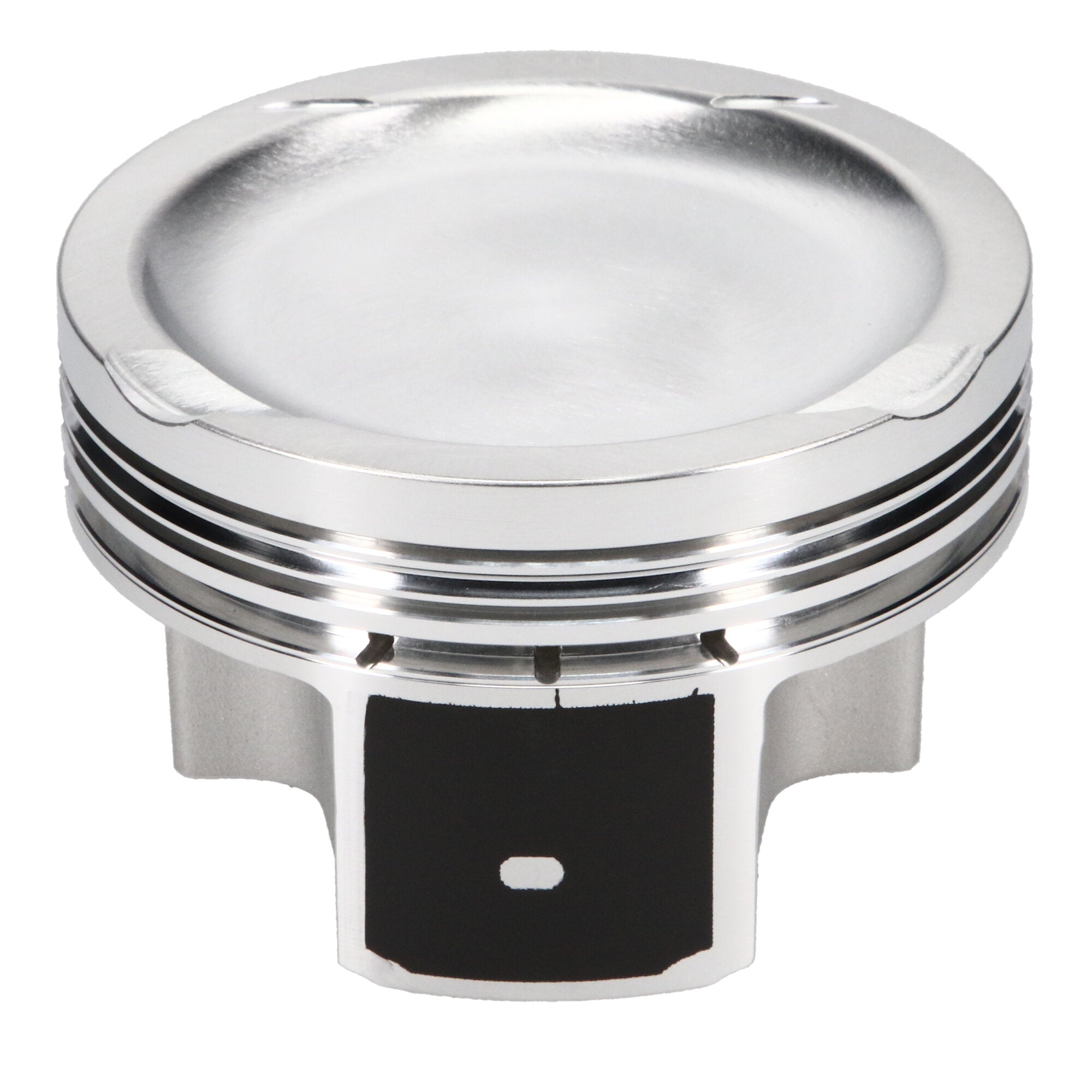

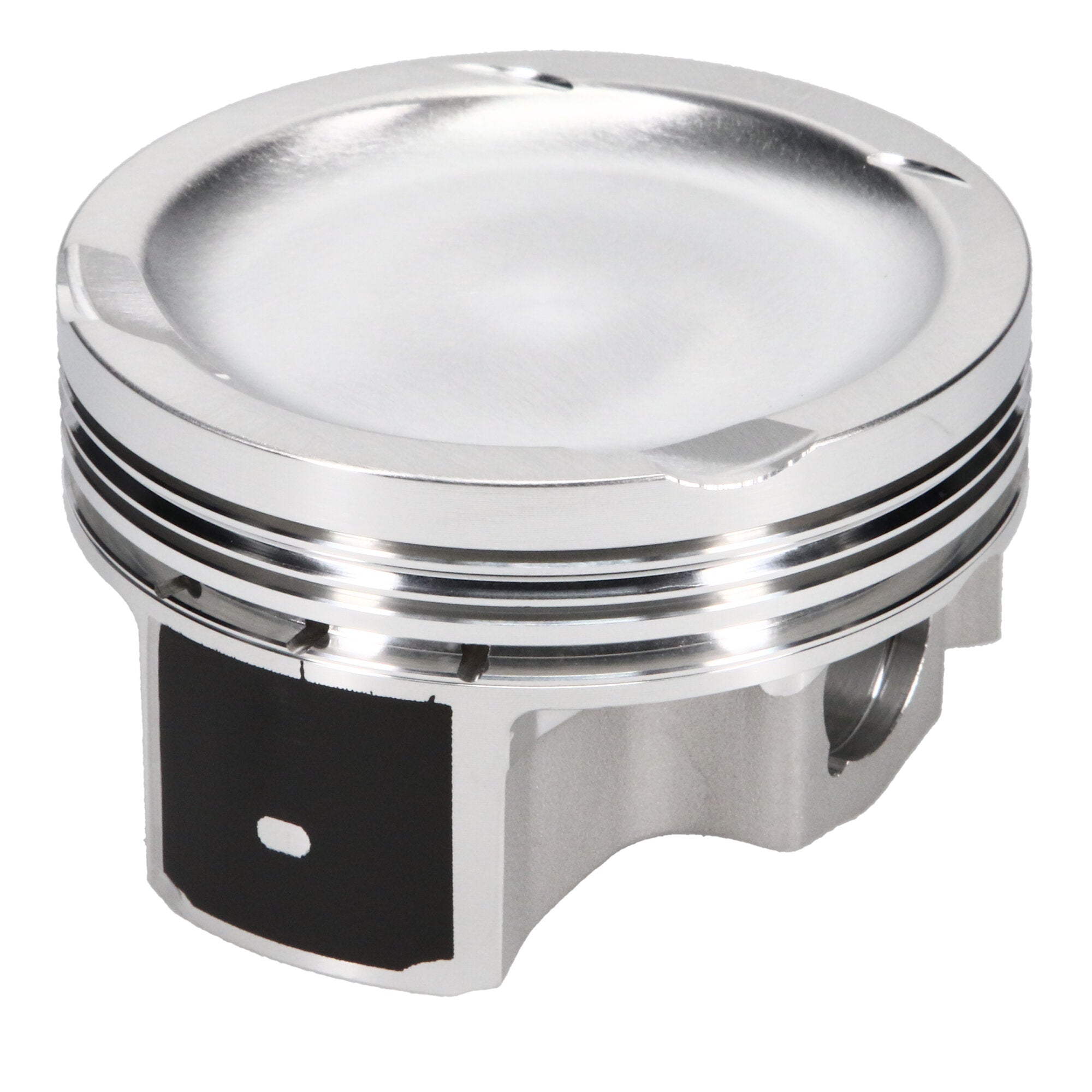

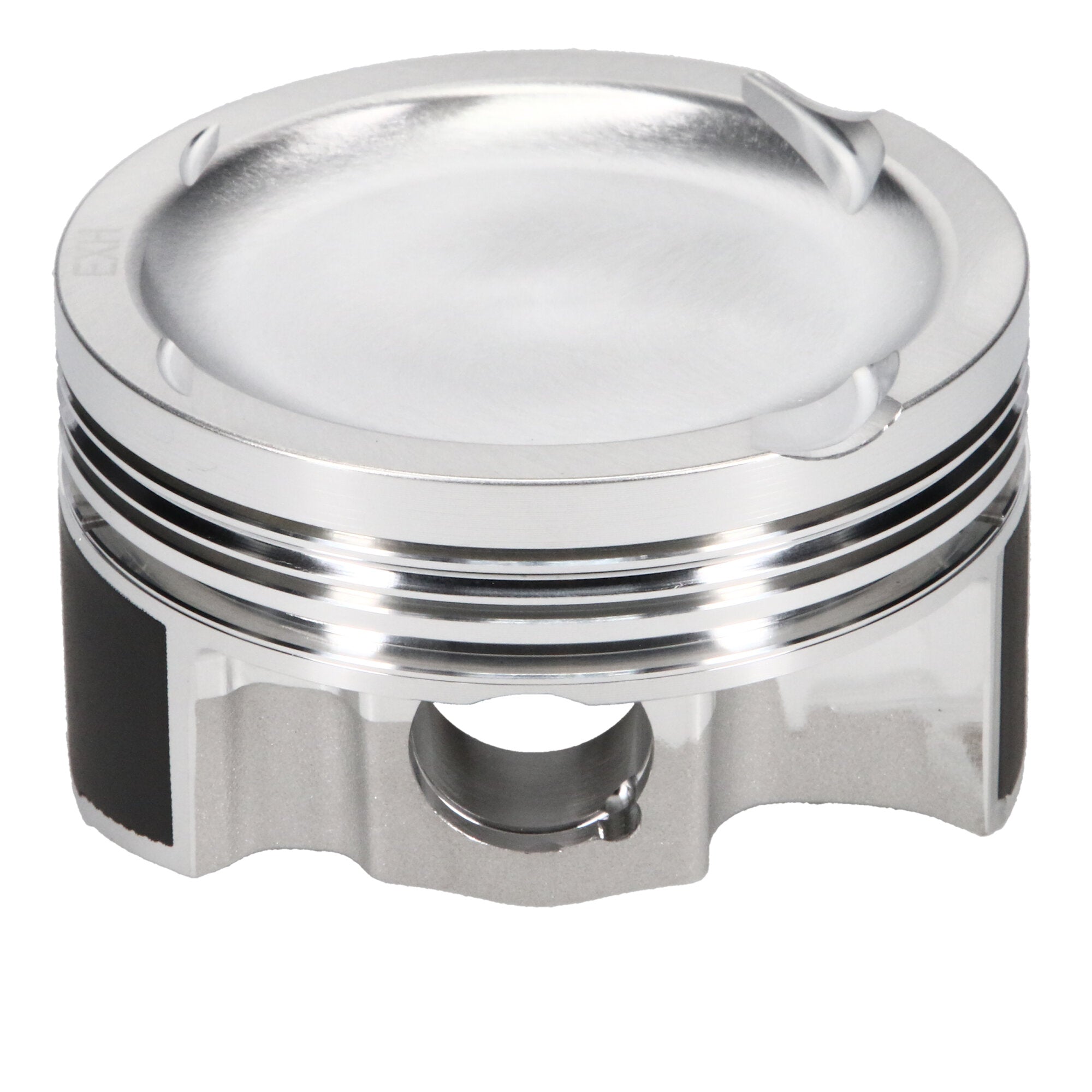

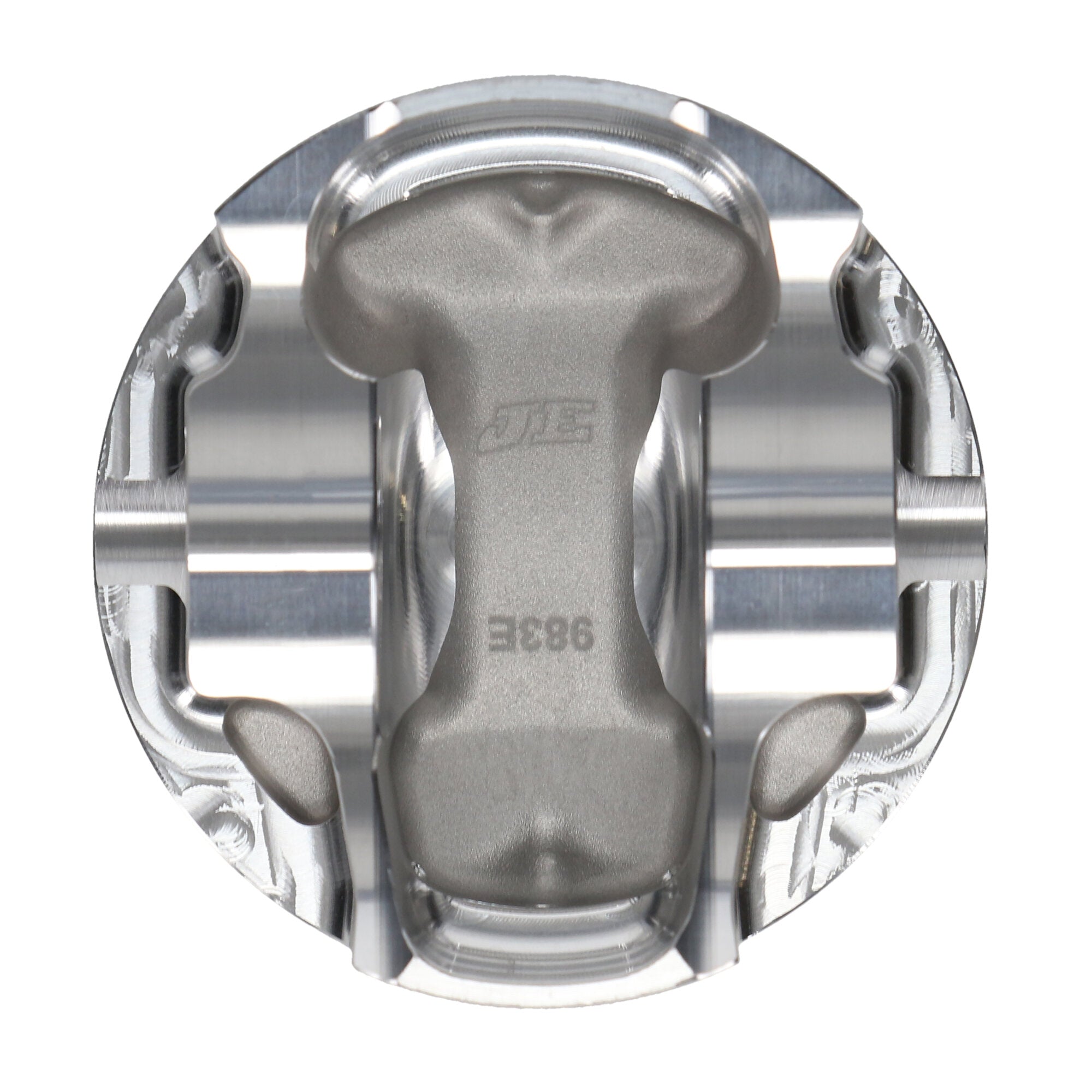

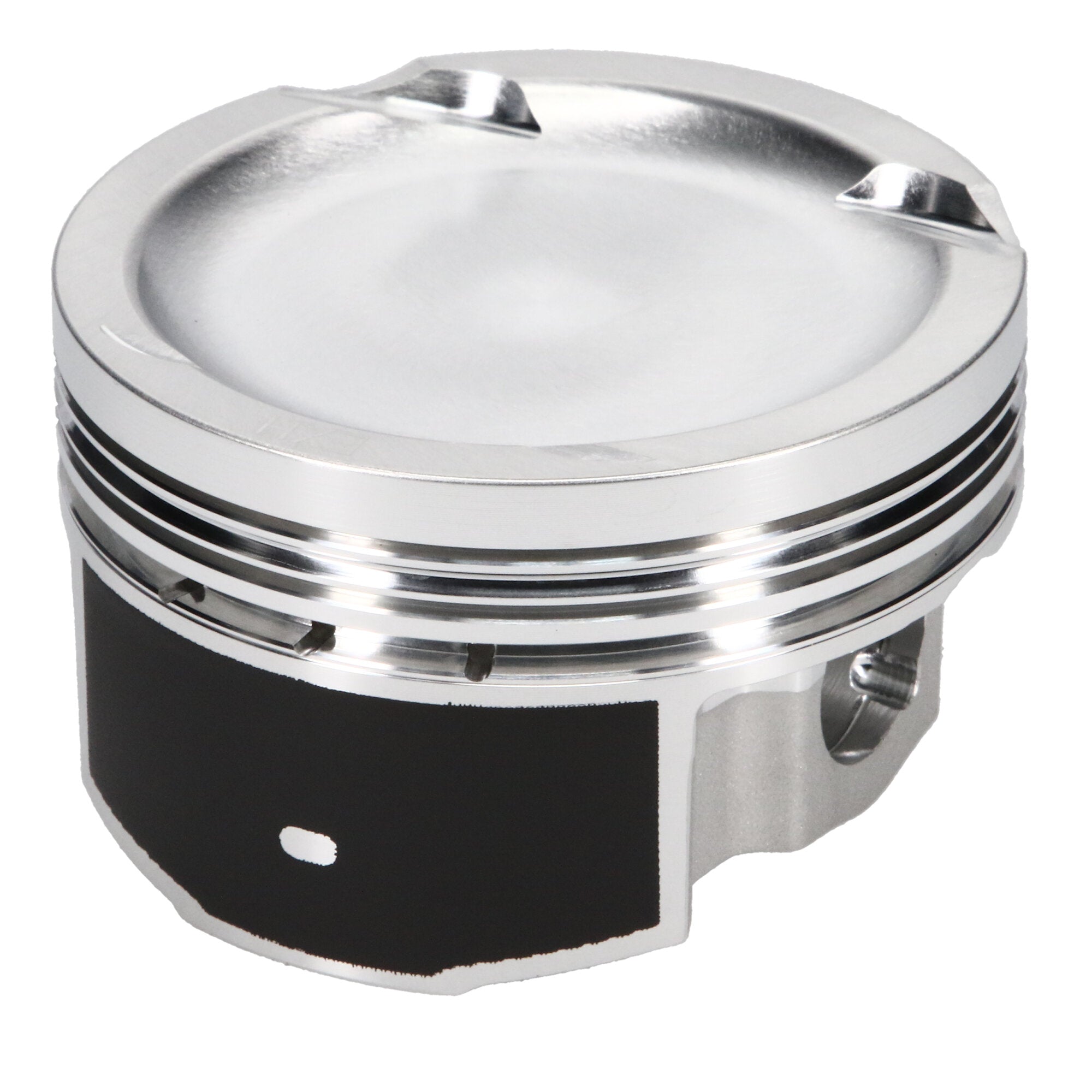

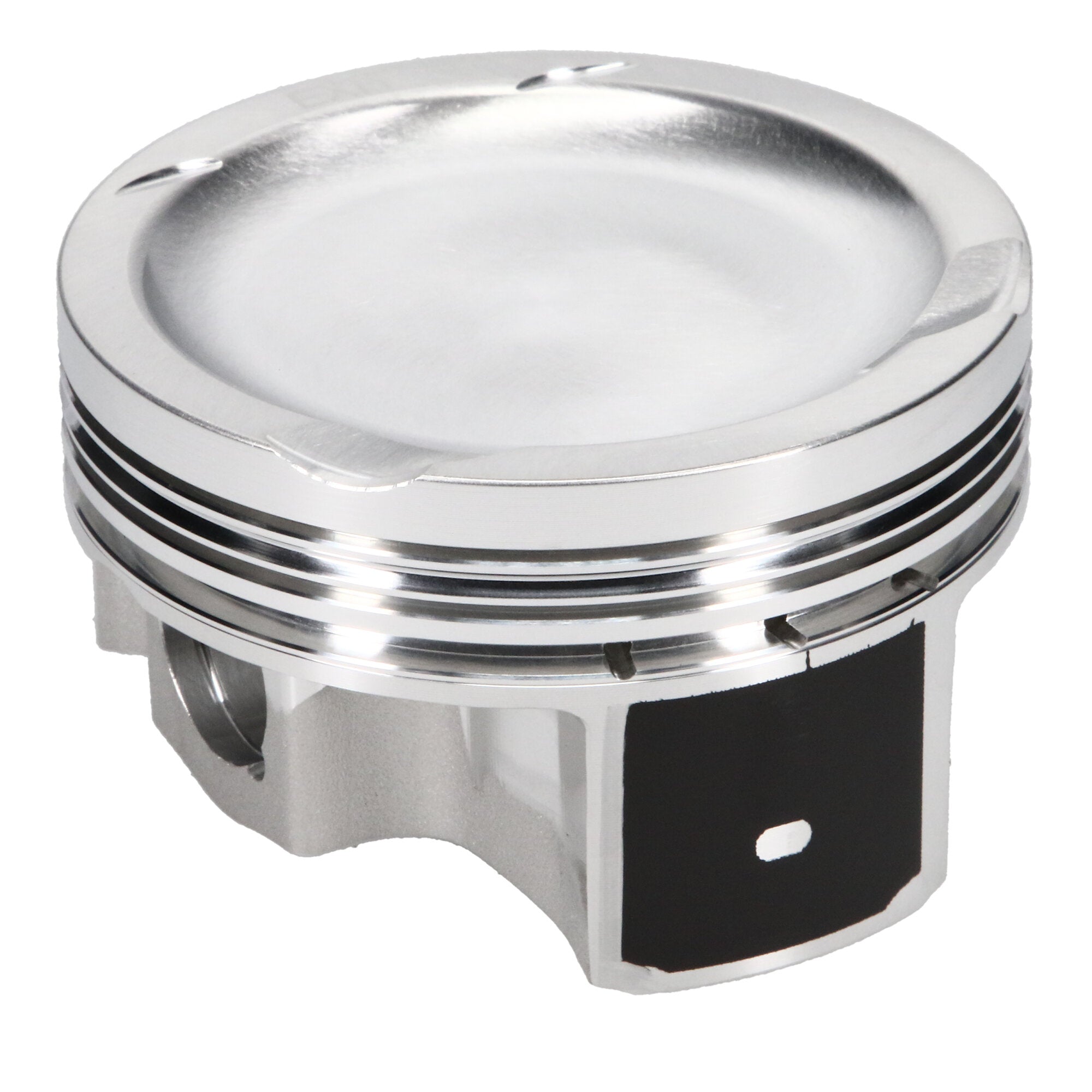

Piston Set, 2618, Flat Top, 3.248 Bore, 1.165 CD, 0.787 Pin, Set of 4. |
| Description_EXT |
JE, VW, 2.0T FSI - 04-08 - 20mm Pin, 3.248 in. Bore, 16.50:1, Flat Top, 4 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 2.0L Turbo, 82.50 Bore, Flat, Set of 4 |
| Make - Web |
Volkswagen |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.250 |
| Piston Material |
2618 |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Length |
2.250 |
| Add-On |
787-2250-18-51C |
| Cylinder Head |
2.0 TFSI |
| Piston Volume |
-1.30 |
| Add-On |
787-050-MW |
| Industry |
Automotive |
| Add-On |
JG1001-3250 |
| Prop 65 Yes/No |
Yes |
| Ring Set Included |
Yes |
| Piston Head Type |
Flat |
| Engine |
2.0T FSI 04-08 20 mm Pin |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Pin Wall Thickness |
0.180 |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Volkswagen 2.0T FSI Piston Kit - 82.50 mm Bore - 1.165 in. CH, -1.30 CC |
| Out of Stock Message |
Call for Availability |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine Detail |
2.0T FSI 04-08 20 mm Pin |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Top Compression Ring Thickness |
0.0400 |
| Bore Diameter |
82.50 |
| Forging Type |
FSR |
| Ringset Included |
Yes |
| Compression Height |
1.165 |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Volkswagen, 2.0T FSI, 82.50 mm Bore, Piston Kit |
| Make |
VOLKSWAGEN |
| Piston Pin Outside Diameter |
0.787 |
| Product Market |
European |
| Piston Quantity |
4 |
| Piston Average Weight |
285 |
| Oil Ring Thickness |
0.111 |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.787 |
| Engine - Web |
2.0T FSI |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
