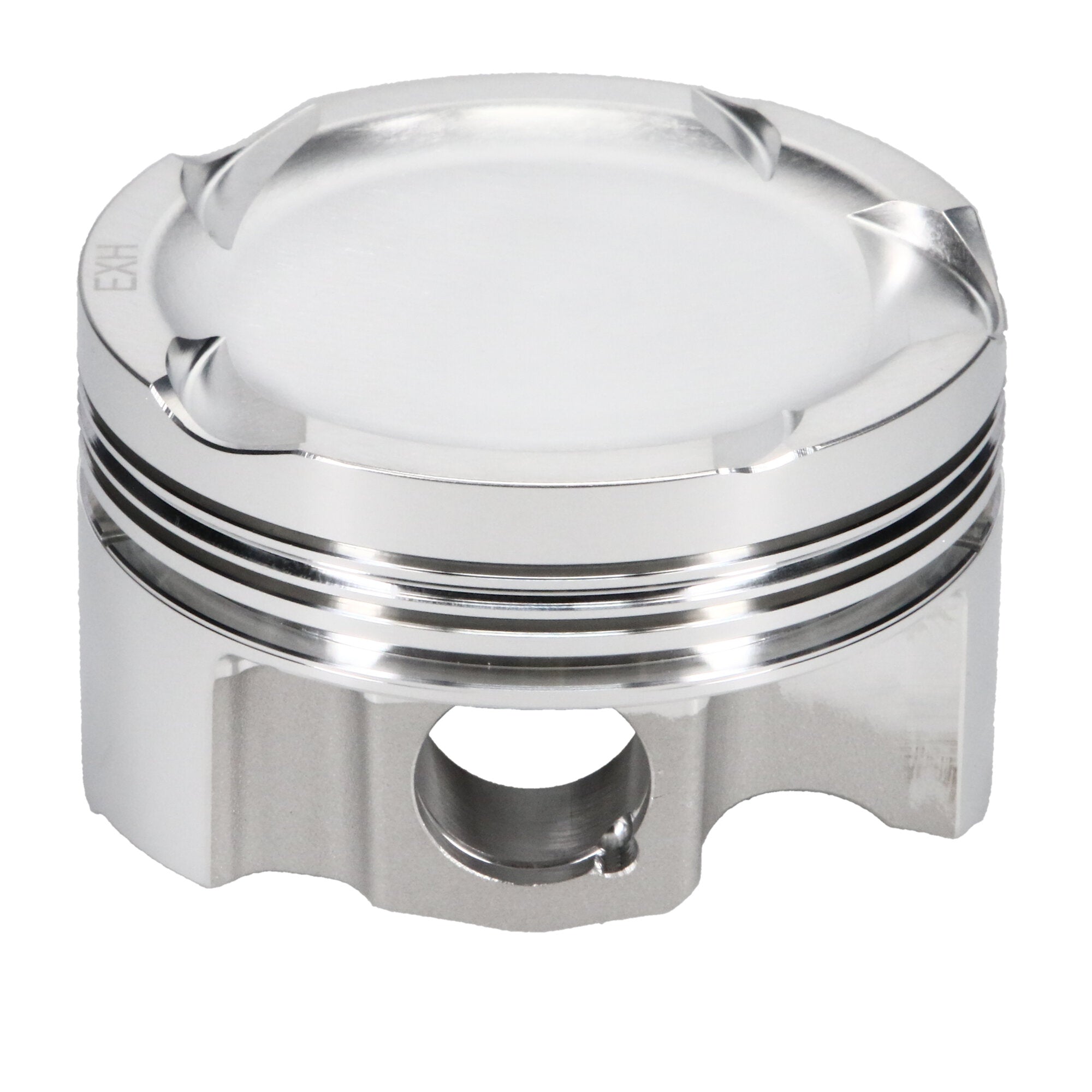

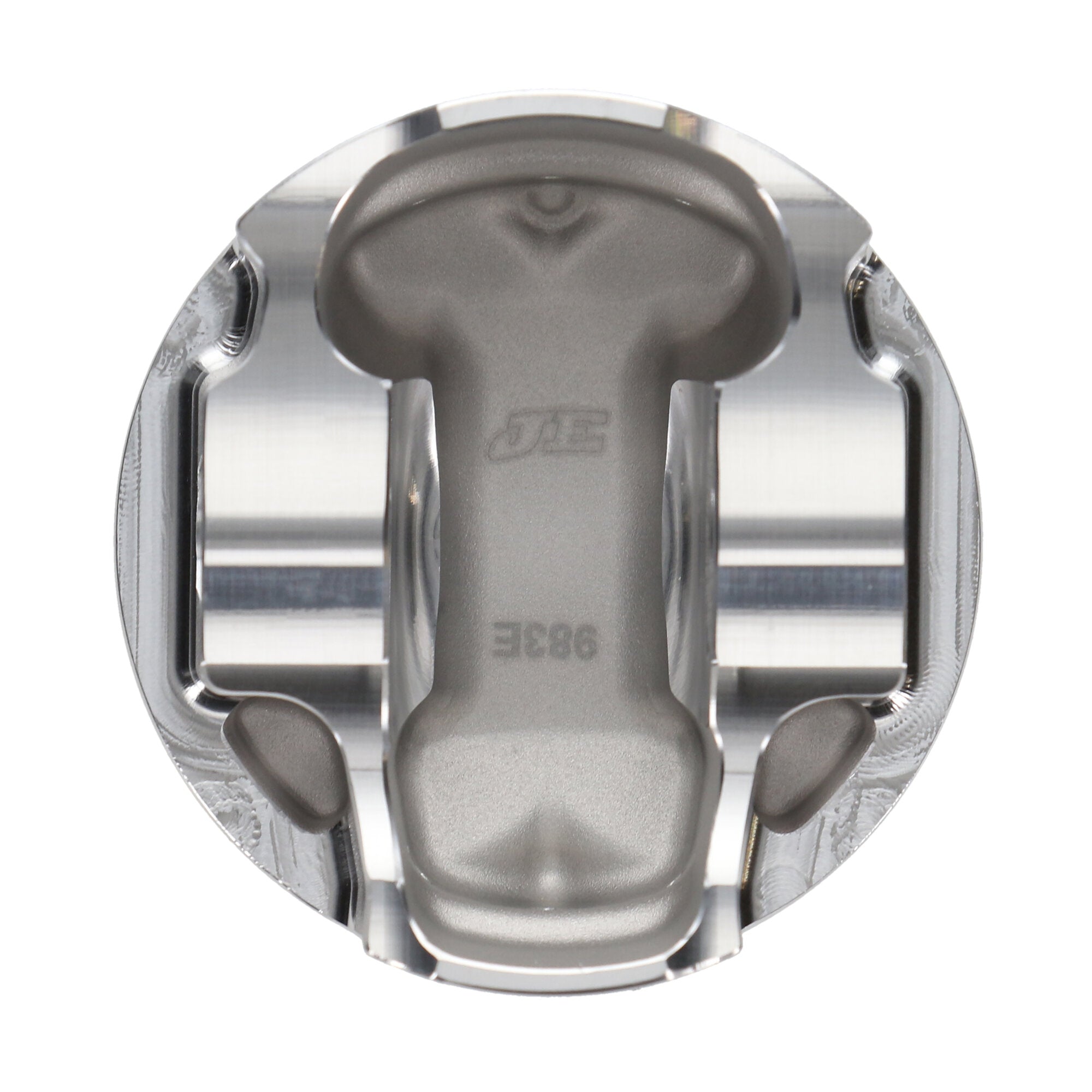

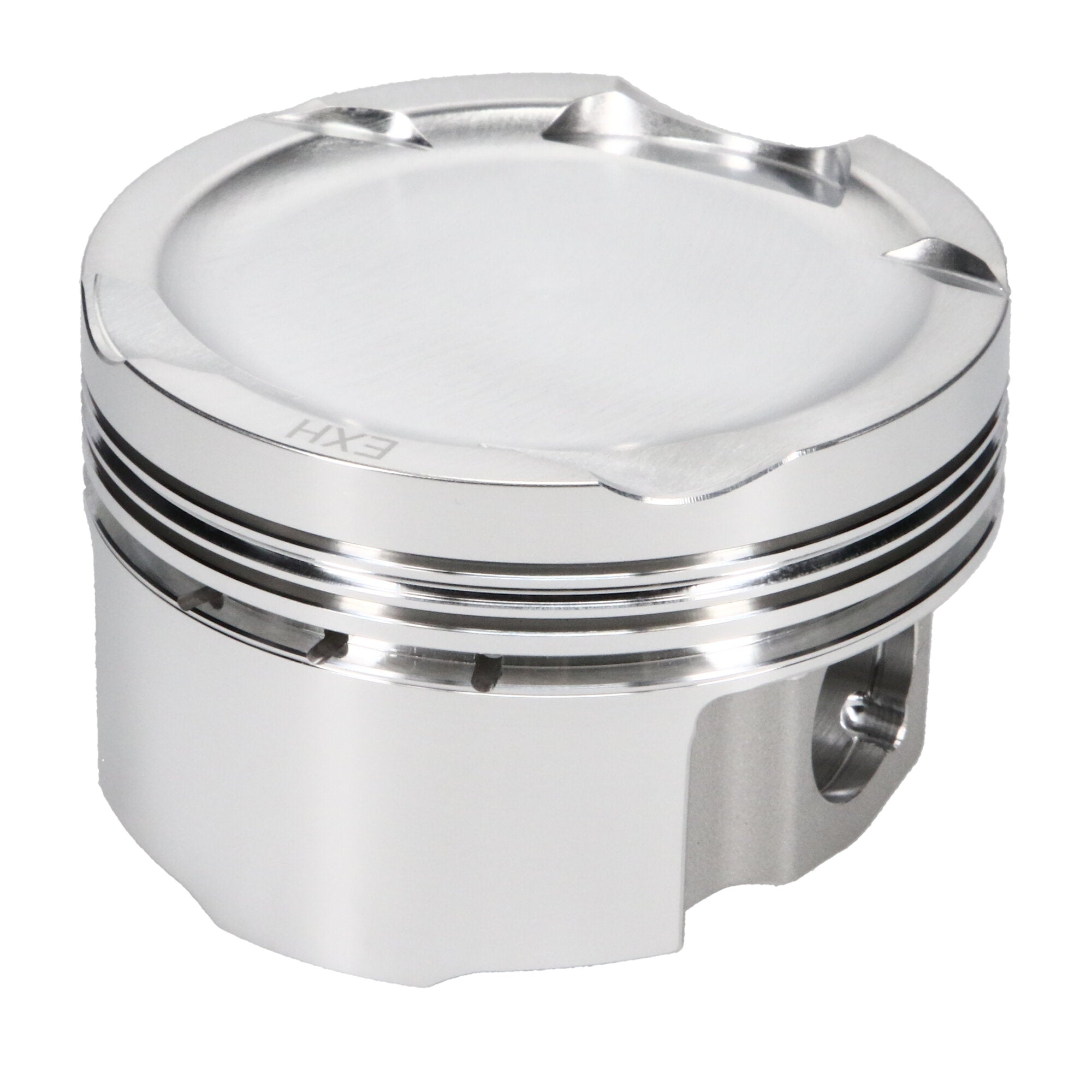

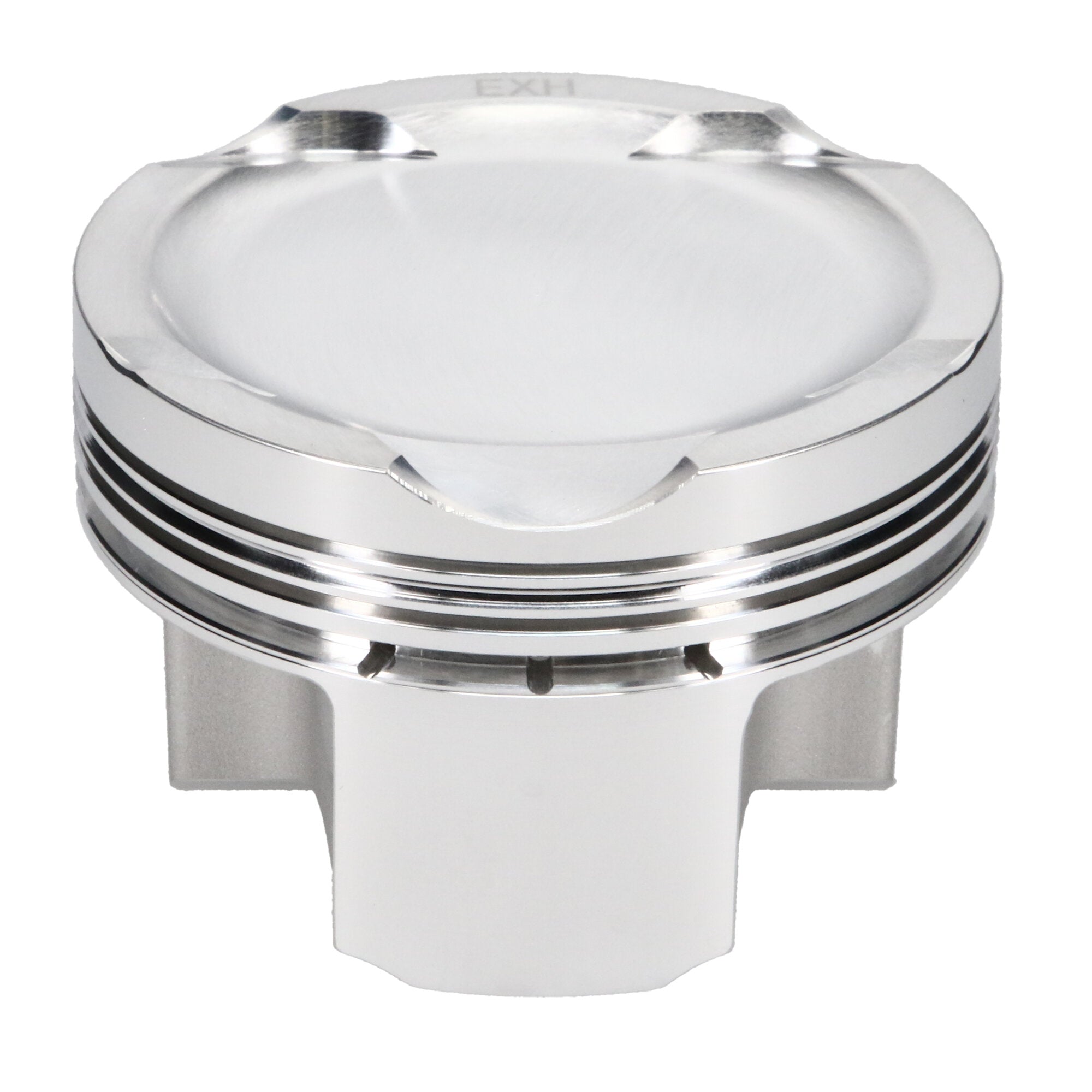

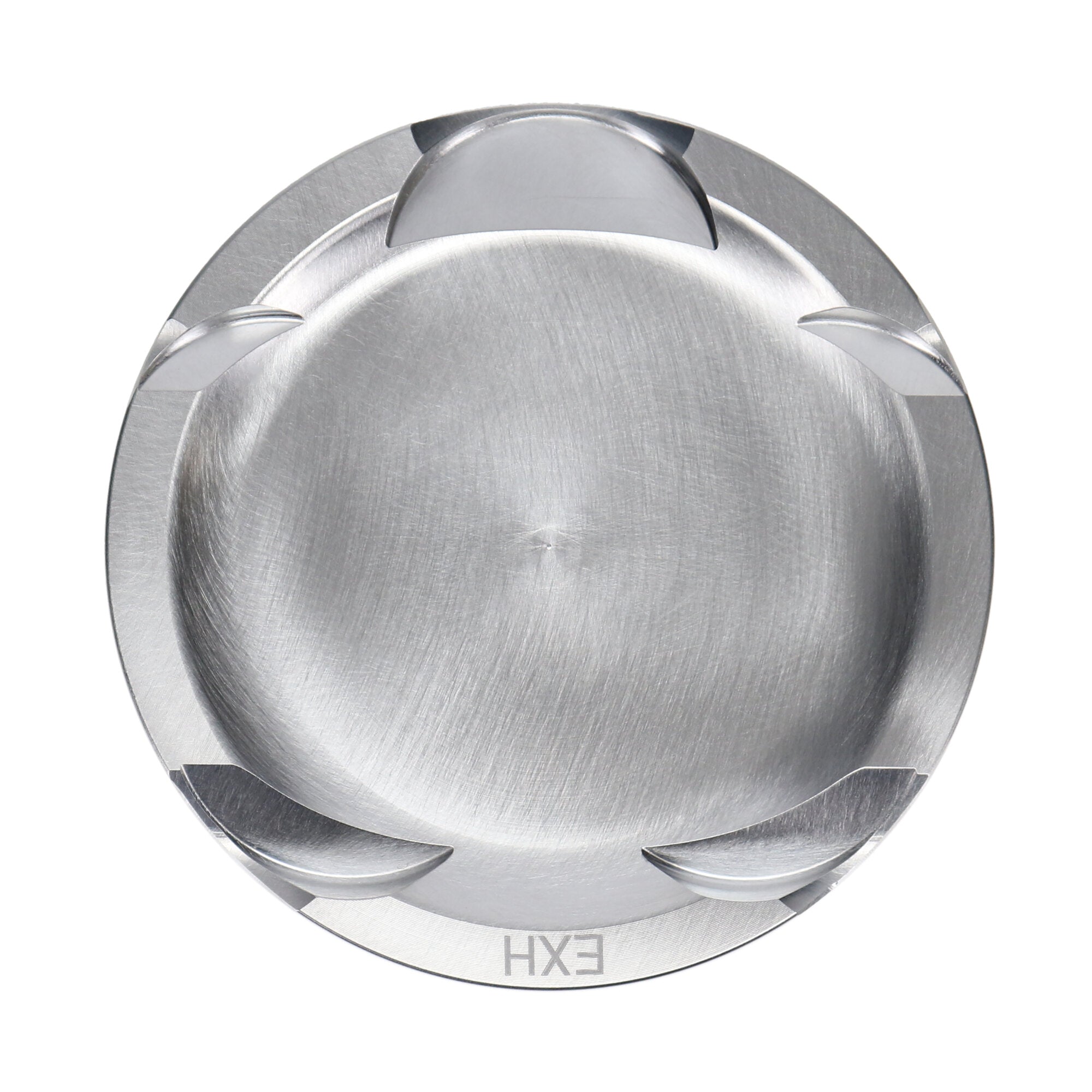

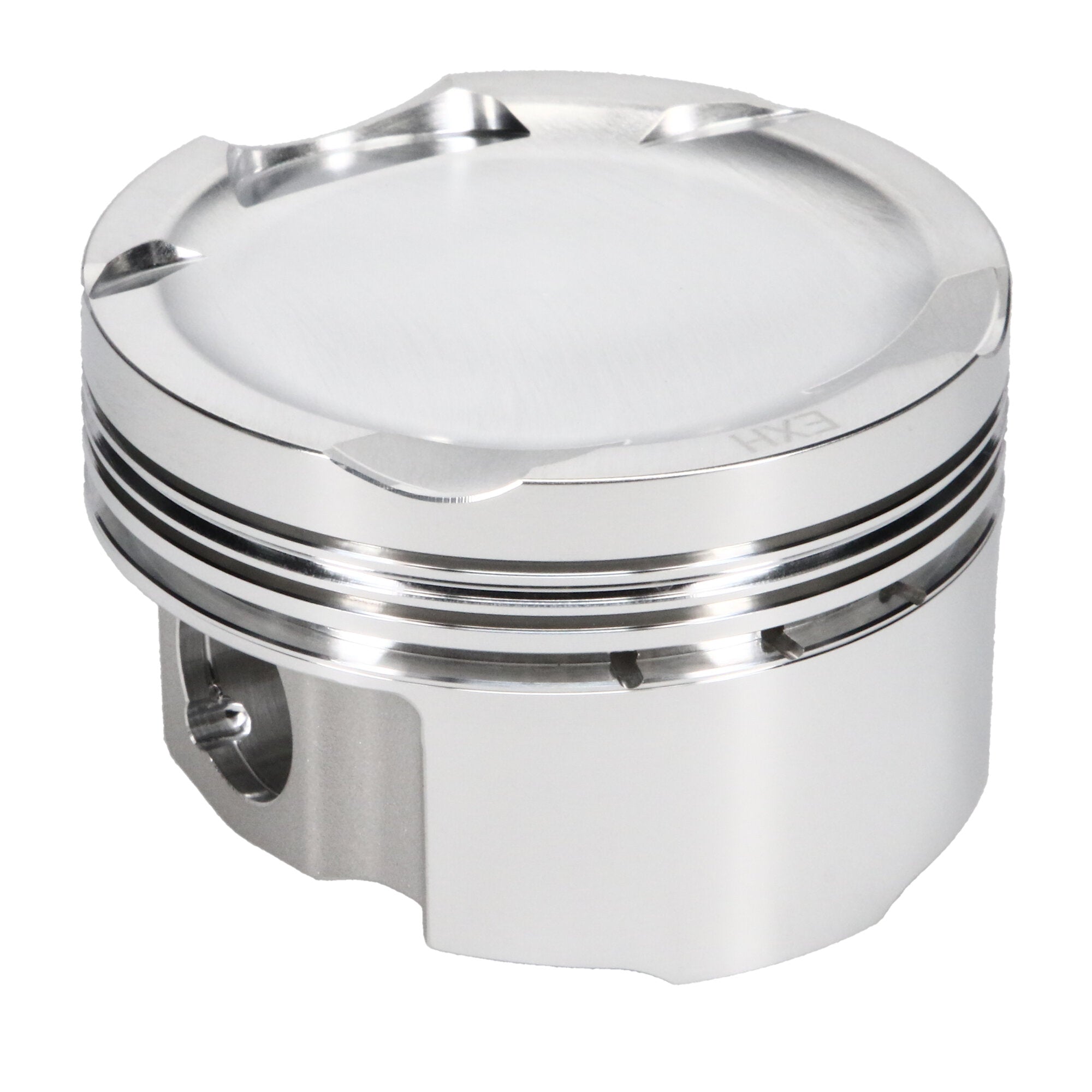

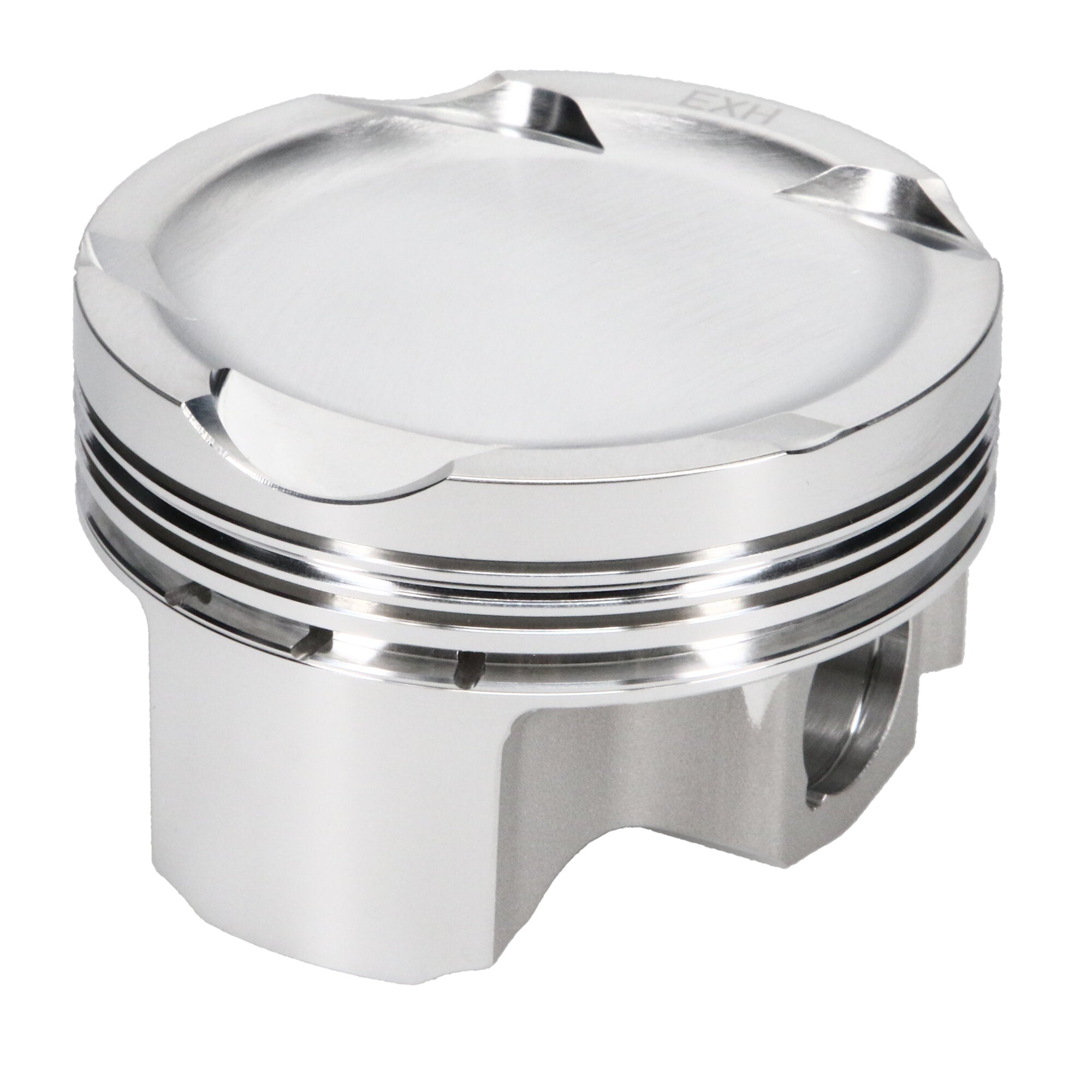

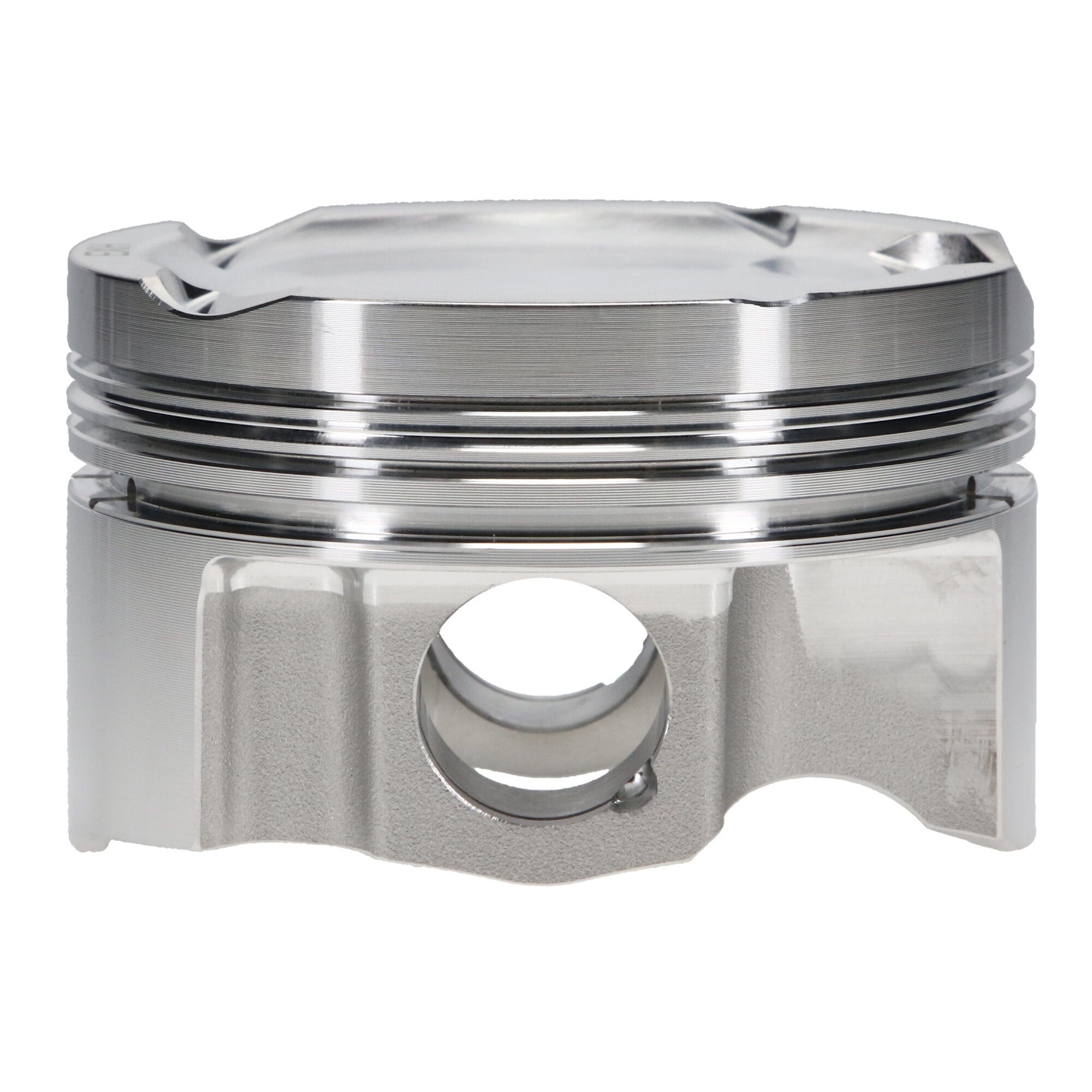

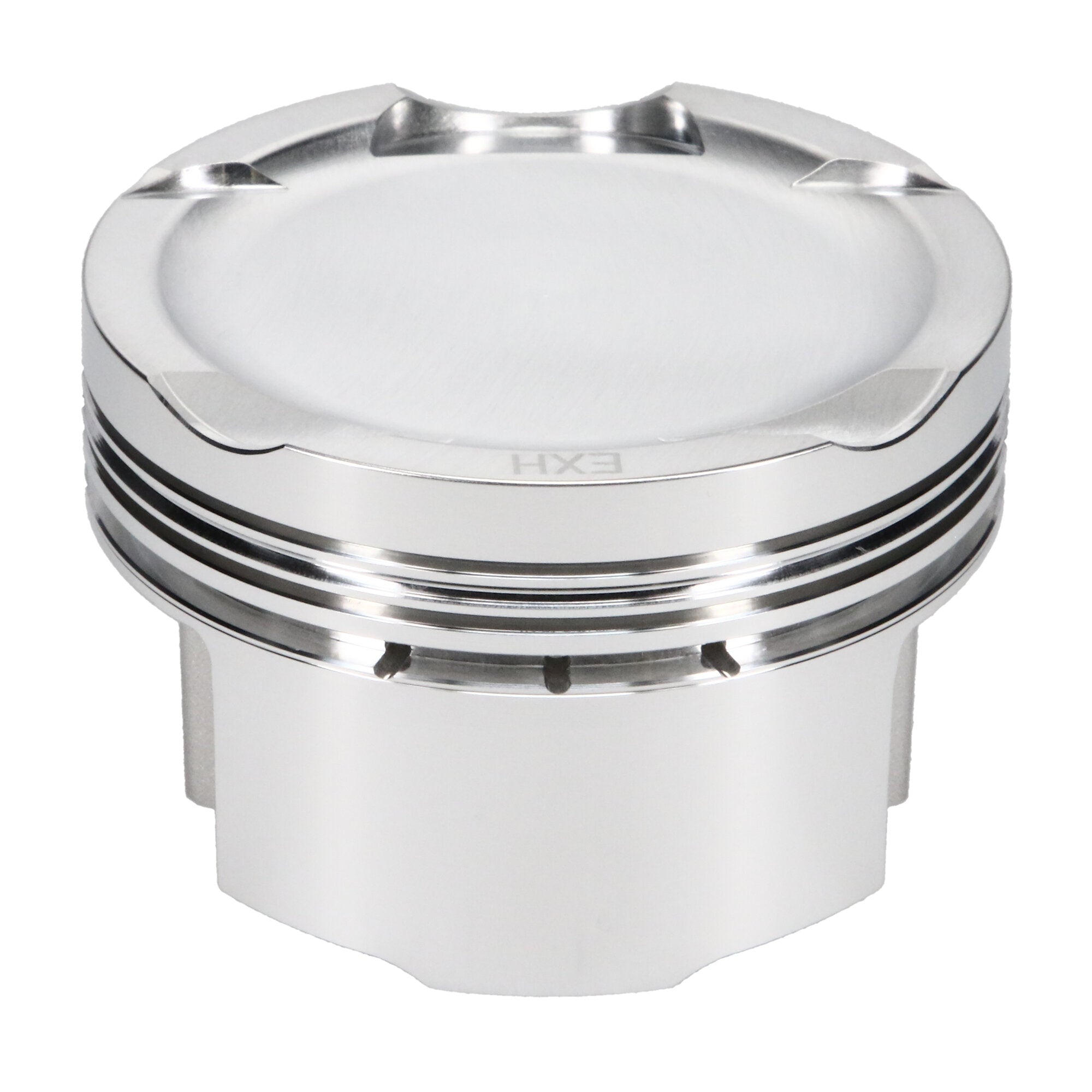

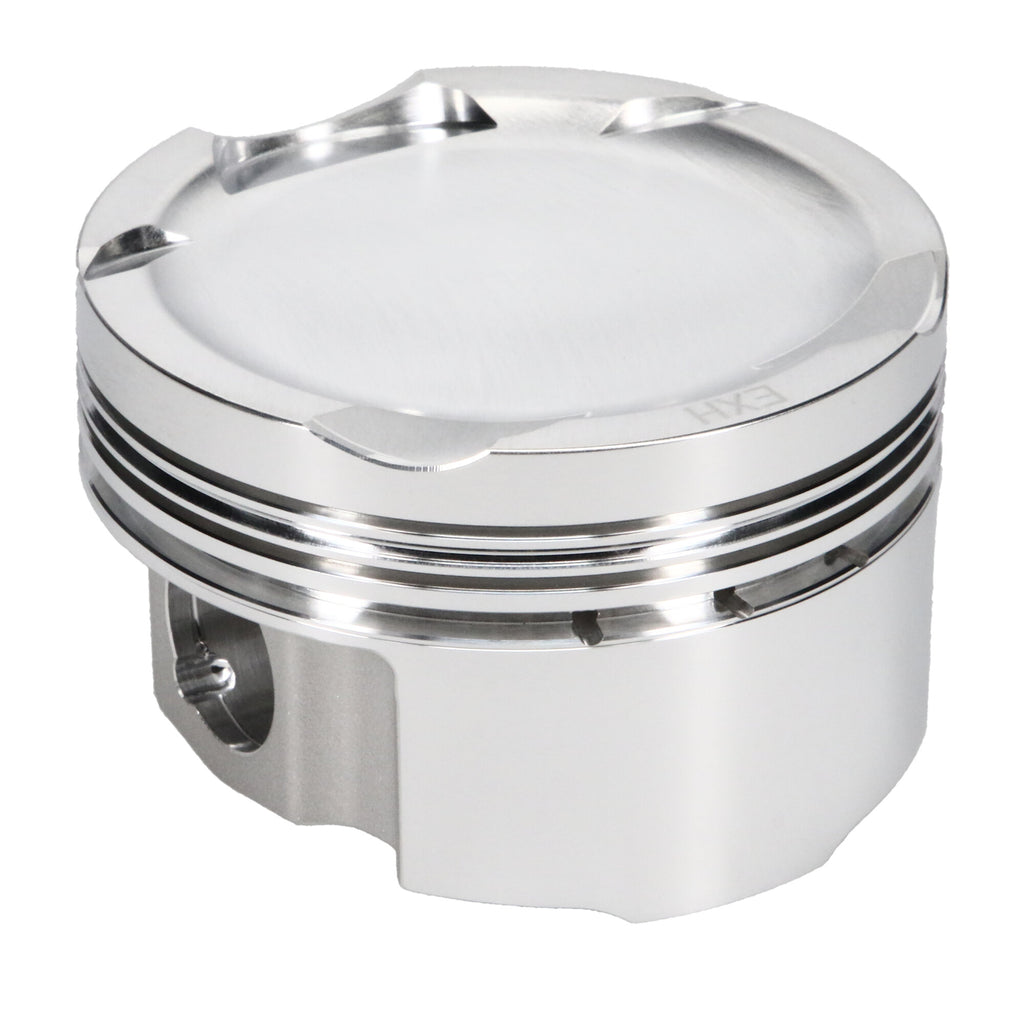

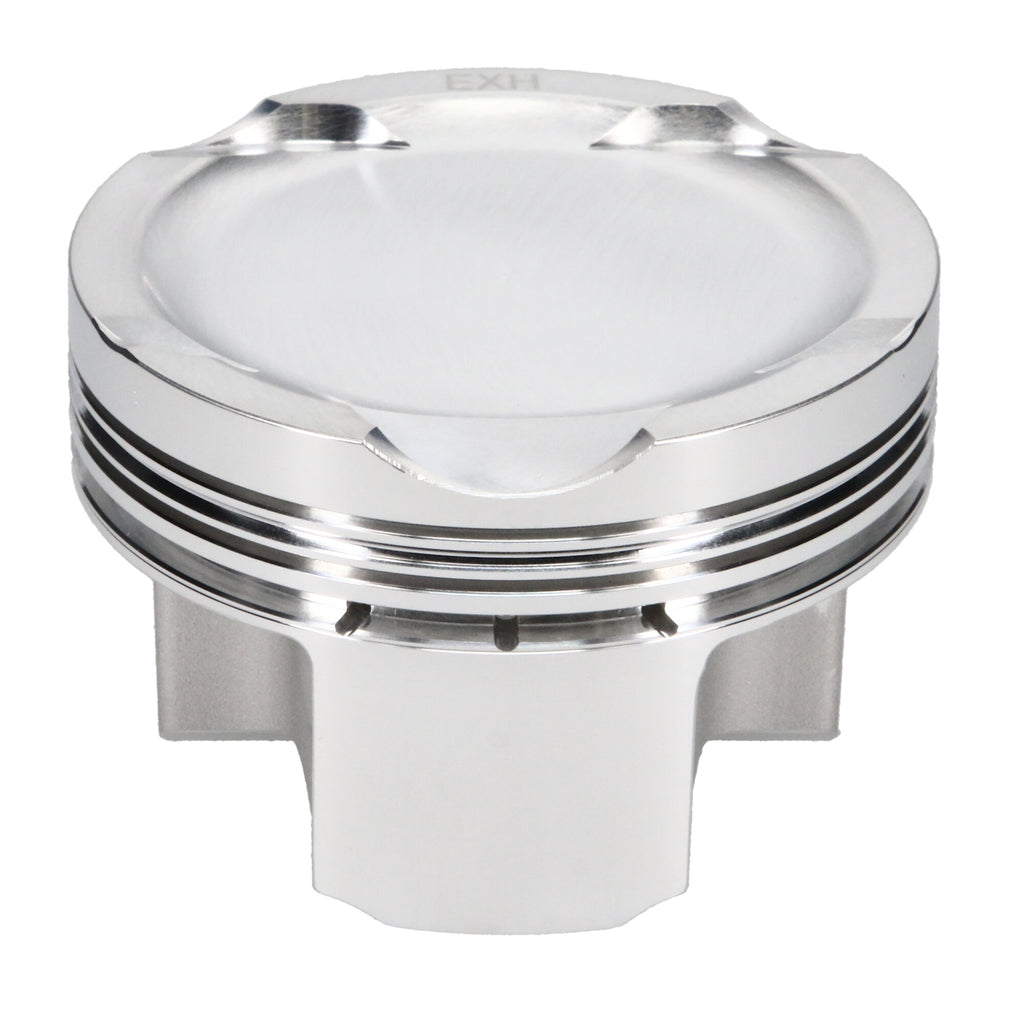

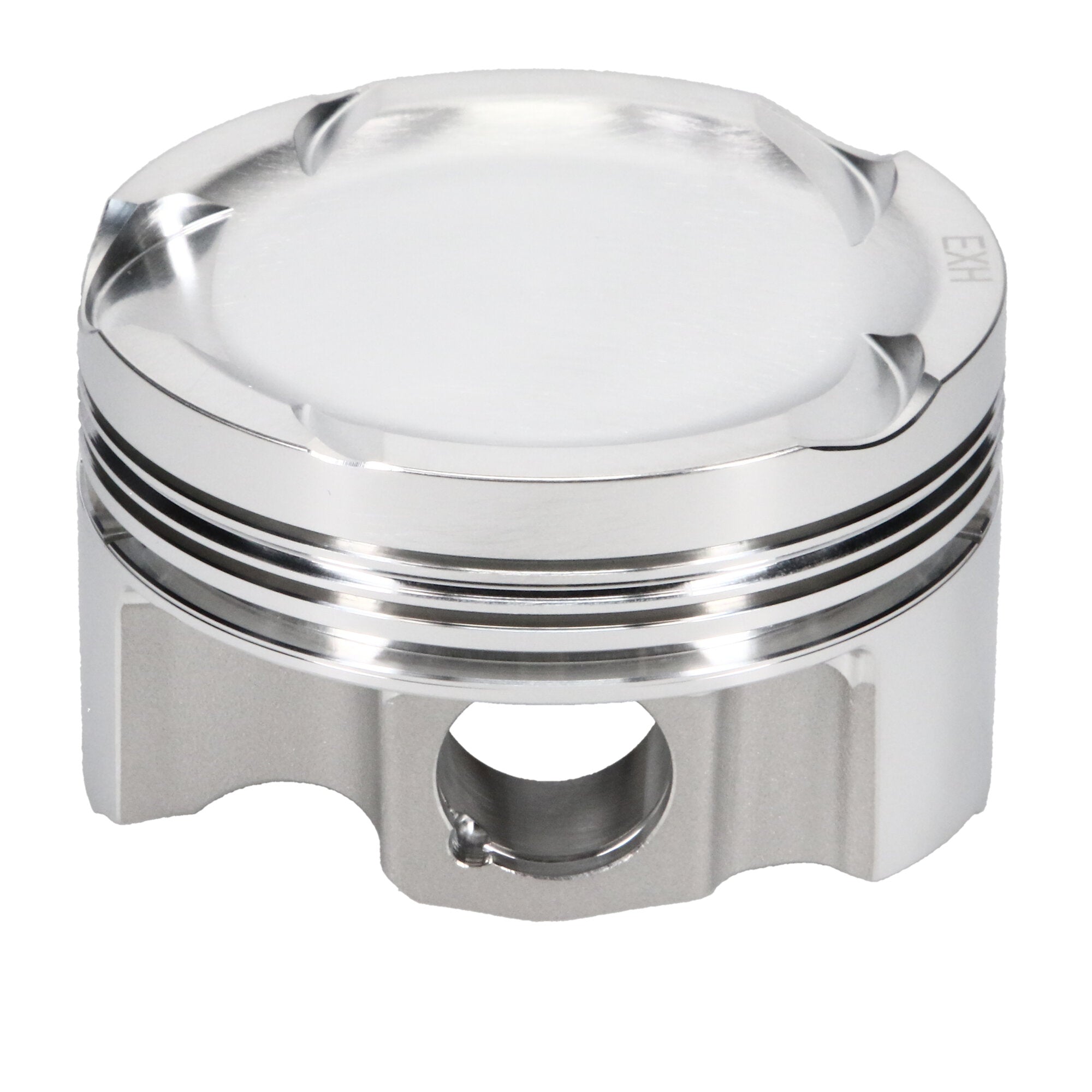

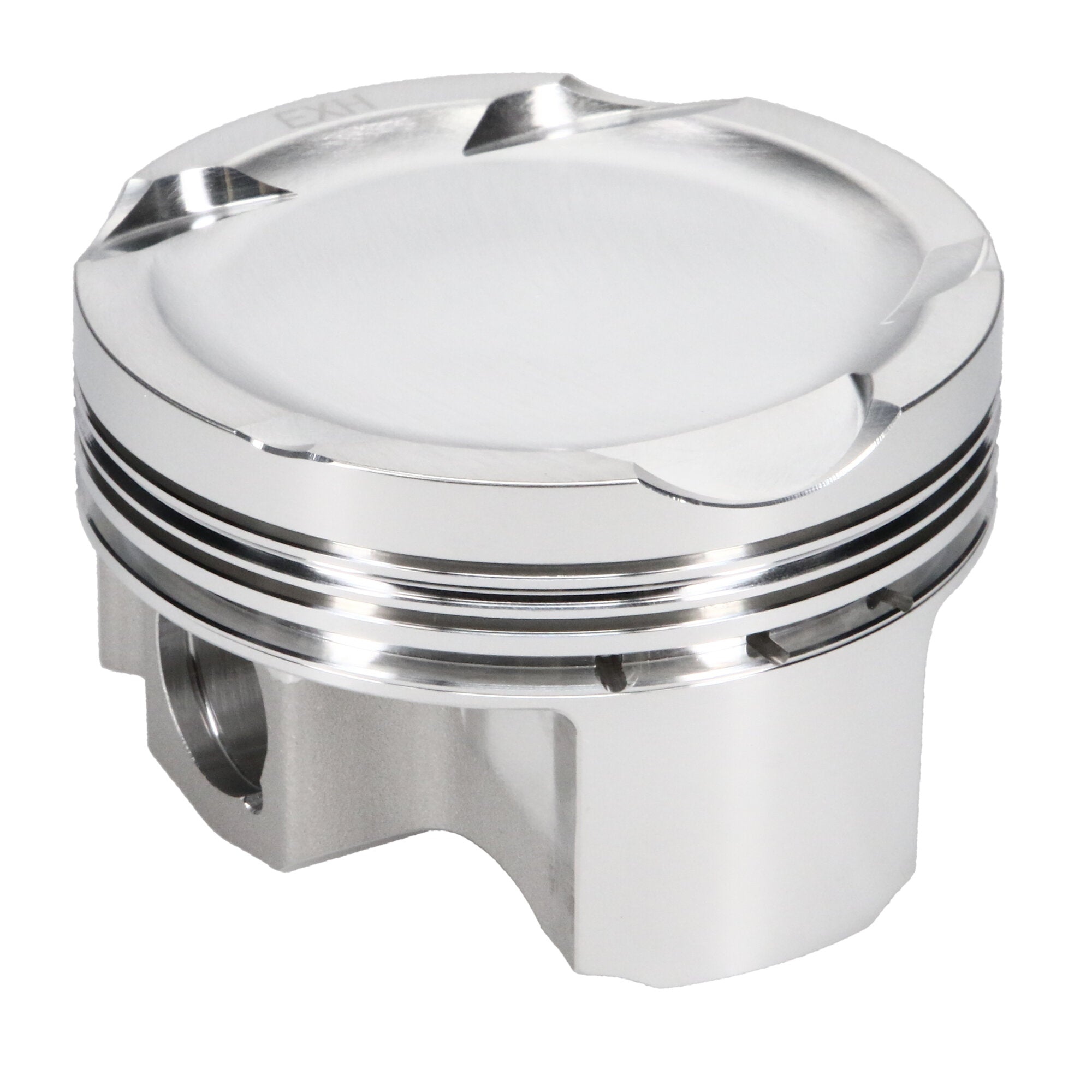

JE Pistons 302029S Piston Single, 2618, Inv Dome/Dish, 3.268 Bore, 1.291 CD, 0.787 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_302029S
Engine Piston
$451.87
customers are viewing this product
JE Pistons 291884S Piston Single, 2618, Inv Dome/Dish, 3.268 Bore, 1.155 CD, 0.787 Pin, Set of 1.
JE Pistons 291884S Piston Single, 2618, Inv Dome/Dish, 3.268 Bore, 1.155 CD, 0.787 Pin, Set of 1.
$451.87
JE Pistons 301428R Piston Single, 2618, Dome, 4.155 Bore, 1.000 CD, 0.927 Pin, Set of 1.
JE Pistons 301428R Piston Single, 2618, Dome, 4.155 Bore, 1.000 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 302029S Piston Single, 2618, Inv Dome/Dish, 3.268 Bore, 1.291 CD, 0.787 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Volkswagen 1.8T 20V 97-05
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Inv Dome/Dish, 3.268 Bore, 1.291 CD, 0.787 Pin, Set of 1.
Description_EXT JE, VW, 1.8T 20V - 20mm Pin, 3.268 in. Bore, 9.25:1, Inverted Dome/Dish, Single Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Description_INV JE Pistons, Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_SHO Piston
Description_TLE Volkswagen 1.8T 20V, 83.00 Bore, Dish, Set of 1
Make VOLKSWAGEN
Piston Quantity 1
Title JE Pistons - Volkswagen, 1.8T 20V, 83.00 mm Bore, Piston
Piston Pin Wall Thickness 0.180
Top Compression Ring Thickness 0.0400
Wrist Pin Outer Diameter 0.787
Piston Average Weight 303
Piston Pin Outside Diameter 0.787
Compression Height 1.291
Engine - Web 1.8T 20V
Cylinder Head 1.8T APH
Bore Diameter 83.00
Product Type Engine Piston
Prop 65 (C, R or CR) CR
Add-On JG1001-3268
Piston Material 2618
Engine 1.8T 20V 20 mm Pin
Piston Volume -7.70
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>European
Add-On 787-2250-18-51C
Add-On 787-050-MW
Out of Stock Message Call for Availability
Industry Automotive
Product Market European
Ring Set Included Yes
Wrist Pin Wall Thickness 0.180
Wrist Pin Length 2.250
Forging Type FSR
Engine Type ICE
Piston Head Type Dish
Title - Web JE Pistons Volkswagen 1.8T 20V Piston - 83.00 mm Bore - 1.291 in. CH, -7.70 CC
Piston Pin Length 2.250
Oil Ring Thickness 0.111
Piston Series JE Pistons
Prop 65 Yes/No Yes
Piston Pin Material 5115
Ringset Included Yes
Second Compression Ring Thickness 0.0480
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Engine Detail 1.8T 20V 20 mm Pin
Make - Web Volkswagen
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
