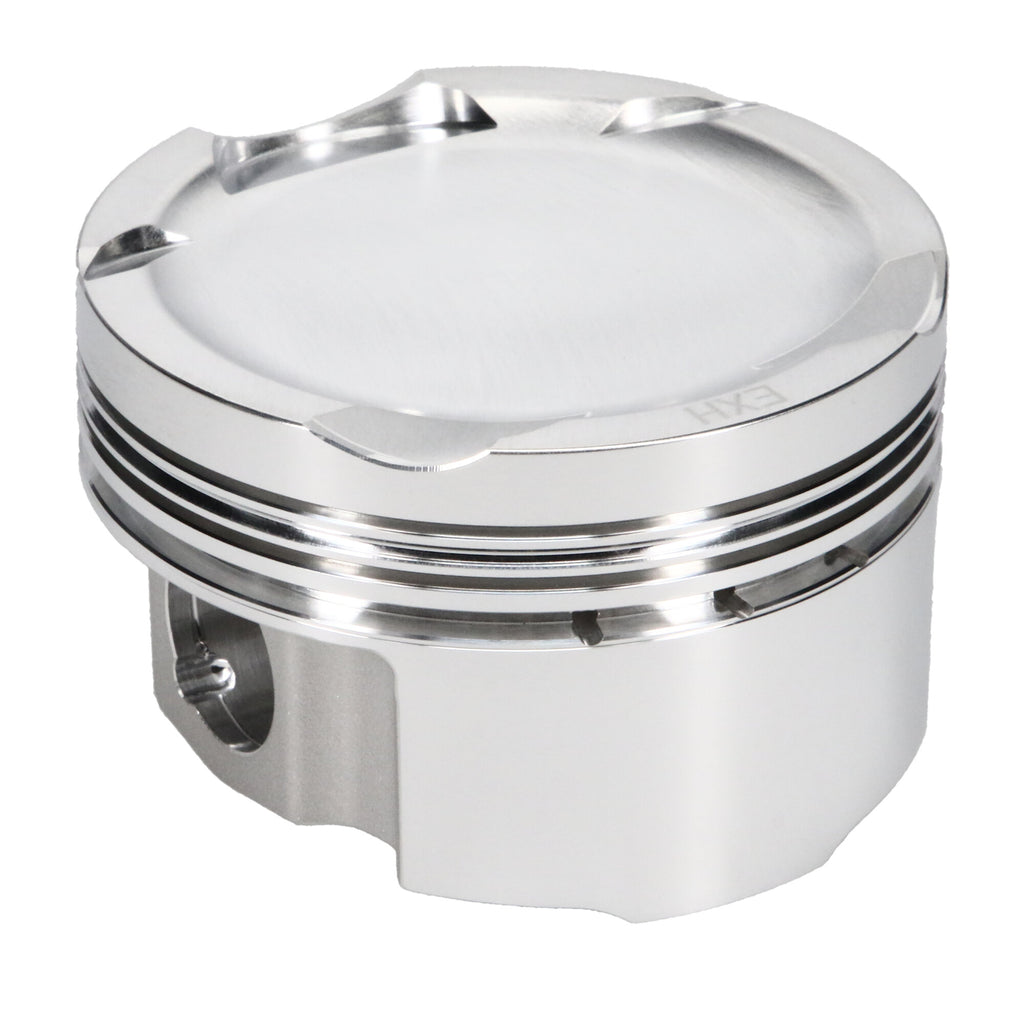

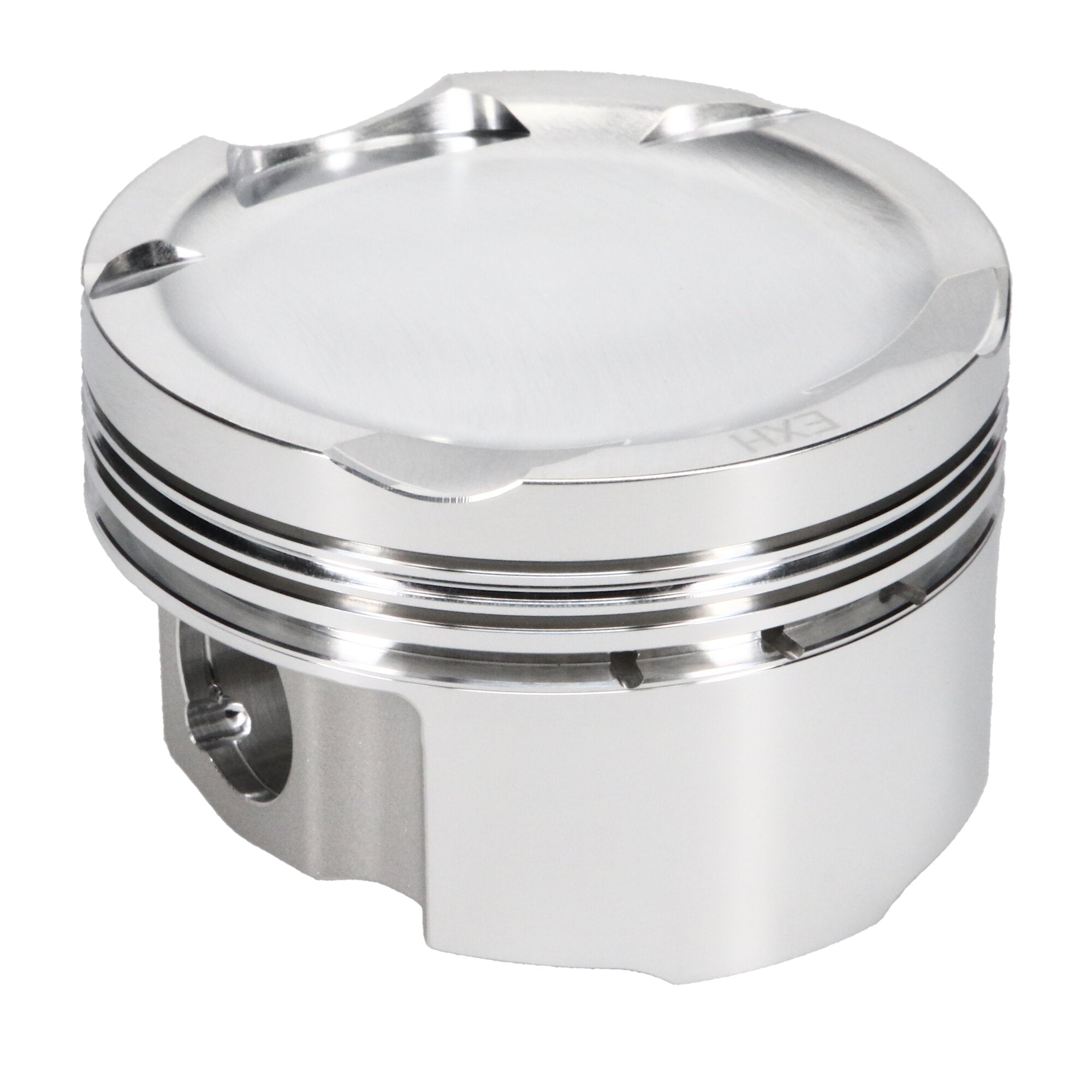

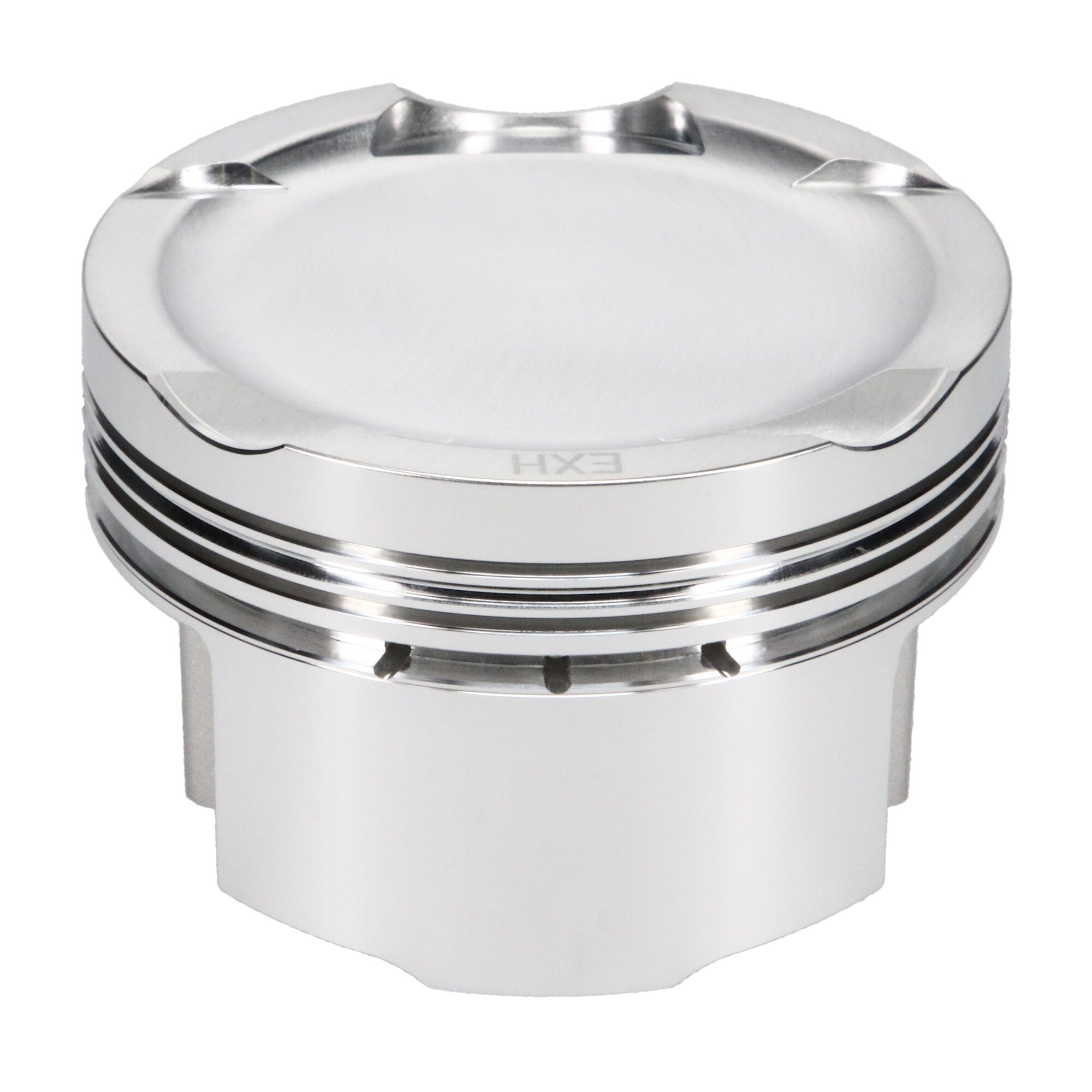

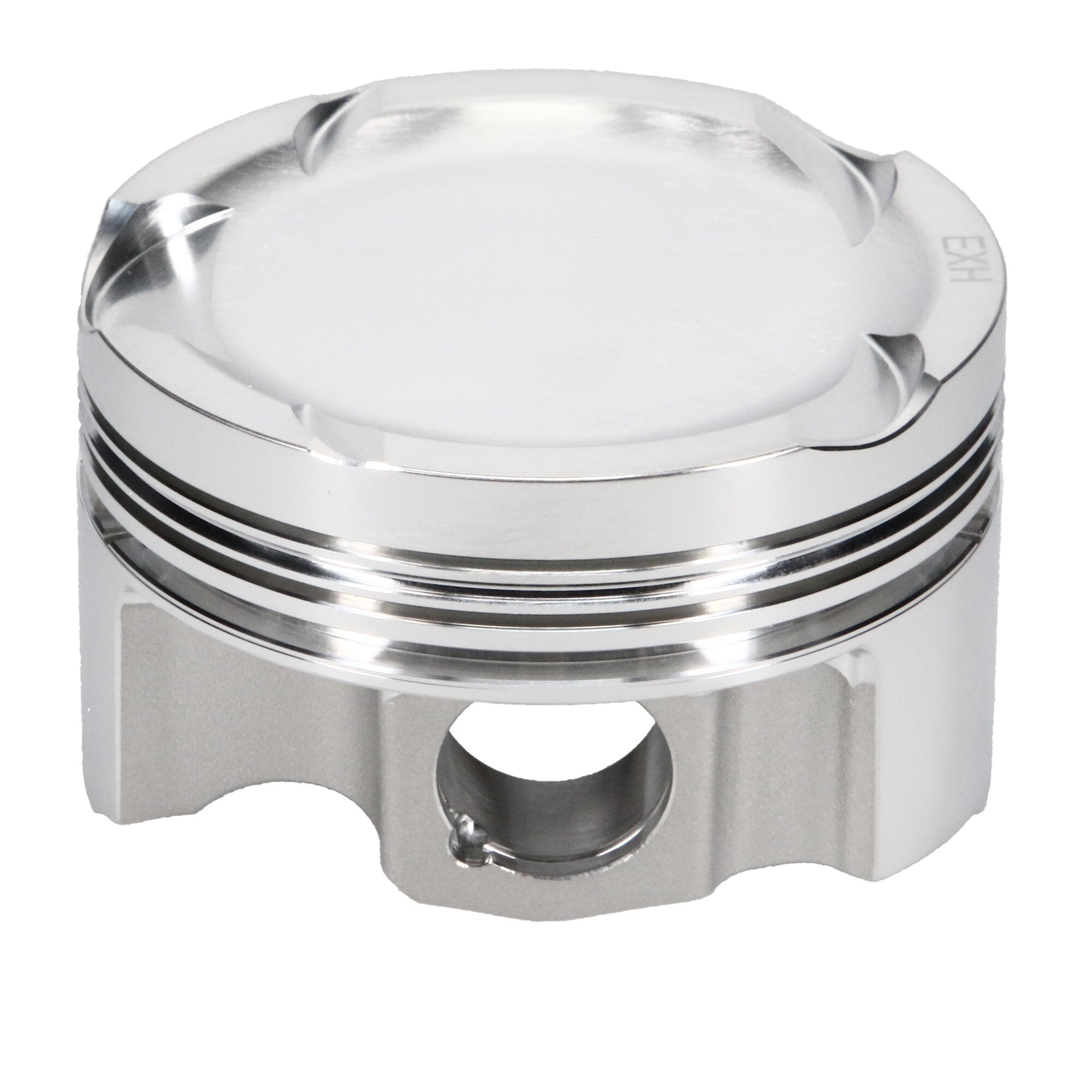

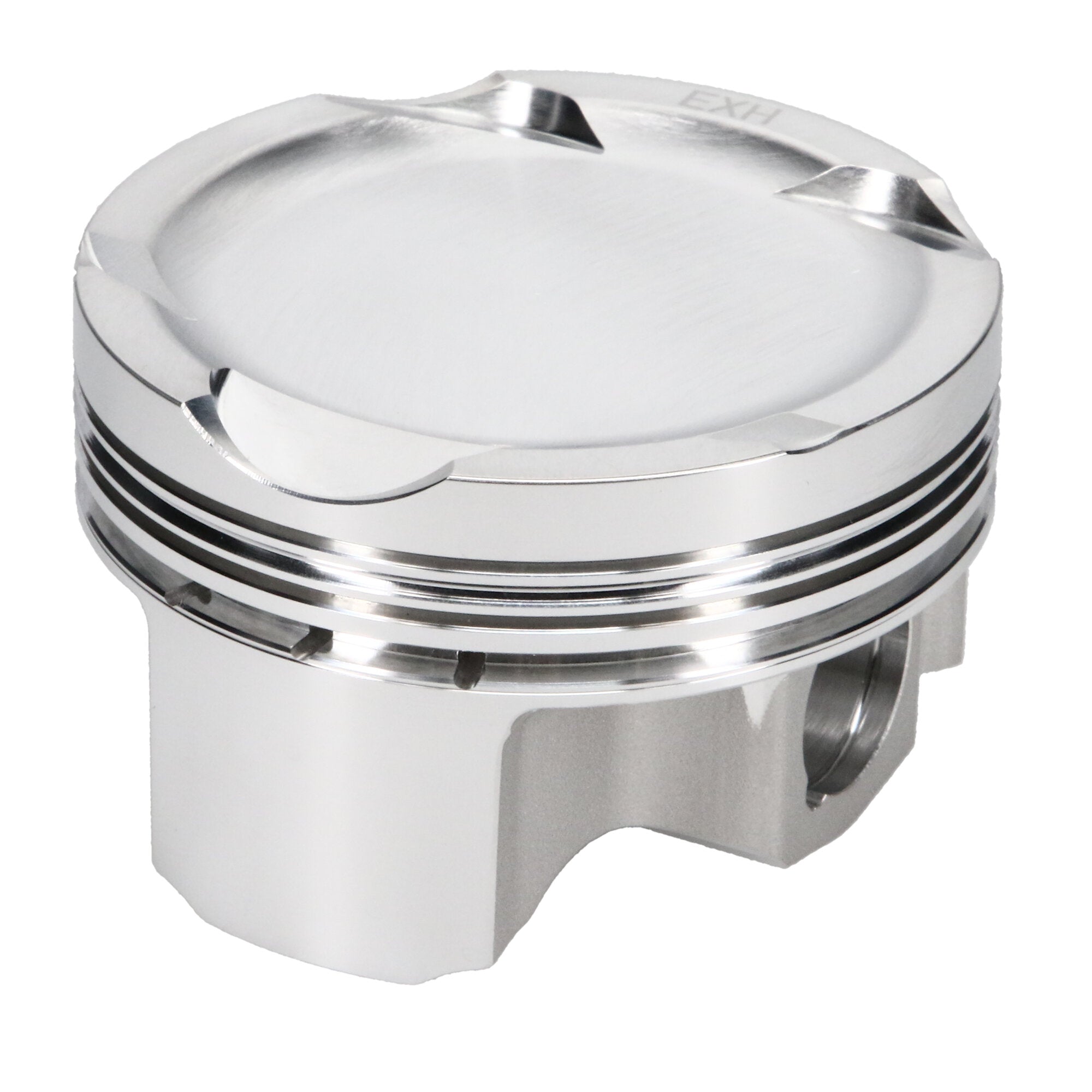

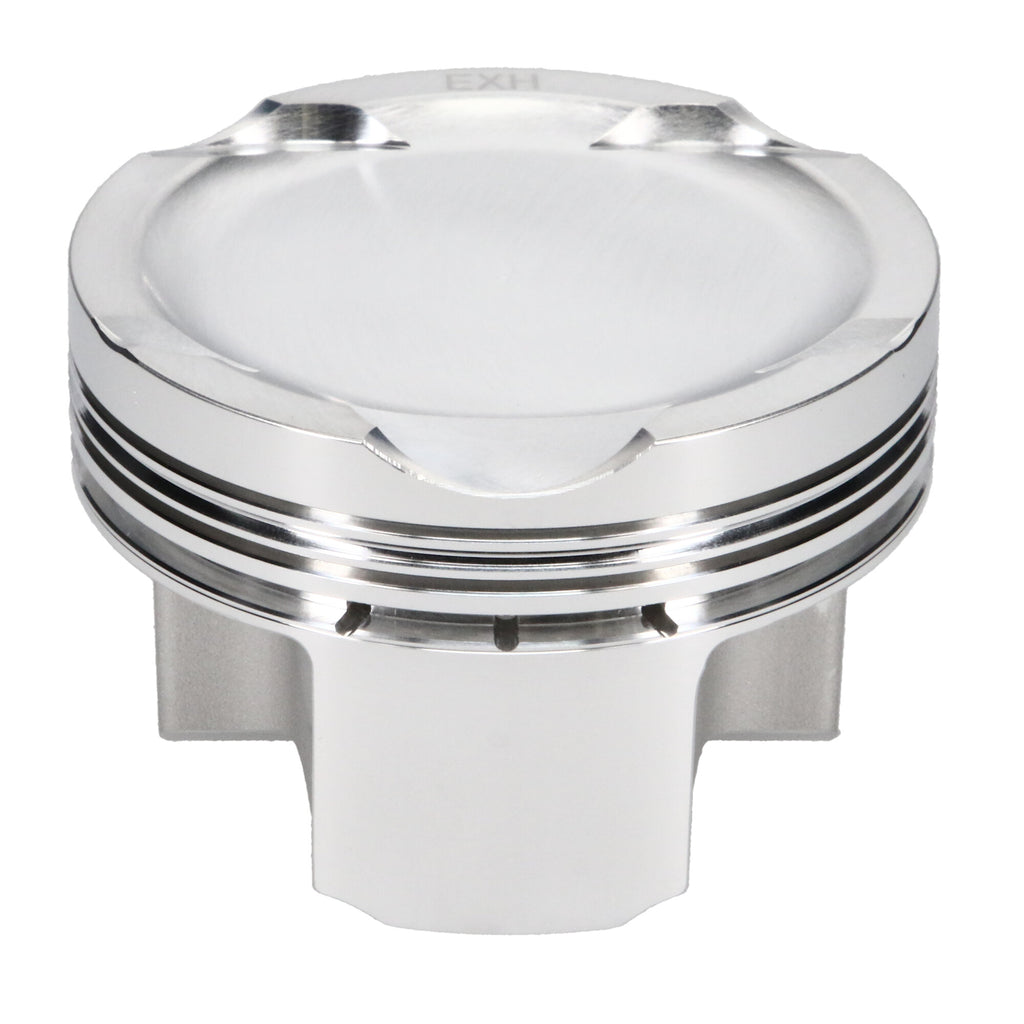

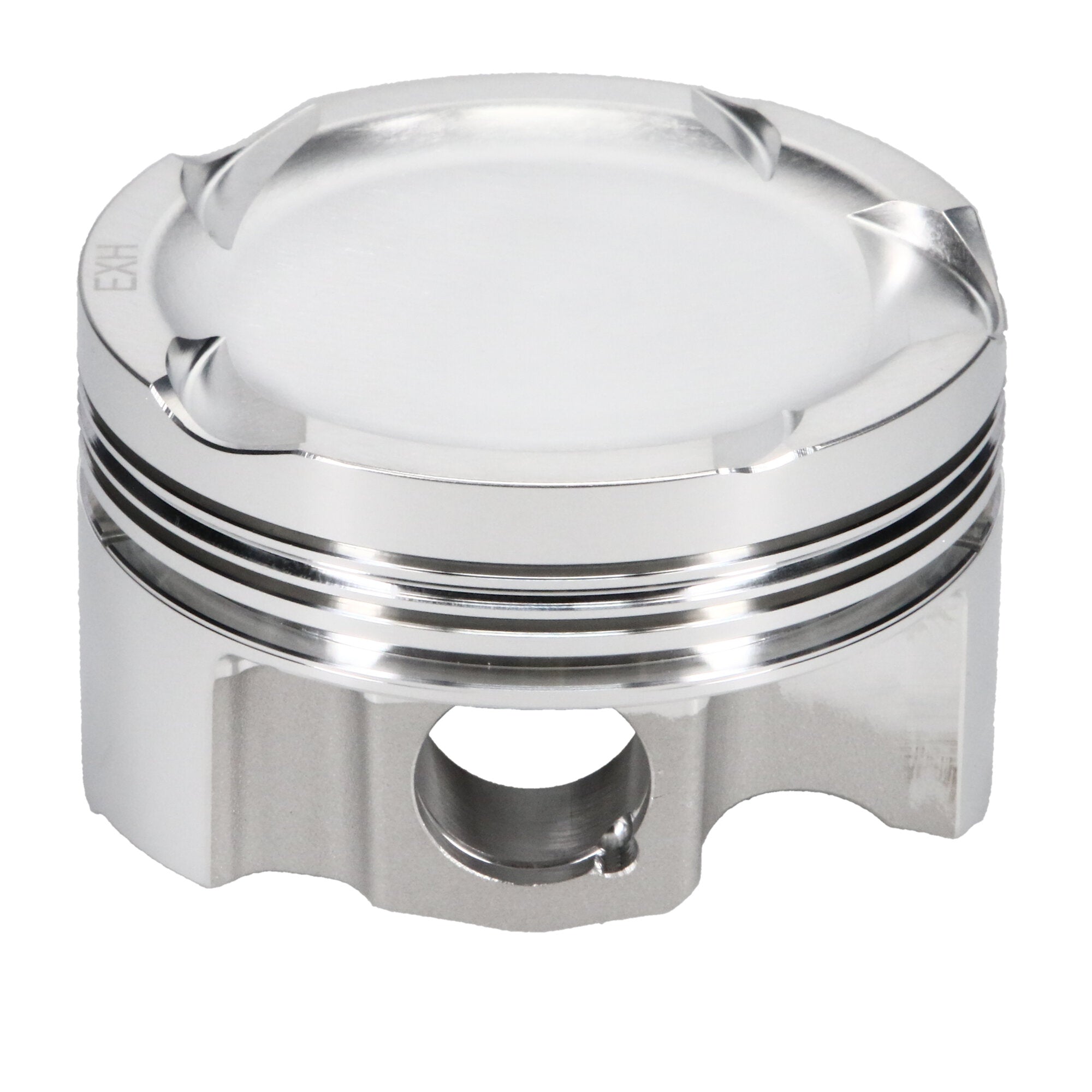

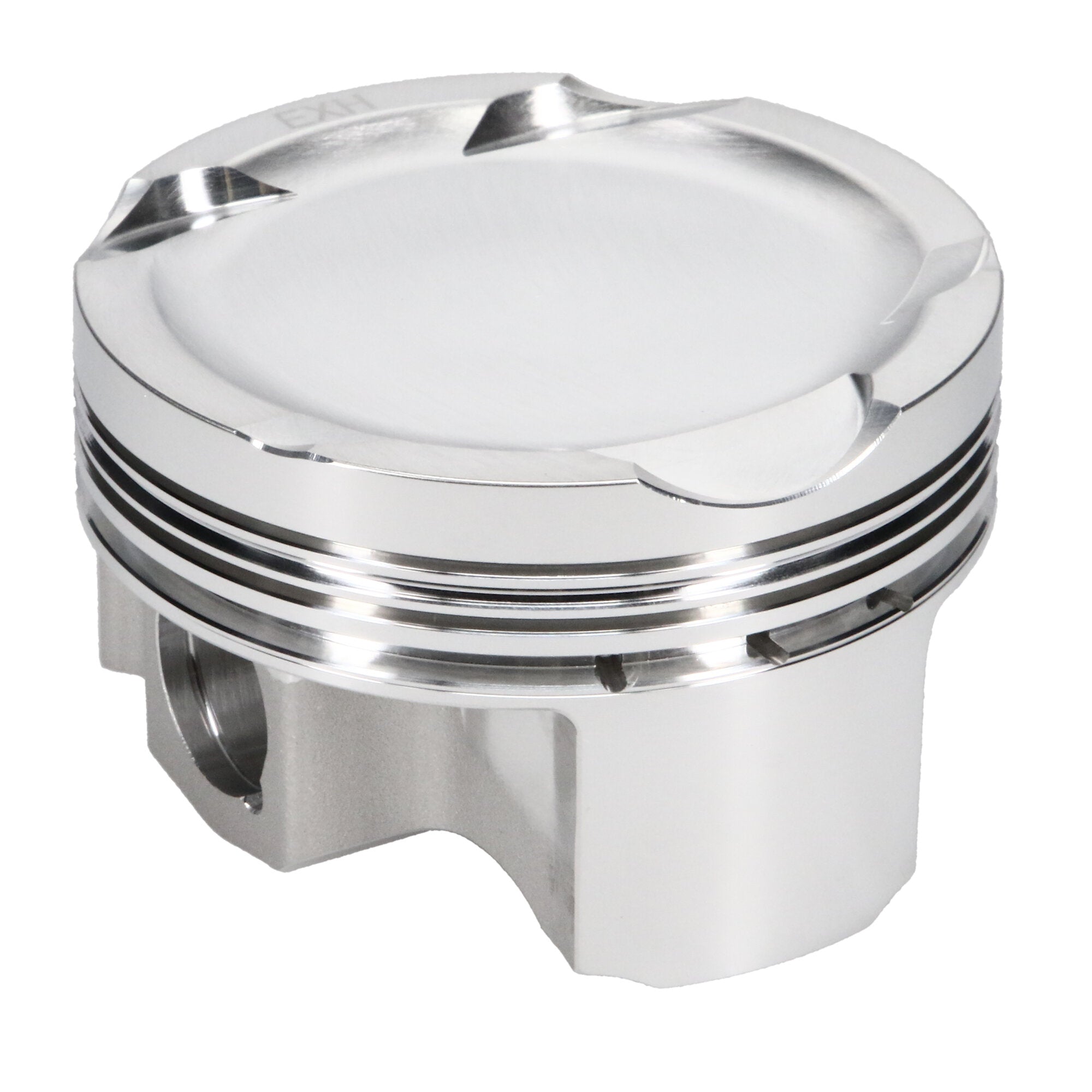

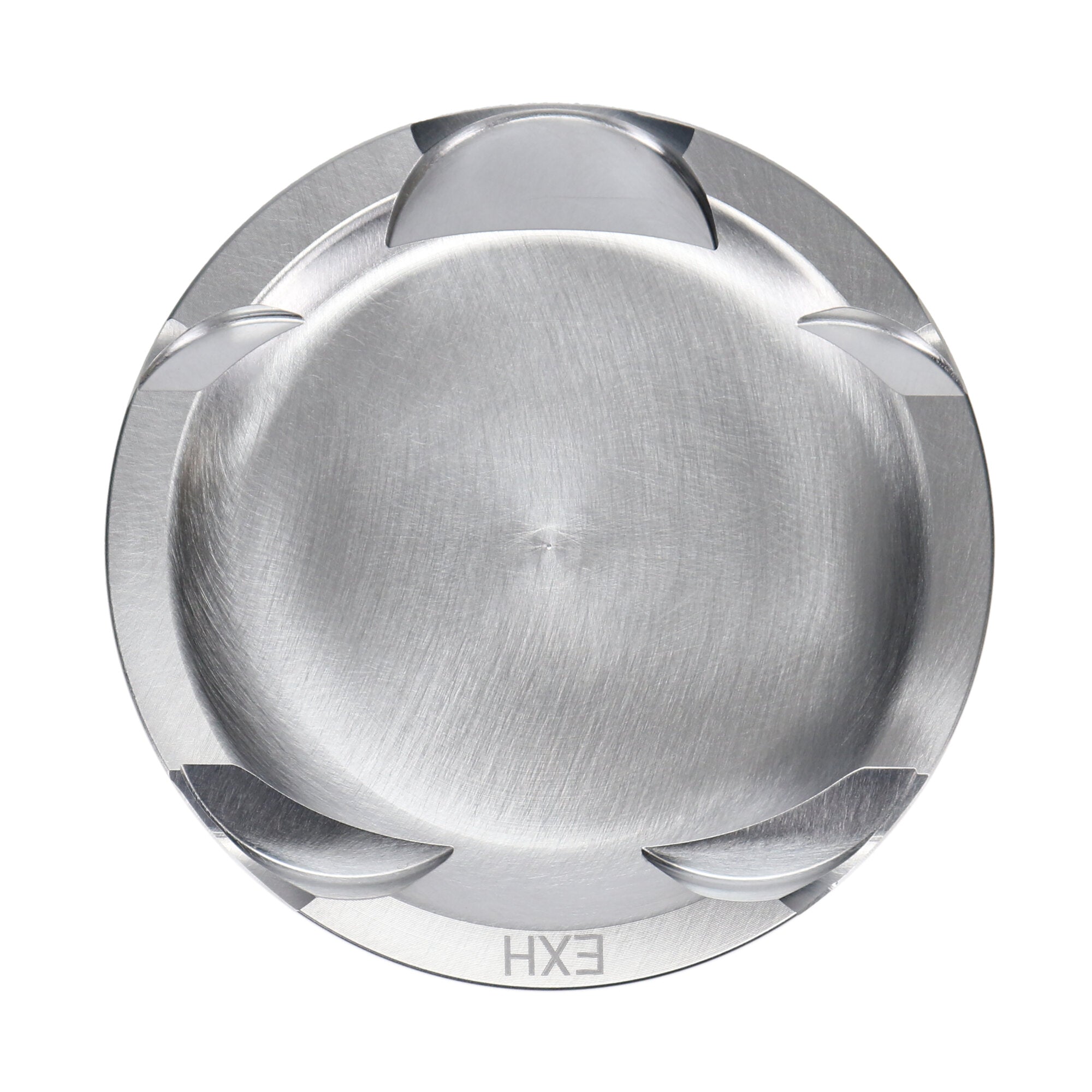

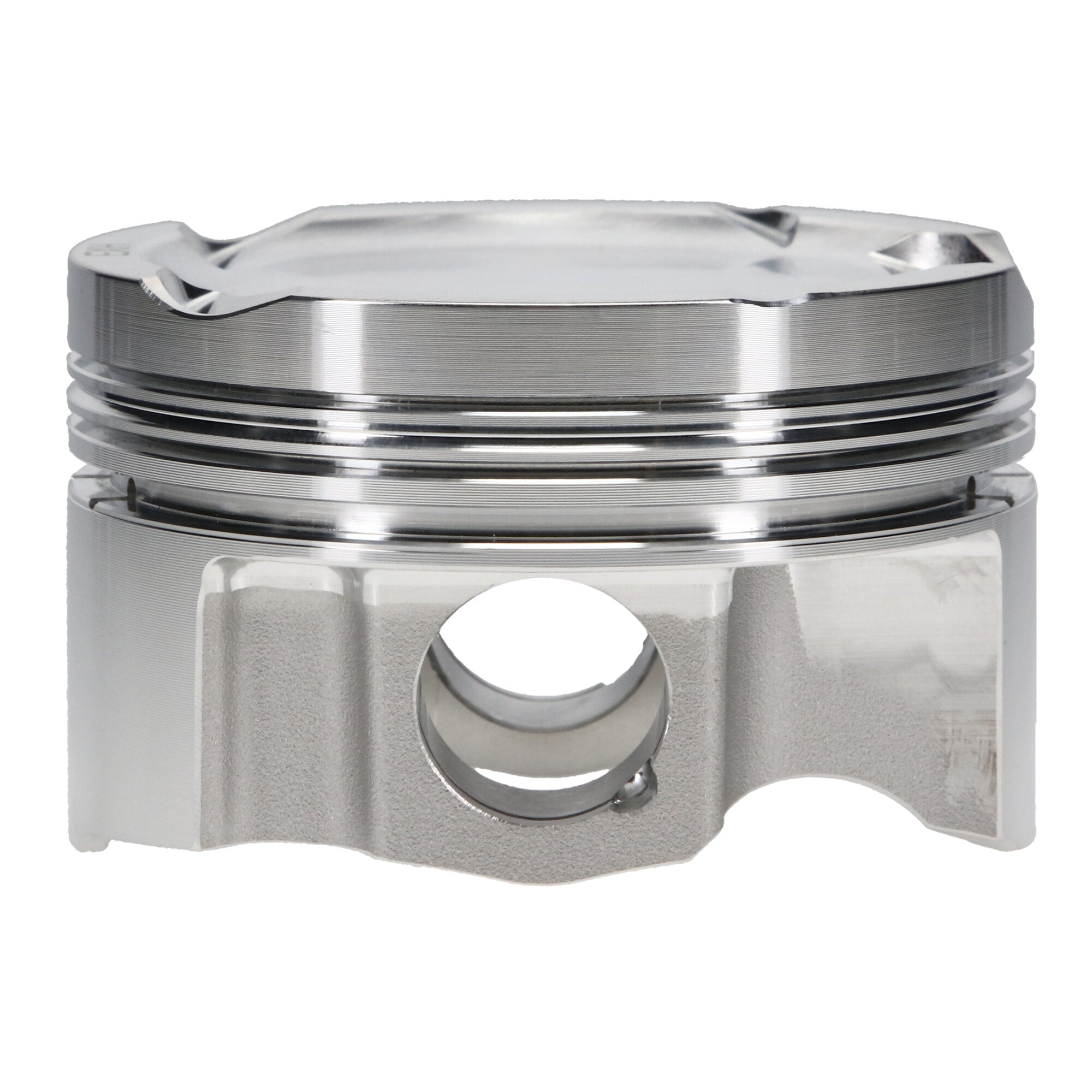

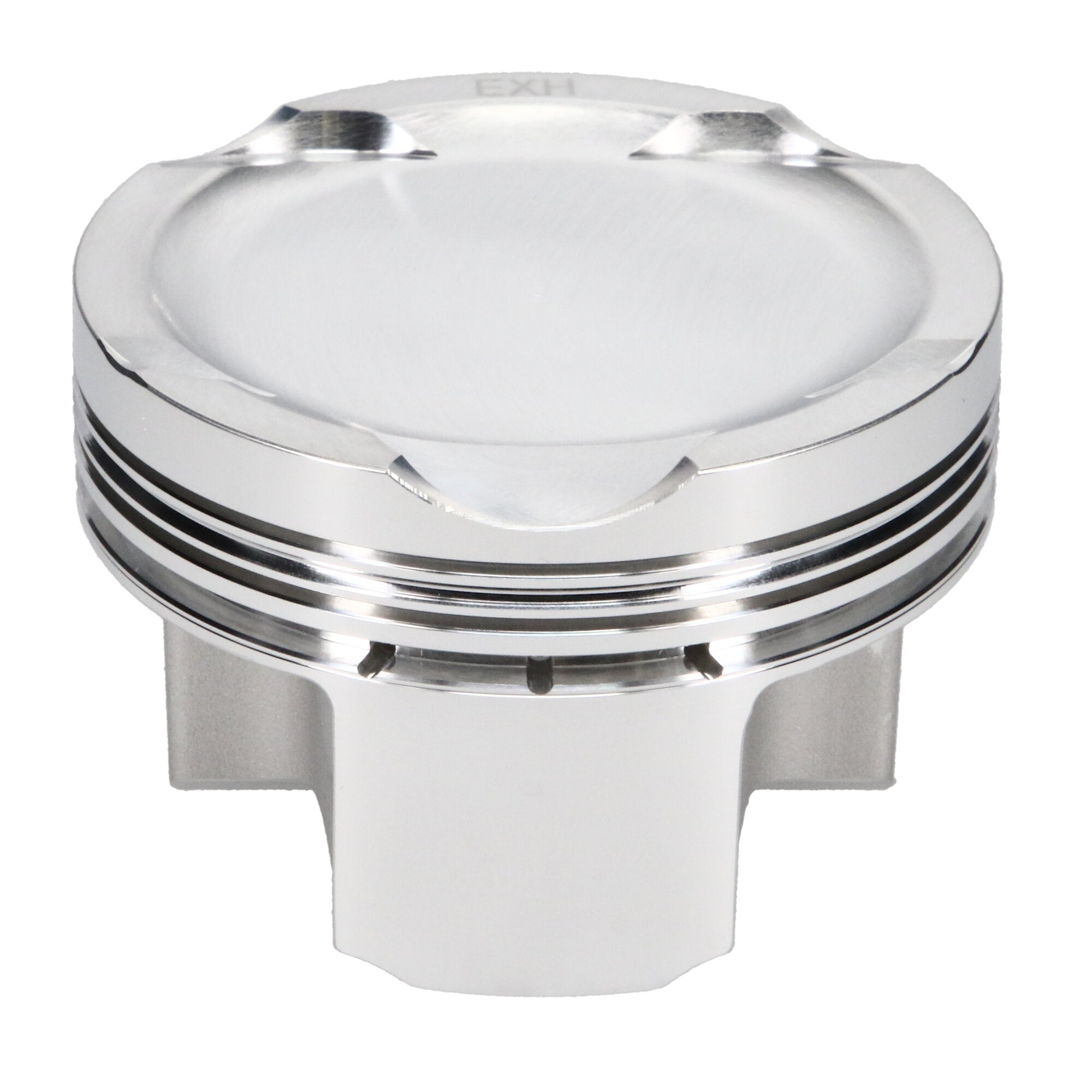

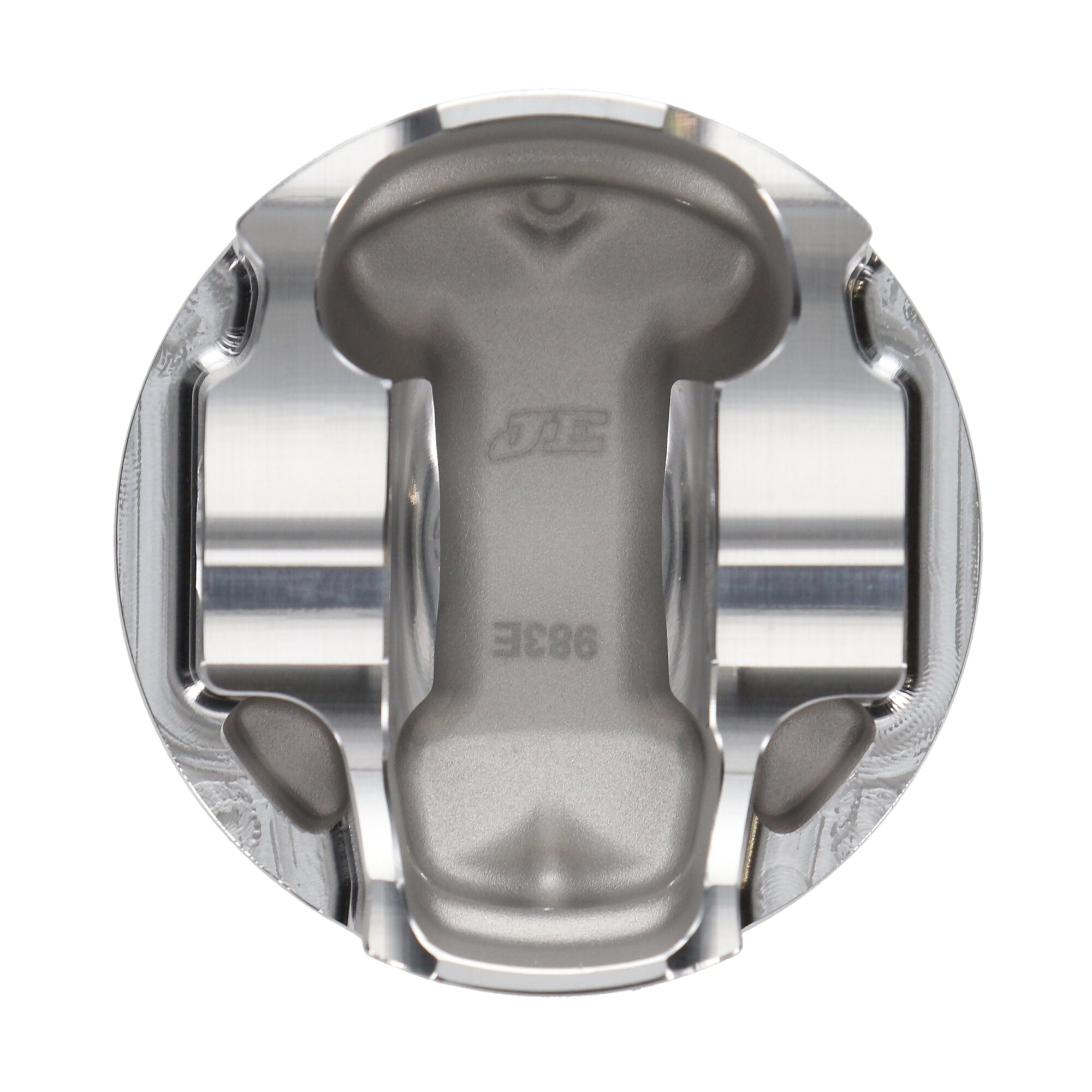

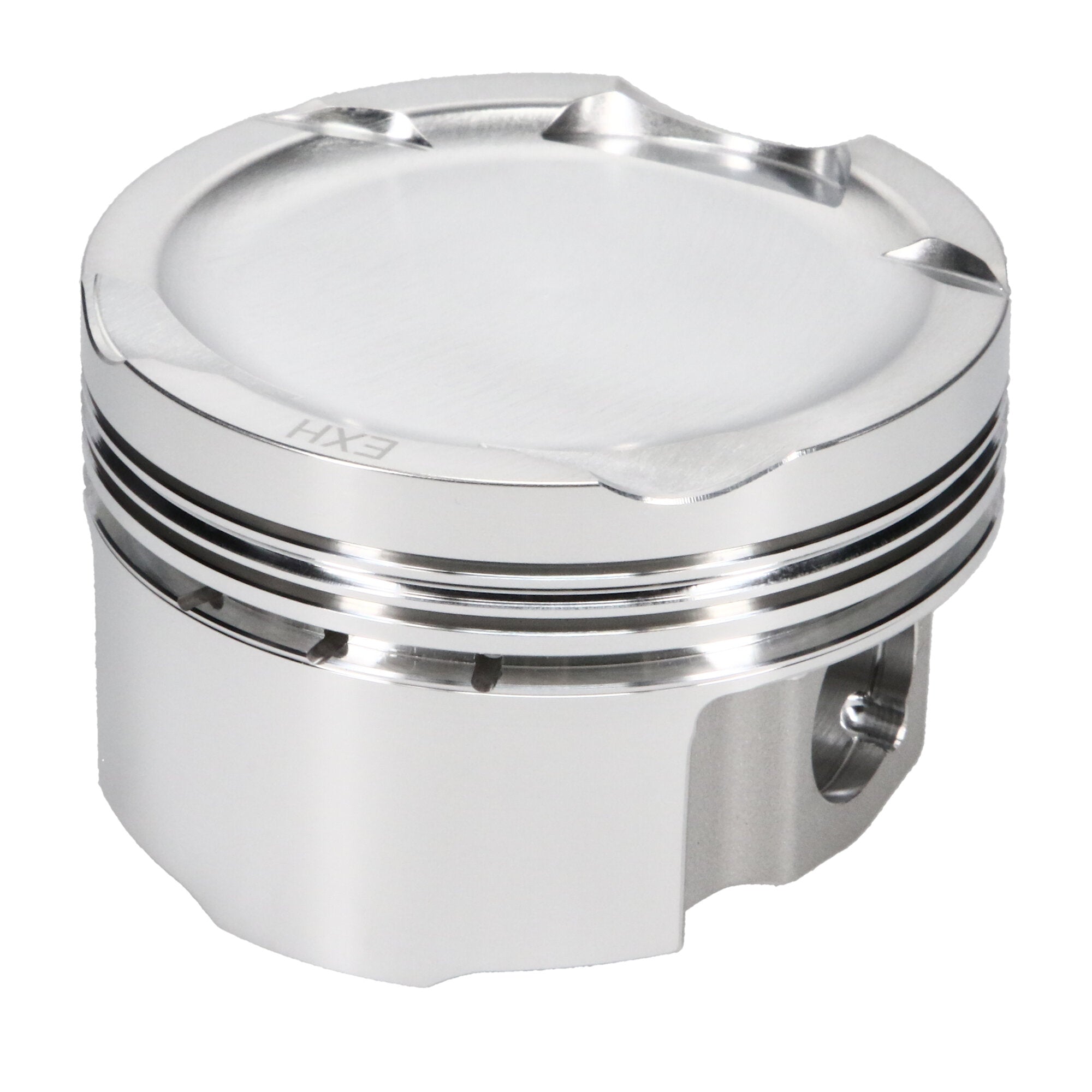

  • JE Pistons 302027S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.291 CD, 0.787 Pin, Set of 1.
Sold out
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Inv-DomeDish,-3.248-Bore,-1.291-Cd,-0.787-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

JE Pistons 302027S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.291 CD, 0.787 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_302027S
Engine Piston
$451.87
customers are viewing this product
JE Pistons 302416S Piston Single, 2618, Dome, 3.327 Bore, 1.181 CD, 0.827 Pin, Set of 1.
JE Pistons 302416S Piston Single, 2618, Dome, 3.327 Bore, 1.181 CD, 0.827 Pin, Set of 1.
$451.87
JE Pistons 302338S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.787 Pin, Set of 1.
JE Pistons 302338S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.787 Pin, Set of 1.
$451.87
JE Pistons 302027S Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.291 CD, 0.787 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Volkswagen 1.8T 20V 97-05
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Inv Dome/Dish, 3.248 Bore, 1.291 CD, 0.787 Pin, Set of 1.
Description_EXT JE, VW, 1.8T 20V - 20mm Pin, 3.248 in. Bore, 9.25:1, Inverted Dome/Dish, Single Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Description_INV JE Pistons, Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_TLE Volkswagen 1.8T 20V, 82.50 Bore, Dish, Set of 1
Description_SHO Piston
Piston Head Type Dish
Ringset Included Yes
Compression Height 1.291
Piston Pin Wall Thickness 0.180
Engine - Web 1.8T 20V
Wrist Pin Wall Thickness 0.180
Piston Pin Length 2.250
Forging Type FSR
Engine Type ICE
Engine 1.8T 20V 20 mm Pin
Oil Ring Thickness 0.111
Engine Detail 1.8T 20V 20 mm Pin
Product Market European
Piston Series JE Pistons
Make VOLKSWAGEN
Title JE Pistons - Volkswagen, 1.8T 20V, 82.50 mm Bore, Piston
Piston Pin Material 5115
Add-On JG1001-3250
Cylinder Head 1.8T APH
Piston Volume -7.00
Prop 65 Yes/No Yes
Add-On 787-2250-18-51C
Out of Stock Message Call for Availability
Add-On 787-050-MW
Product Type Engine Piston
Title - Web JE Pistons Volkswagen 1.8T 20V Piston - 82.50 mm Bore - 1.291 in. CH, -7.00 CC
Piston Average Weight 299
Bore Diameter 82.50
Piston Pin Outside Diameter 0.787
Piston Material 2618
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>European
Prop 65 (C, R or CR) CR
Second Compression Ring Thickness 0.0480
Industry Automotive
Piston Quantity 1
Top Compression Ring Thickness 0.0400
Wrist Pin Length 2.250
Ring Set Included Yes
Prop 65 - Short Label Prop 65 Warning Label.JPG
Make - Web Volkswagen
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.787
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
