As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0L 9A 16V 90-93 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

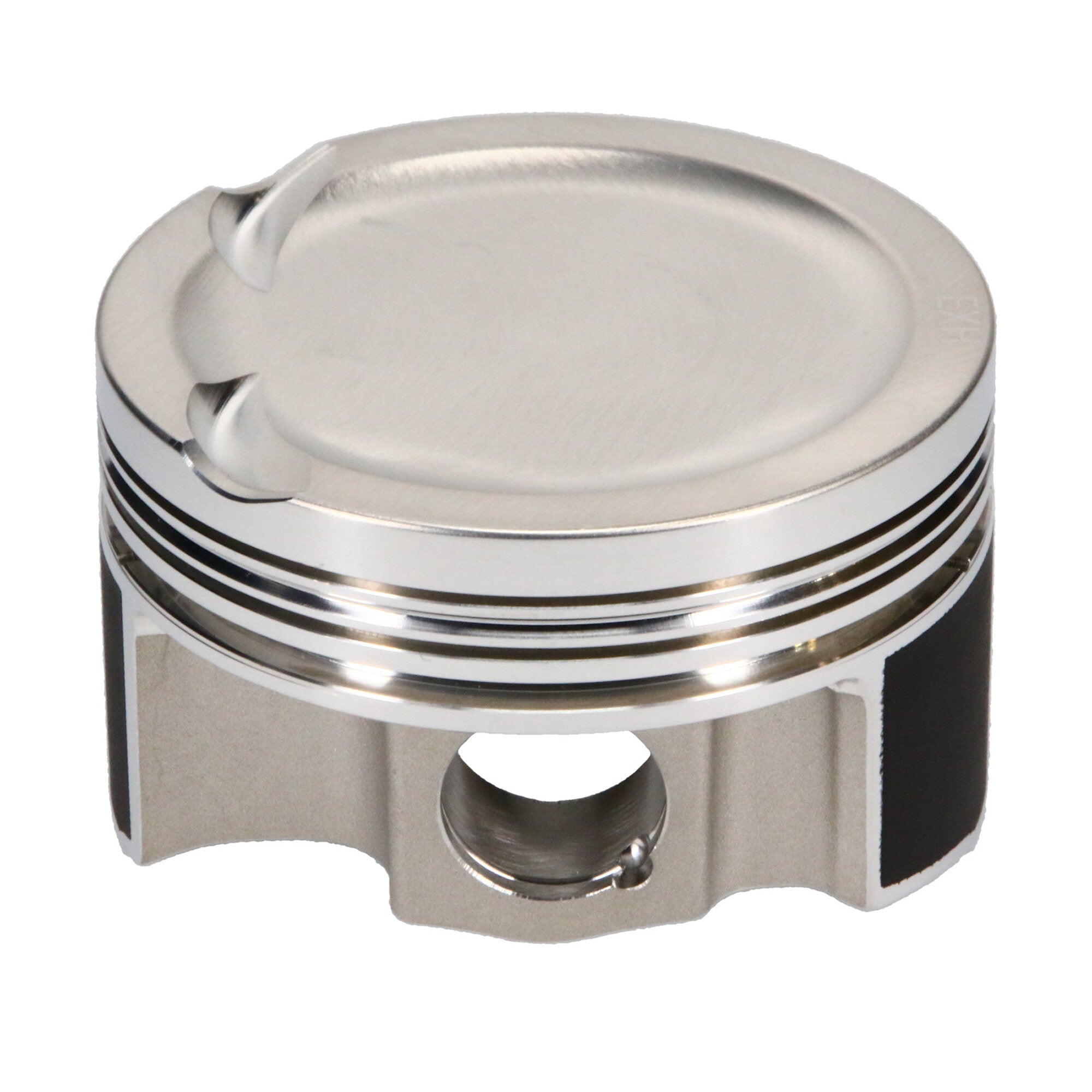

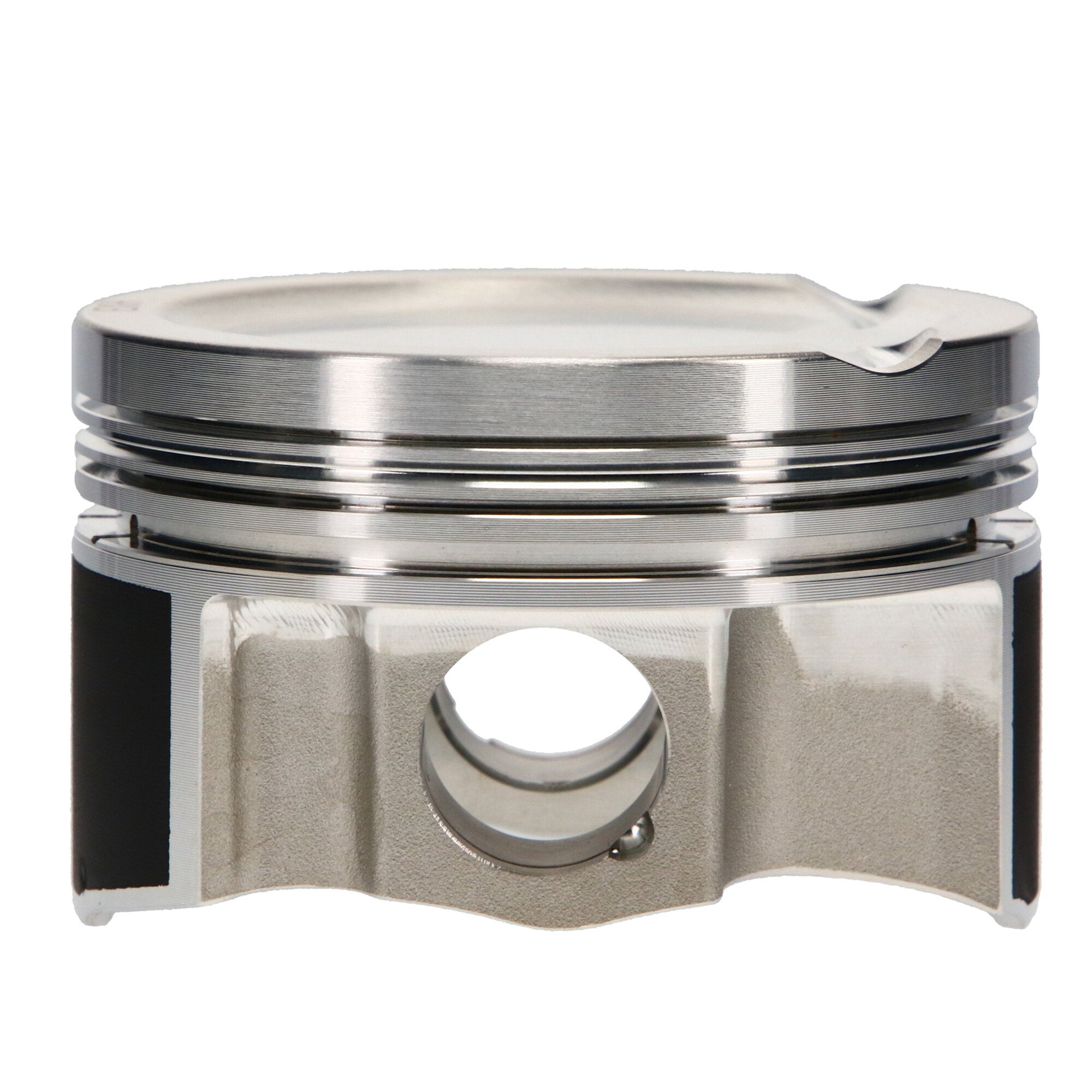

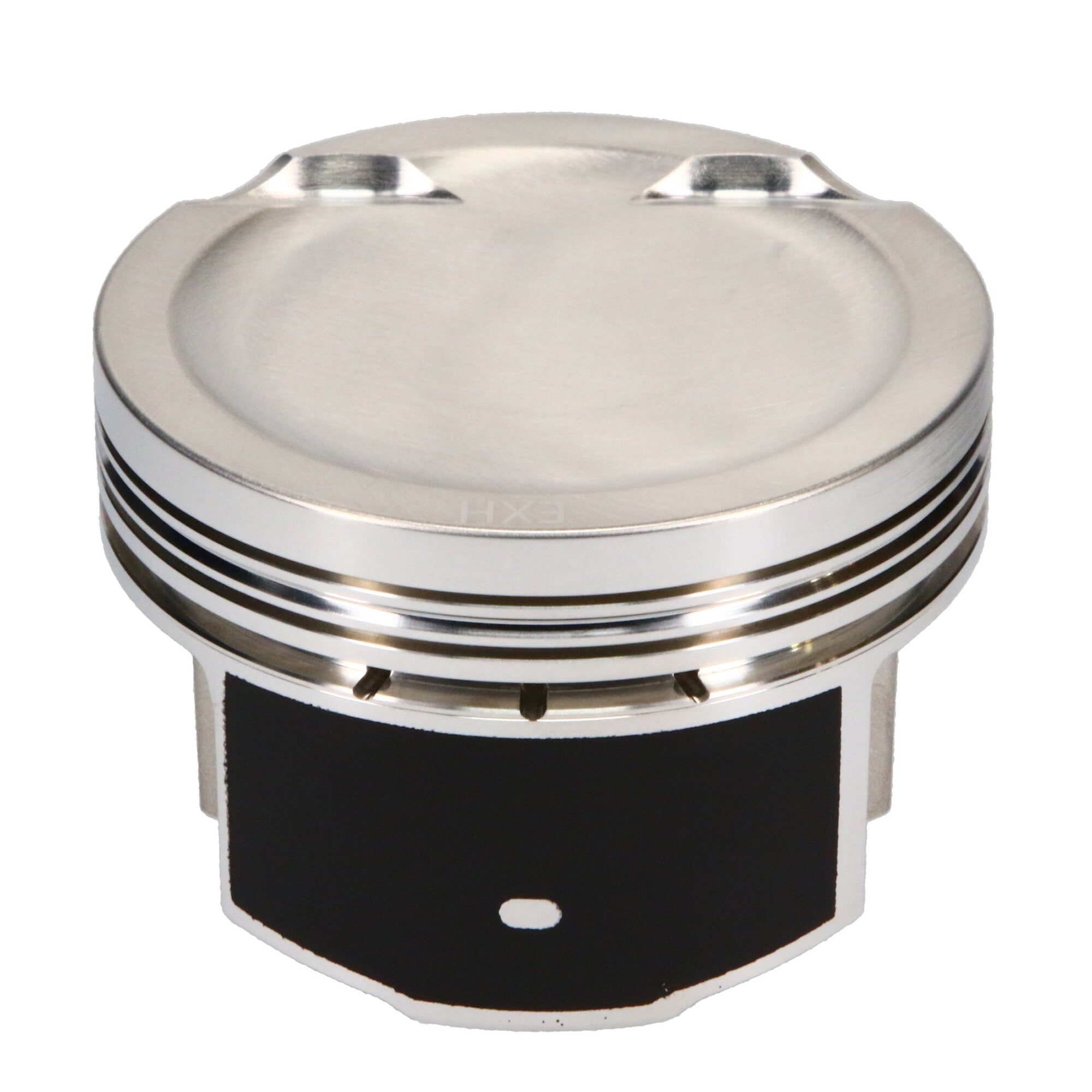

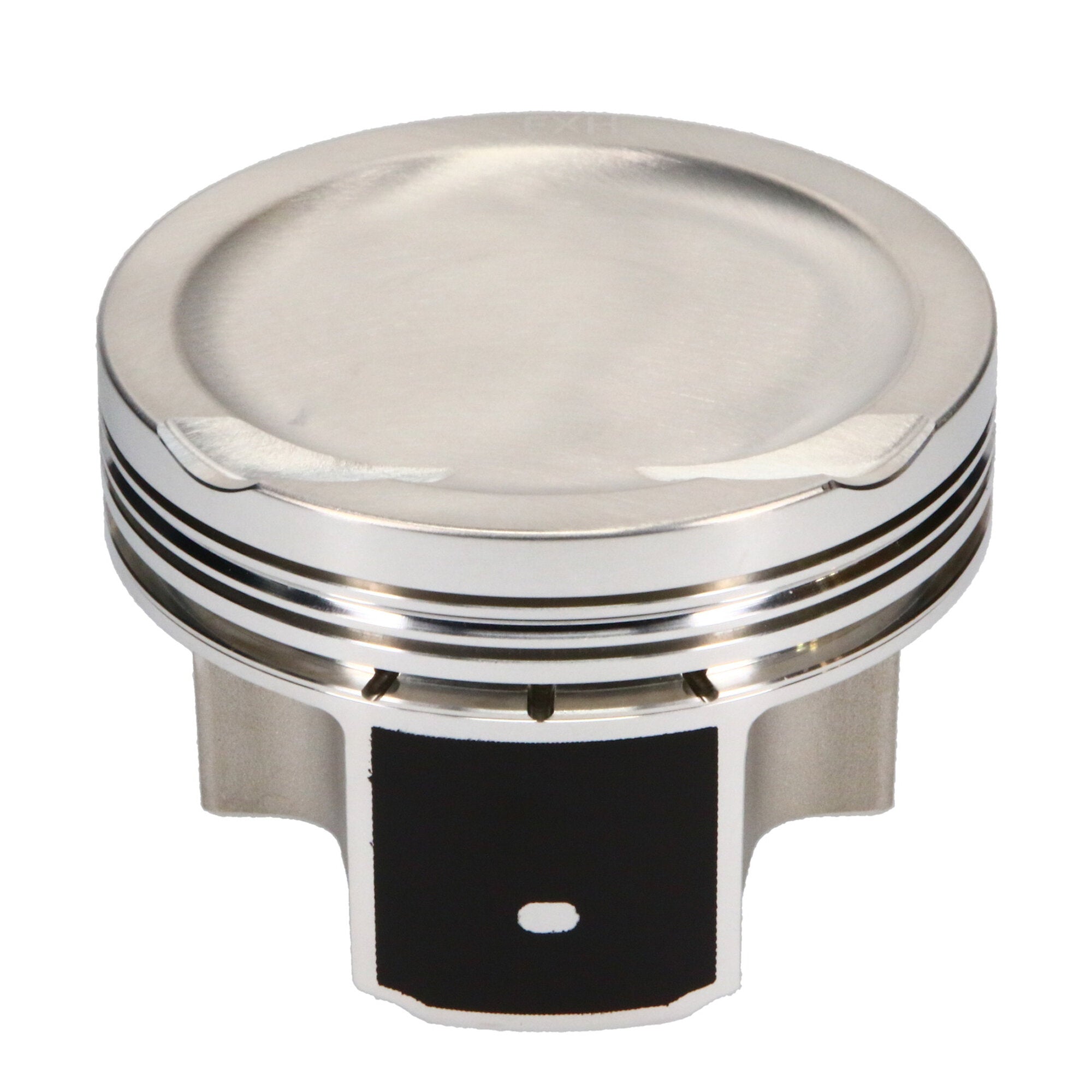

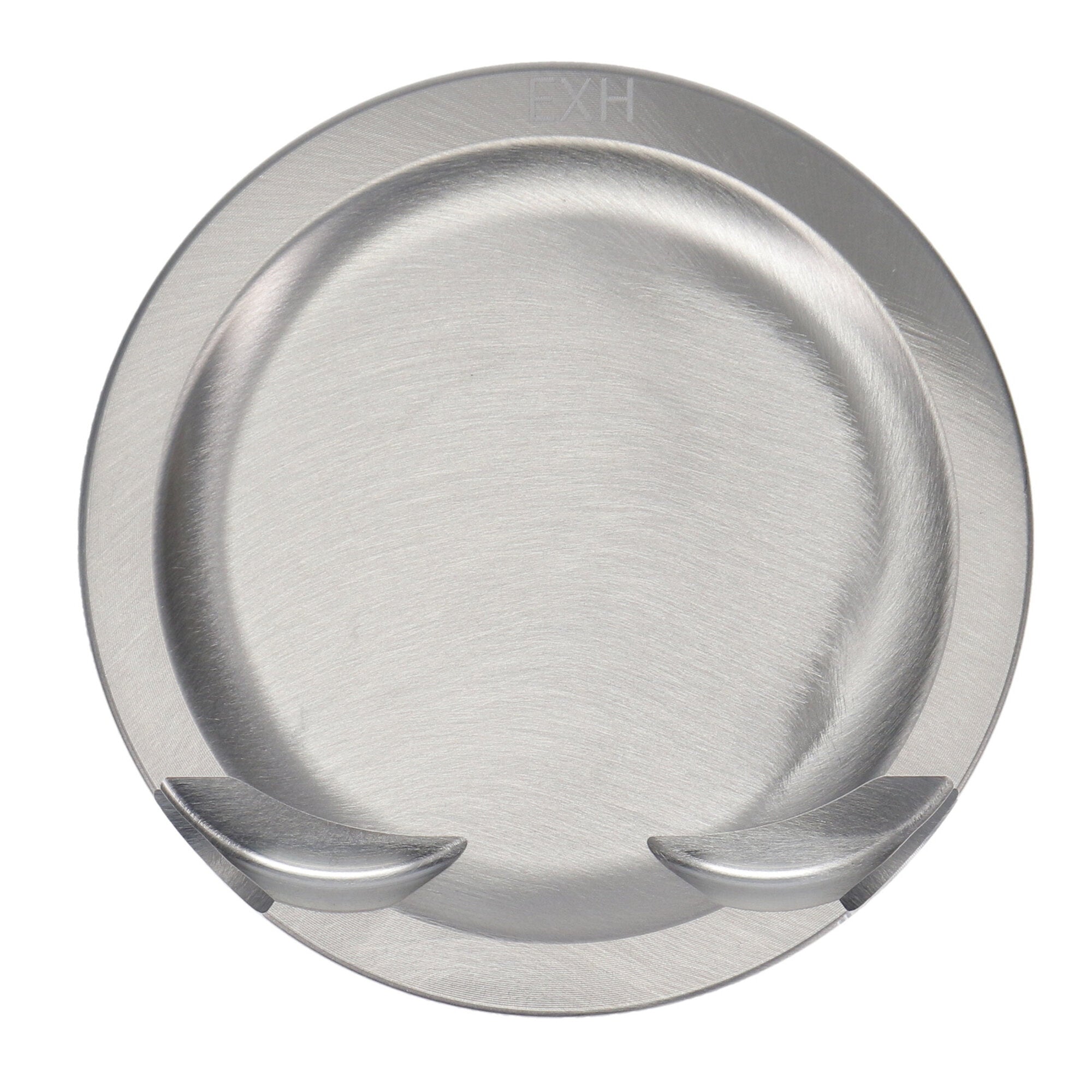

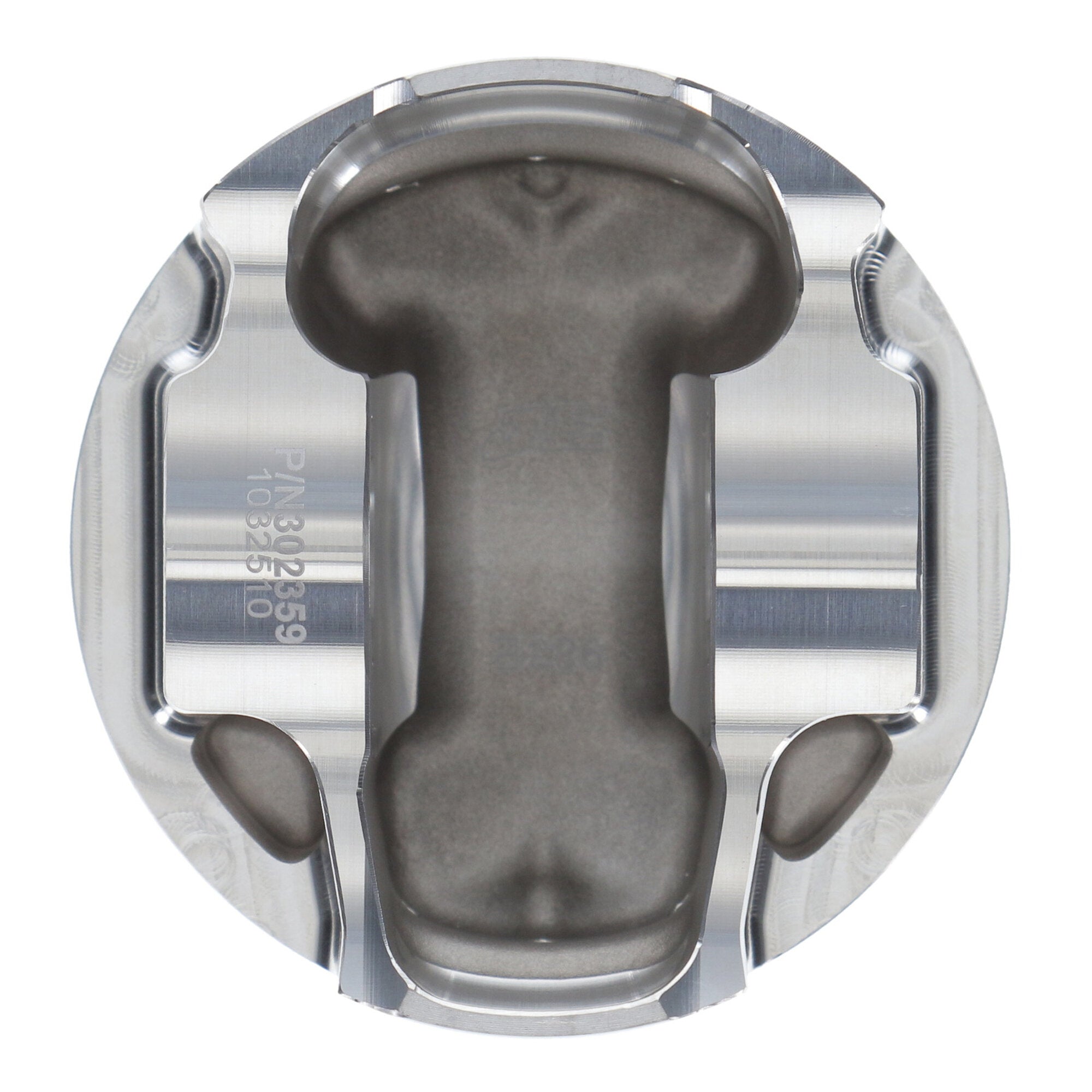

Piston Set, 2618, Inv Dome/Dish, 3.268 Bore, 1.165 CD, 0.787 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, VW, 9A 16V 2.0L, 3.268 in. Bore, 9.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Volkswagen 9A 2L 16V, 83.00 Bore, Dish, Set of 4 |
| Title |
JE Pistons - Volkswagen, 9A 16V 2.0L, 83.00 mm Bore, Piston Kit |
| Oil Ring Thickness |
0.111 |
| Bore Diameter |
83.00 |
| Piston Average Weight |
281 |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0400 |
| Forging Type |
FSR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Product Market |
European |
| Piston Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.787 |
| Piston Quantity |
4 |
| Piston Volume |
-7.00 |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Compression Height |
1.165 |
| Make |
VOLKSWAGEN |
| Engine - Web |
9A 16V 2.0L |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.787 |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Add-On |
787-050-MW |
| Piston Head Type |
Dish |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1001-3268 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Title - Web |
JE Pistons Volkswagen 9A 16V 2.0L Piston Kit - 83.00 mm Bore - 1.165 in. CH, -7.00 CC |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
9A |
| Piston Material |
2618 |
| Add-On |
787-2250-18-51C |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Volkswagen |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine |
9A 16V 2.0L |
| Piston Pin Length |
2.250 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
