As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

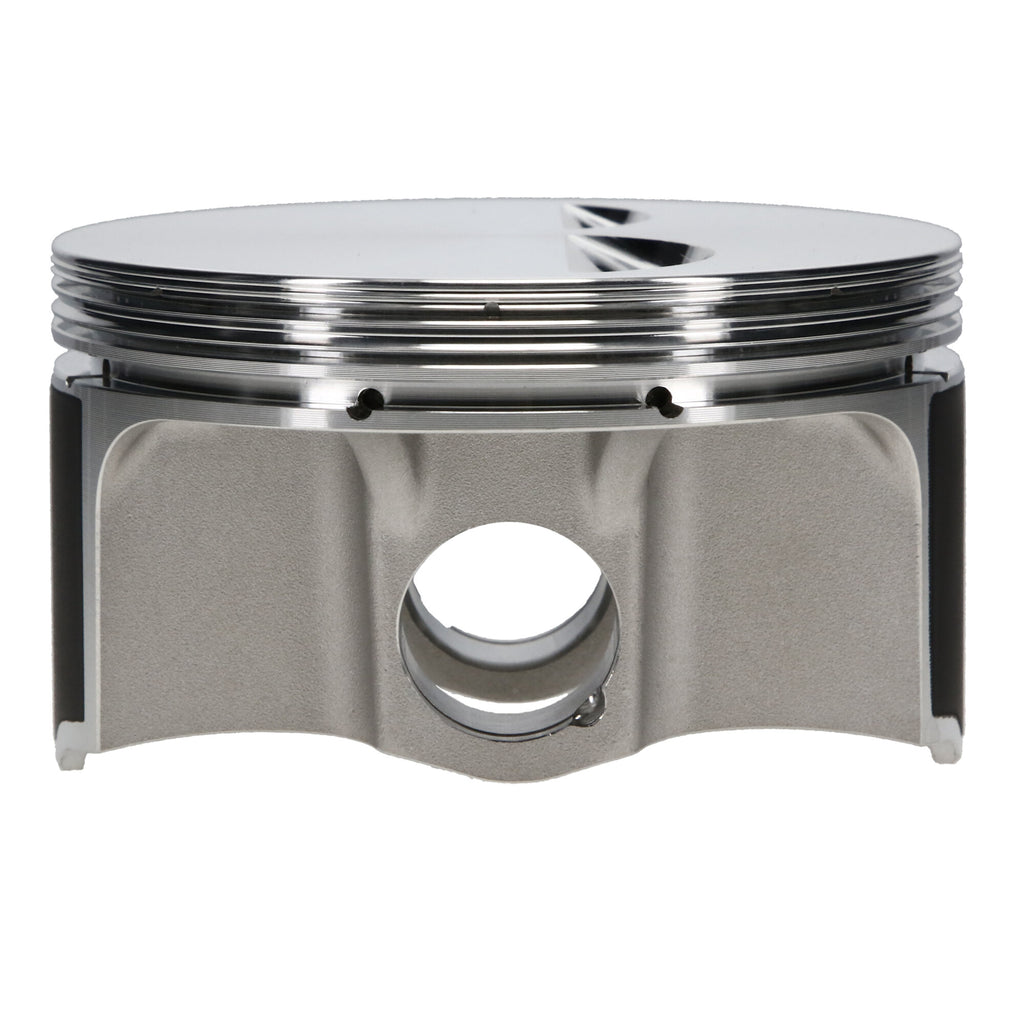

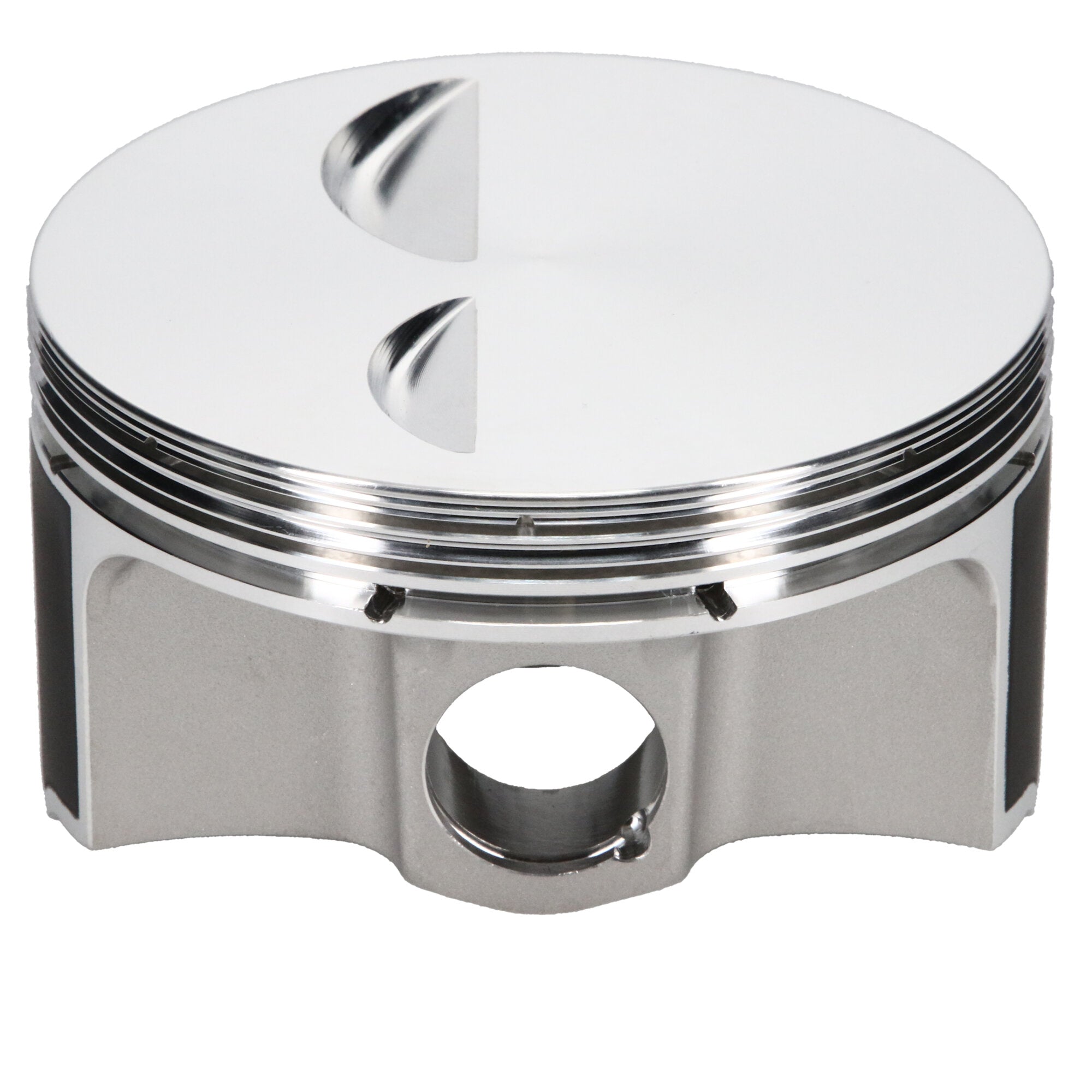

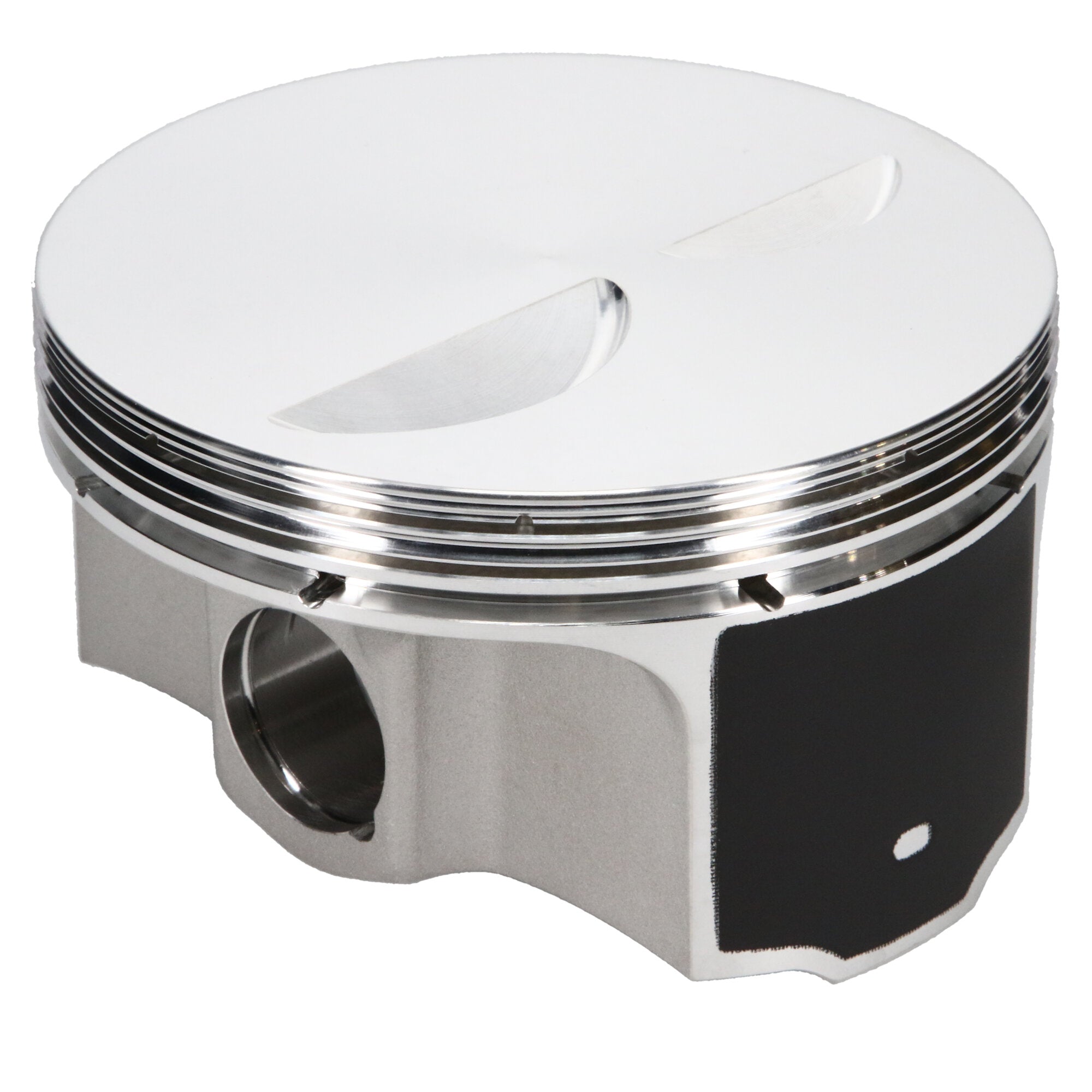

JE, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |

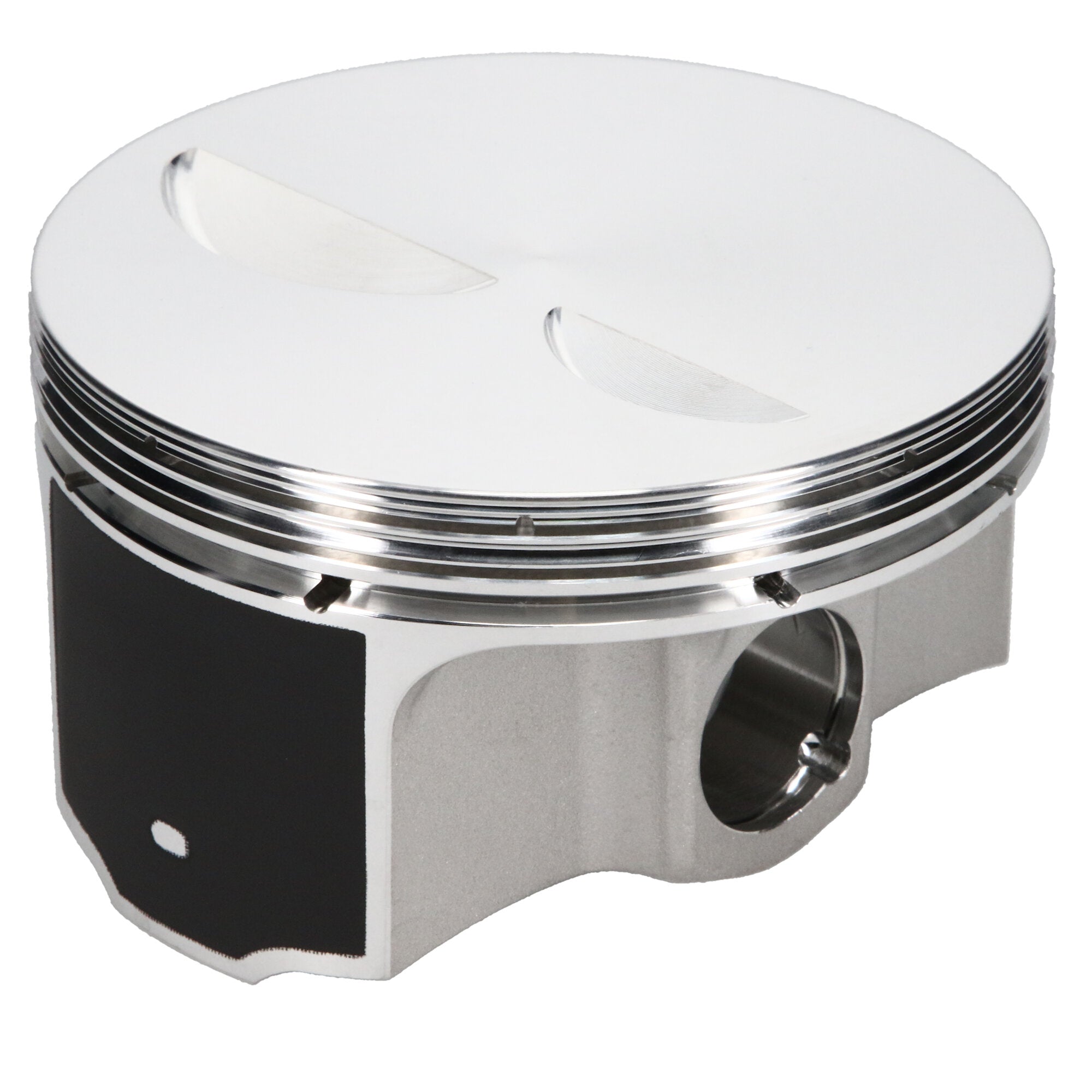

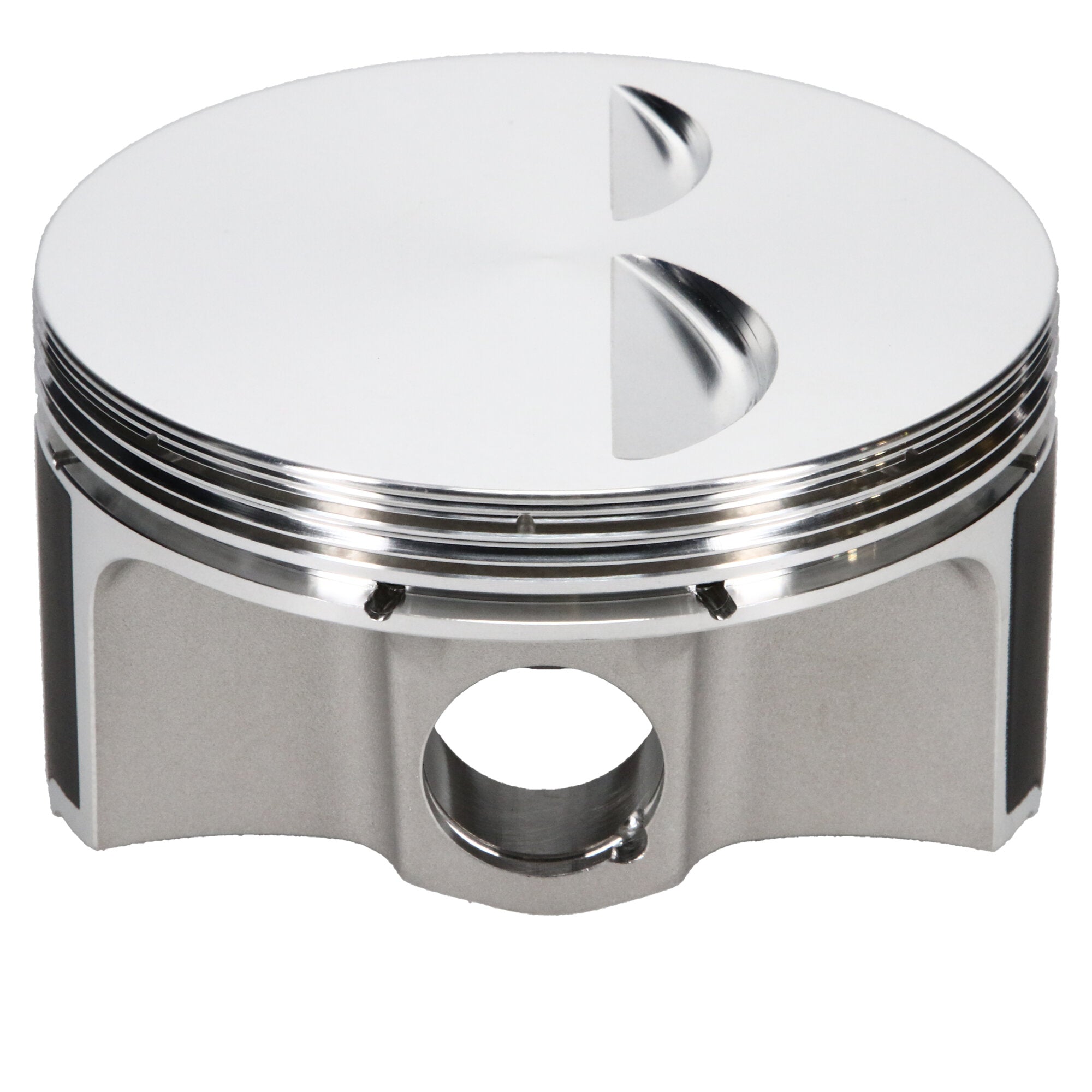

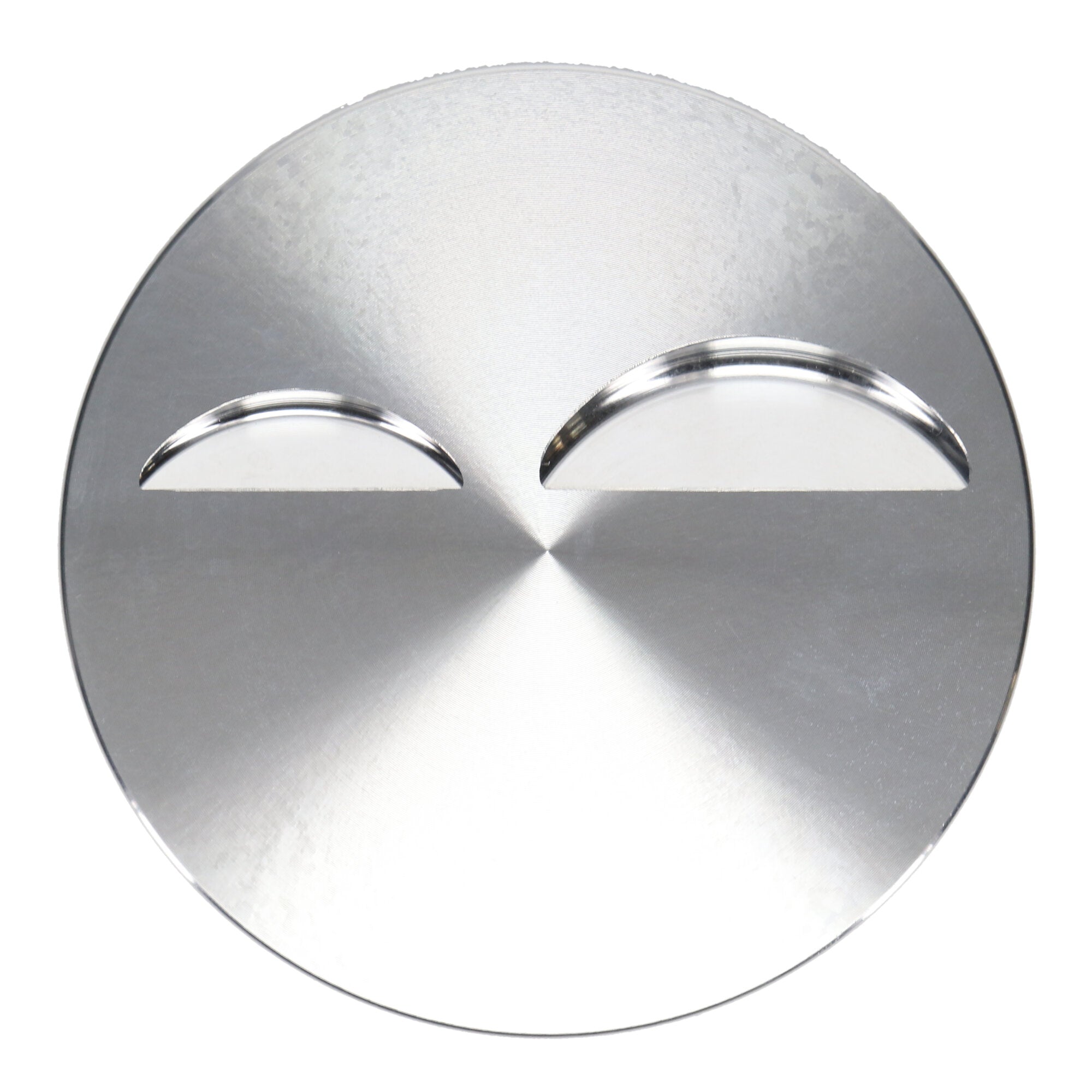

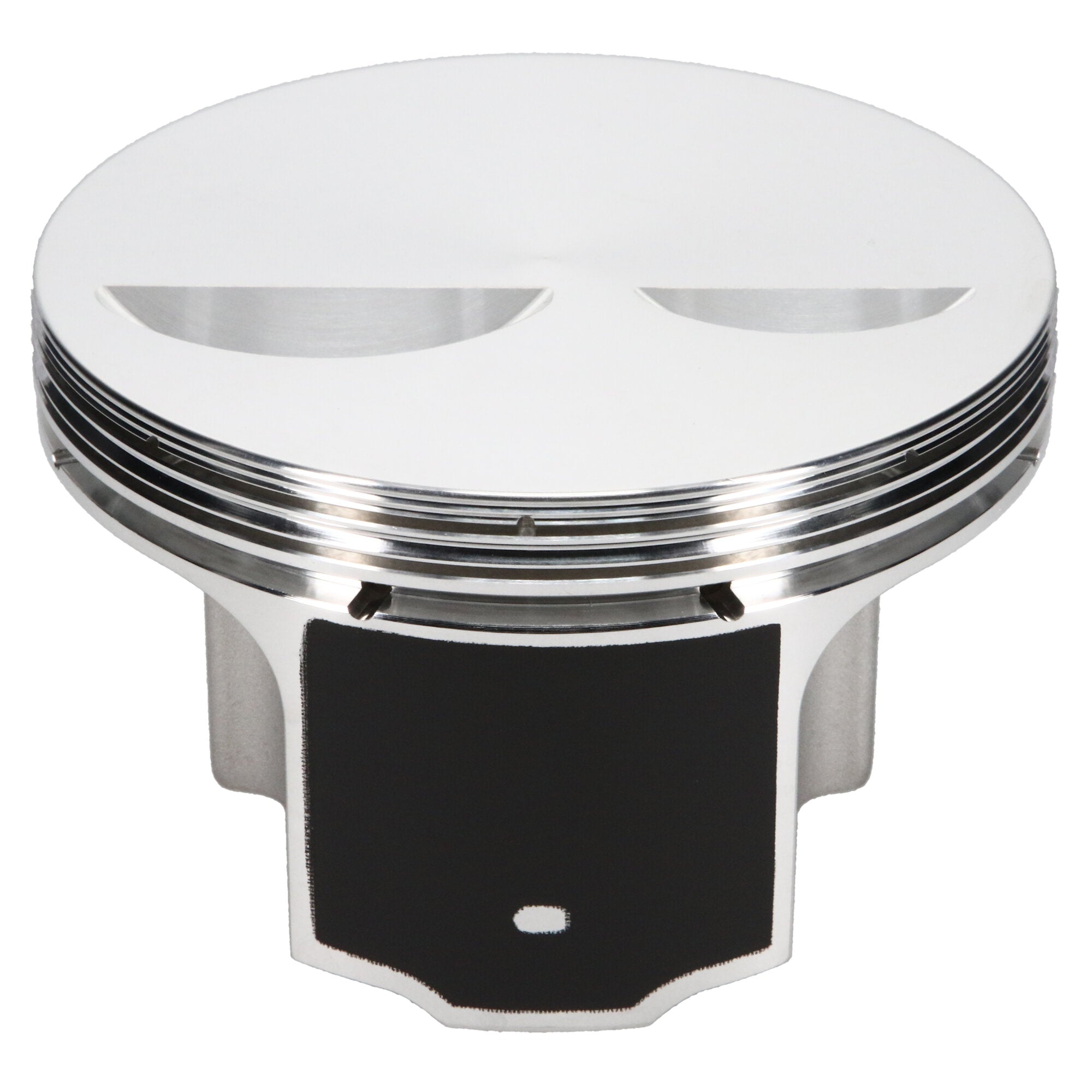

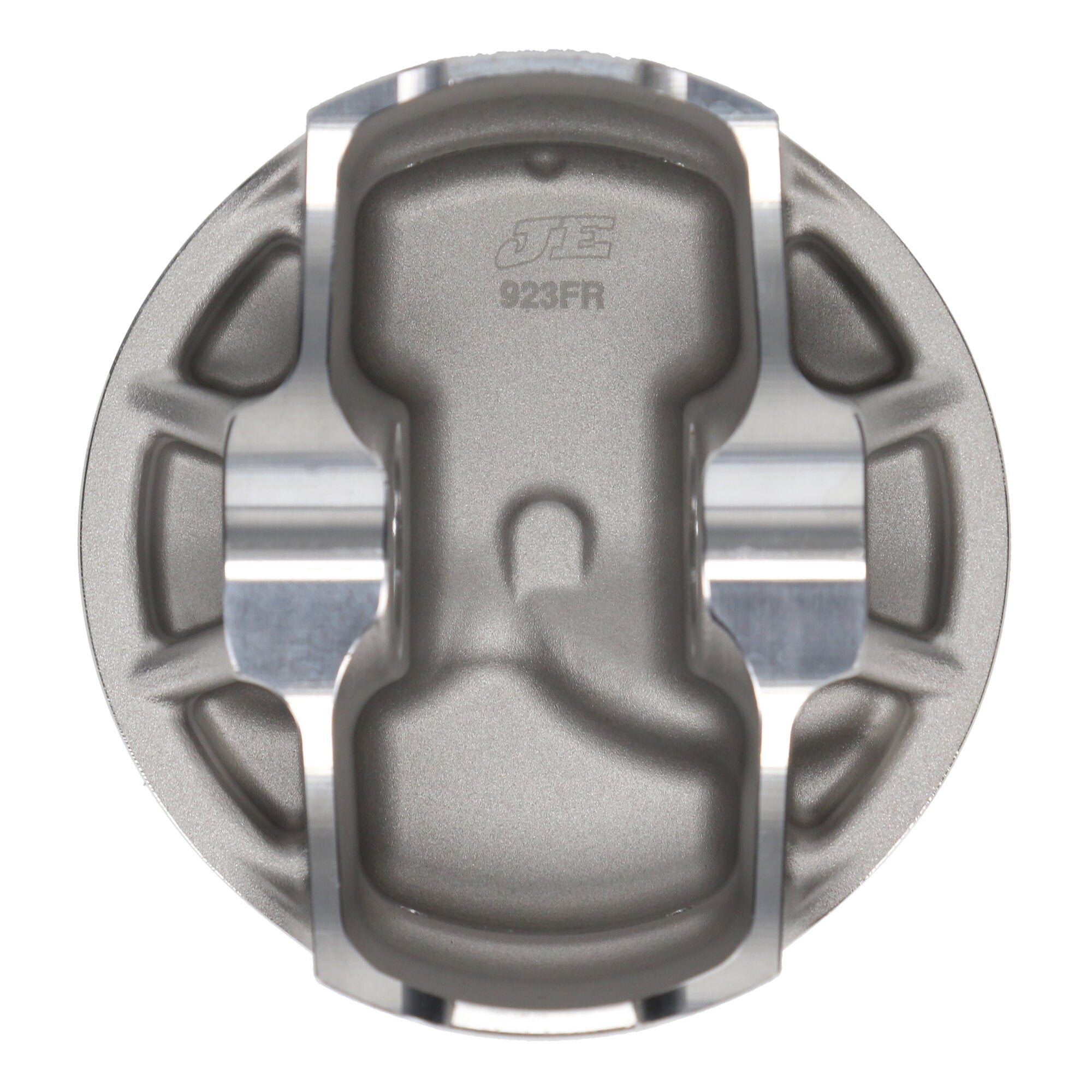

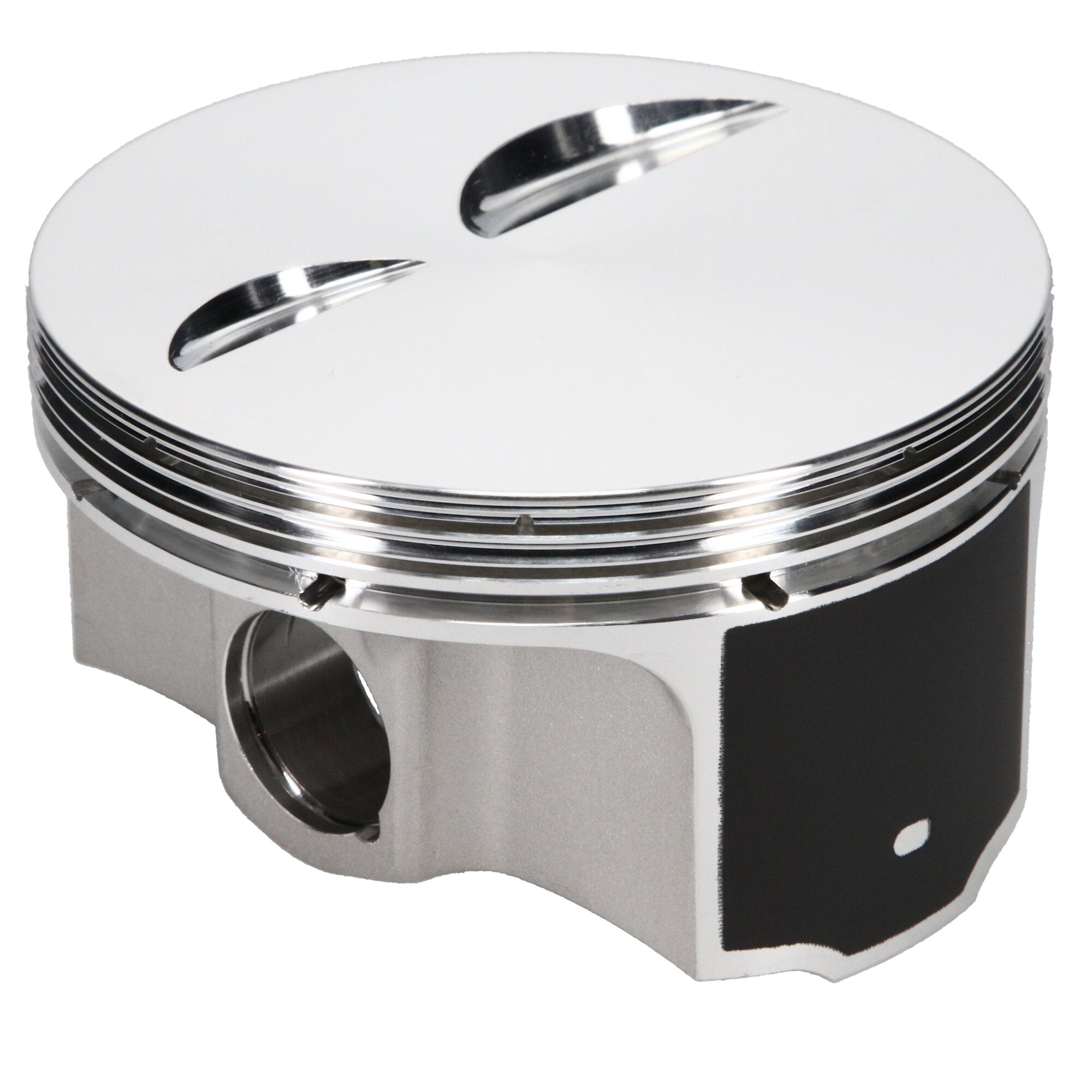

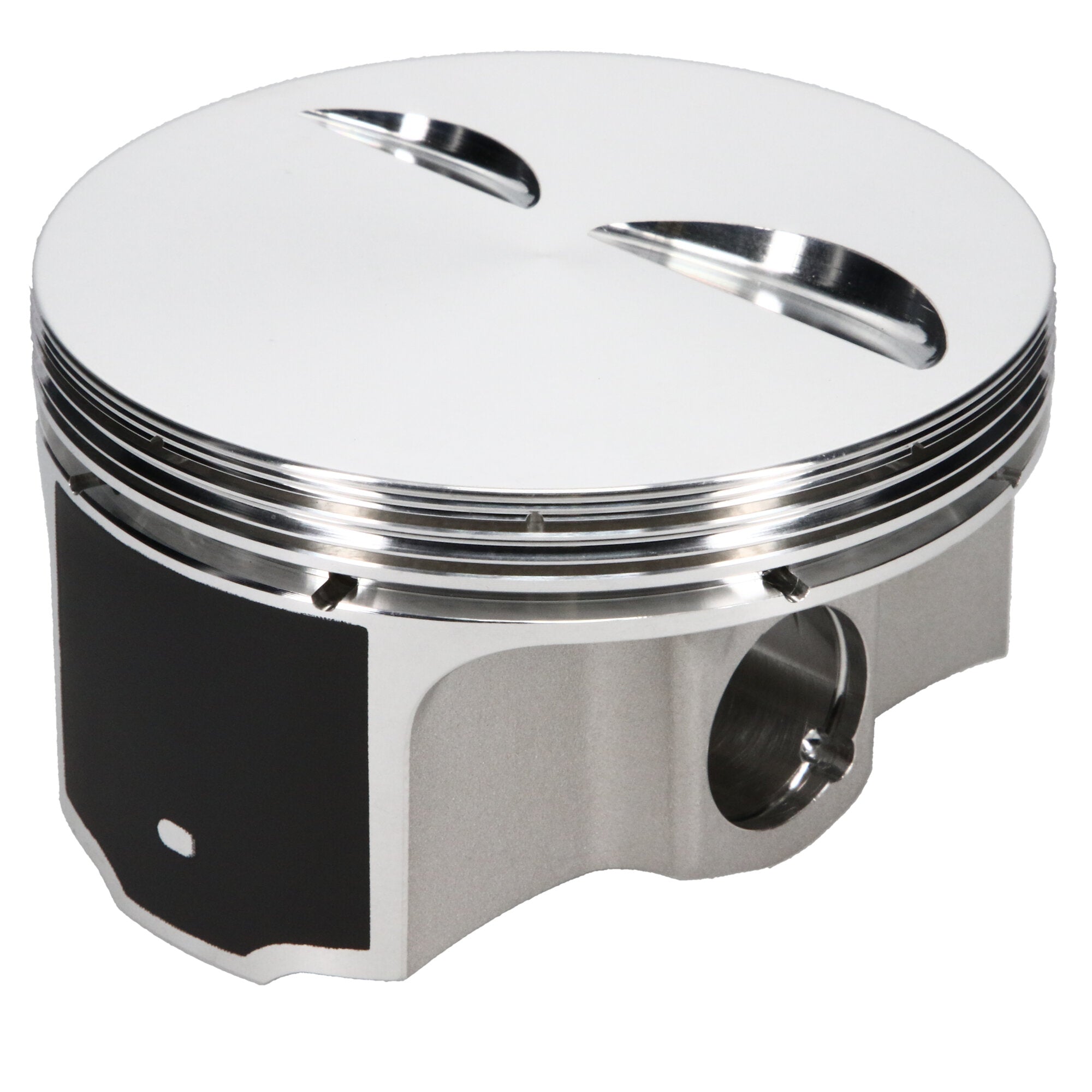

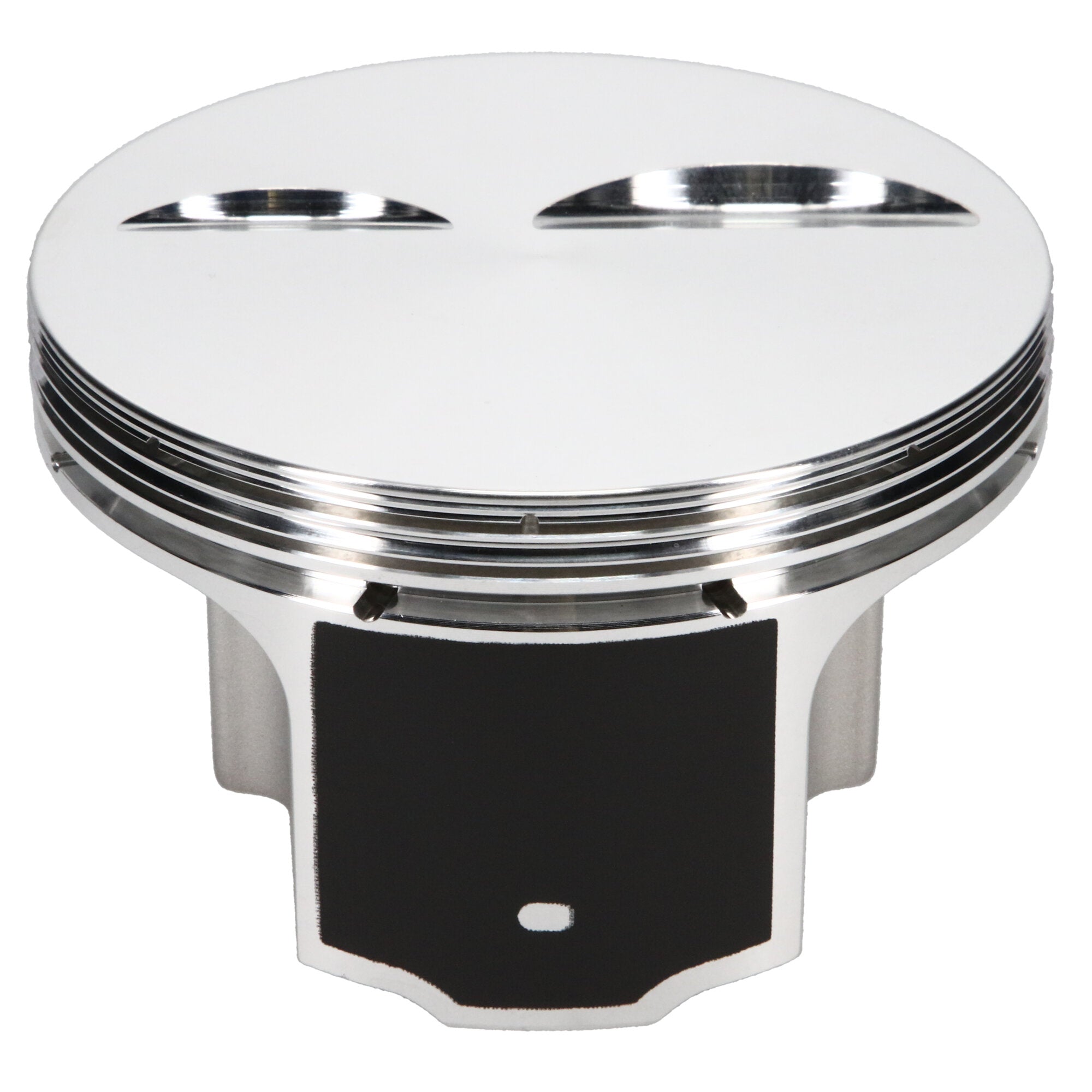

Piston Set, 2618, Flat Top, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350, 4.040 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.040 in. Bore - 1.250 in. CH, -1.80 CC |
| Make - Web |
Chevrolet |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Forging Type |
FSR |
| Piston Pin Length |
2.350 |
| Second Compression Ring Thickness |
0.0440 |
| Piston Series |
JE Pistons |
| Piston Head Type |
Flat |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.119 |
| Engine Type |
ICE |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Engine |
Small Block |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-073-MW |
| Piston Quantity |
8 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.040 in. Bore, Piston Kit |
| Add-On |
927-2350-15-51C |
| Top Compression Ring Thickness |
0.0435 |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.250 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Volume |
-1.80 |
| Bore Diameter |
4.040 |
| Piston Average Weight |
338 |
| Add-On |
J71408-4040-5 |
| Industry |
Automotive |
| Piston Material |
2618 |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.350 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Make |
CHEVROLET |
| Product Type |
Engine Piston Kit |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
