As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

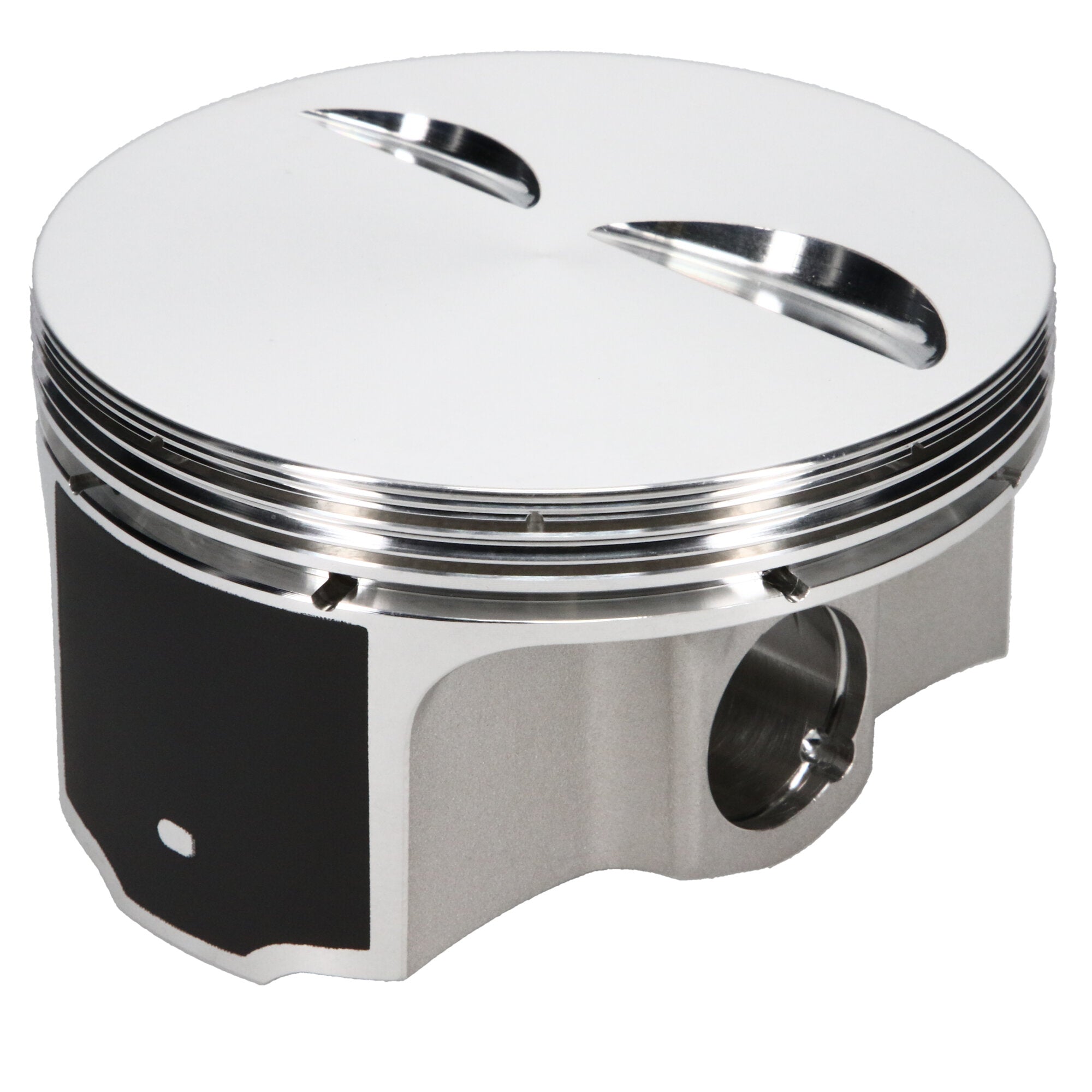

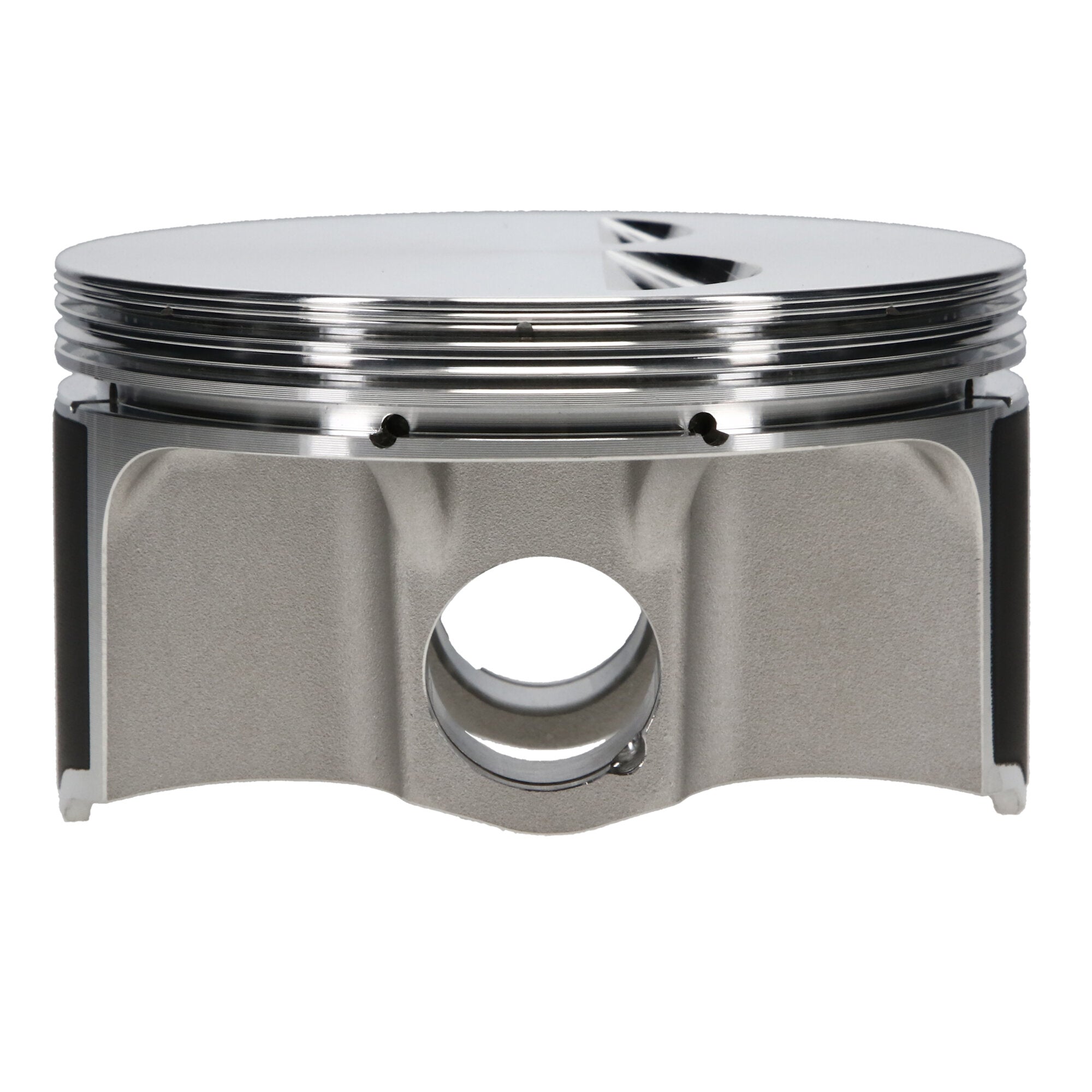

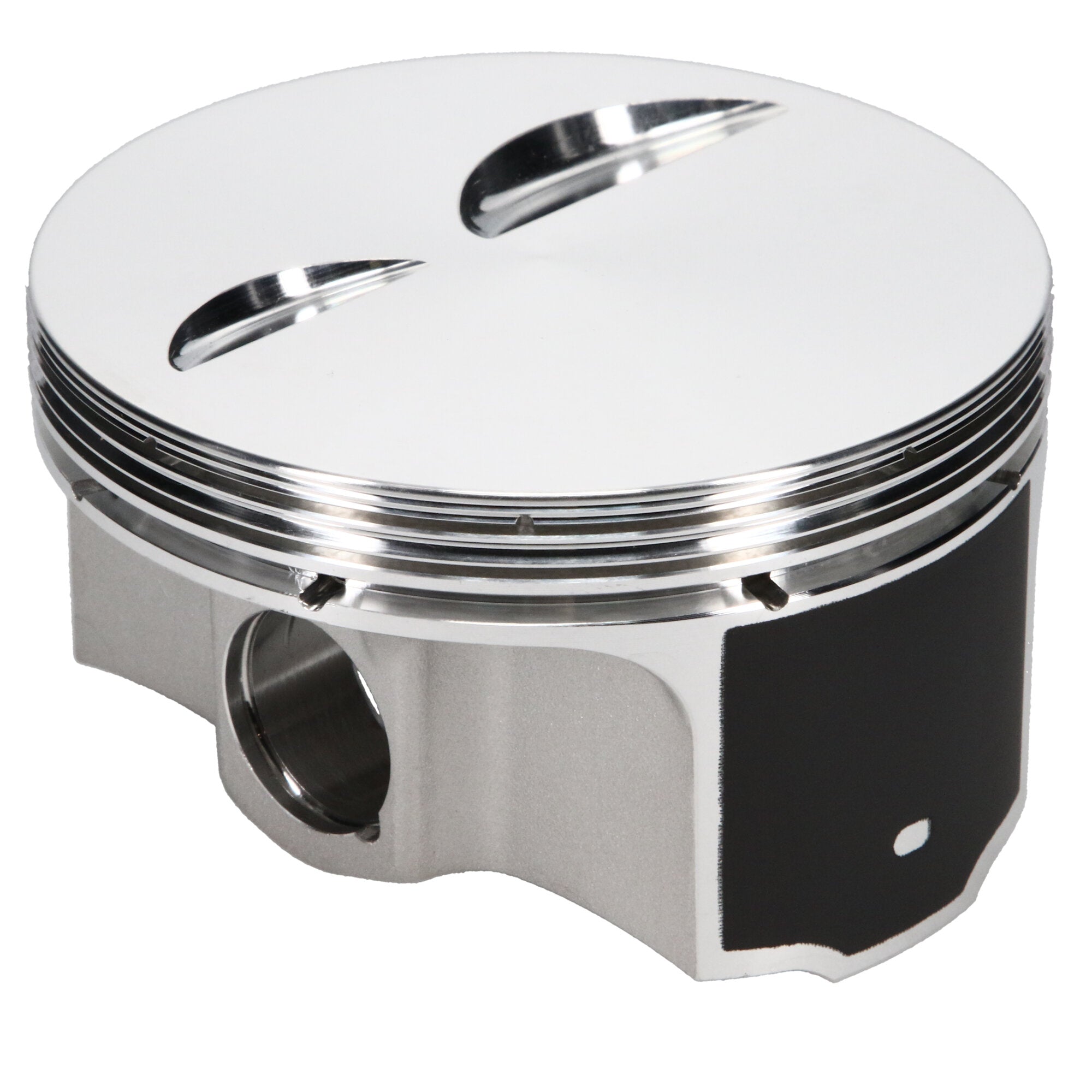

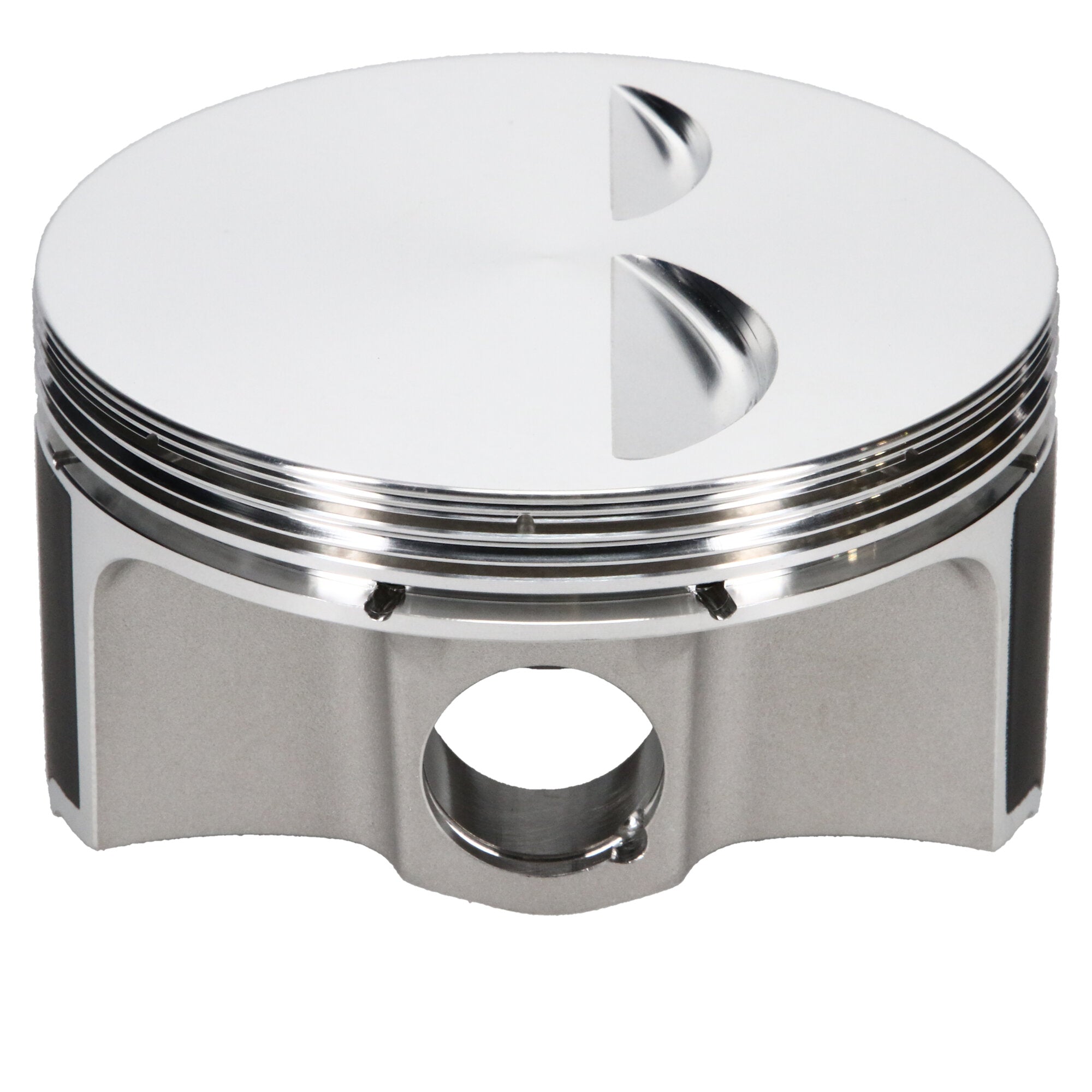

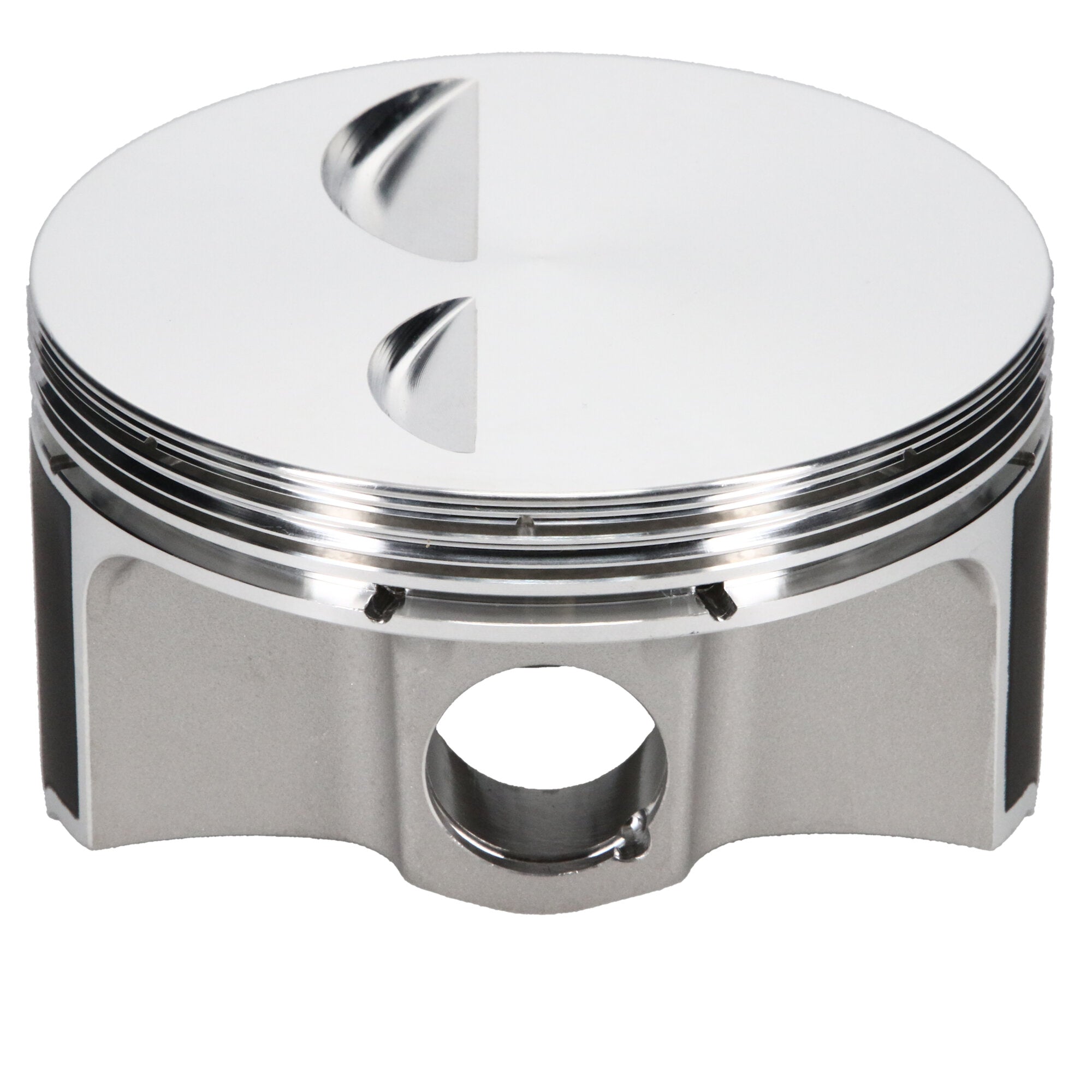

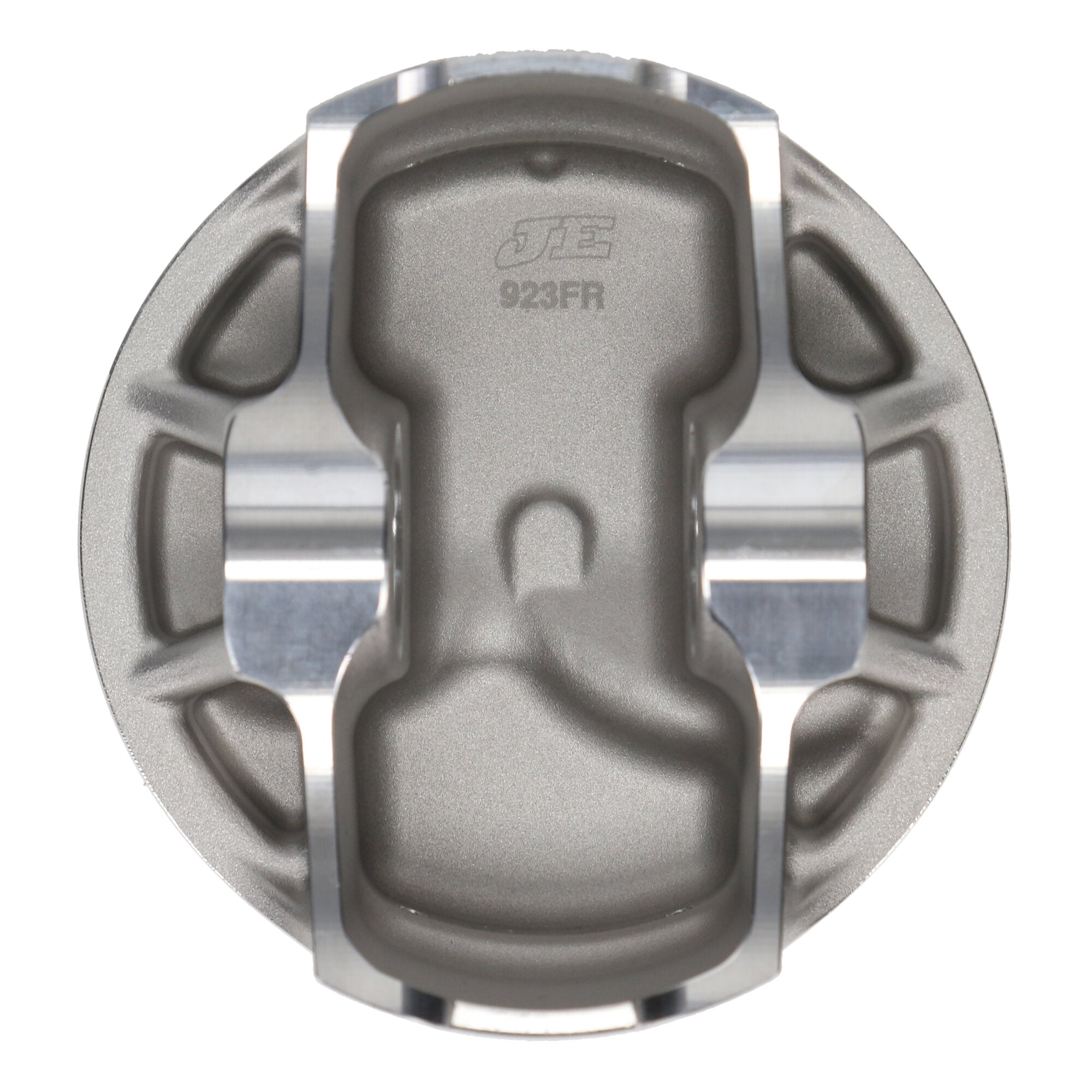

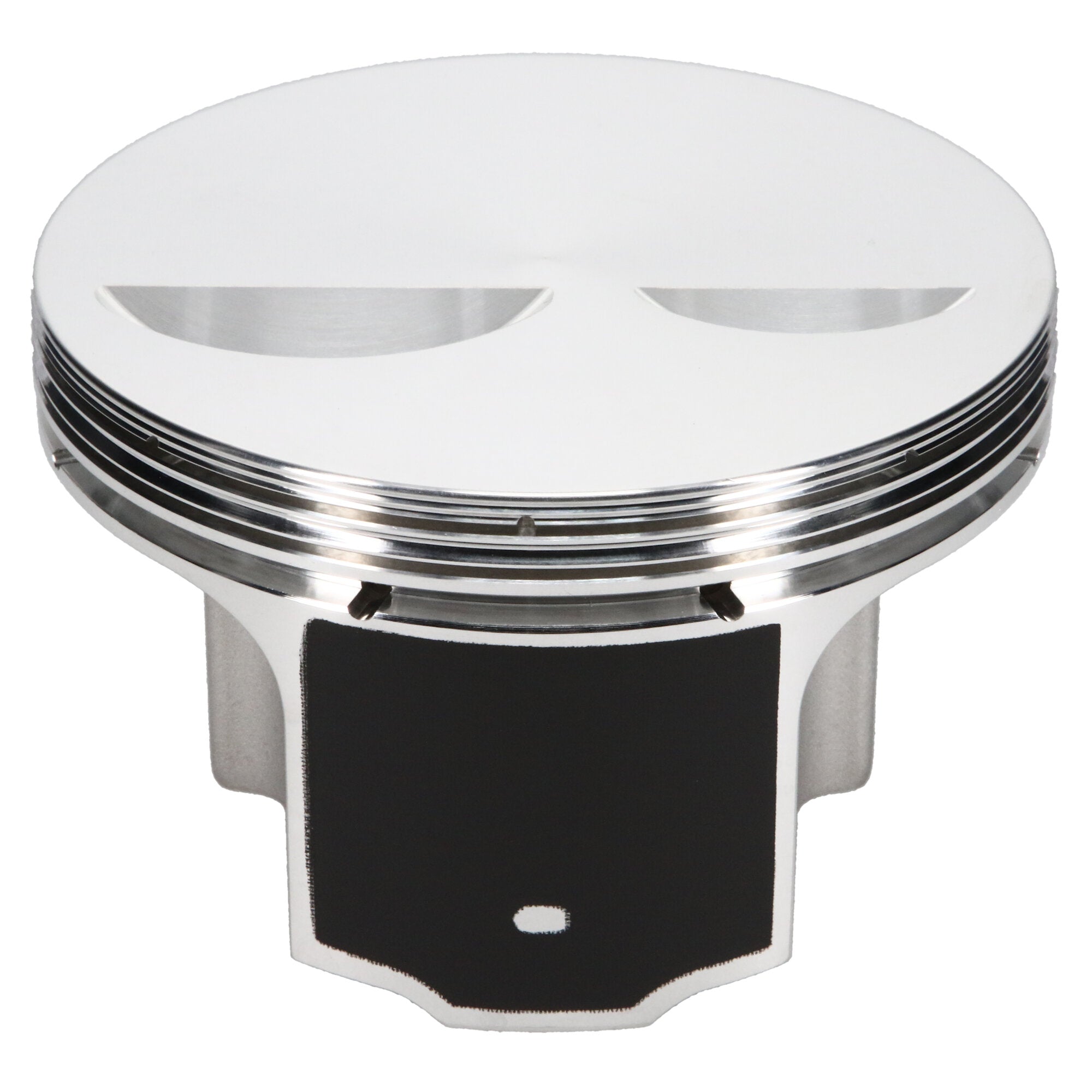

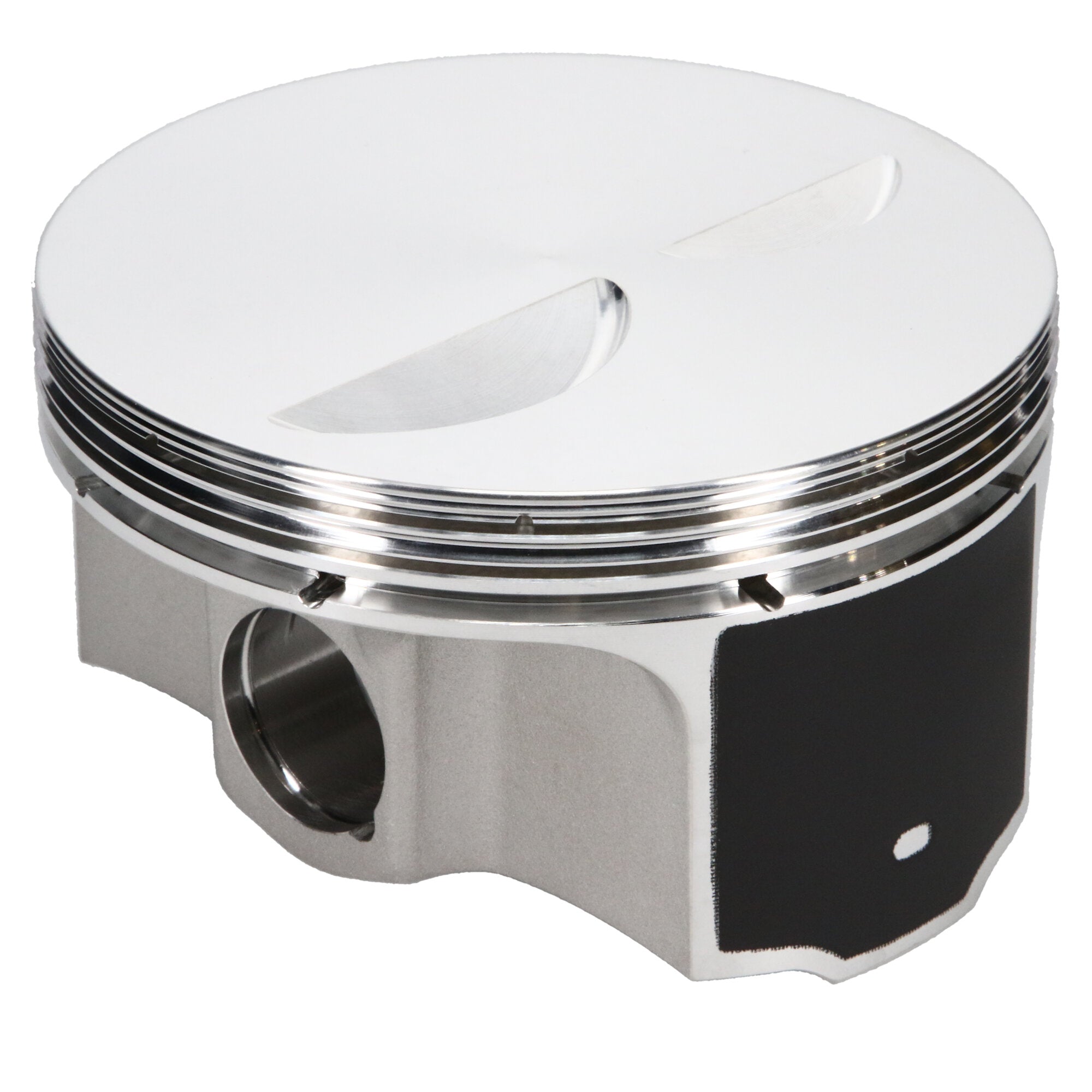

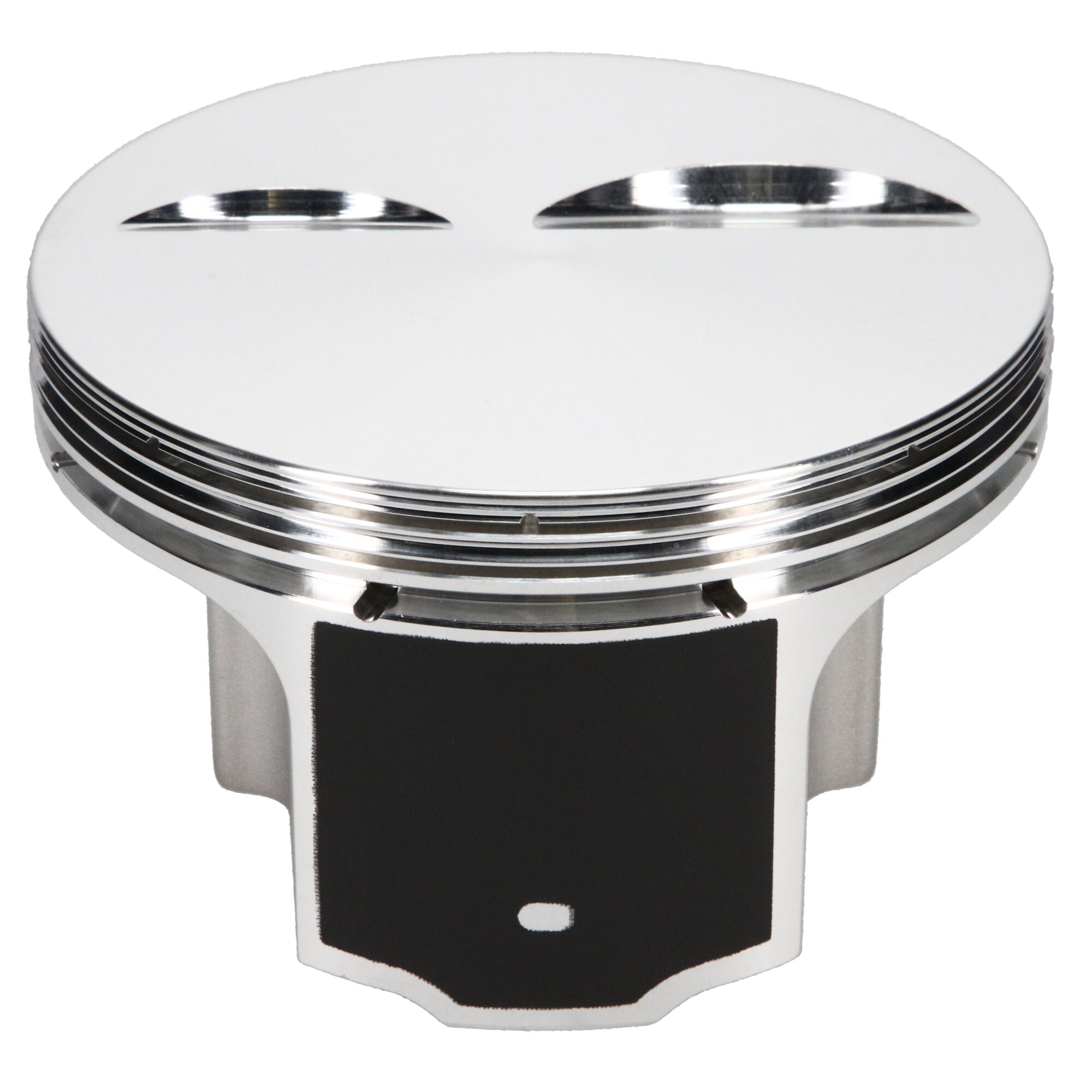

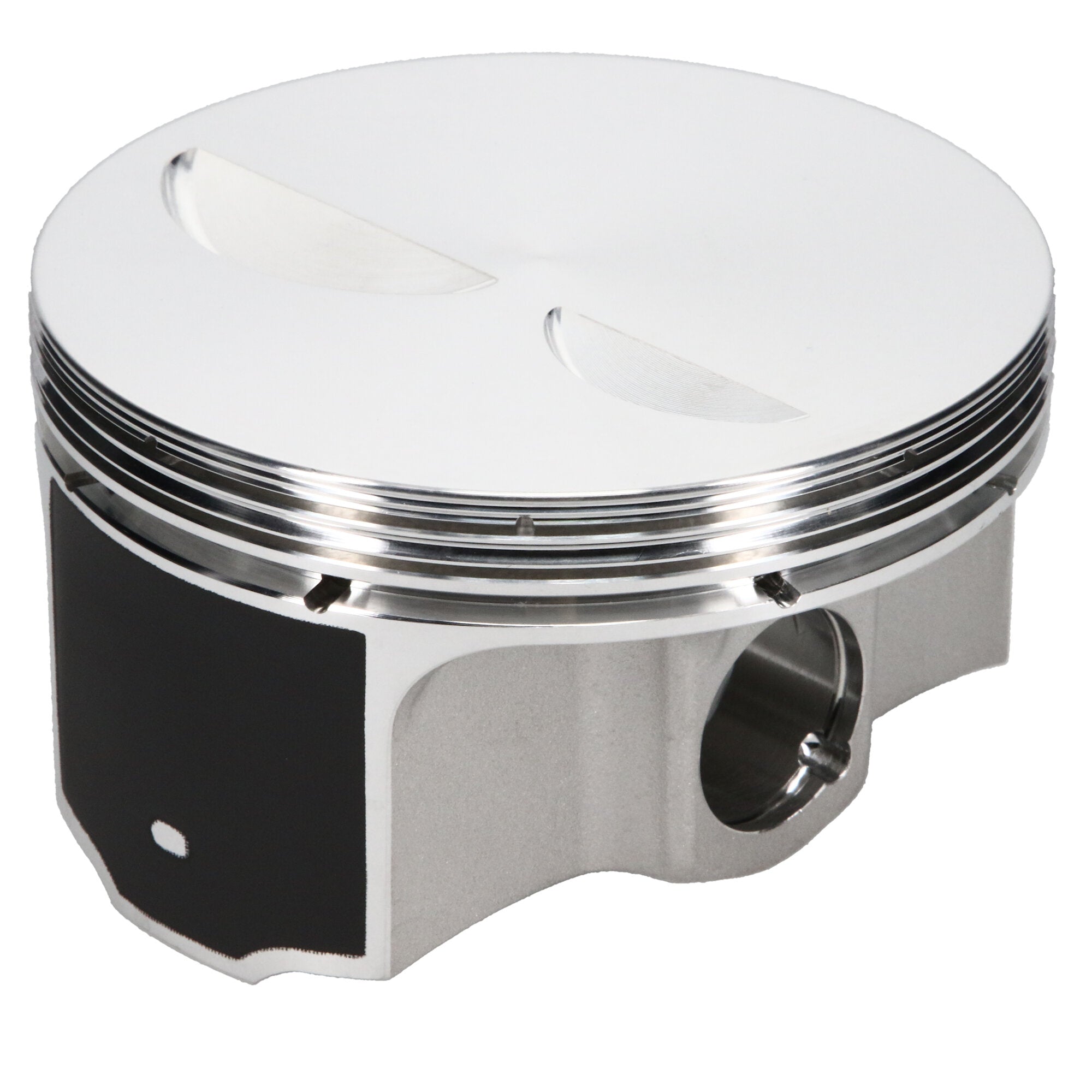

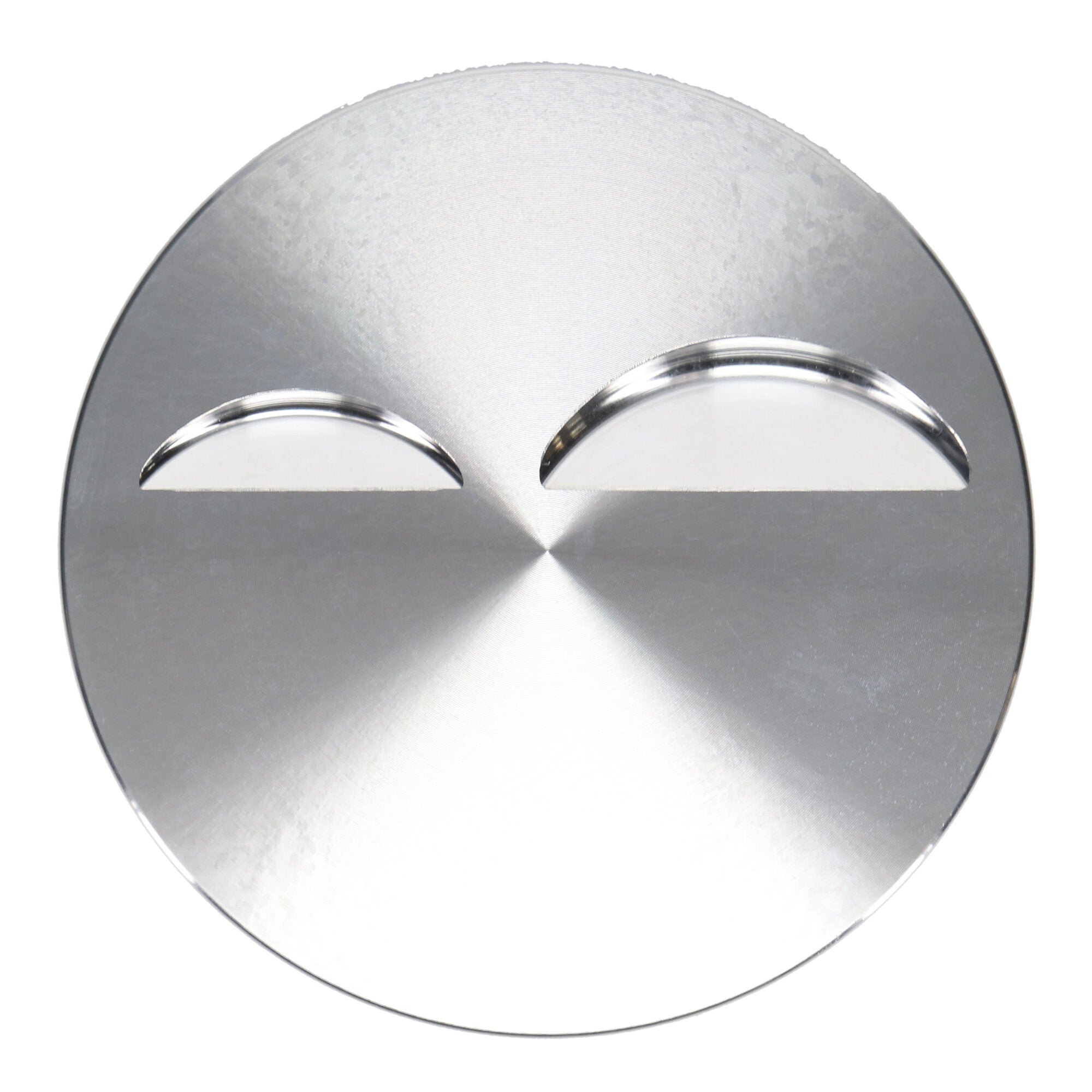

Piston Set, 2618, Flat Top, 4.035 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.035 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.035 Bore, Flat, Set of 8 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.035 in. Bore, Piston Kit |
| Piston Average Weight |
335 |
| Compression Height |
1.250 |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Pin Outside Diameter |
0.927 |
| Engine - Web |
Small Block |
| Top Compression Ring Thickness |
0.0435 |
| Piston Quantity |
8 |
| Bore Diameter |
4.035 |
| Piston Pin Wall Thickness |
0.150 |
| Make |
CHEVROLET |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.350 |
| Add-On |
927-2350-15-51C |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-1.80 |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Add-On |
927-073-MW |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Out of Stock Message |
Call for Availability |
| Add-On |
J71408-4030-5 |
| Piston Material |
2618 |
| Ring Set Included |
No |
| Second Compression Ring Thickness |
0.0440 |
| Piston Pin Length |
2.350 |
| Engine |
Small Block |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Piston Head Type |
Flat |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.035 in. Bore - 1.250 in. CH, -1.80 CC |
| Oil Ring Thickness |
0.119 |
| Ringset Included |
No |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
