As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

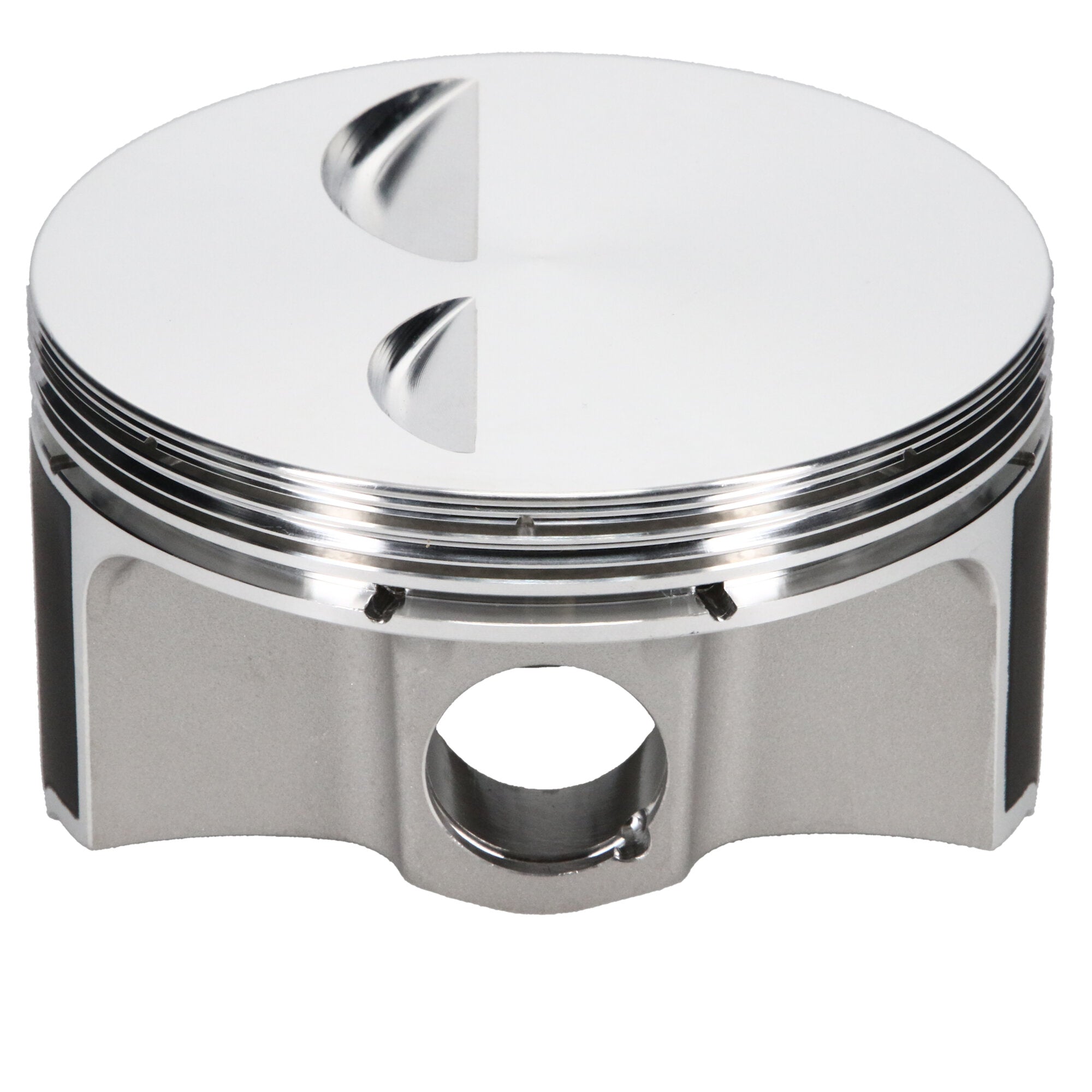

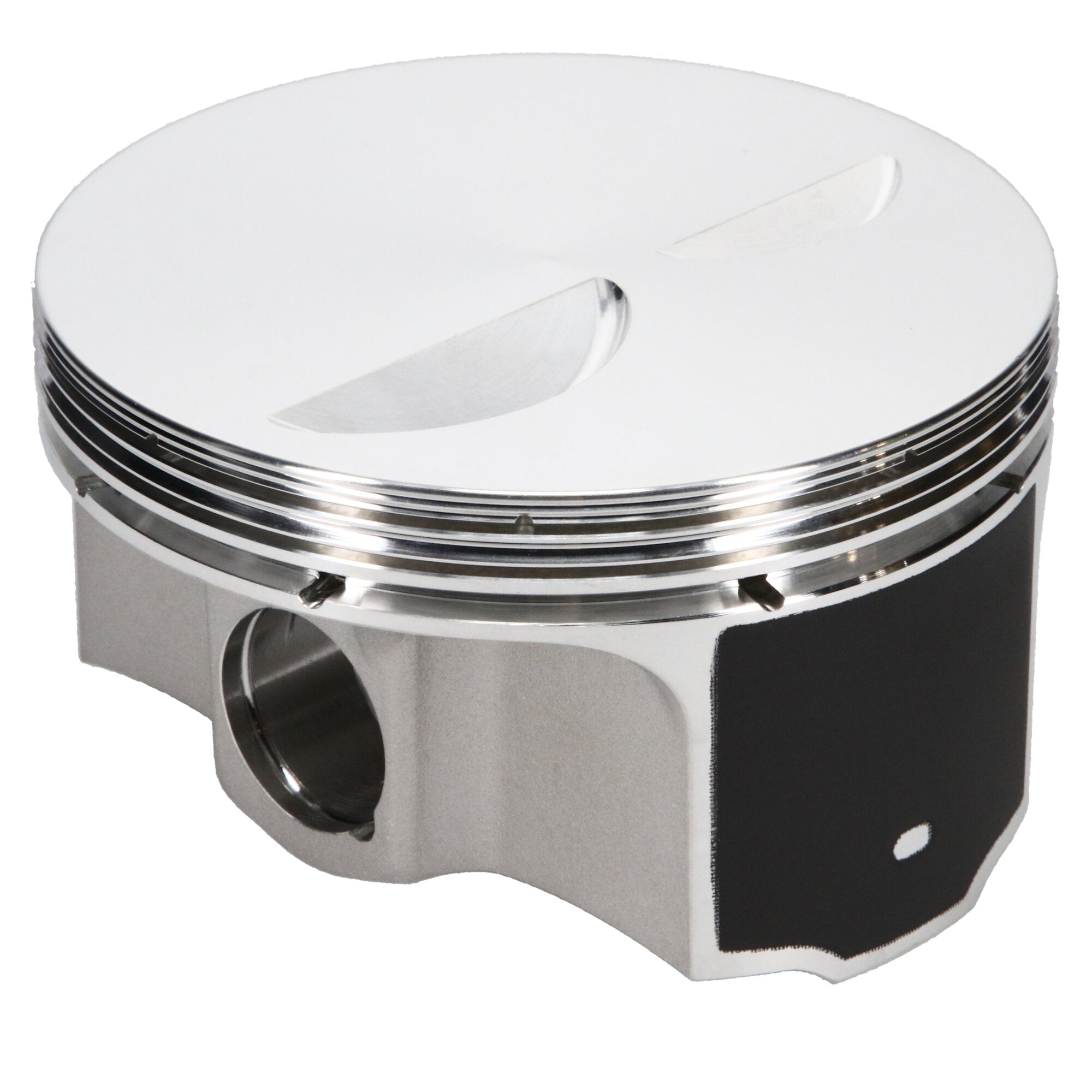

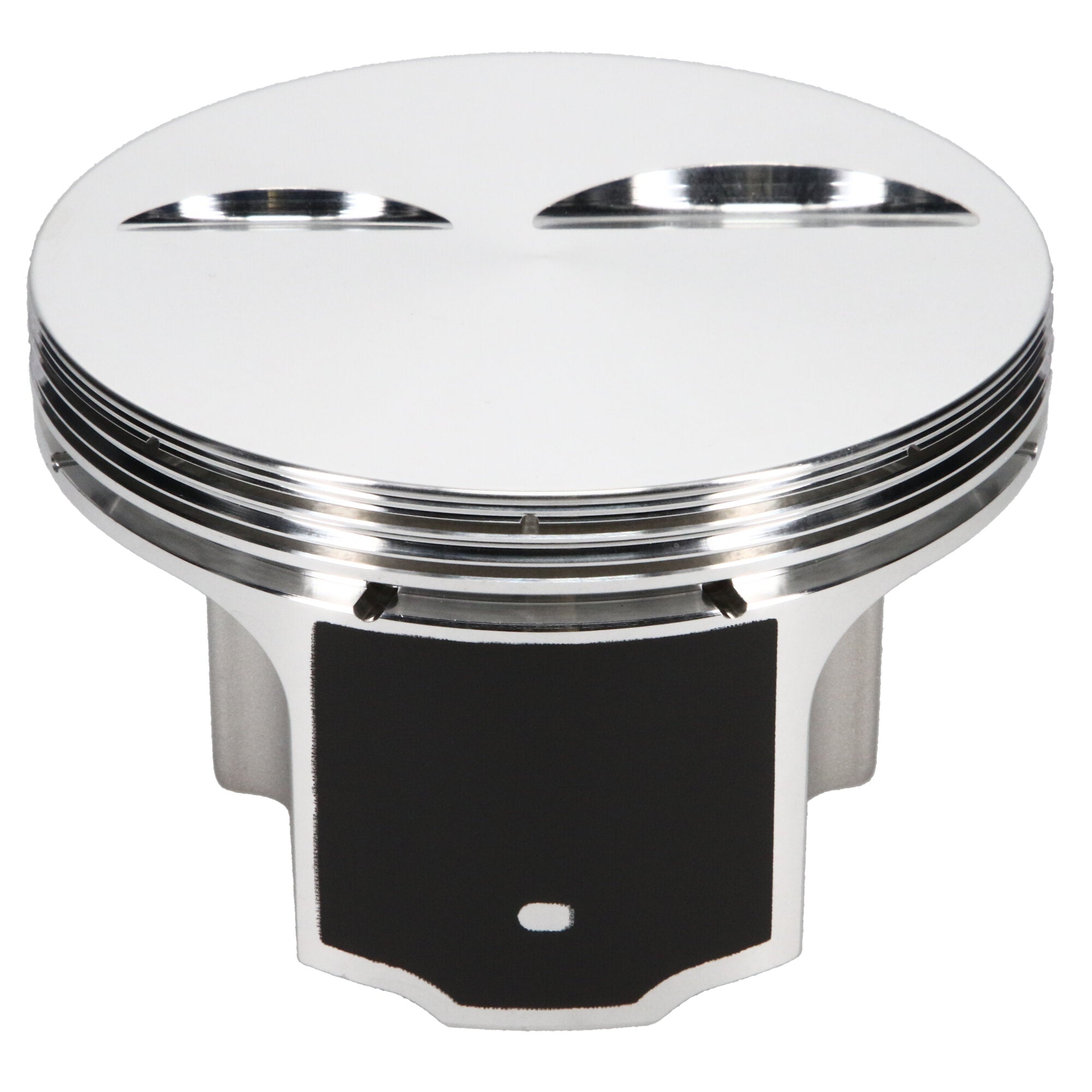

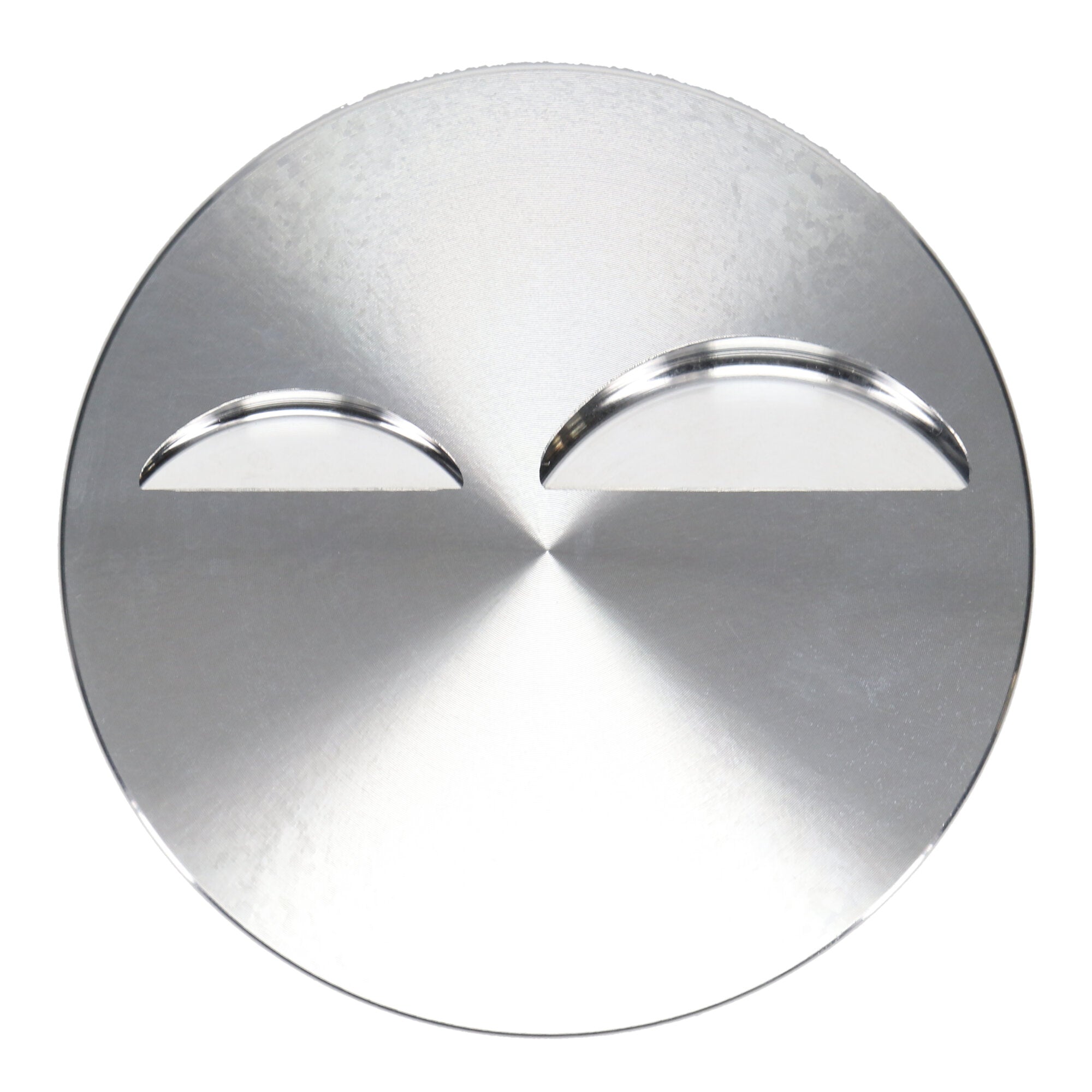

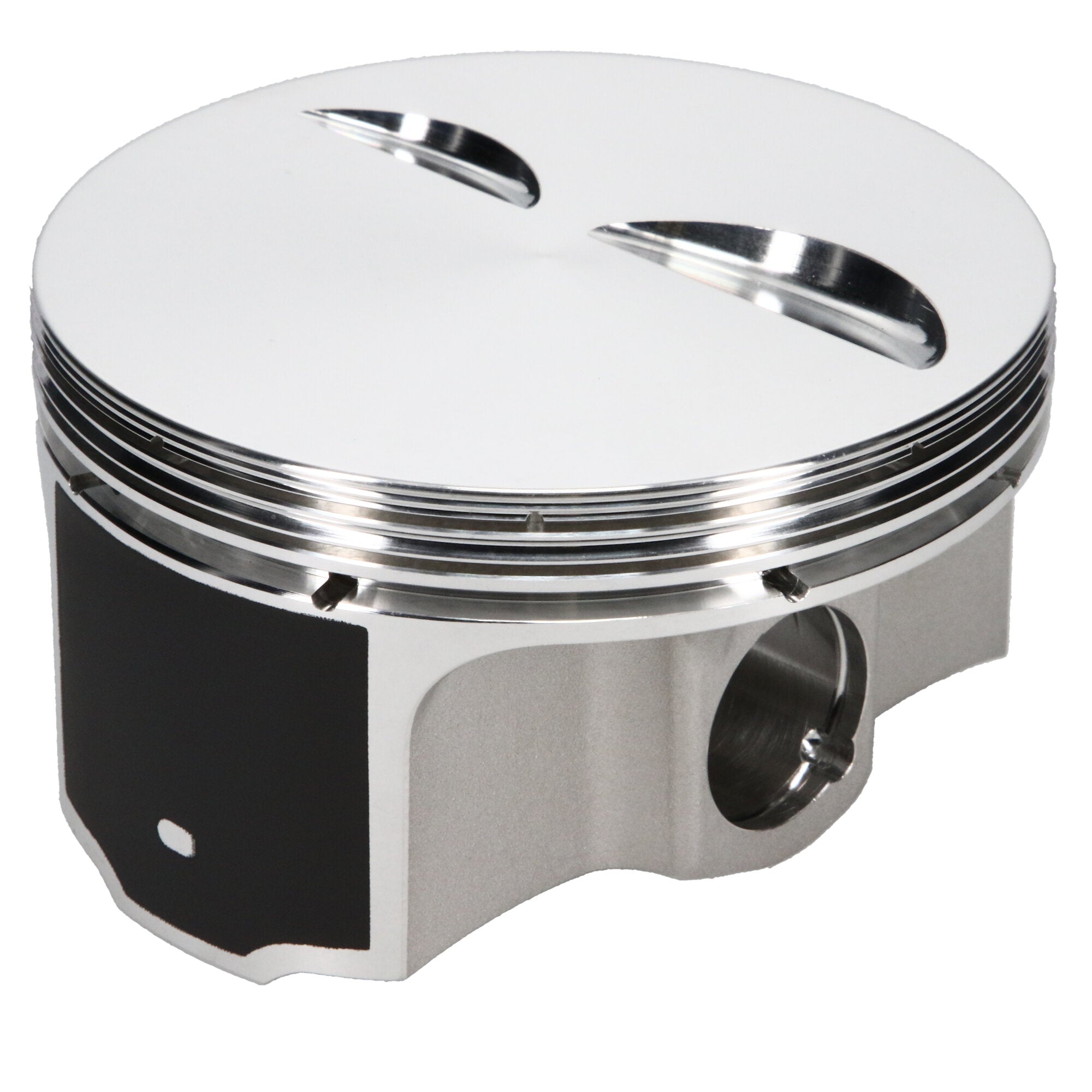

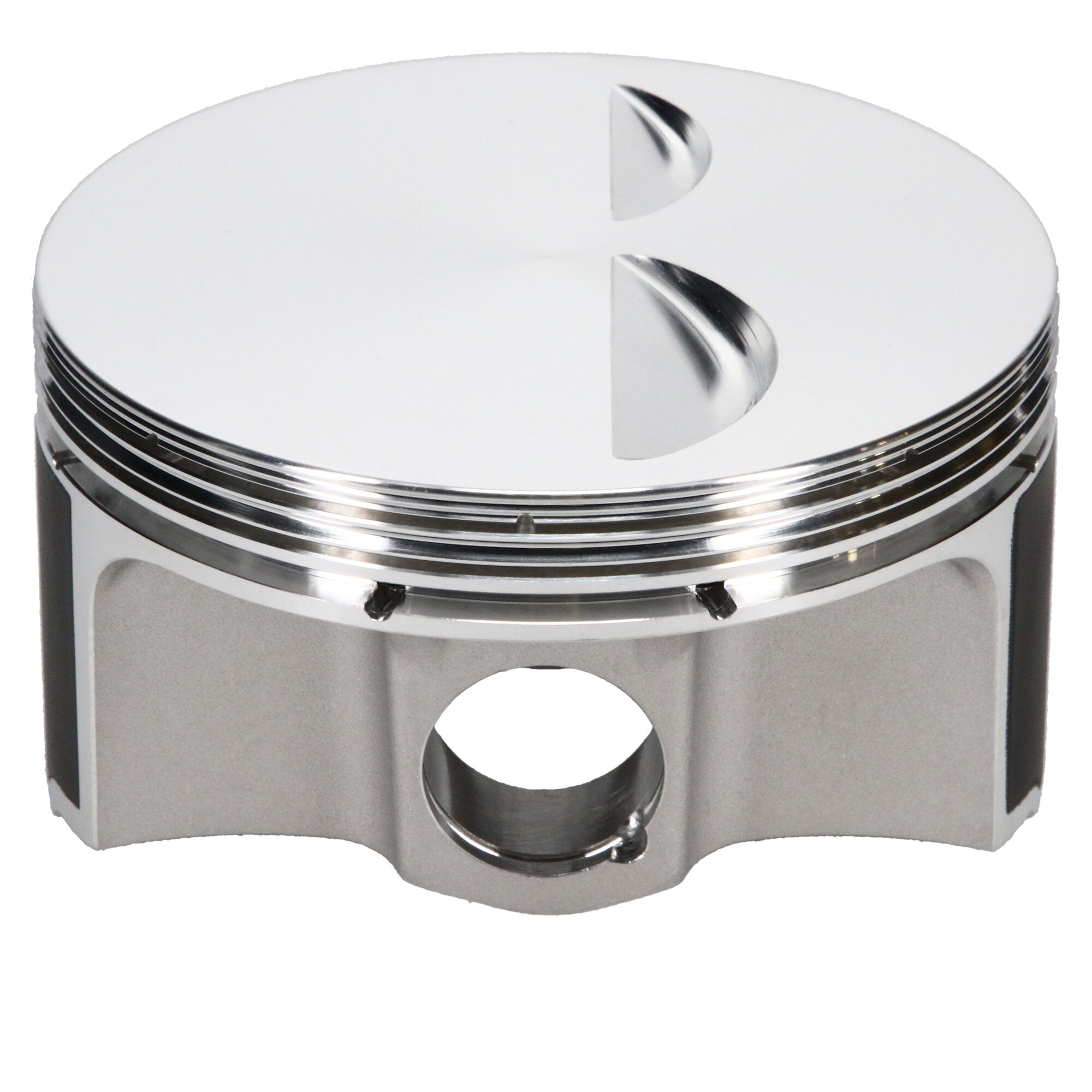

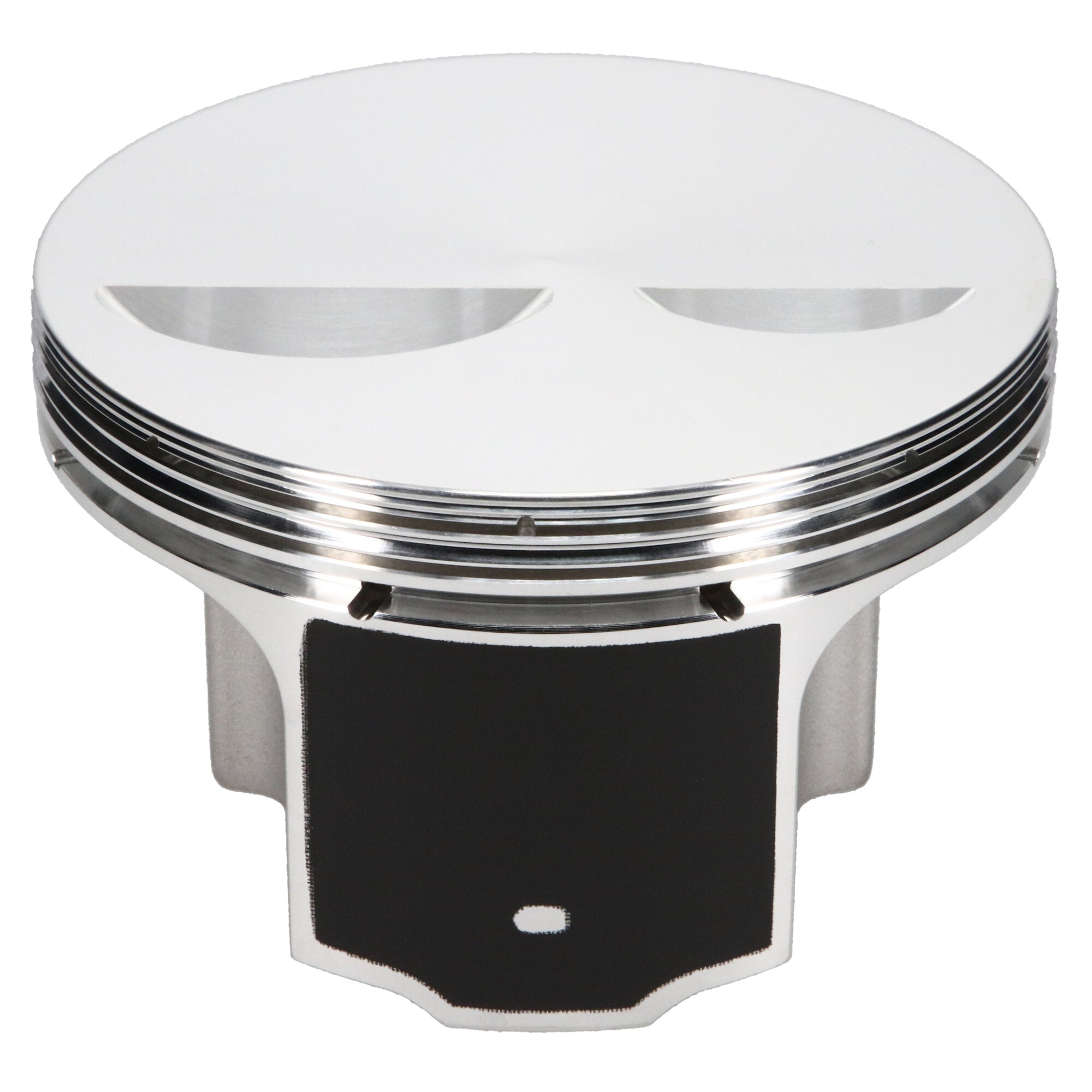

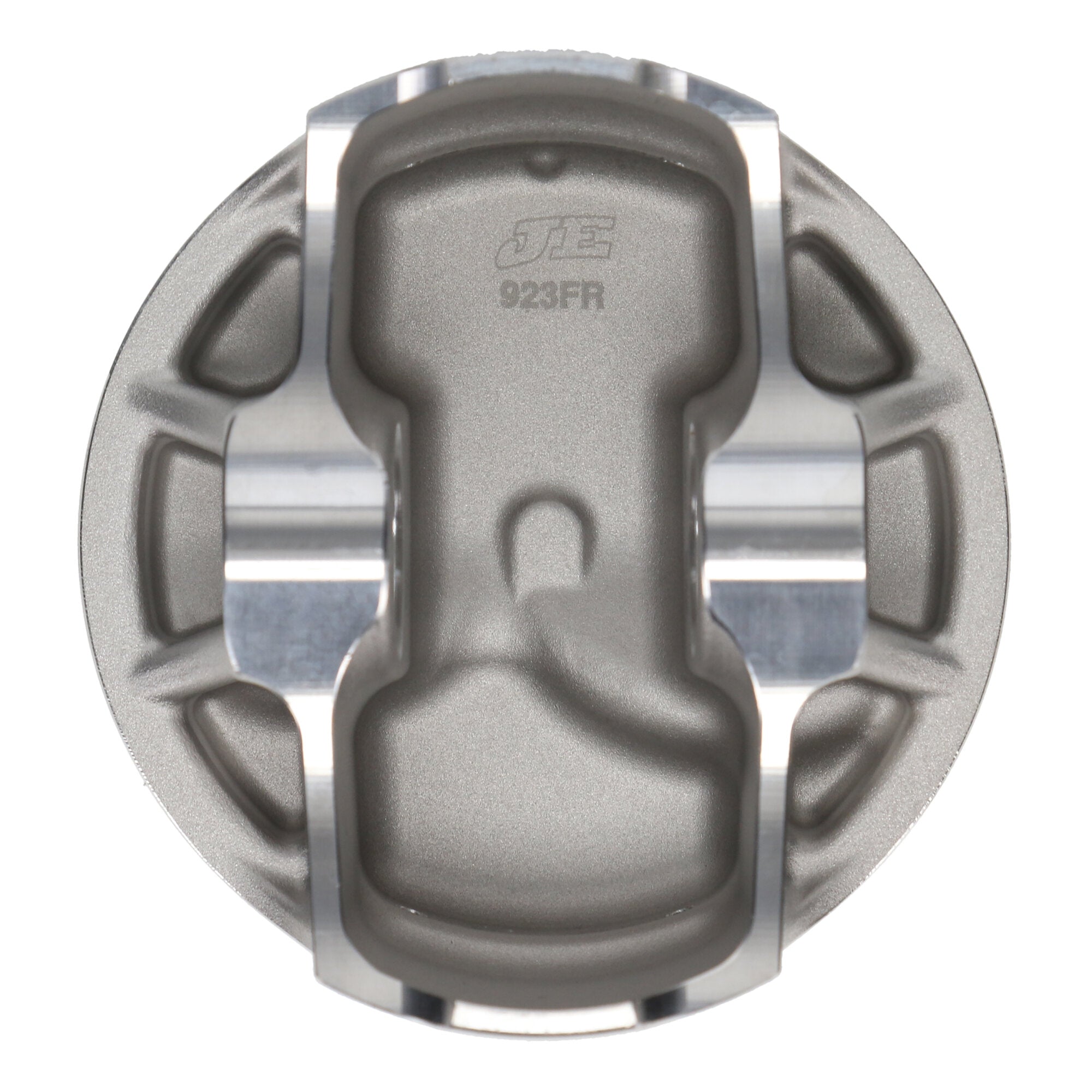

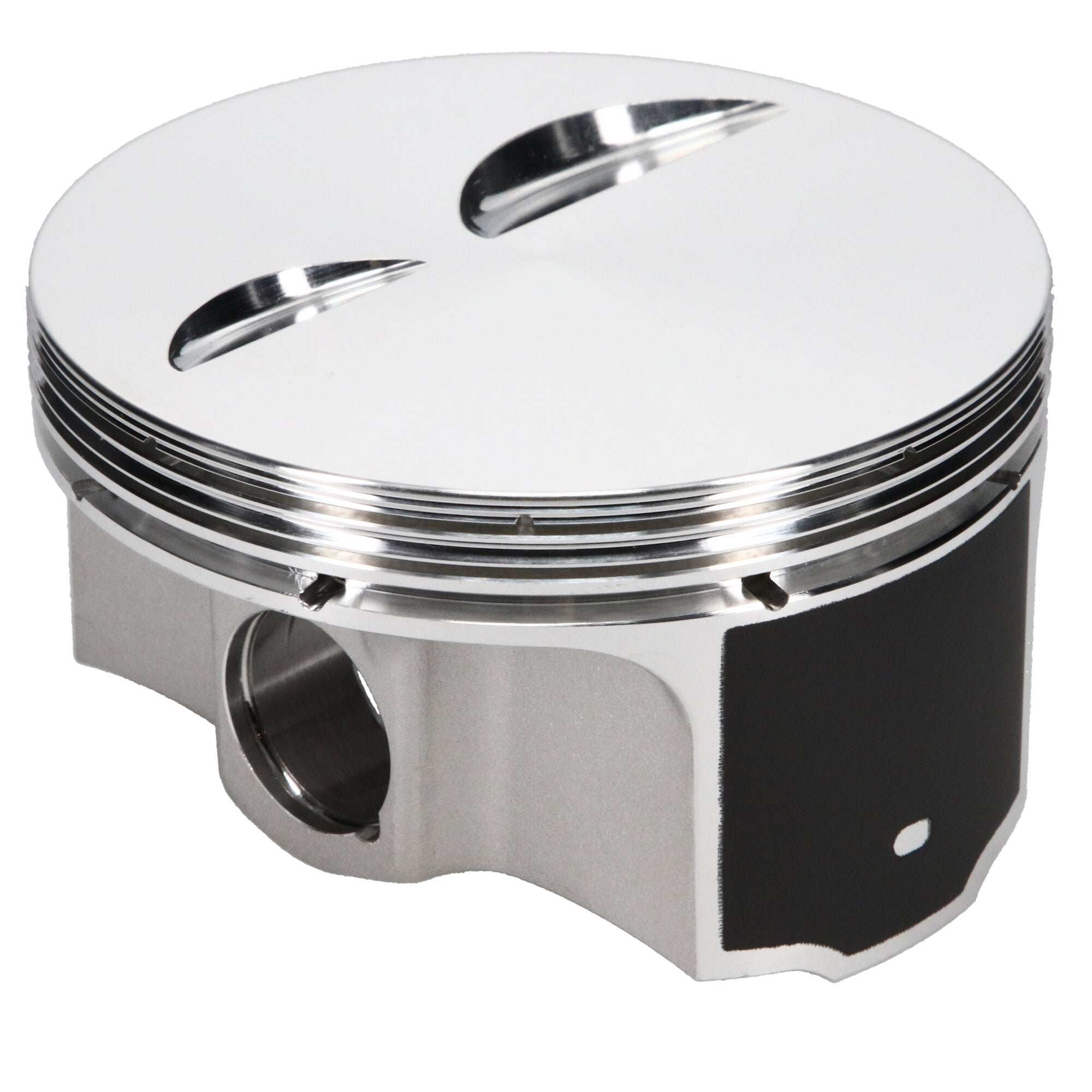

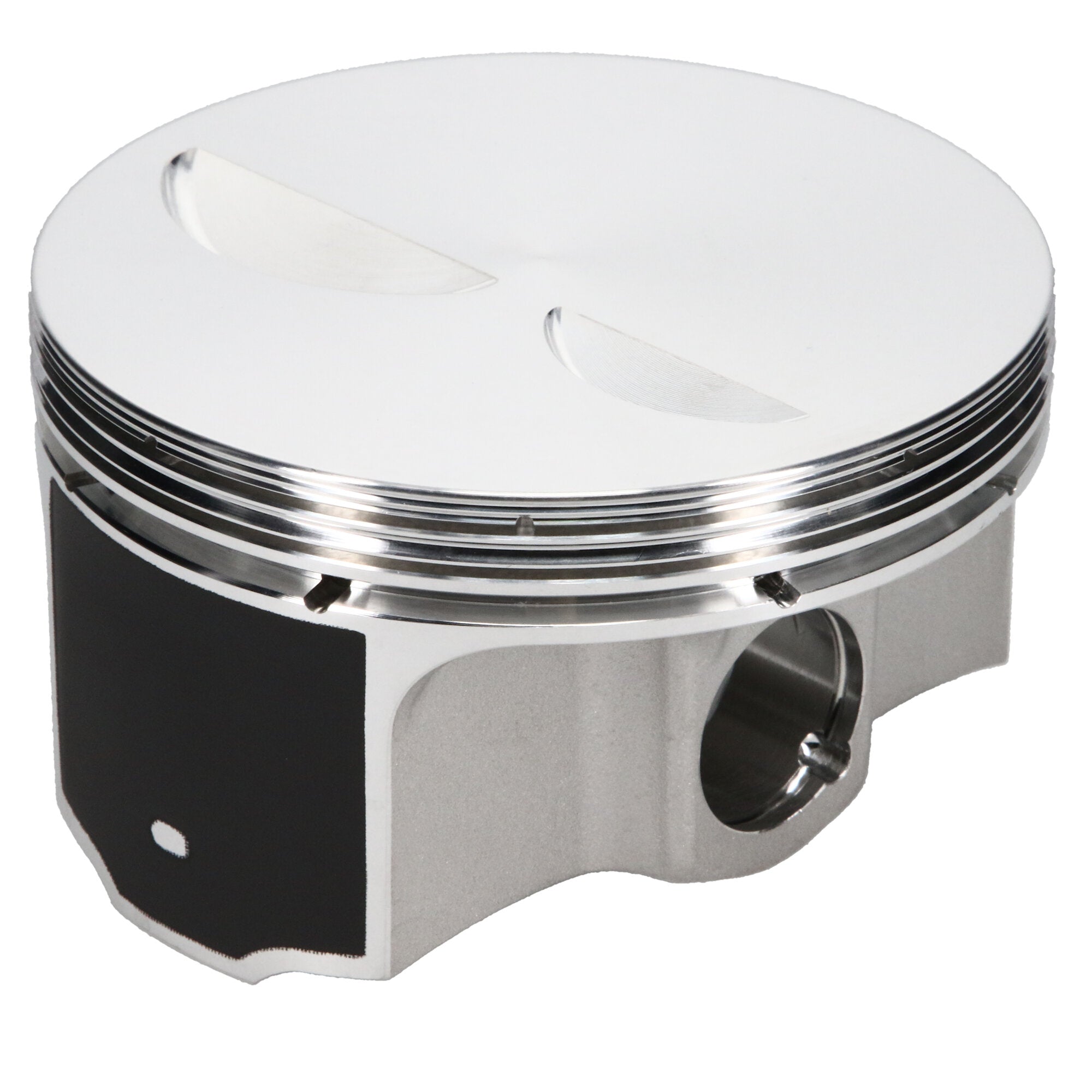

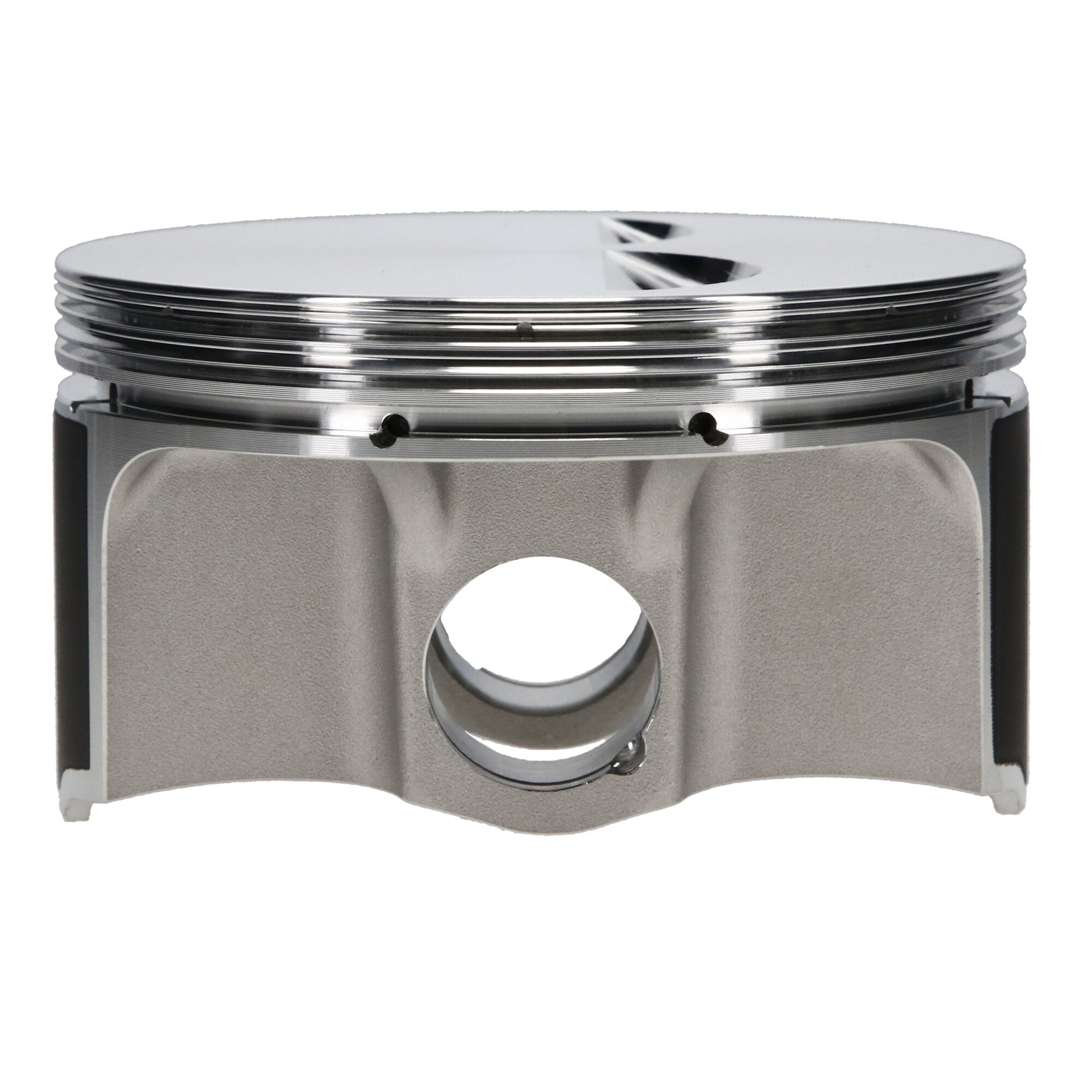

Piston Set, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.030 Bore, Flat, Set of 8 |
| Add-On |
927-073-MW |
| Add-On |
927-2350-15-51C |
| Add-On |
J71408-4030-5 |
| Bore Diameter |
4.030 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Compression Height |
1.250 |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Engine |
Small Block |
| Out of Stock Message |
Call for Availability |
| Engine Type |
ICE |
| Piston Average Weight |
334 |
| Oil Ring Thickness |
0.119 |
| Forging Type |
FSR |
| Industry |
Automotive |
| Make |
CHEVROLET |
| Engine - Web |
Small Block |
| Make - Web |
Chevrolet |
| Product Market |
Domestic |
| Piston Pin Outside Diameter |
0.927 |
| Prop 65 Yes/No |
Yes |
| Title |
JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Piston Head Type |
Flat |
| Piston Volume |
-1.80 |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.350 |
| Piston Quantity |
8 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.250 in. CH, -1.80 CC |
| Top Compression Ring Thickness |
0.0435 |
| Product Type |
Engine Piston Kit |
| Second Compression Ring Thickness |
0.0440 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.350 |
| Wrist Pin Outer Diameter |
0.927 |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
