As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler 2.4L SRT4 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Chrysler, SRT4, 3.484 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_DES |

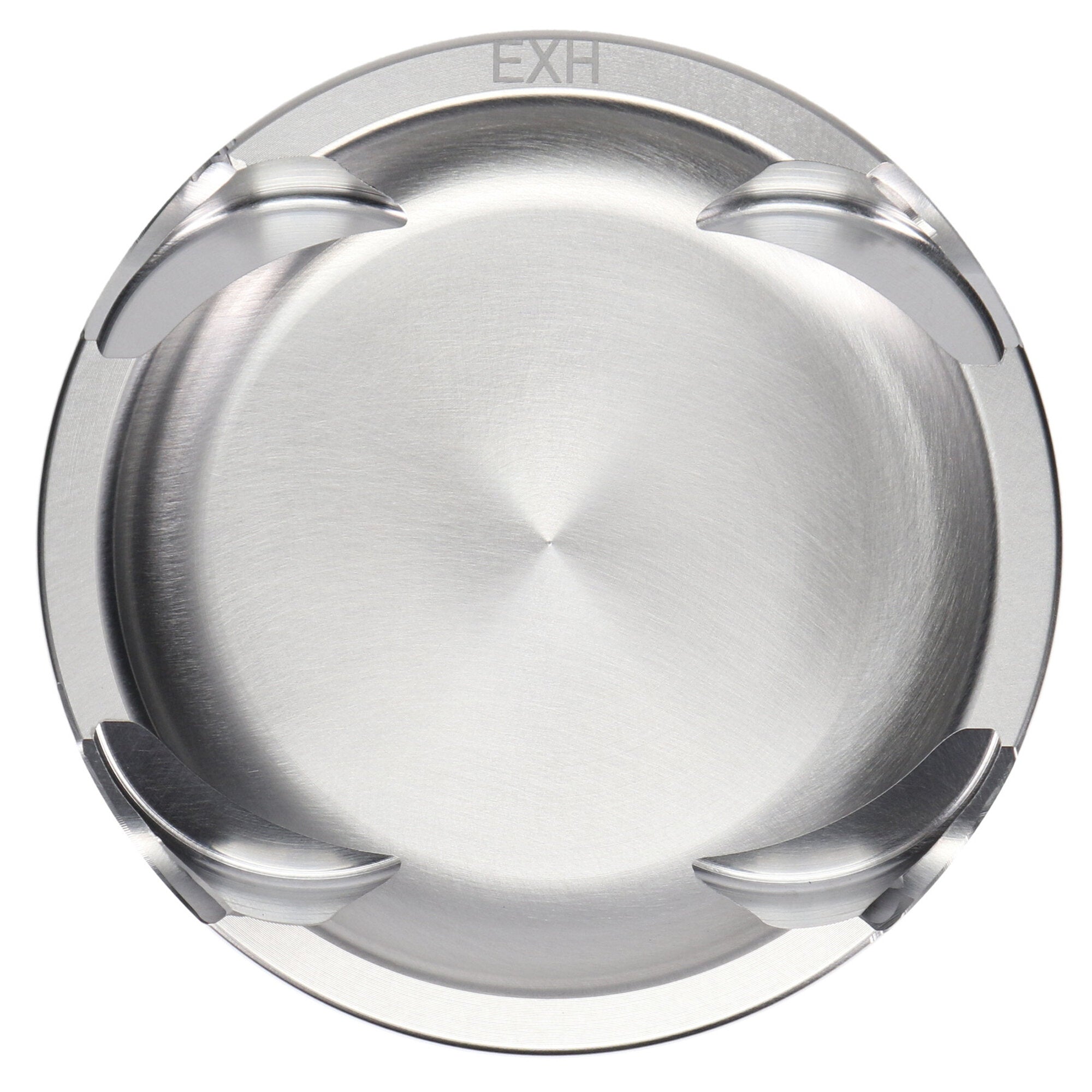

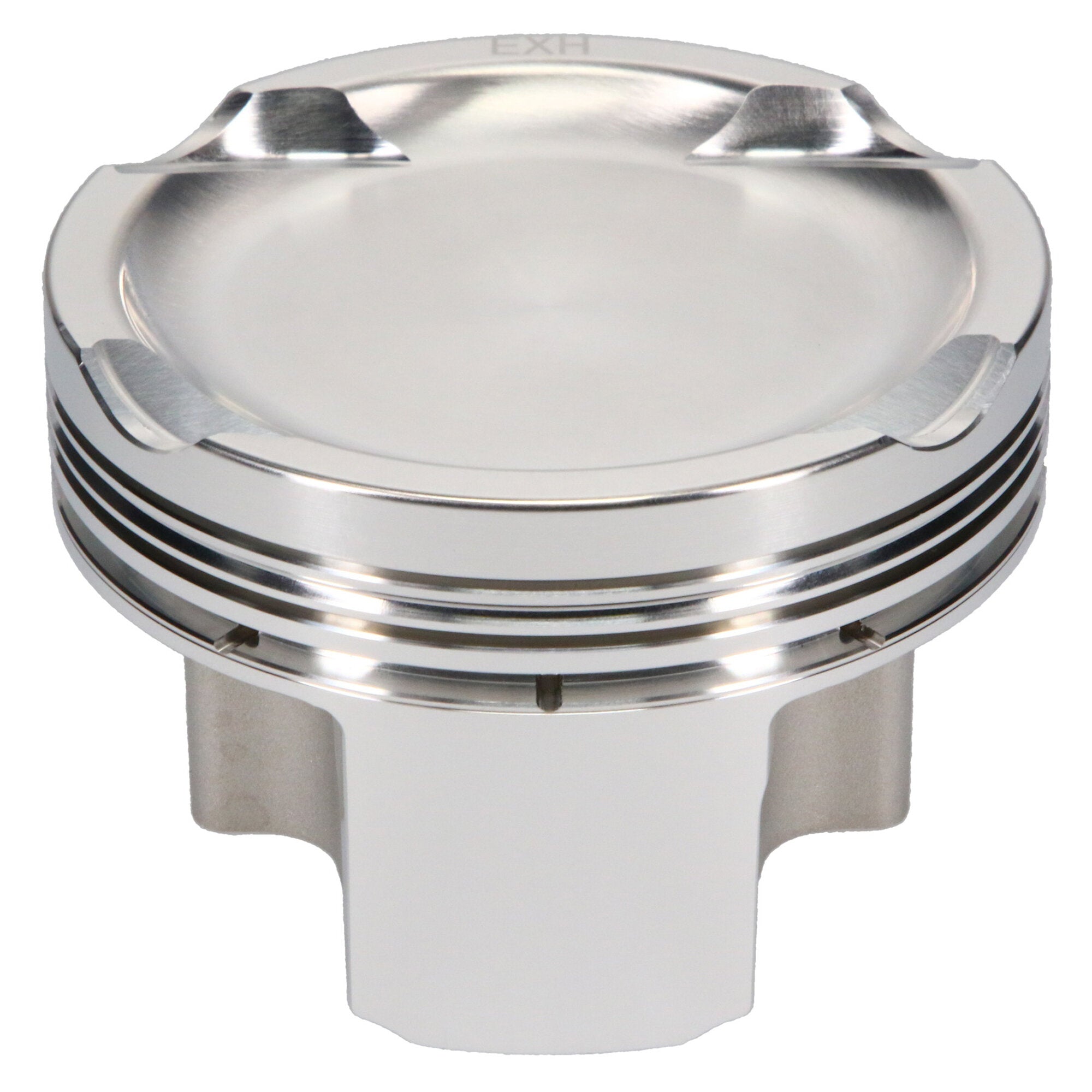

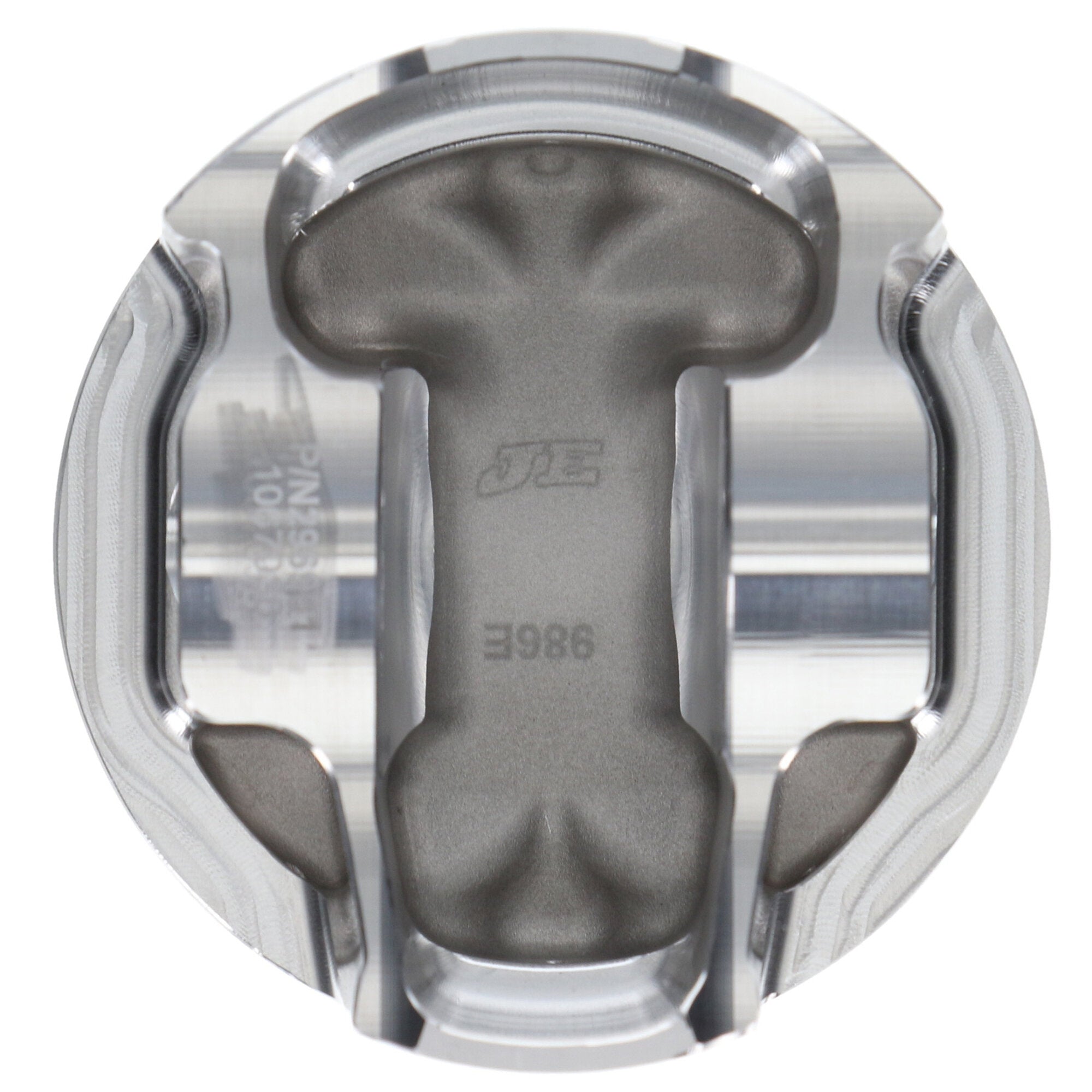

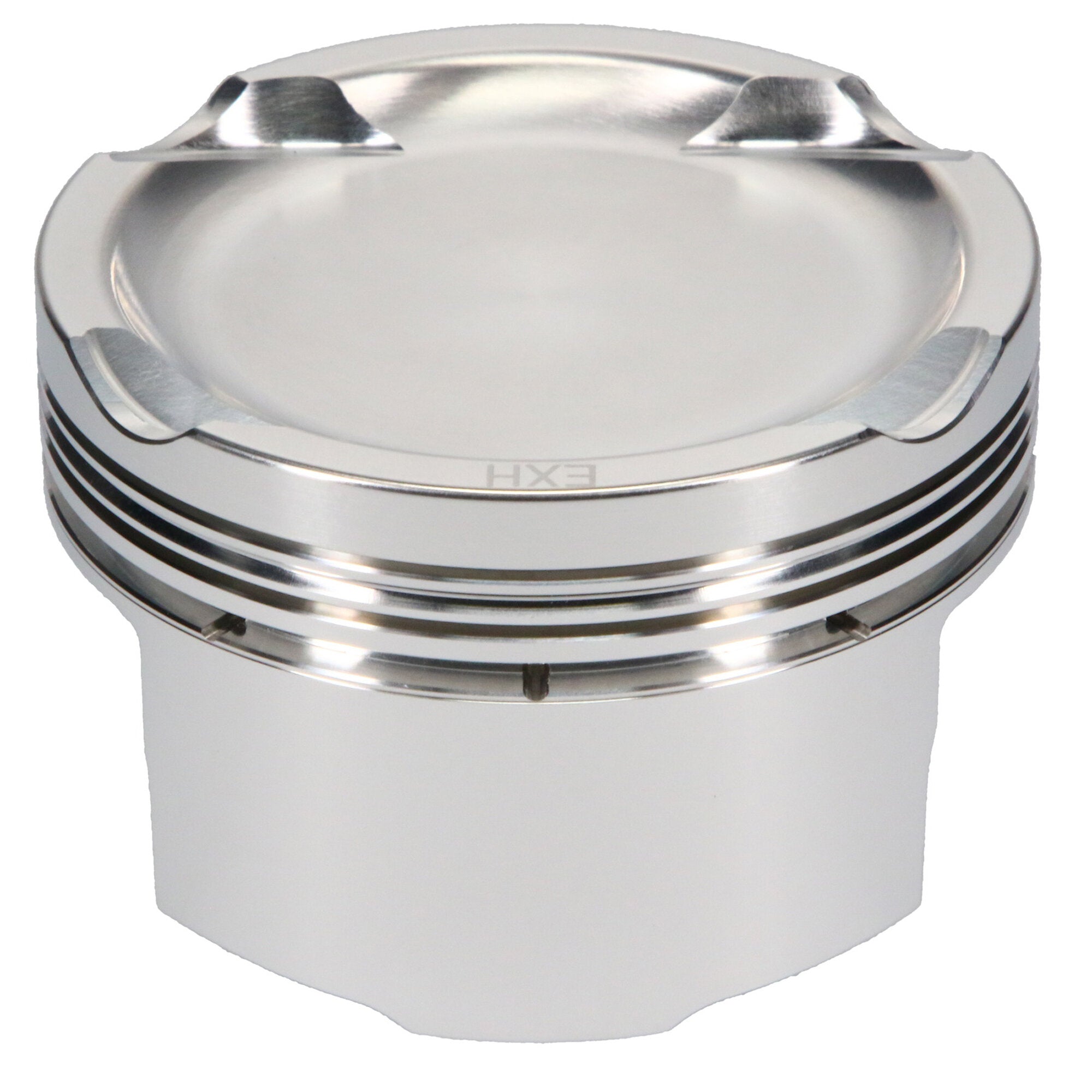

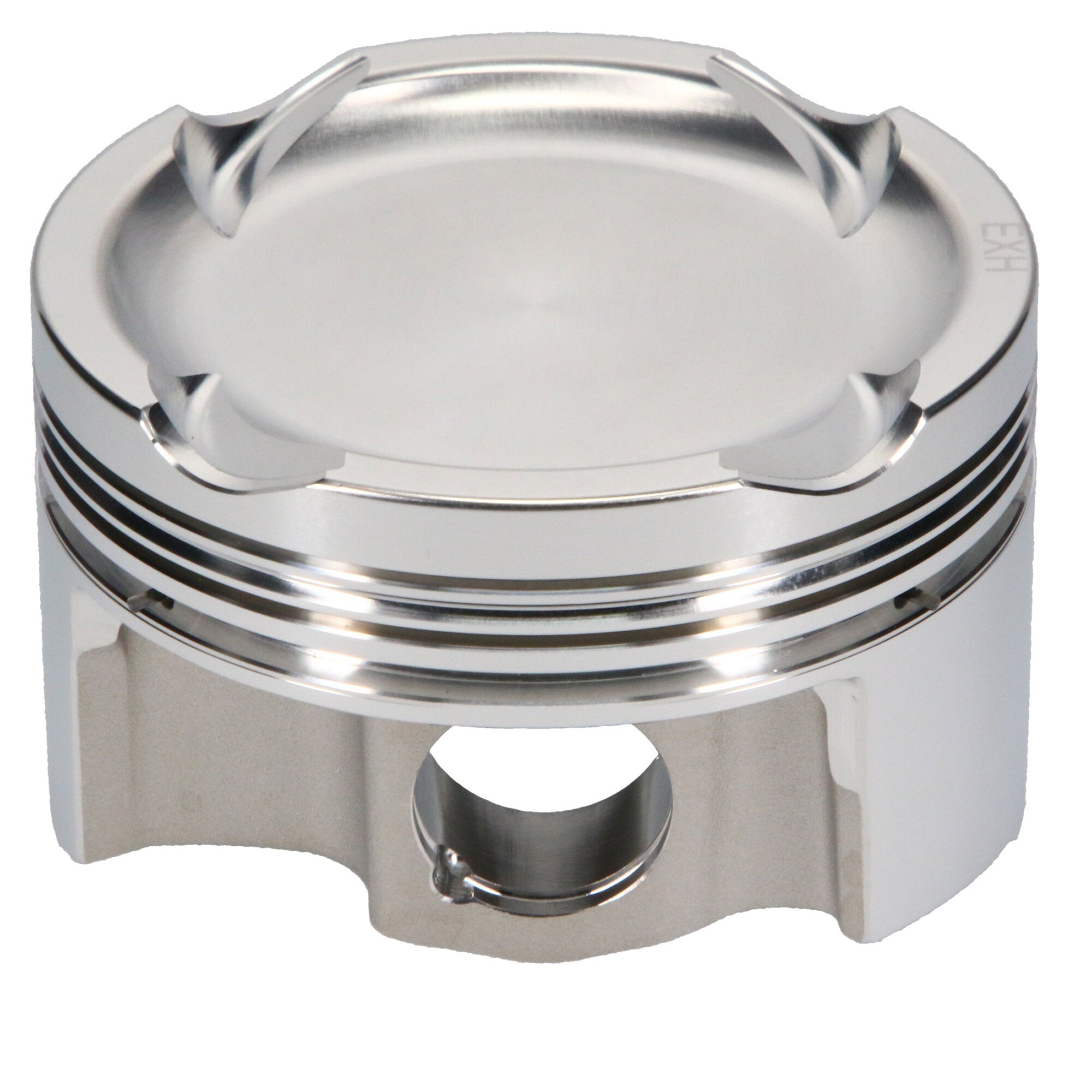

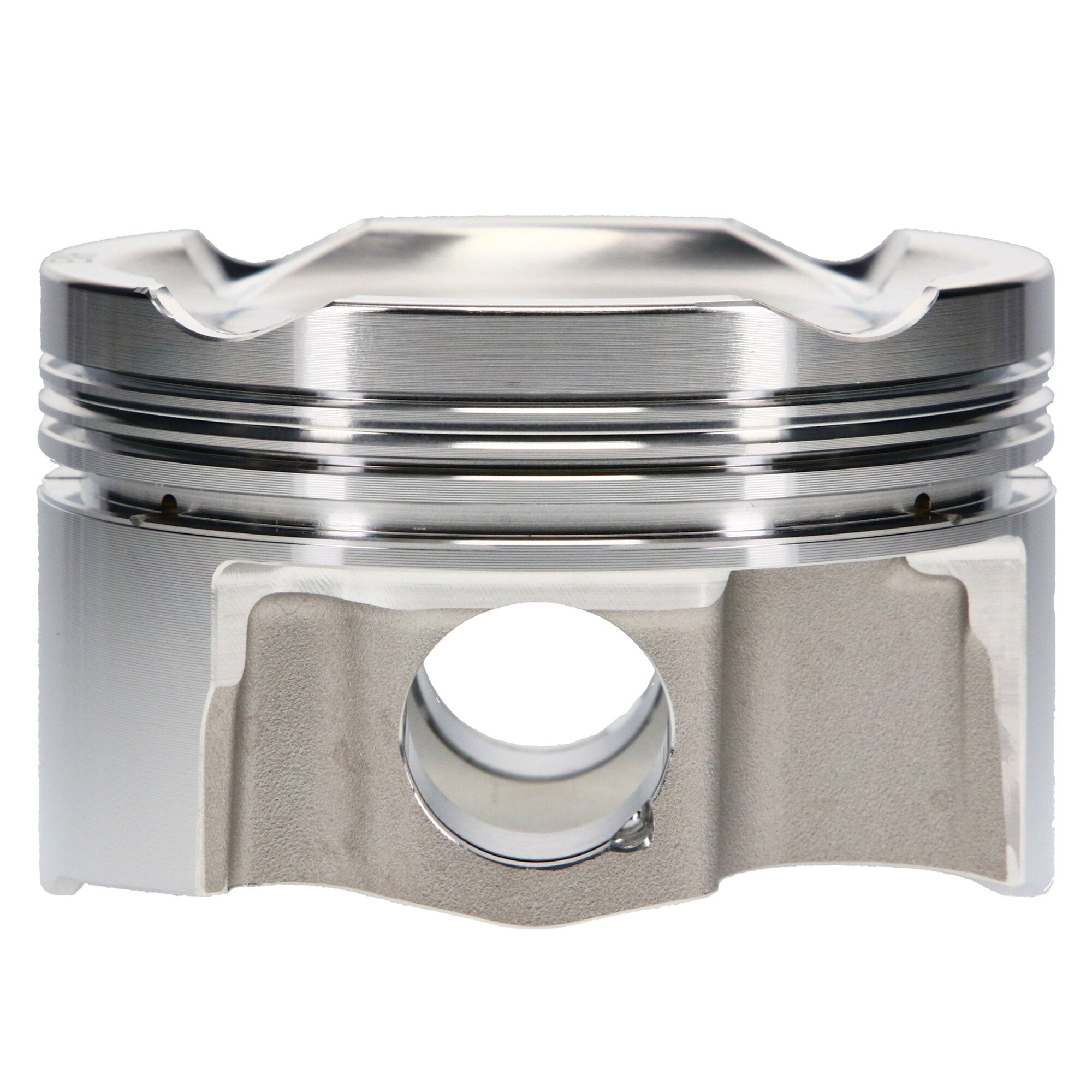

Piston Set, 2618, Inv Dome/Dish, 3.484 Bore, 1.432 CD, 0.866 Pin, Set of 4. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 2.4L SRT4, 88.50 Bore, Dish, Set of 4 |
| Wrist Pin Length |
2.250 |
| Make |
CHRYSLER |
| Piston Quantity |
4 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Compression Height |
1.432 |
| Piston Pin Outside Diameter |
0.866 |
| Prop 65 (C, R or CR) |
CR |
| Engine - Web |
SRT4 |
| Piston Material |
2618 |
| Add-On |
866-2250-15-51C |
| Product Market |
Sport Compact |
| Title |
JE Pistons - Chrysler, SRT4, 88.50 mm Bore, Piston Kit |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Piston Volume |
-24.00 |
| Piston Average Weight |
335 |
| Add-On |
866-063-MW |
| Cylinder Head |
ECB/ECC |
| Add-On |
JG1001-3484 |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
88.50 |
| Top Compression Ring Thickness |
0.0400 |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.150 |
| Title - Web |
JE Pistons Chrysler SRT4 Piston Kit - 88.50 mm Bore - 1.432 in. CH, -24.00 CC |
| Forging Type |
FSR |
| Engine |
SRT4 |
| Piston Pin Material |
5115 |
| Second Compression Ring Thickness |
0.0480 |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Piston Head Type |
Dish |
| Piston Series |
JE Pistons |
| Ringset Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Oil Ring Thickness |
0.111 |
| Make - Web |
Chrysler |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
