As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda H22 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

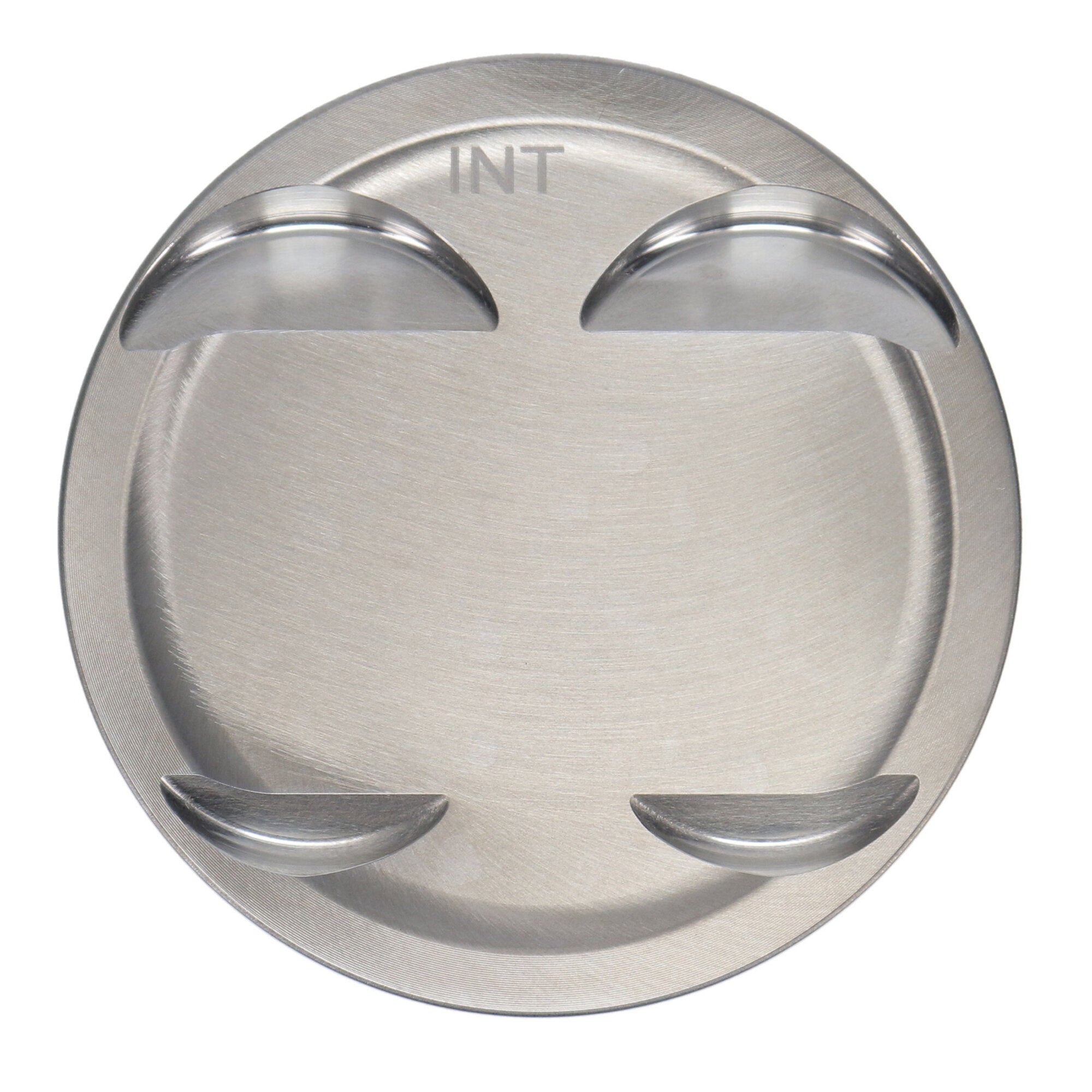

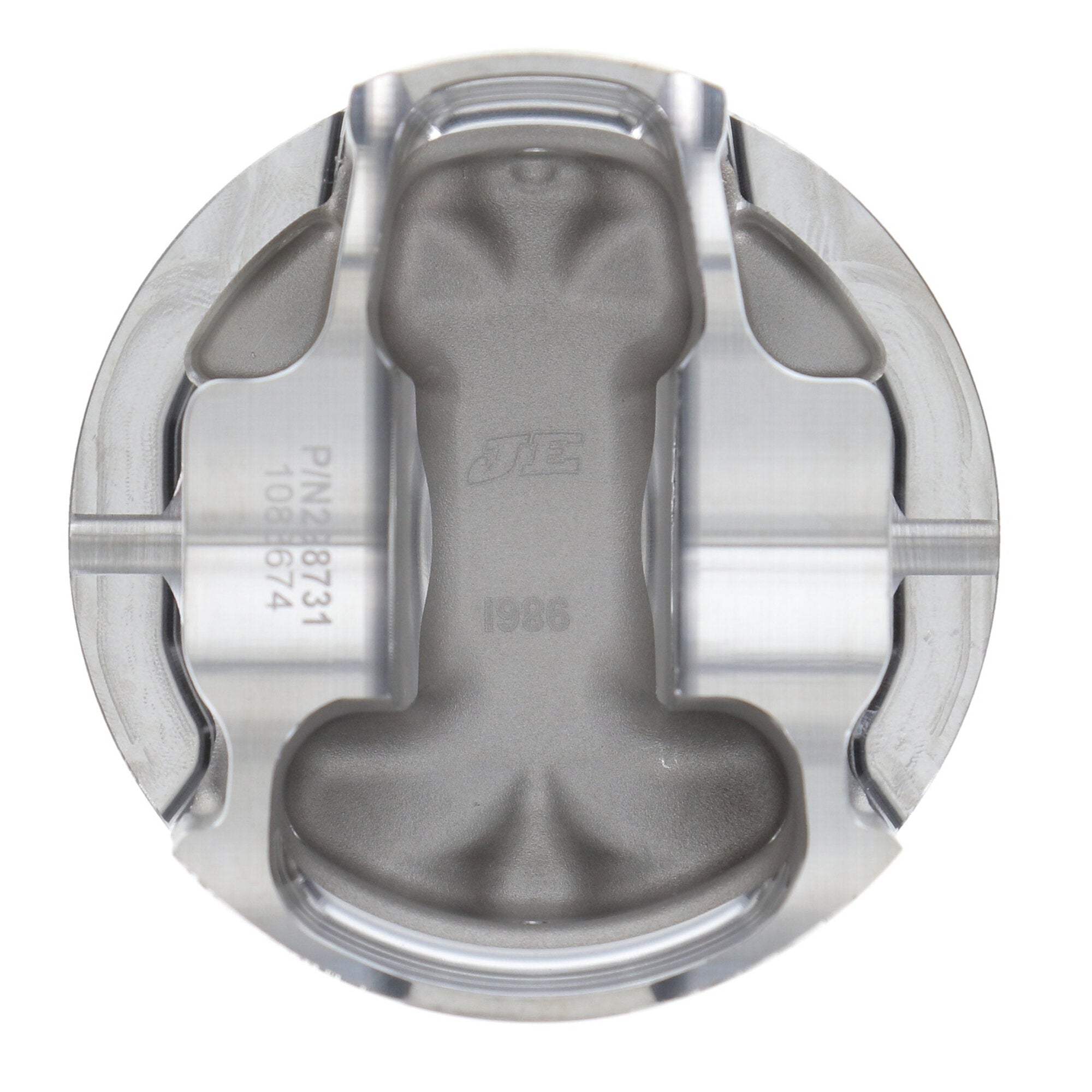

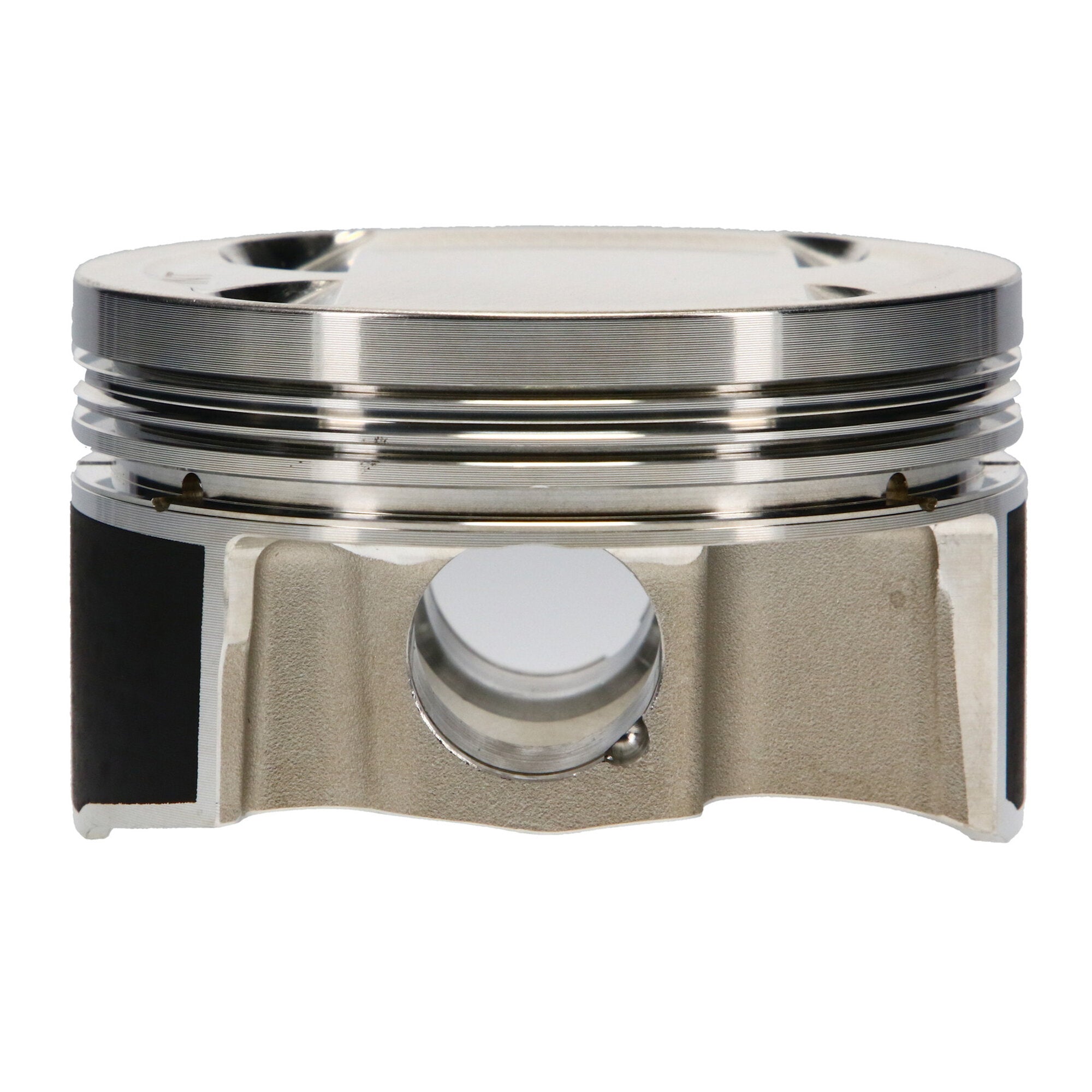

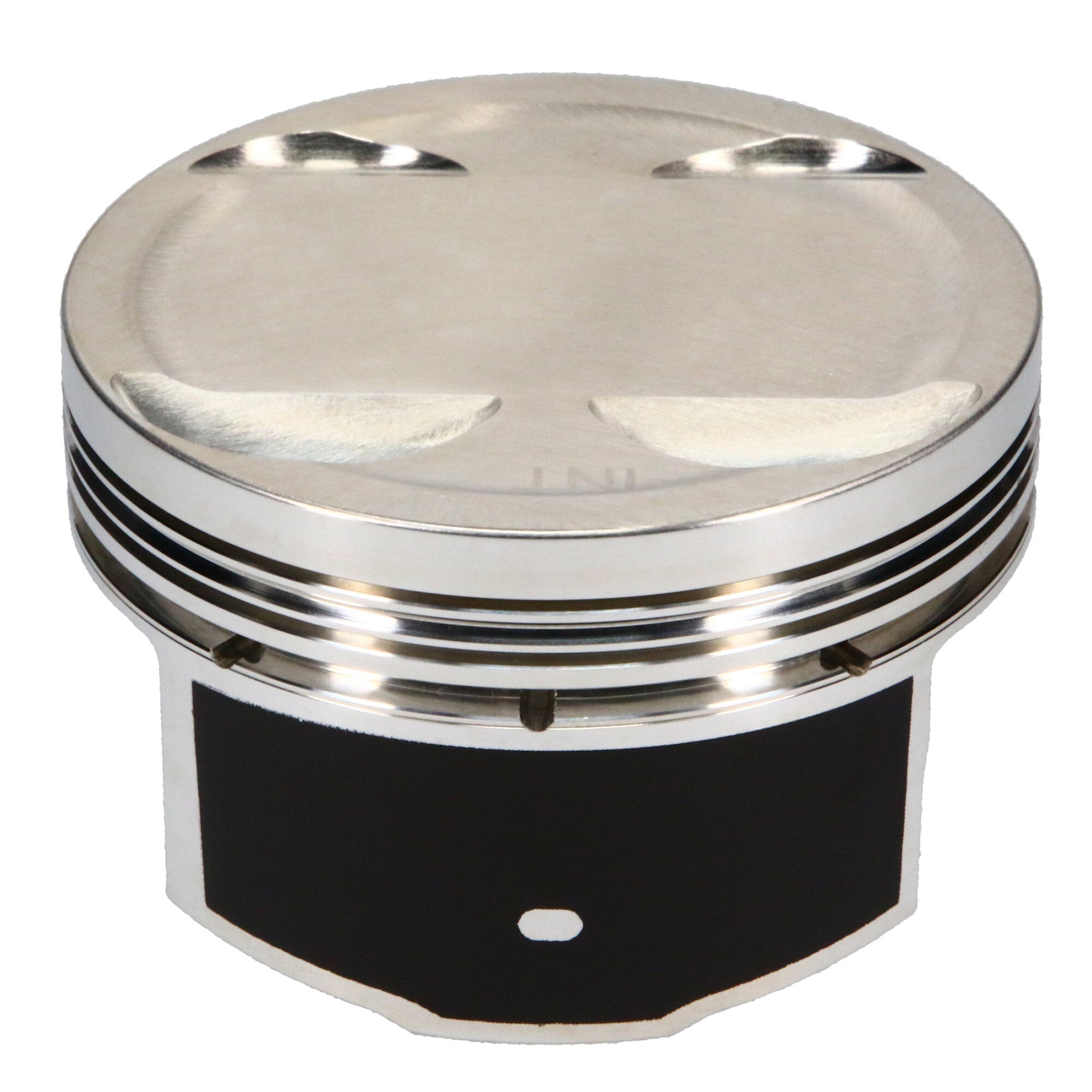

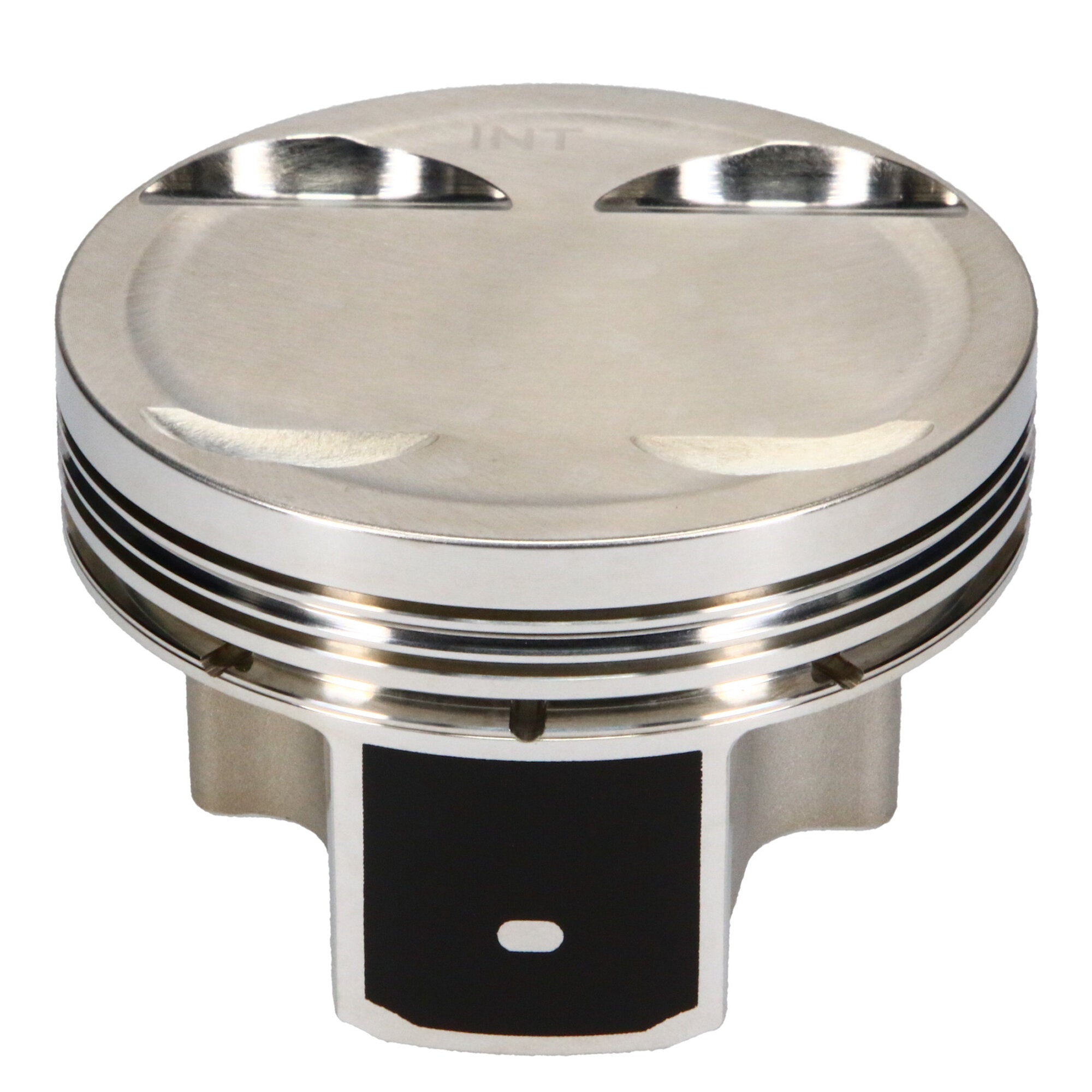

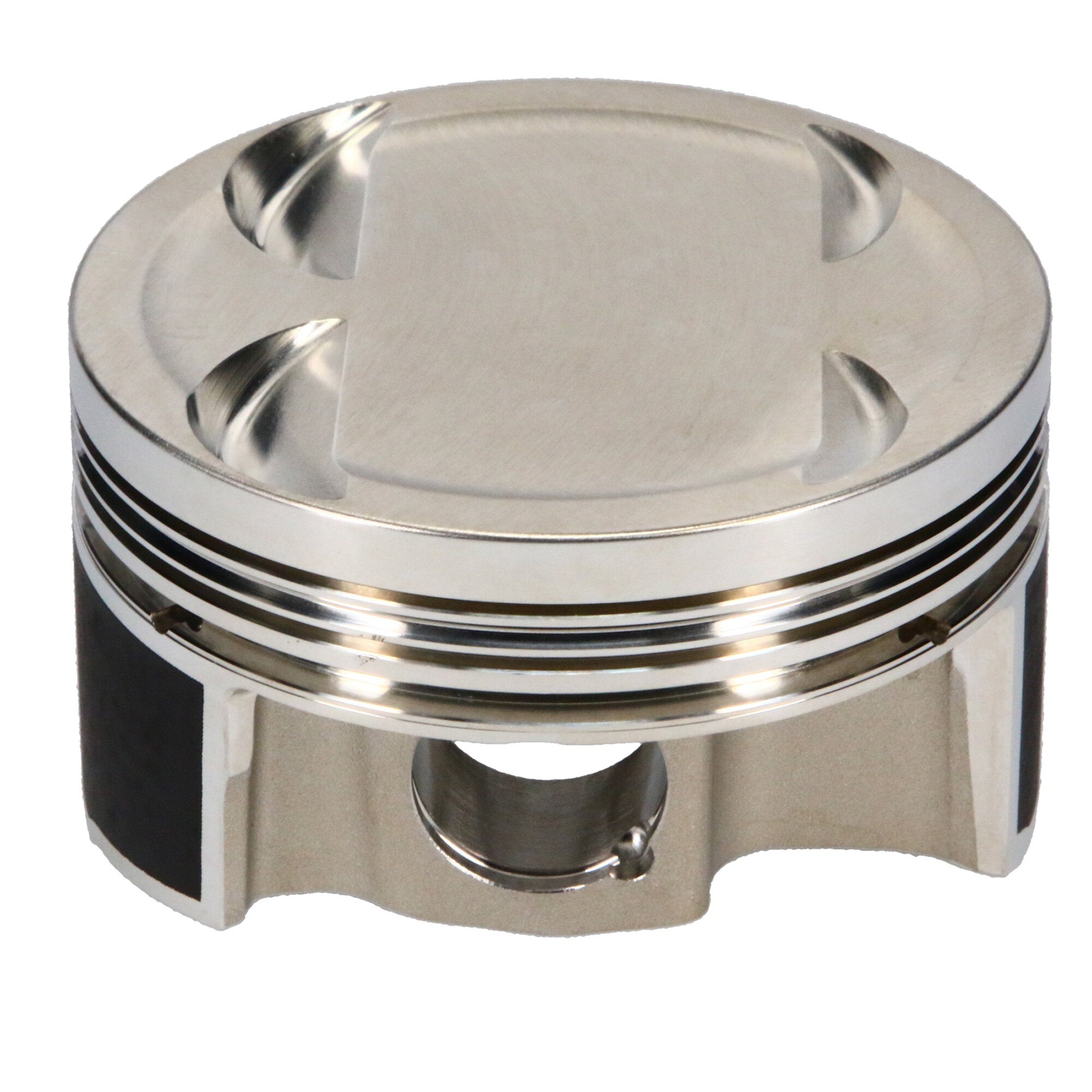

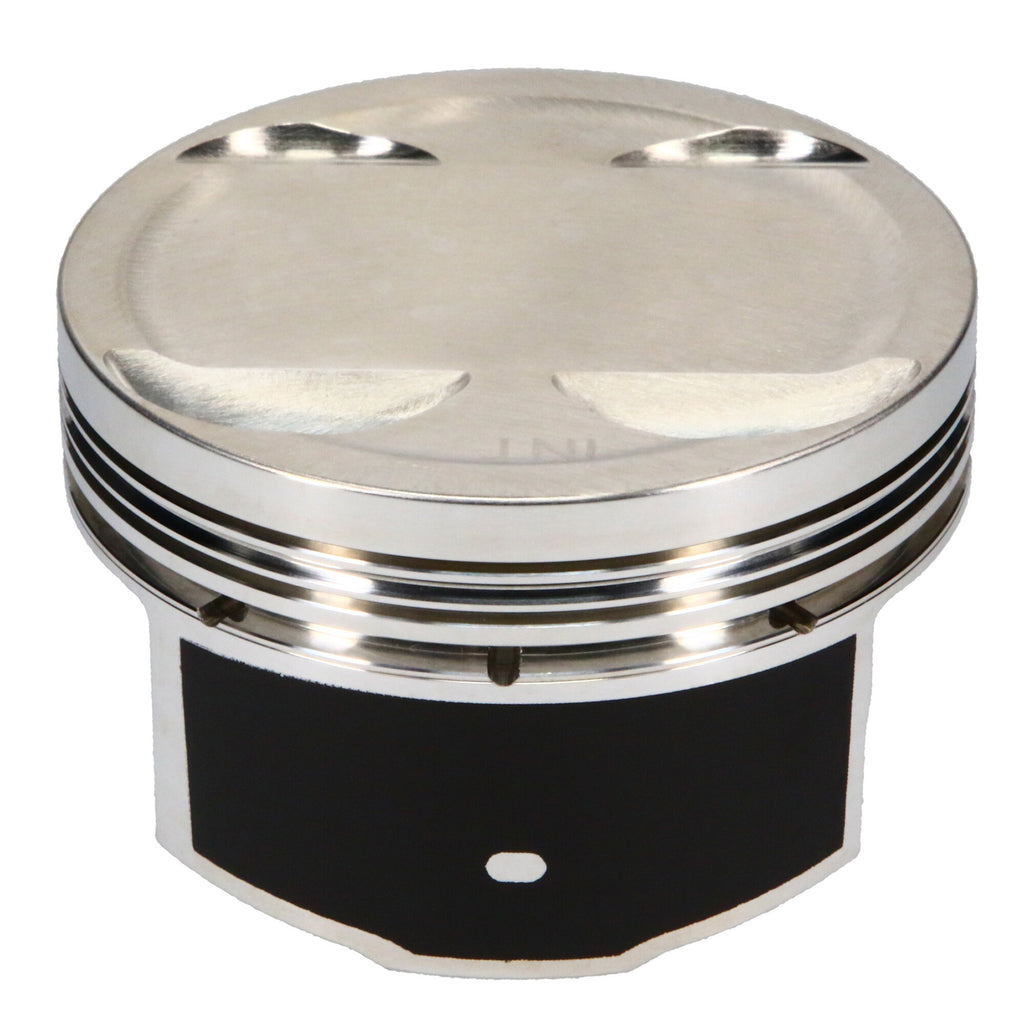

JE, Honda, H Series, 3.425 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.425 Bore, 1.220 CD, 0.866 Pin, Set of 4. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda H22, 87.00 Bore, Dish, Set of 4 |
| Ring Set Included |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Second Compression Ring Thickness |
0.0480 |
| Piston Volume |
-5.50 |
| Piston Quantity |
4 |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
H22A VTEC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Honda |
| Add-On |
866-2250-15-51C |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Bore Diameter |
87.00 |
| Add-On |
JG1001-3425 |
| Prop 65 Yes/No |
Yes |
| Piston Average Weight |
318 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Add-On |
866-063-MW |
| Out of Stock Message |
Call for Availability |
| Wrist Pin Length |
2.250 |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Make |
HONDA |
| Top Compression Ring Thickness |
0.0400 |
| Ringset Included |
Yes |
| Engine |
H SERIES |
| Title - Web |
JE Pistons Honda H Series Piston Kit - 87.00 mm Bore - 1.220 in. CH, -5.50 CC |
| Oil Ring Thickness |
0.111 |
| Product Market |
Sport Compact |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.866 |
| Compression Height |
1.220 |
| Forging Type |
FSR |
| Piston Head Type |
Dish |
| Title |
JE Pistons - Honda, H Series, 87.00 mm Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.866 |
| Engine - Web |
H Series |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
6.0000 |
