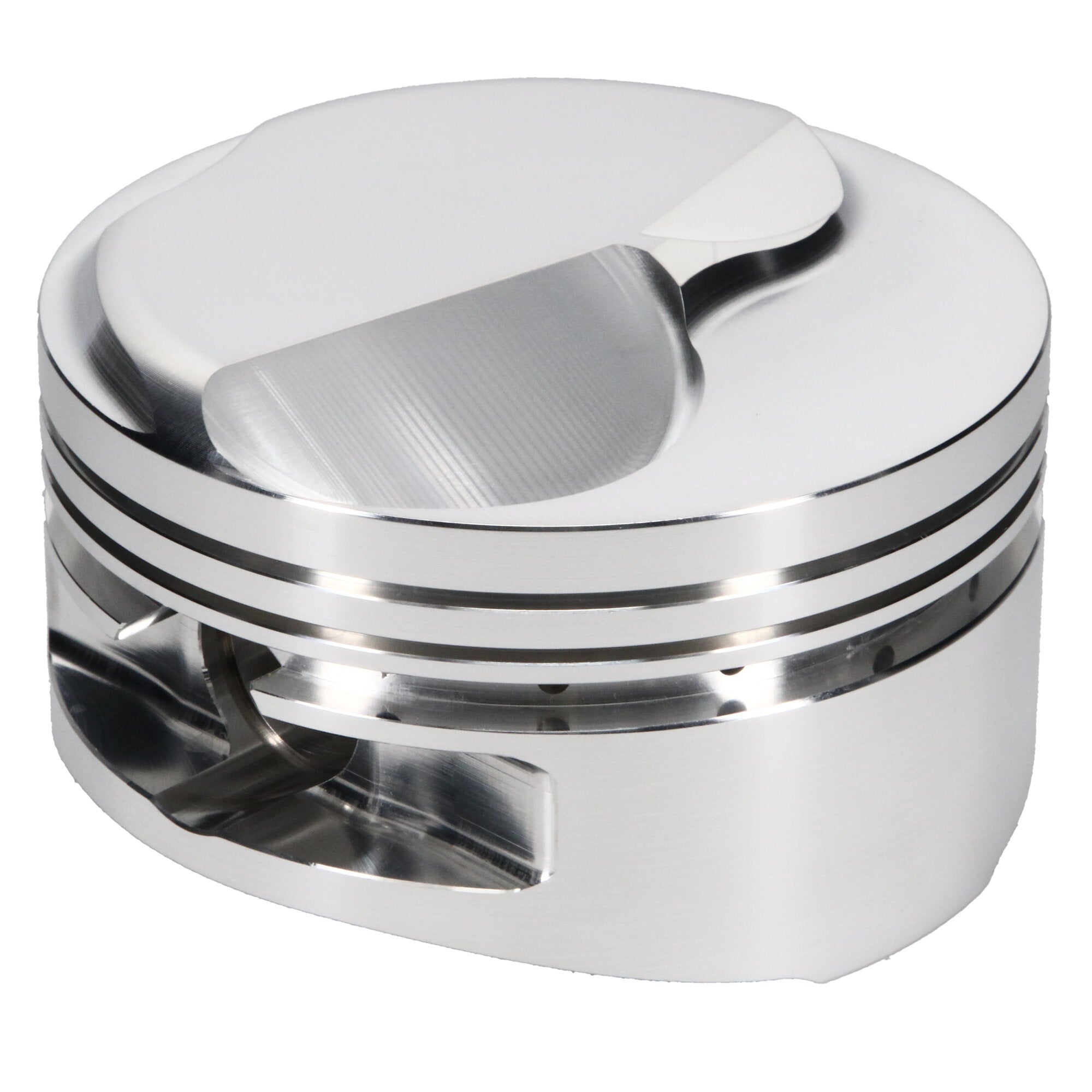

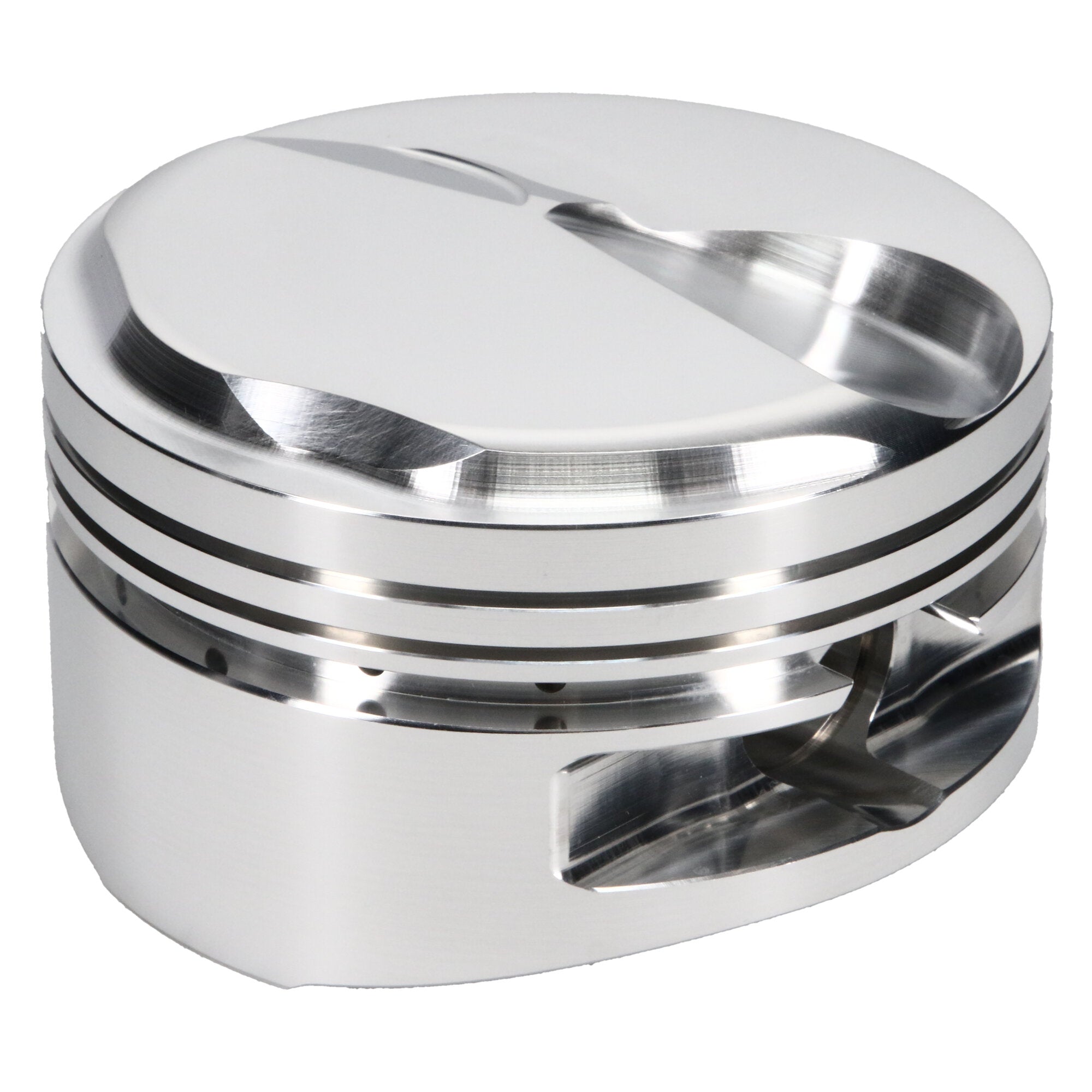

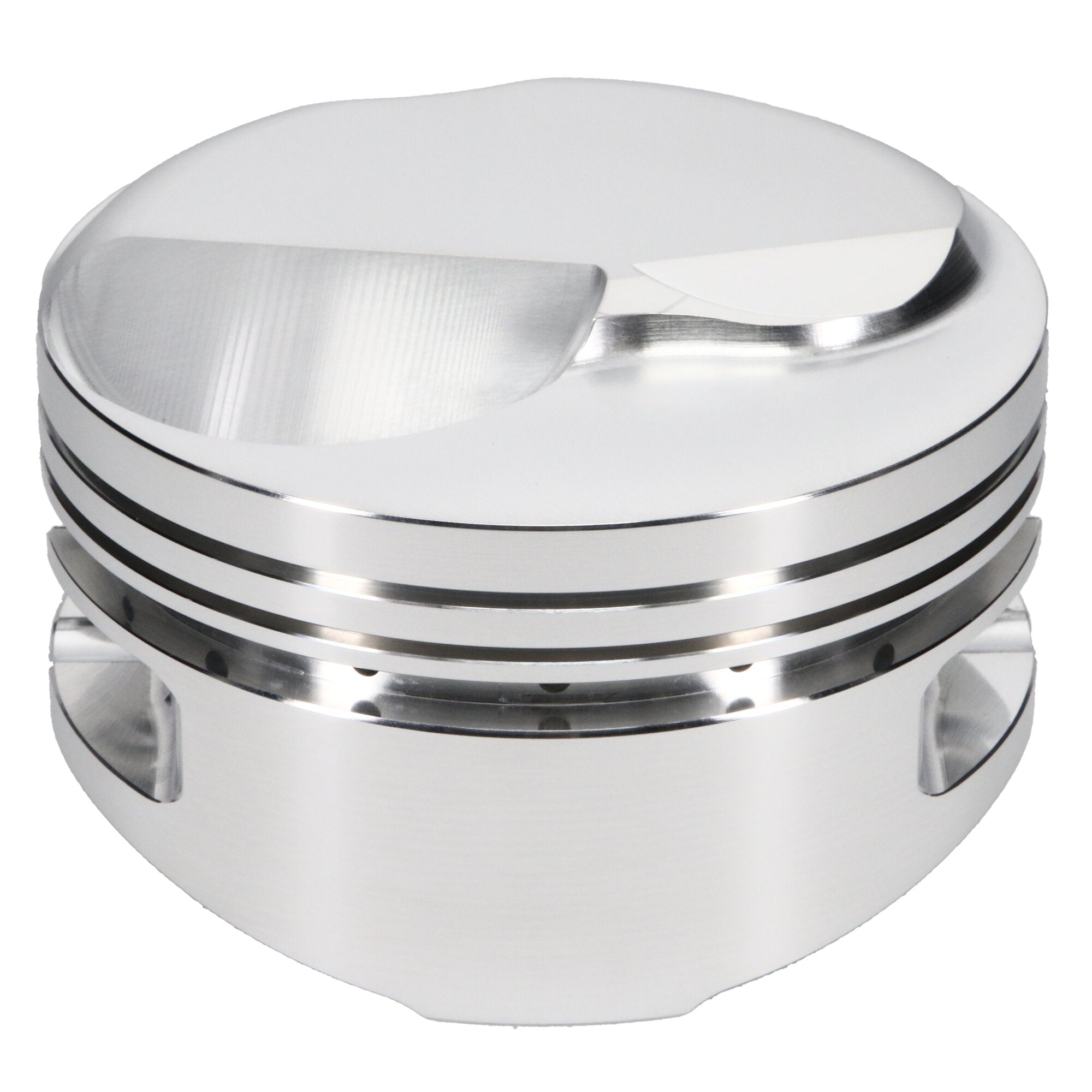

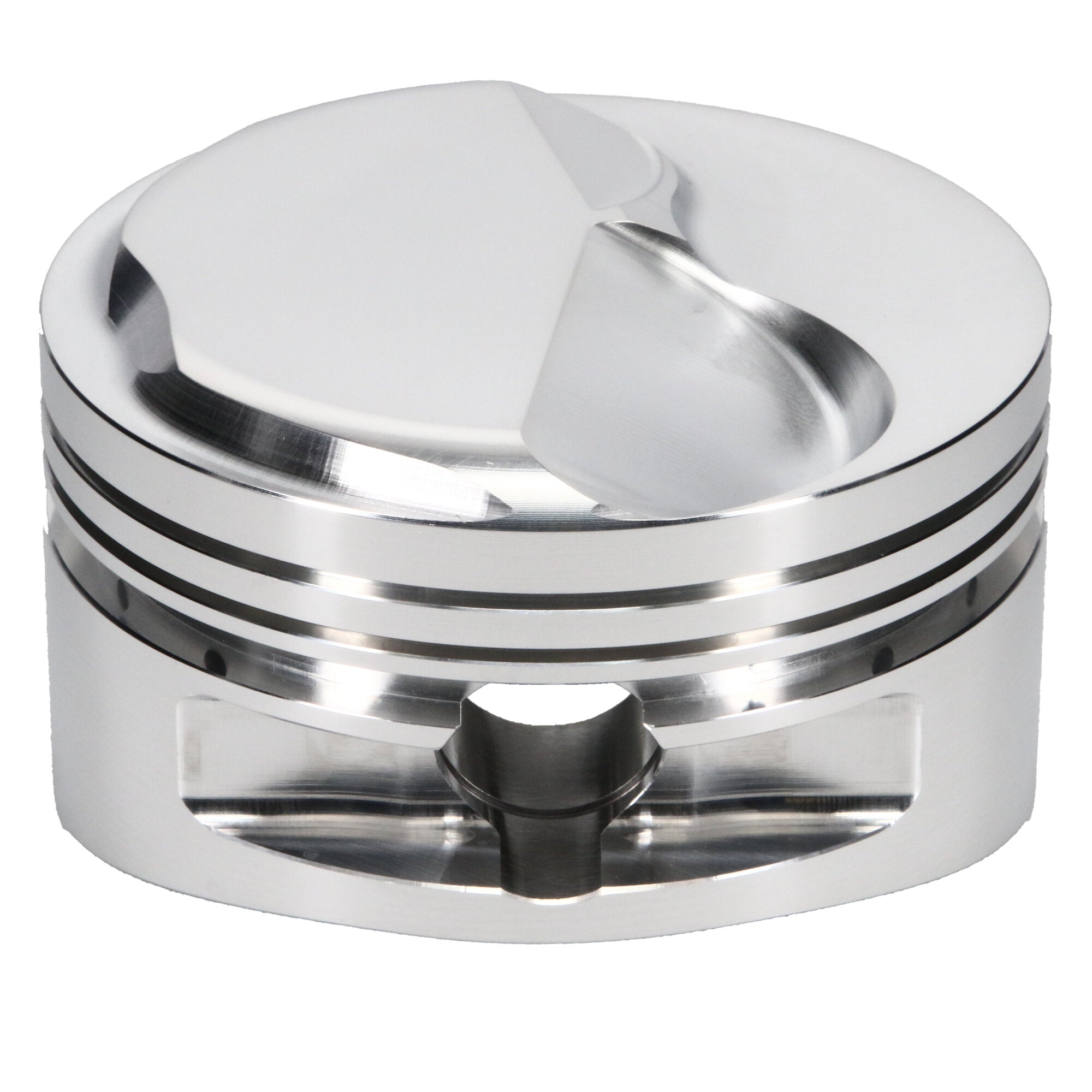

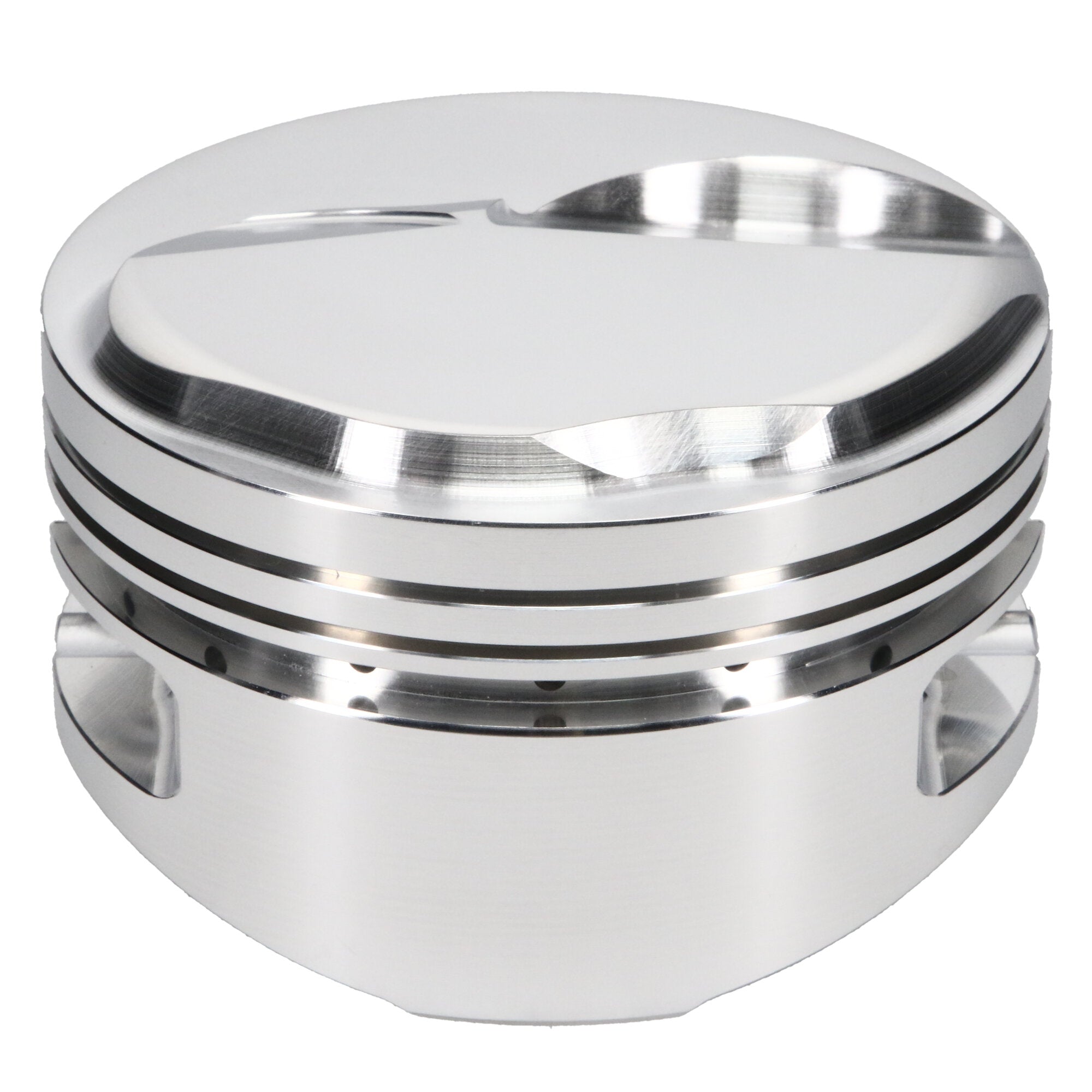

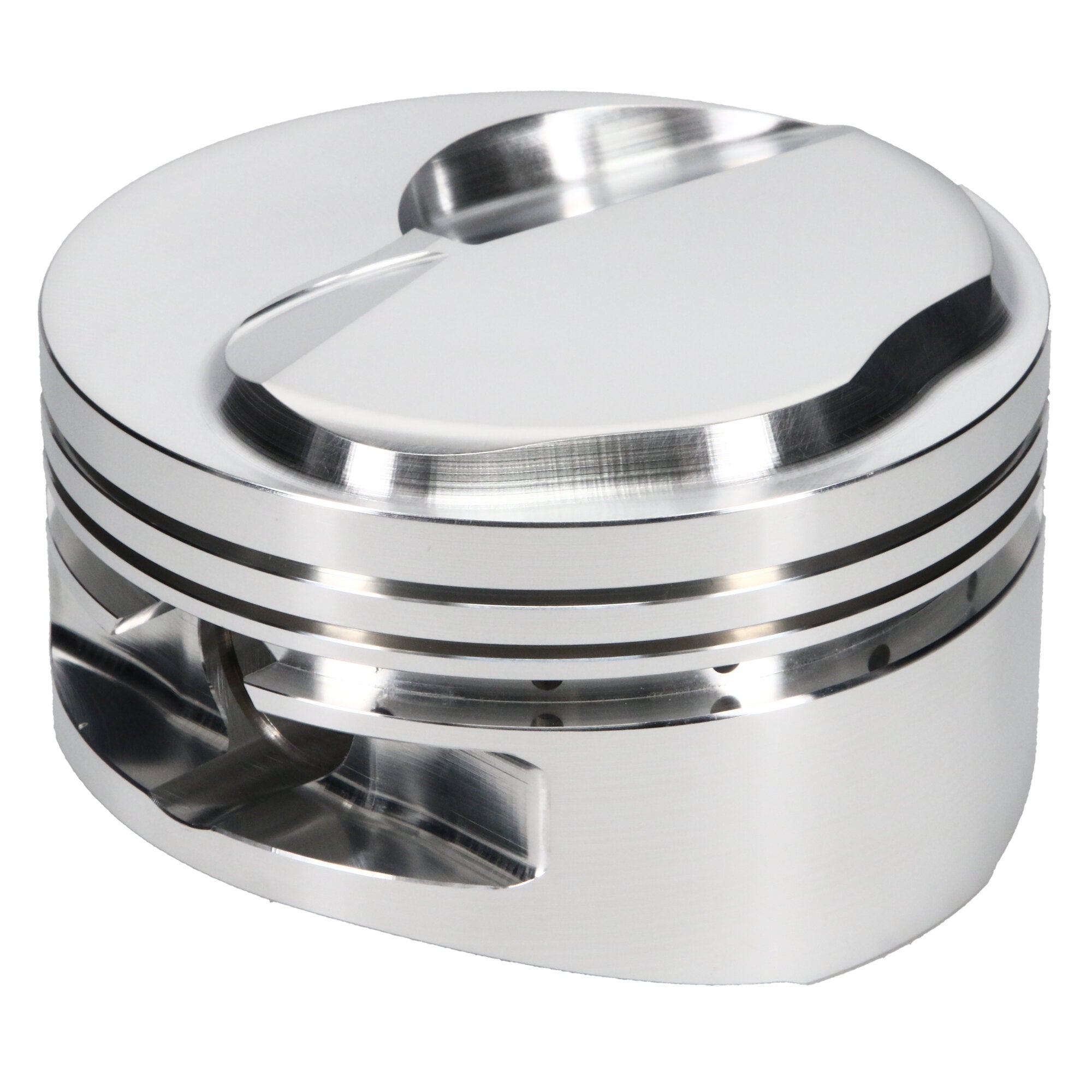

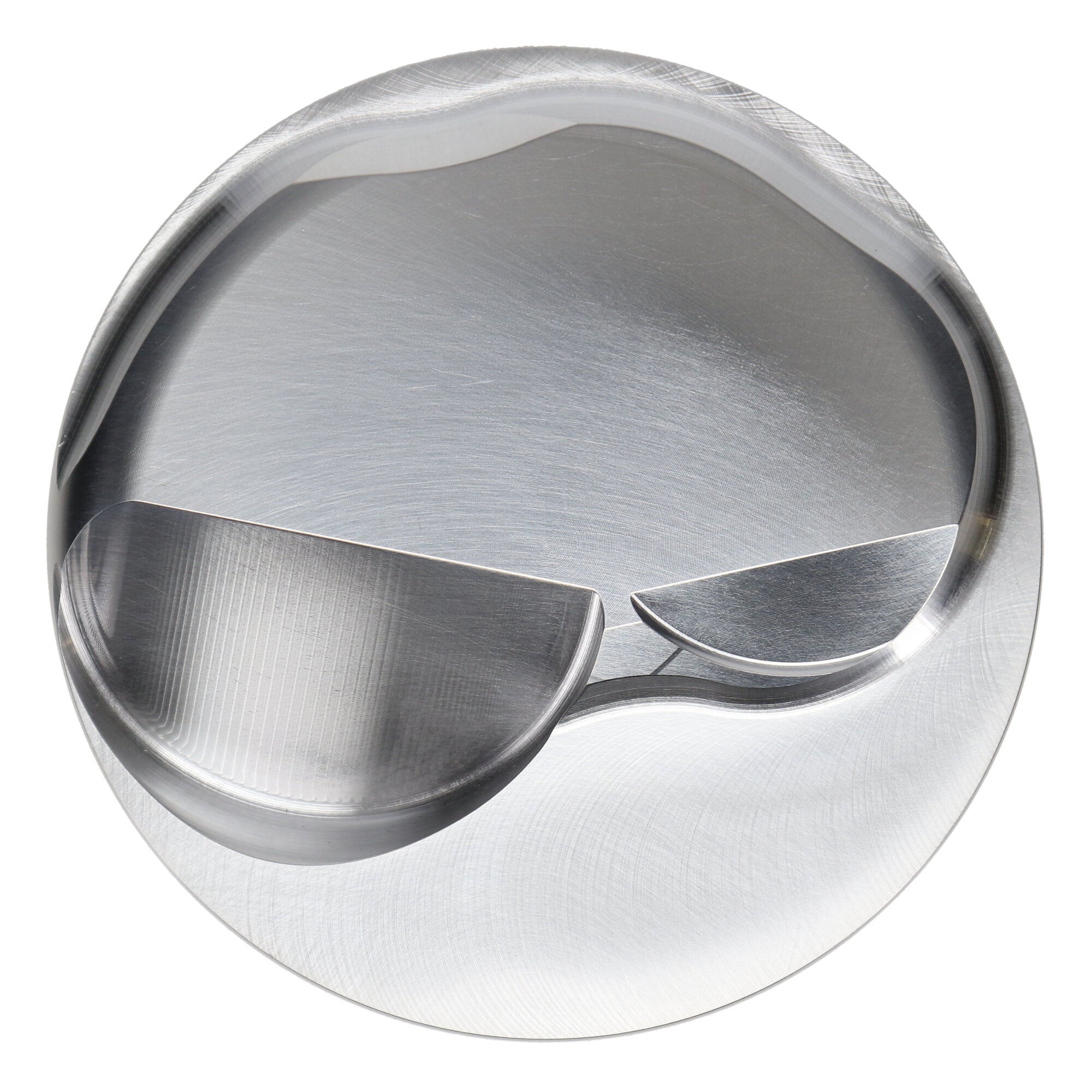

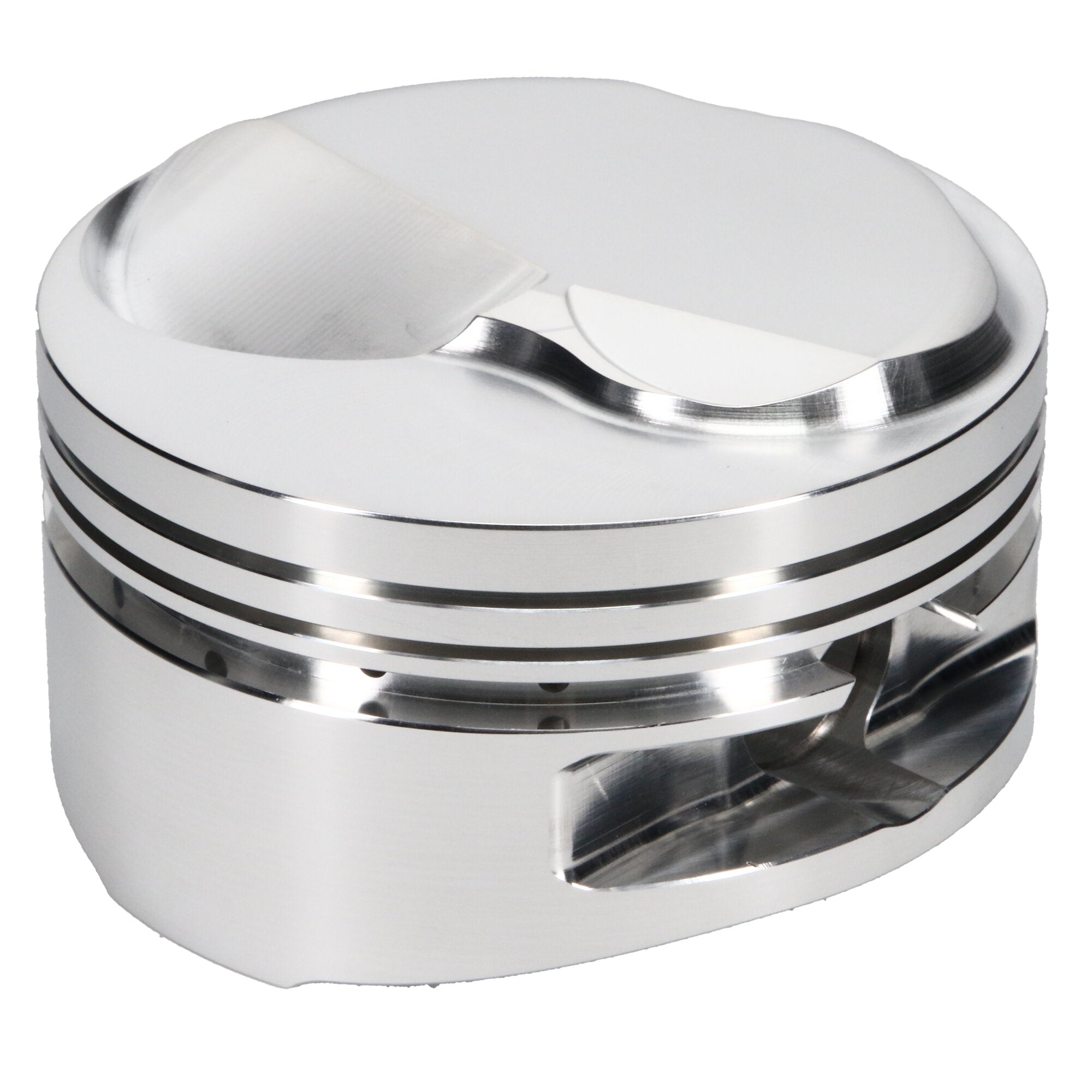

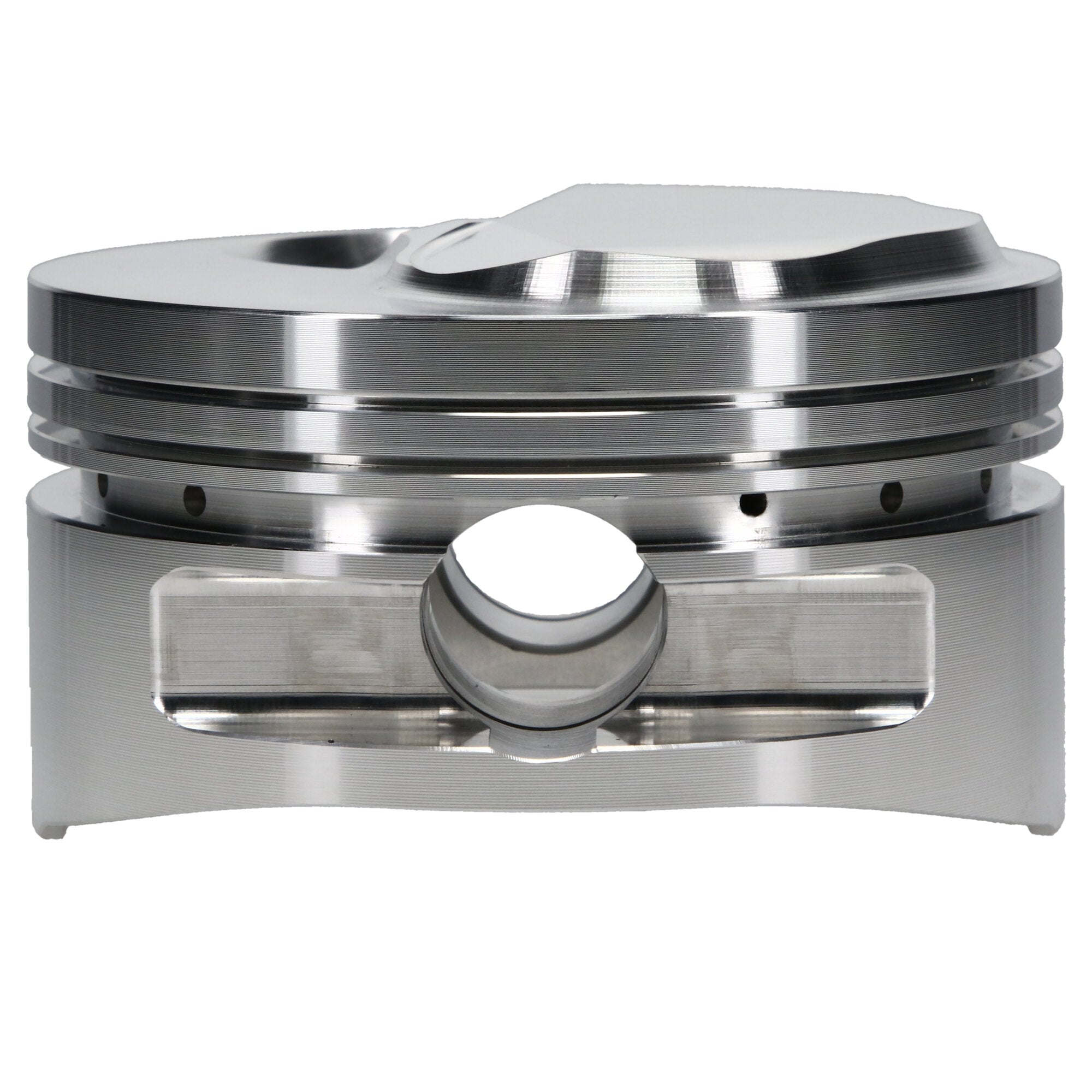

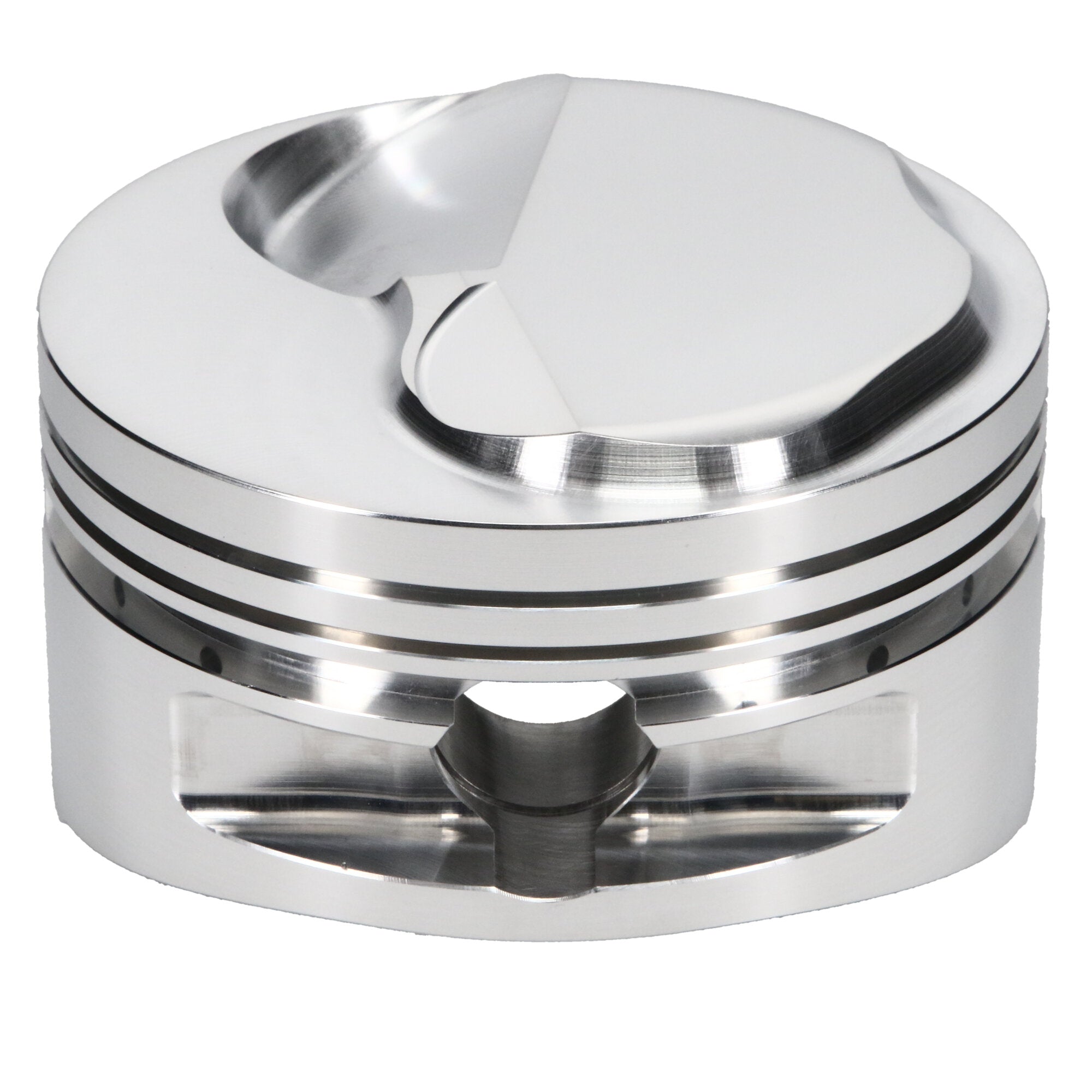

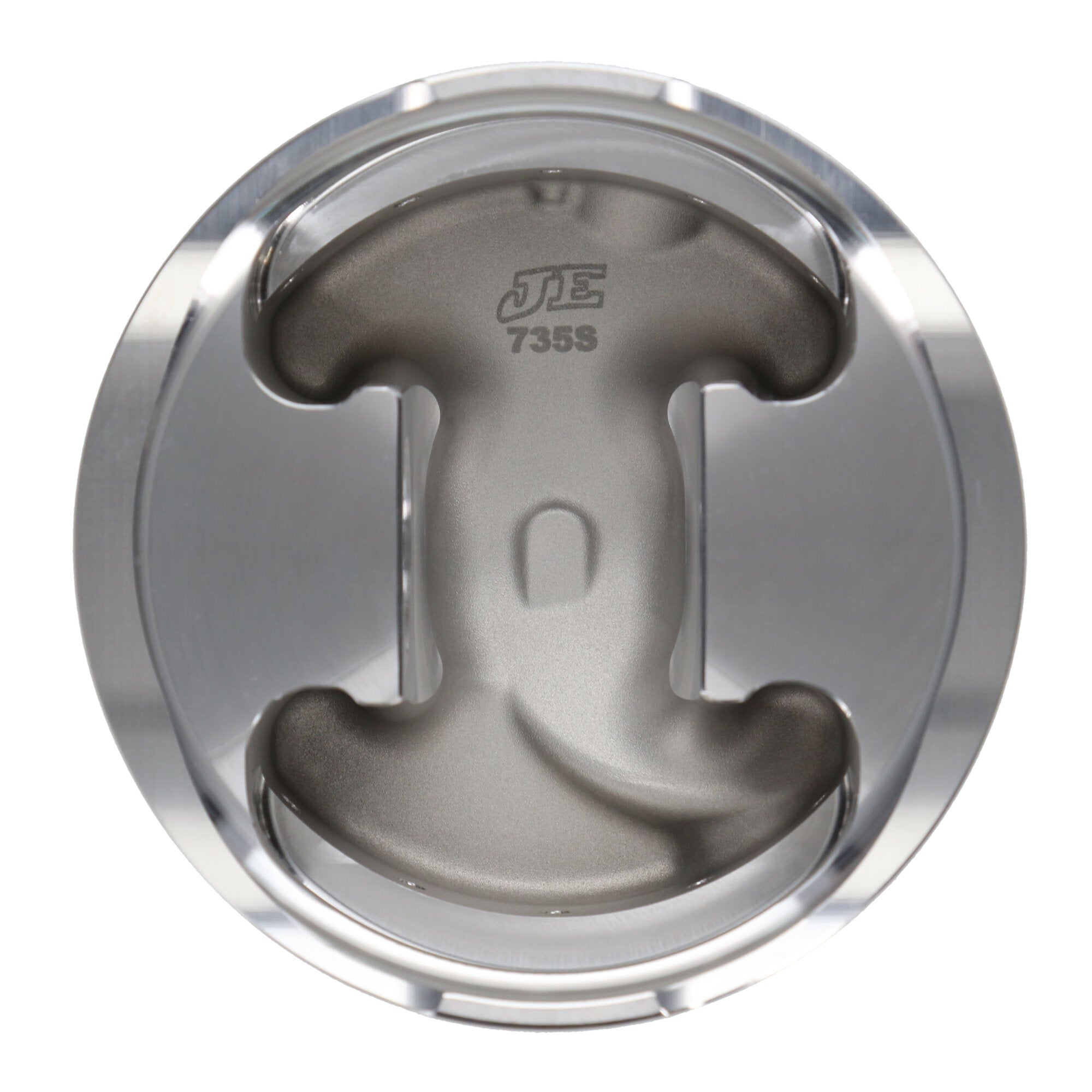

JE Pistons 297812R Piston Single, 2618, Dome, 4.530 Bore, 1.395 CD, 0.990 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_297812R
Engine Piston
$366.10
customers are viewing this product
JE Pistons 296352R Piston Single, 2618, Inv Dome/Dish, 3.927 Bore, 1.130 CD, 0.905 Pin, Set of 1.
JE Pistons 296352R Piston Single, 2618, Inv Dome/Dish, 3.927 Bore, 1.130 CD, 0.905 Pin, Set of 1.
$451.87
JE Pistons 297008S Piston Single, 2618, Flat Top, 3.366 Bore, 1.367 CD, 0.866 Pin, Set of 1.
JE Pistons 297008S Piston Single, 2618, Flat Top, 3.366 Bore, 1.367 CD, 0.866 Pin, Set of 1.
$438.23
JE Pistons 297812R Piston Single, 2618, Dome, 4.530 Bore, 1.395 CD, 0.990 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet Big Block 502
Description_DES Piston Single, 2618, Dome, 4.530 Bore, 1.395 CD, 0.990 Pin, Set of 1.
Description_DEF Engine Piston
Description_INV JE Pistons, Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_EXT JE, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.395 CD, Dome, Right Piston
Description_TLE Chevrolet 502, 4.530 Bore, Dome, Set of 1
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_SHO Piston
Out of Stock Message Call for Availability
Add-On 990-042-CS
Title JE Pistons - Chevrolet, Big Block, 4.530 in. Bore, Piston
Add-On J890F8-4530-5
Add-On 990-2930-20-TSS
Industry Automotive
Piston Average Weight 725
Compression Height 1.395
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Product Market Domestic
Top Compression Ring Thickness 0.0750
Piston Orientation Right
Prop 65 Yes/No Yes
Bore Diameter 4.530
Piston Pin Outside Diameter 0.990
Prop 65 (C, R or CR) CR
Piston Quantity 1
Product Type Engine Piston
Piston Material 2618
Second Compression Ring Thickness 0.0640
Engine Big Block
Piston Volume 29.70
Cylinder Head OPEN CHAMBER
Wrist Pin Length 2.930
Prop 65 - Short Label Prop 65 Warning Label.JPG
Engine - Web Big Block
Ring Set Included No
Piston Series JE Pistons
Forging Type Round
Ringset Included No
Make CHEVROLET
Piston Head Type Dome
Piston Pin Length 2.930
Engine Type ICE
Oil Ring Thickness 0.218
Title - Web JE Pistons Chevrolet Big Block Piston - 4.530 in. Bore - 1.395 in. CH, 29.70 CC
Piston Pin Wall Thickness 0.200
Make - Web Chevrolet
Wrist Pin Wall Thickness 0.200
Wrist Pin Outer Diameter 0.990
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
