As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 427 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

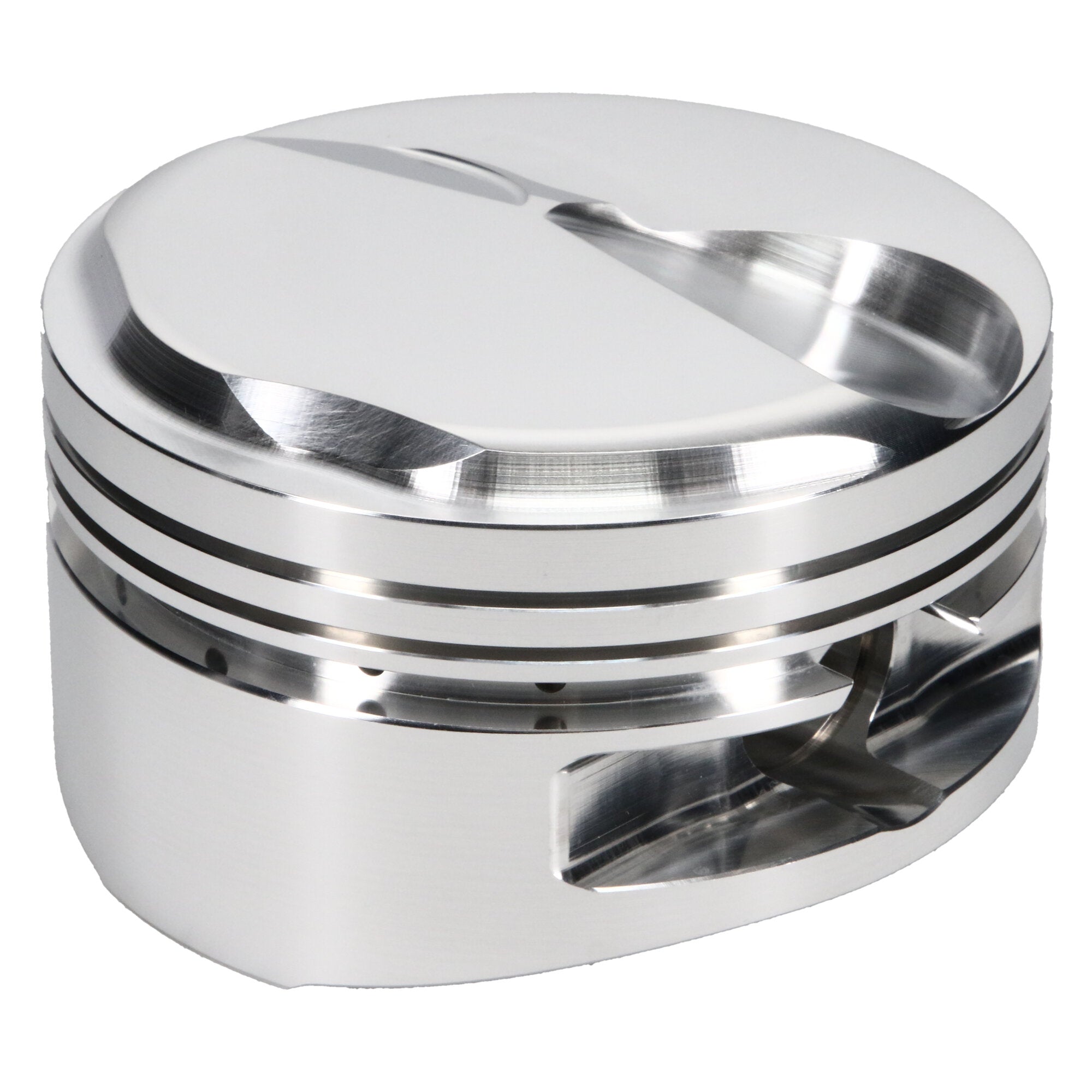

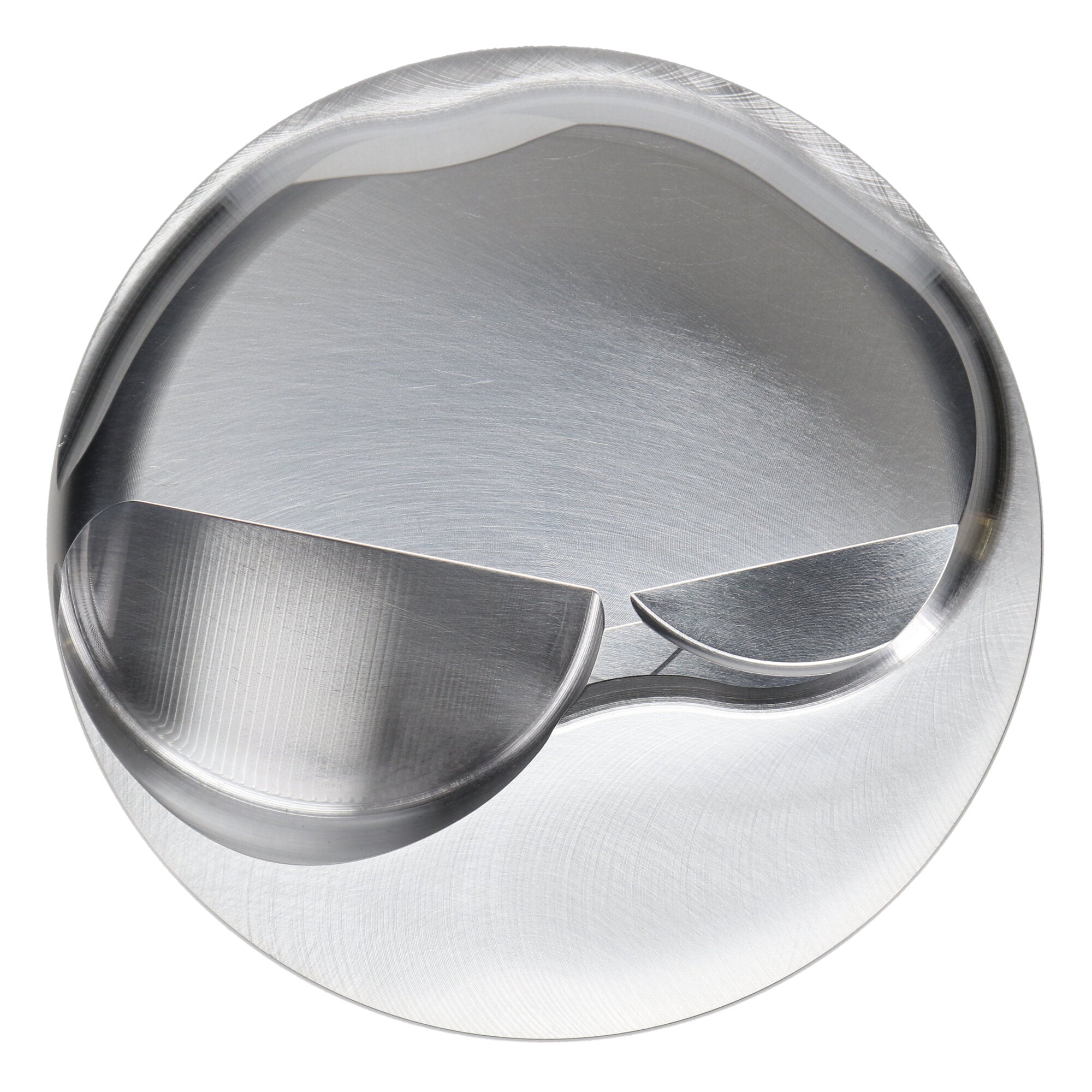

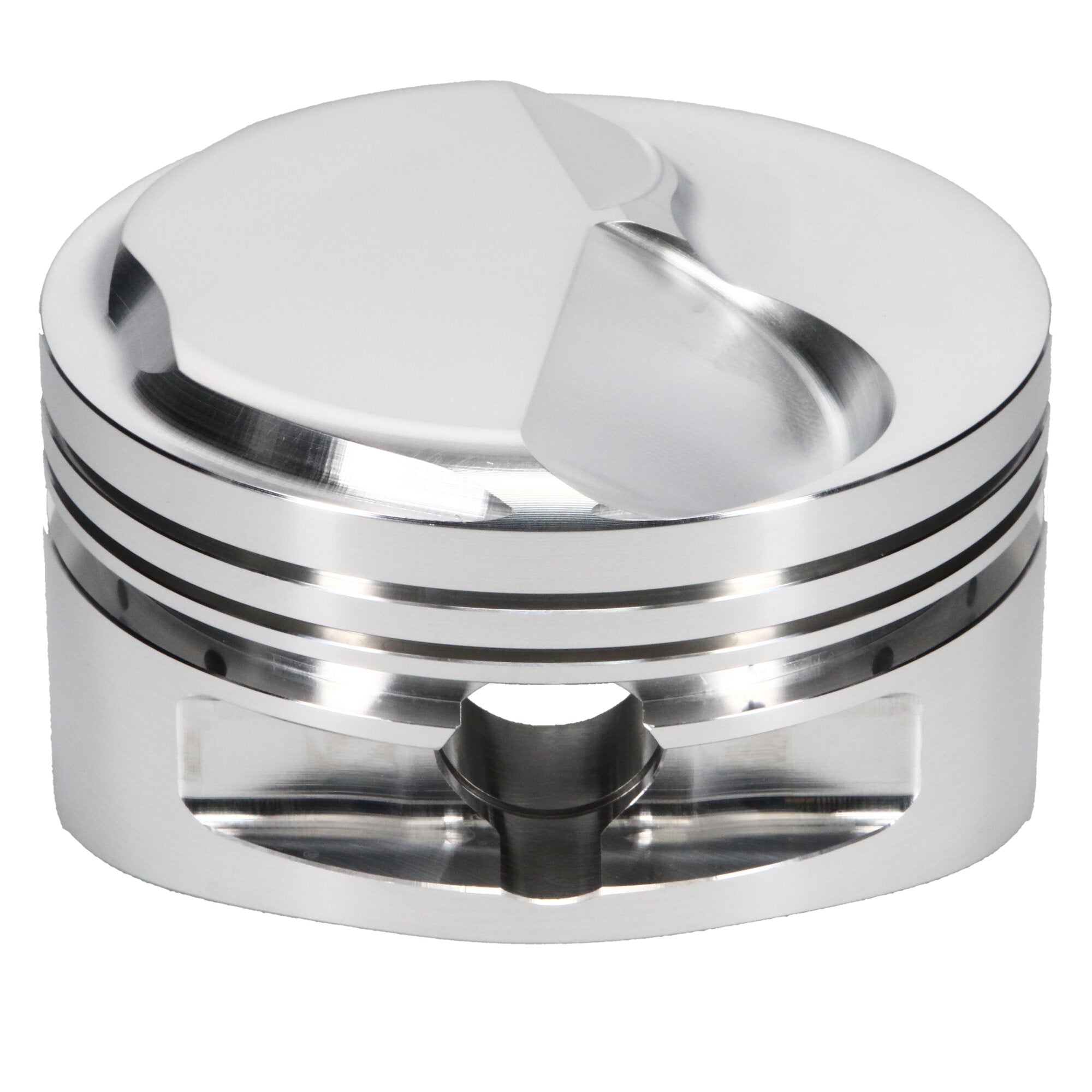

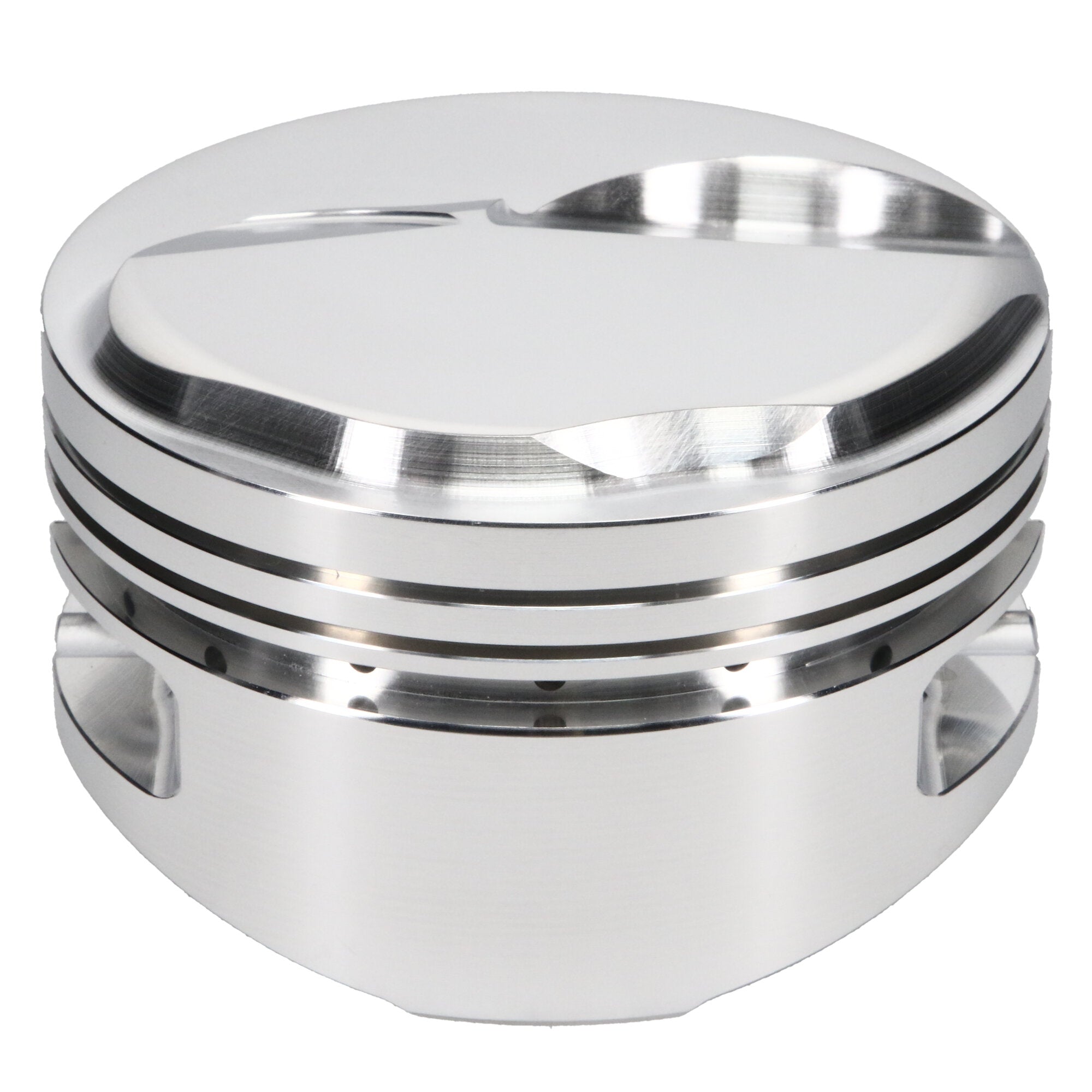

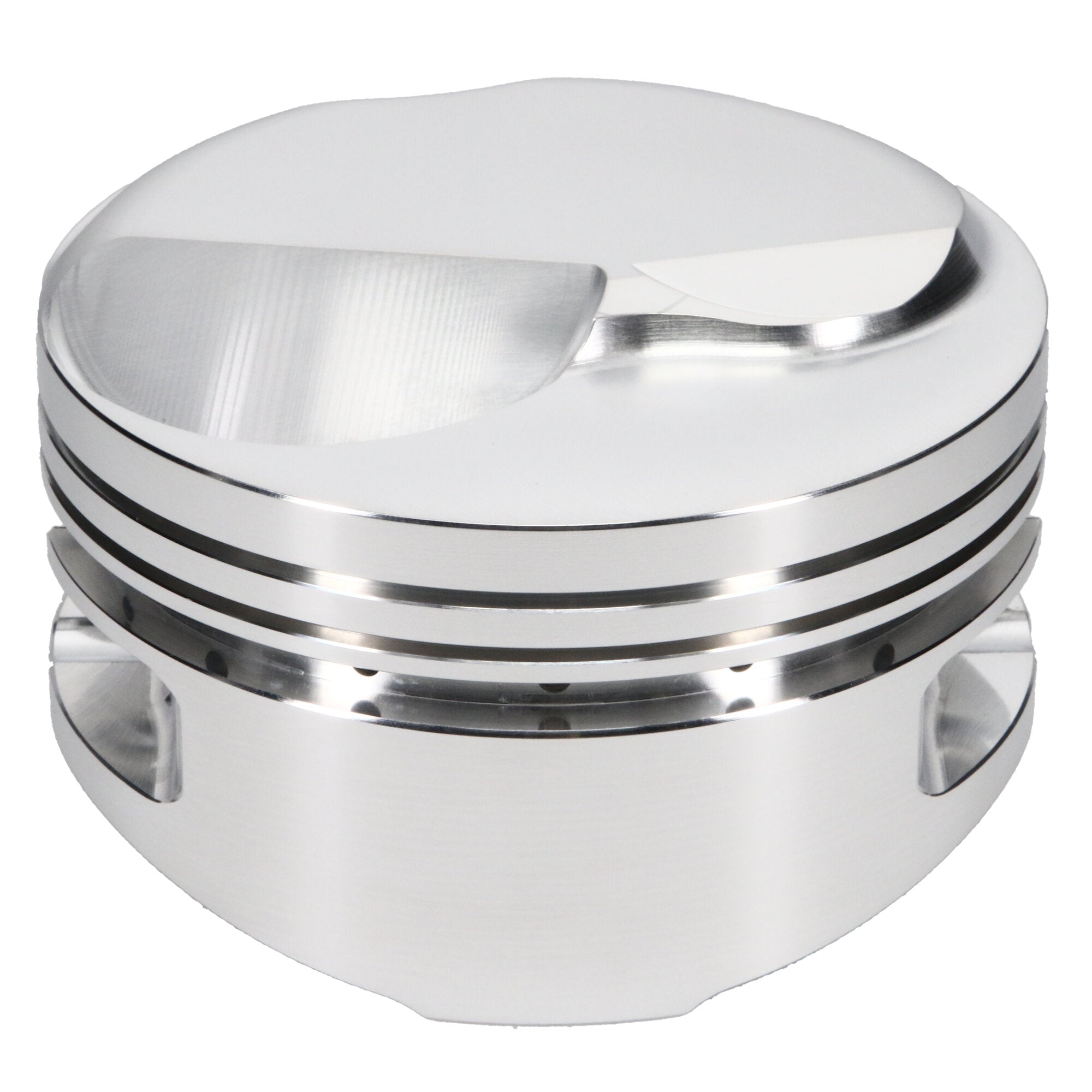

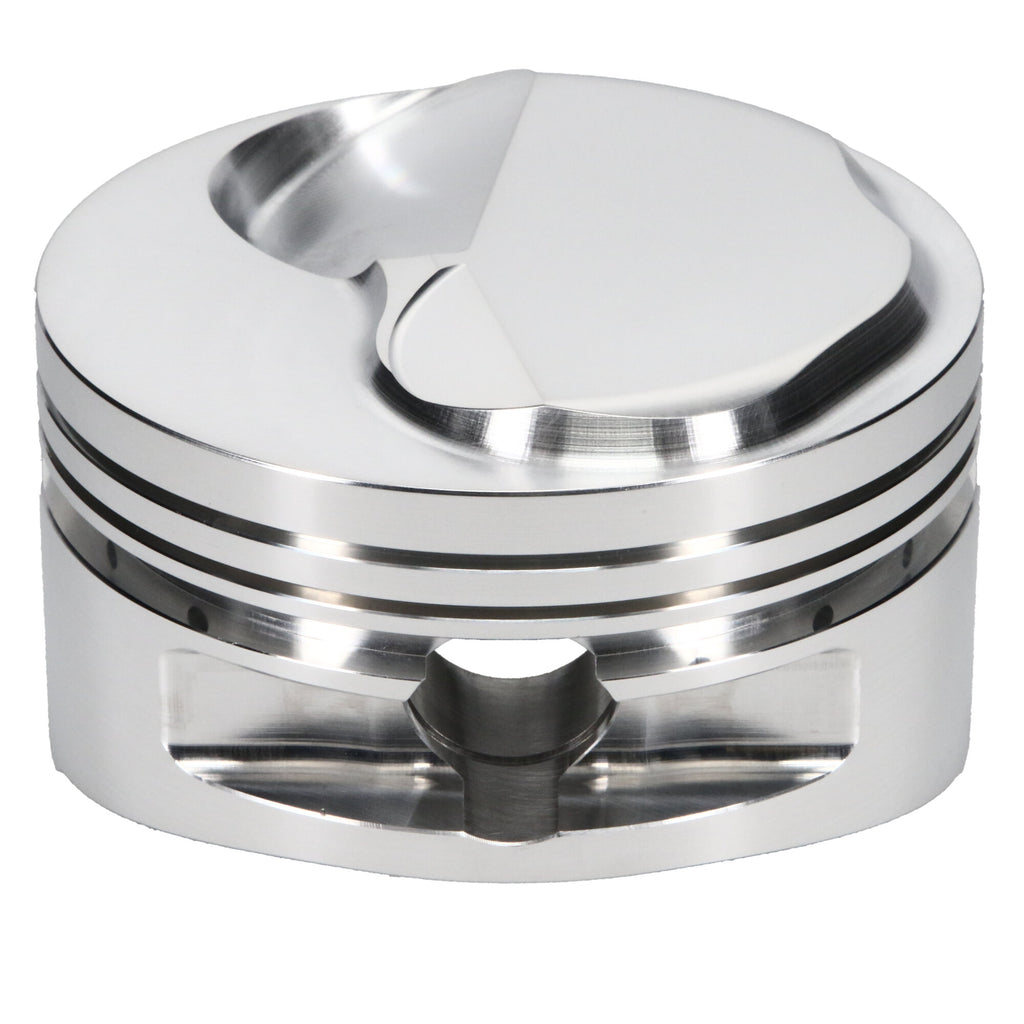

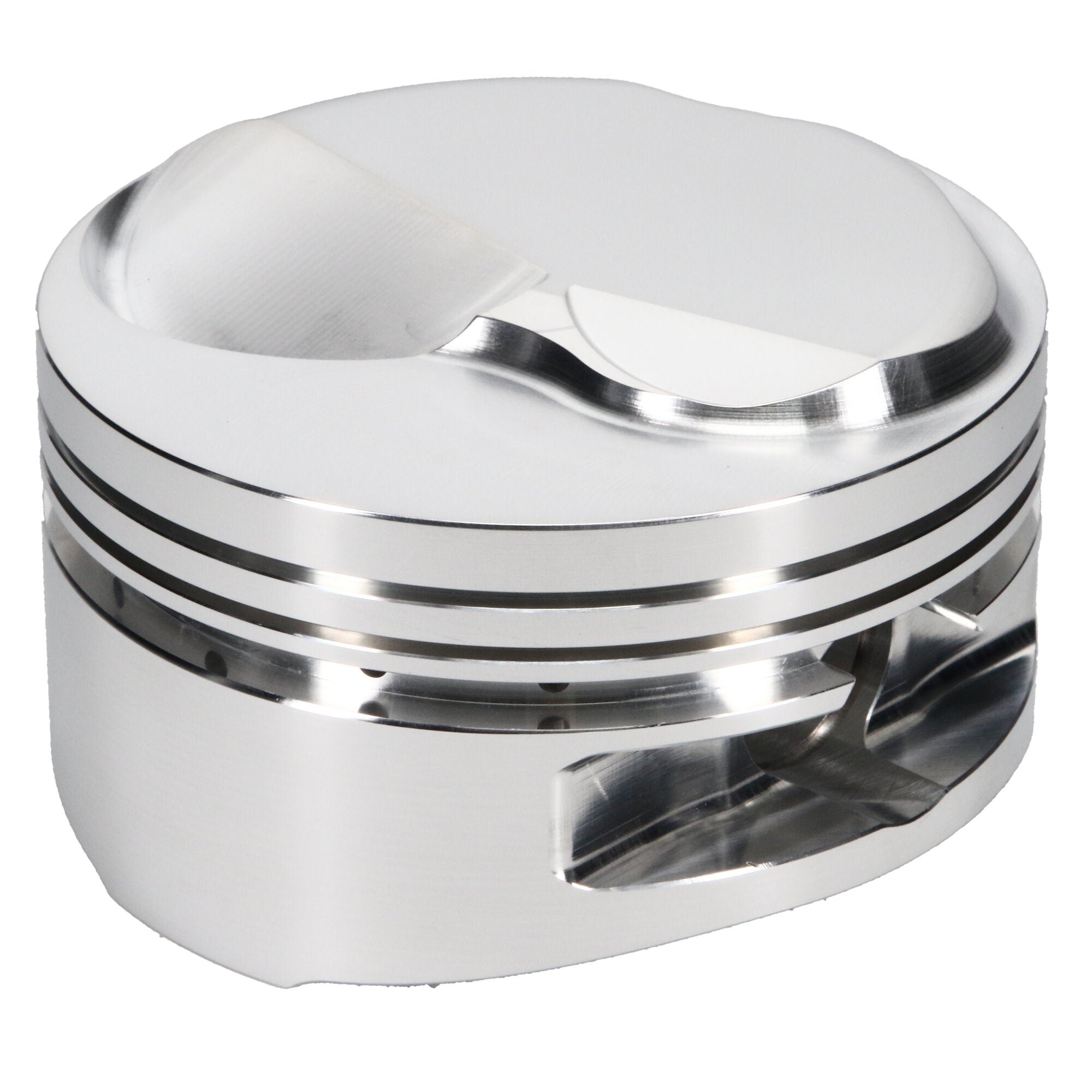

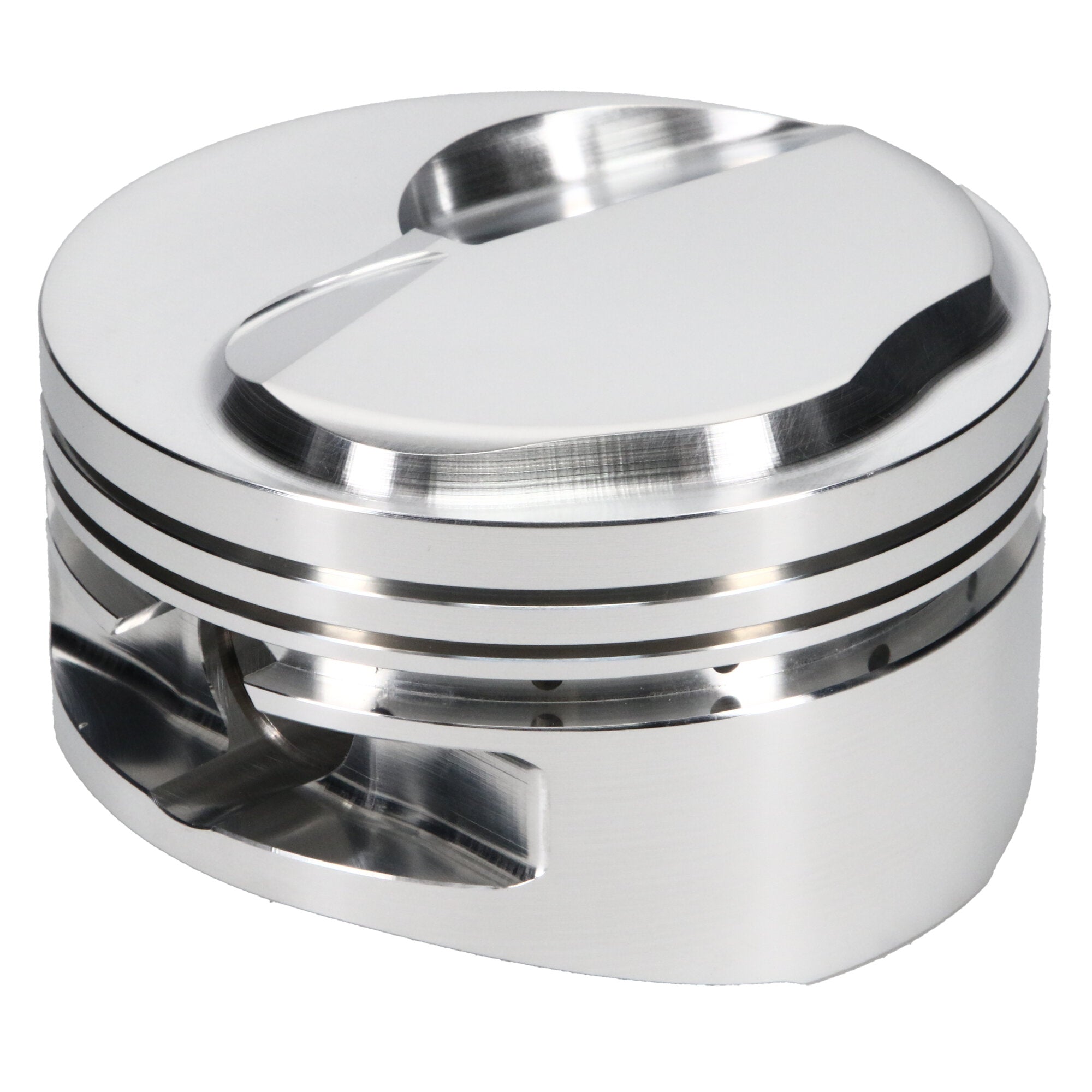

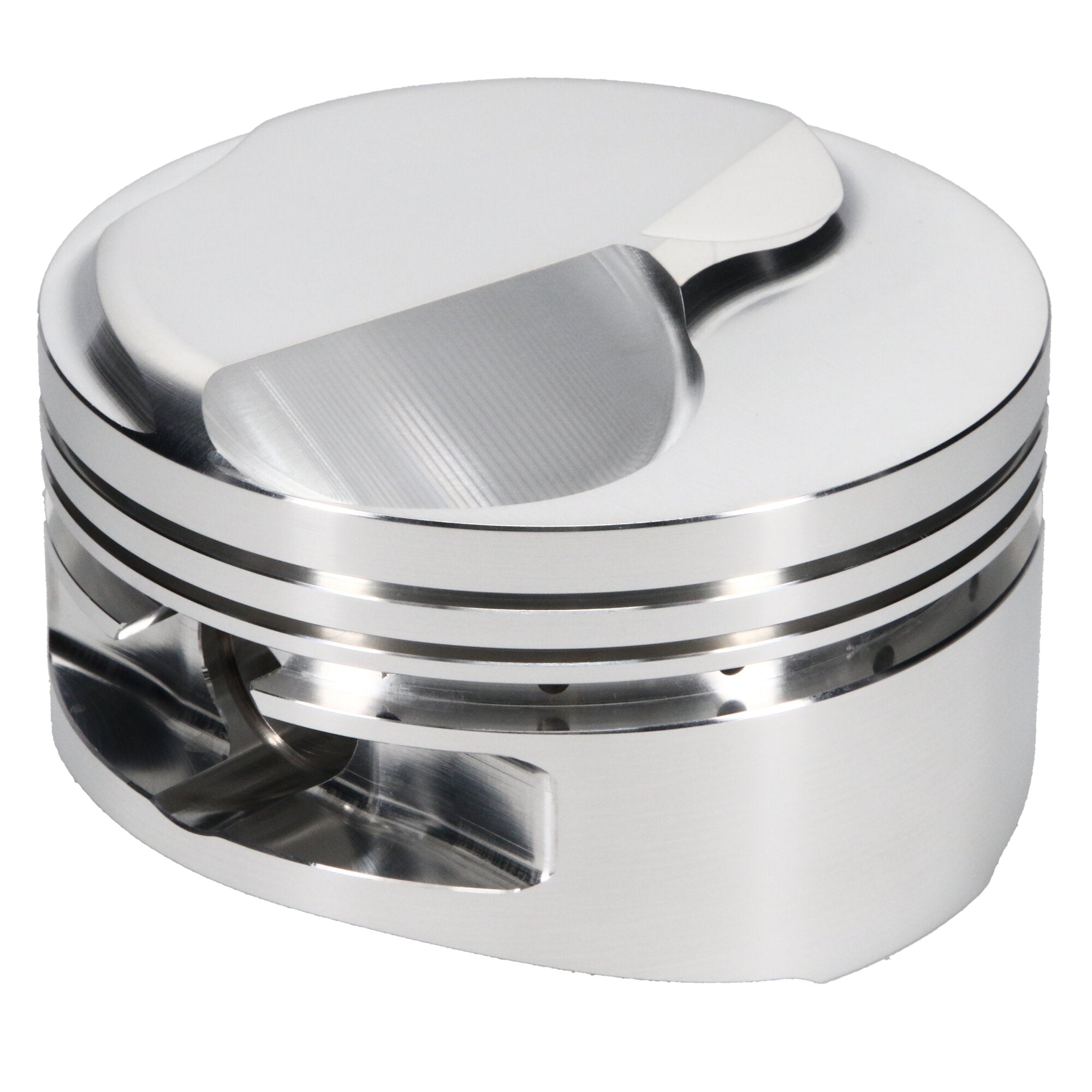

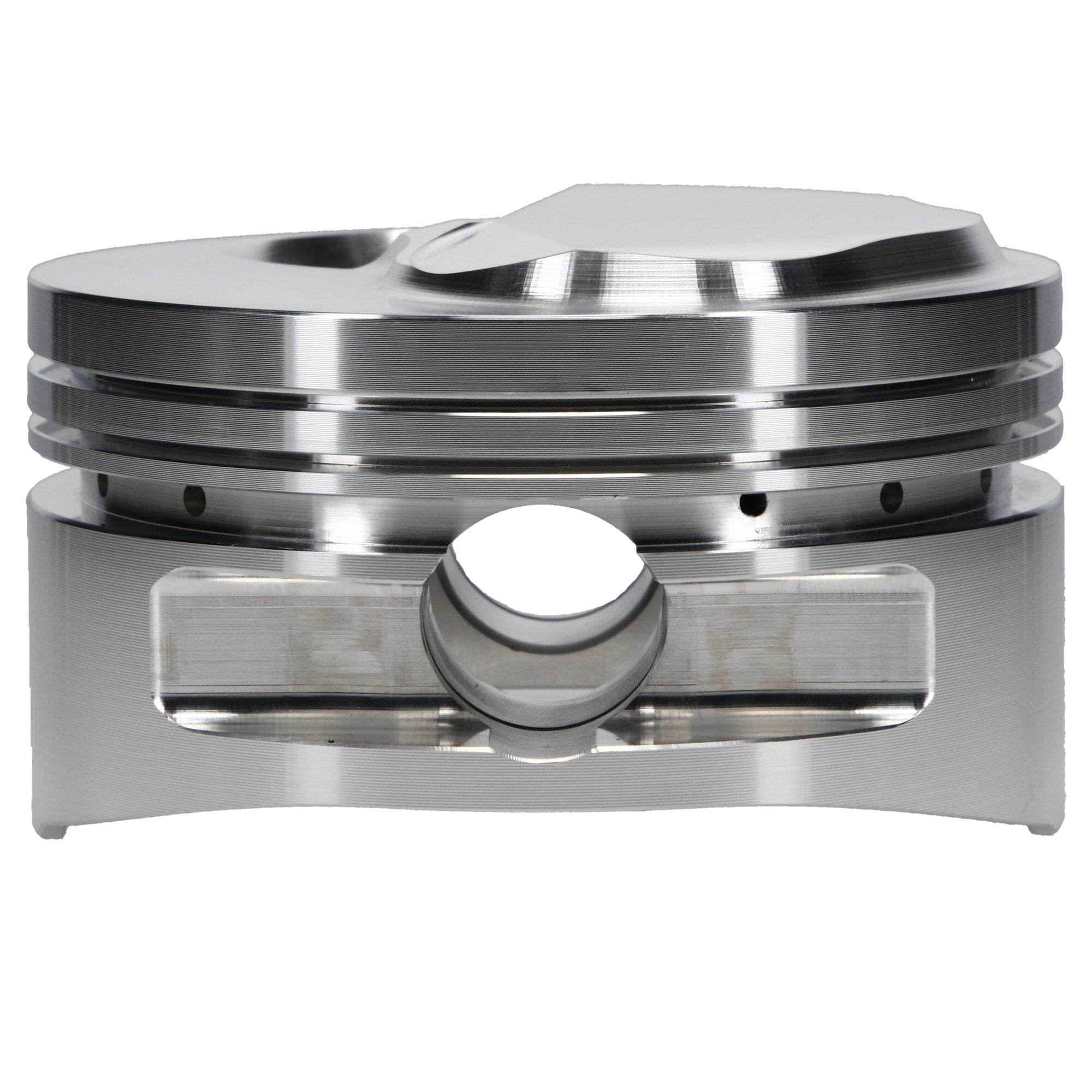

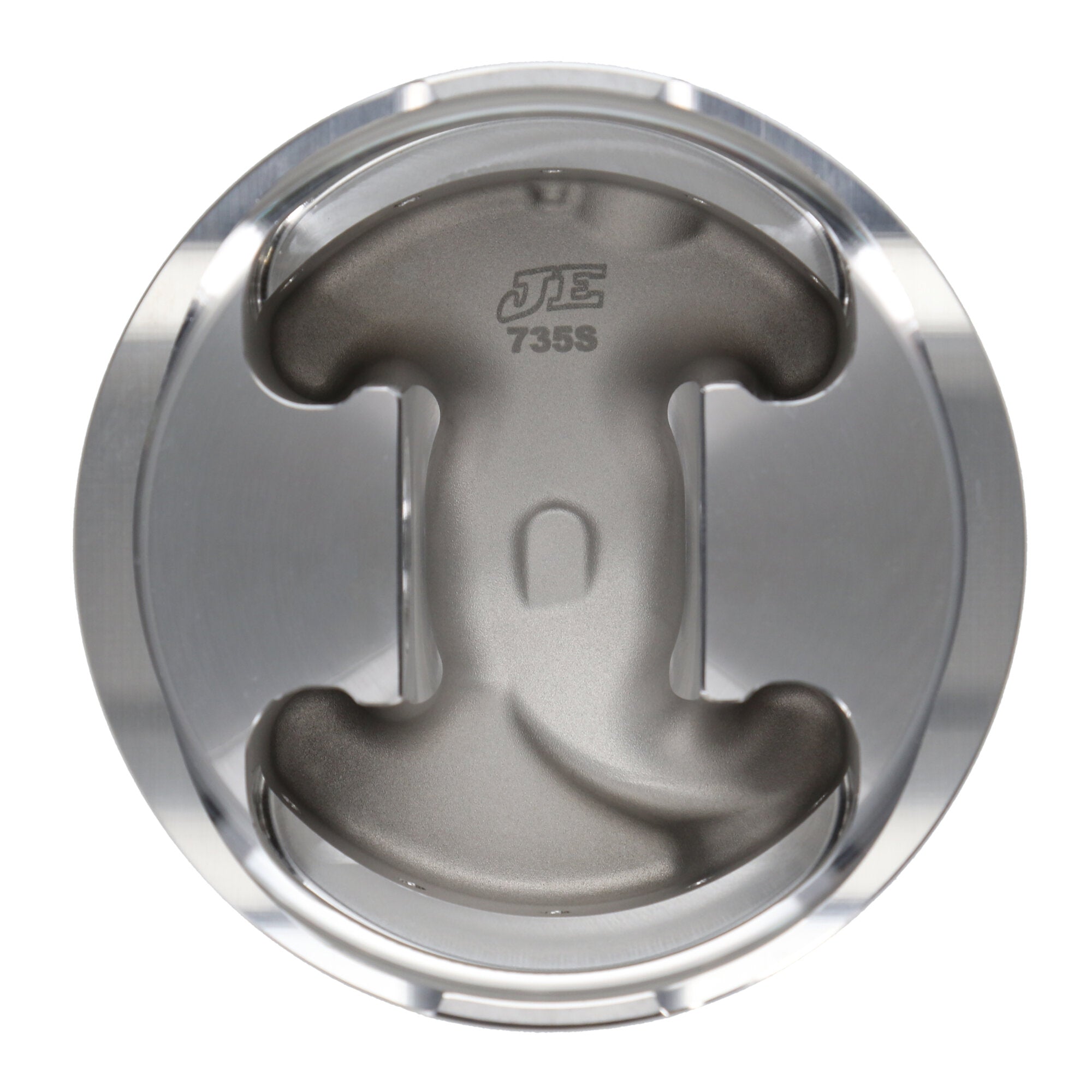

Piston Set, 2618, Dome, 4.310 Bore, 1.395 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.310 in. Bore, 1.395 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 427, 4.310 Bore, Dome, Set of 8 |
| Prop 65 Yes/No |
Yes |
| Cylinder Head |
OPEN CHAMBER |
| Add-On |
990-2930-20-TSS |
| Add-On |
990-042-CS |
| Industry |
Automotive |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.310 in. Bore - 1.395 in. CH, 38.00 CC |
| Piston Head Type |
Dome |
| Add-On |
J890F8-4310-5 |
| Out of Stock Message |
Call for Availability |
| Compression Height |
1.395 |
| Bore Diameter |
4.310 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.310 in. Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Engine |
Big Block |
| Piston Pin Length |
2.930 |
| Piston Series |
JE Pistons |
| Ringset Included |
No |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Chevrolet |
| Engine - Web |
Big Block |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Forging Type |
Round |
| Top Compression Ring Thickness |
0.0750 |
| Engine Type |
ICE |
| Product Market |
Domestic |
| Oil Ring Thickness |
0.218 |
| Piston Pin Outside Diameter |
0.990 |
| Piston Quantity |
8 |
| Piston Material |
2618 |
| Piston Pin Wall Thickness |
0.200 |
| Piston Volume |
38.00 |
| Make |
CHEVROLET |
| Piston Average Weight |
665 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.200 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
