Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 572 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

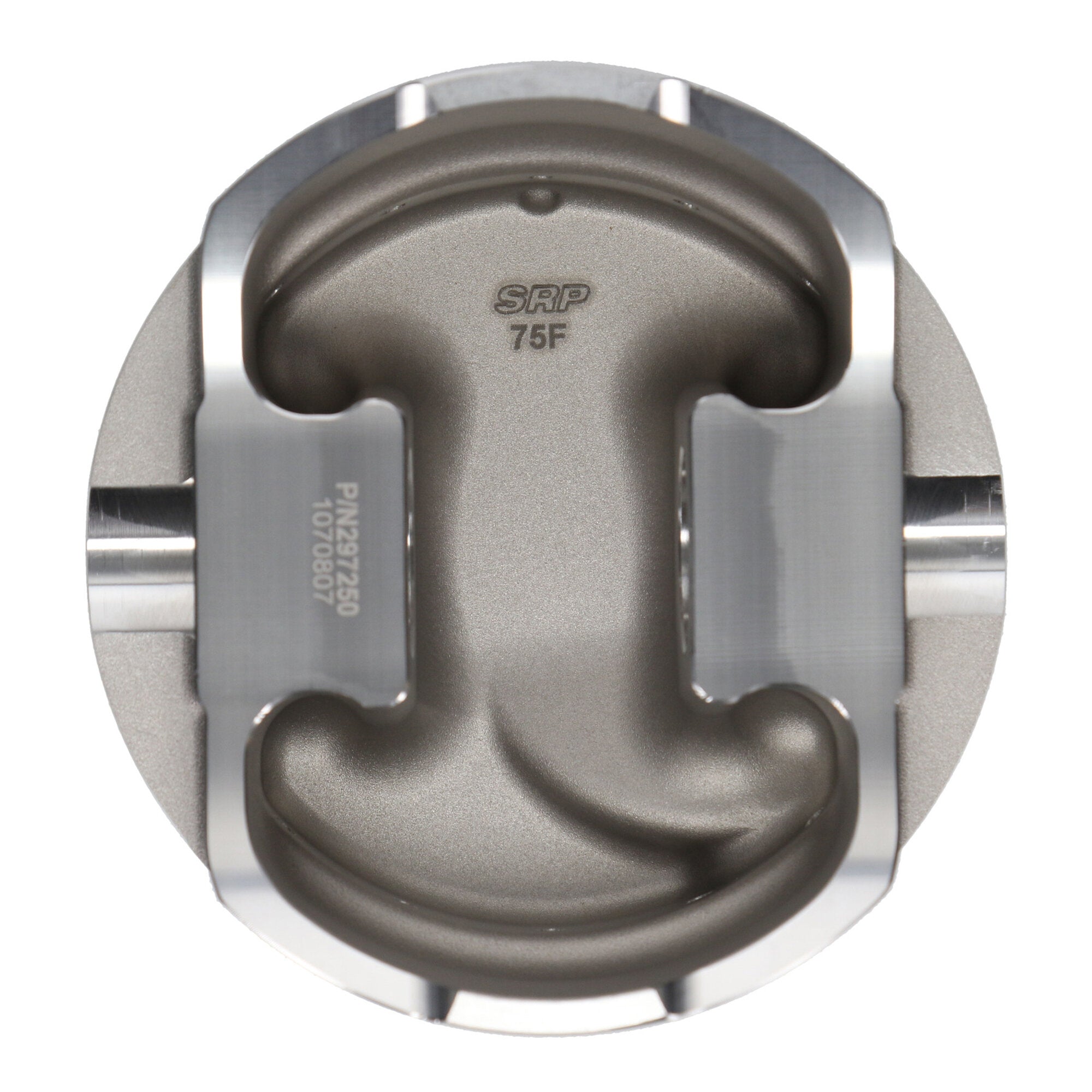

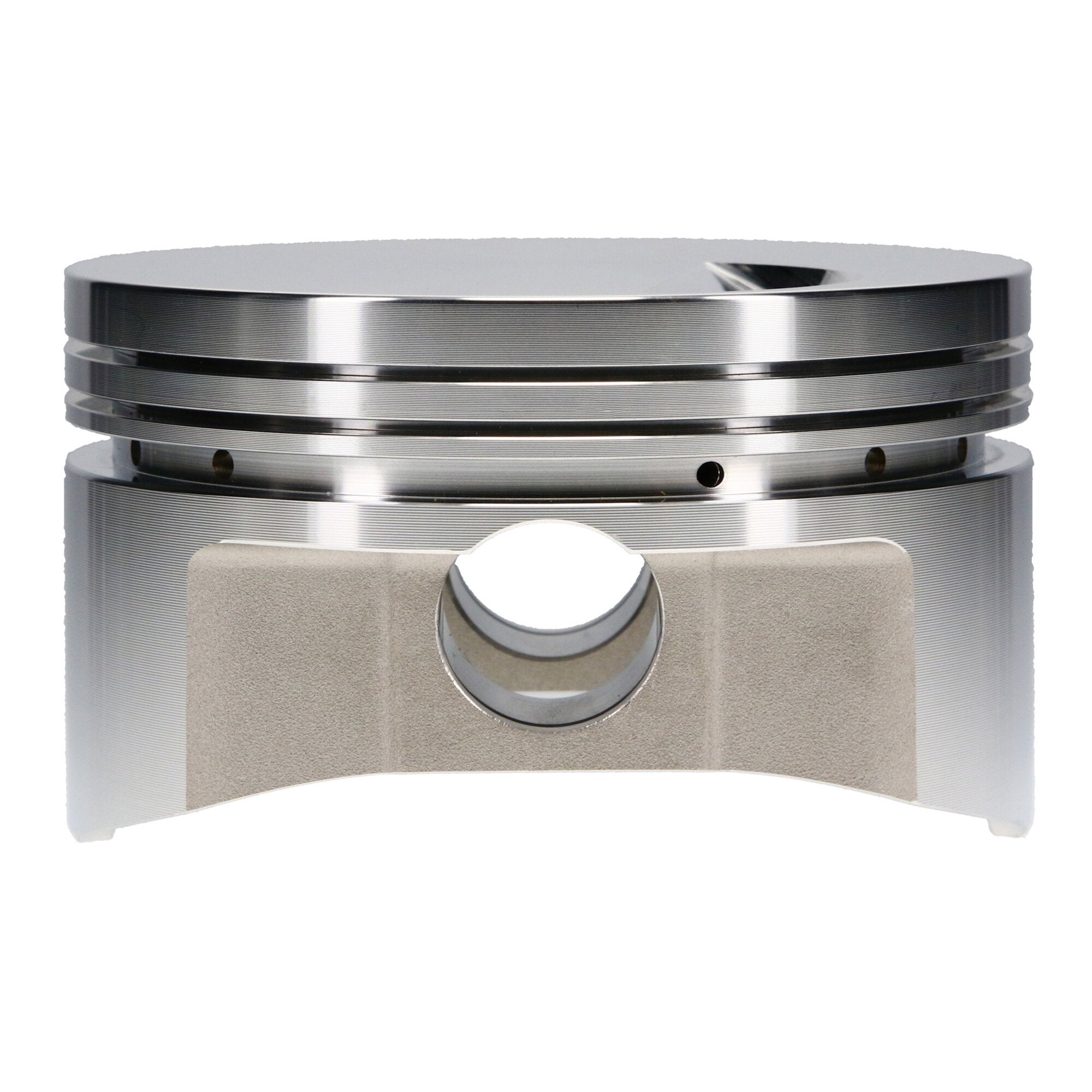

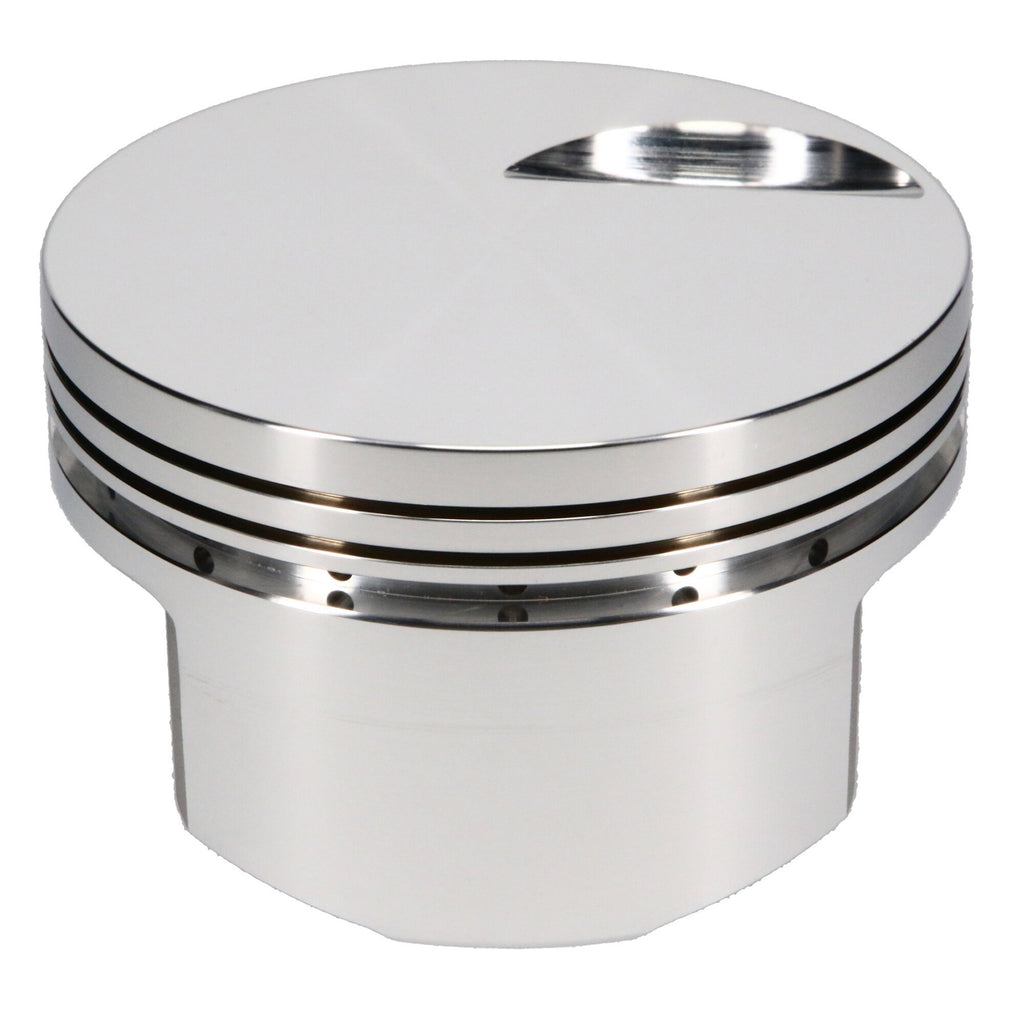

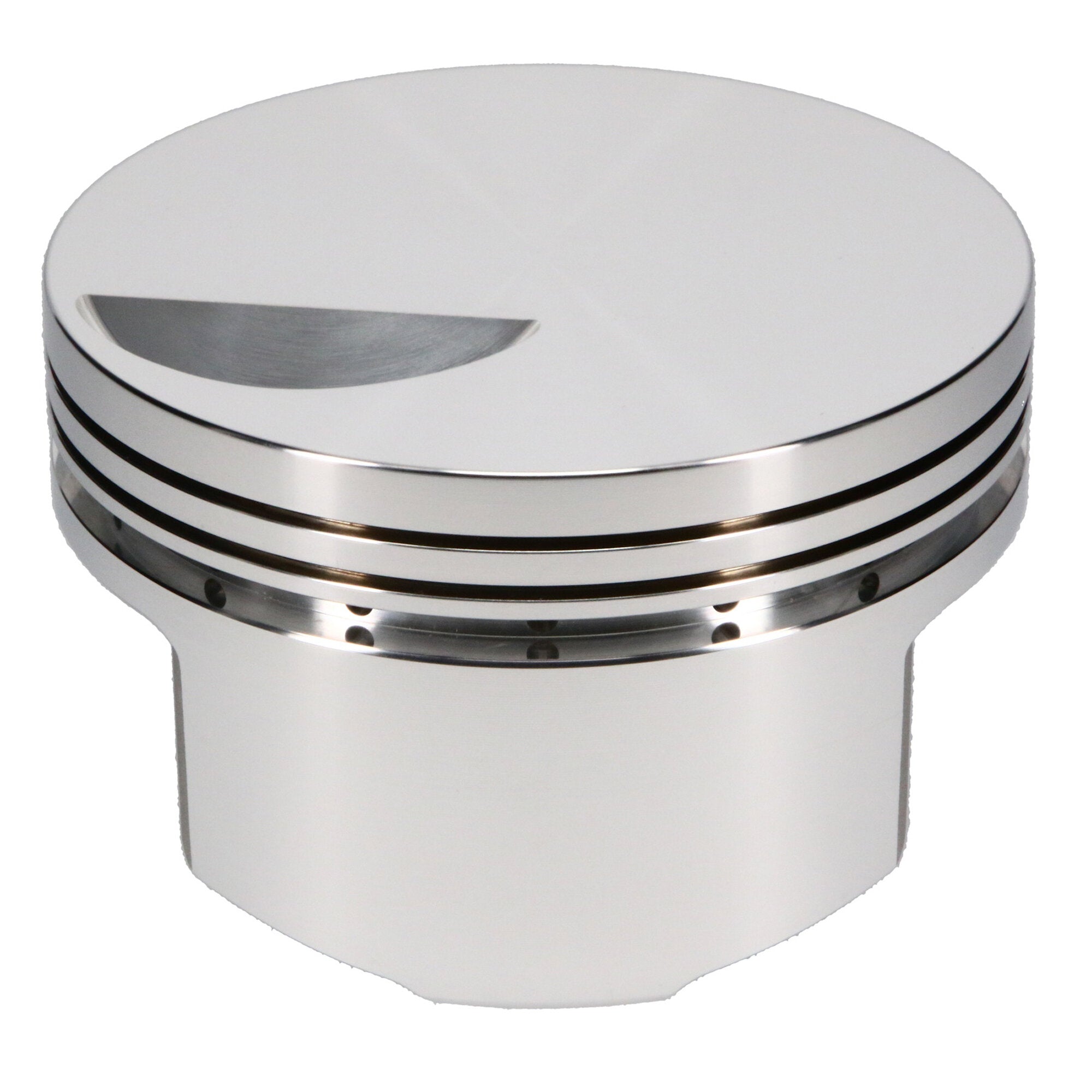

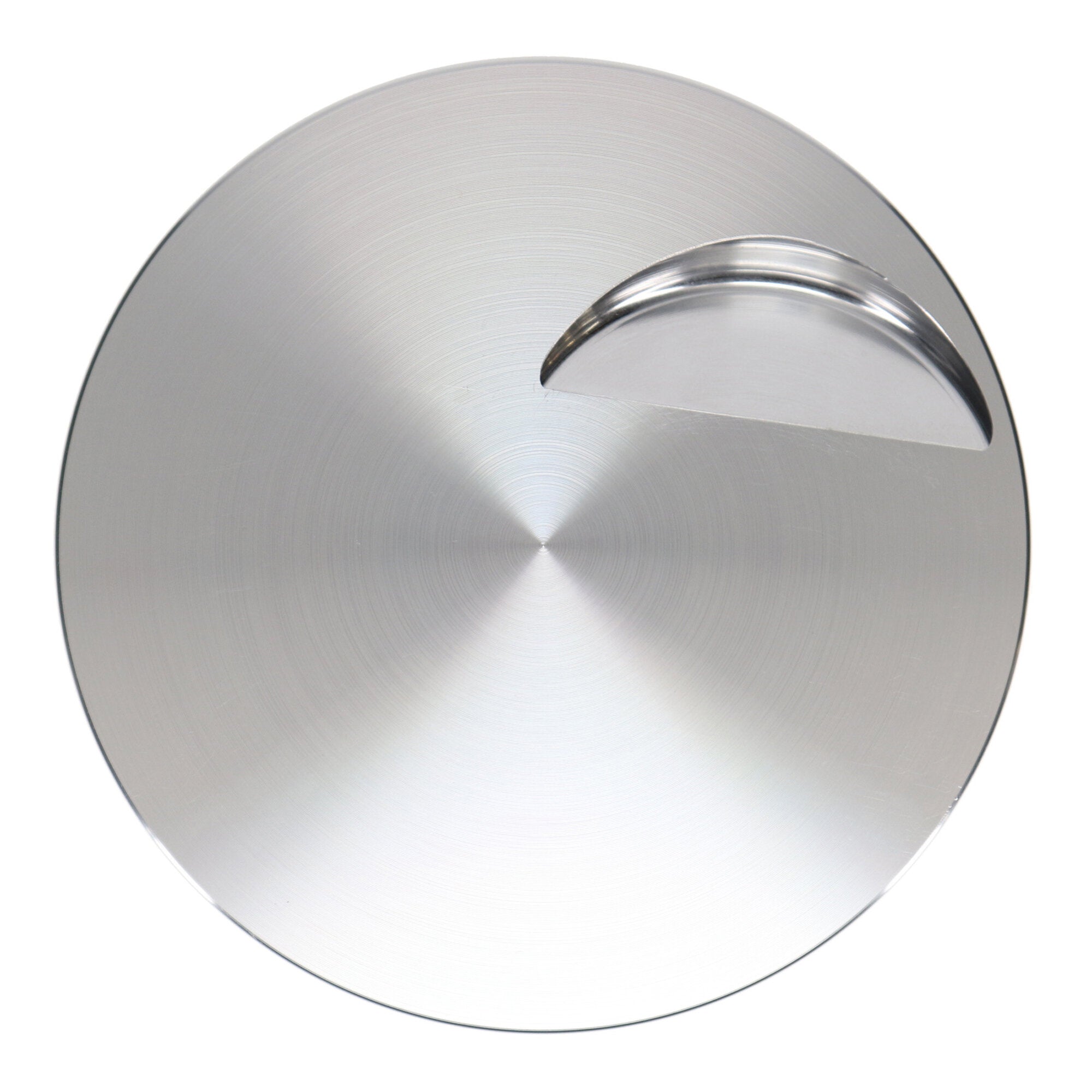

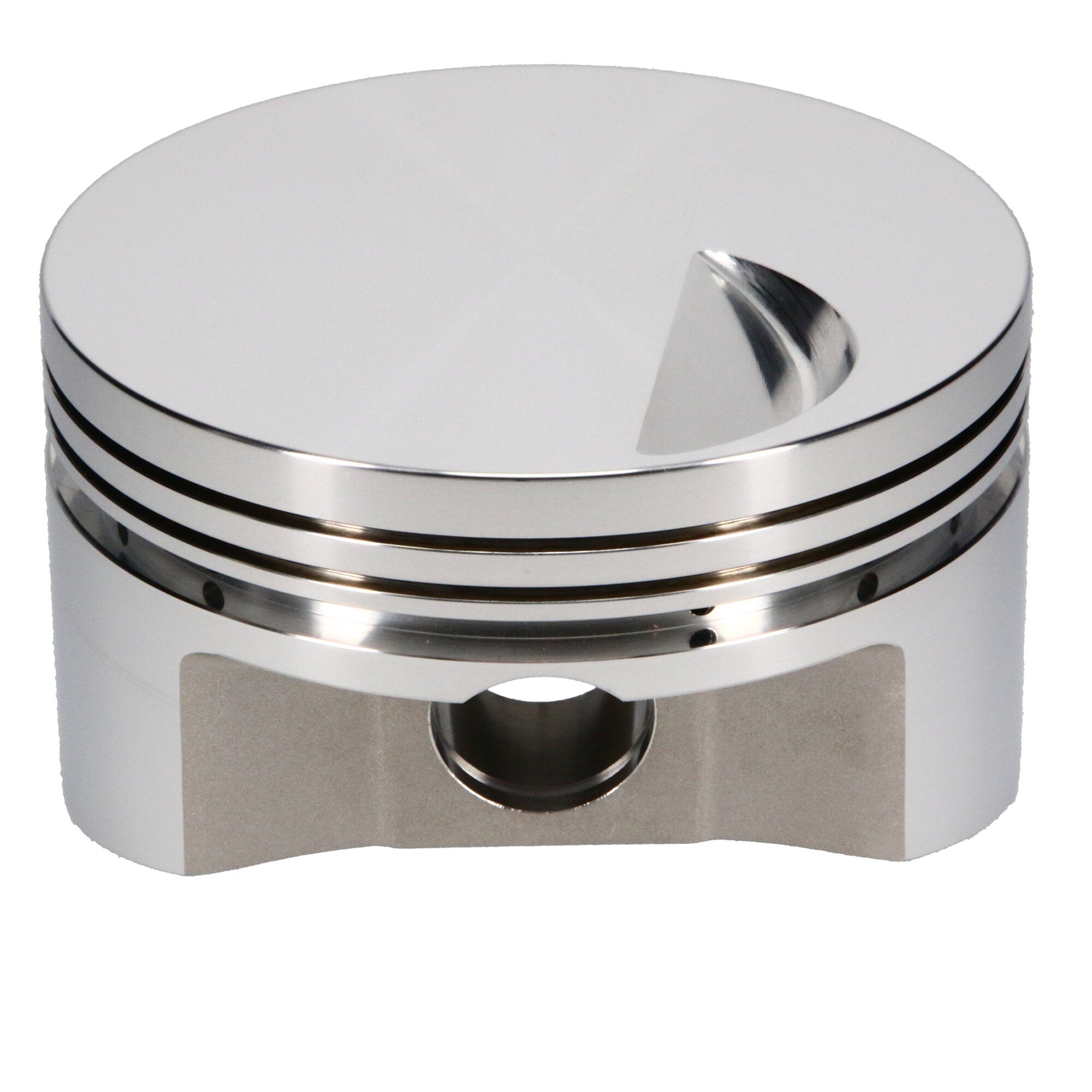

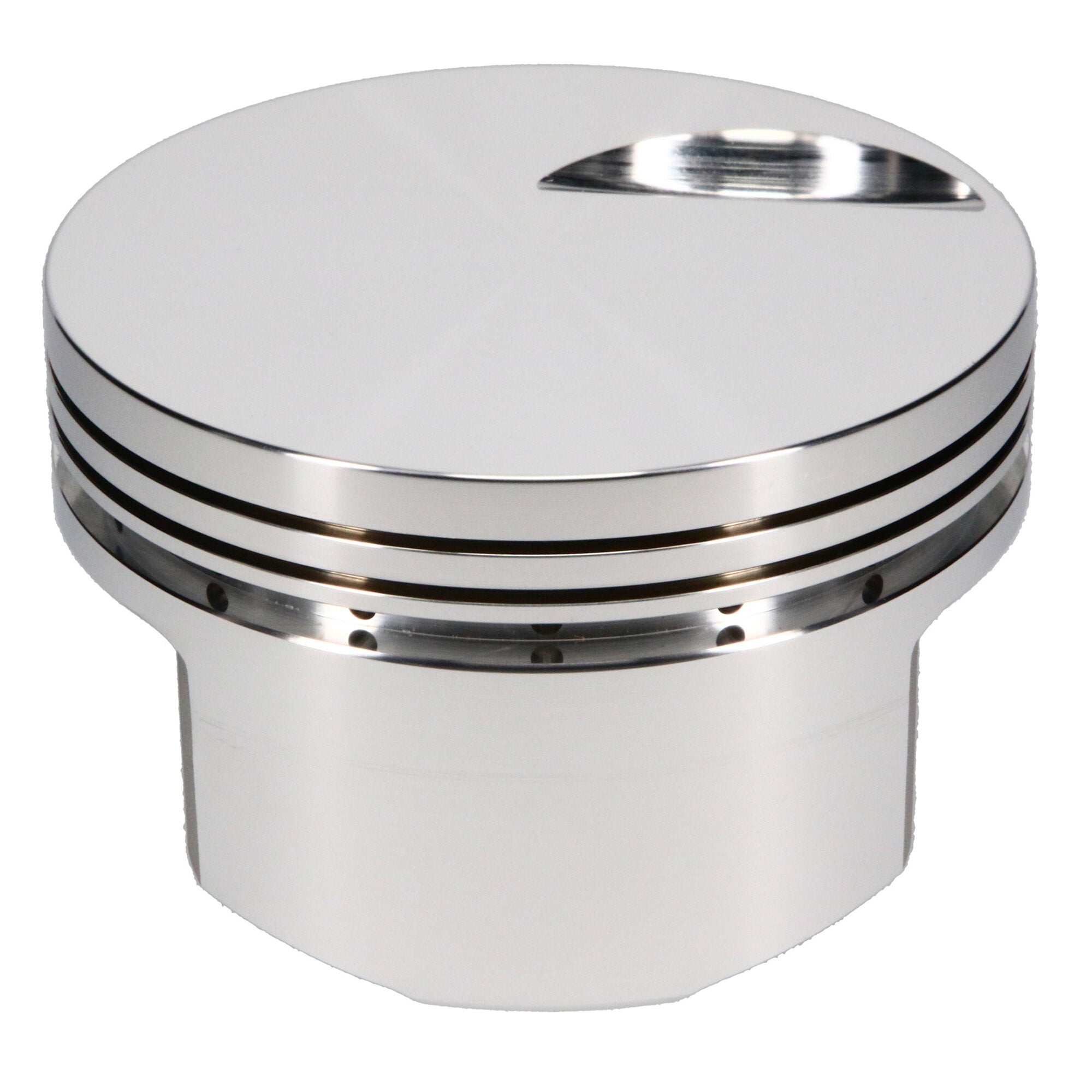

Piston Set, 4032, Flat Top, 4.600 Bore, 1.465 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.465 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 572, 4.600 Bore, Flat, Set of 8 |
| Piston Material |
4032 |
| Add-On |
990-2930-15-51S |
| Add-On |
990-042-CS |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.465 in. CH, -3.00 CC |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
OPEN CHAMBER |
| Add-On |
S100S8-4600-5 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Second Compression Ring Thickness |
0.0640 |
| Engine |
Big Block |
| Piston Head Type |
Flat |
| Prop 65 (C, R or CR) |
CR |
| Piston Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Product Market |
Domestic |
| Bore Diameter |
4.600 |
| Title |
SRP - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Top Compression Ring Thickness |
0.0640 |
| Product Type |
Engine Piston Kit |
| Compression Height |
1.465 |
| Piston Average Weight |
699 |
| Piston Series |
SRP |
| Ringset Included |
No |
| Oil Ring Thickness |
0.188 |
| Make |
CHEVROLET |
| Piston Pin Outside Diameter |
0.990 |
| Make - Web |
Chevrolet |
| Wrist Pin Outer Diameter |
0.990 |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
No |
| Piston Pin Wall Thickness |
0.150 |
| Piston Volume |
-3.00 |
| Engine Type |
ICE |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
