As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

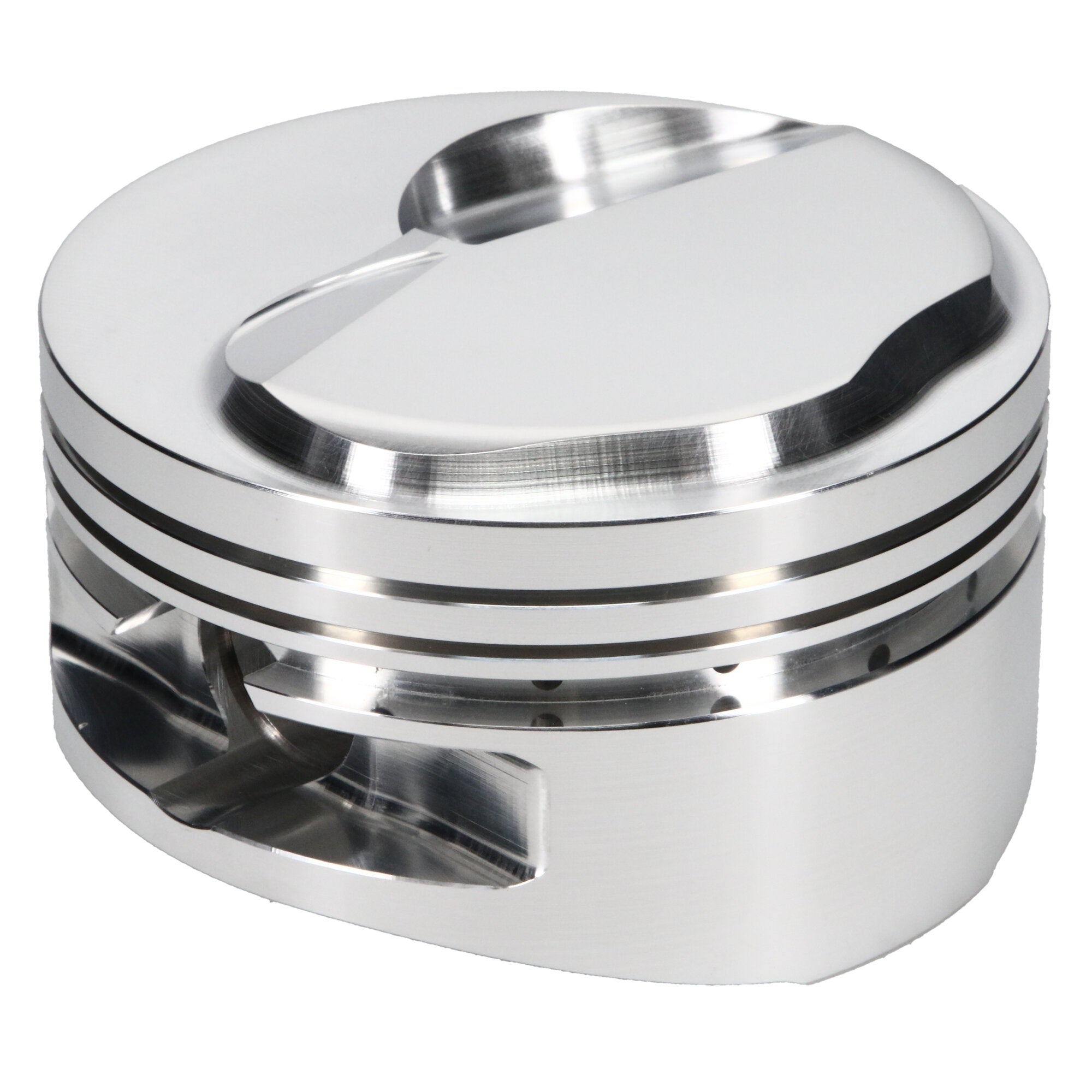

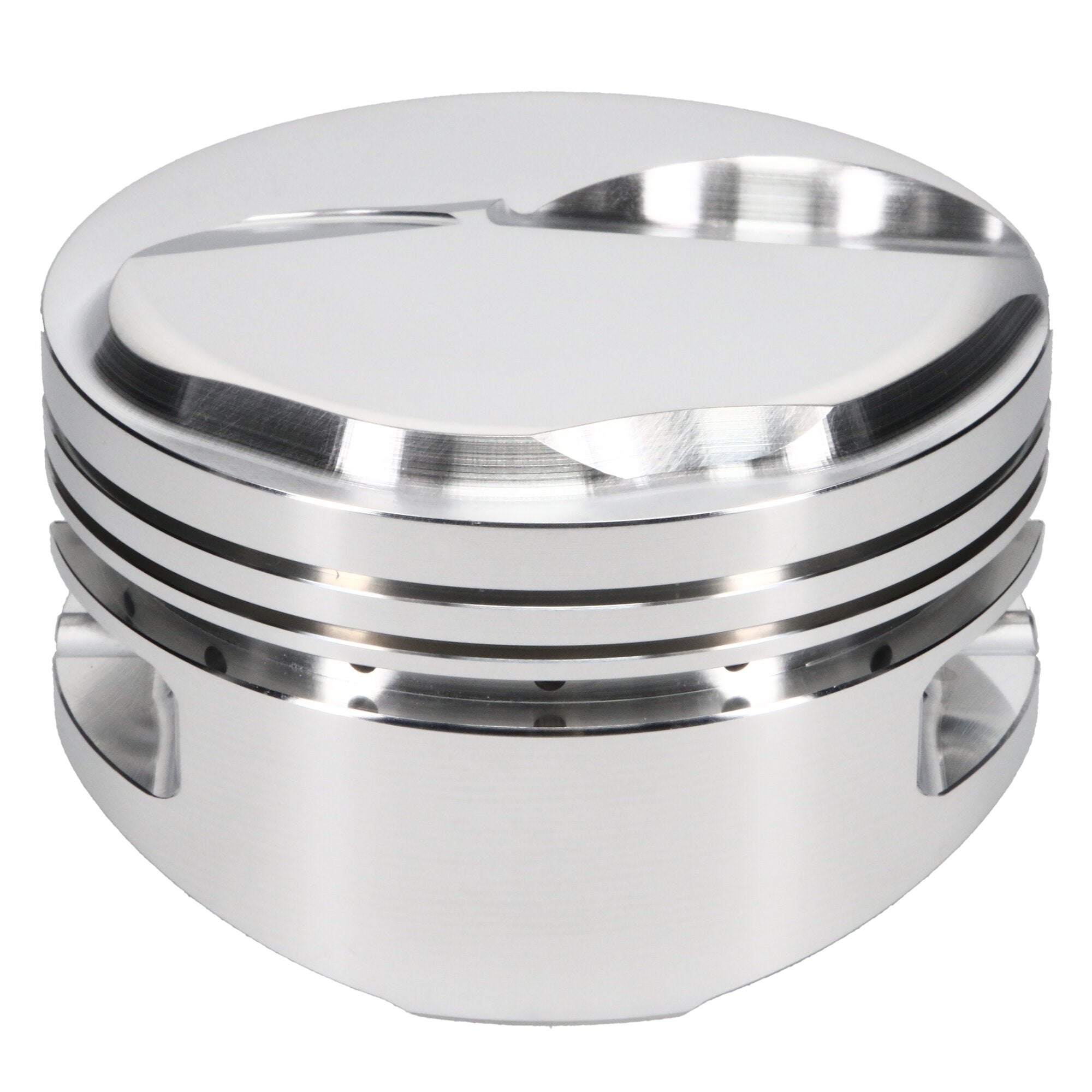

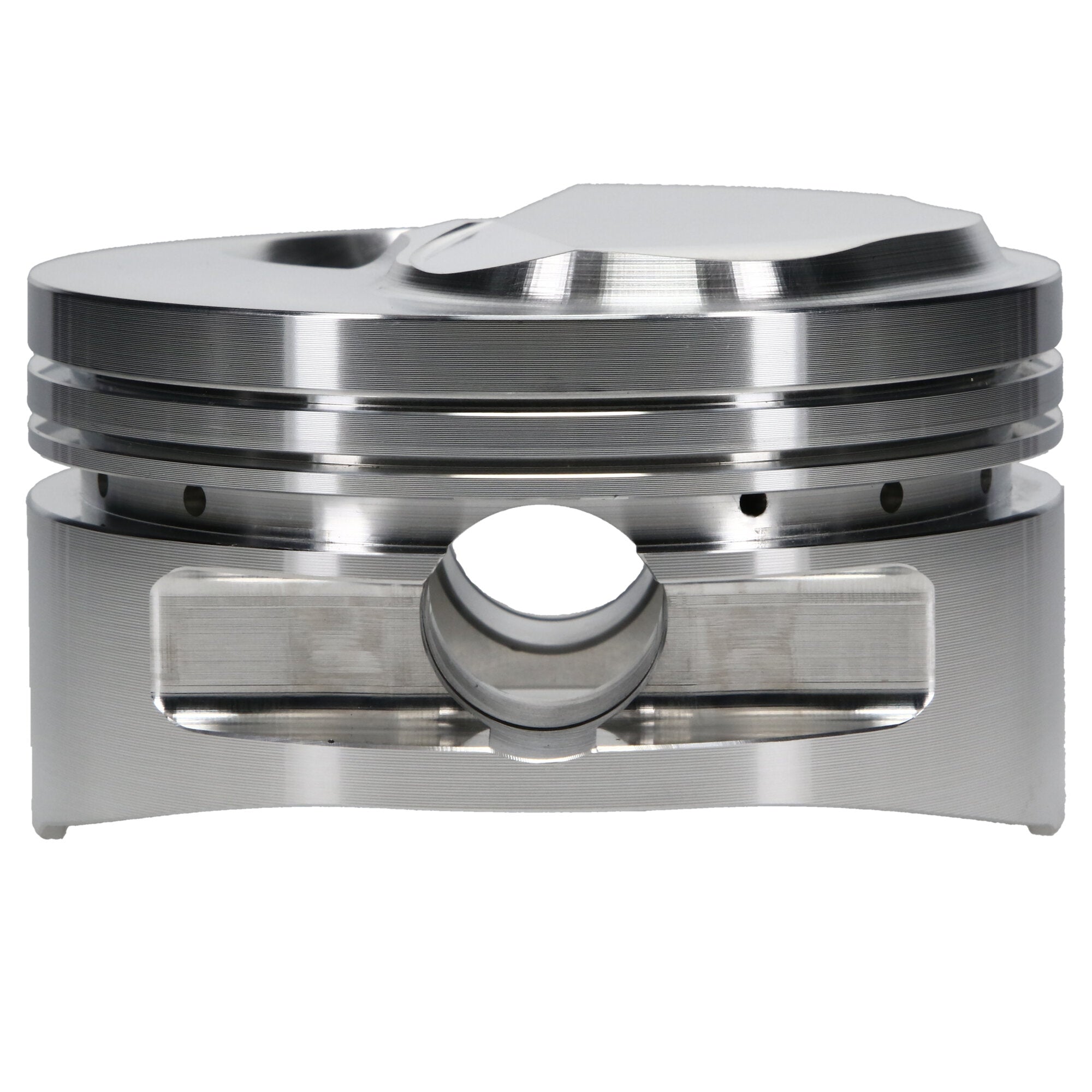

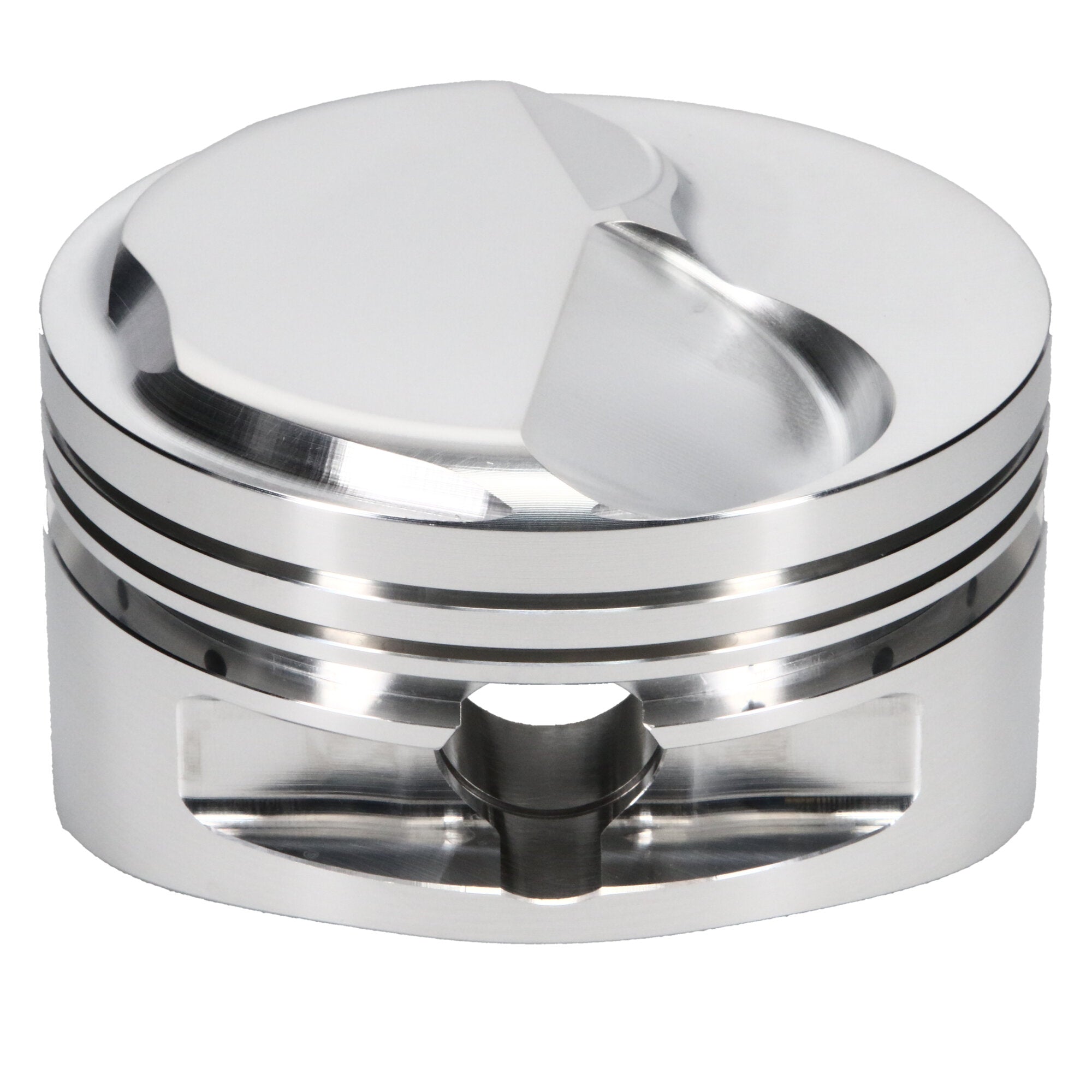

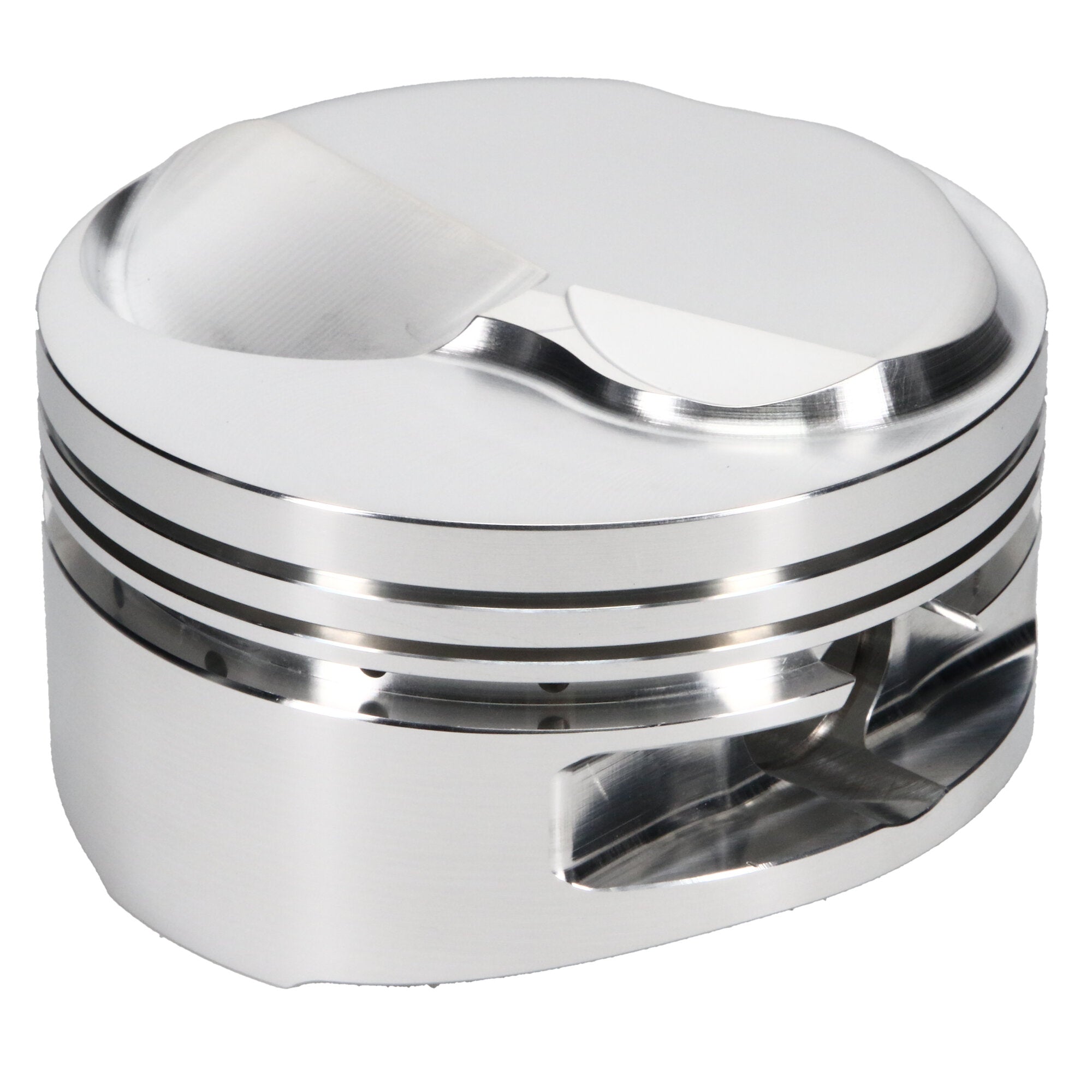

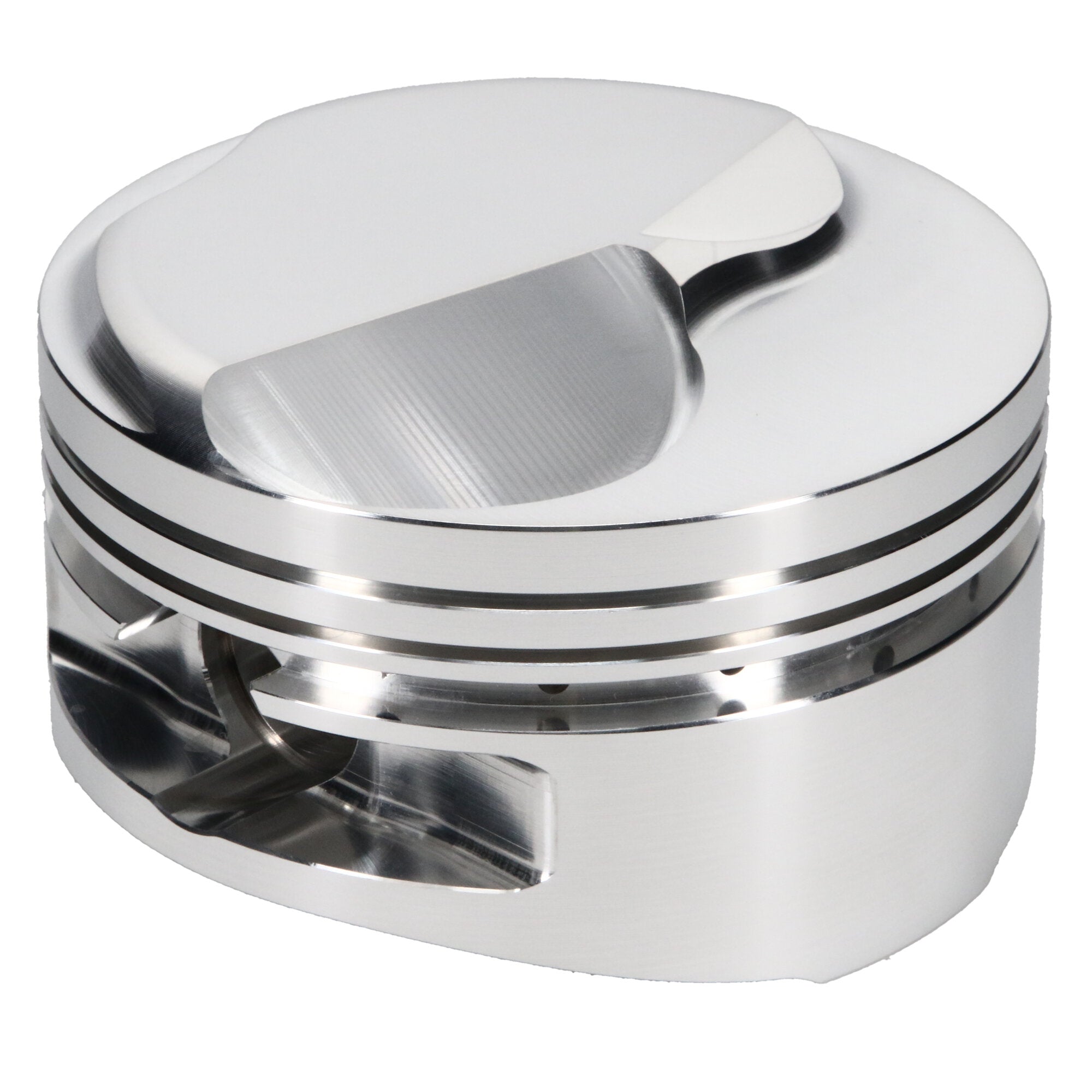

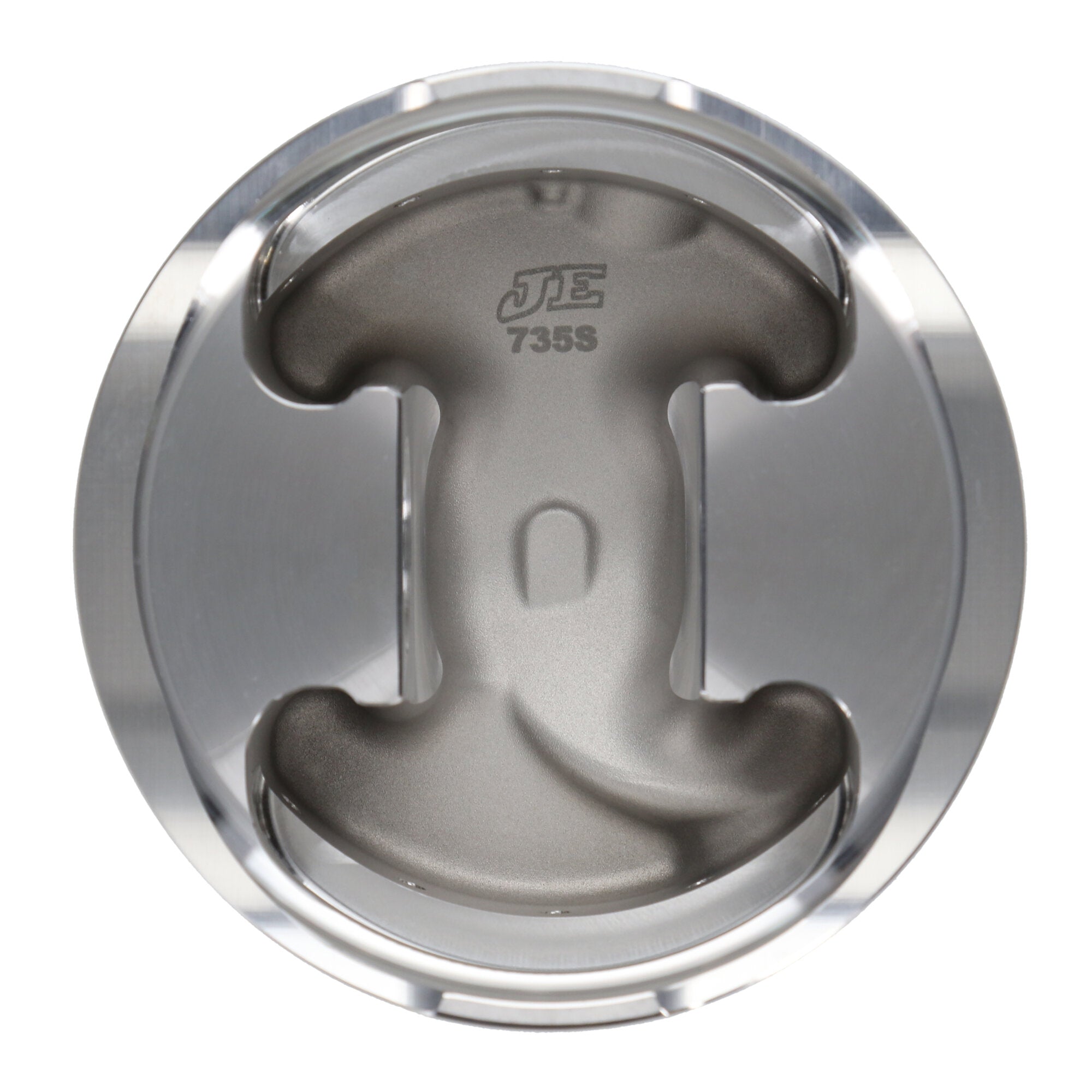

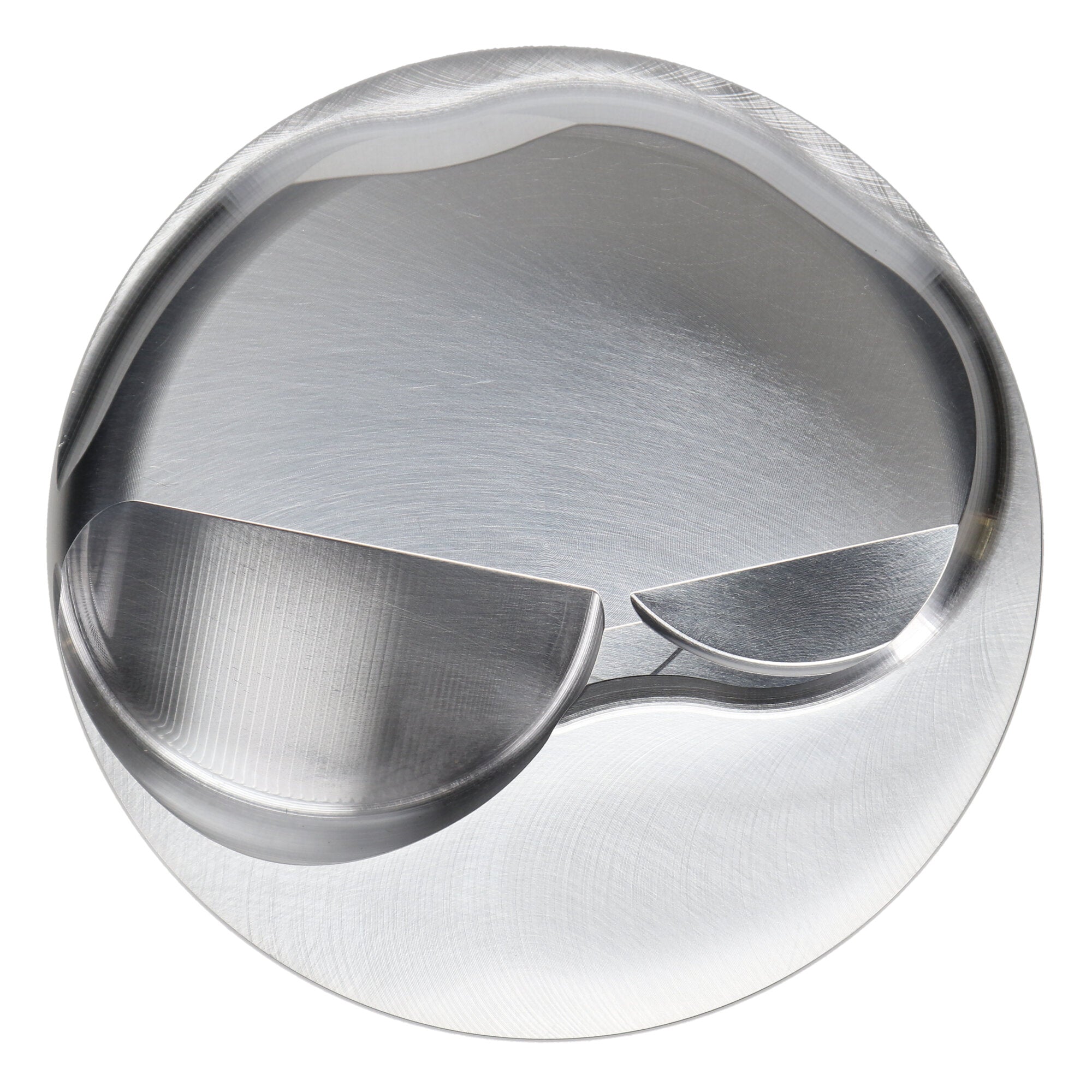

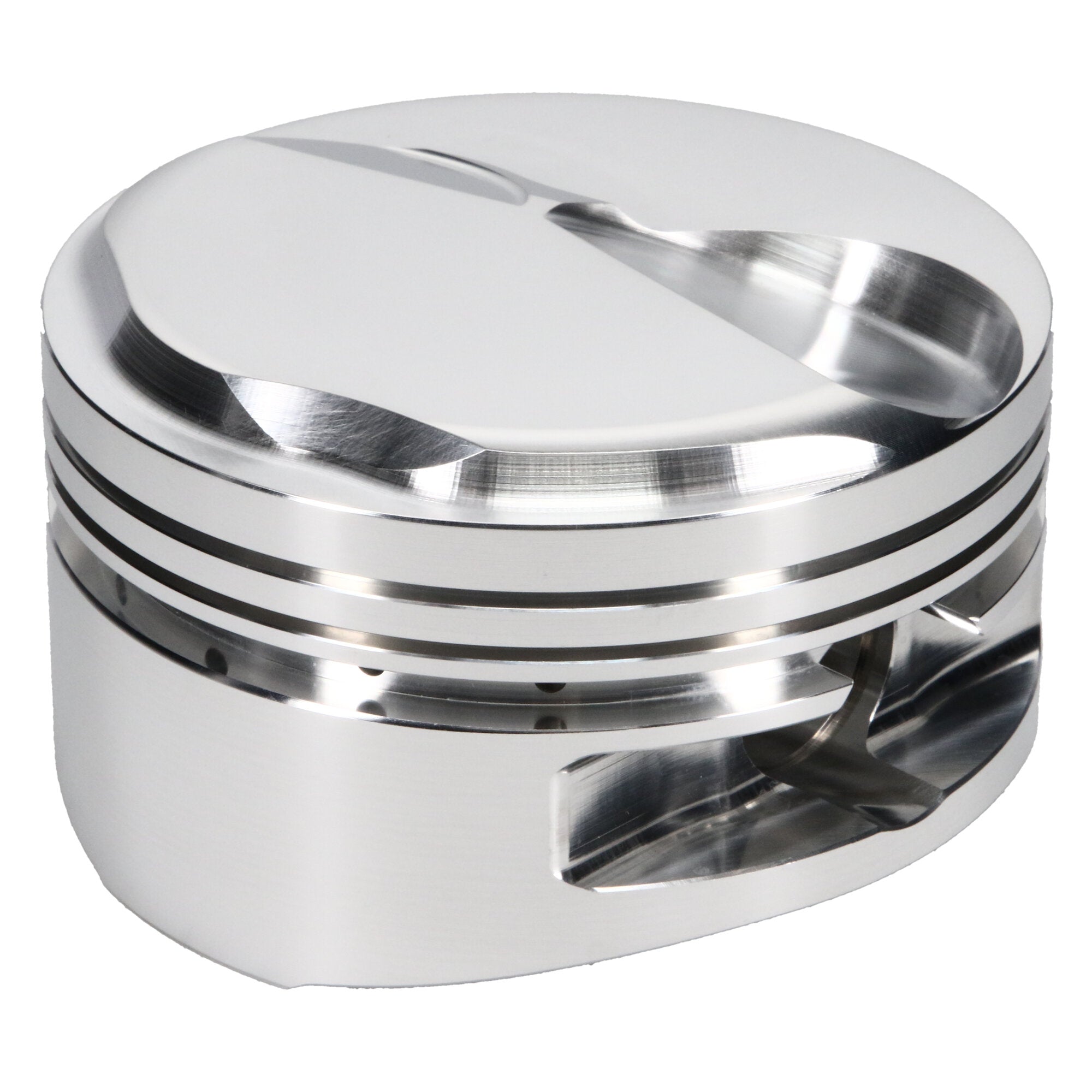

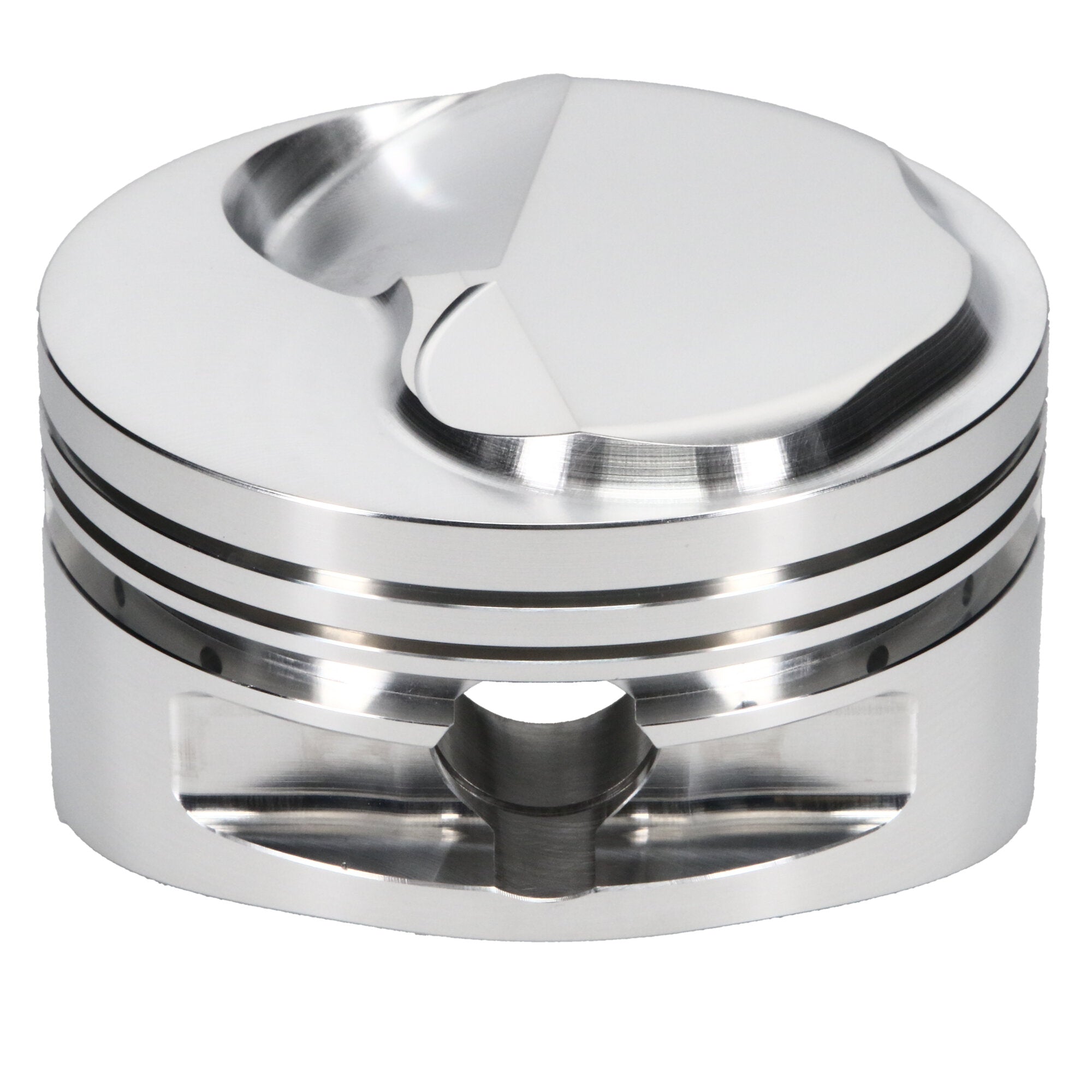

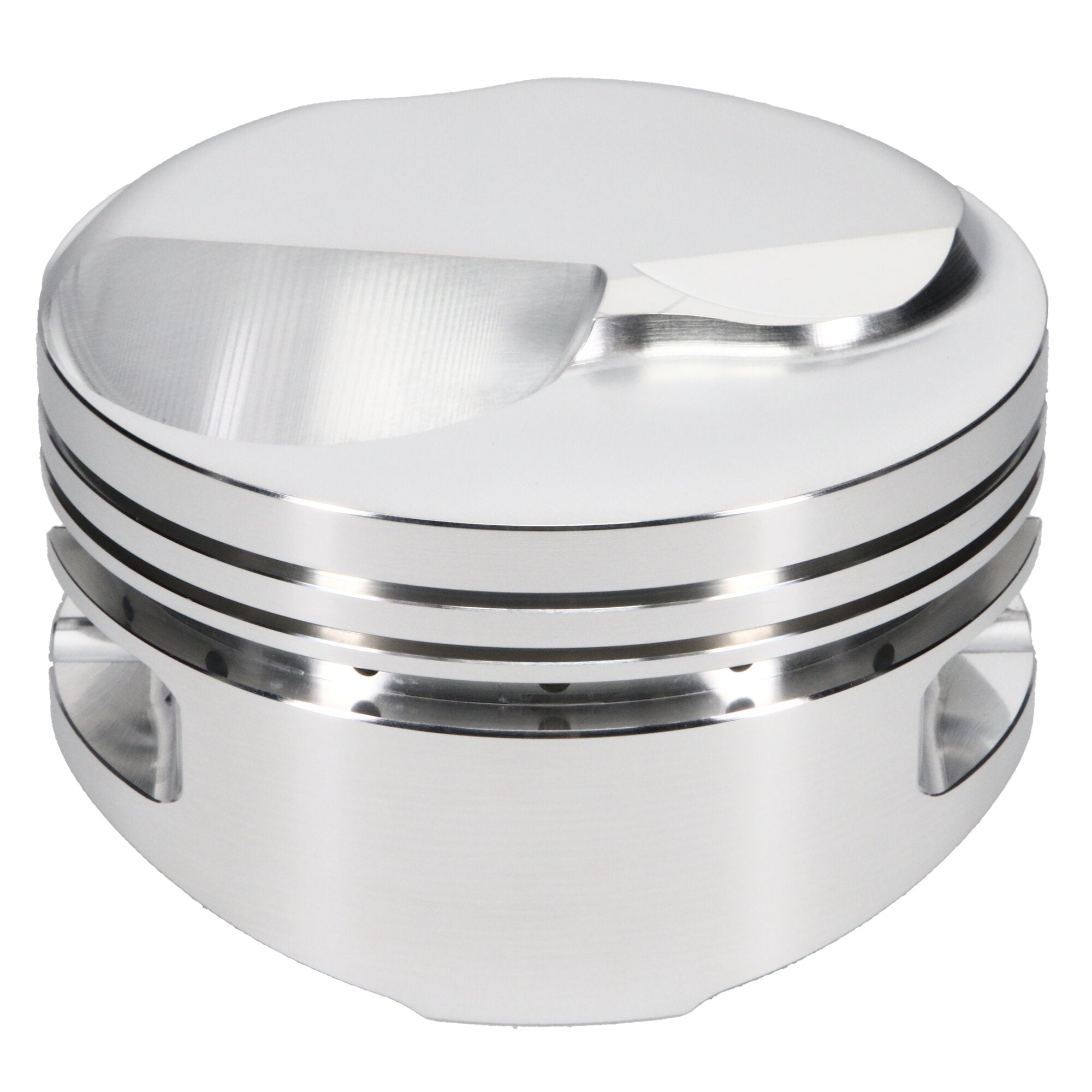

Piston Set, 2618, Dome, 4.530 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.270 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 502, 4.530 Bore, Dome, Set of 8 |
| Add-On |
990-042-CS |
| Add-On |
J890F8-4530-5 |
| Add-On |
990-2930-20-TSS |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.530 |
| Compression Height |
1.270 |
| Cylinder Head |
OPEN CHAMBER |
| Engine Type |
ICE |
| Engine |
Big Block |
| Engine - Web |
Big Block |
| Piston Average Weight |
673 |
| Oil Ring Thickness |
0.218 |
| Make |
CHEVROLET |
| Out of Stock Message |
Call for Availability |
| Piston Head Type |
Dome |
| Industry |
Automotive |
| Piston Pin Length |
2.930 |
| Piston Pin Outside Diameter |
0.990 |
| Piston Material |
2618 |
| Piston Pin Wall Thickness |
0.200 |
| Forging Type |
Round |
| Make - Web |
Chevrolet |
| Piston Quantity |
8 |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0750 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.530 in. Bore - 1.270 in. CH, 22.30 CC |
| Product Market |
Domestic |
| Prop 65 (C, R or CR) |
CR |
| Piston Series |
JE Pistons |
| Piston Volume |
22.30 |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Ringset Included |
No |
| Title |
JE Pistons - Chevrolet, Big Block, 4.530 in. Bore, Piston Kit |
| Wrist Pin Outer Diameter |
0.990 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.200 |
| Wrist Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
