As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler 2.0L 420A |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

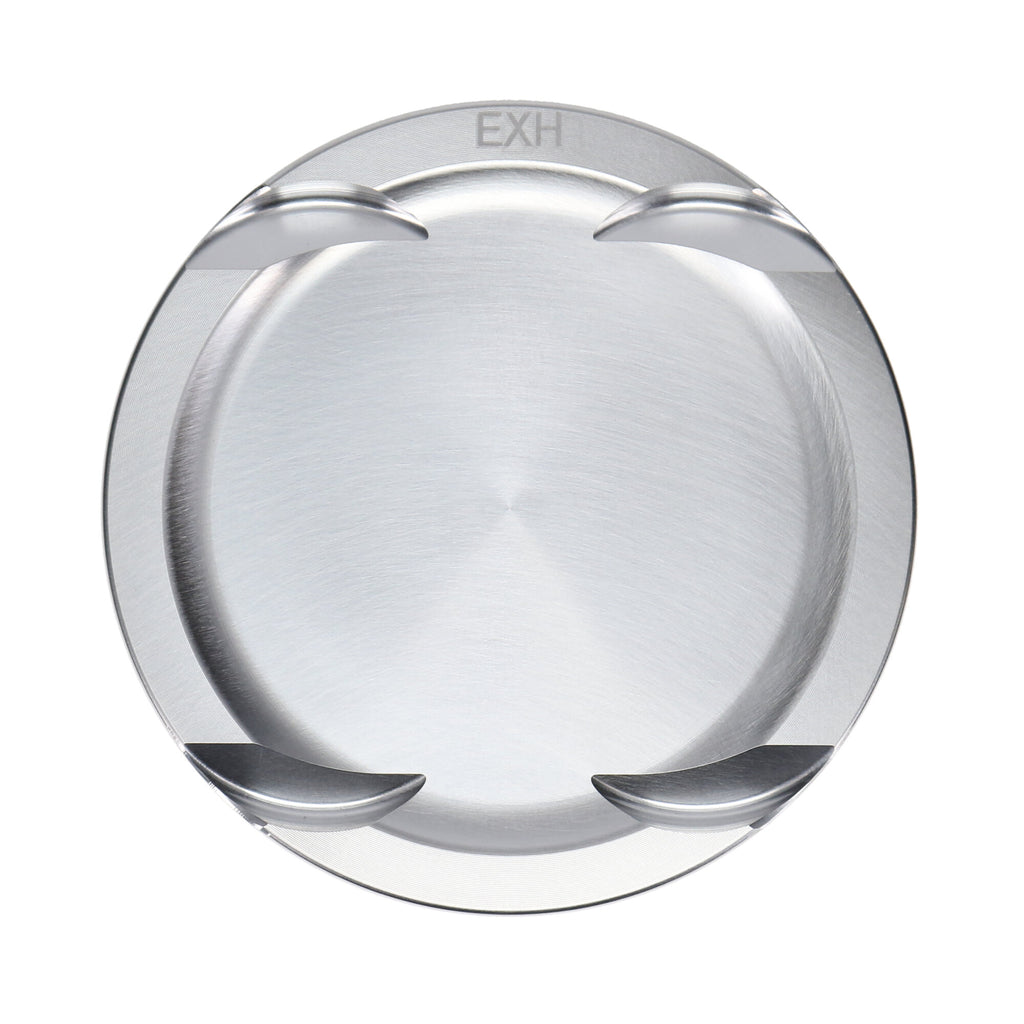

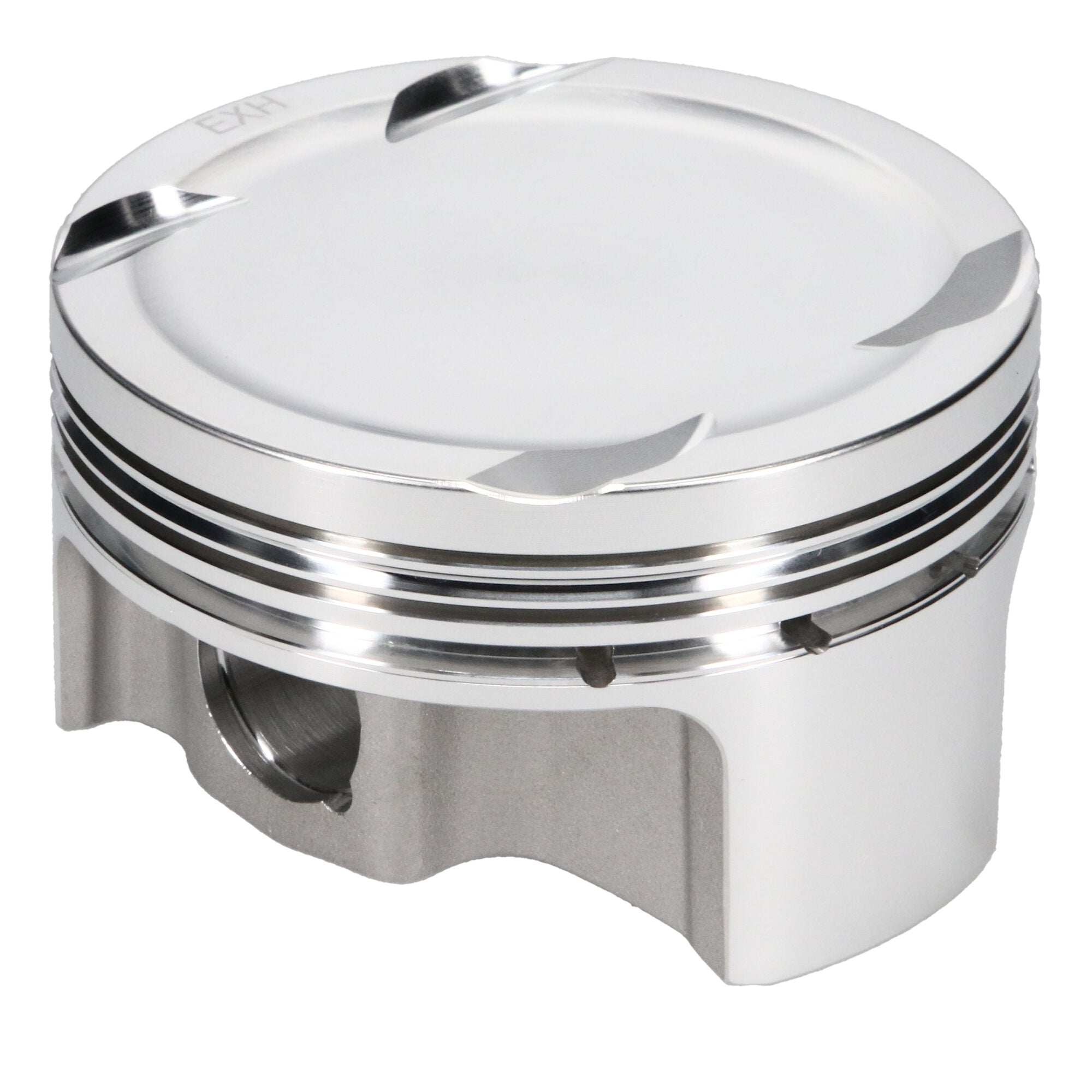

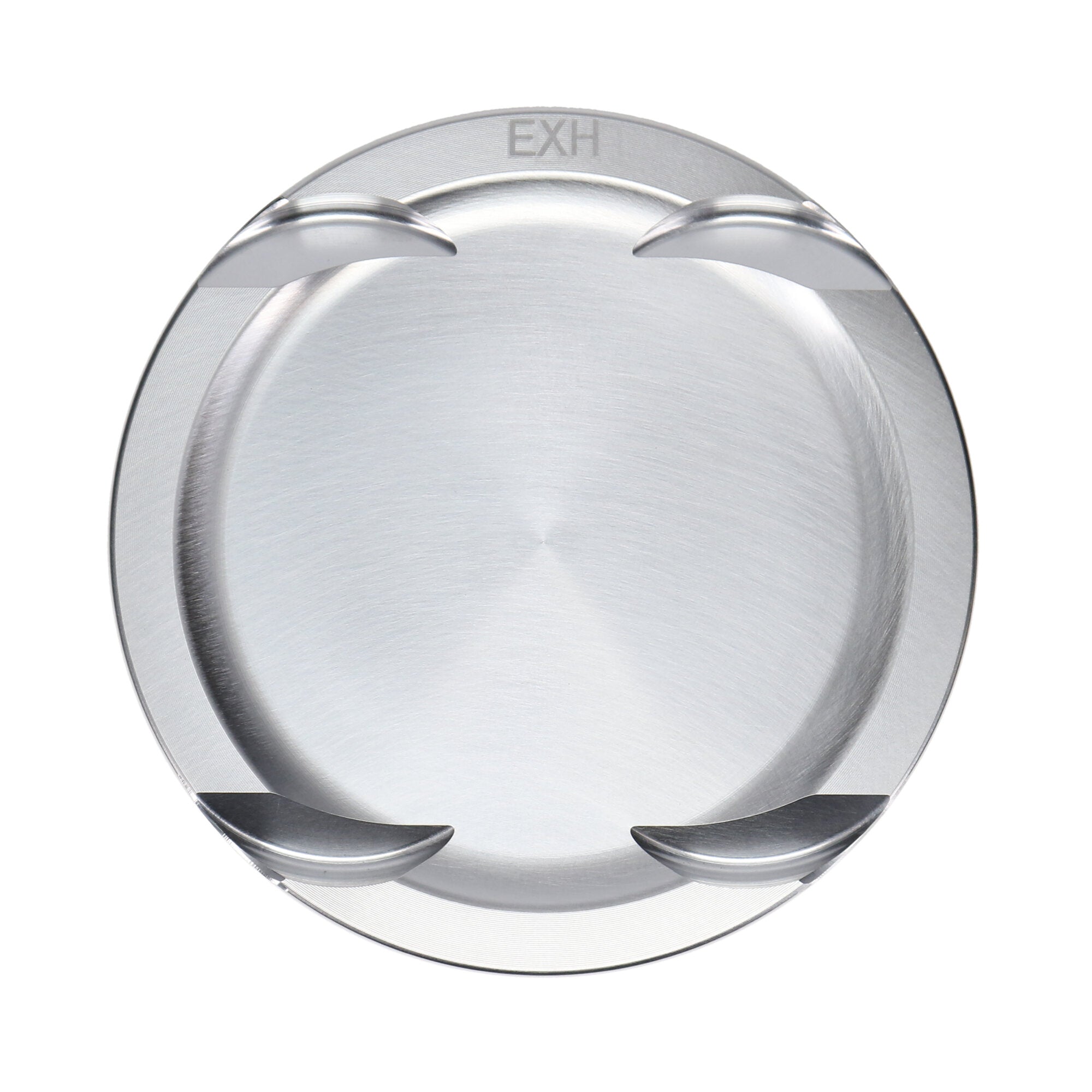

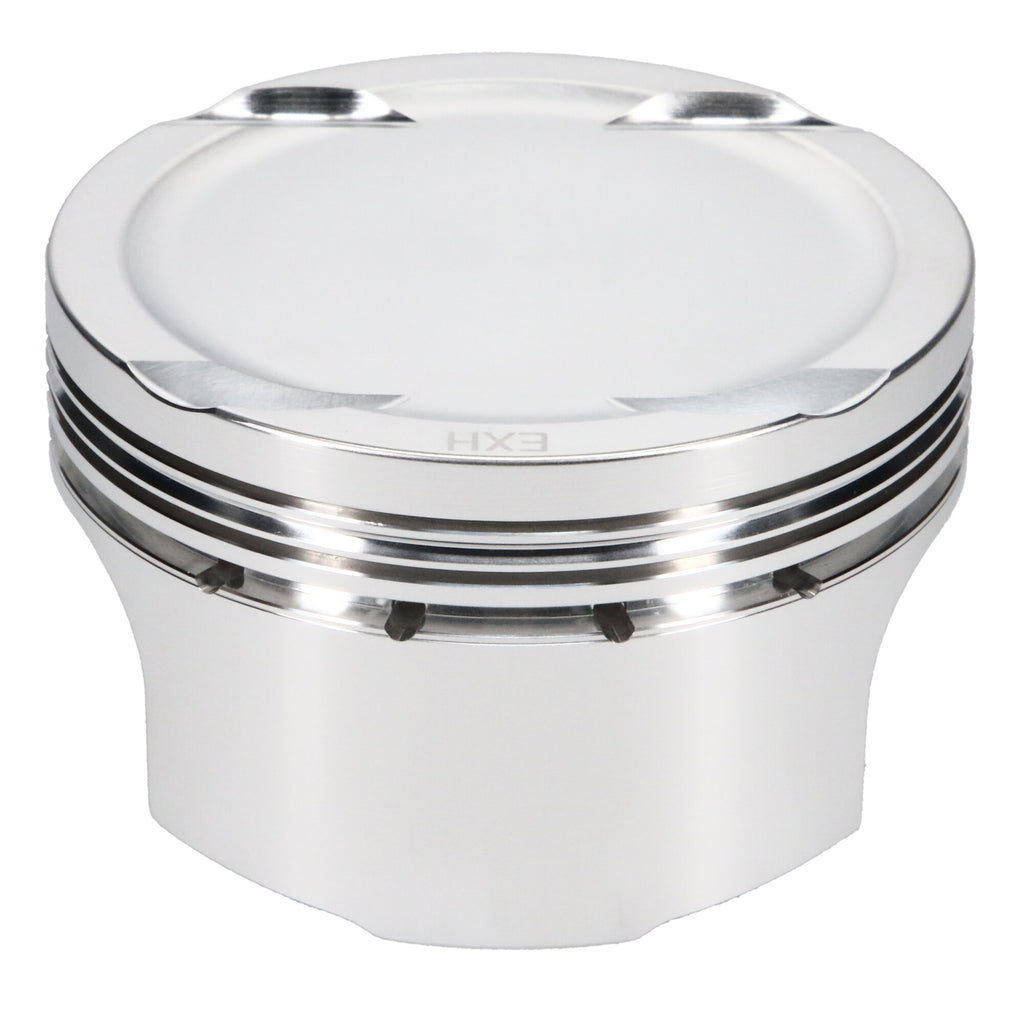

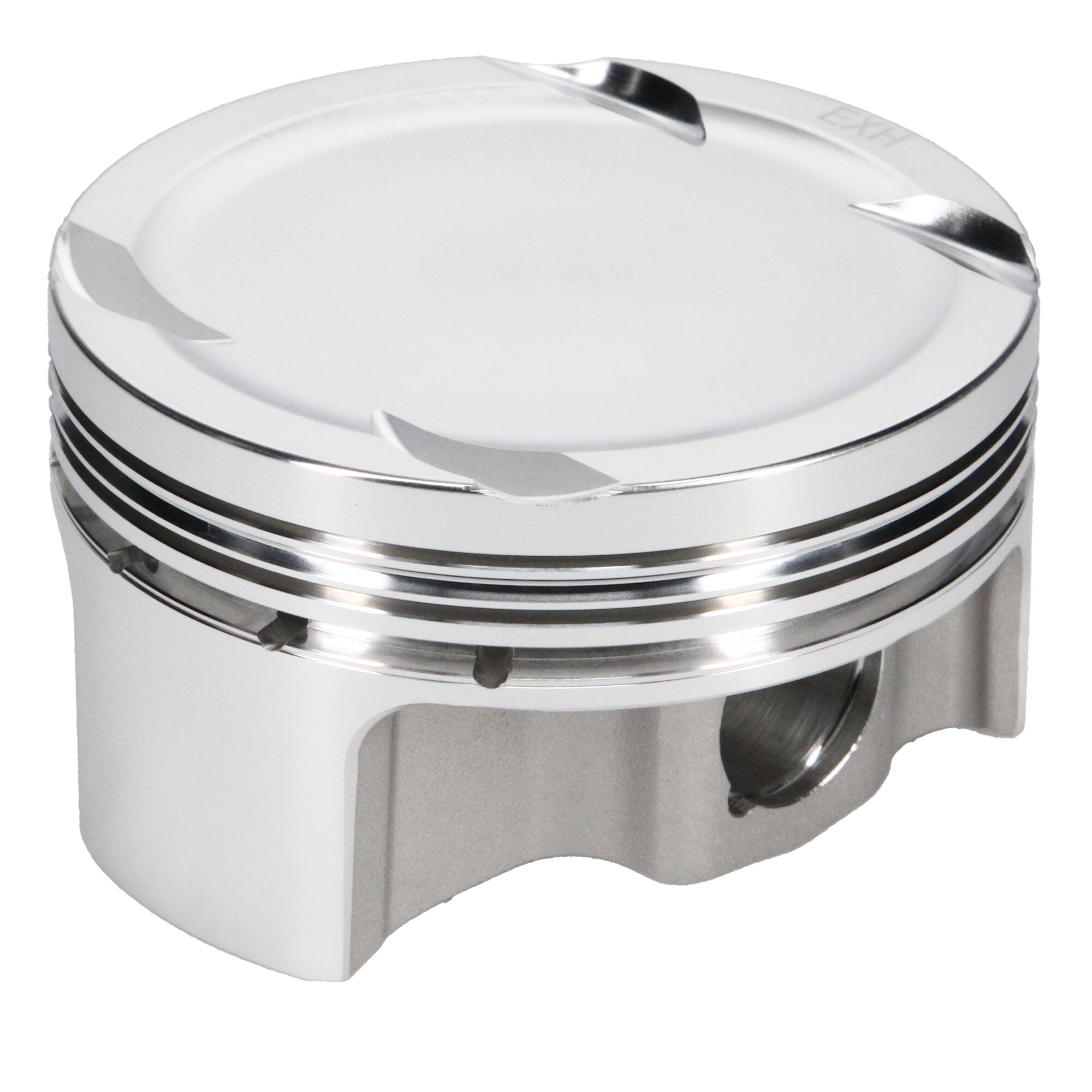

Piston Set, 2618, Inv Dome/Dish, 3.484 Bore, 1.236 CD, 0.827 Pin, Set of 4. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_EXT |
JE, Chrysler, 420A, 3.484 in. Bore, 8.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 2.0L 420A, 88.50 Bore, Dish, Set of 4 |
| Add-On |
827-063-MW |
| Add-On |
827-2250-15-51C |
| Add-On |
JG1001-3484 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Bore Diameter |
88.50 |
| Engine Type |
ICE |
| Engine |
420A |
| Compression Height |
1.236 |
| Cylinder Head |
ECB/ECC |
| Engine - Web |
420A |
| Piston Average Weight |
328 |
| Out of Stock Message |
Call for Availability |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.827 |
| Make |
CHRYSLER |
| Piston Material |
2618 |
| Piston Head Type |
Dish |
| Oil Ring Thickness |
0.111 |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Make - Web |
Chrysler |
| Top Compression Ring Thickness |
0.0400 |
| Ringset Included |
Yes |
| Title - Web |
JE Pistons Chrysler 420A Piston Kit - 88.50 mm Bore - 1.236 in. CH, -7.70 CC |
| Product Market |
Sport Compact |
| Piston Series |
JE Pistons |
| Piston Volume |
-7.70 |
| Prop 65 Yes/No |
Yes |
| Piston Quantity |
4 |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Chrysler, 420A, 88.50 mm Bore, Piston Kit |
| Second Compression Ring Thickness |
0.0480 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Wrist Pin Outer Diameter |
0.827 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
