As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler 2.4L SRT4 |
| Description_DES |

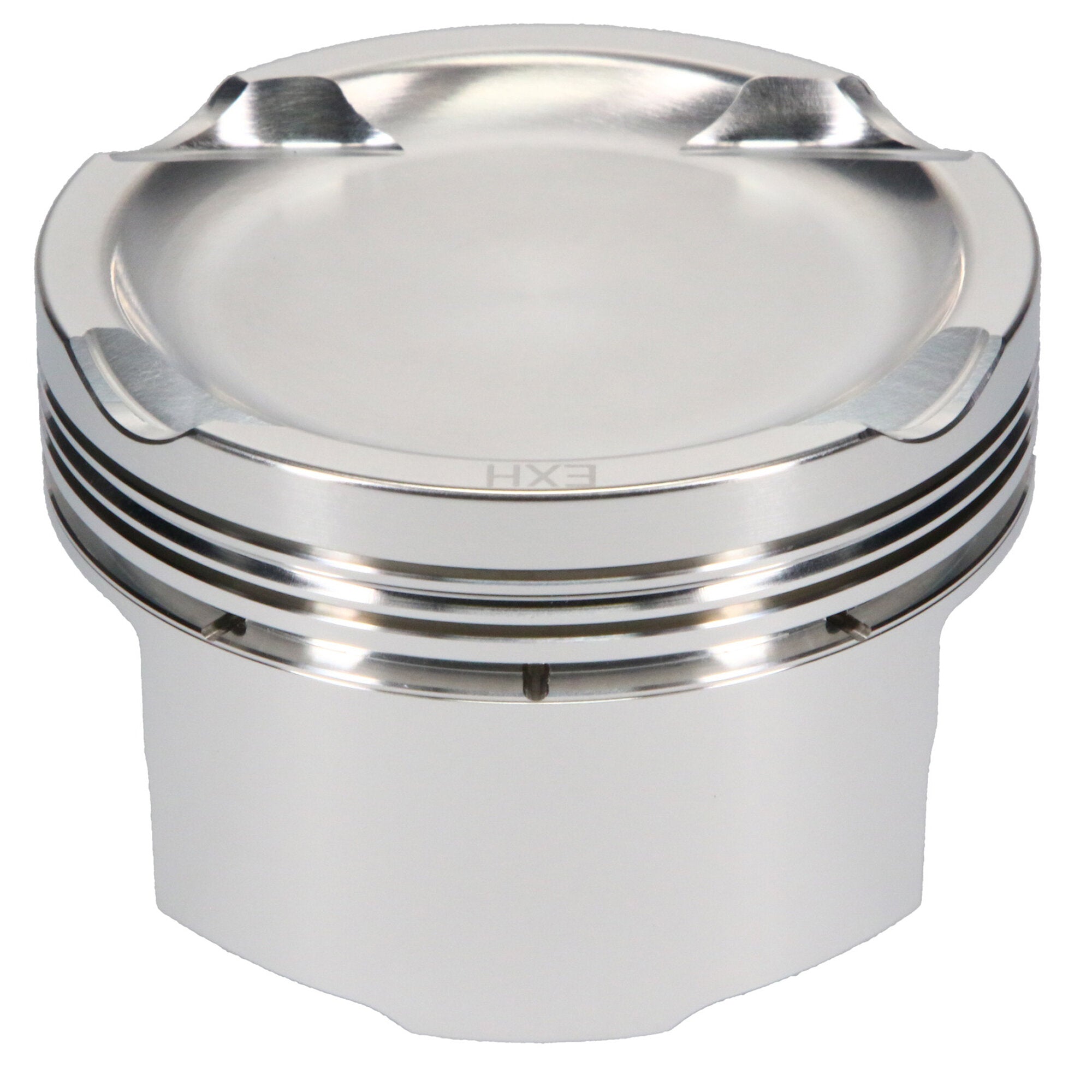

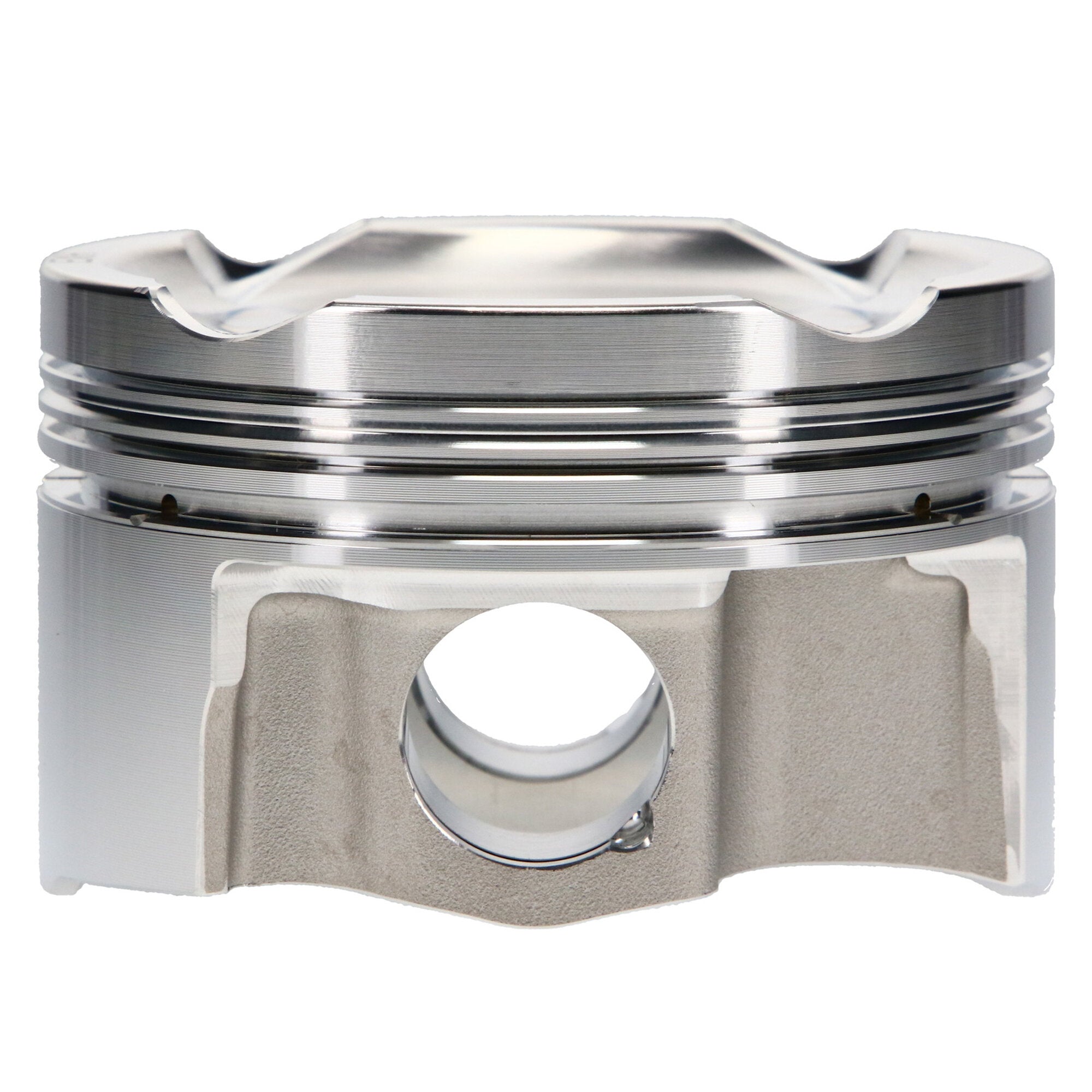

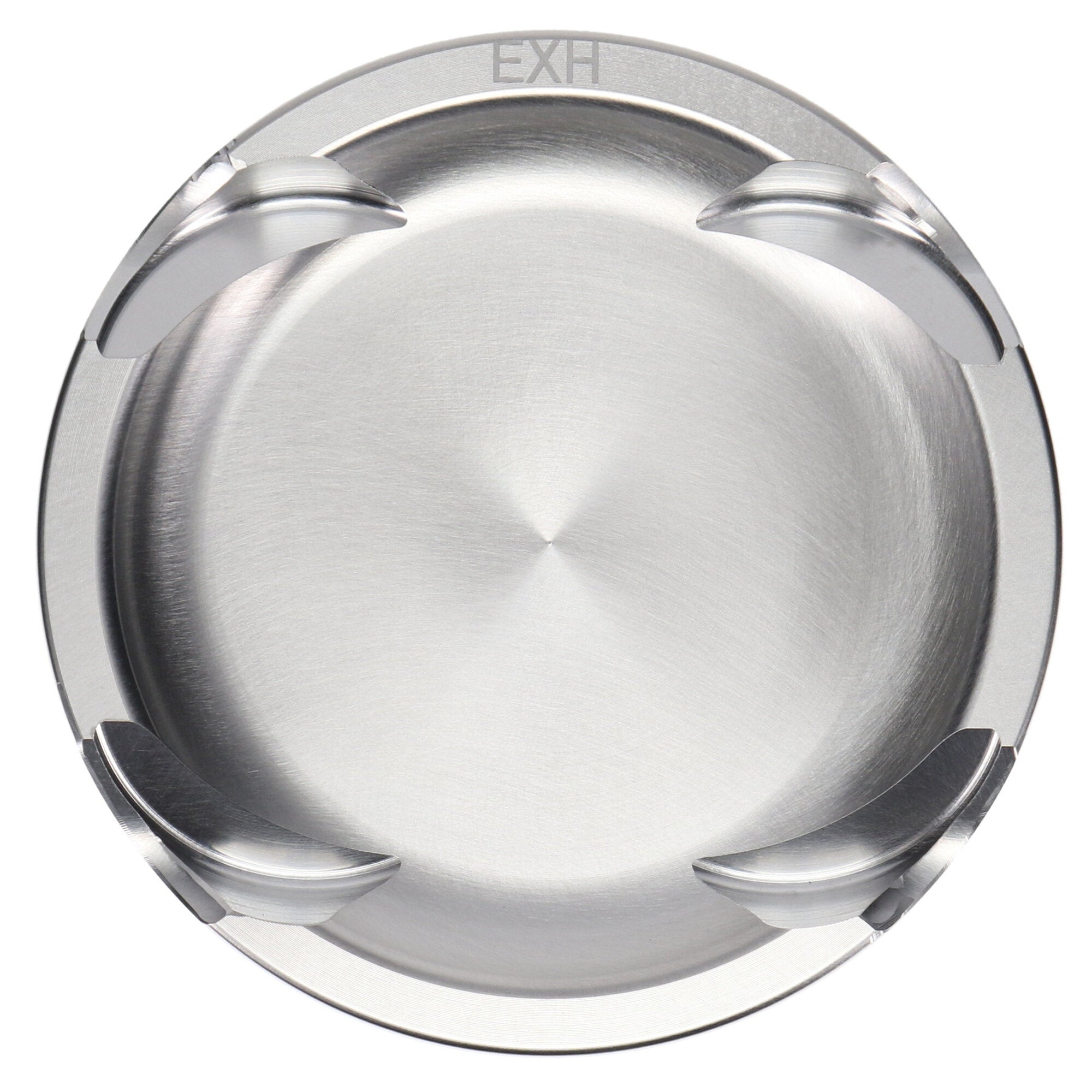

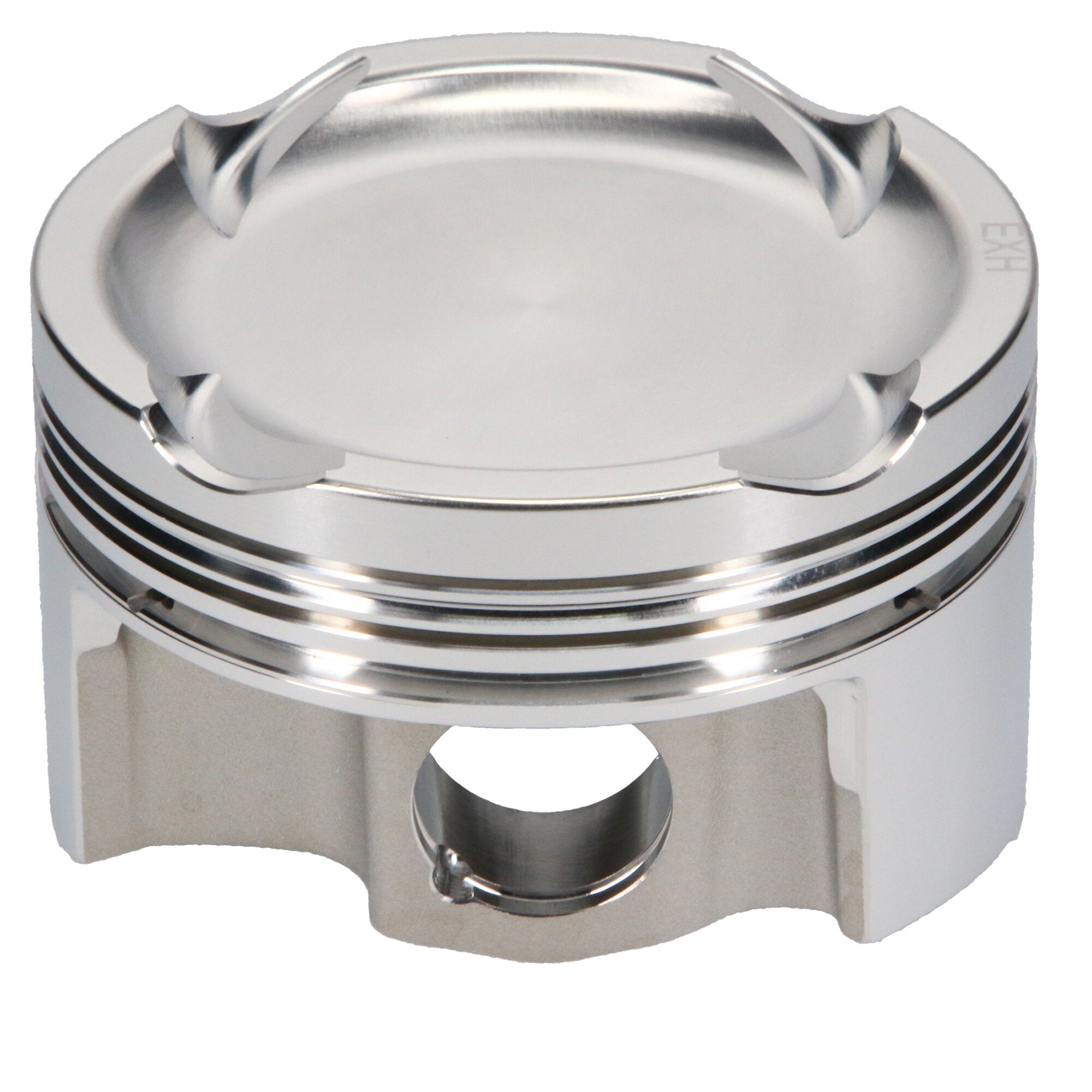

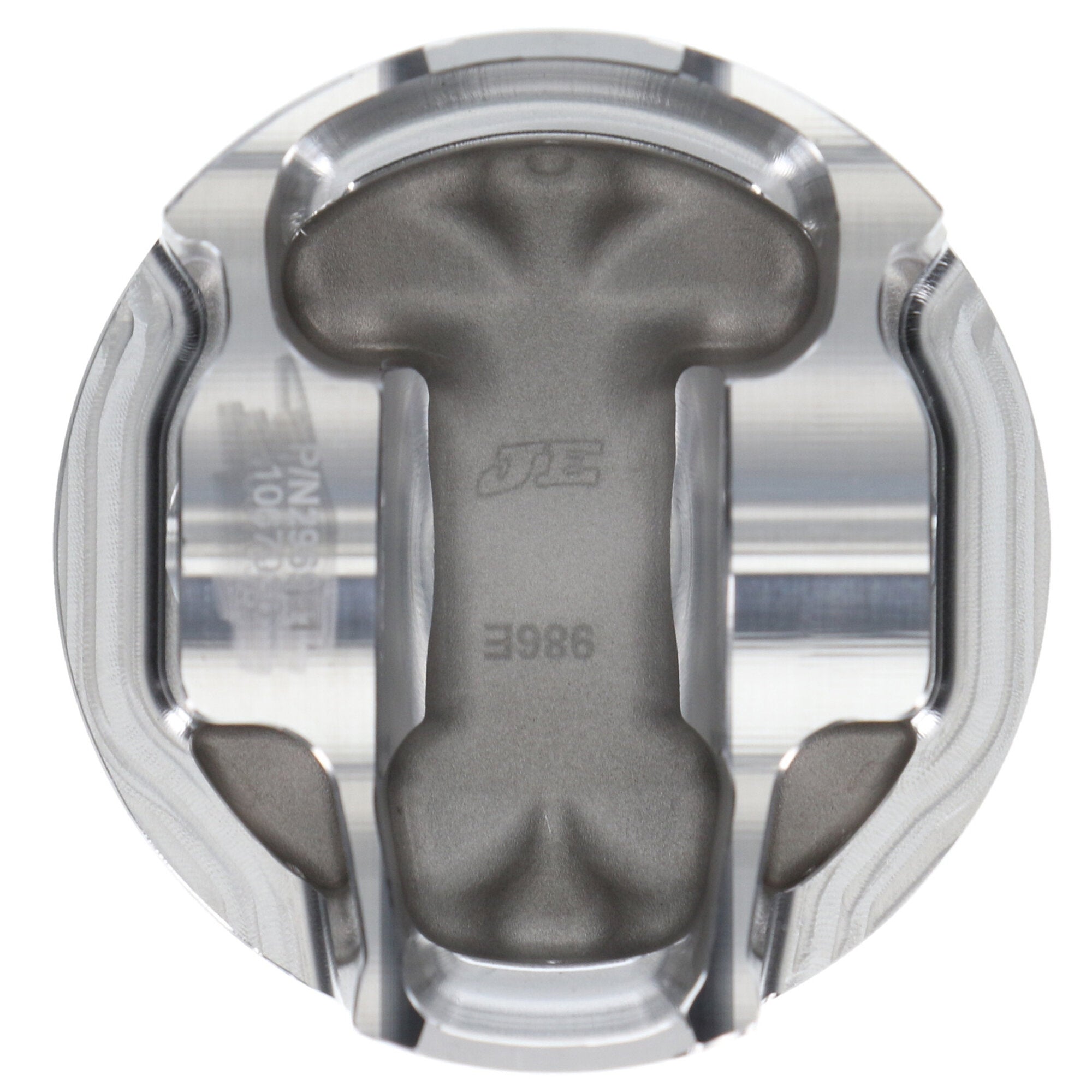

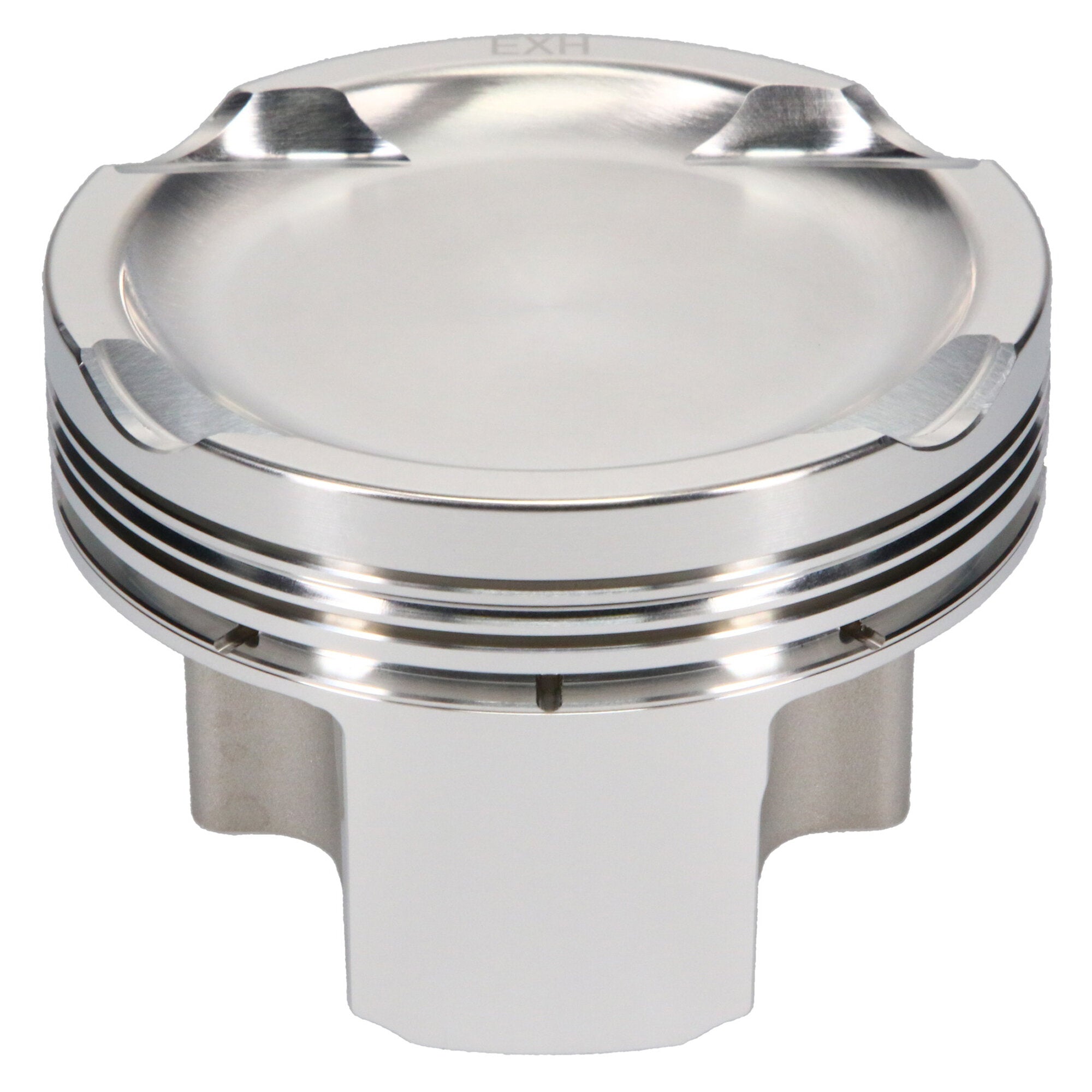

Piston Single, 2618, Inv Dome/Dish, 3.445 Bore, 1.432 CD, 0.866 Pin, Set of 1. |
| Description_DEF |
Engine Piston |
| Description_EXT |
JE, Chrysler, SRT4, 3.445 in. Bore, 8.50:1, Inverted Dome/Dish, Single Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chrysler 2.4L SRT4, 87.50 Bore, Dish, Set of 1 |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Chrysler SRT4 Piston - 87.50 mm Bore - 1.432 in. CH, -22.00 CC |
| Wrist Pin Outer Diameter |
0.866 |
| Make - Web |
Chrysler |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Length |
2.250 |
| Title |
JE Pistons - Chrysler, SRT4, 87.50 mm Bore, Piston |
| Piston Pin Wall Thickness |
0.150 |
| Forging Type |
FSR |
| Engine |
SRT4 |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dish |
| Oil Ring Thickness |
0.111 |
| Cylinder Head |
ECB/ECC |
| Ringset Included |
Yes |
| Piston Average Weight |
325 |
| Wrist Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston |
| Product Market |
Sport Compact |
| Out of Stock Message |
Call for Availability |
| Add-On |
JG1001-3445 |
| Make |
CHRYSLER |
| Piston Quantity |
1 |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Piston Material |
2618 |
| Bore Diameter |
87.50 |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0480 |
| Top Compression Ring Thickness |
0.0400 |
| Add-On |
866-063-MW |
| Compression Height |
1.432 |
| Piston Volume |
-22.00 |
| Prop 65 Yes/No |
Yes |
| Piston Pin Outside Diameter |
0.866 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
866-2250-15-51C |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
SRT4 |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
