As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0L 8V 93-99 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

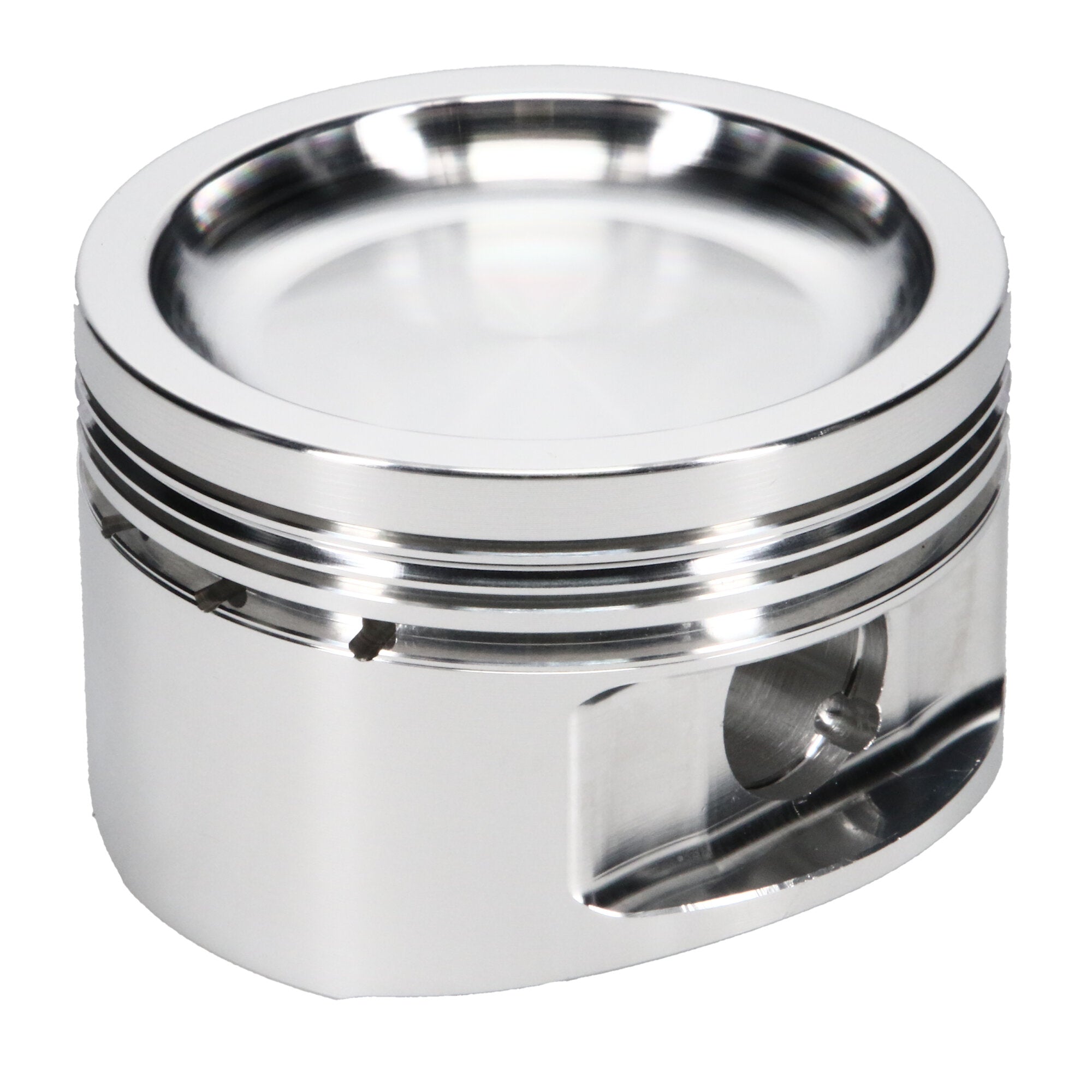

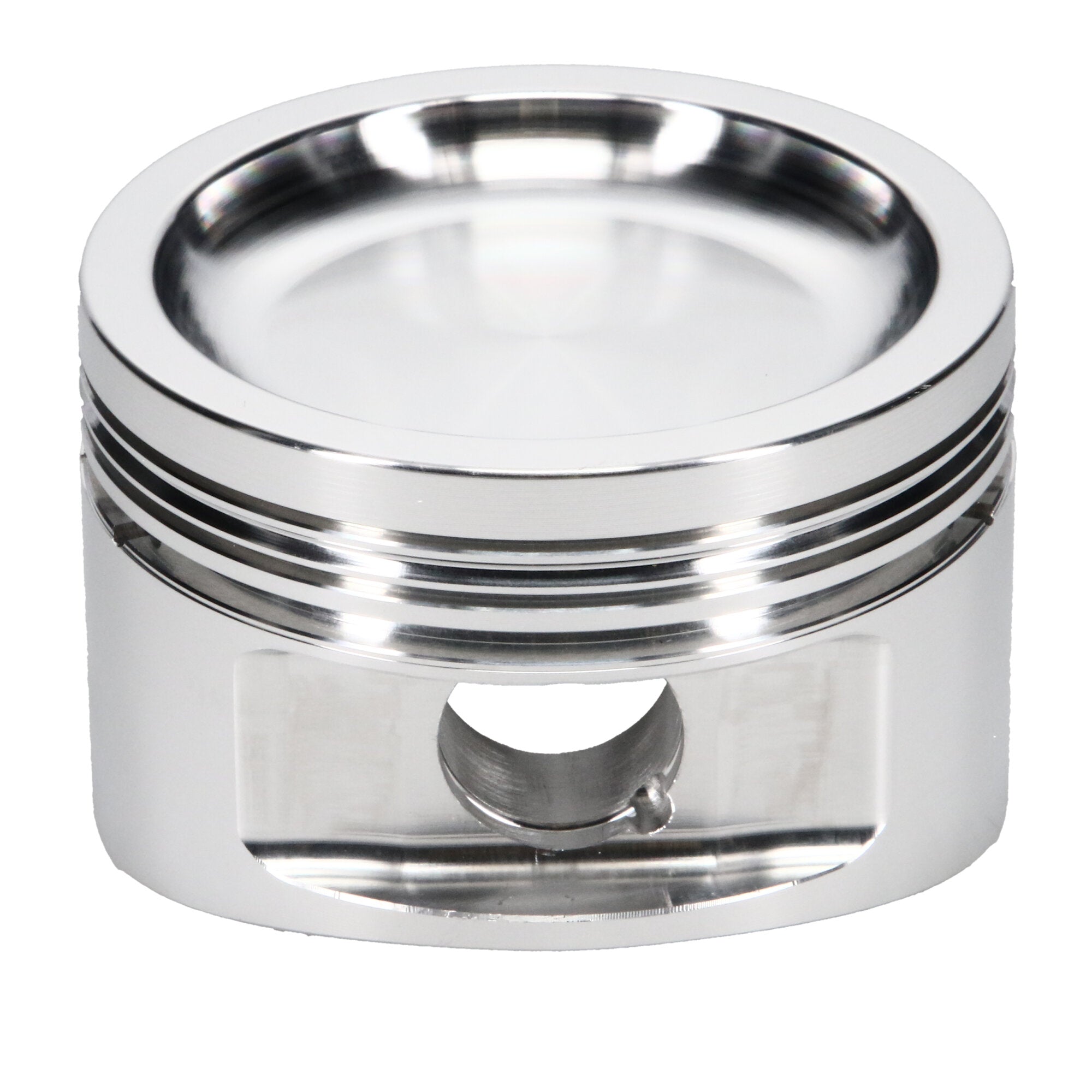

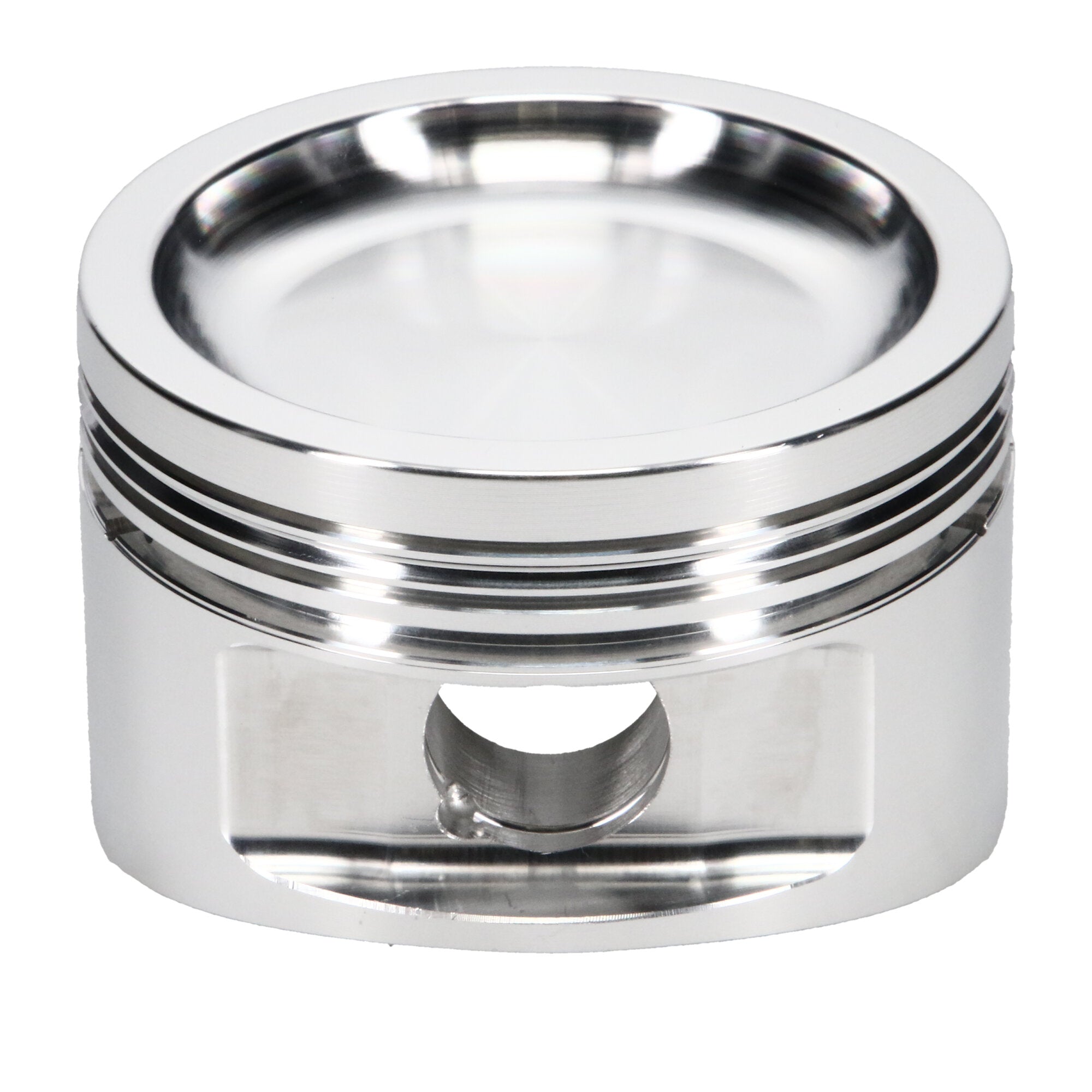

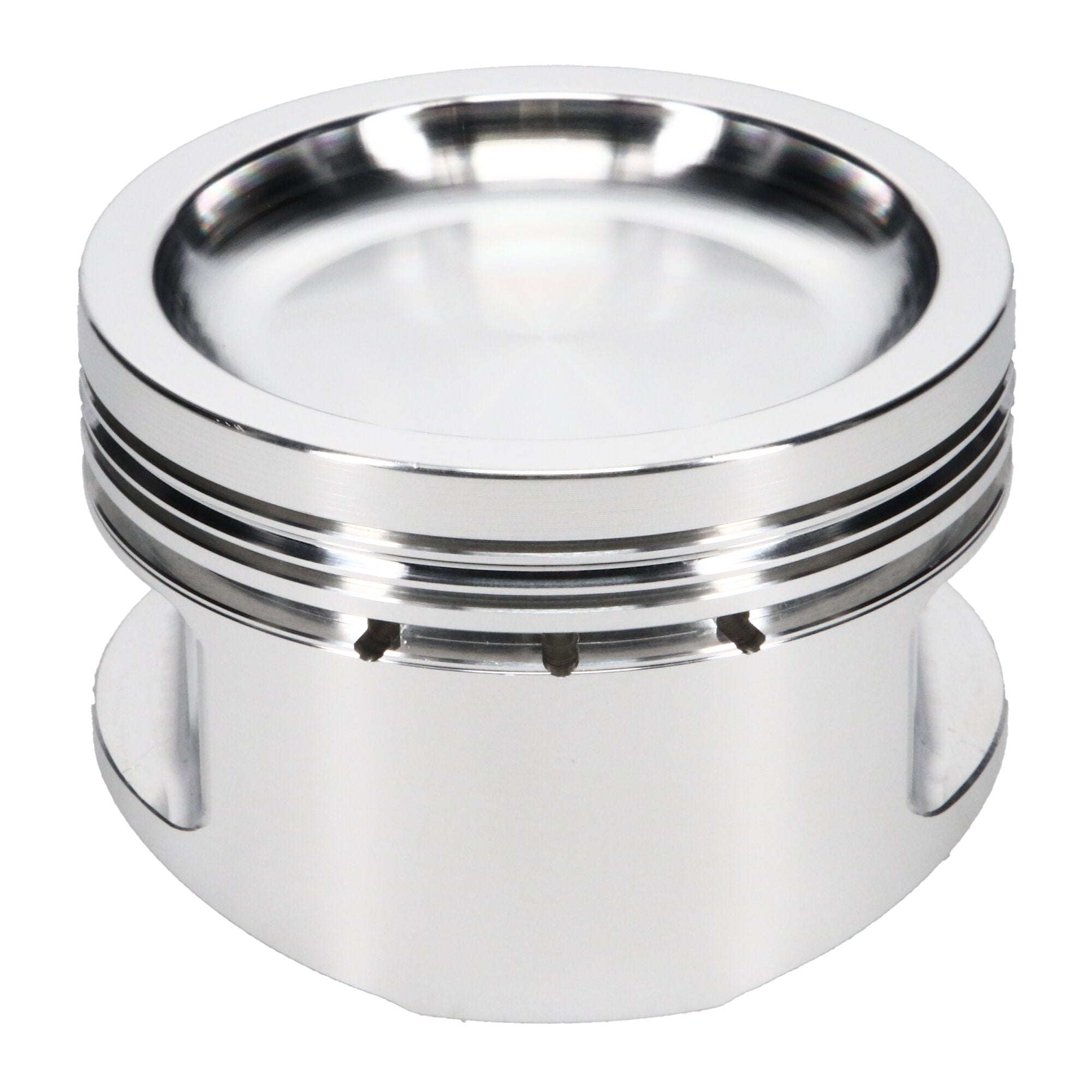

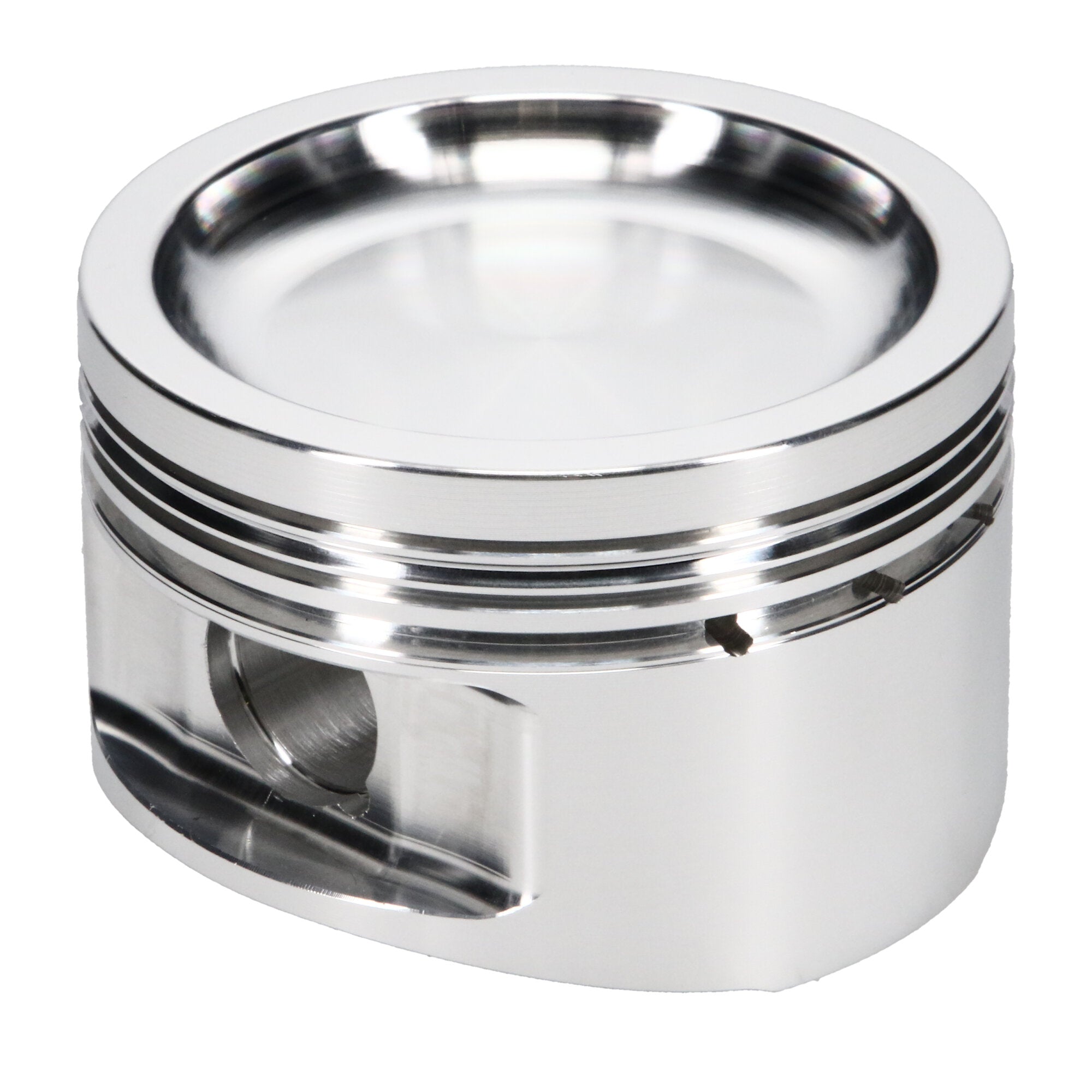

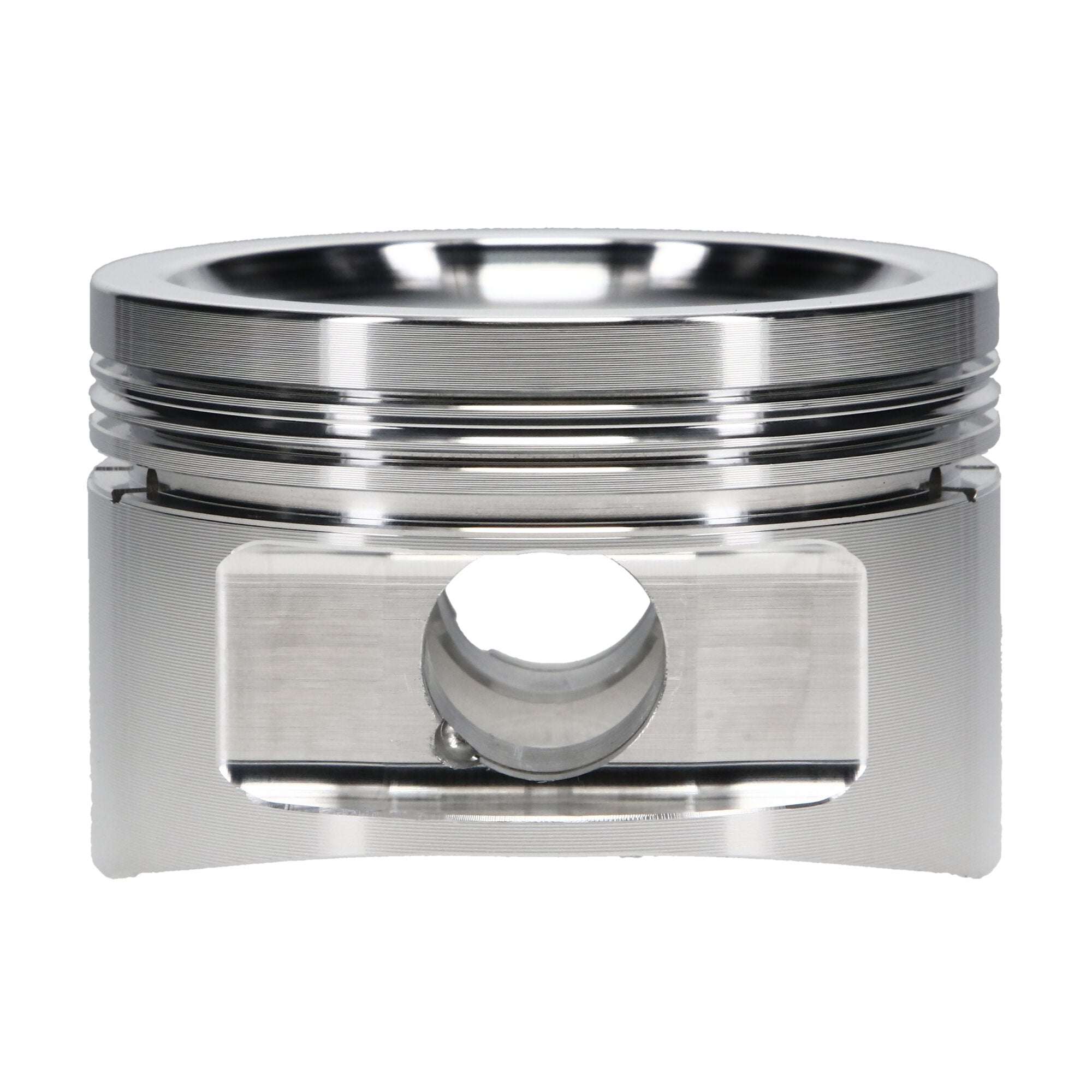

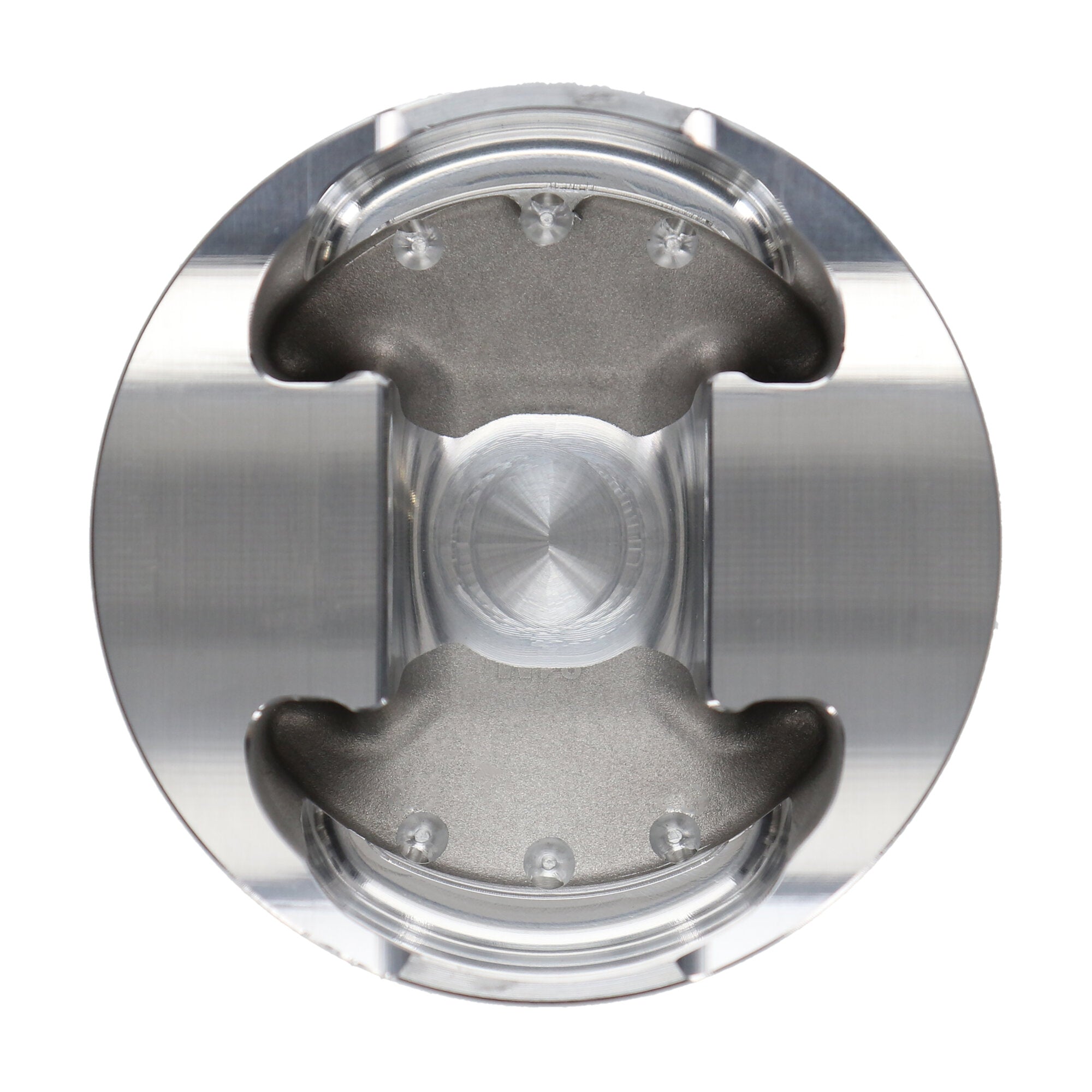

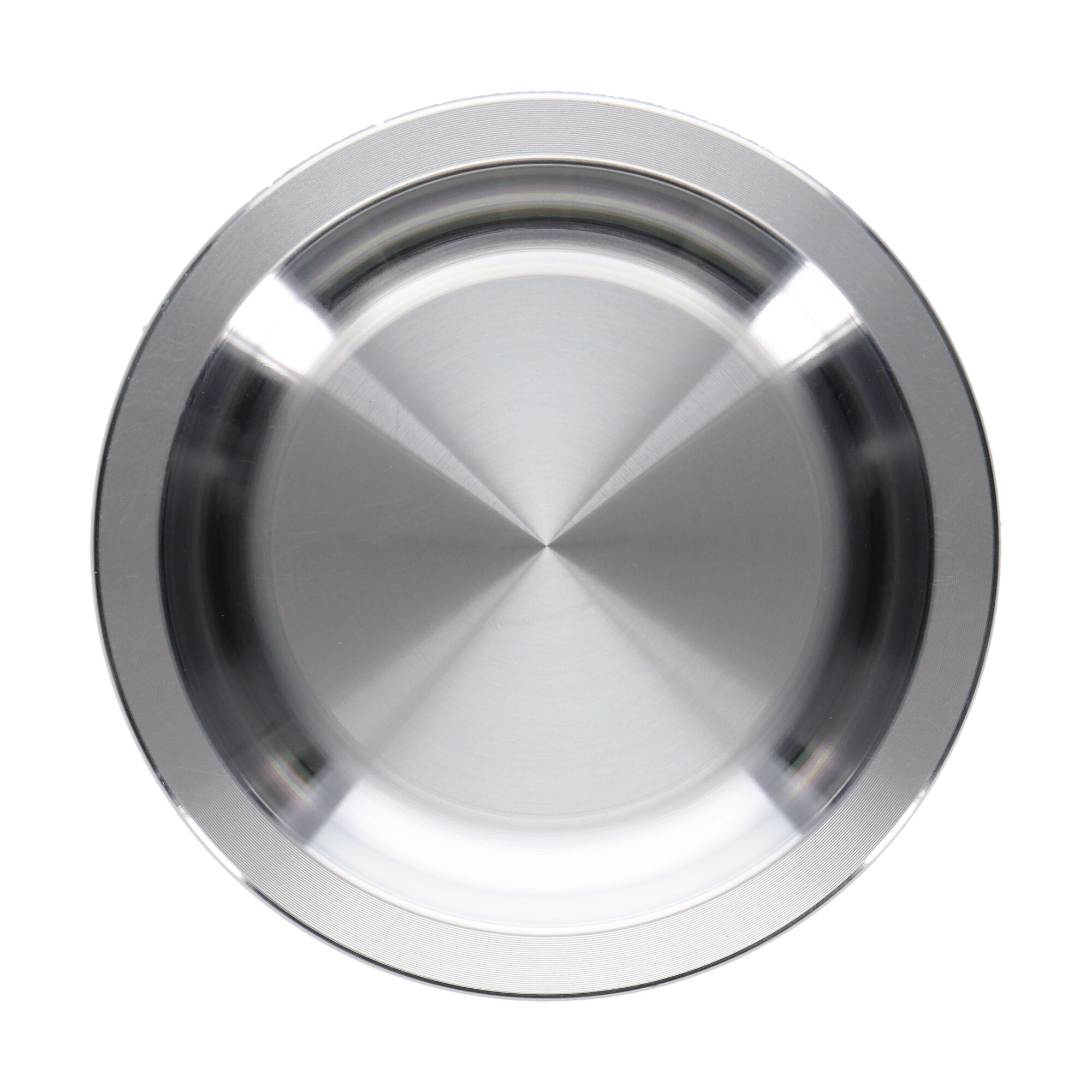

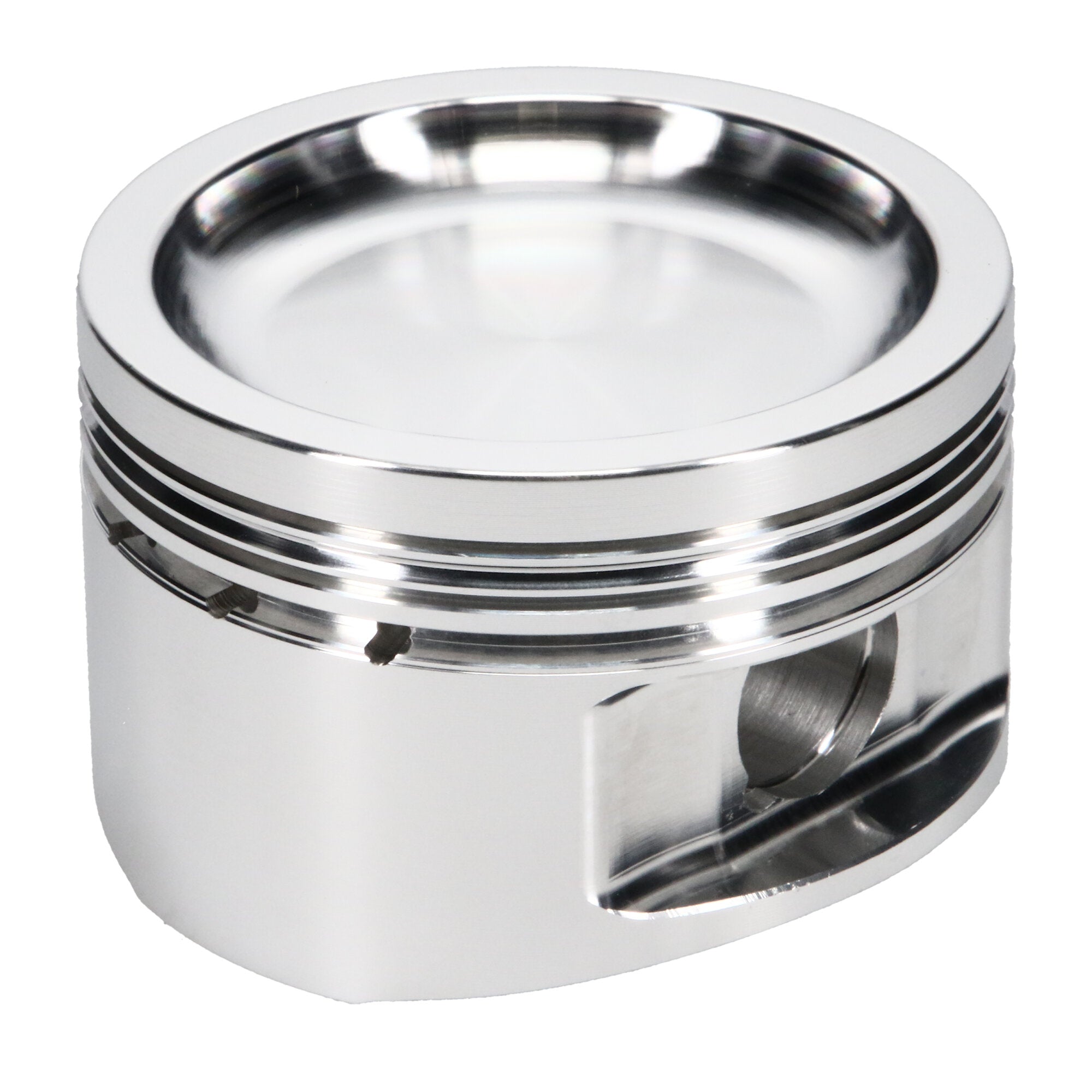

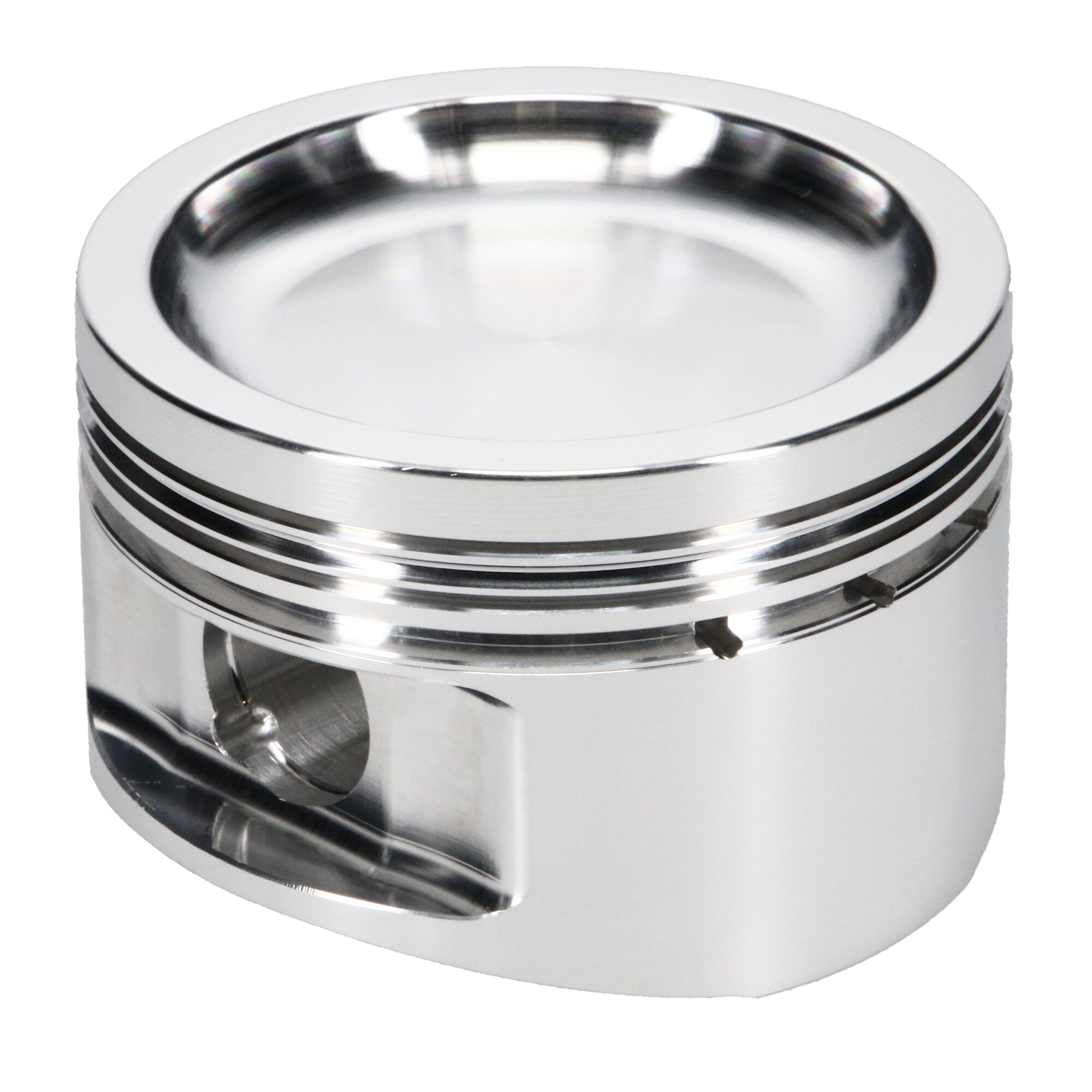

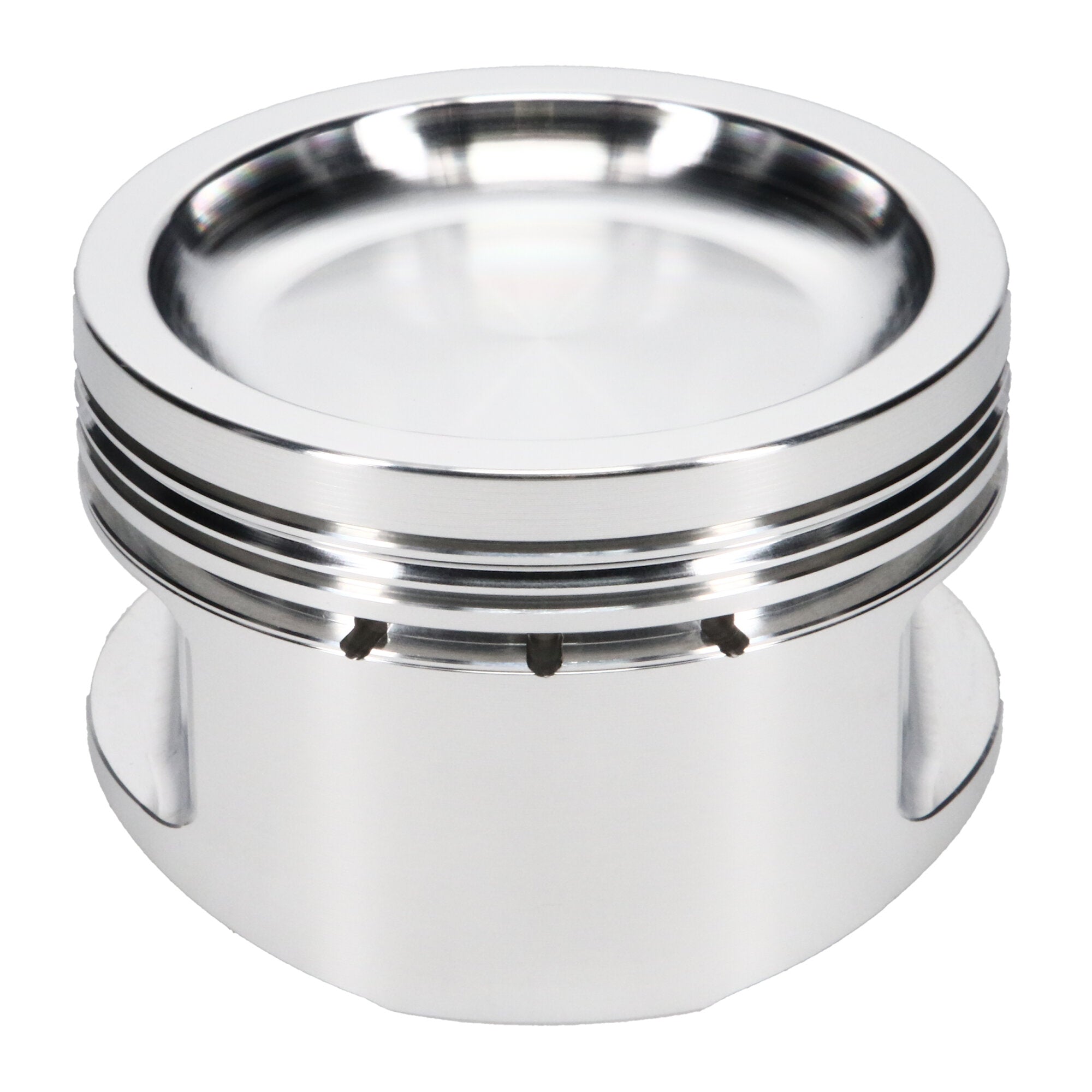

JE, VW, JH 8V 2.0L, 3.248 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_DES |
Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.204 CD, 0.827 Pin, Set of 4. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 2L 8V, 82.50 Bore, Dish, Set of 4 |
| Engine |
JH 8V 2.0L |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
Yes |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
JH |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
827-2250-15-51C |
| Piston Pin Length |
2.250 |
| Piston Volume |
-26.00 |
| Industry |
Automotive |
| Title - Web |
JE Pistons Volkswagen JH 8V 2.0L Piston Kit - 82.50 mm Bore - 1.204 in. CH, -26.00 CC |
| Prop 65 Yes/No |
Yes |
| Add-On |
827-063-MW |
| Add-On |
JG1001-3250 |
| Make - Web |
Volkswagen |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Product Type |
Engine Piston Kit |
| Piston Head Type |
Dish |
| Forging Type |
Round |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.827 |
| Make |
VOLKSWAGEN |
| Title |
JE Pistons - Volkswagen, JH 8V 2.0L, 82.50 mm Bore, Piston Kit |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Quantity |
4 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Engine - Web |
JH 8V 2.0L |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.827 |
| Piston Average Weight |
285 |
| Bore Diameter |
82.50 |
| Compression Height |
1.204 |
| Product Market |
European |
| Top Compression Ring Thickness |
0.0400 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
