As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 632 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

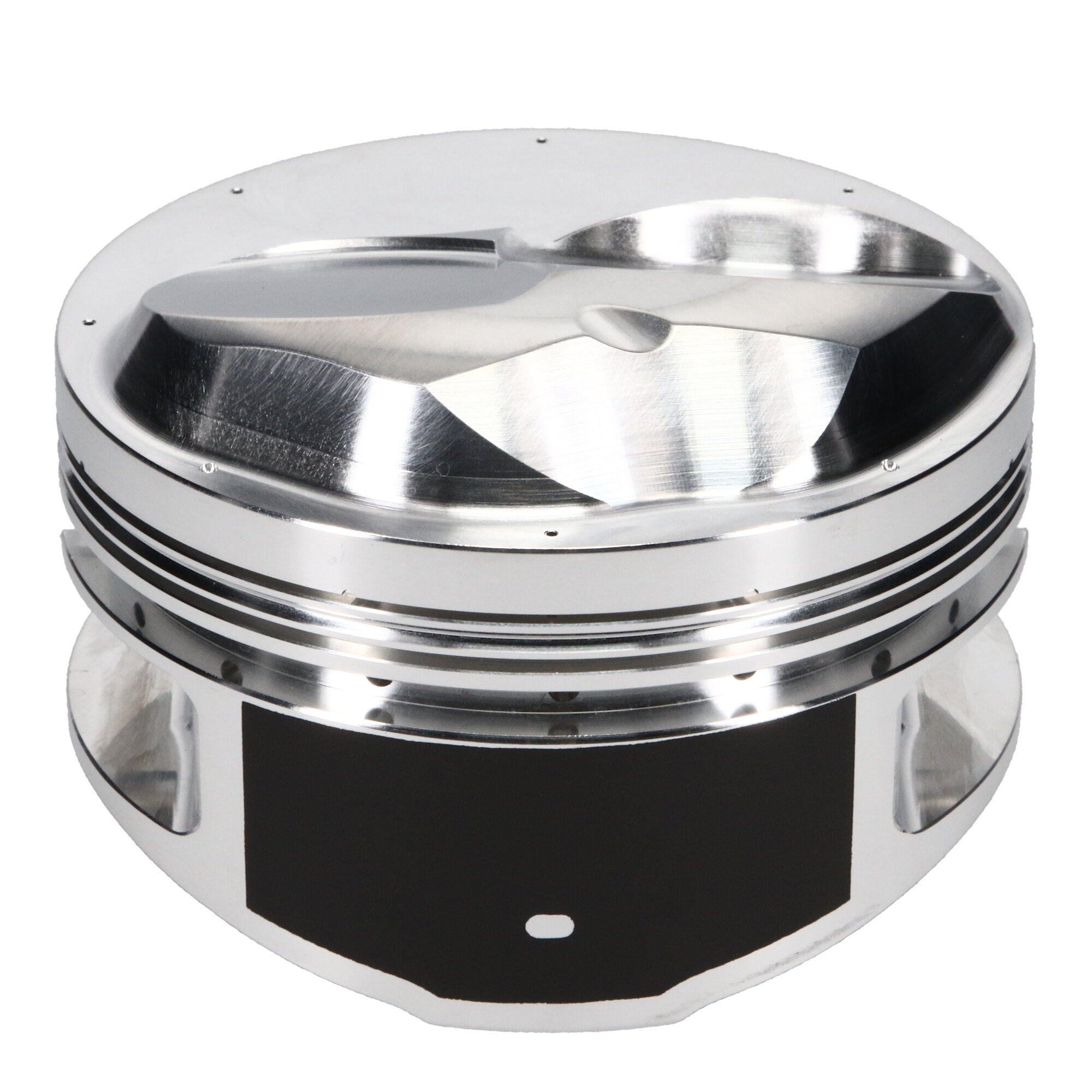

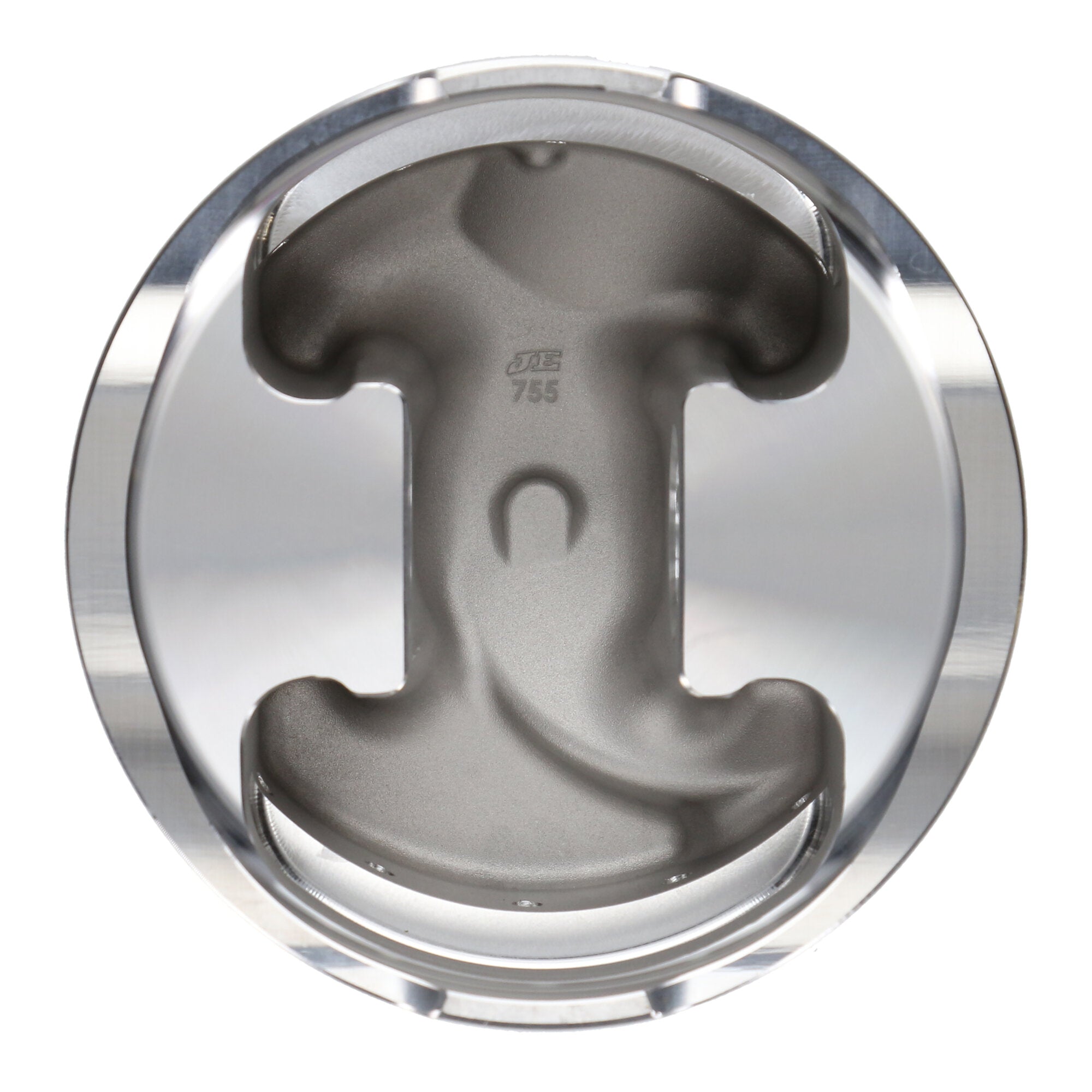

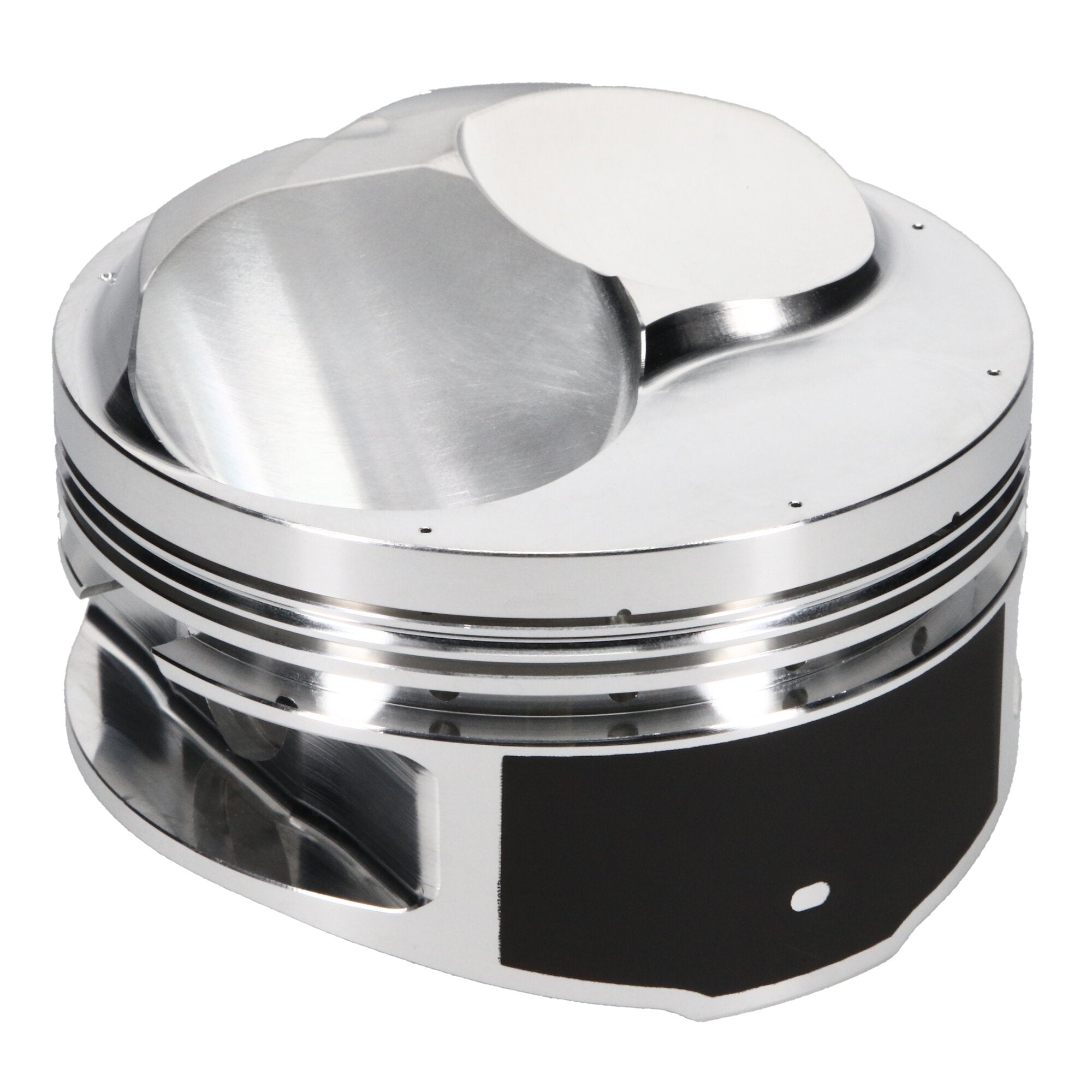

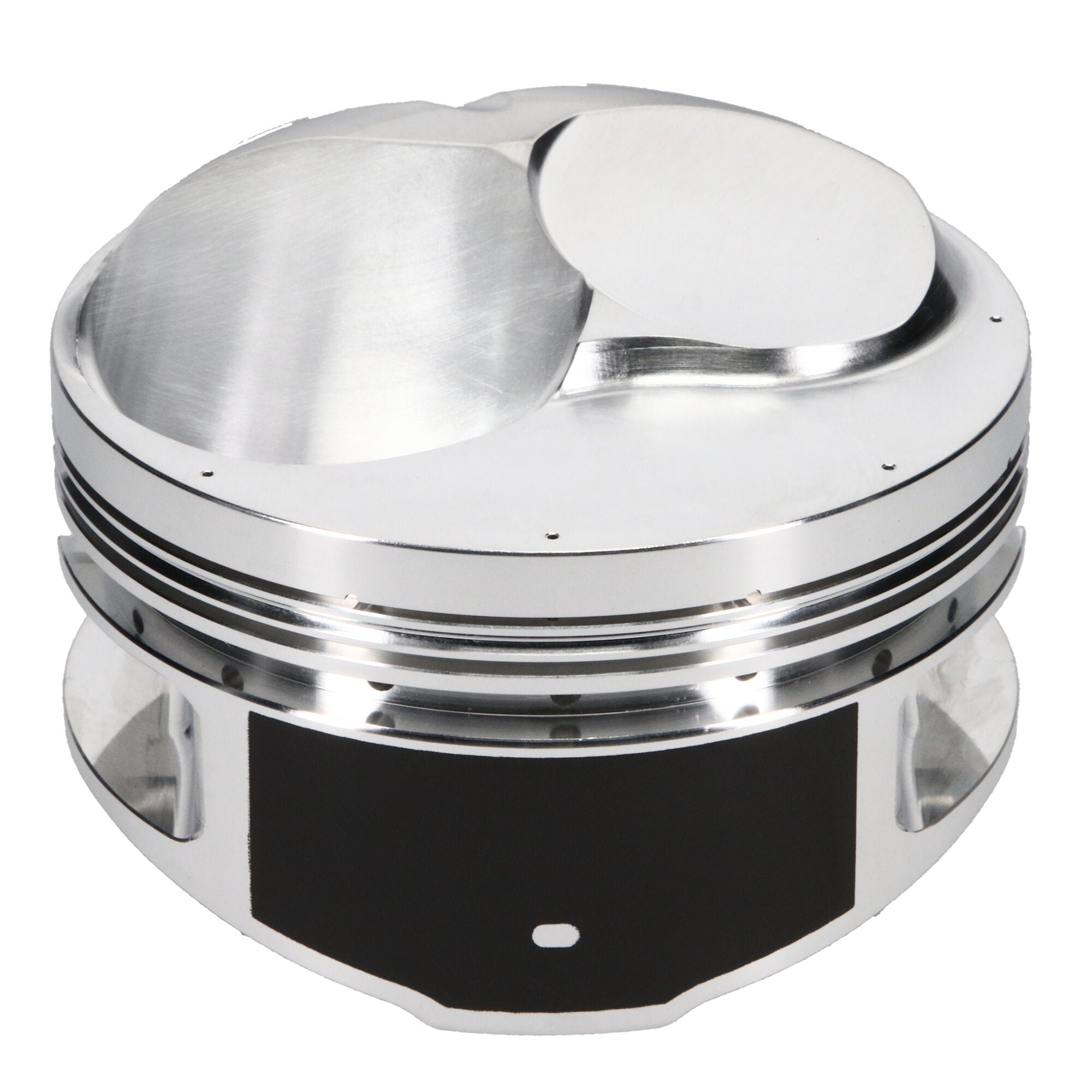

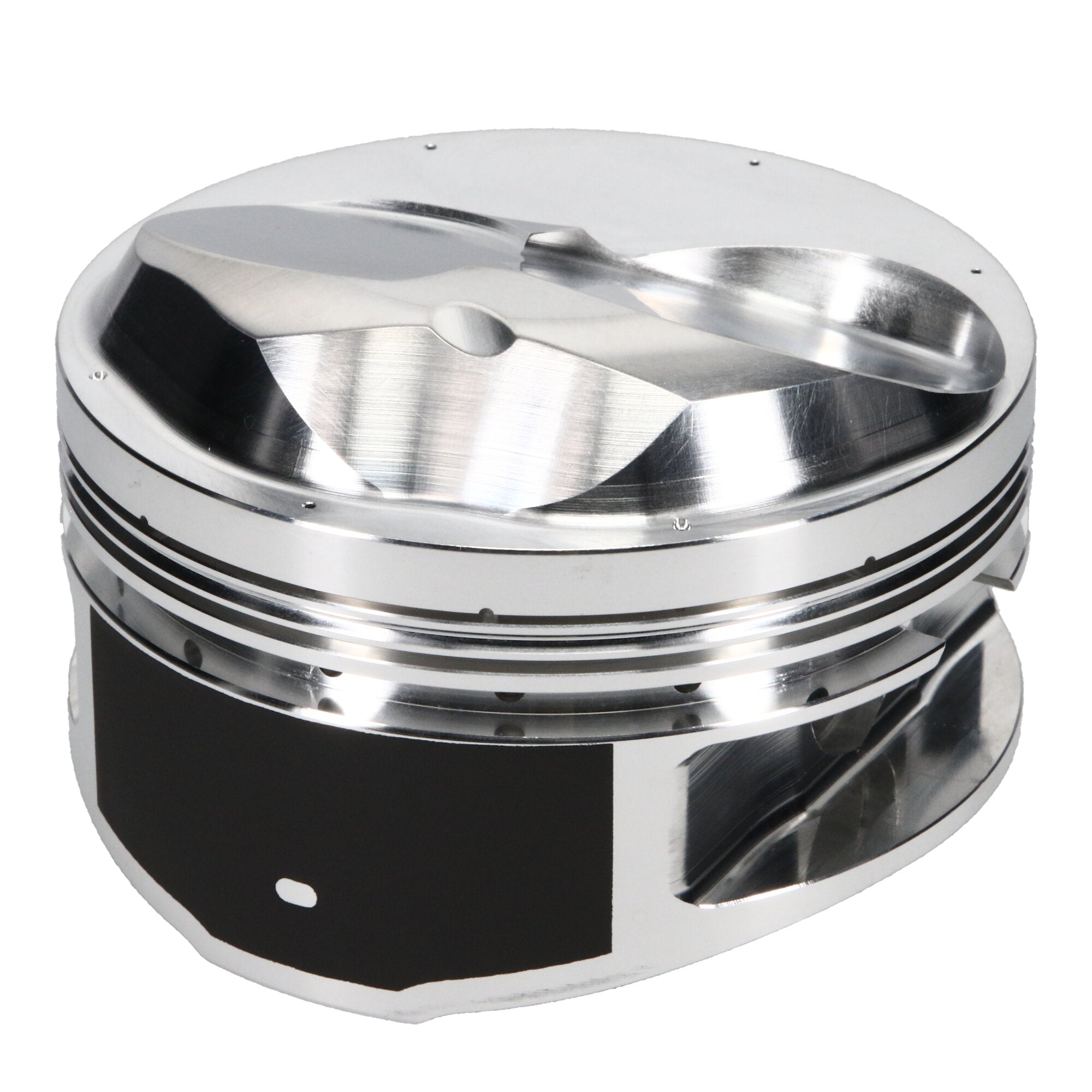

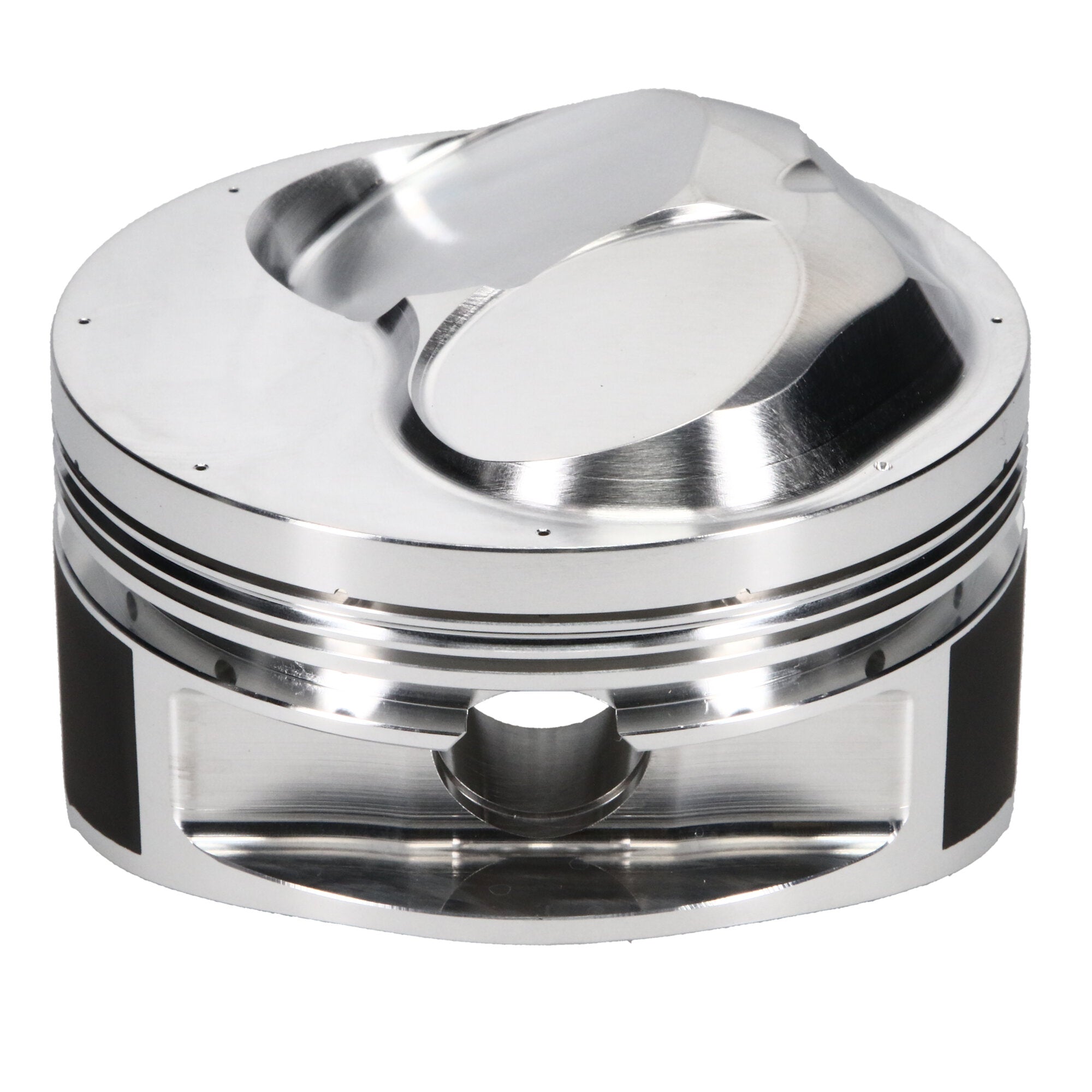

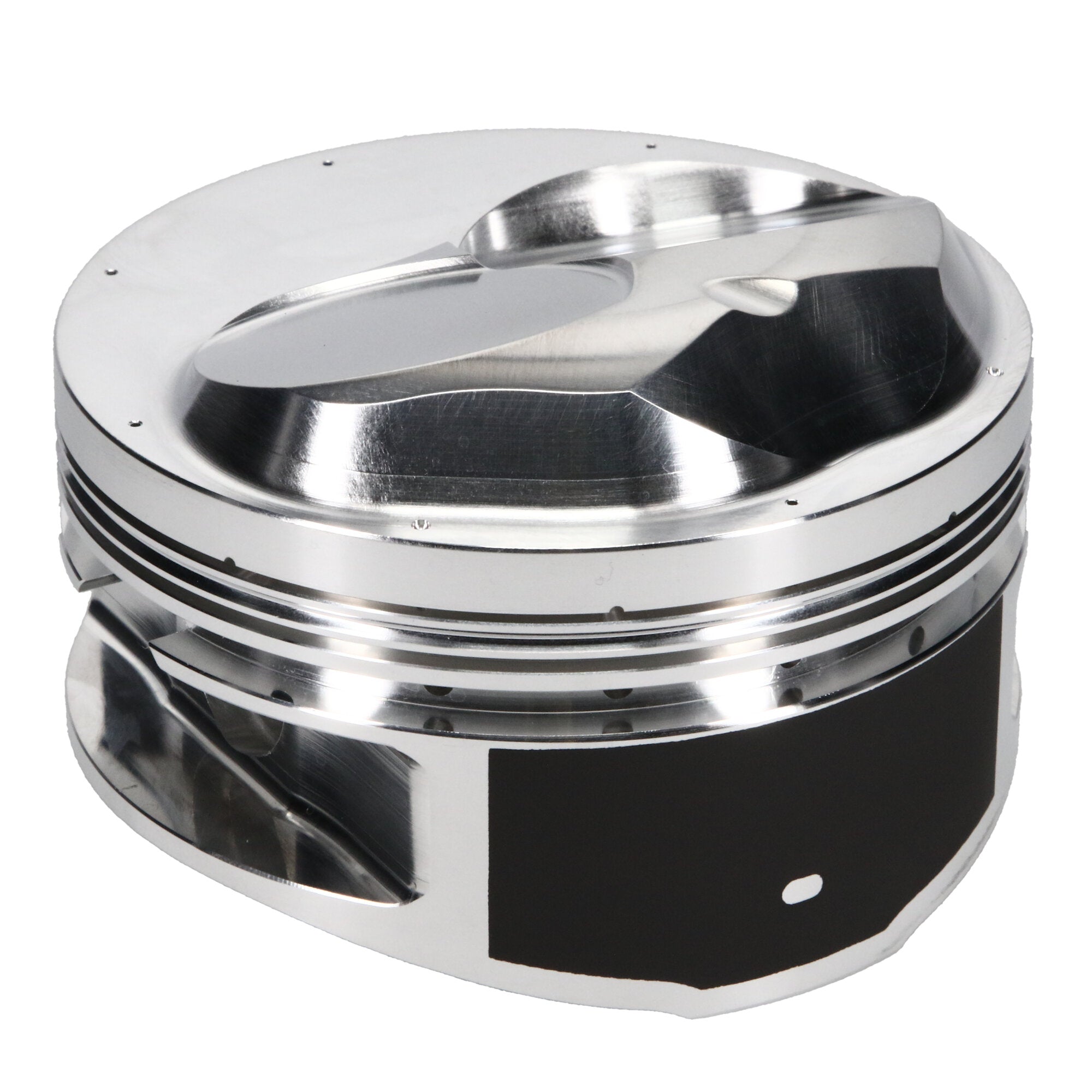

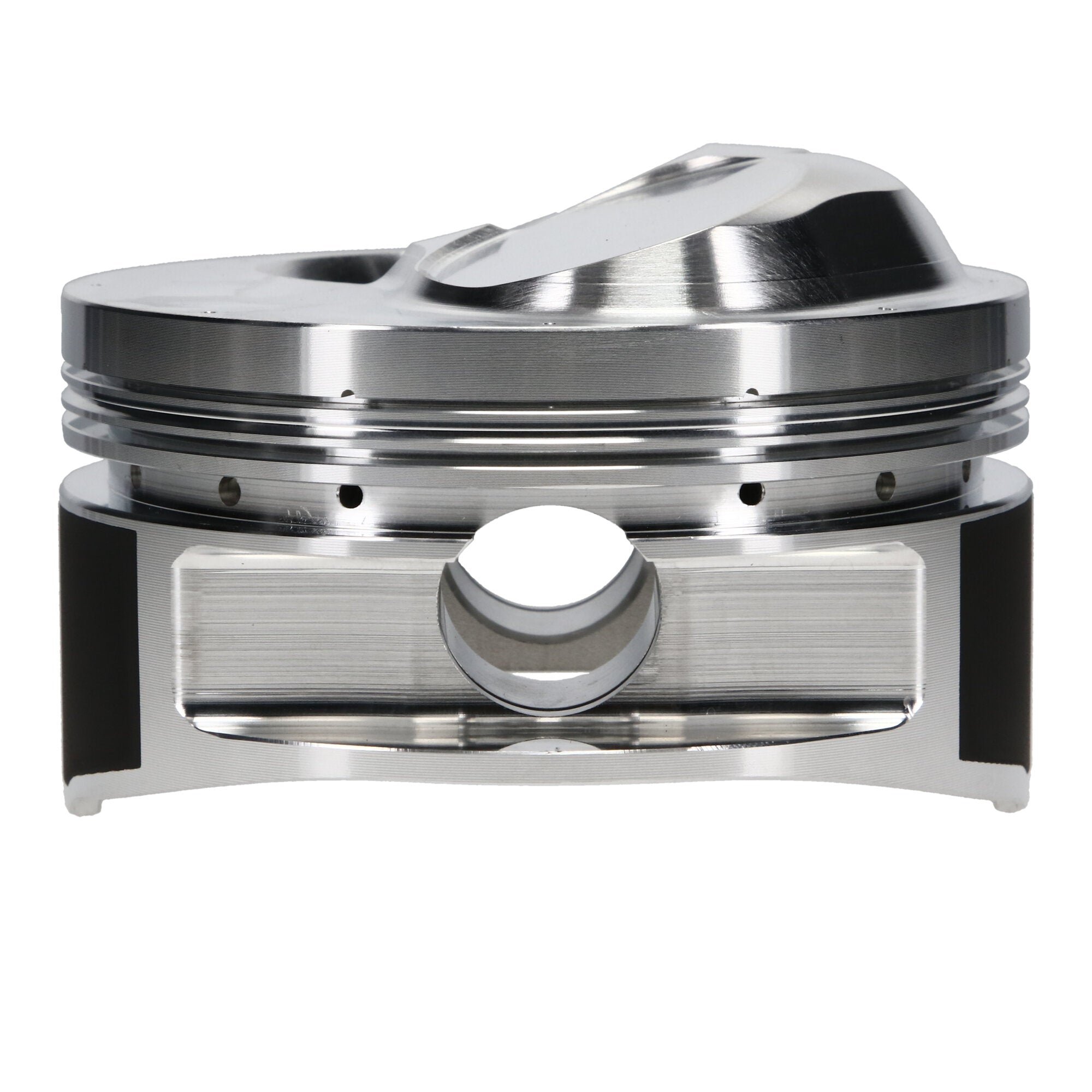

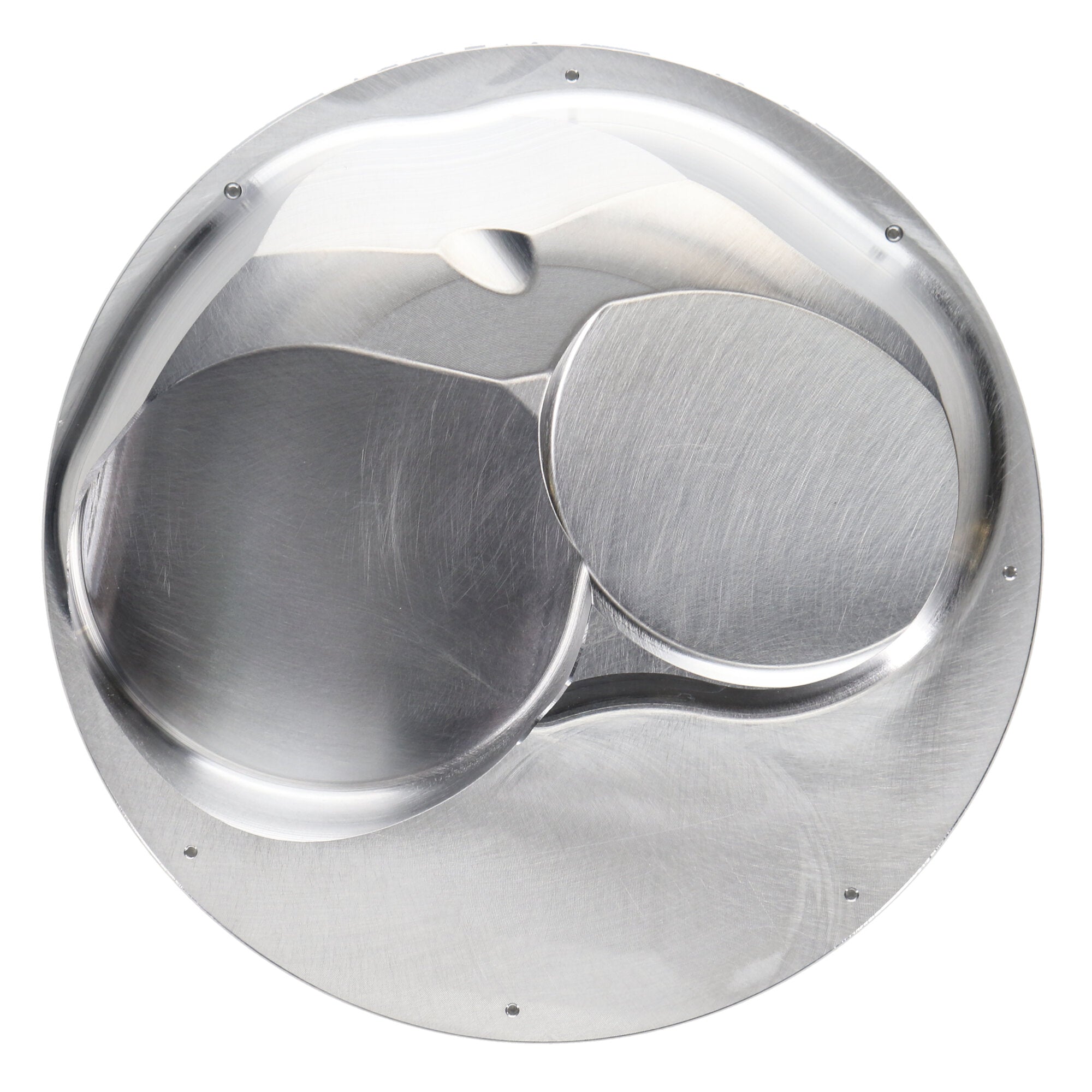

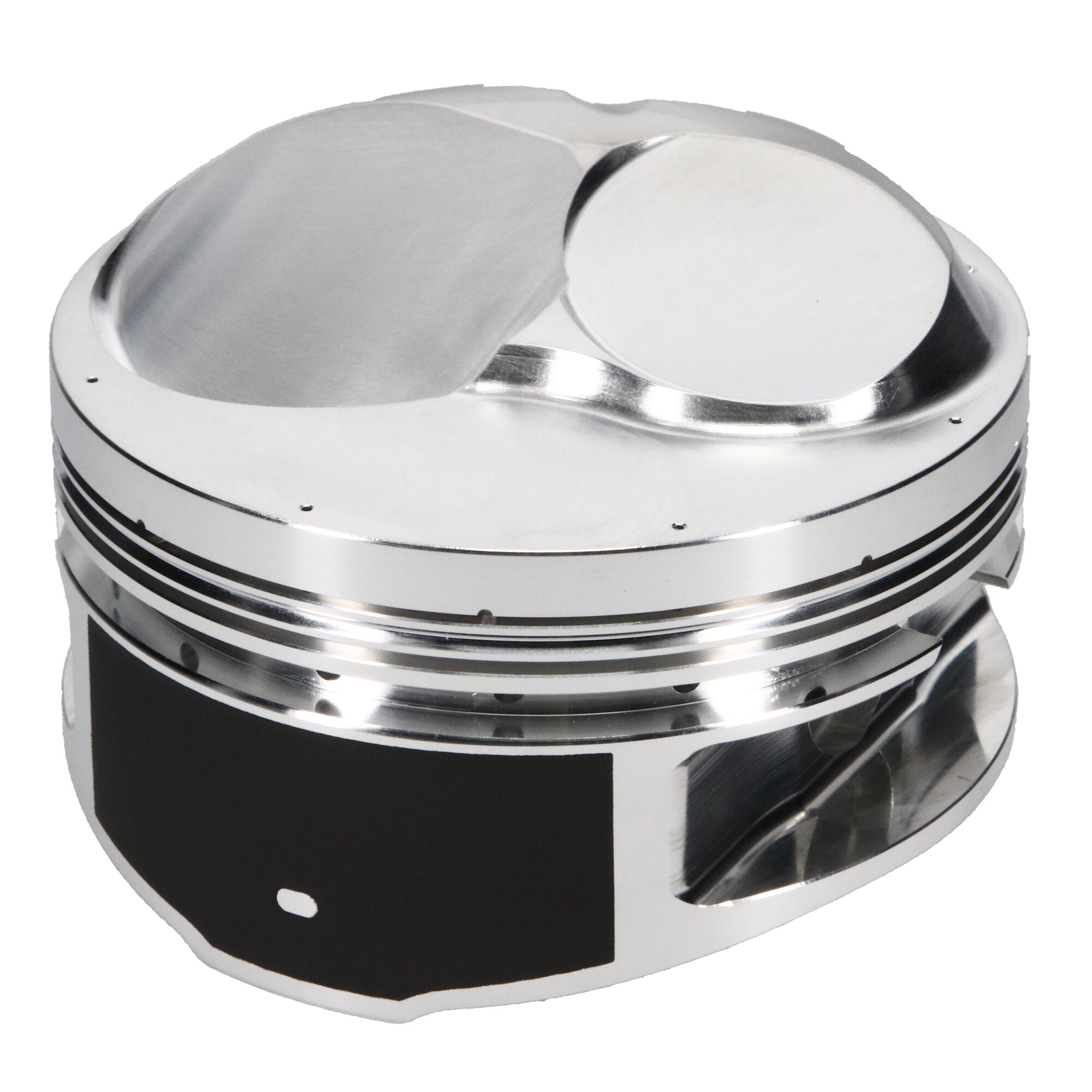

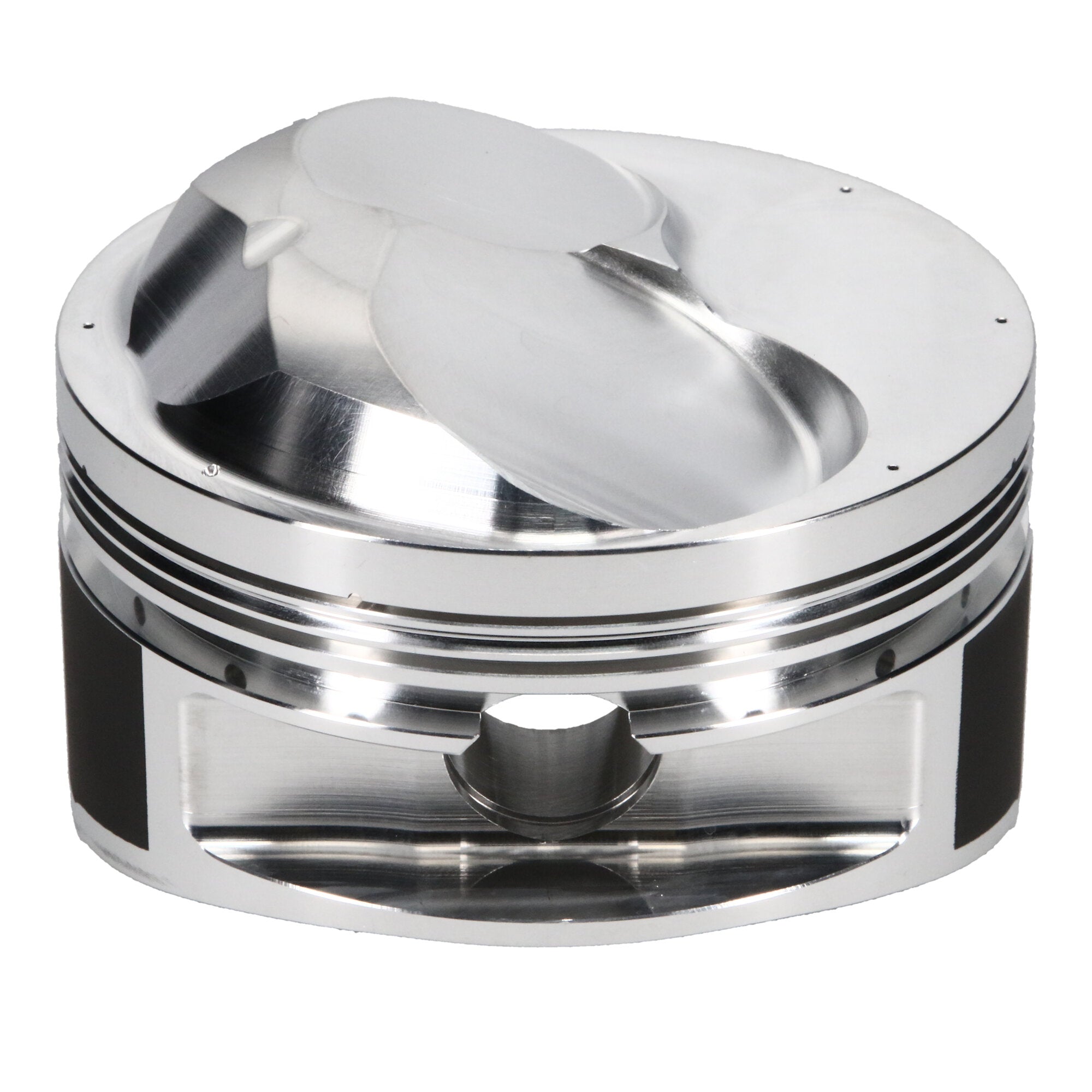

Piston Set, 2618, Dome, 4.600 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.120 CD, Dome, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 632, 4.600 Bore, Dome, Set of 8 |
| Piston Series |
JE Pistons |
| Compression Height |
1.120 |
| Product Type |
Engine Piston Kit |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Engine - Web |
Big Block |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Length |
2.930 |
| Piston Average Weight |
624 |
| Engine Type |
ICE |
| Make |
CHEVROLET |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Piston Quantity |
8 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.180 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Outside Diameter |
0.990 |
| Cylinder Head |
OPEN CHAMBER |
| Top Compression Ring Thickness |
0.0435 |
| Oil Ring Thickness |
0.218 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Wall Thickness |
0.180 |
| Bore Diameter |
4.600 |
| Piston Volume |
29.90 |
| Piston Material |
2618 |
| Product Market |
Domestic |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.120 in. CH, 29.90 CC |
| Ringset Included |
No |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Engine |
Big Block |
| Add-On |
JG86L8-4600-5 |
| Piston Head Type |
Dome |
| Add-On |
990-2930-18-51S |
| Industry |
Automotive |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-042-CS |
| Piston Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
