As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

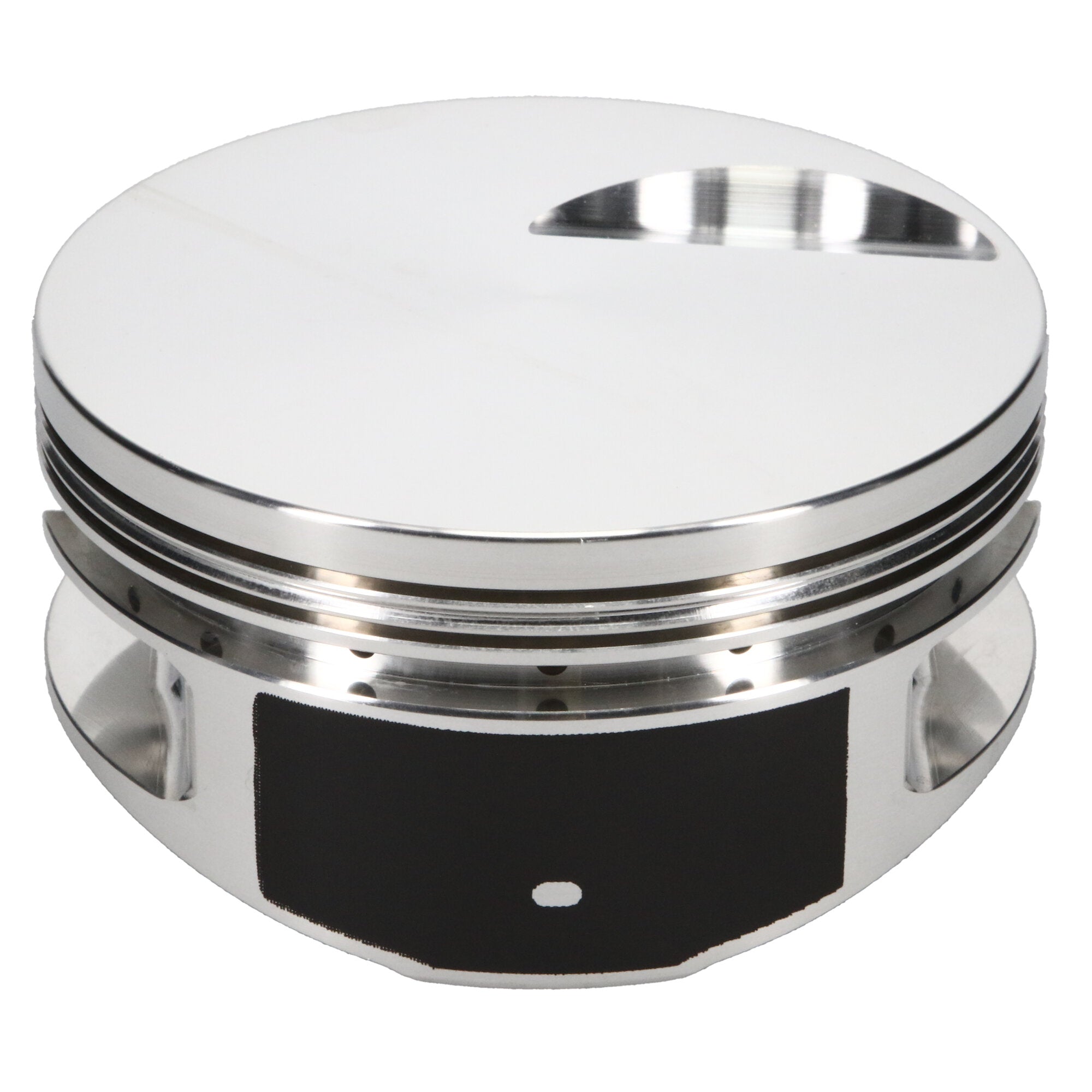

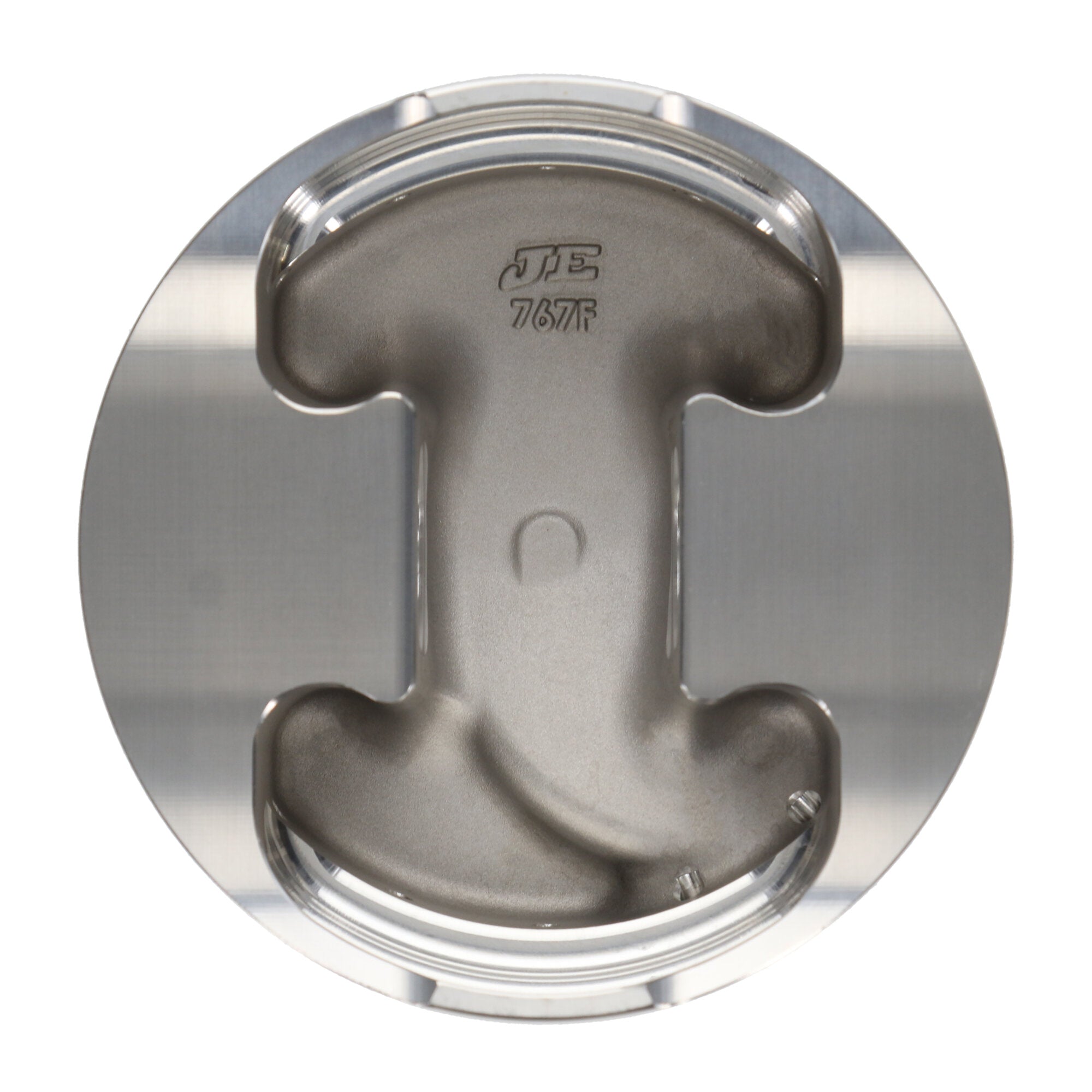

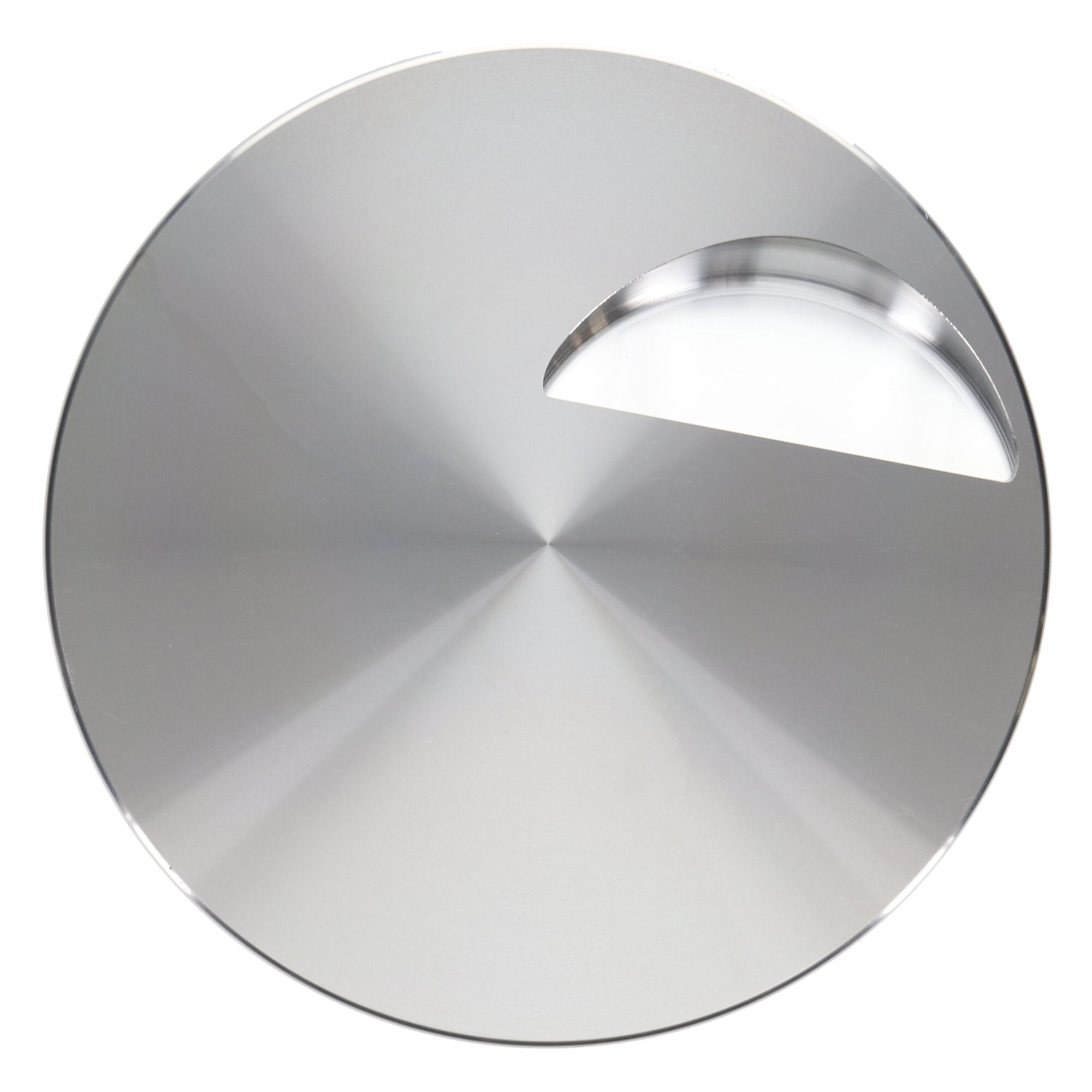

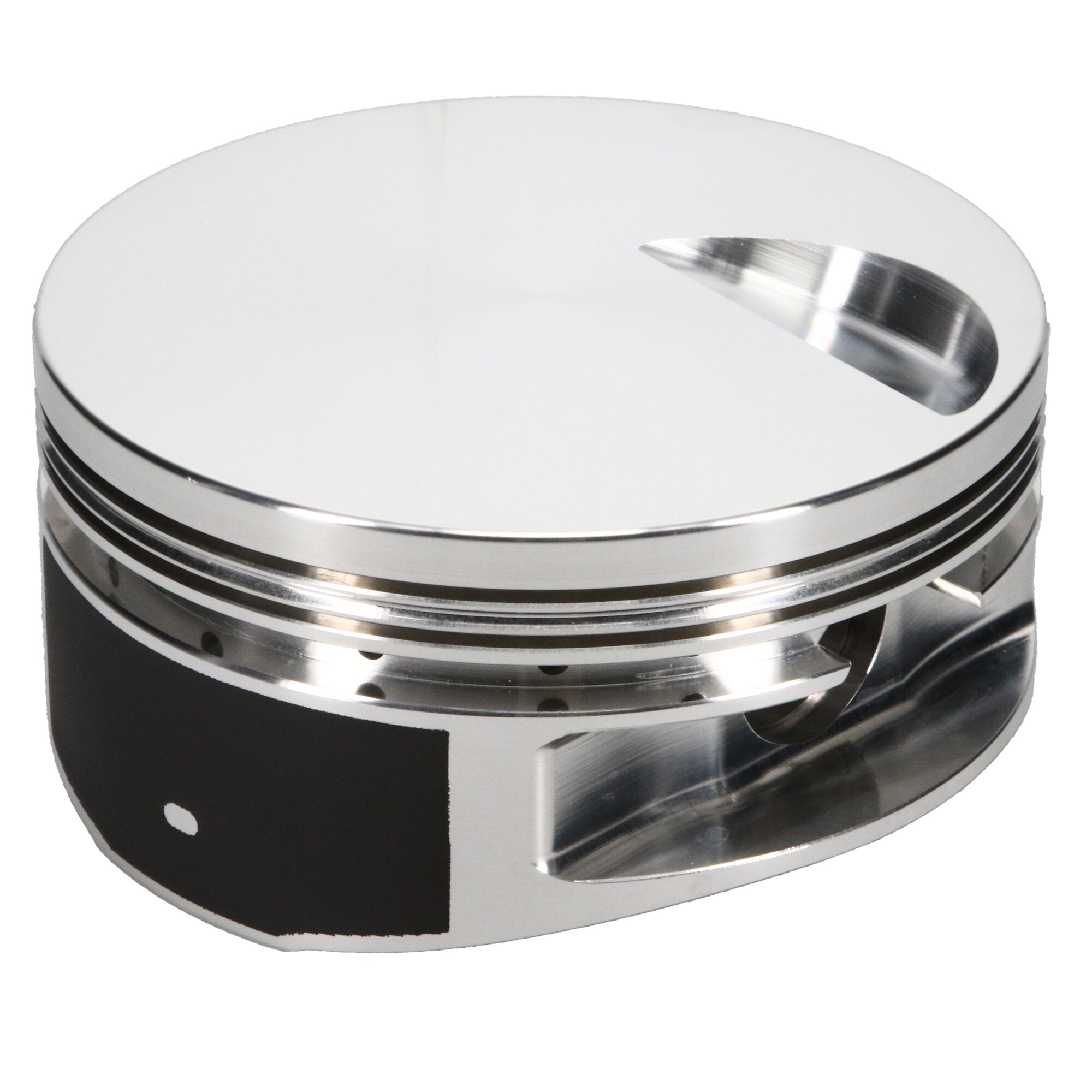

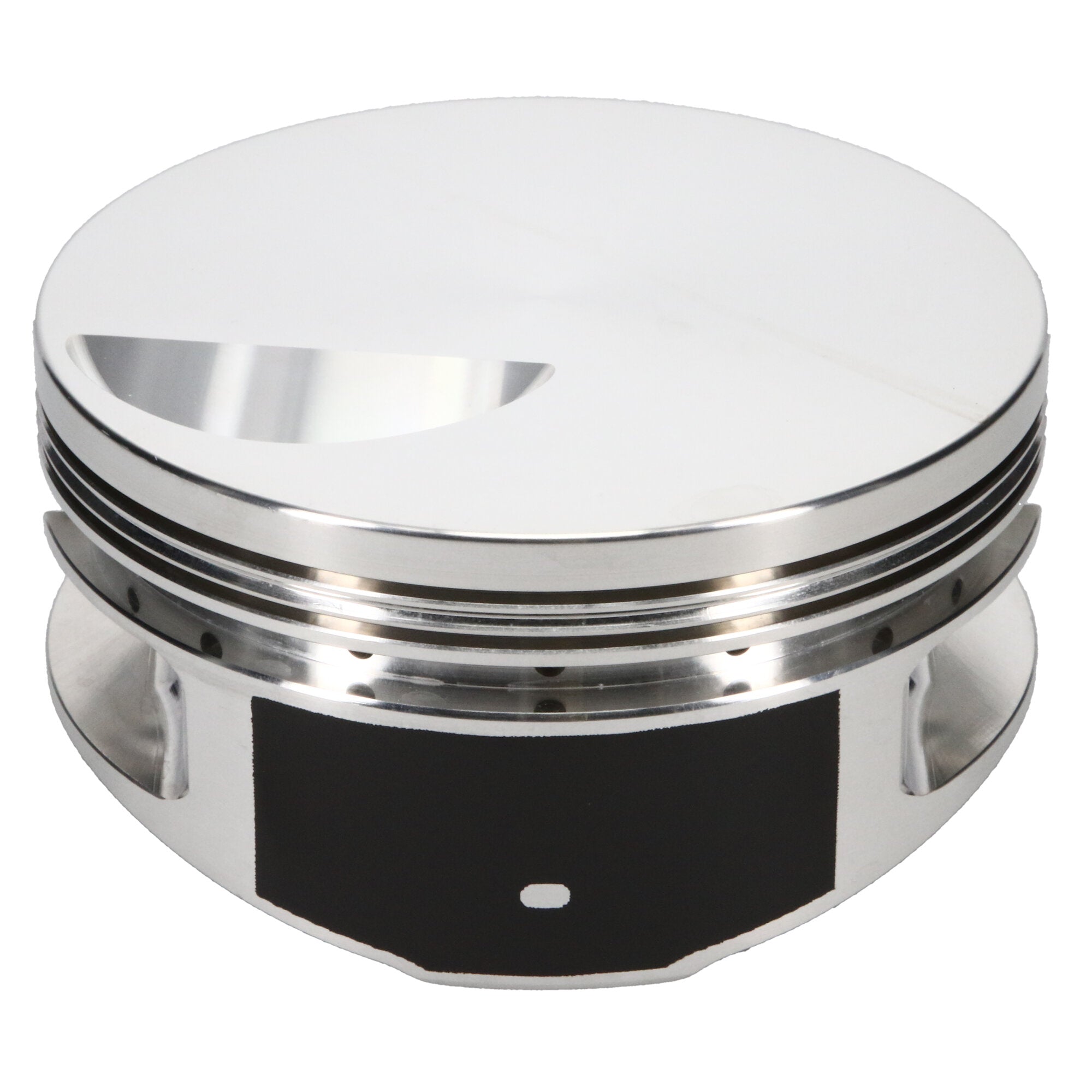

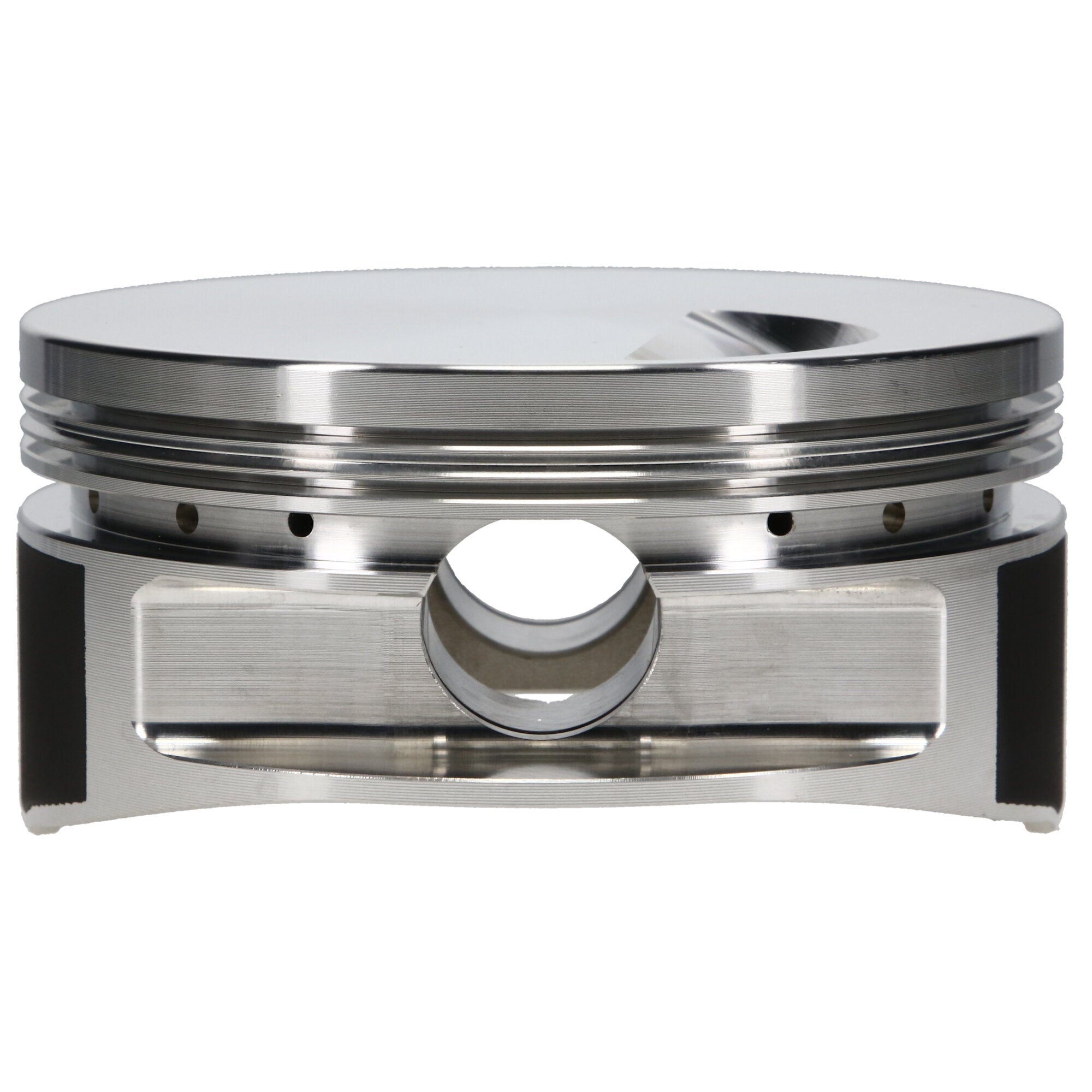

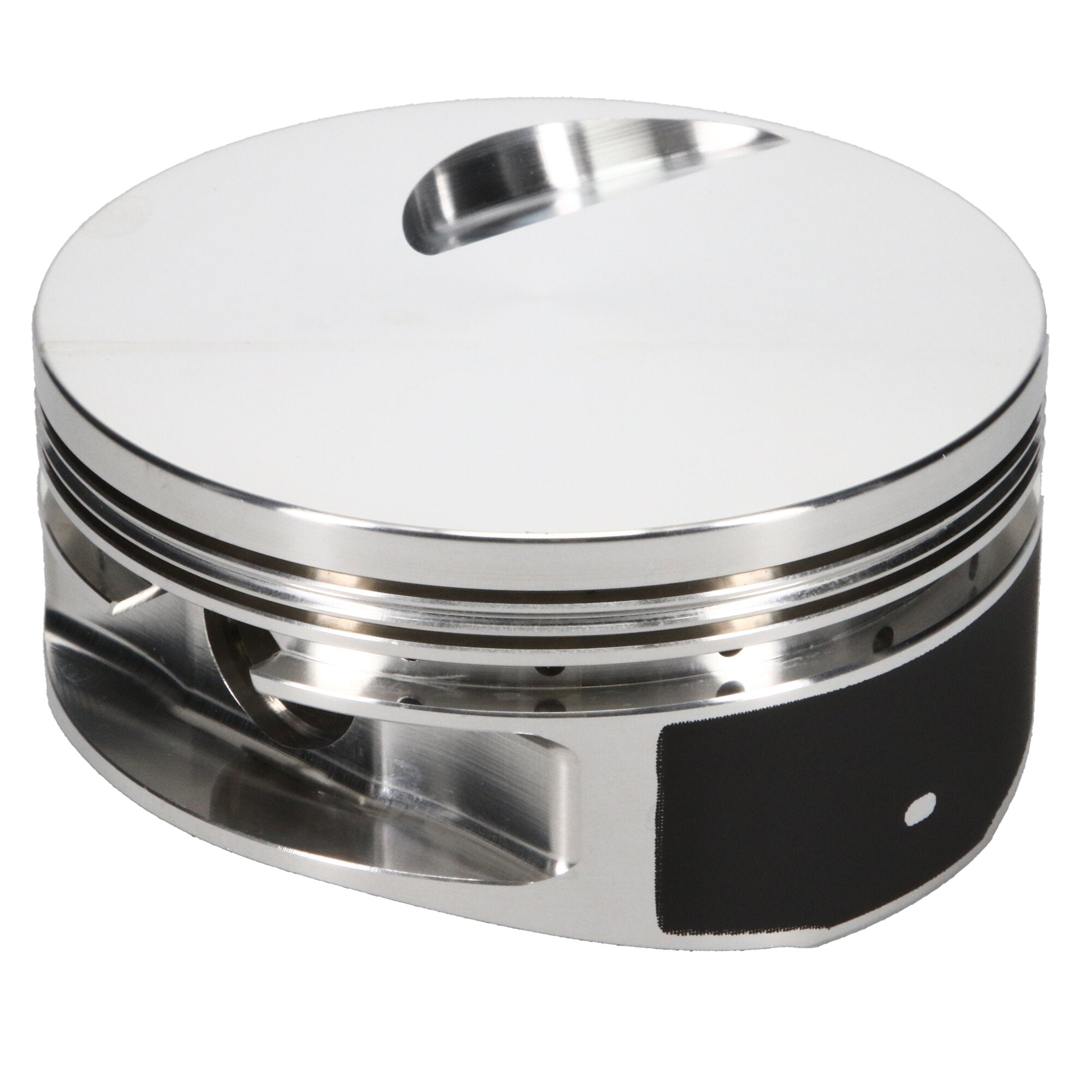

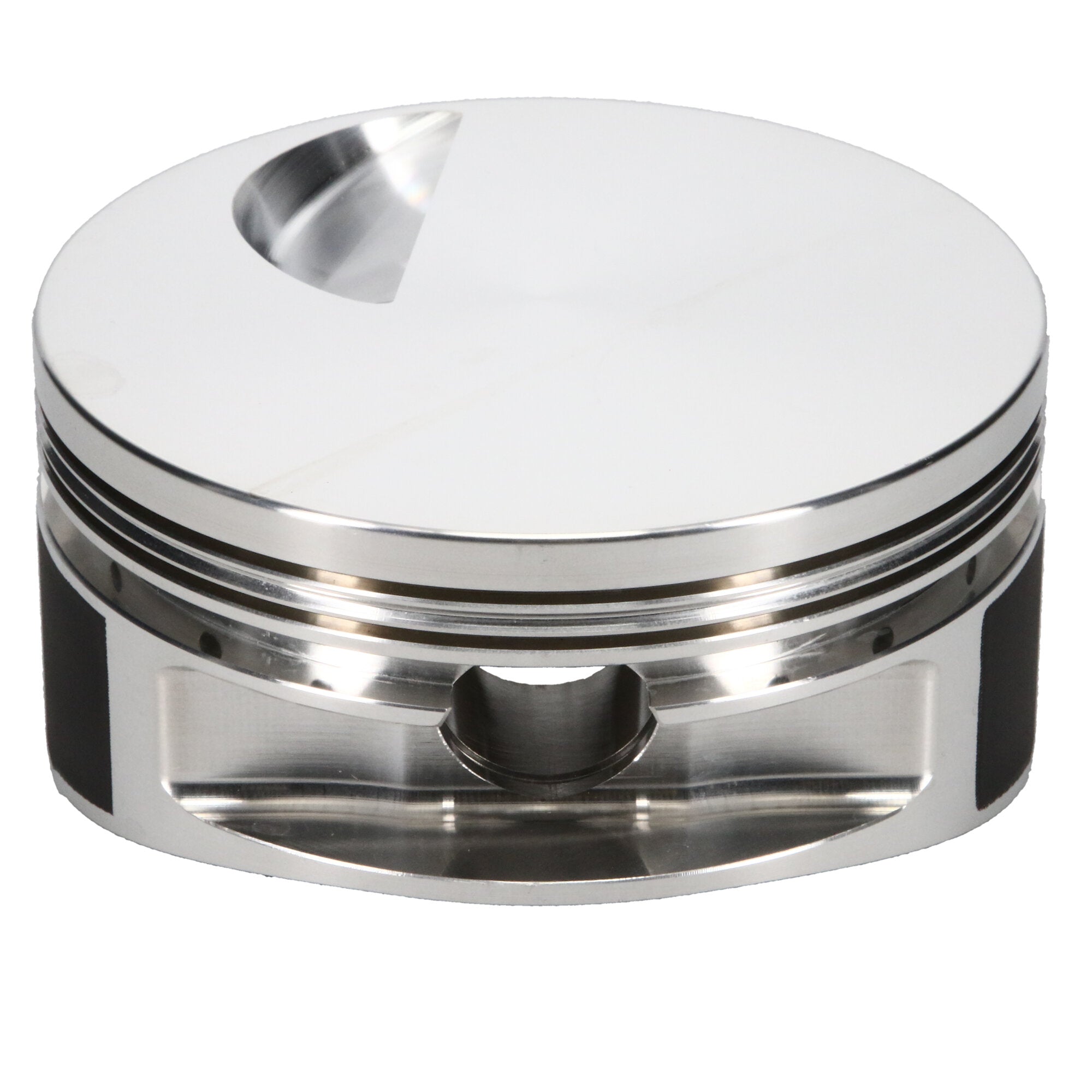

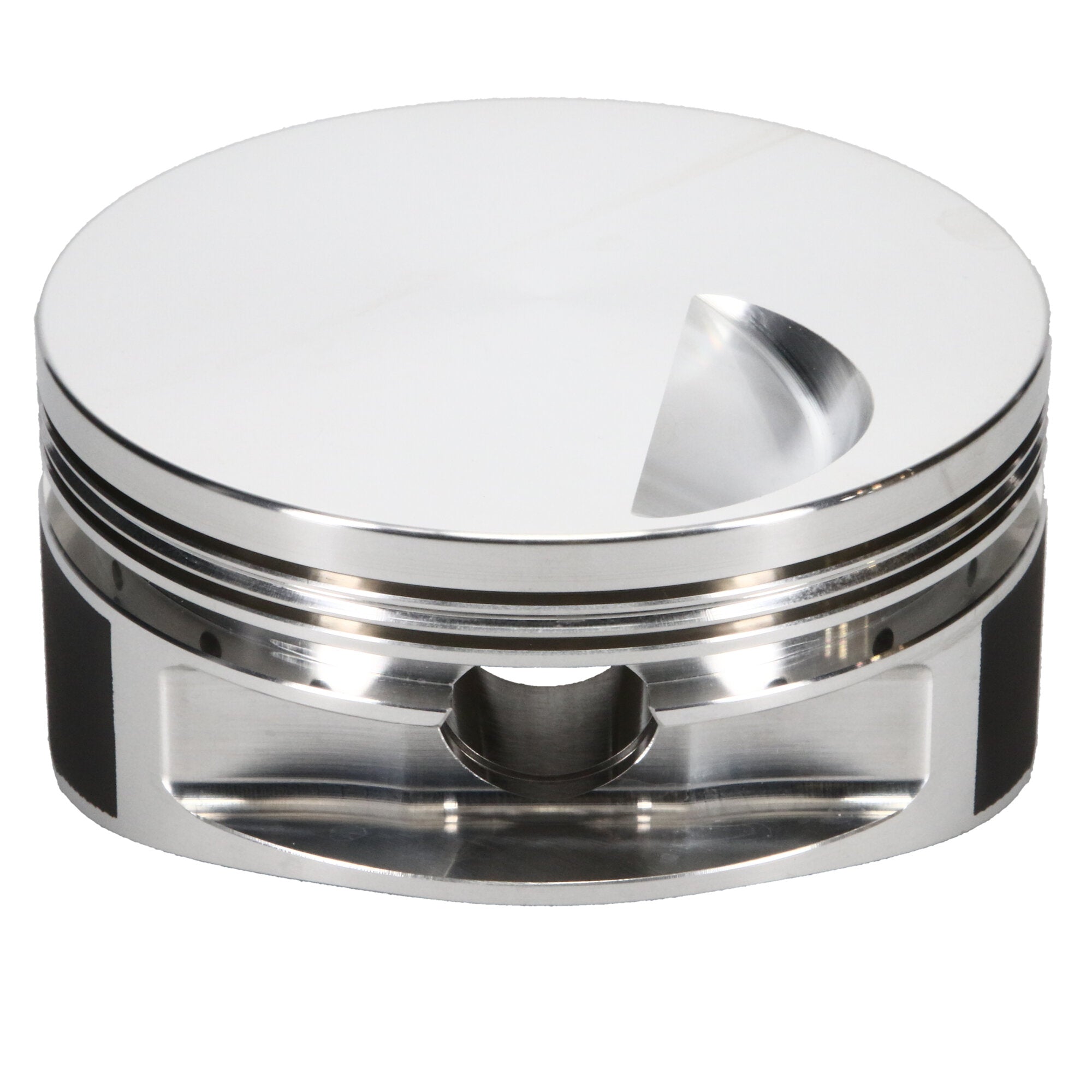

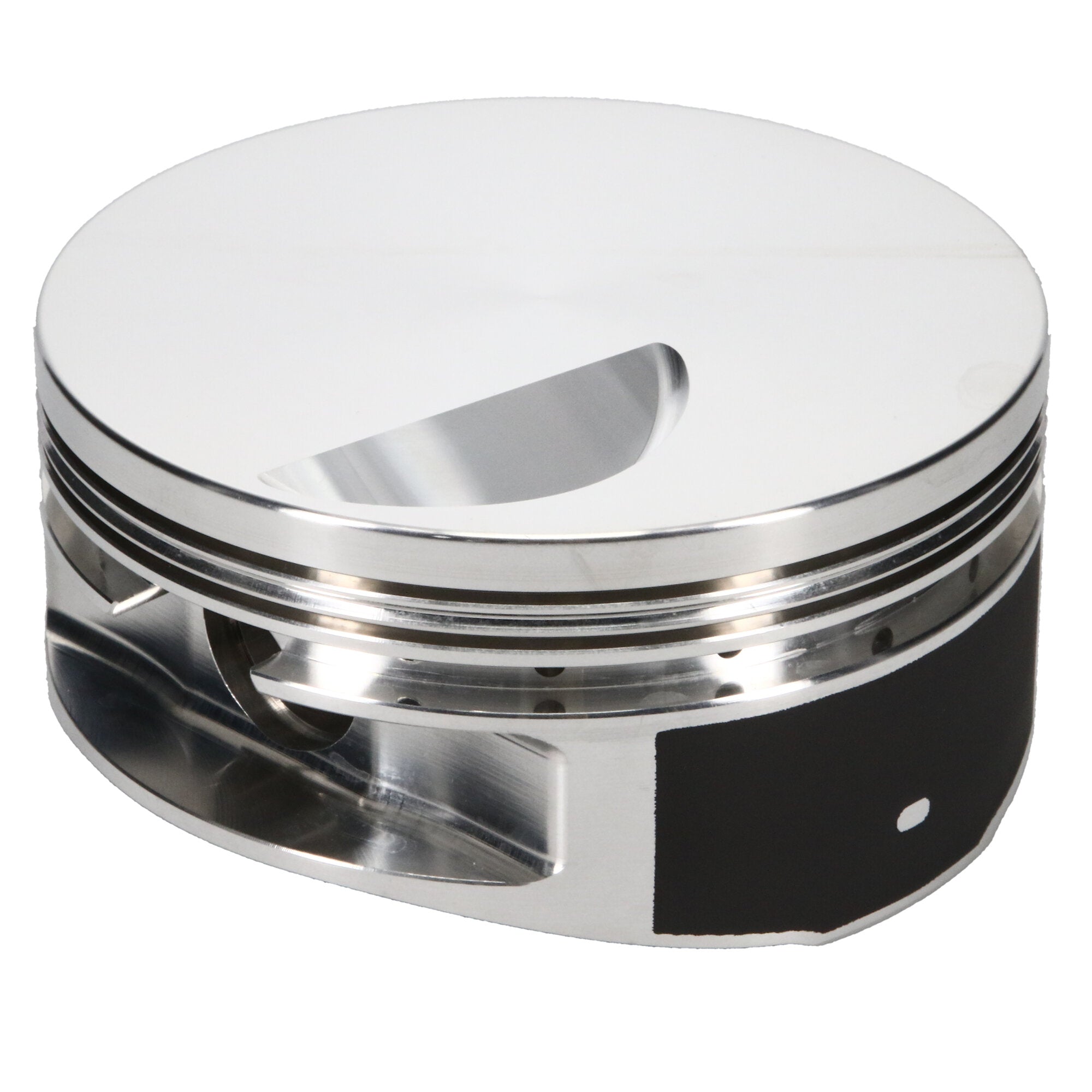

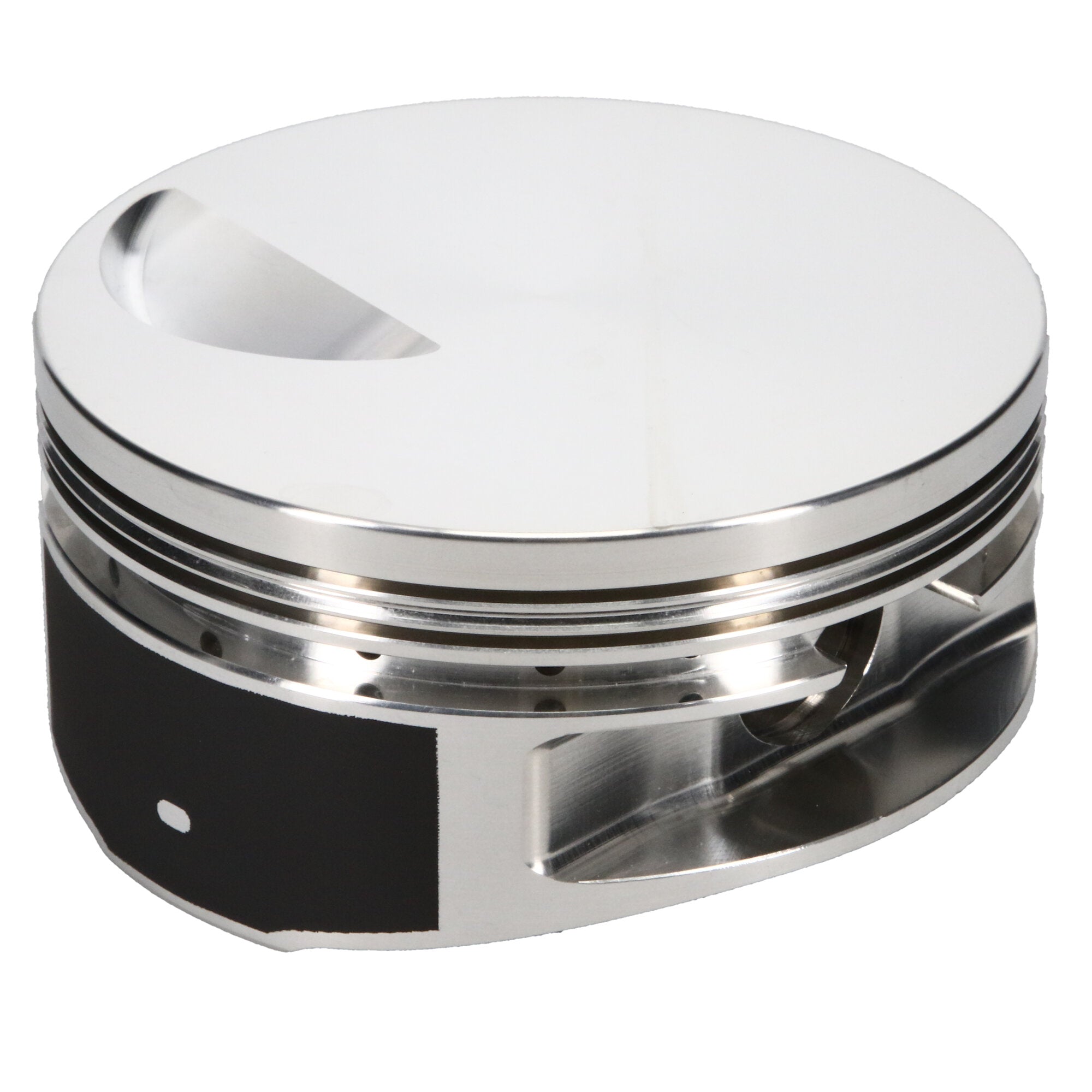

Piston Set, 2618, Flat Top, 4.610 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.610 in. Bore, 1.120 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 454, 4.610 Bore, Flat, Set of 8 |
| Piston Pin Material |
5115 |
| Piston Head Type |
Flat |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Engine |
Big Block |
| Piston Pin Length |
2.930 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.610 in. Bore - 1.120 in. CH, -3.00 CC |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
No |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Oil Ring Thickness |
0.218 |
| Forging Type |
Round |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-3.00 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.610 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.990 |
| Piston Material |
2618 |
| Bore Diameter |
4.610 |
| Product Market |
Domestic |
| Add-On |
J100H8-4610-5 |
| Add-On |
990-2930-18-51S |
| Piston Quantity |
8 |
| Compression Height |
1.120 |
| Make |
CHEVROLET |
| Cylinder Head |
OPEN CHAMBER |
| Piston Pin Wall Thickness |
0.180 |
| Top Compression Ring Thickness |
0.0640 |
| Industry |
Automotive |
| Piston Average Weight |
590 |
| Product Type |
Engine Piston Kit |
| Add-On |
990-042-CS |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.180 |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
