As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

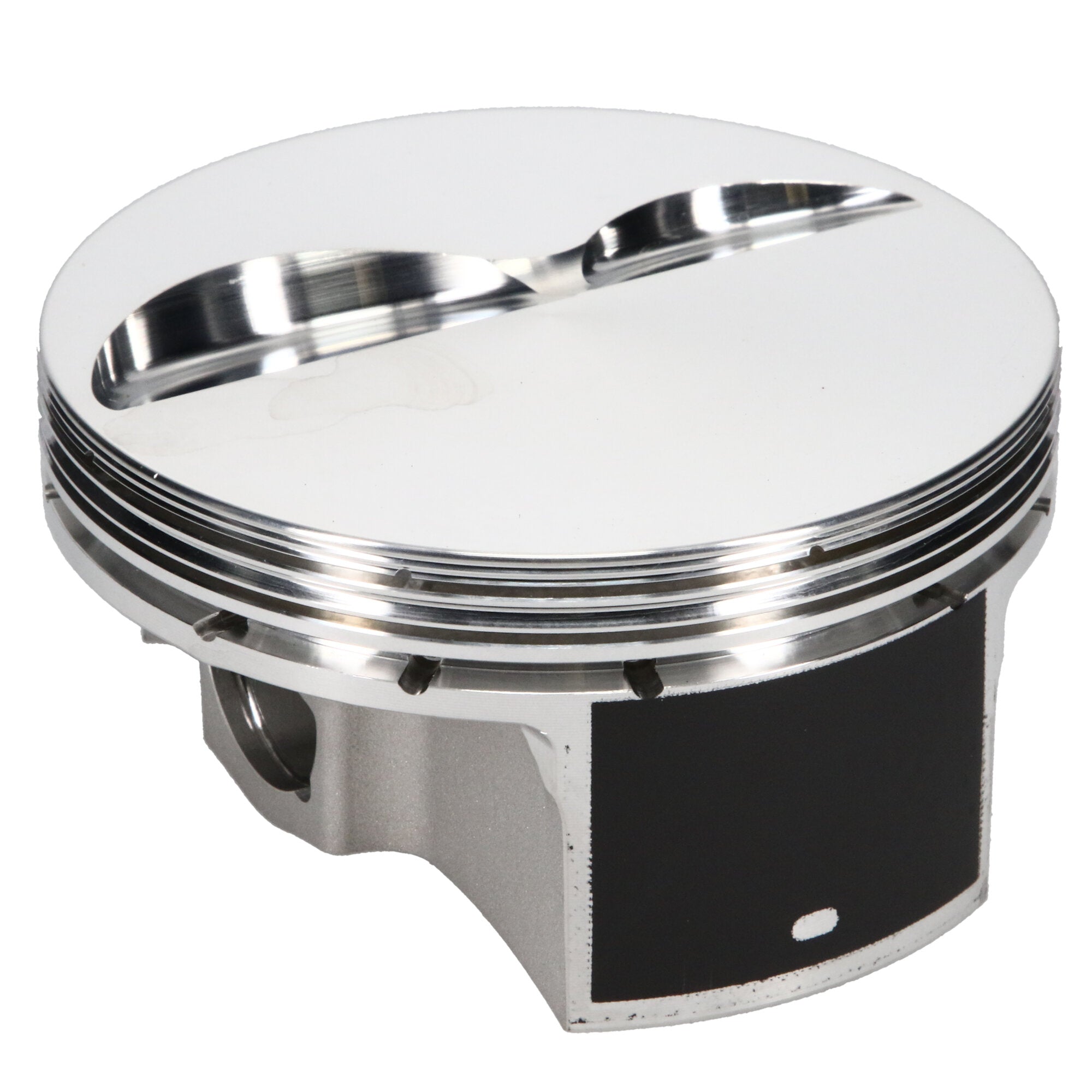

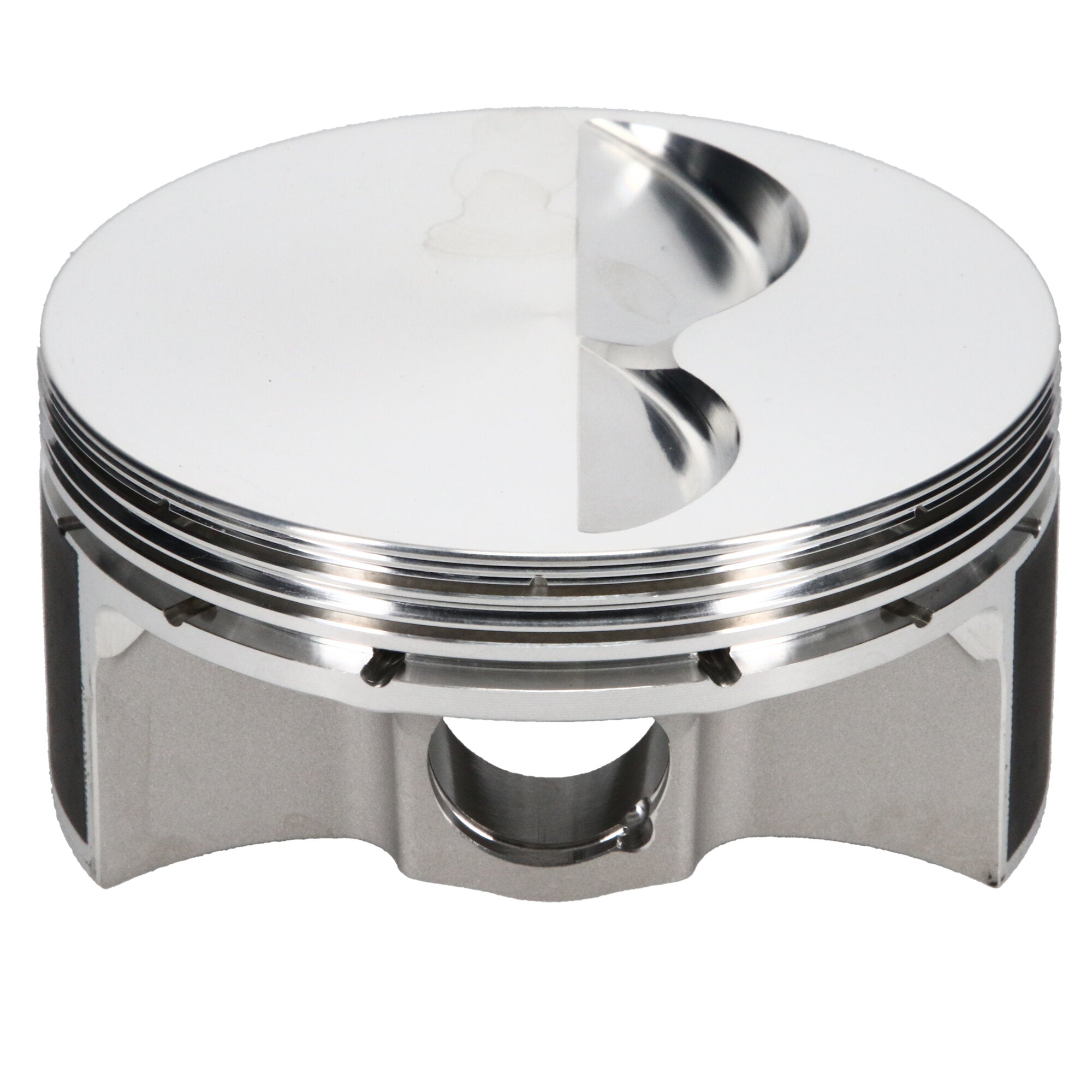

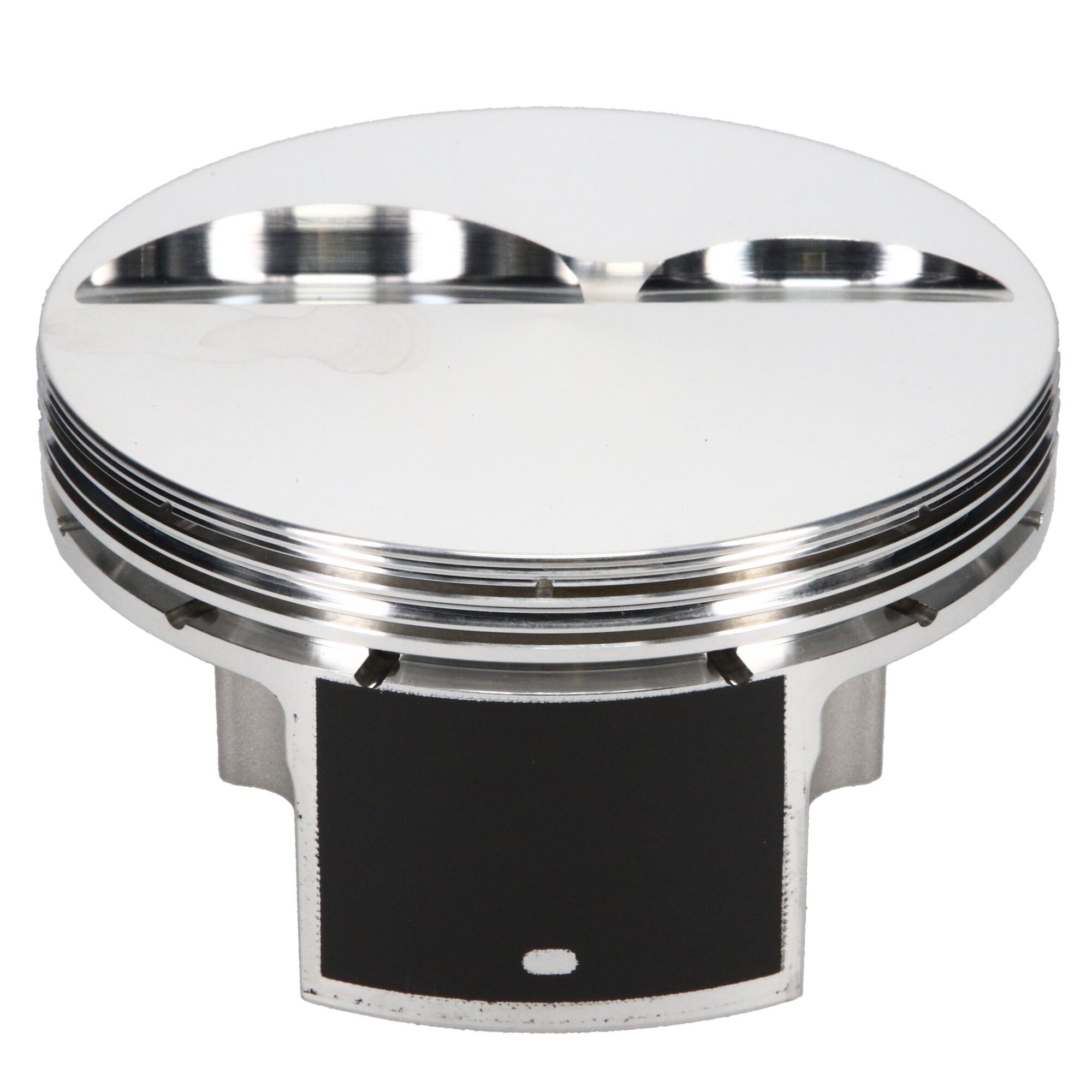

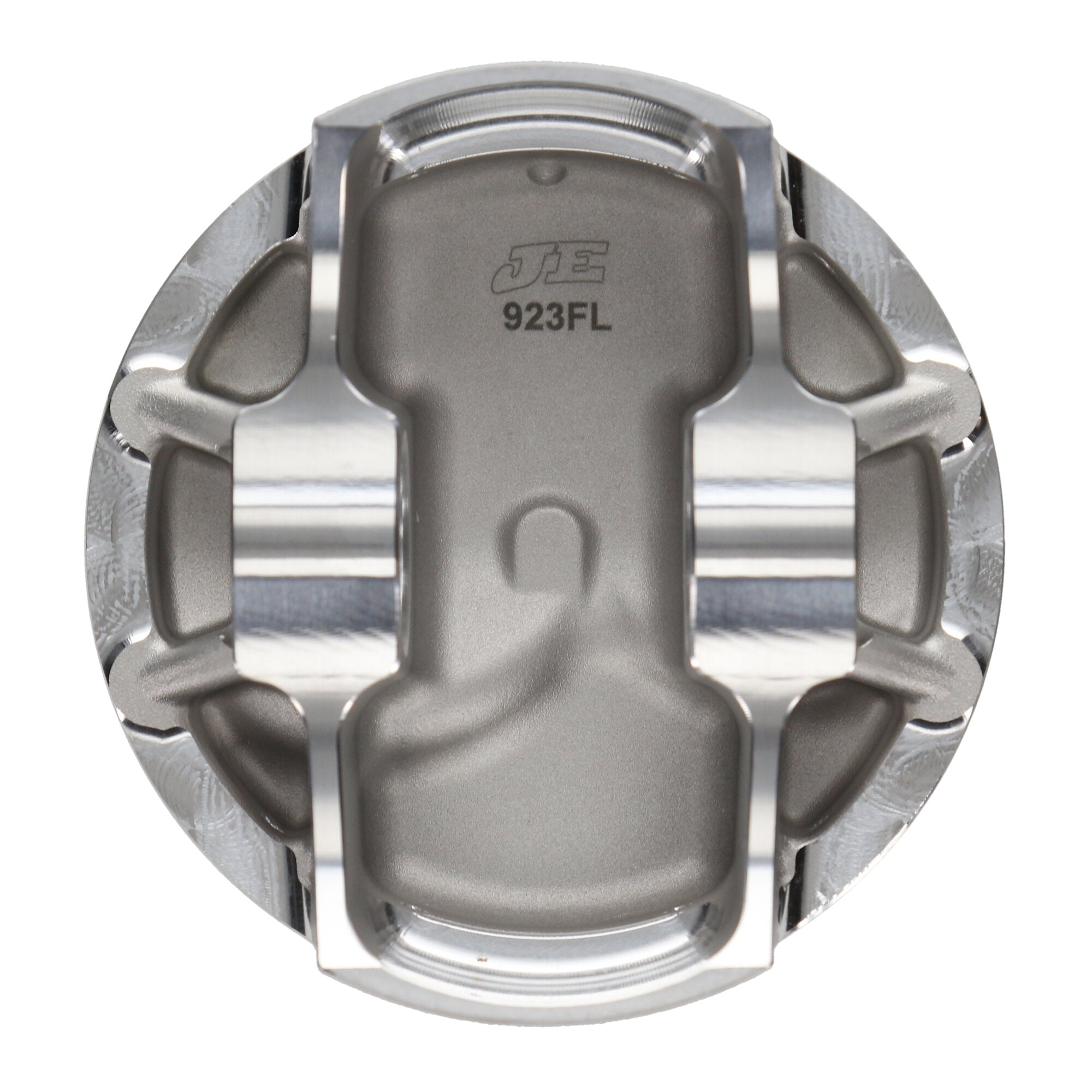

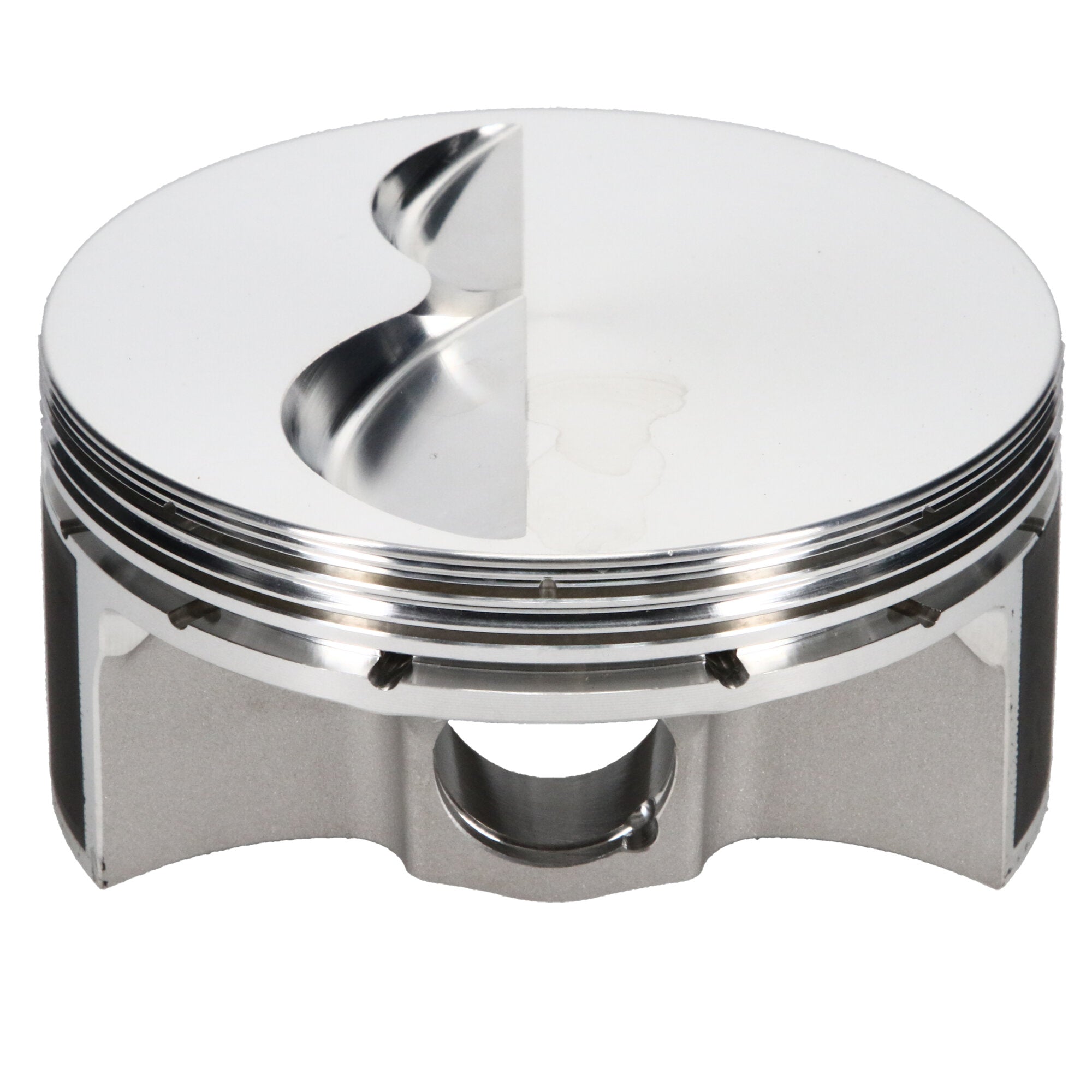

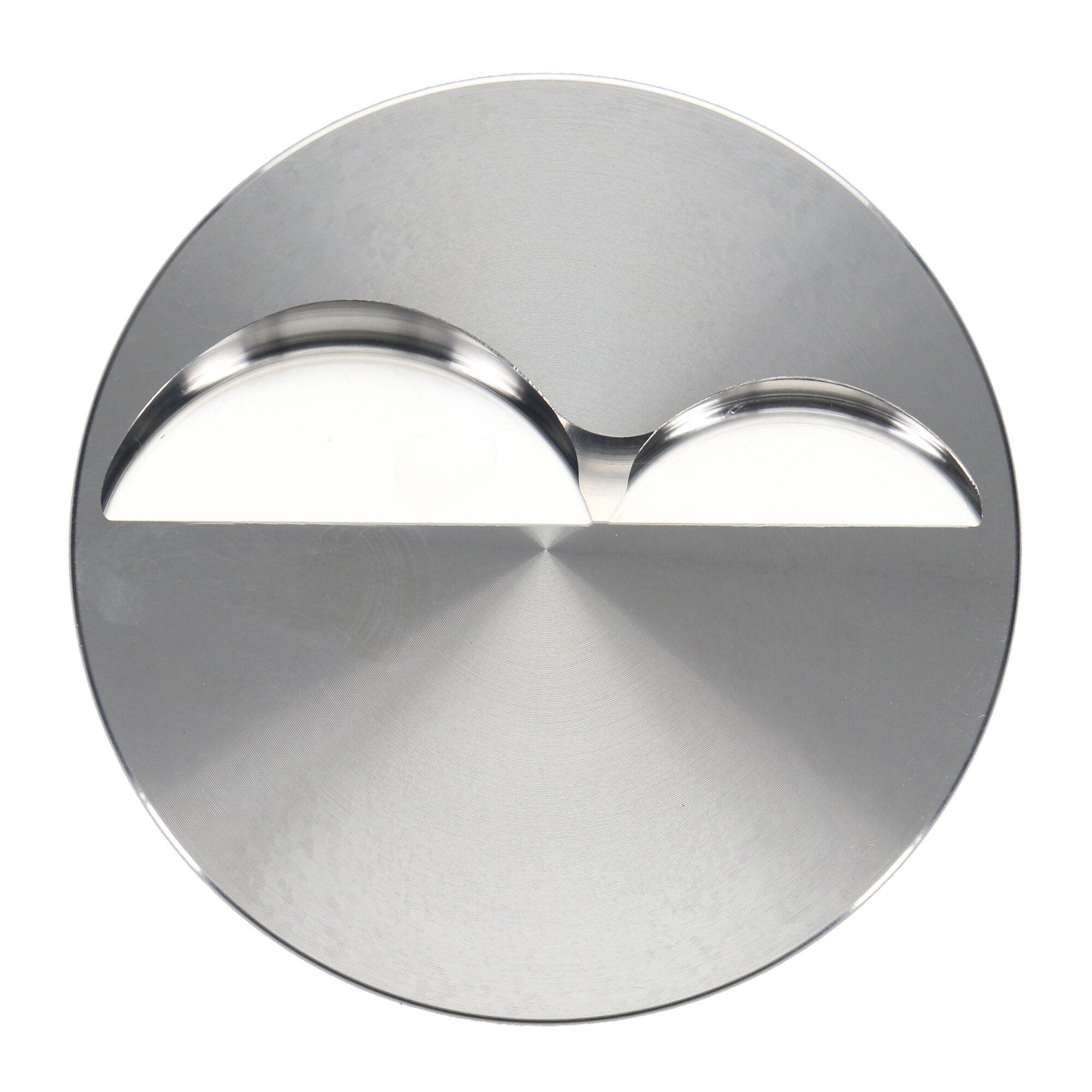

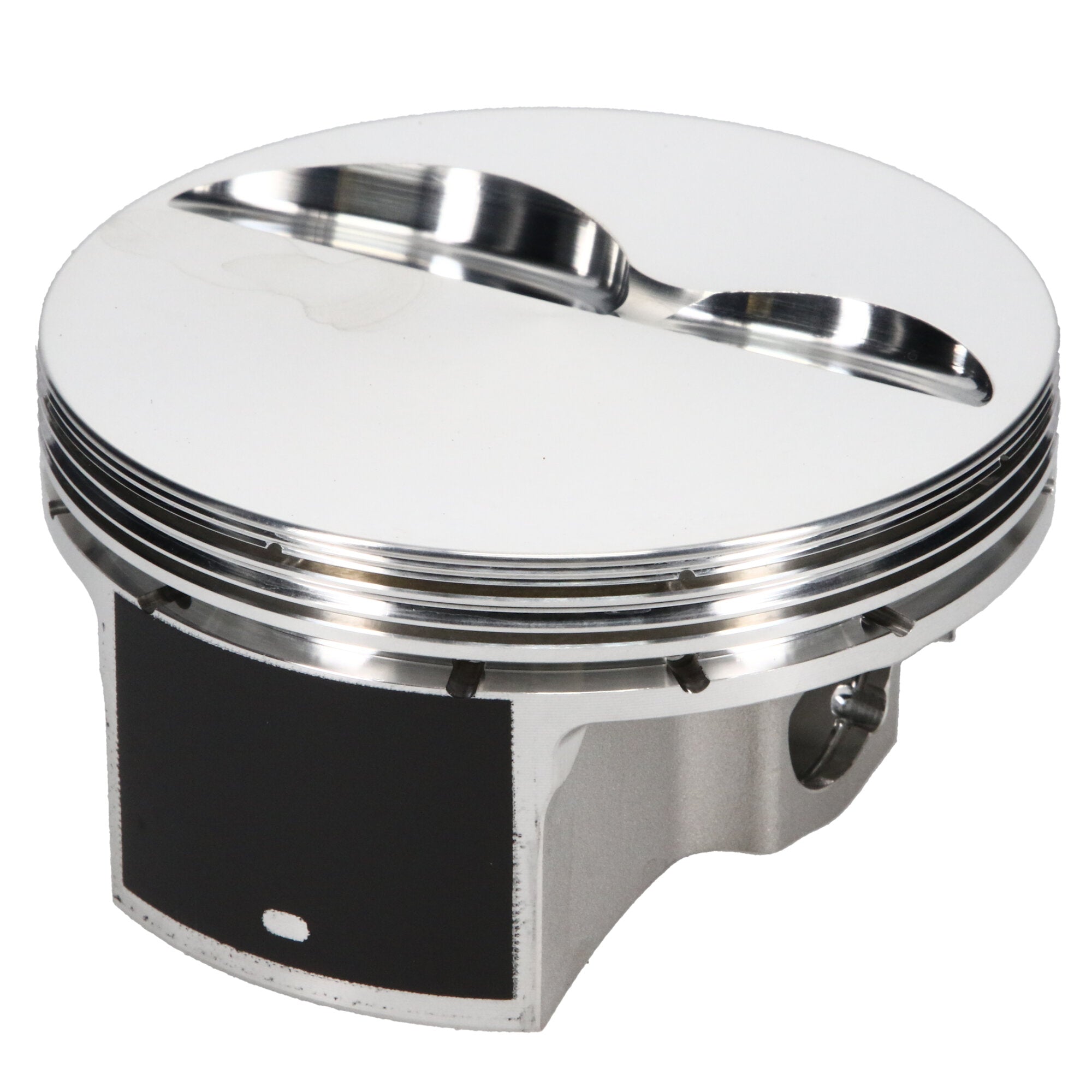

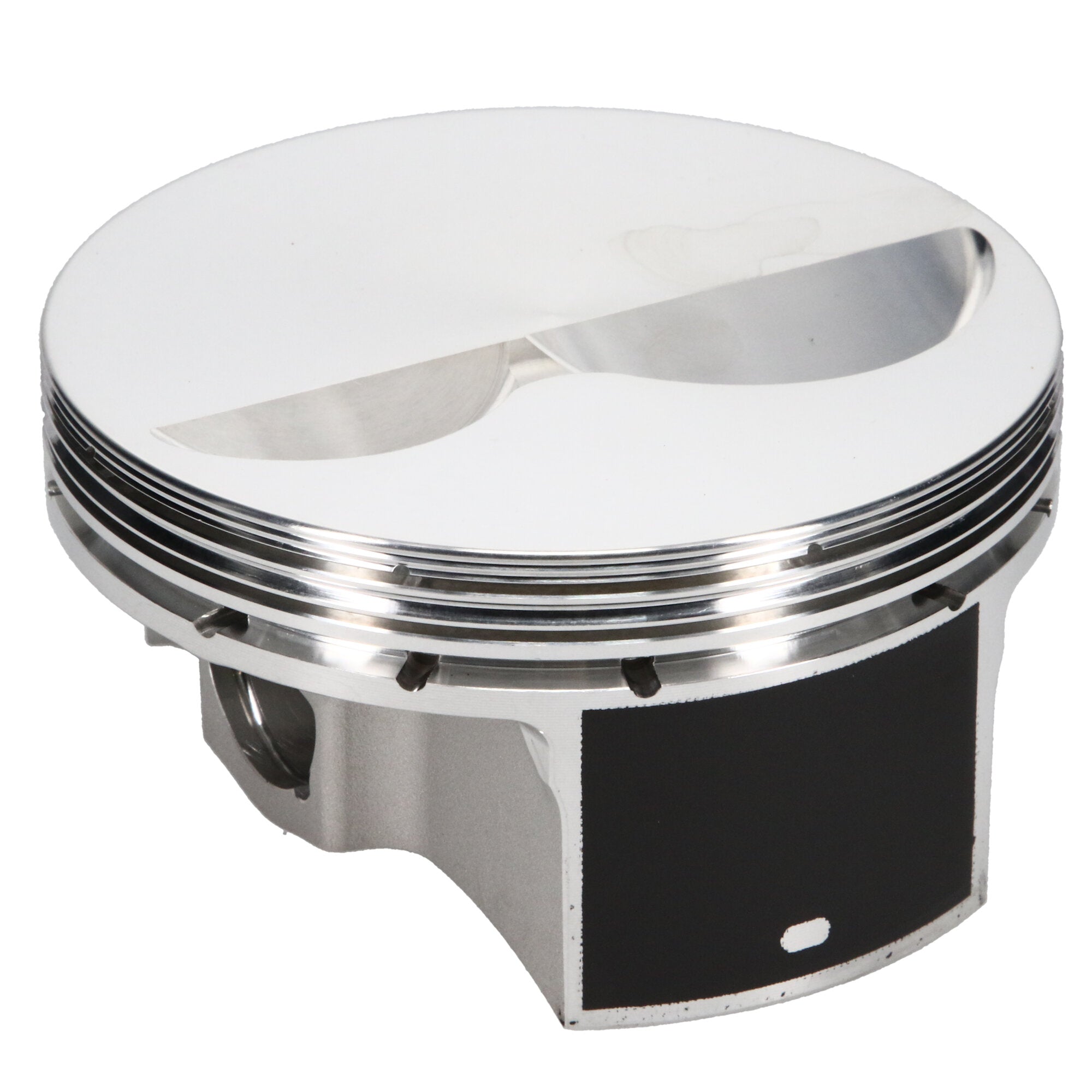

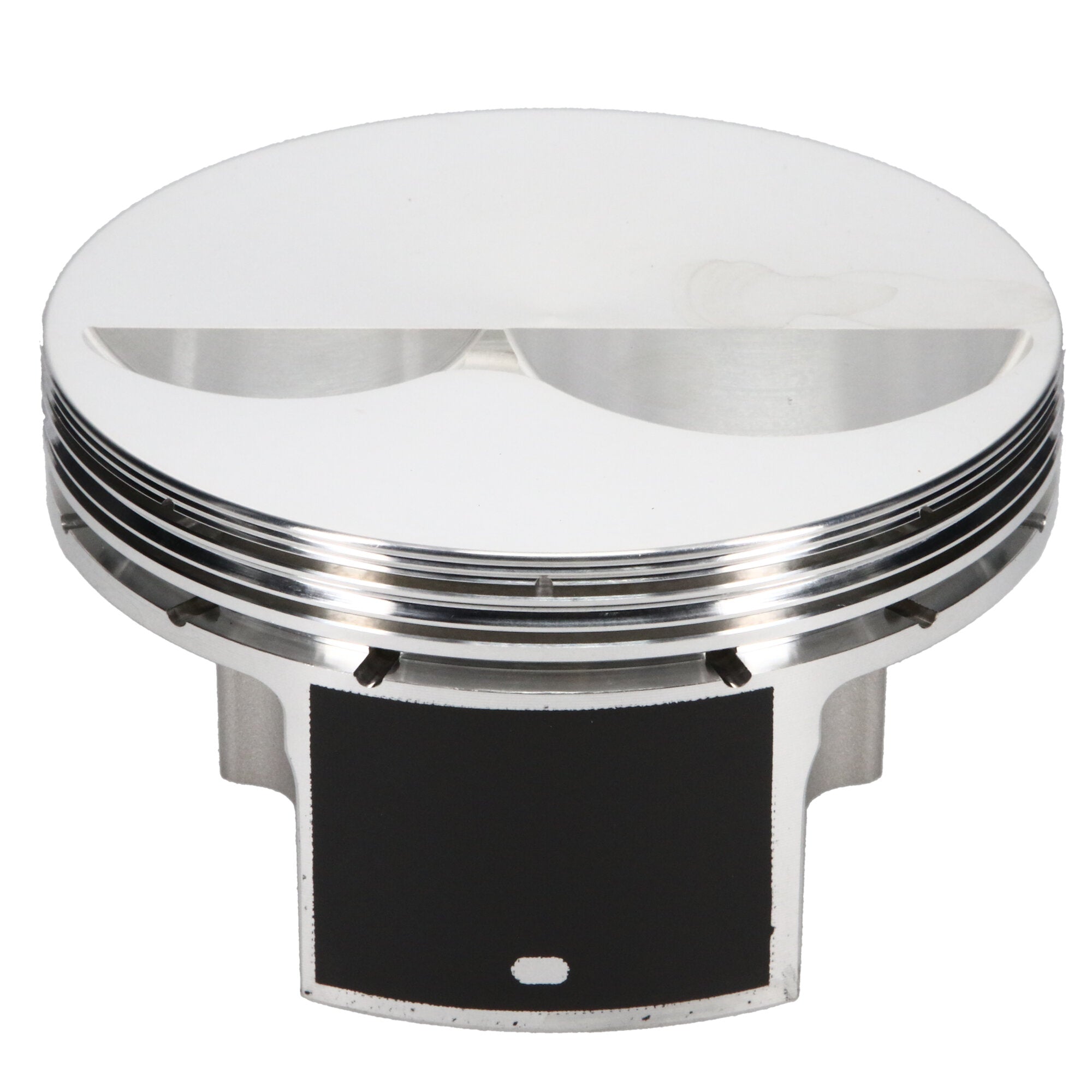

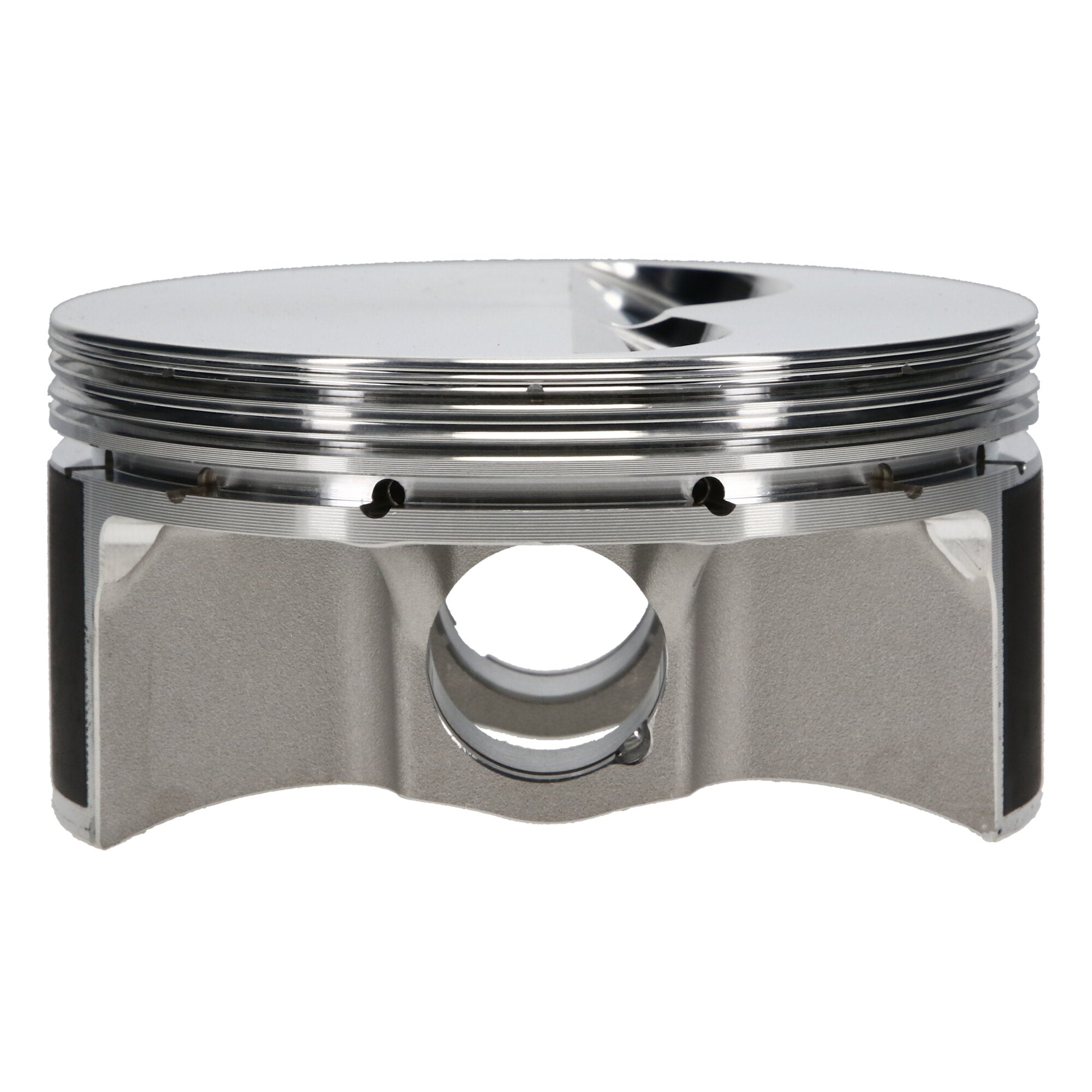

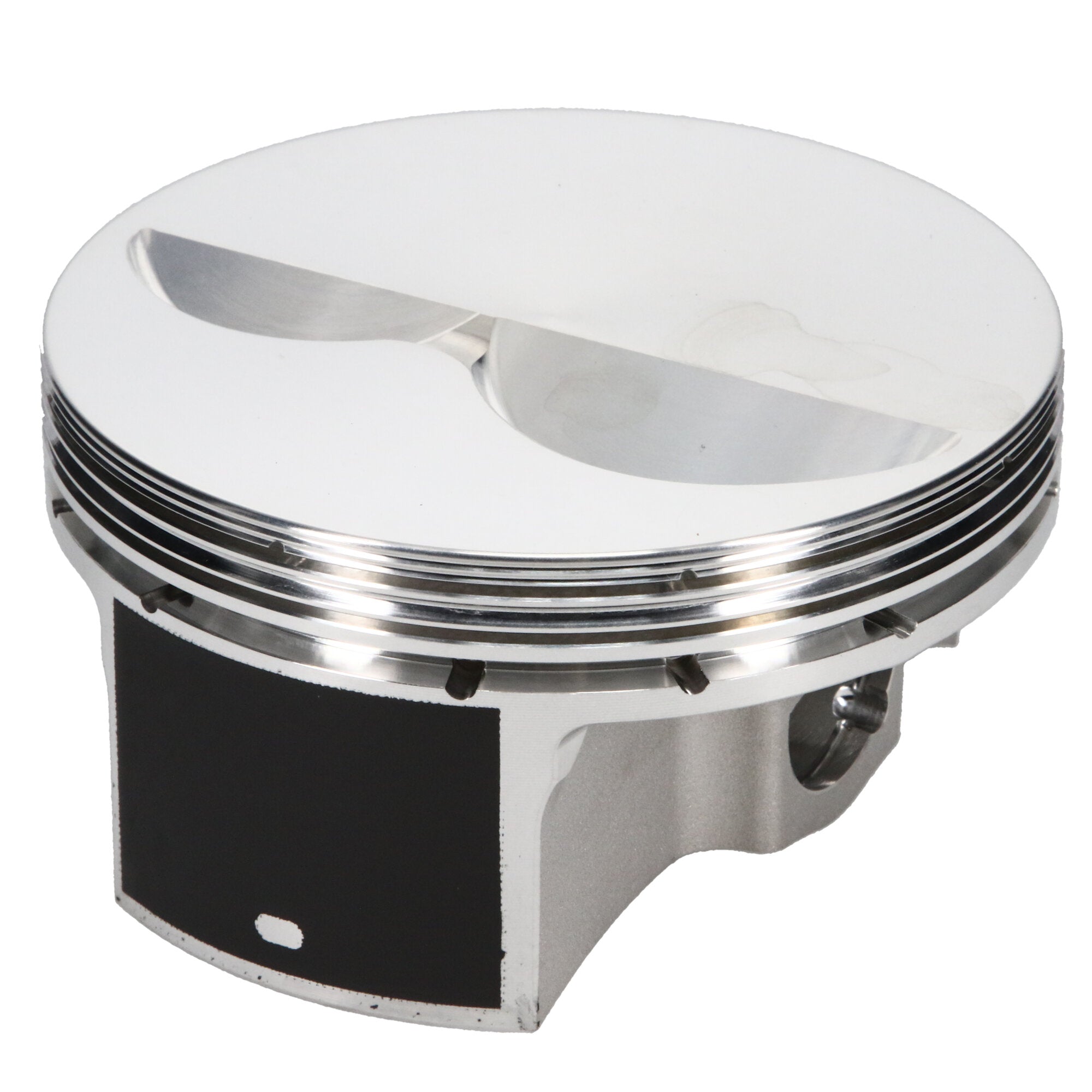

Piston Set, 2618, Flat Top, 4.030 Bore, 1.000 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.000 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.030 Bore, Flat, Set of 8 |
| Piston Pin Length |
2.350 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Head Type |
Flat |
| Ringset Included |
No |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.000 in. CH, -4.10 CC |
| Piston Pin Material |
5115 |
| Engine |
Small Block |
| Forging Type |
FSR |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.149 |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Title |
JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Out of Stock Message |
Call for Availability |
| Piston Pin Outside Diameter |
0.927 |
| Piston Volume |
-4.10 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0440 |
| Piston Quantity |
8 |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Make |
CHEVROLET |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Product Market |
Domestic |
| Compression Height |
1.000 |
| Top Compression Ring Thickness |
0.0436 |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.350 |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.927 |
| Add-On |
927-073-MW |
| Piston Average Weight |
341 |
| Industry |
Automotive |
| Add-On |
J71408-4030-5 |
| Add-On |
927-2350-15-51C |
| Bore Diameter |
4.030 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
