As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

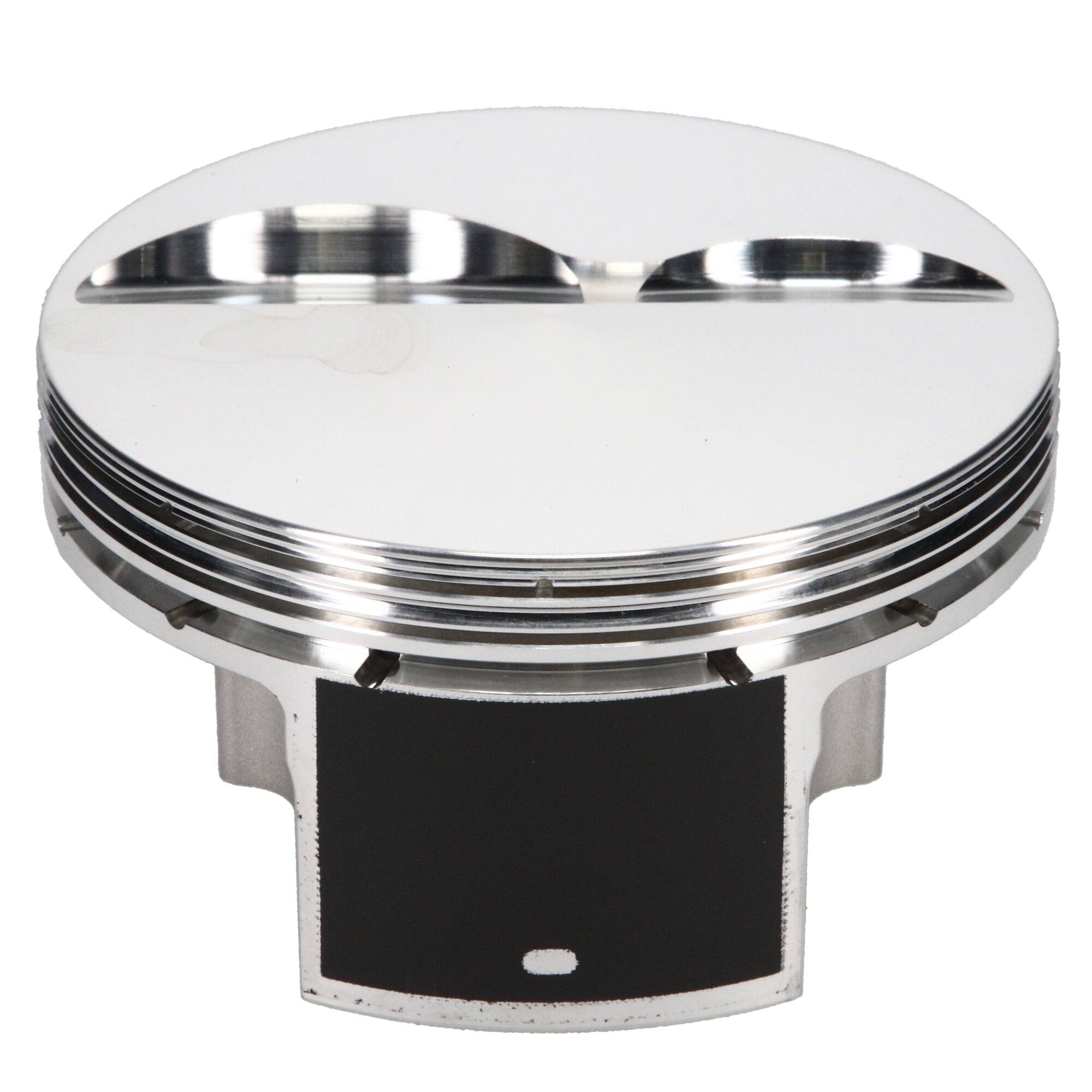

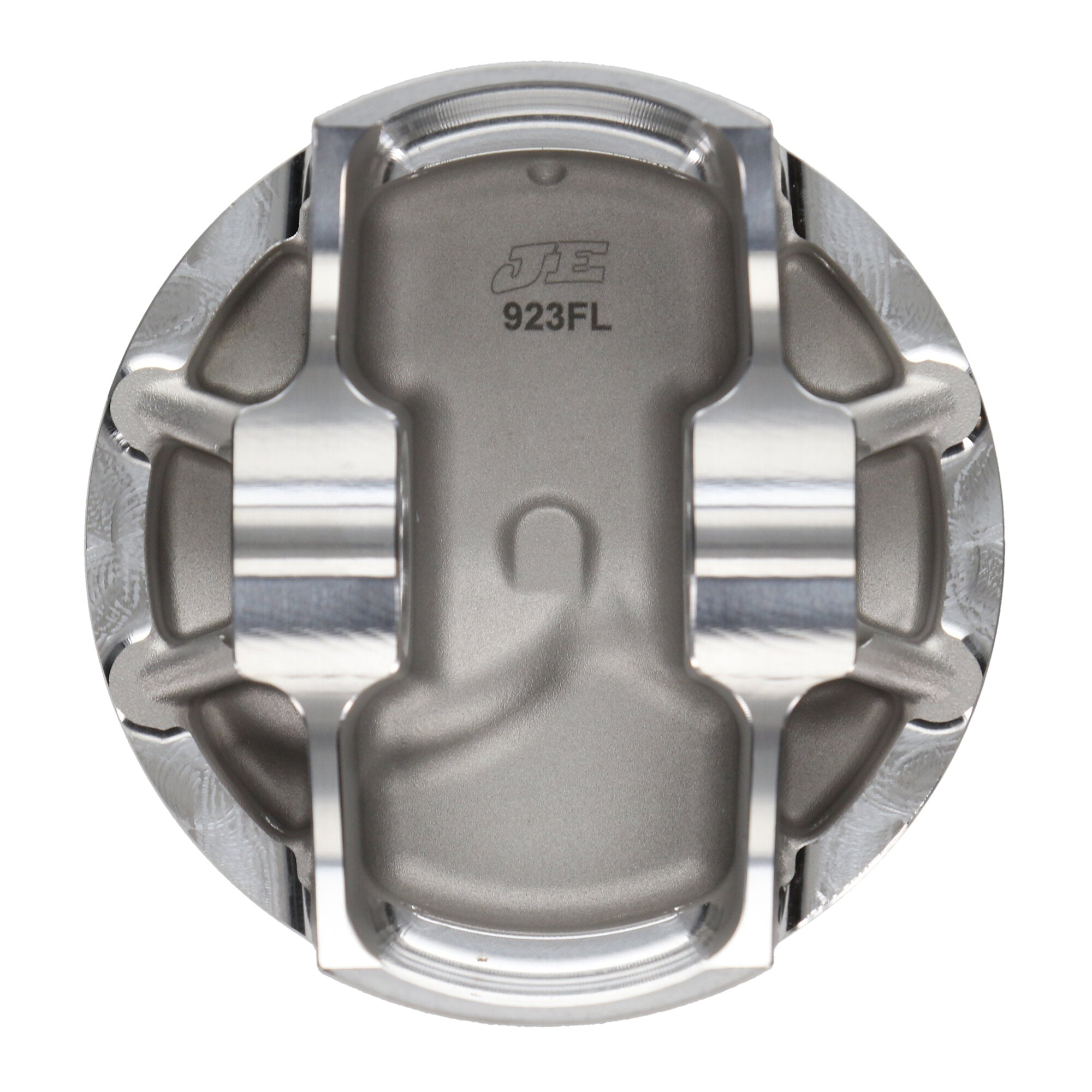

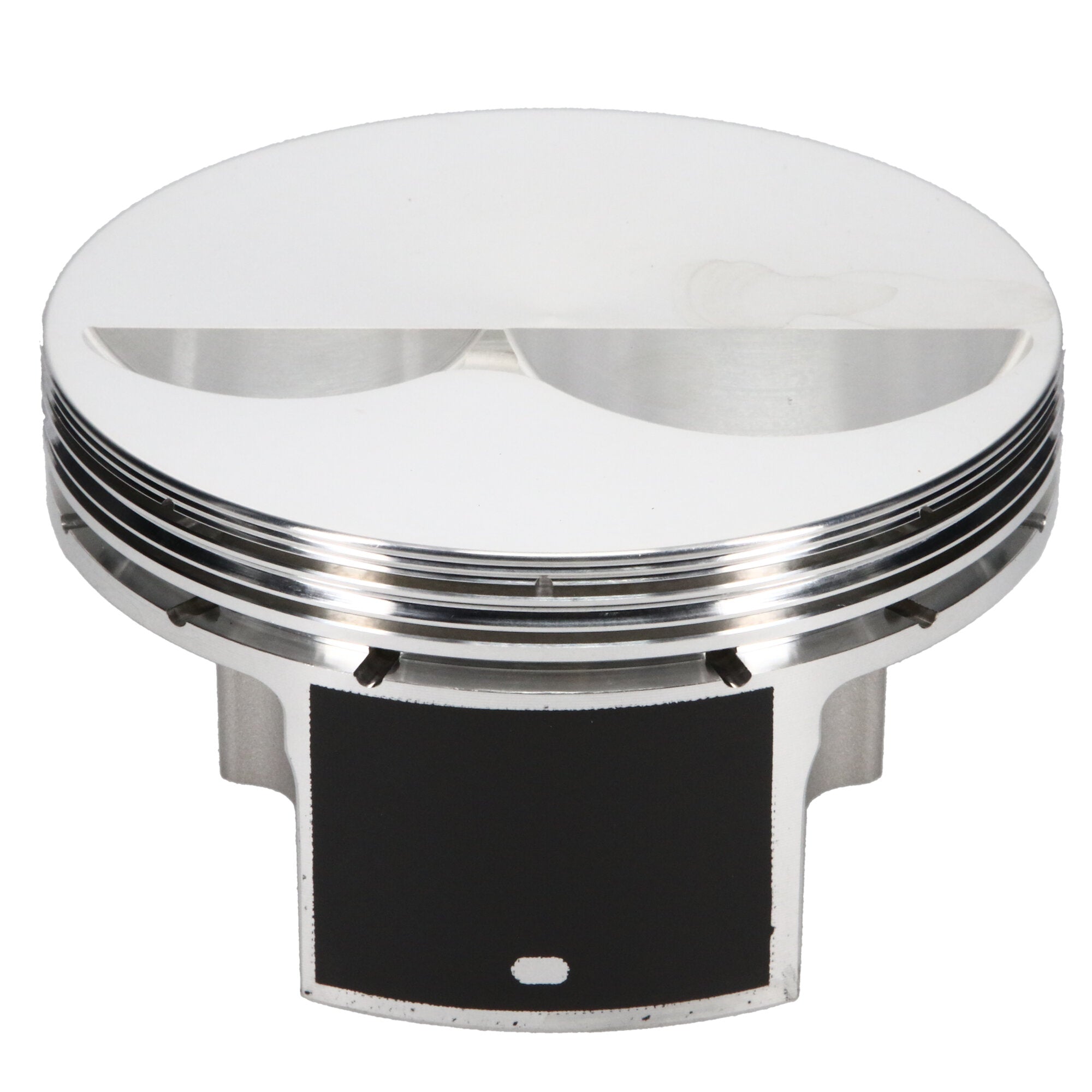

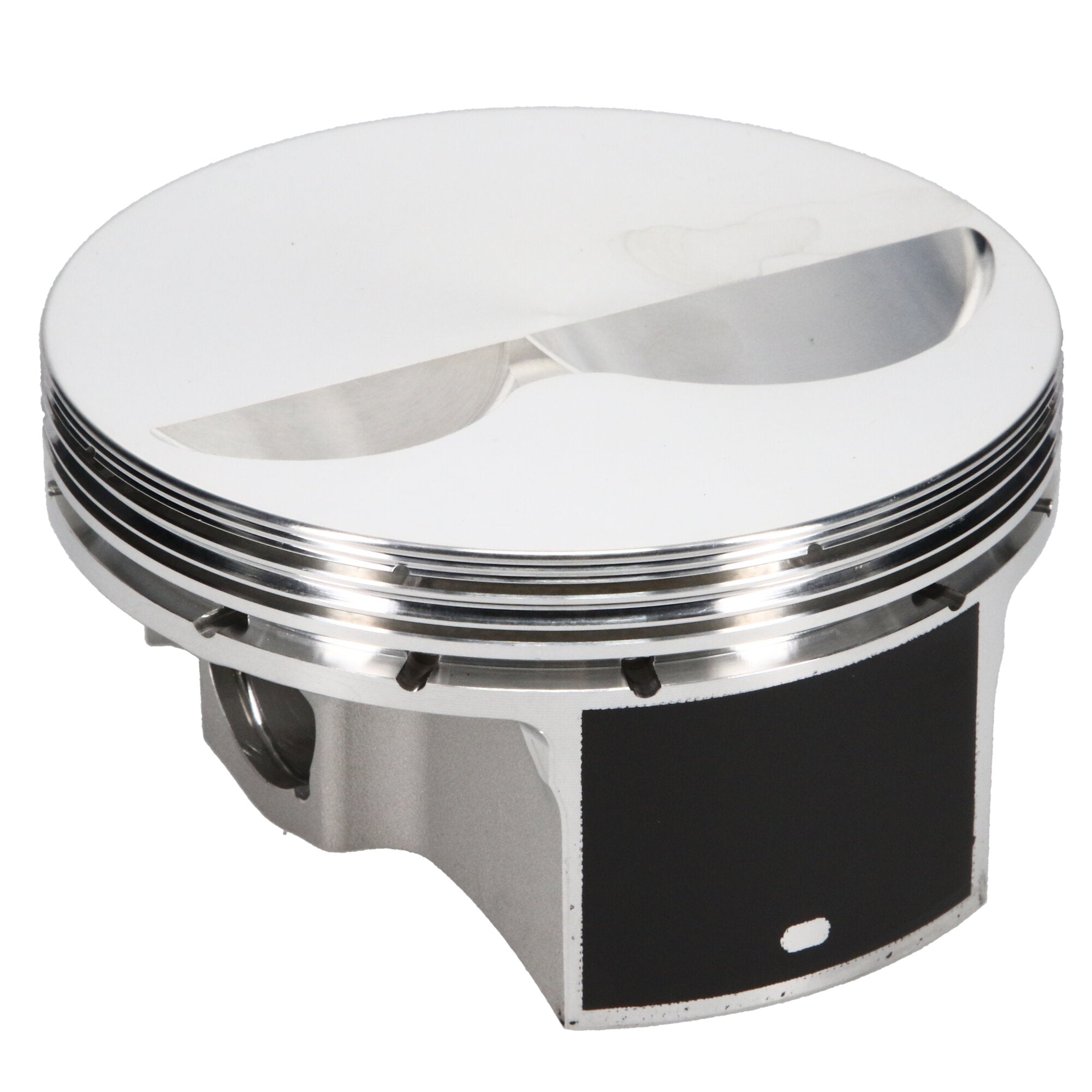

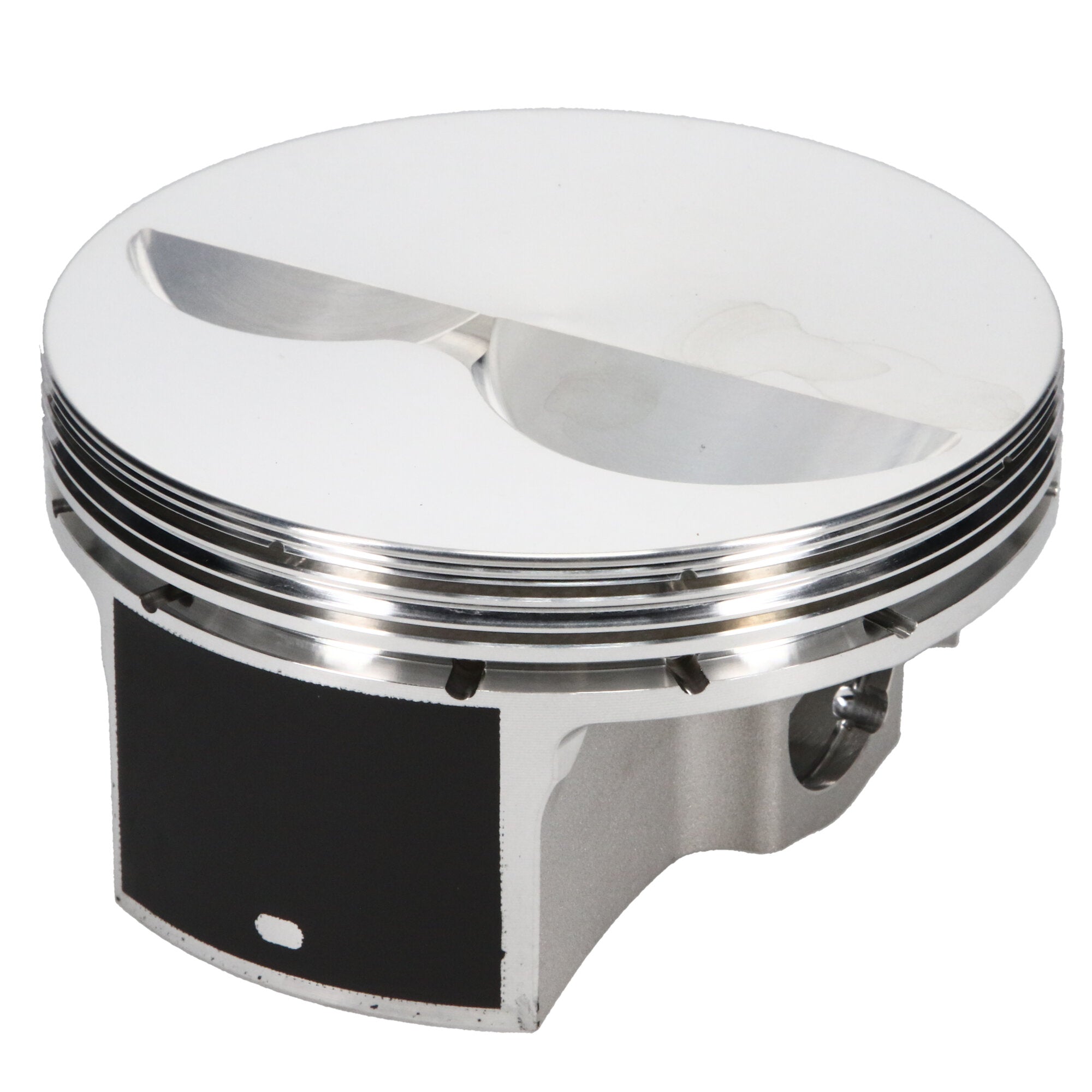

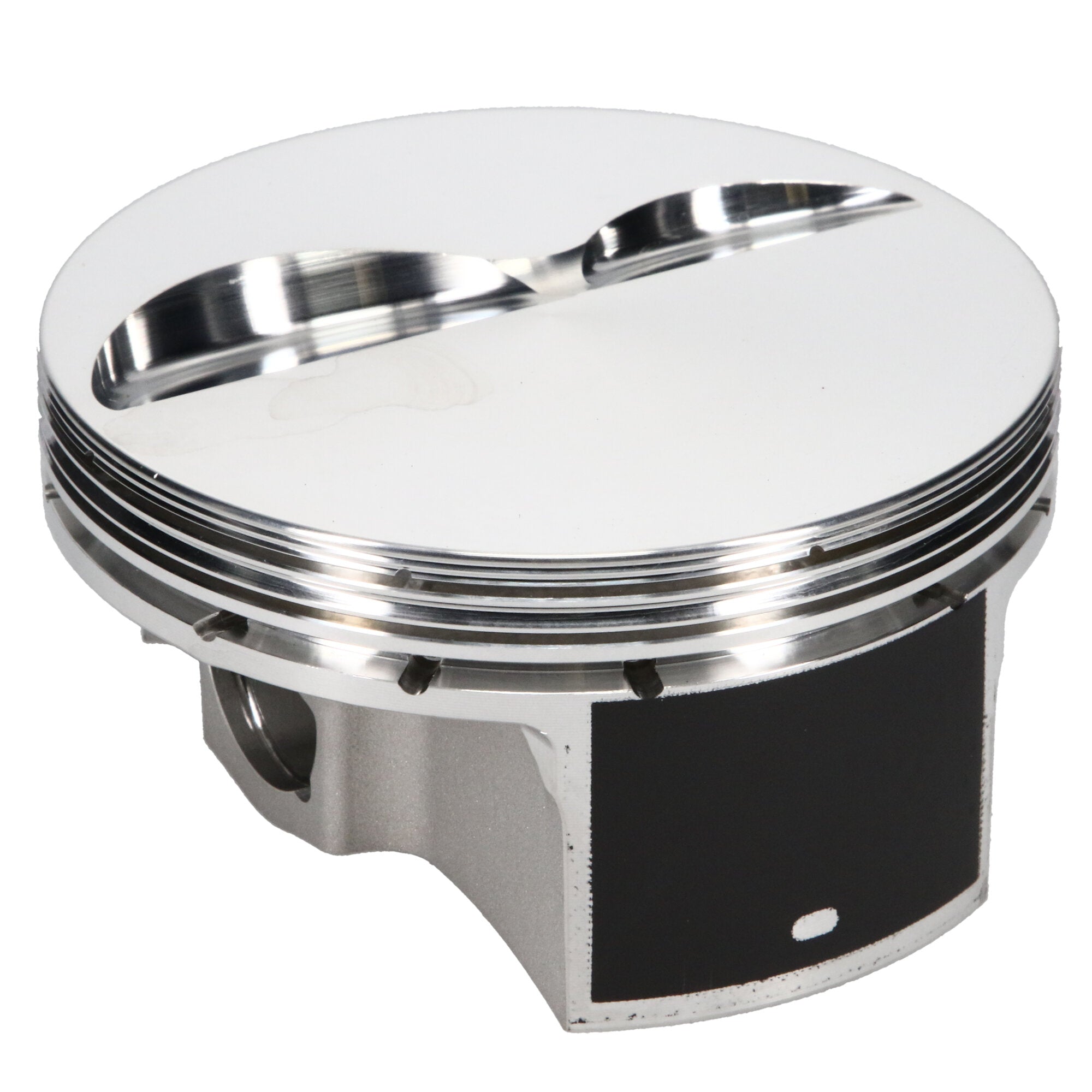

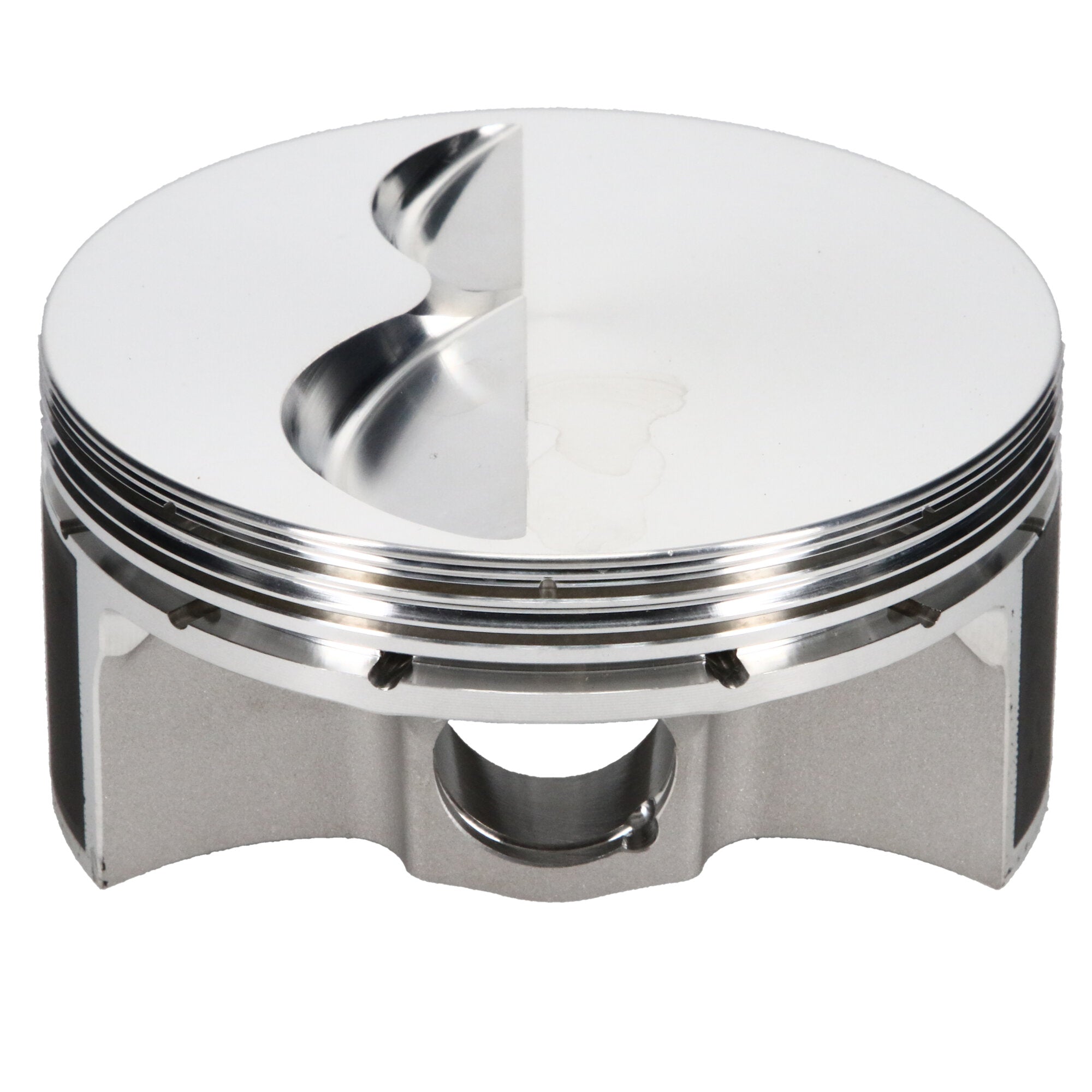

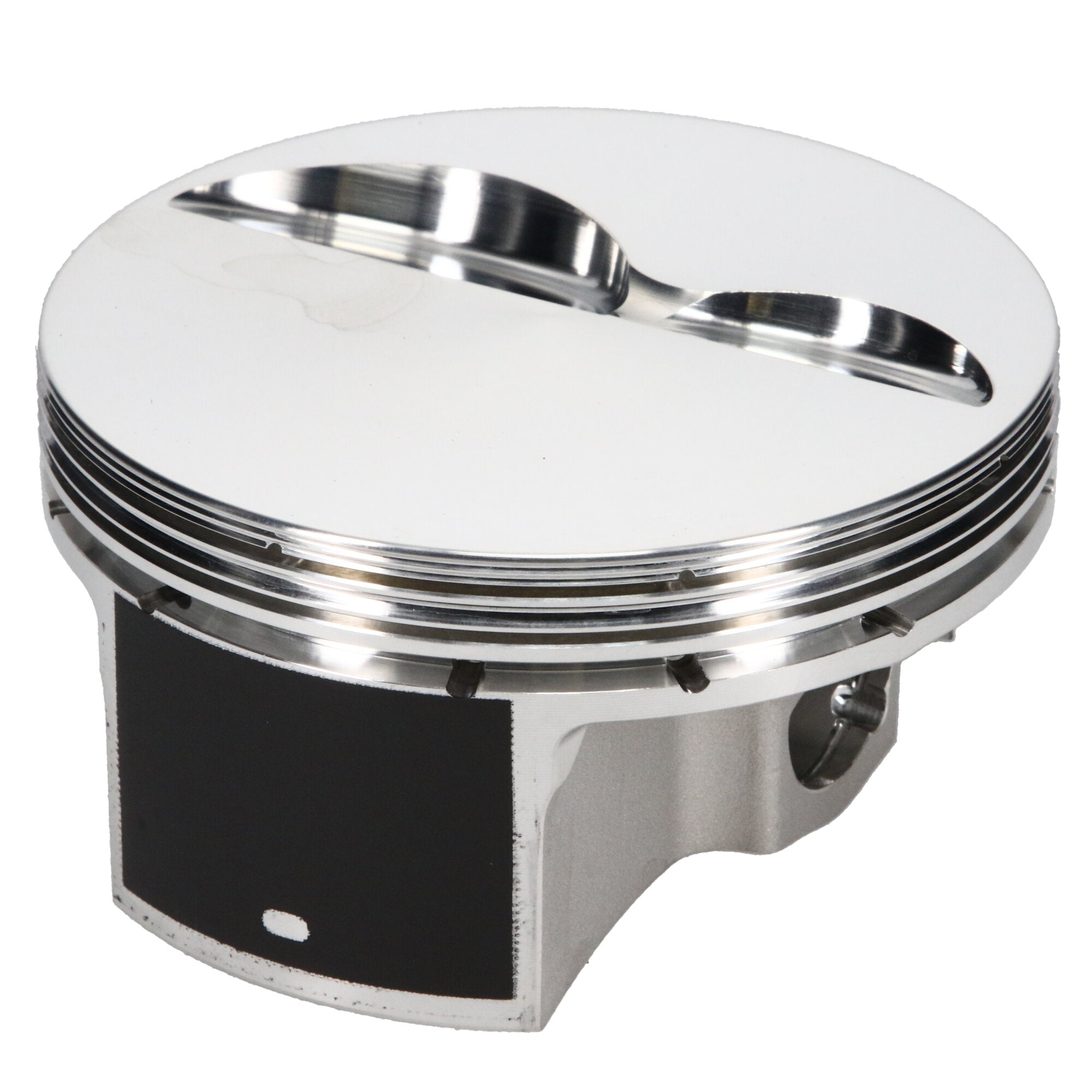

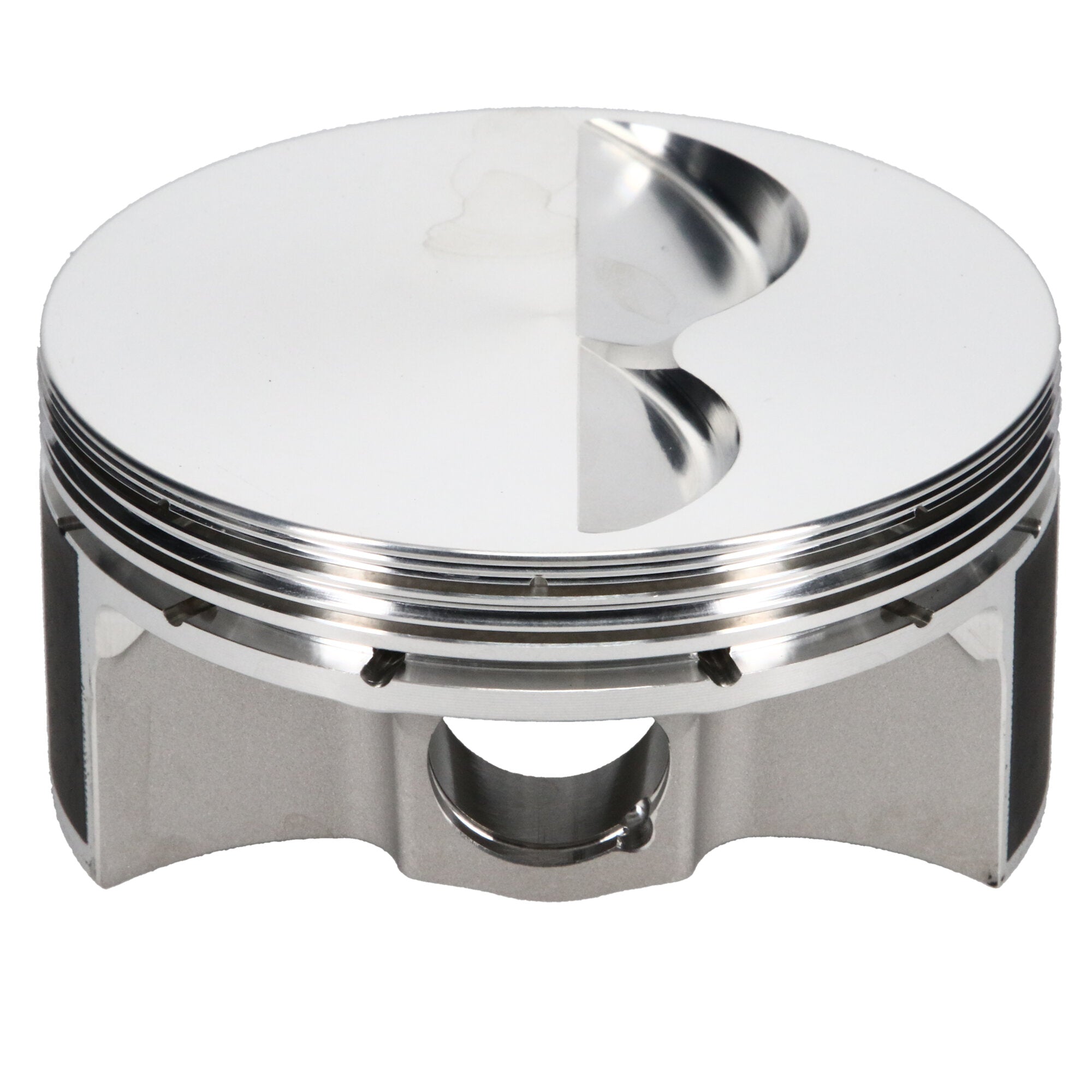

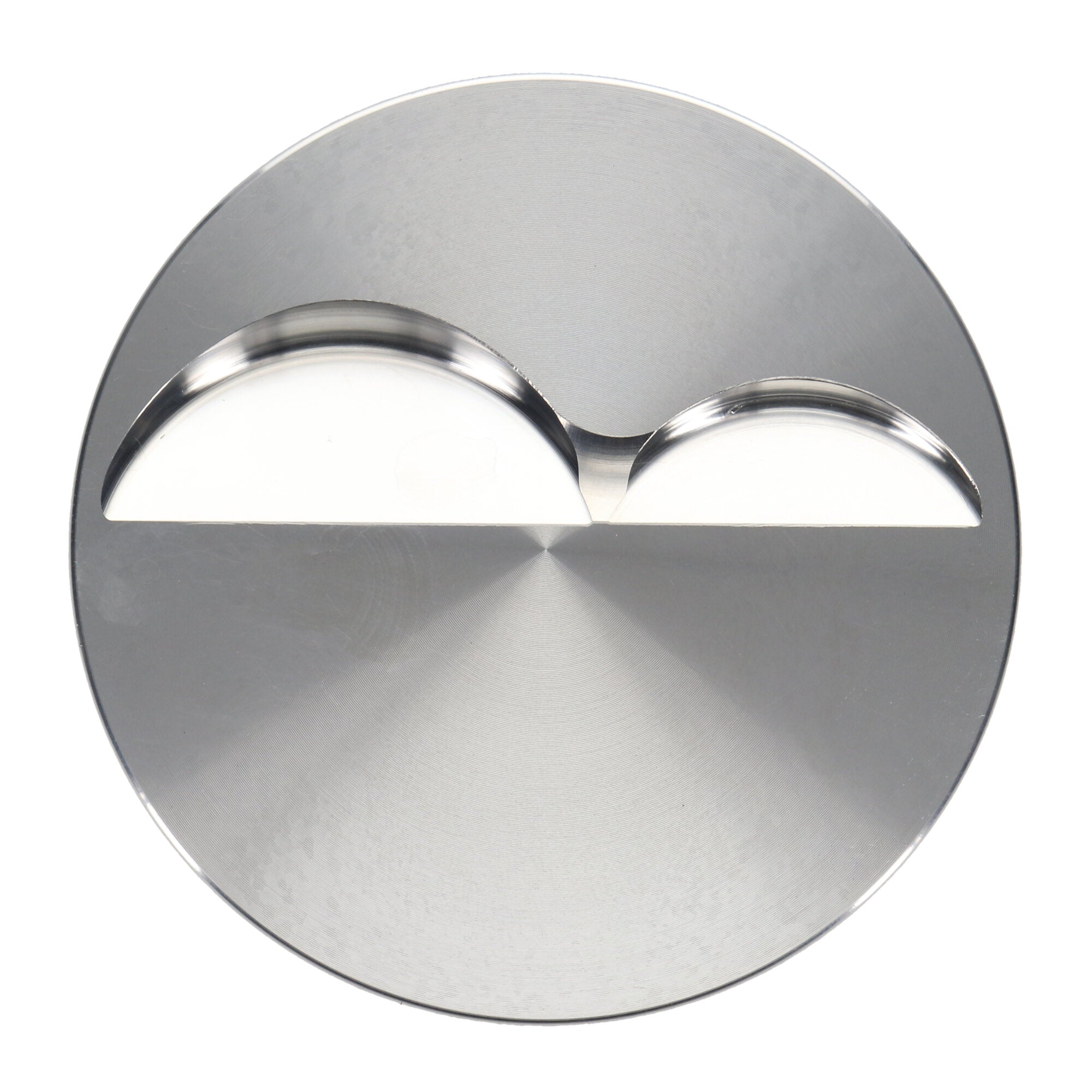

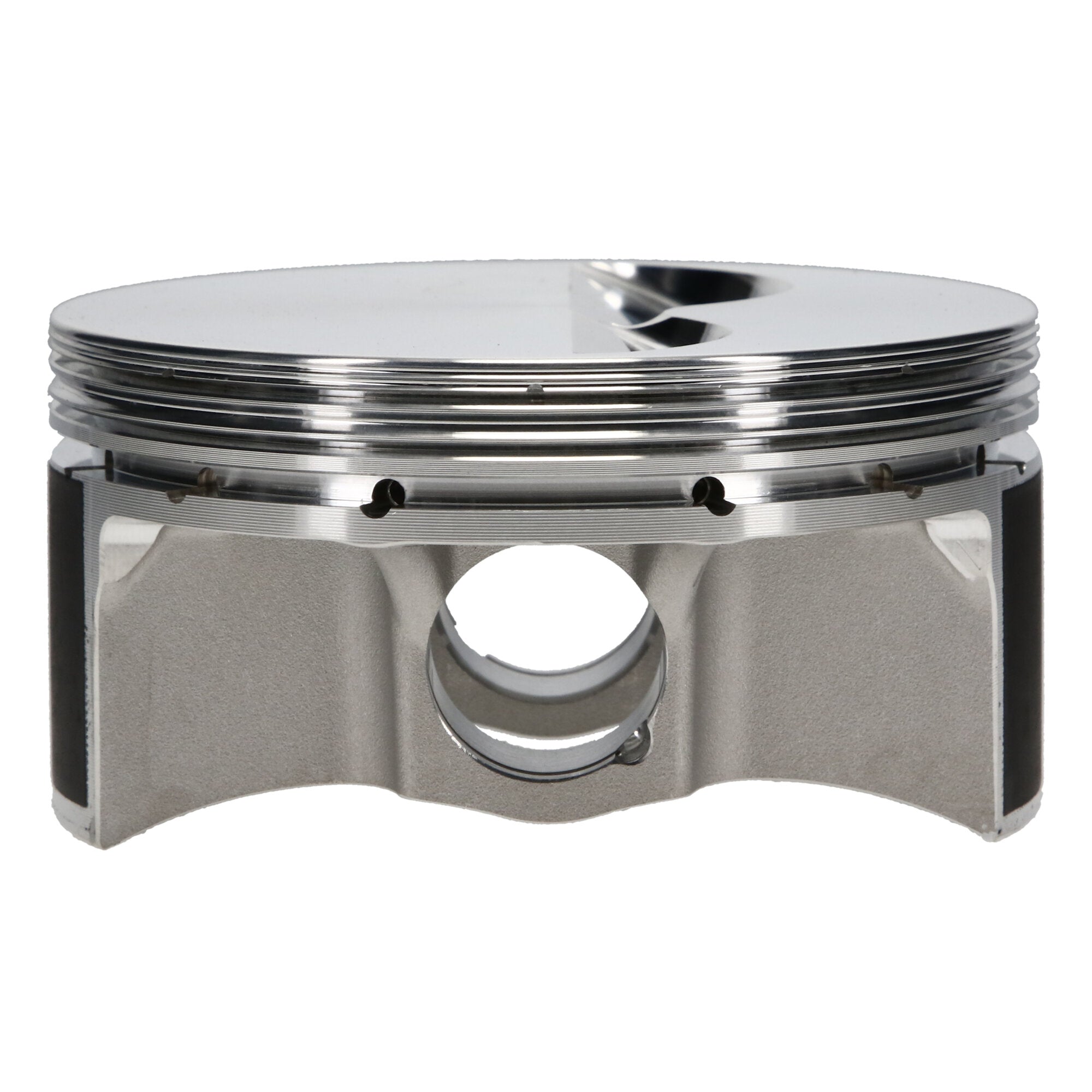

Piston Set, 2618, Flat Top, 4.040 Bore, 1.125 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.125 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350, 4.040 Bore, Flat, Set of 8 |
| Piston Pin Material |
5115 |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.125 |
| Make |
CHEVROLET |
| Piston Pin Outside Diameter |
0.927 |
| Piston Quantity |
8 |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Volume |
-4.10 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.040 in. Bore, Piston Kit |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.350 |
| Industry |
Automotive |
| Add-On |
927-2350-15-51C |
| Piston Average Weight |
357 |
| Engine Type |
ICE |
| Piston Pin Length |
2.350 |
| Top Compression Ring Thickness |
0.0436 |
| Oil Ring Thickness |
0.119 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
4.040 |
| Engine |
Small Block |
| Add-On |
J71408-4040-5 |
| Add-On |
927-073-MW |
| Forging Type |
FSR |
| Second Compression Ring Thickness |
0.0440 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.040 in. Bore - 1.125 in. CH, -4.10 CC |
| Product Market |
Domestic |
| Make - Web |
Chevrolet |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Ringset Included |
No |
| Prop 65 Yes/No |
Yes |
| Piston Series |
JE Pistons |
| Piston Head Type |
Flat |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
