As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

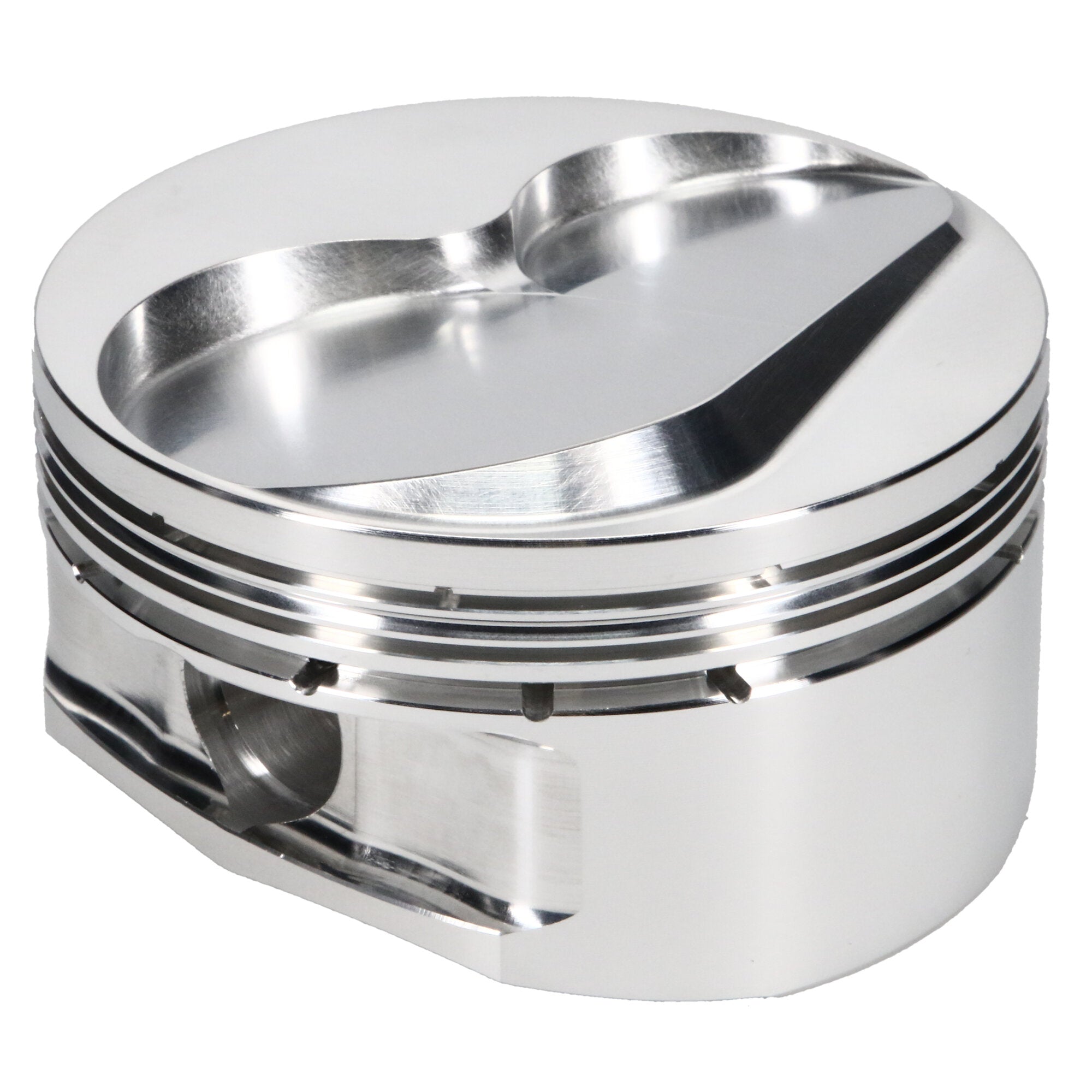

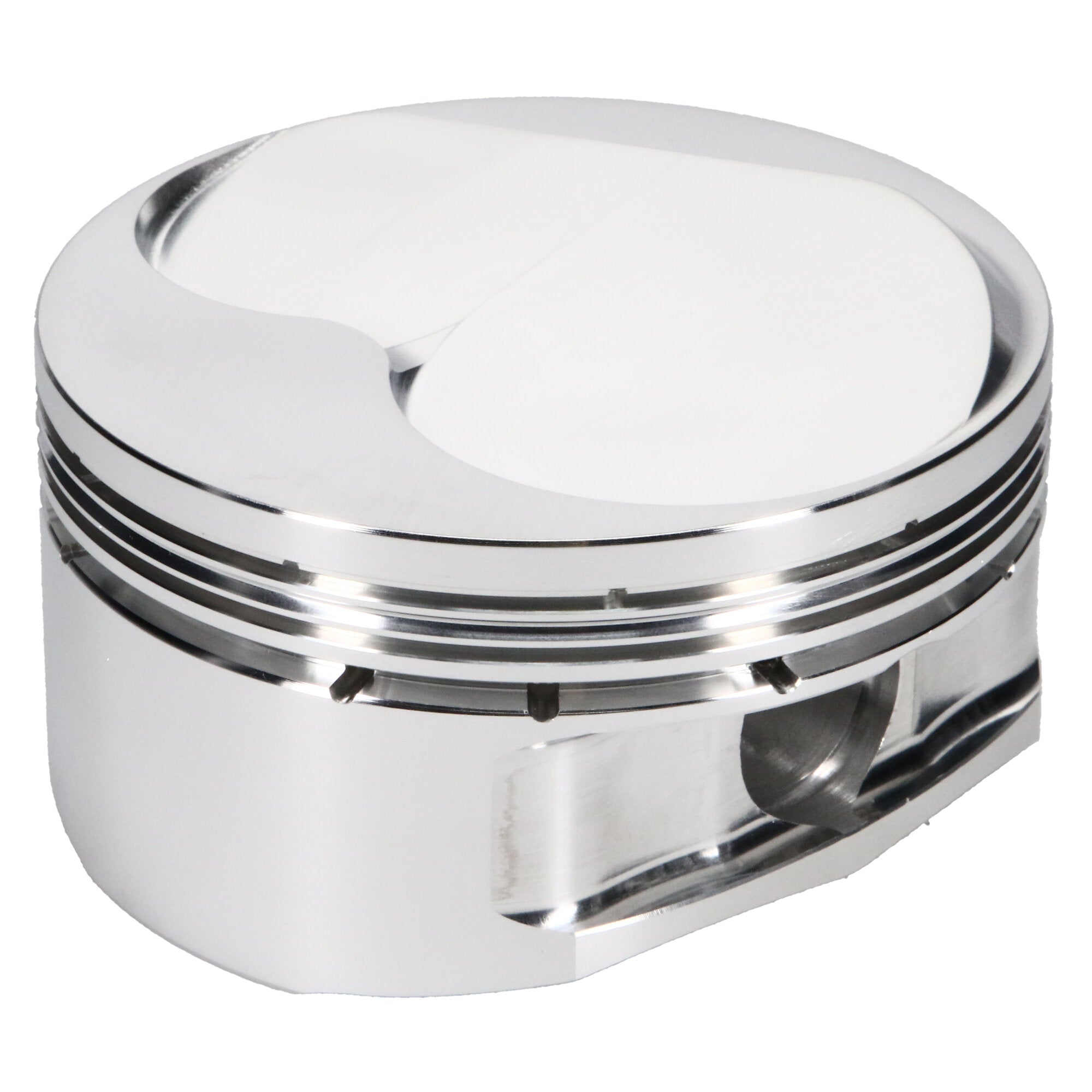

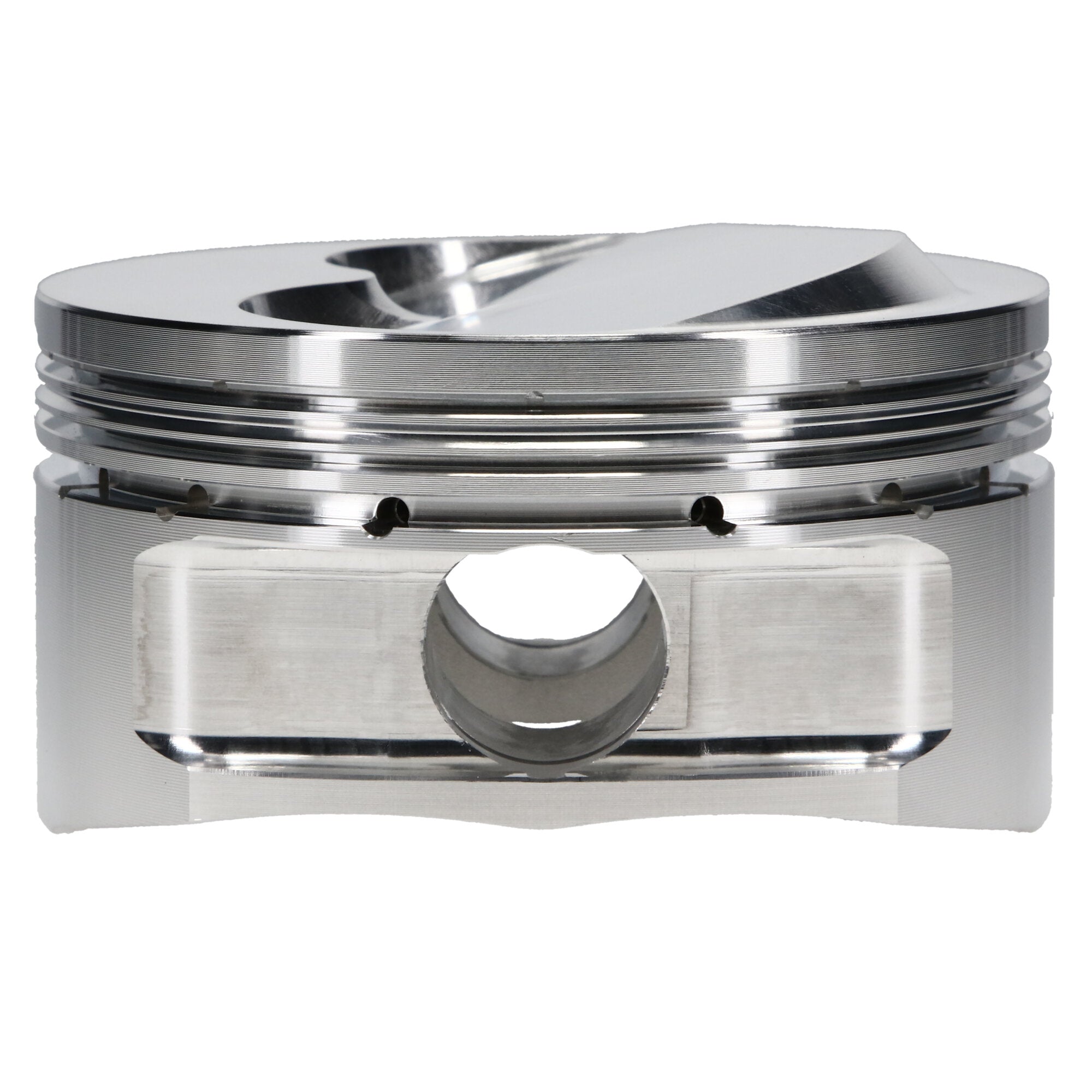

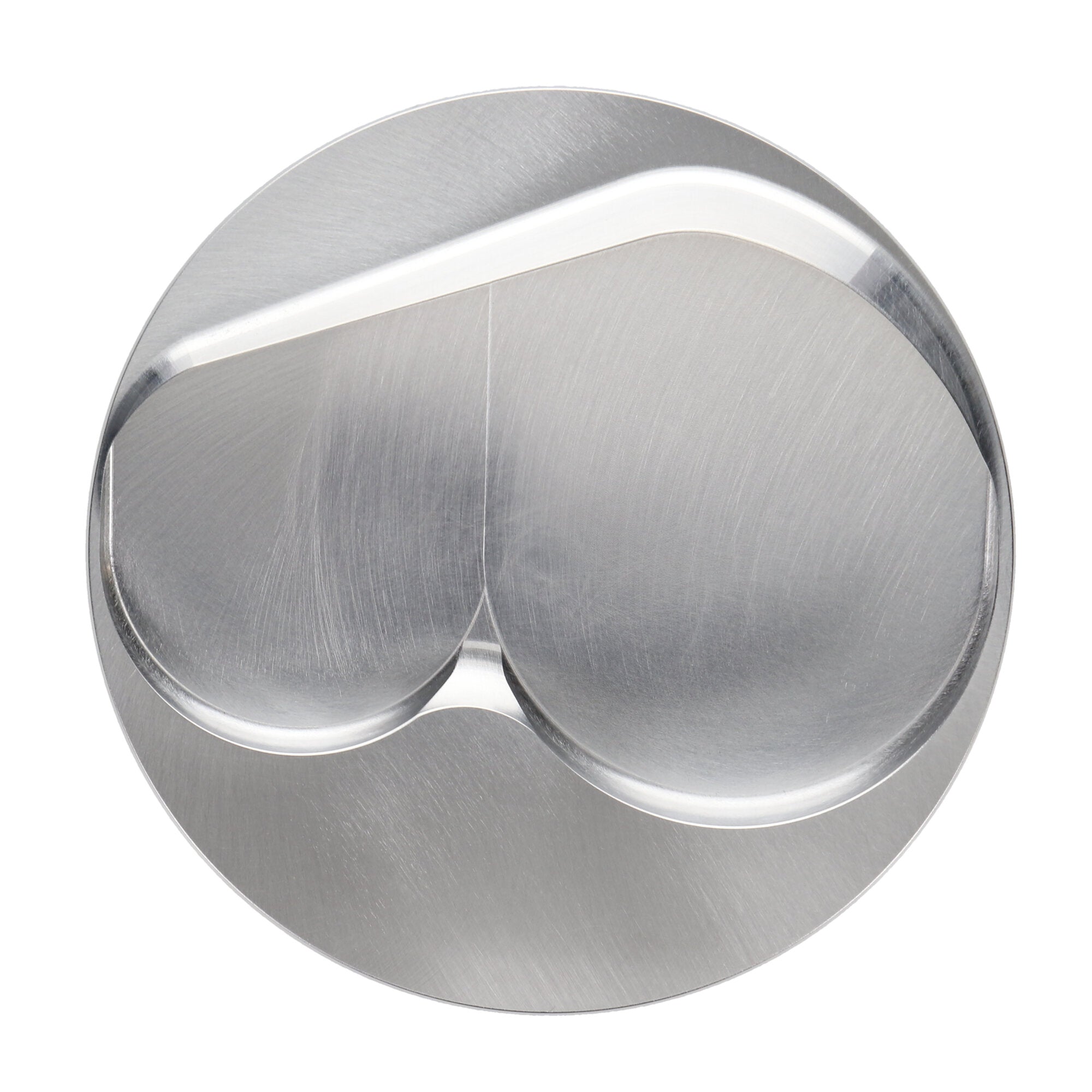

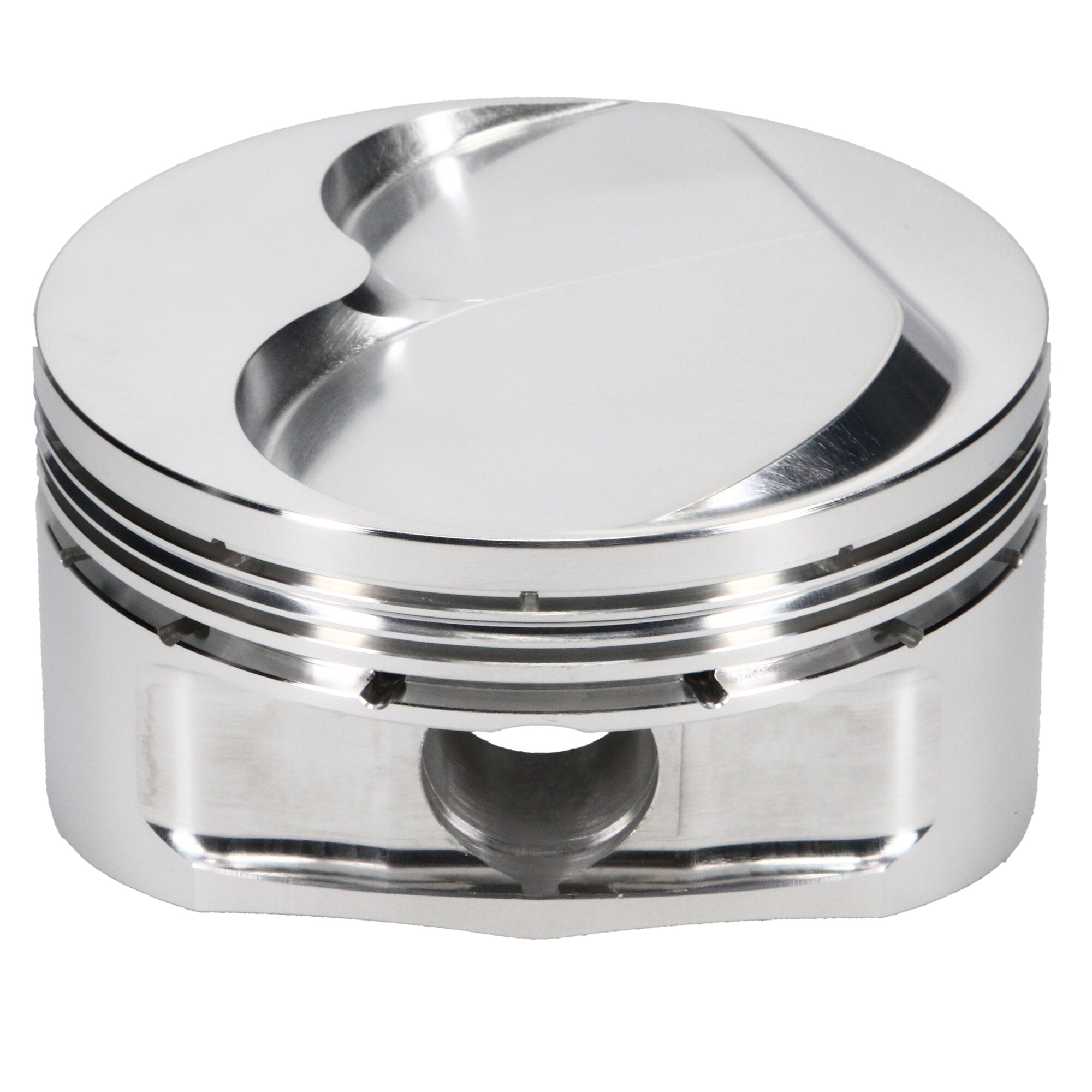

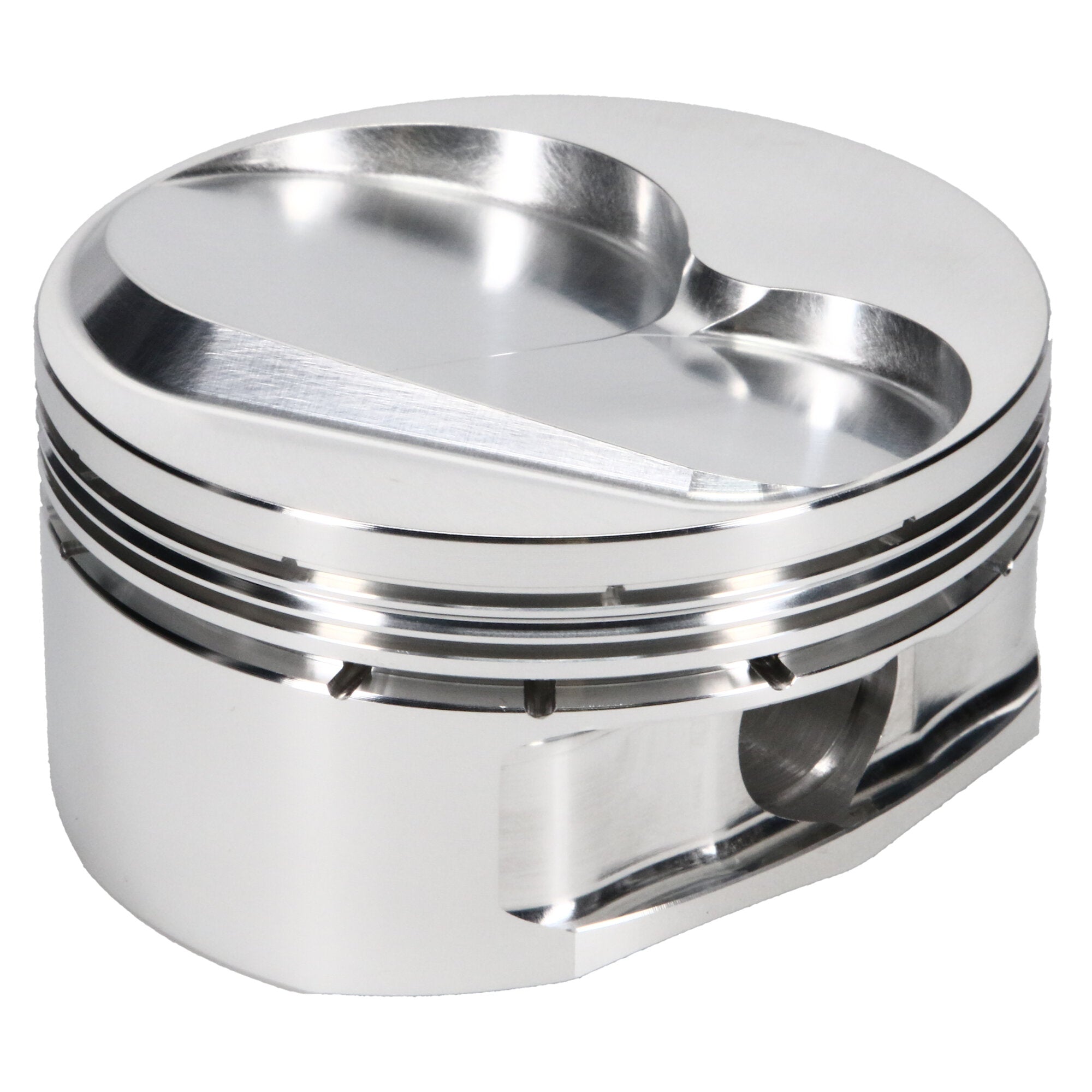

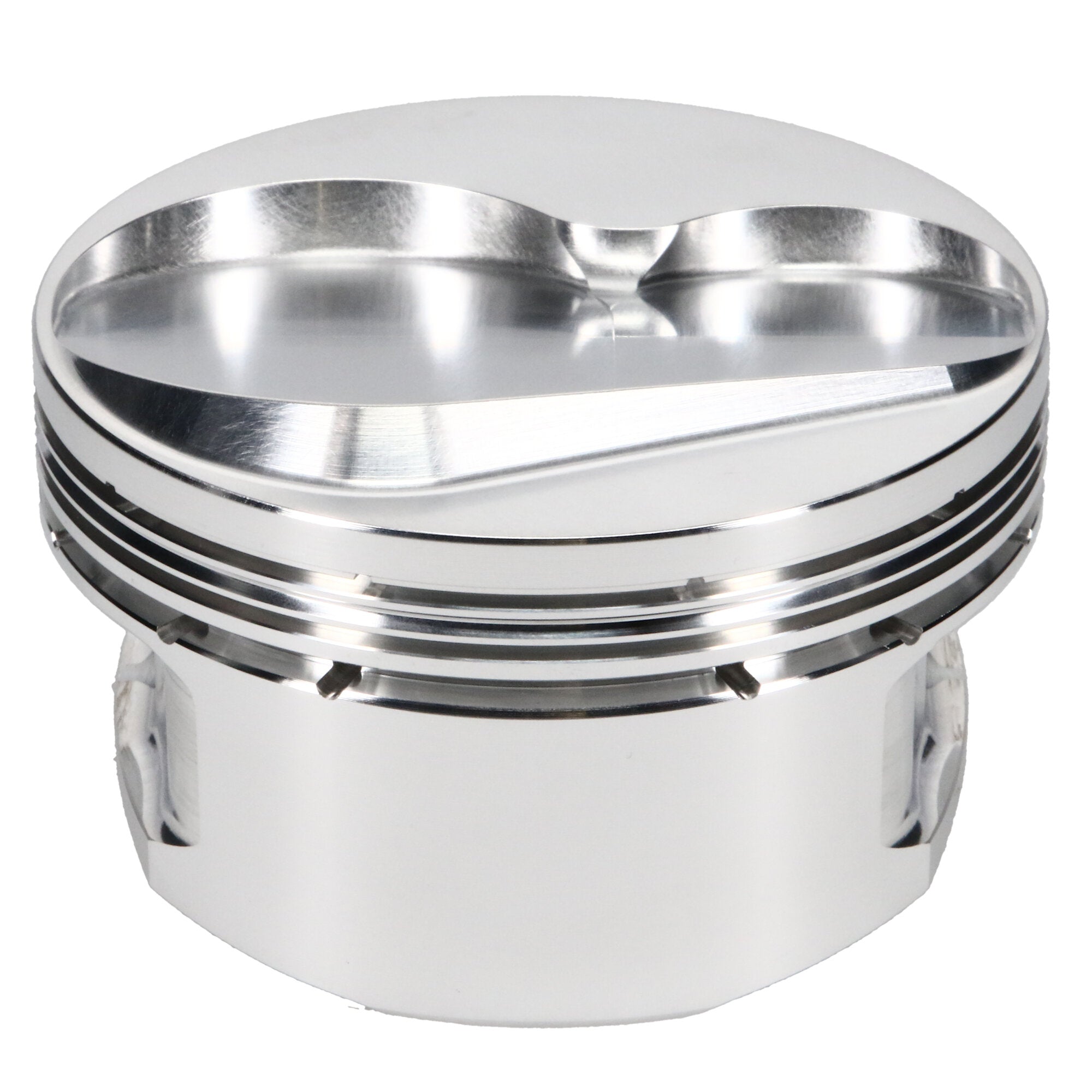

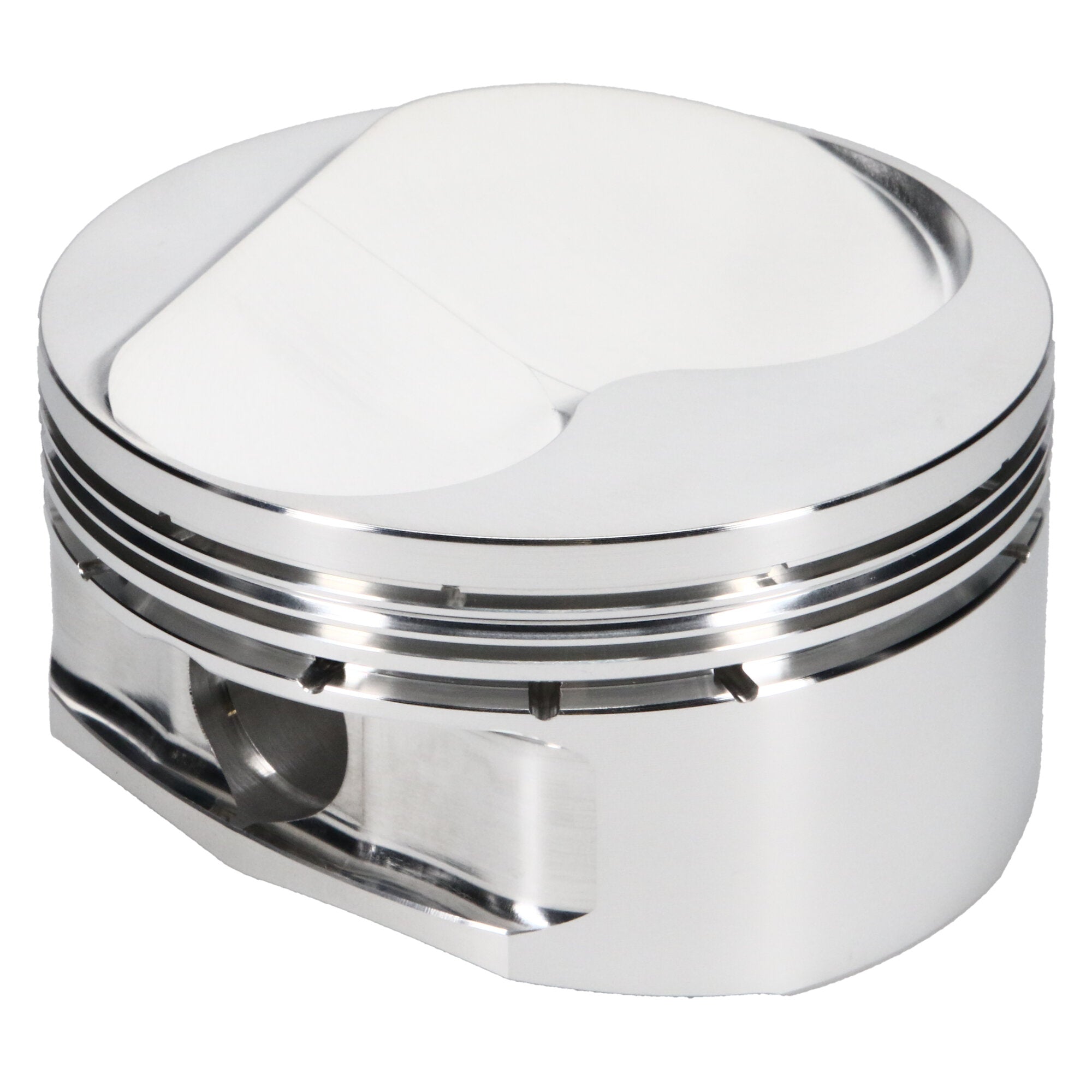

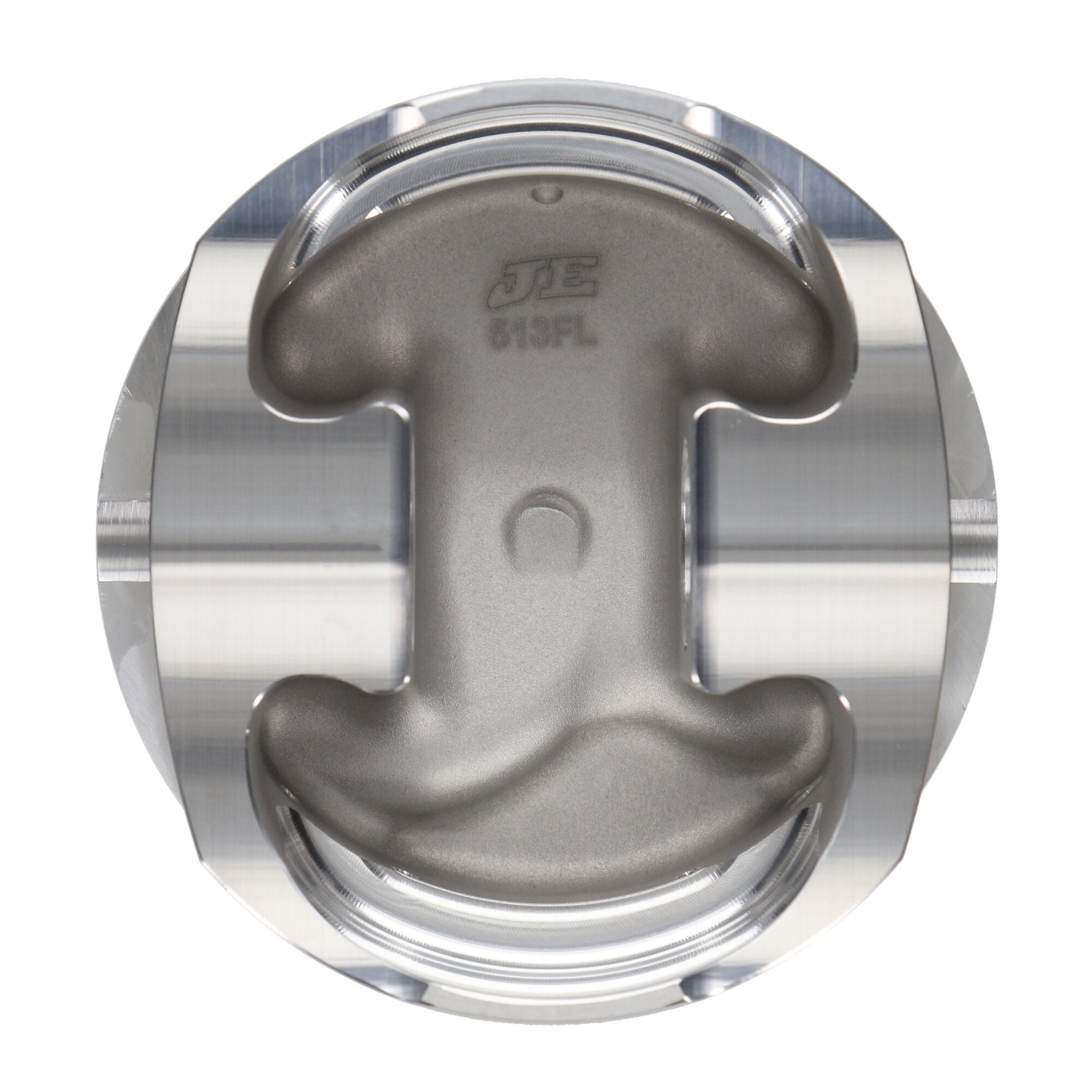

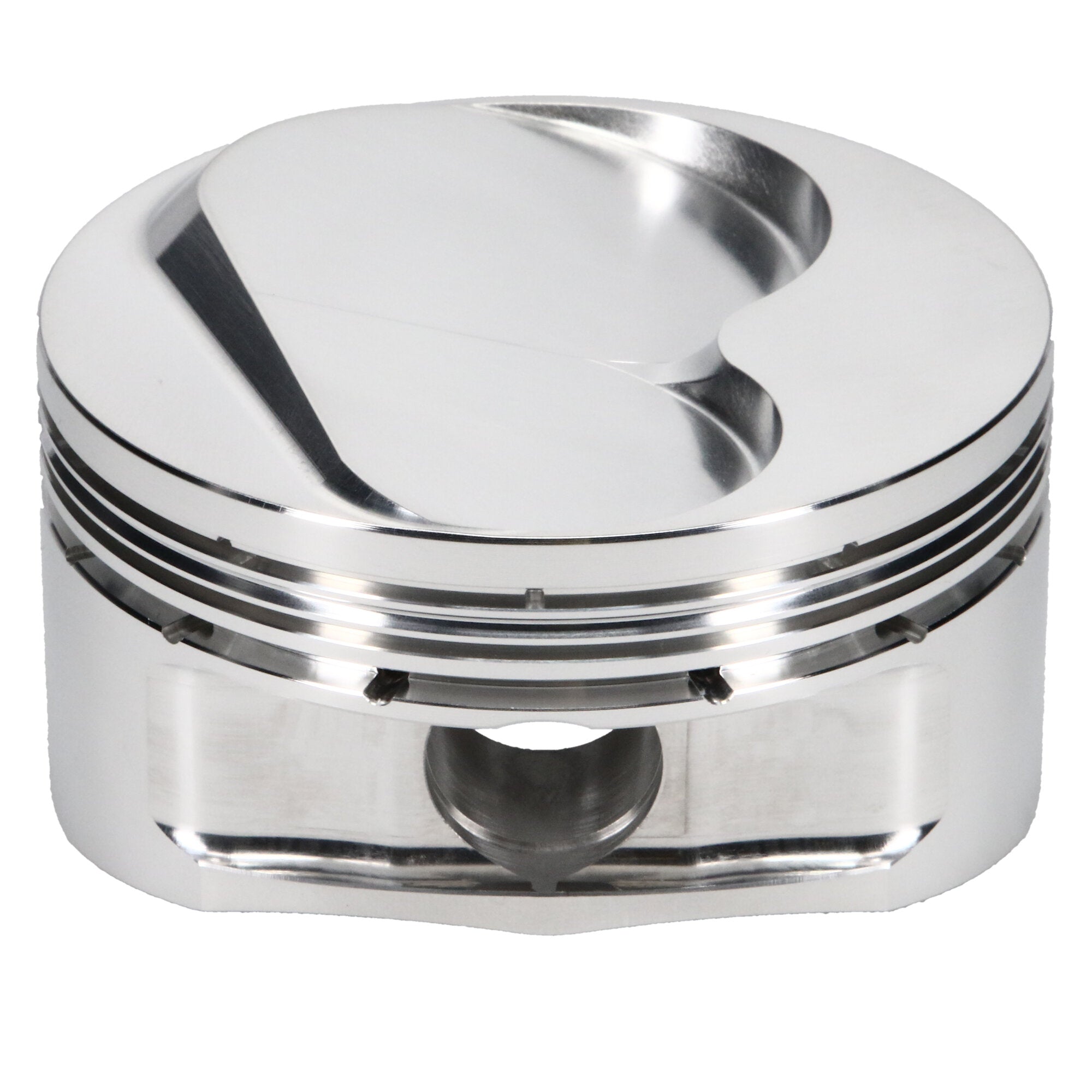

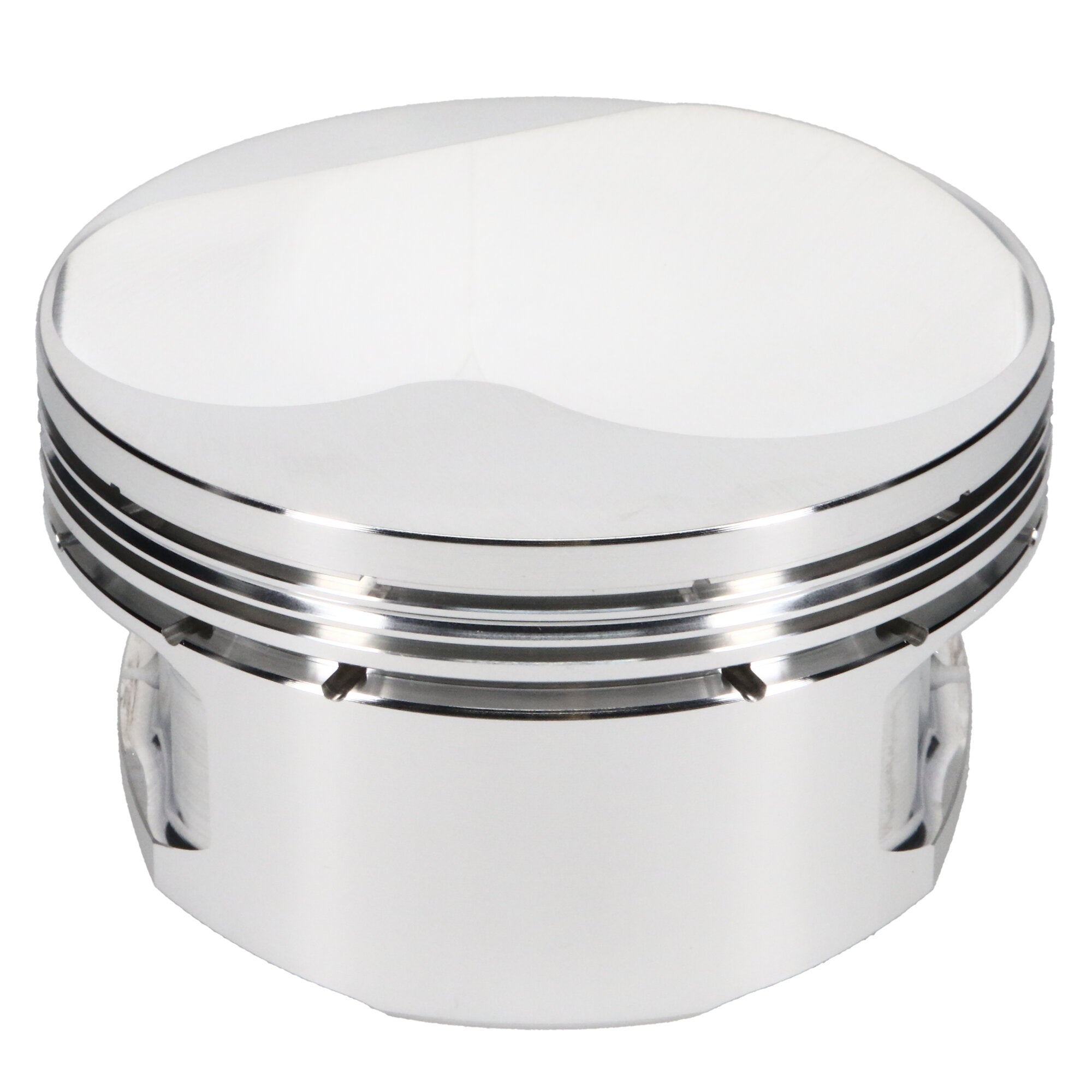

Piston Set, 2618, Dome, 4.130 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.130 in. Bore, 1.100 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 400, 4.130 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Oil Ring Thickness |
0.149 |
| Forging Type |
Round |
| Engine Type |
ICE |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Compression Height |
1.100 |
| Piston Average Weight |
441 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.130 in. Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0475 |
| Piston Head Type |
Dome |
| Piston Pin Outside Diameter |
0.927 |
| Piston Pin Material |
5115 |
| Bore Diameter |
4.130 |
| Product Market |
Domestic |
| Piston Quantity |
8 |
| Make |
CHEVROLET |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Add-On |
J75008-4130-5 |
| Cylinder Head |
CHEVROLET 13 DEG |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0600 |
| Piston Volume |
-4.50 |
| Product Type |
Engine Piston Kit |
| Engine |
Small Block |
| Add-On |
927-042-CS |
| Piston Pin Length |
2.750 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.130 in. Bore - 1.100 in. CH, -4.50 CC |
| Add-On |
927-2750-15-51S |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.750 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
