As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.8L VR6 24V 92-99 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

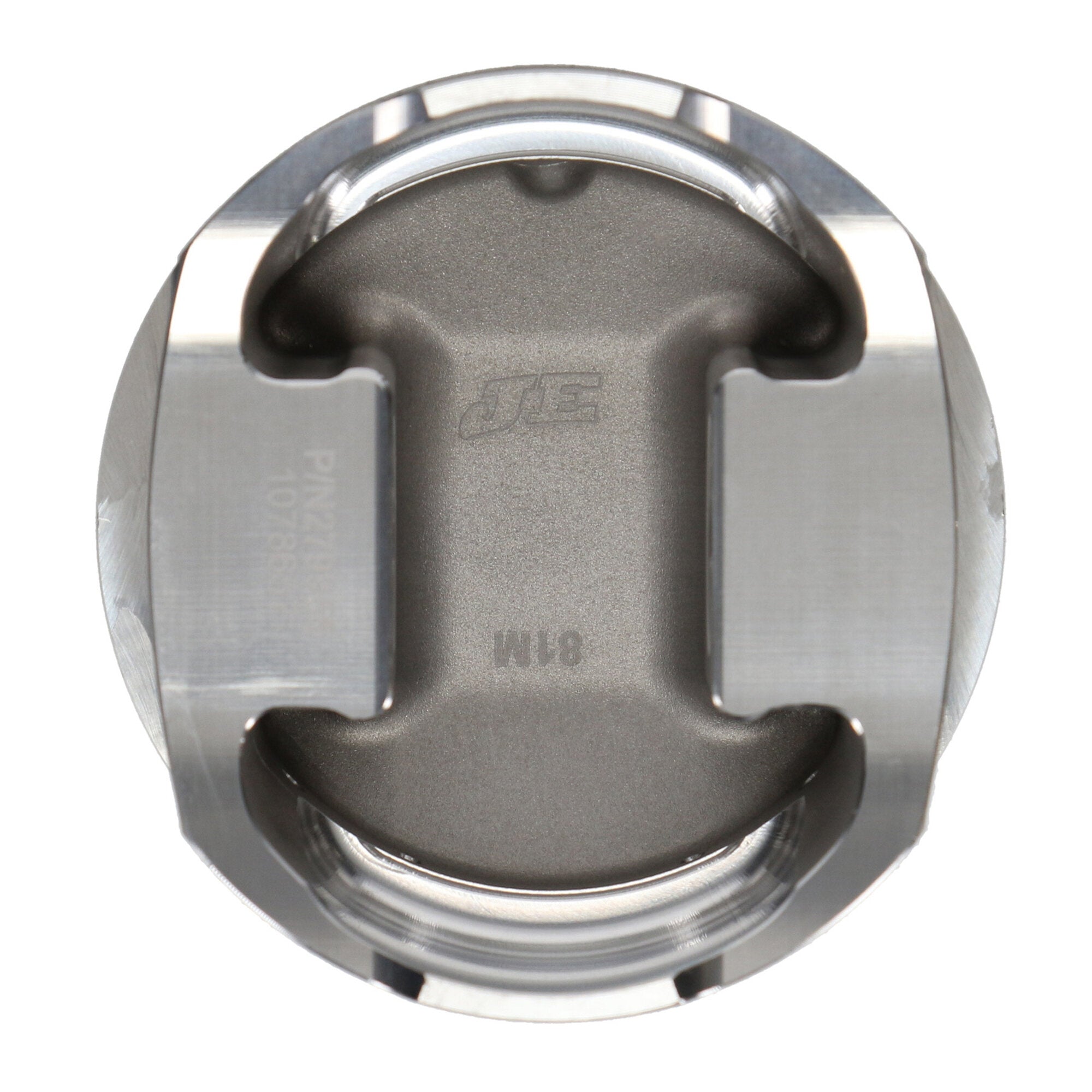

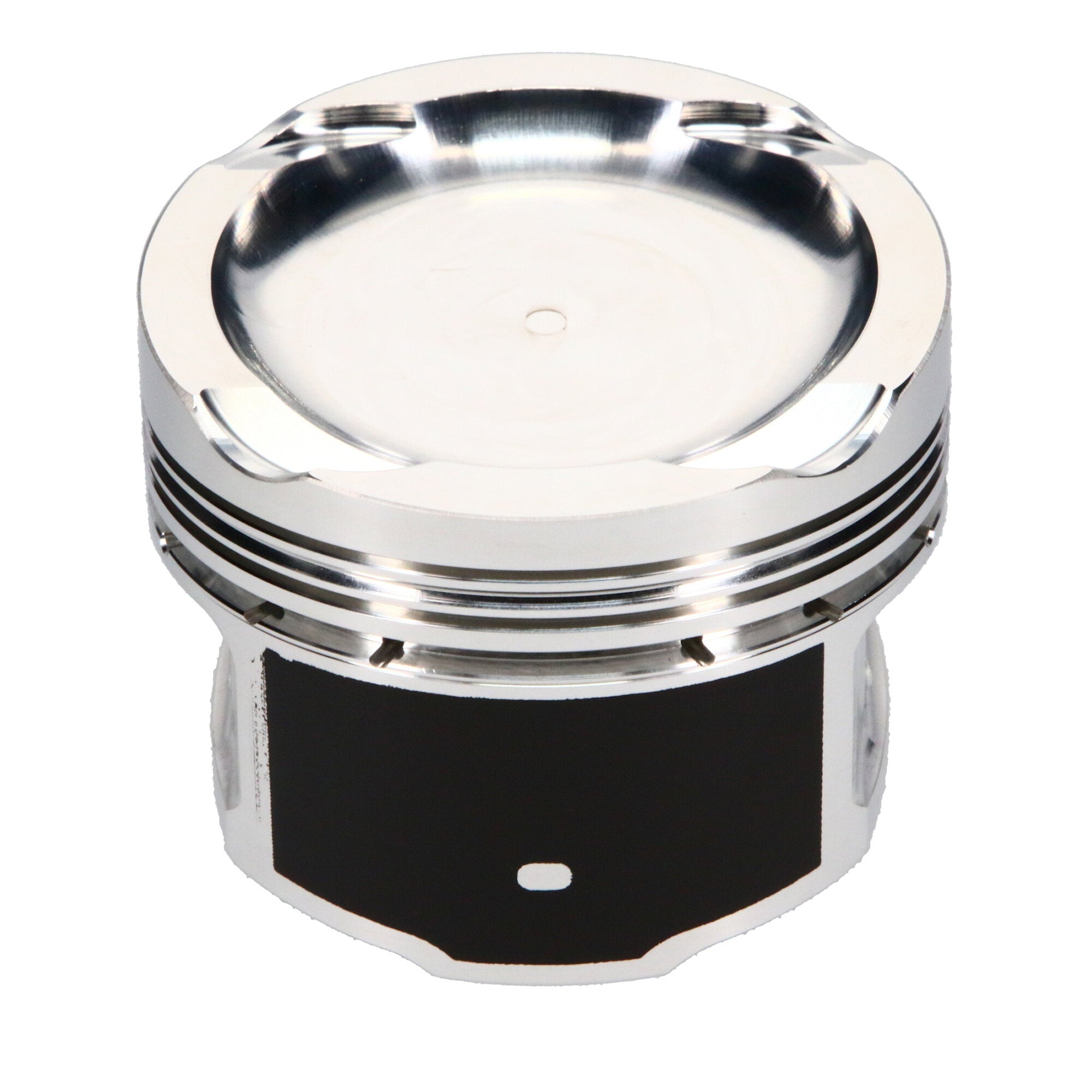

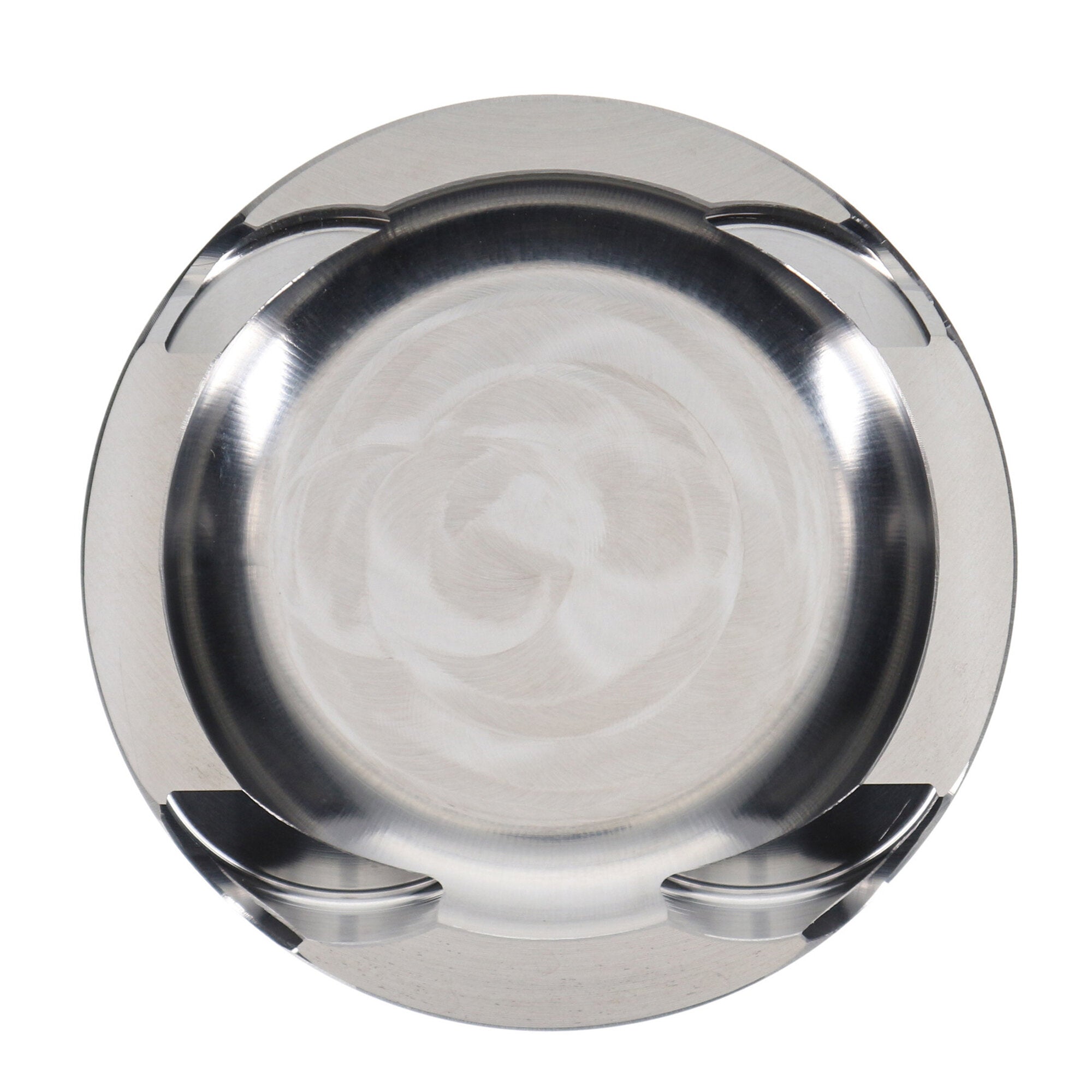

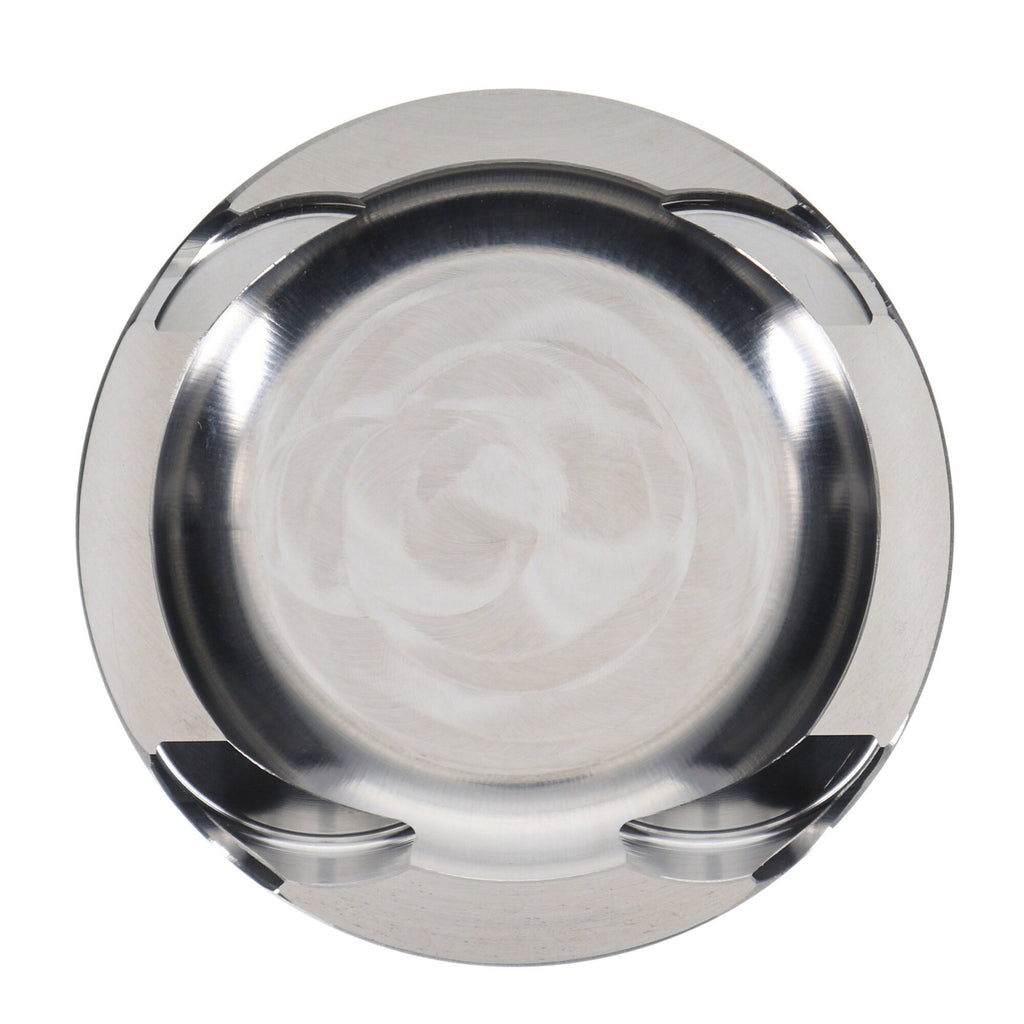

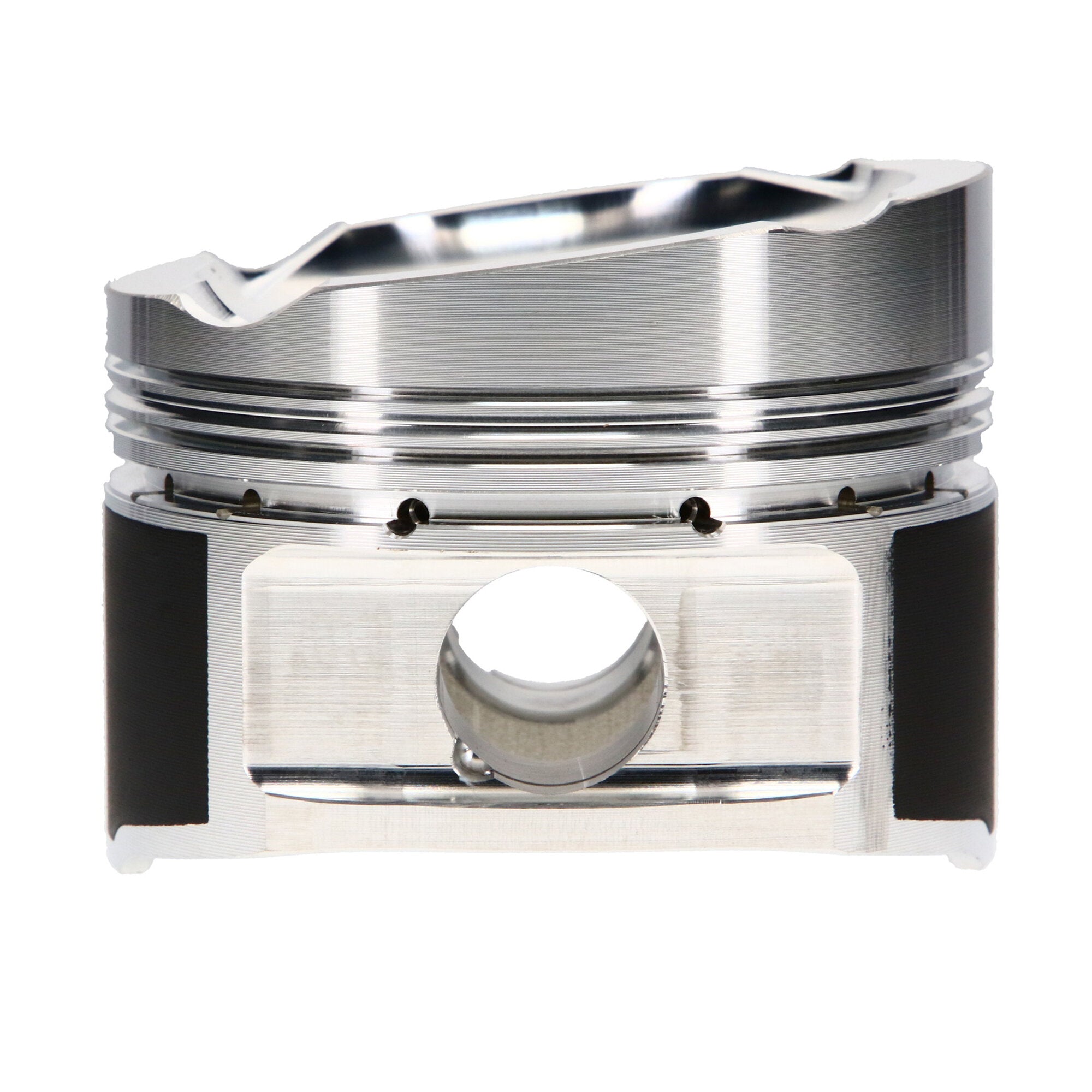

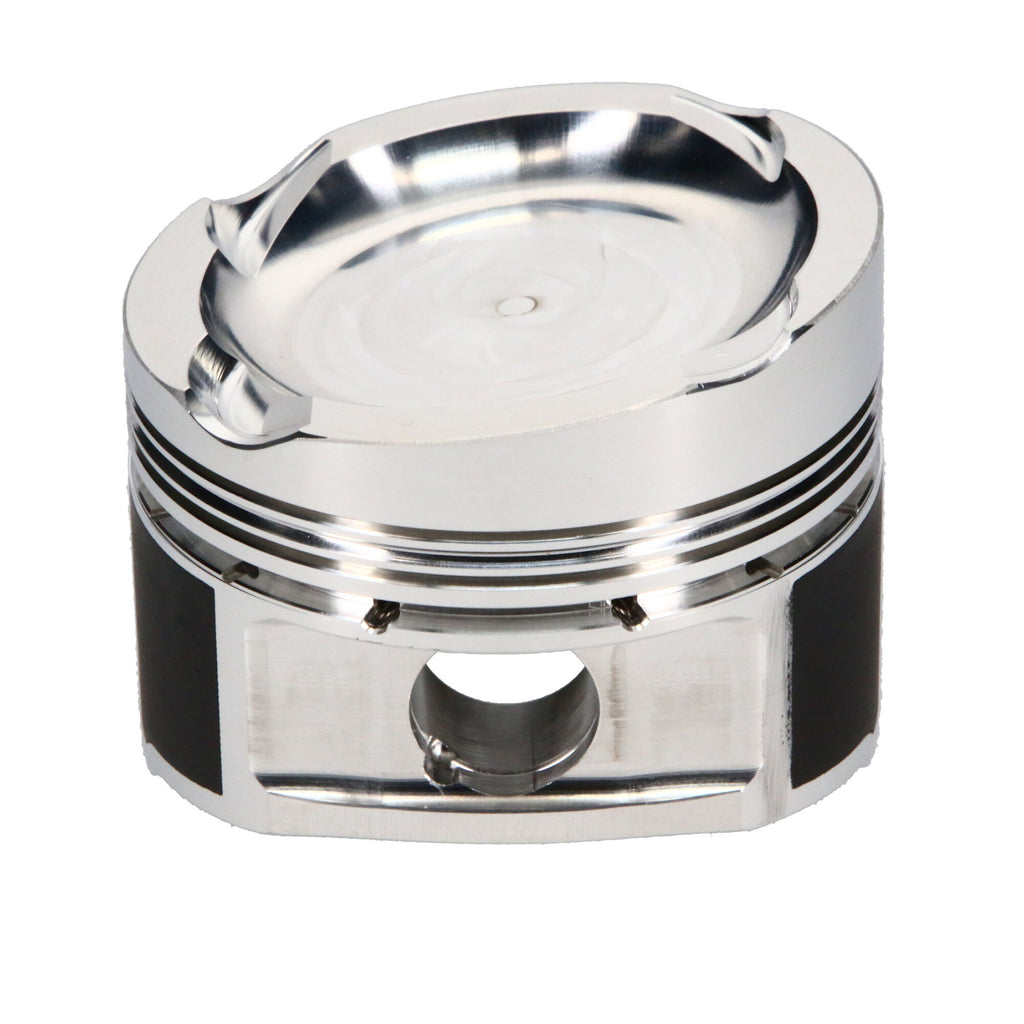

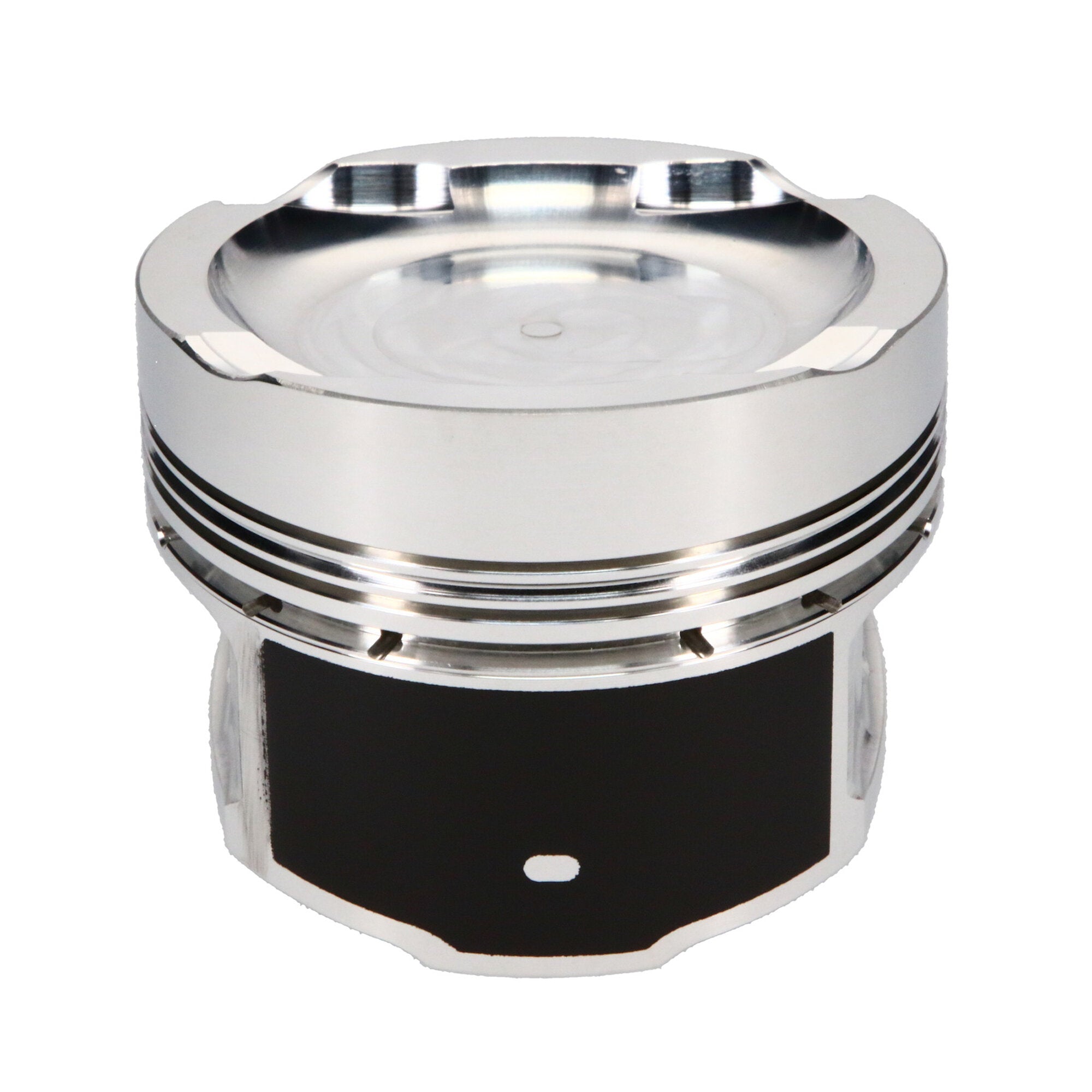

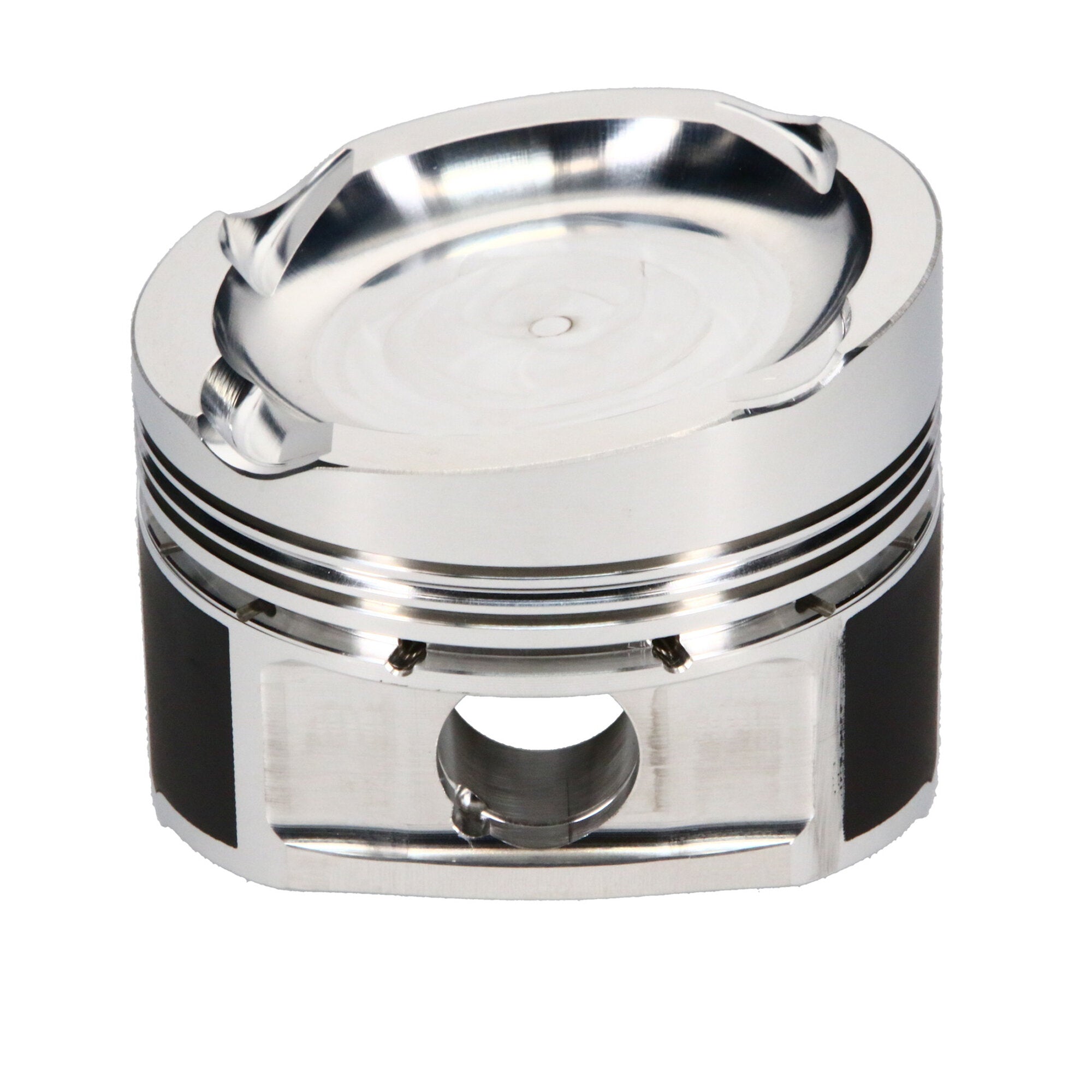

Piston Set, 2618, Flat Top, 3.228 Bore, 1.686 CD, 0.787 Pin, Set of 6. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, VW, 2.8L VR6 24V, 3.228 in. Bore, 8.50:1, Flat Top, 6 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Volkswagen 2.8L 12V VR6, 82.00 Bore, Flat, Set of 6 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Top Compression Ring Thickness |
0.0400 |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.787 |
| Piston Average Weight |
333 |
| Add-On |
787-050-MW |
| Compression Height |
1.686 |
| Piston Pin Wall Thickness |
0.180 |
| Product Market |
European |
| Add-On |
JG1001-3228 |
| Bore Diameter |
82.00 |
| Make |
VOLKSWAGEN |
| Industry |
Automotive |
| Add-On |
787-2250-18-51C |
| Engine - Web |
2.8L VR6 24V |
| Cylinder Head |
24V VR6 |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Piston Volume |
-20.90 |
| Prop 65 Yes/No |
Yes |
| Title |
JE Pistons - Volkswagen, 2.8L VR6 24V, 82.00 mm Bore, Piston Kit |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Piston Quantity |
6 |
| Piston Series |
JE Pistons |
| Second Compression Ring Thickness |
0.0480 |
| Piston Pin Length |
2.250 |
| Oil Ring Thickness |
0.111 |
| Engine |
2.8L VR6 24V |
| Ringset Included |
Yes |
| Wrist Pin Outer Diameter |
0.787 |
| Make - Web |
Volkswagen |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title - Web |
JE Pistons Volkswagen 2.8L VR6 24V Piston Kit - 82.00 mm Bore - 1.686 in. CH, -20.90 CC |
| Piston Pin Material |
5115 |
| Piston Head Type |
Flat |
| Engine Type |
ICE |
| Forging Type |
Round |
| Wrist Pin Wall Thickness |
0.180 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
7.0000 |
