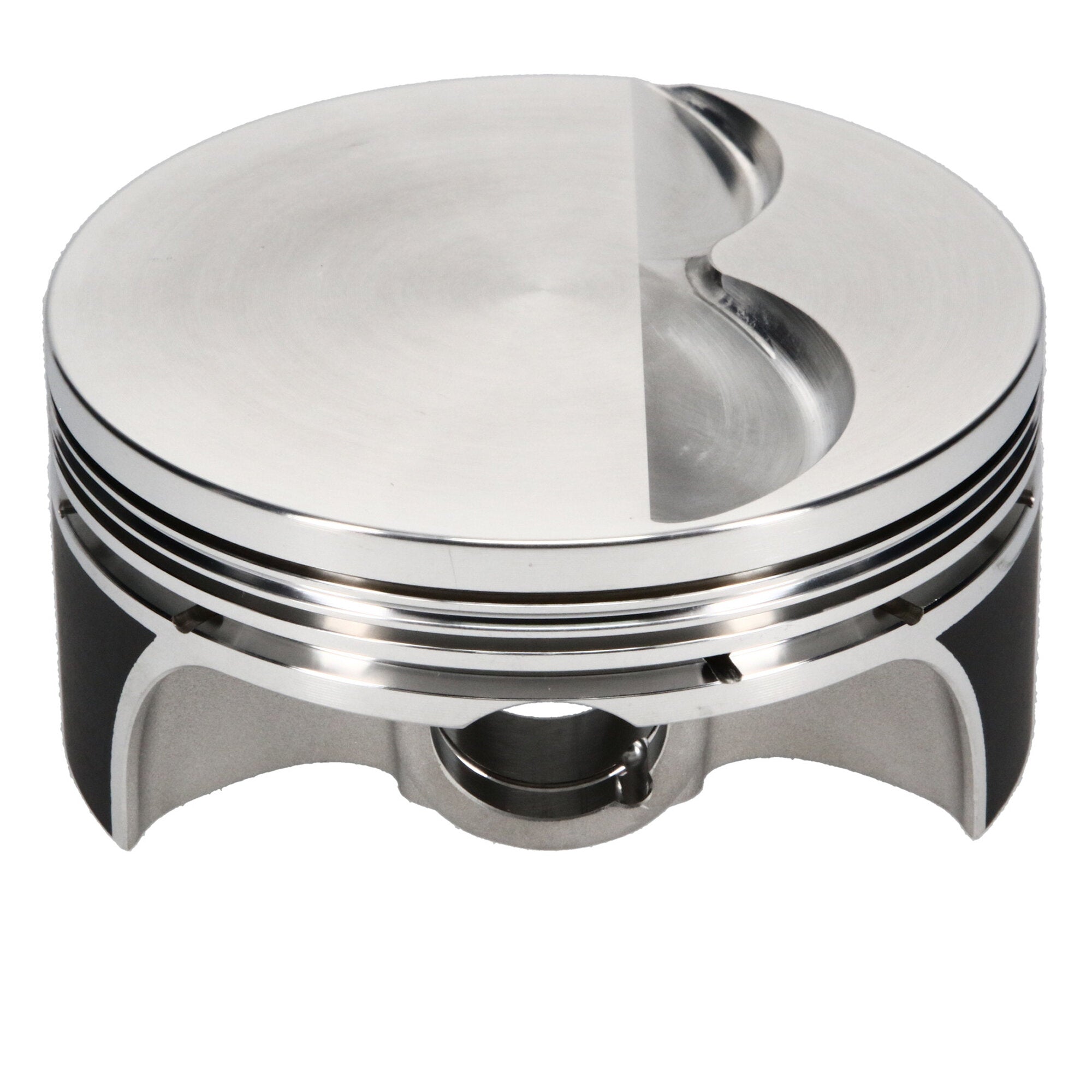

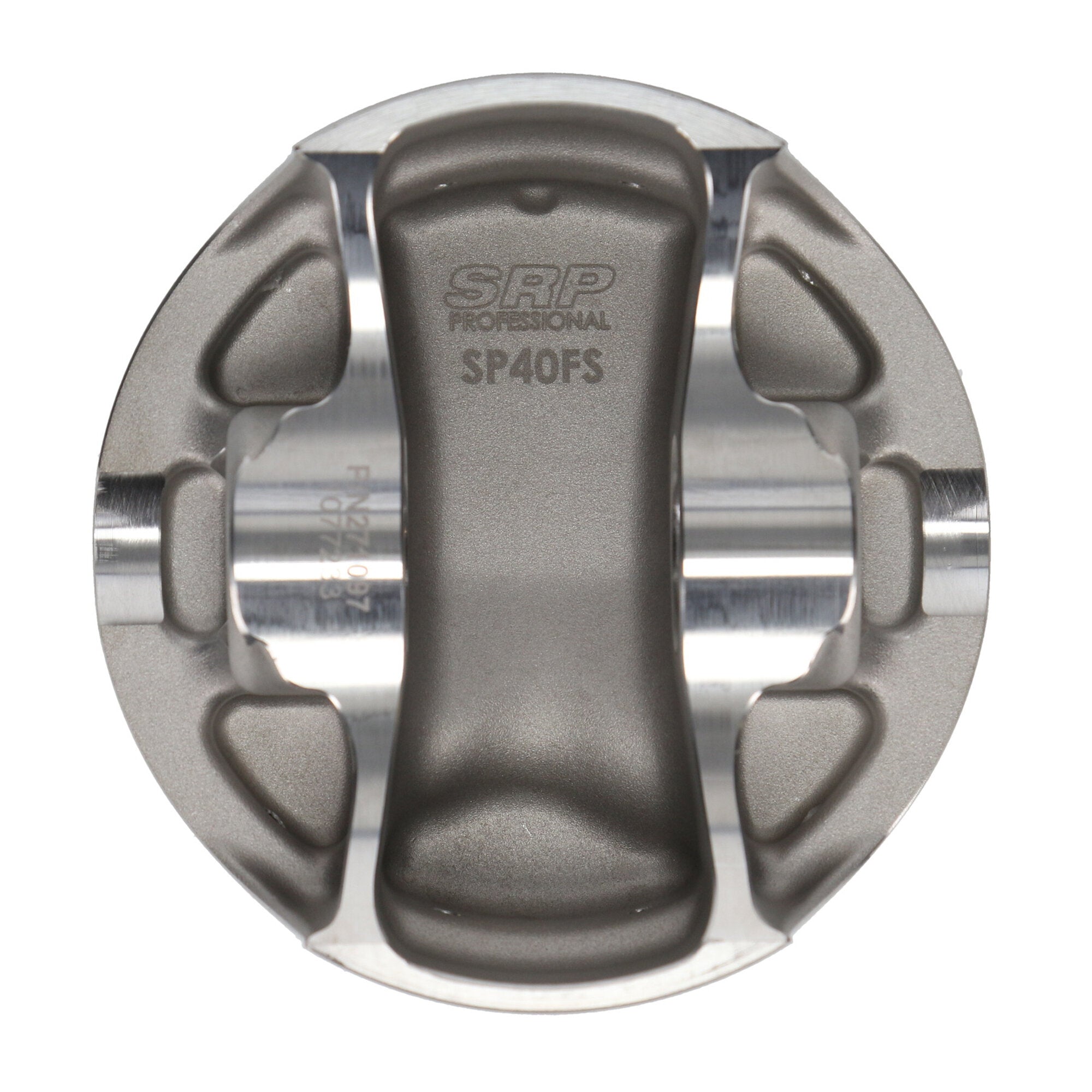

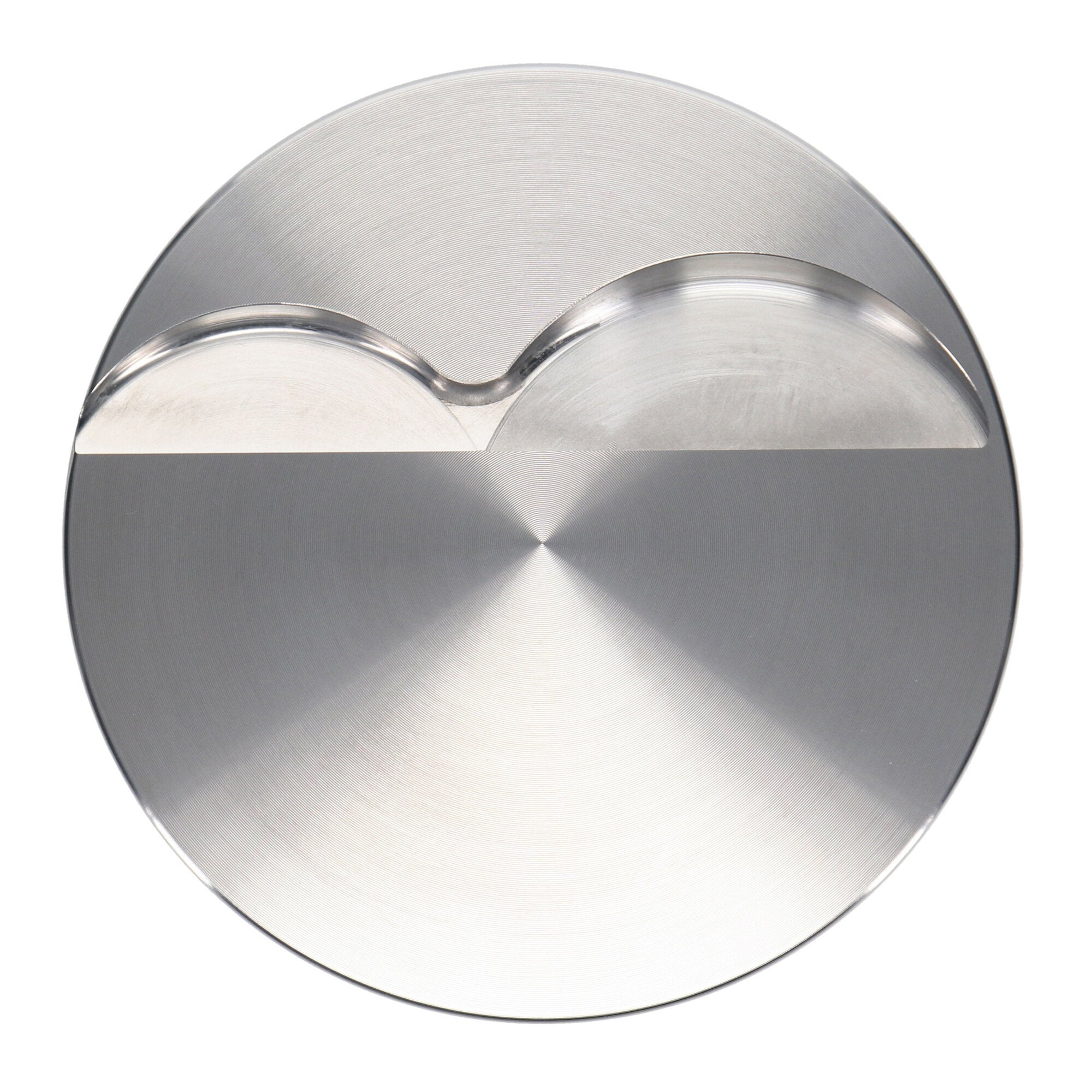

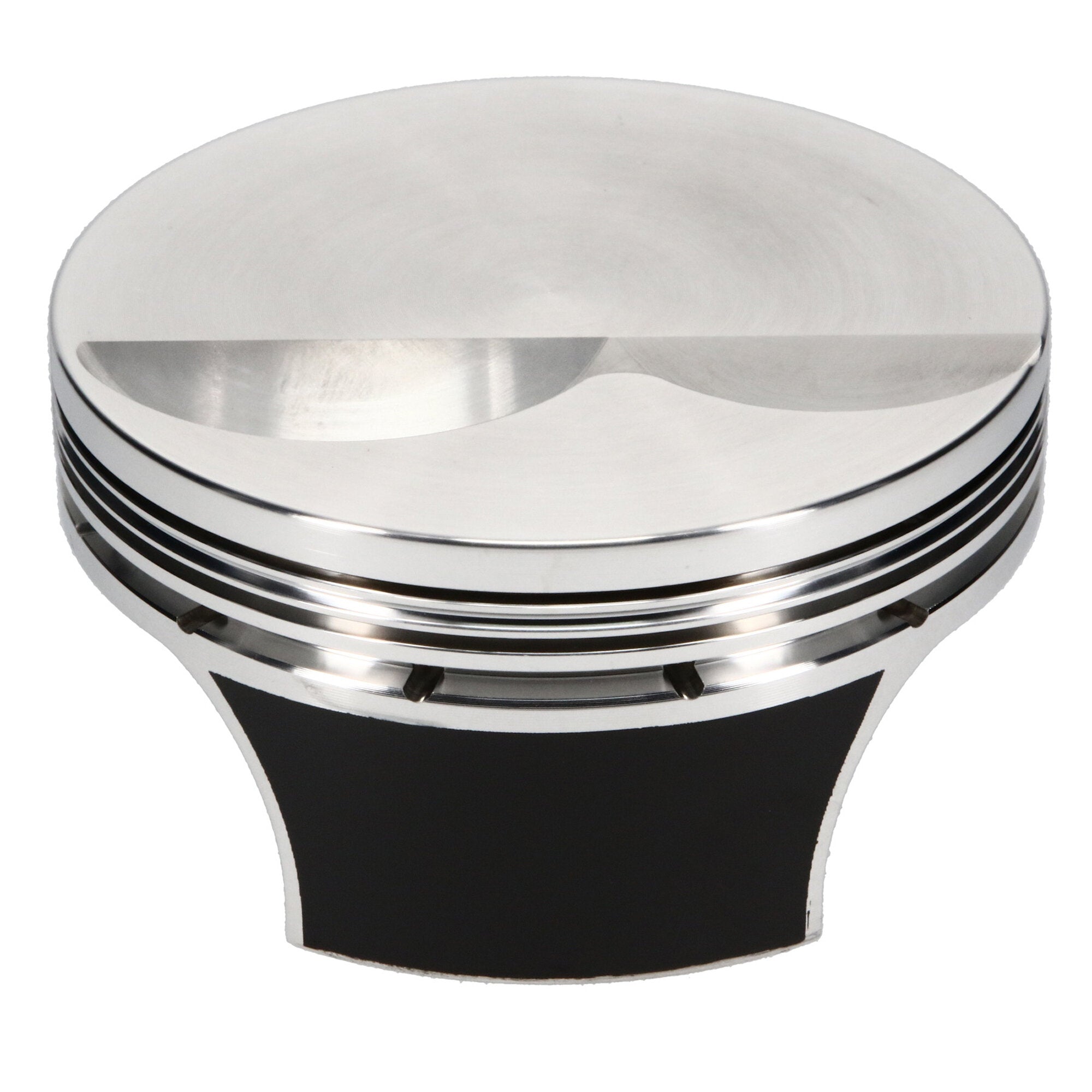

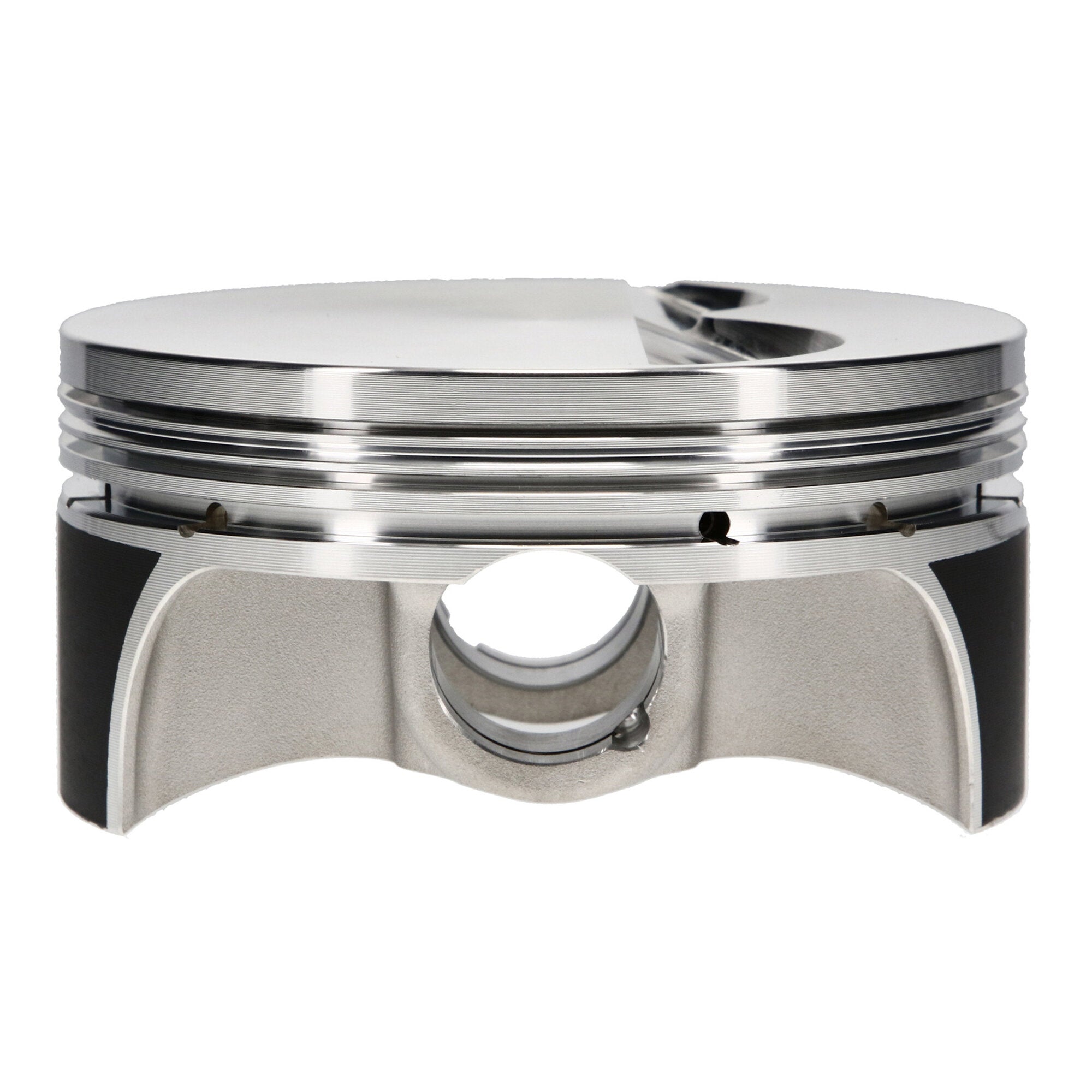

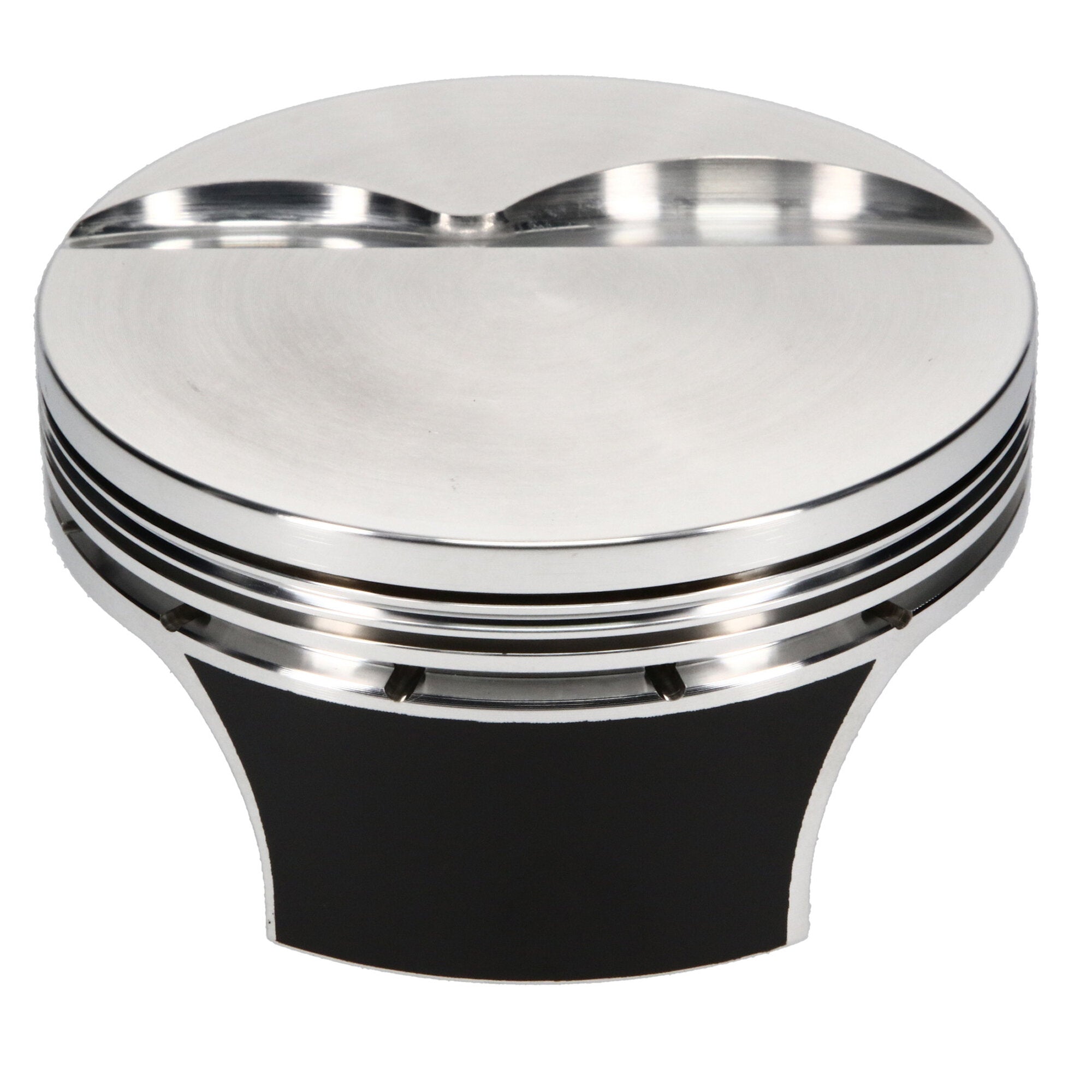

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Flat Top, 4.040 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_INV |
SRP Pro, Piston Set |
| Description_EXT |
SRP Pro 4032, Ford, Small Block Ford, 4.040 in. Bore, 1.100 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Ford 302, 4.040 Bore, Flat, Set of 8 |
| Forging Type |
FSR |
| Product Type |
Engine Piston Kit |
| Piston Pin Material |
5115 |
| Piston Volume |
-5.00 |
| Make |
FORD |
| Piston Pin Wall Thickness |
0.150 |
| Piston Head Type |
Flat |
| Piston Series |
SRP Pro 4032 |
| Engine Type |
ICE |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.250 |
| Ring Set Included |
Yes |
| Top Compression Ring Thickness |
0.0480 |
| Product Market |
Domestic |
| Title |
SRP Pro 4032 - Ford, Small Block, 4.040 in. Bore, Piston Kit |
| Piston Average Weight |
399 |
| Piston Pin Outside Diameter |
0.927 |
| Oil Ring Thickness |
0.149 |
| Compression Height |
1.100 |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Bore Diameter |
4.040 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Piston Material |
4032 |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Prop 65 Yes/No |
Yes |
| Engine |
Small Block |
| Piston Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0600 |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
SRP Pro 4032 Ford Small Block Piston Kit - 4.040 in. Bore - 1.100 in. CH, -5.00 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
927-2250-15-51C |
| Add-On |
927-073-MW |
| Add-On |
JG31F1-4040-2 |
| Industry |
Automotive |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
