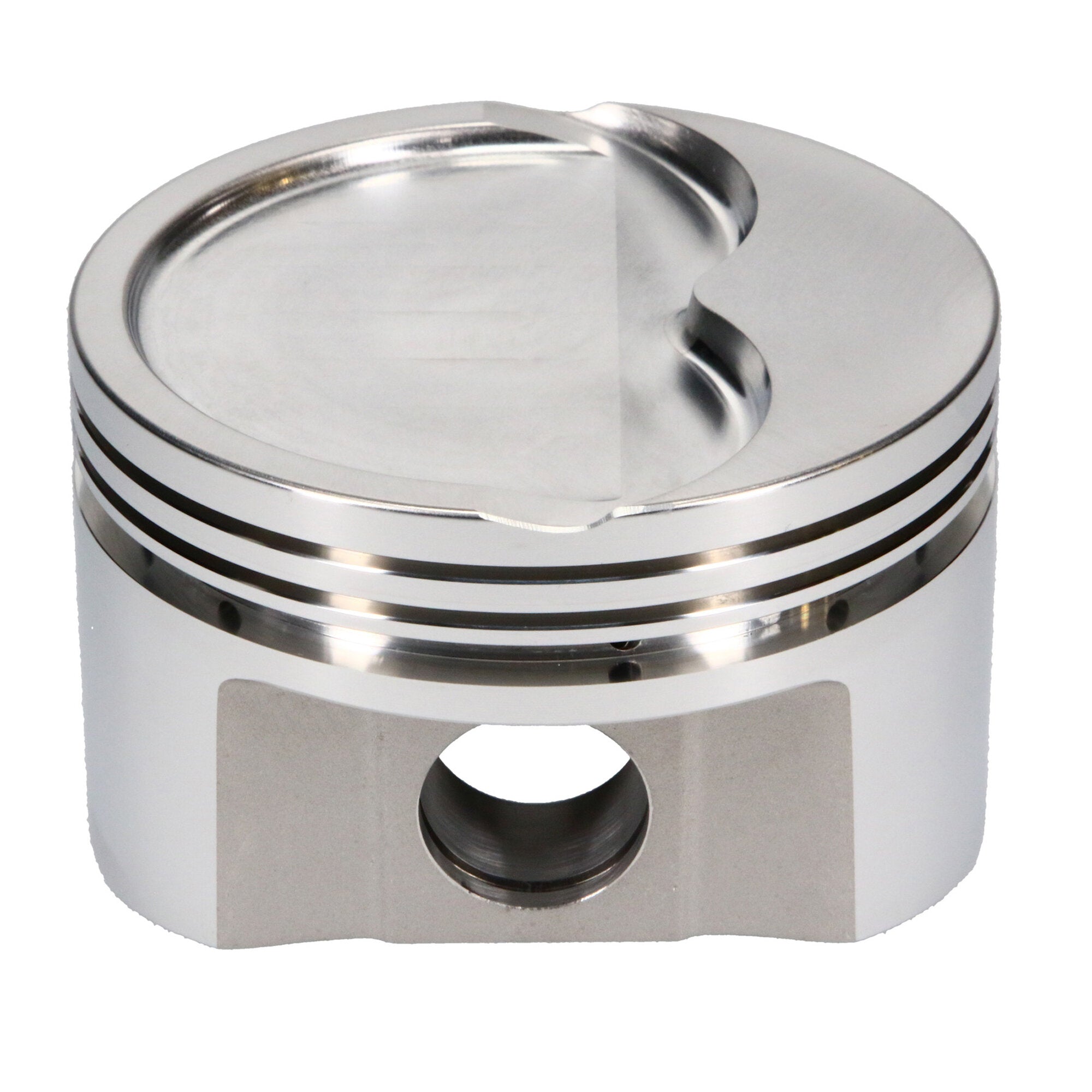

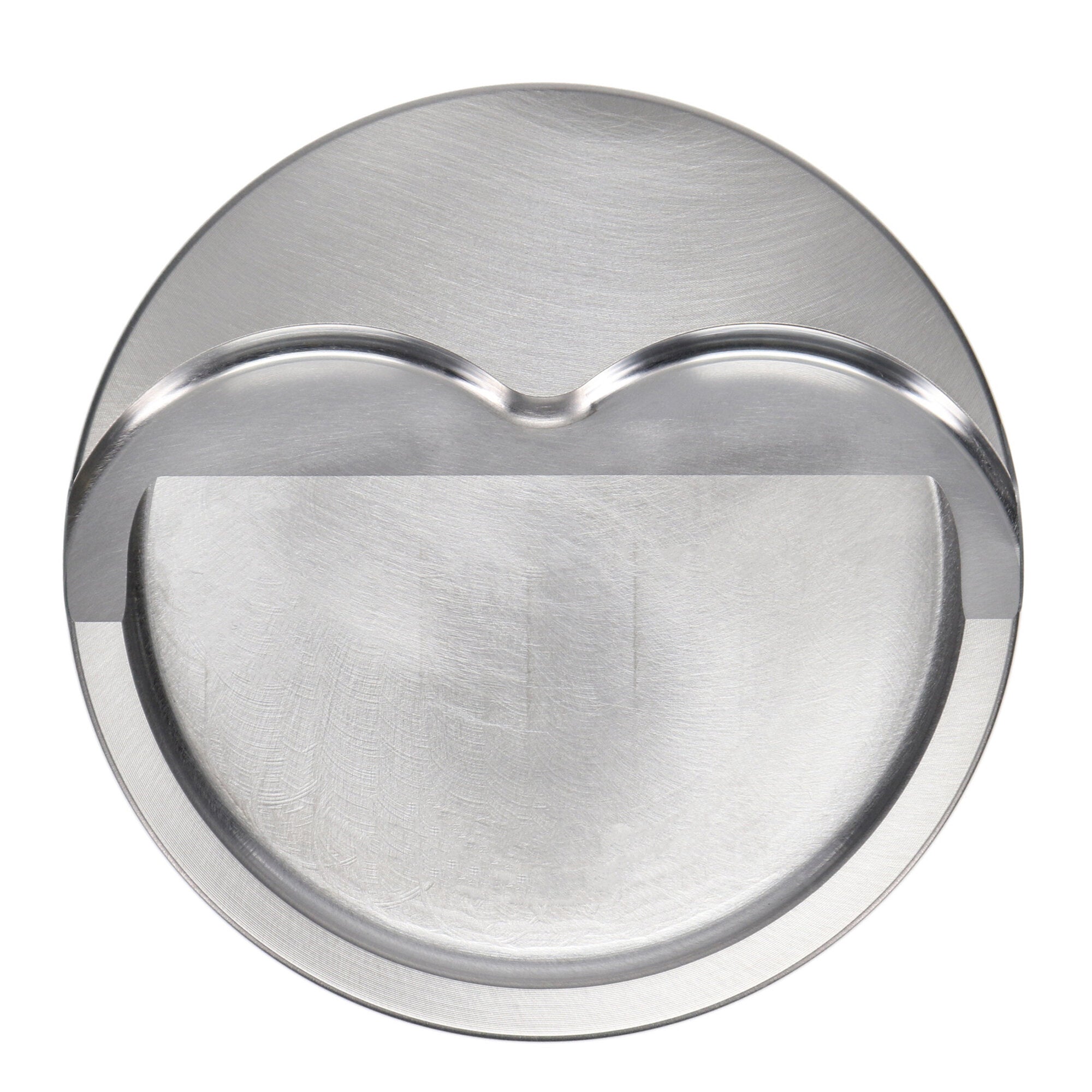

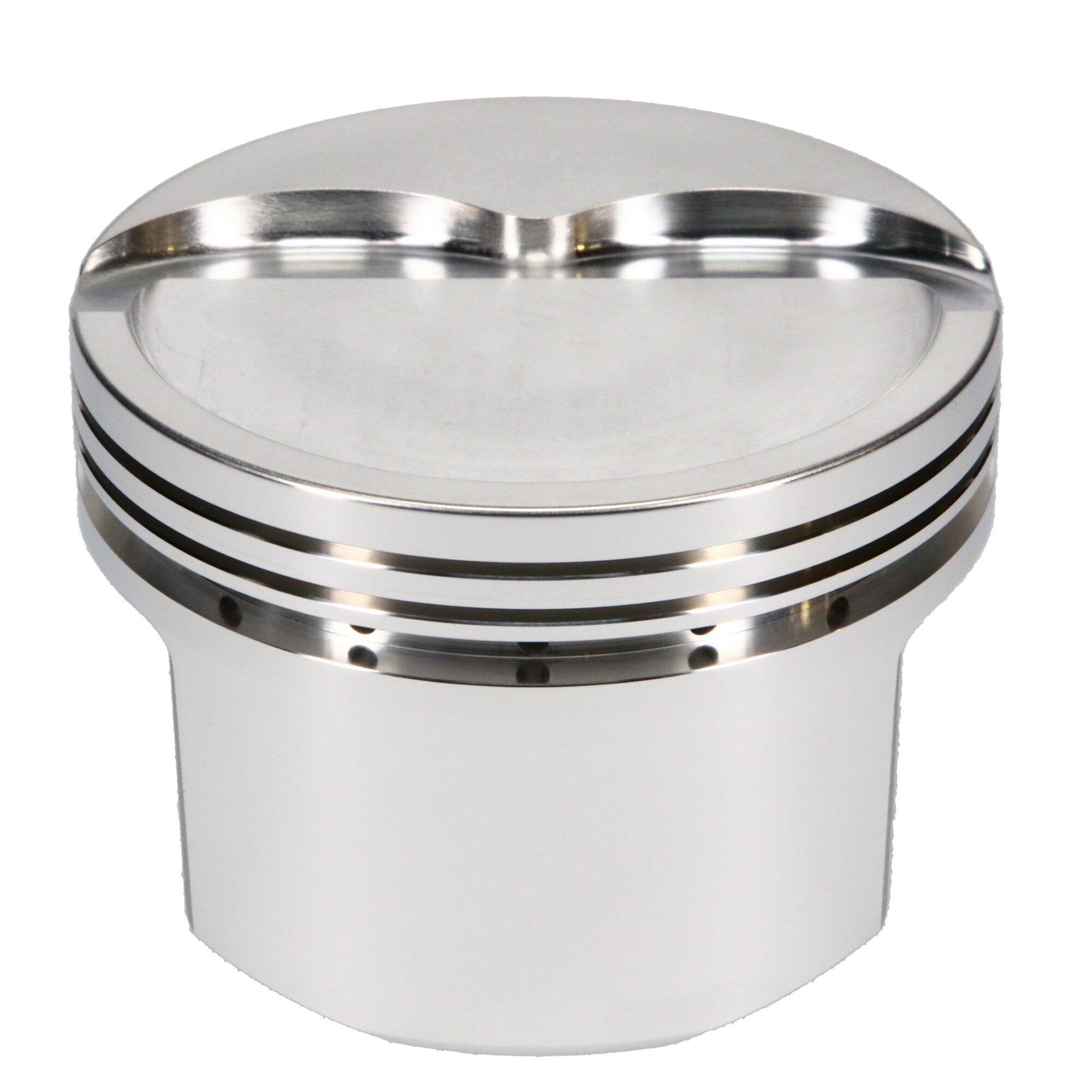

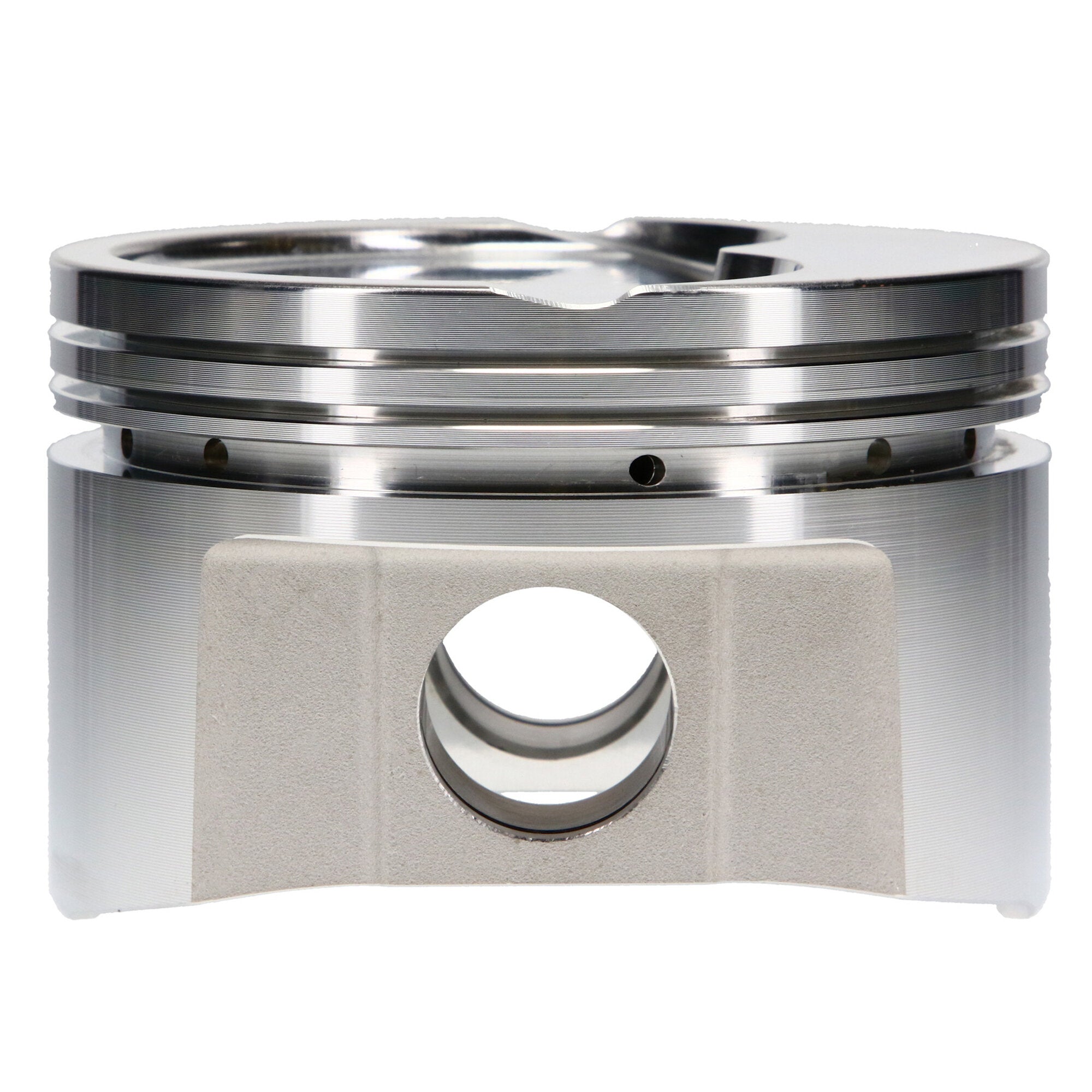

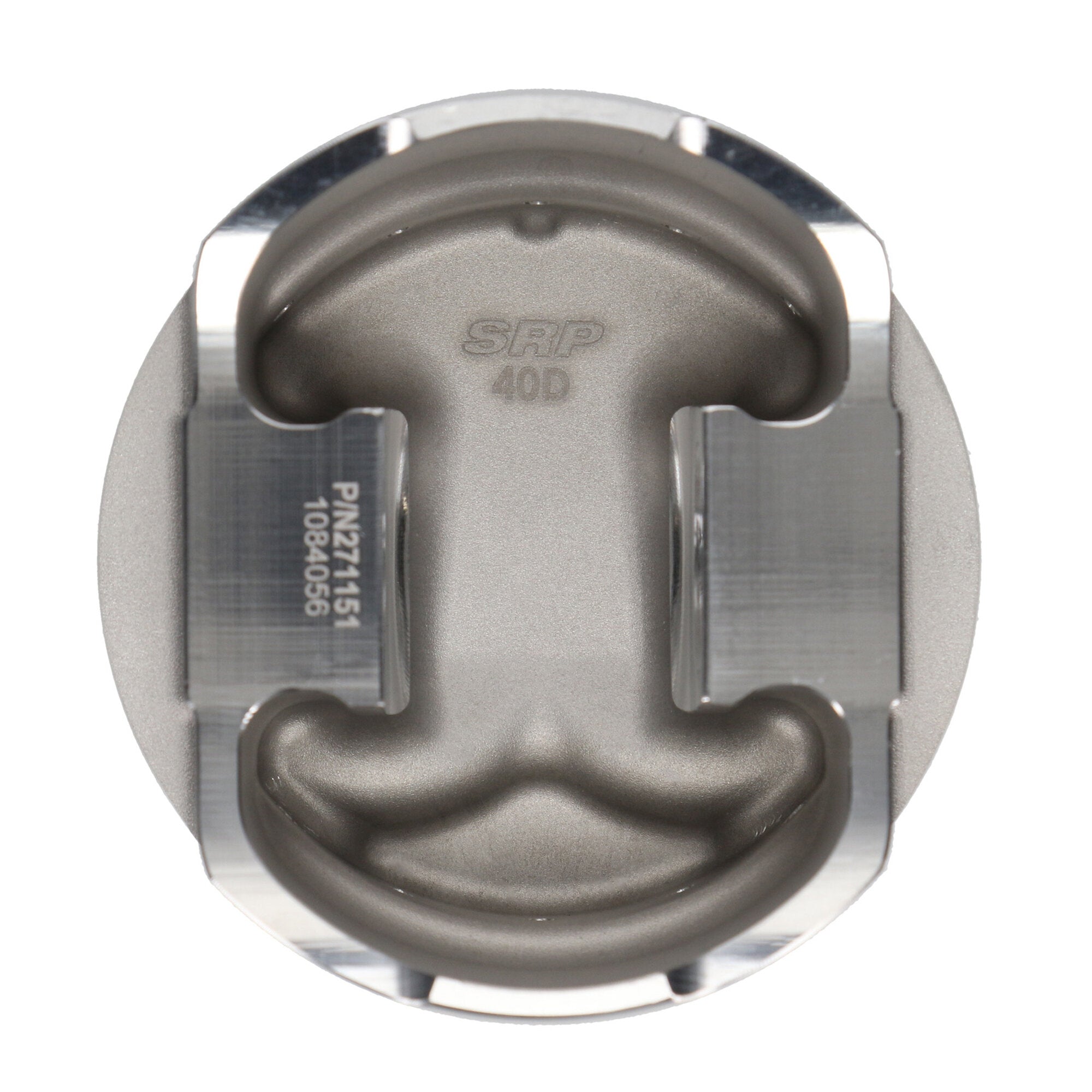

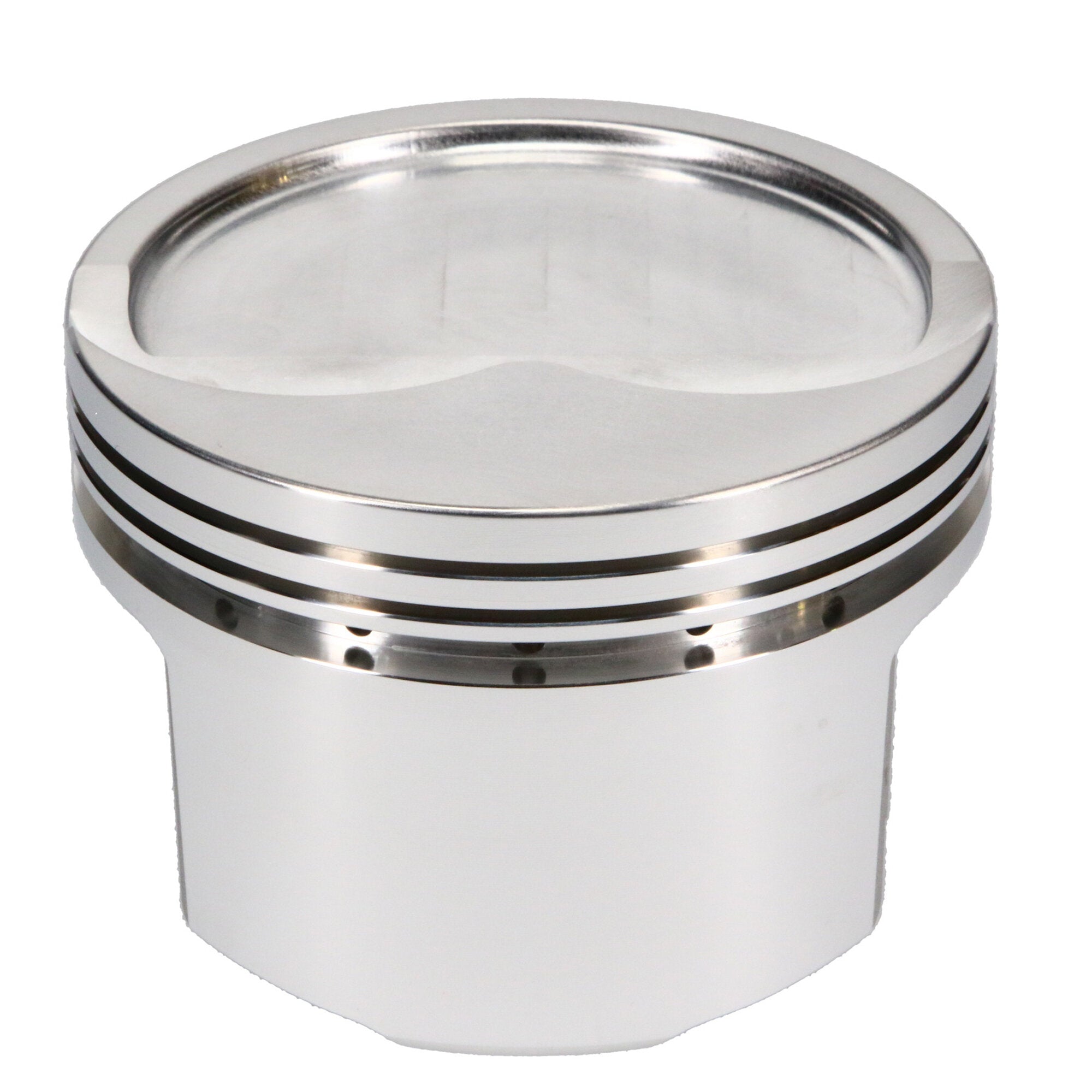

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford 390 FE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.080 Bore, 1.670 CD, 0.975 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_EXT |
SRP, Ford, Big Block Ford FE, 4.080 in. Bore, 1.670 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 390 FE, 4.080 Bore, Dish, Set of 8 |
| Oil Ring Thickness |
0.188 |
| Compression Height |
1.670 |
| Make |
FORD |
| Wrist Pin Wall Thickness |
0.160 |
| Forging Type |
FSR |
| Engine Type |
ICE |
| Title |
SRP - Ford, Big Block FE, 4.080 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.160 |
| Piston Pin Material |
5115 |
| Wrist Pin Outer Diameter |
0.975 |
| Engine - Web |
Big Block FE |
| Top Compression Ring Thickness |
0.0640 |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
519 |
| Product Market |
Domestic |
| Bore Diameter |
4.080 |
| Piston Series |
SRP |
| Piston Pin Outside Diameter |
0.975 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Ring Set Included |
No |
| Wrist Pin Length |
2.750 |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Big Block FE |
| Piston Material |
4032 |
| Add-On |
990-042-CS |
| Add-On |
975-2750-16-51S |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.750 |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
SRP Ford Big Block FE Piston Kit - 4.080 in. Bore - 1.670 in. CH, -20.00 CC |
| Ringset Included |
No |
| Piston Volume |
-20.00 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
EDEL 6007/08 |
| Add-On |
J100F8-4080-5 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Ford |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Head Type |
Dish |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
