As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block NASCAR Canada |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

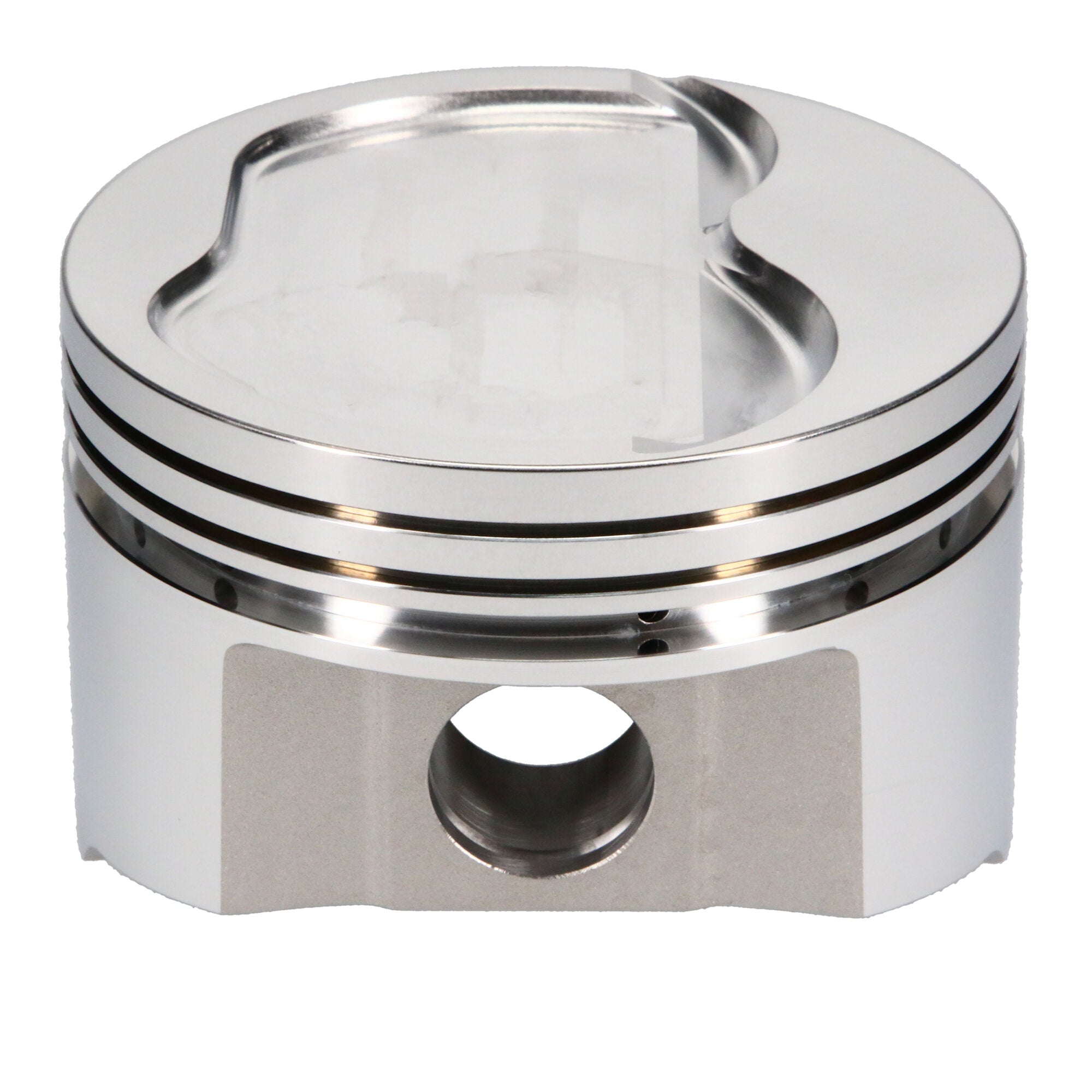

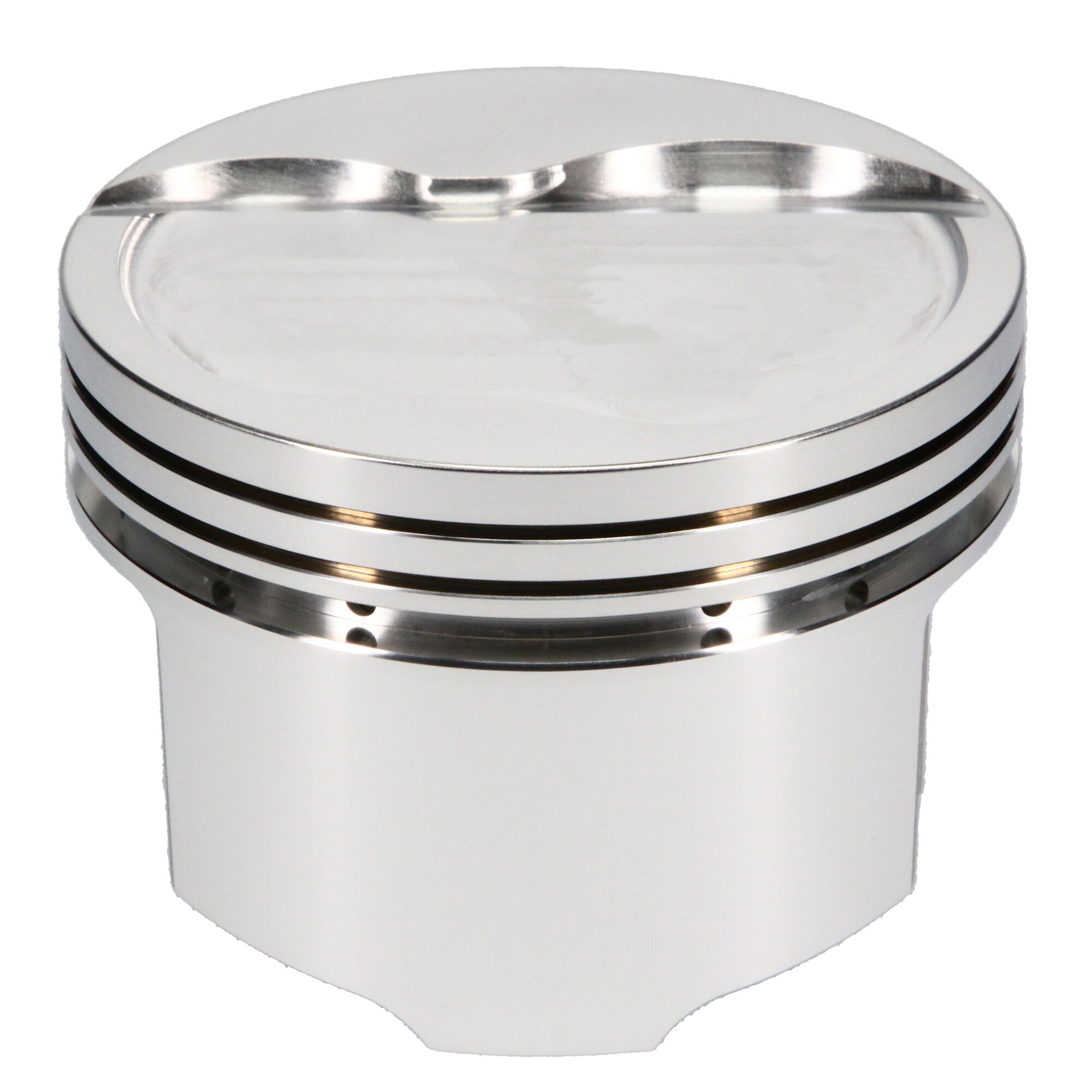

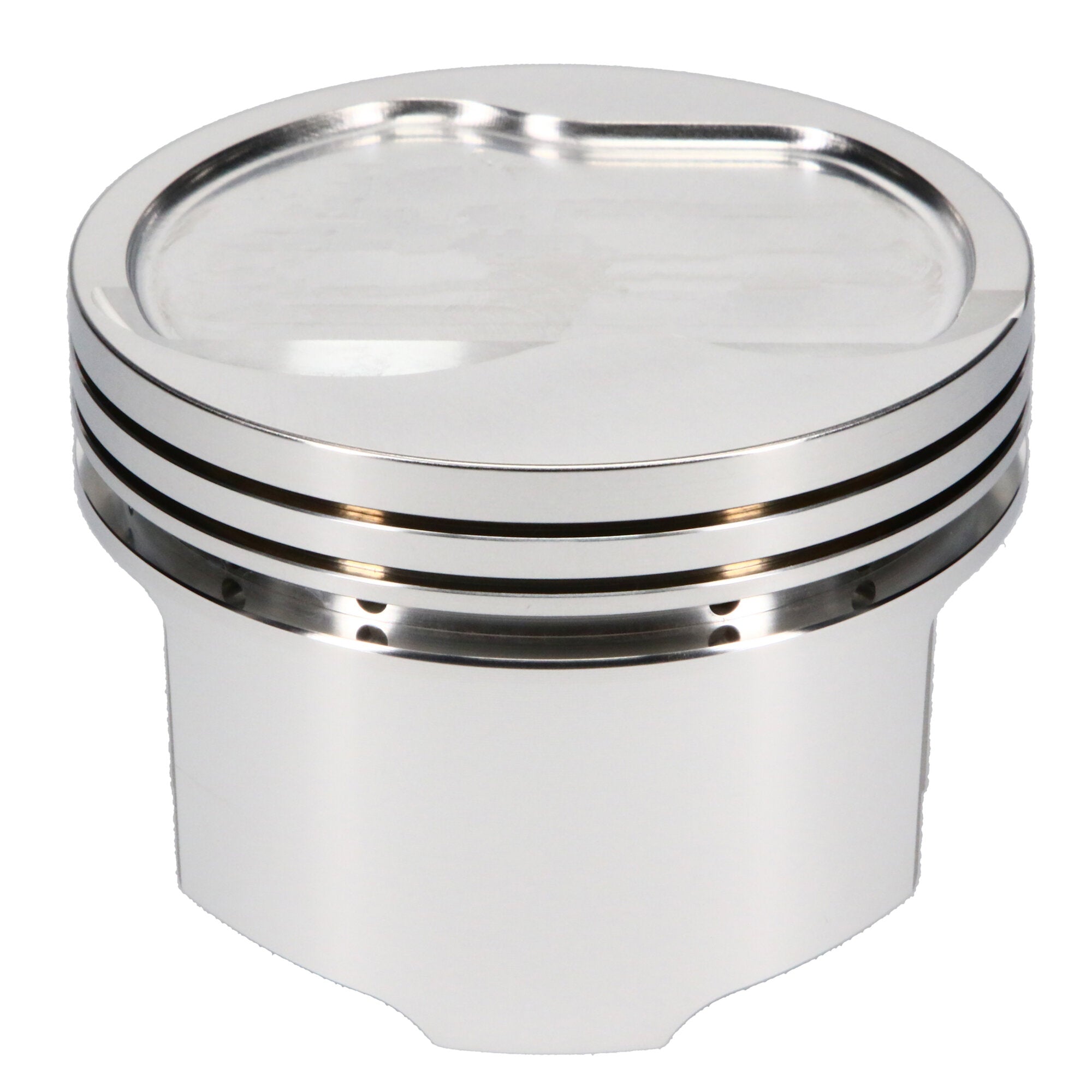

Piston Set, 2618, Inv Dome/Dish, 4.030 Bore, 1.724 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Ford, Small Block Ford, 4.030 in. Bore, 1.724 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford NASCAR Canada, 4.030 Bore, Dish, Set of 8 |
| Title |
JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston Kit |
| Compression Height |
1.724 |
| Engine - Web |
Small Block |
| Forging Type |
Round |
| Bore Diameter |
4.030 |
| Product Market |
Domestic |
| Oil Ring Thickness |
0.188 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Make |
FORD |
| Piston Pin Outside Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Piston Series |
JE Pistons |
| Piston Average Weight |
510 |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.500 |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.500 |
| Piston Volume |
-14.00 |
| Piston Pin Material |
5115 |
| Piston Head Type |

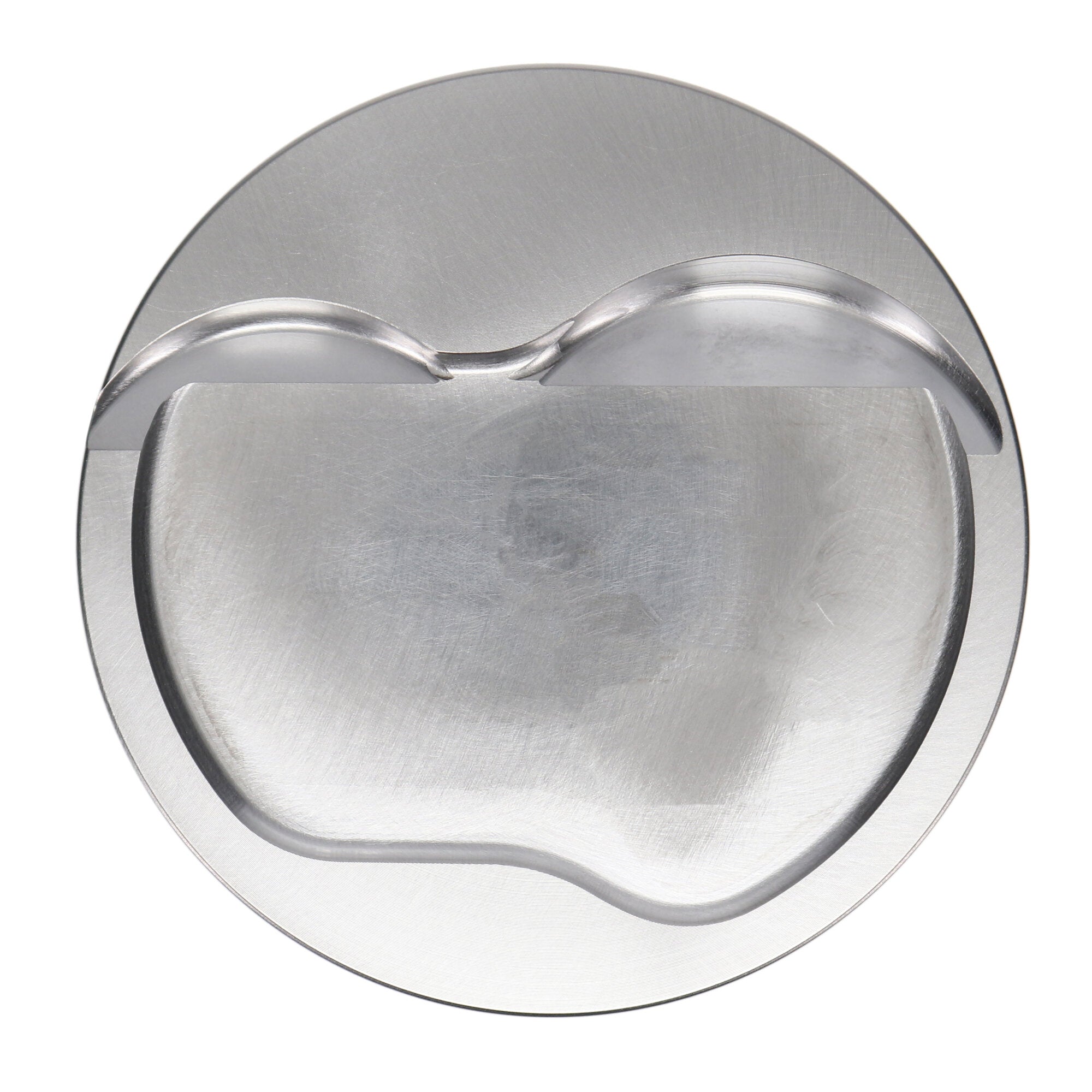

Dish |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.030 in. Bore - 1.724 in. CH, -14.00 CC |
| Piston Quantity |
8 |
| Add-On |
927-042-CS |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0640 |
| Engine |
Small Block |
| Prop 65 Yes/No |
Yes |
| Add-On |
J10008-4030-5 |
| Add-On |
927-2500-15-51S |
| Make - Web |
Ford |
| Ring Set Included |
No |
| Ringset Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
