As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler W-2 NASCAR Canada |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

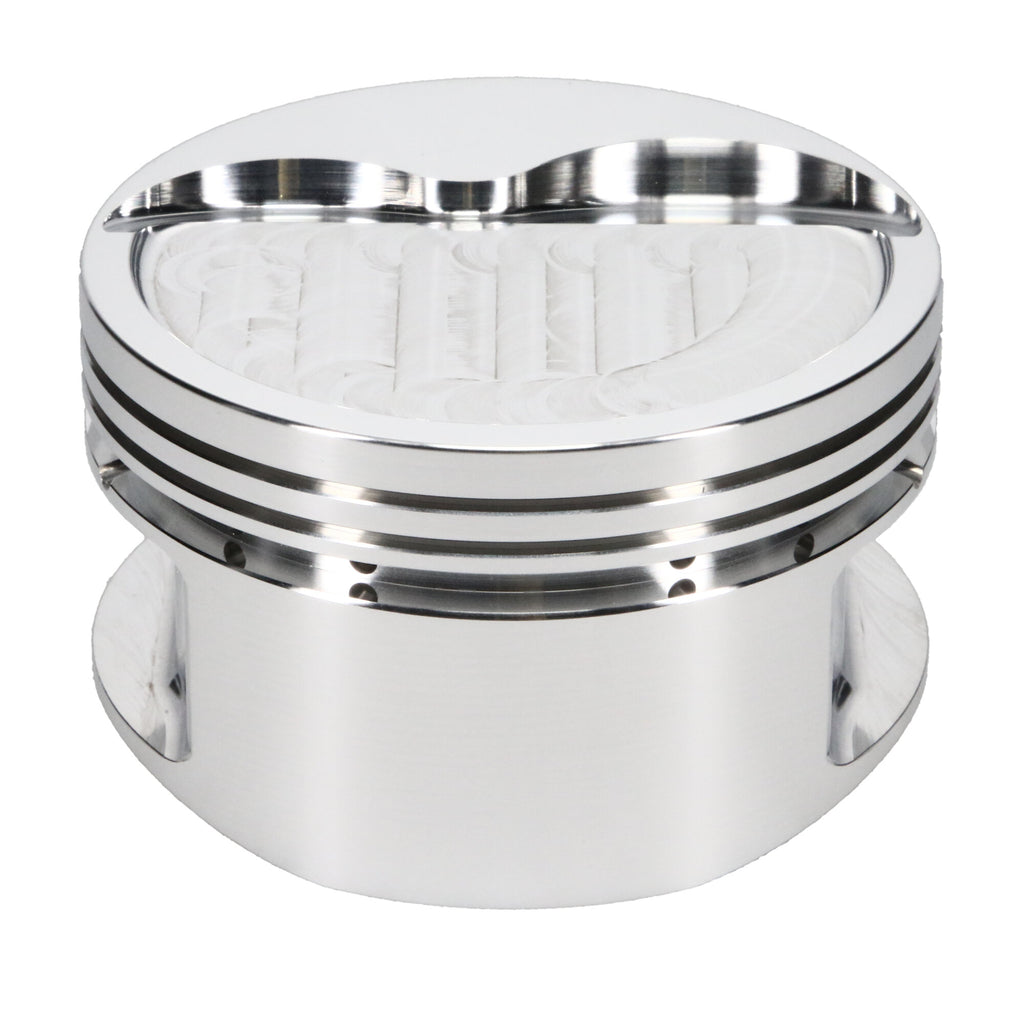

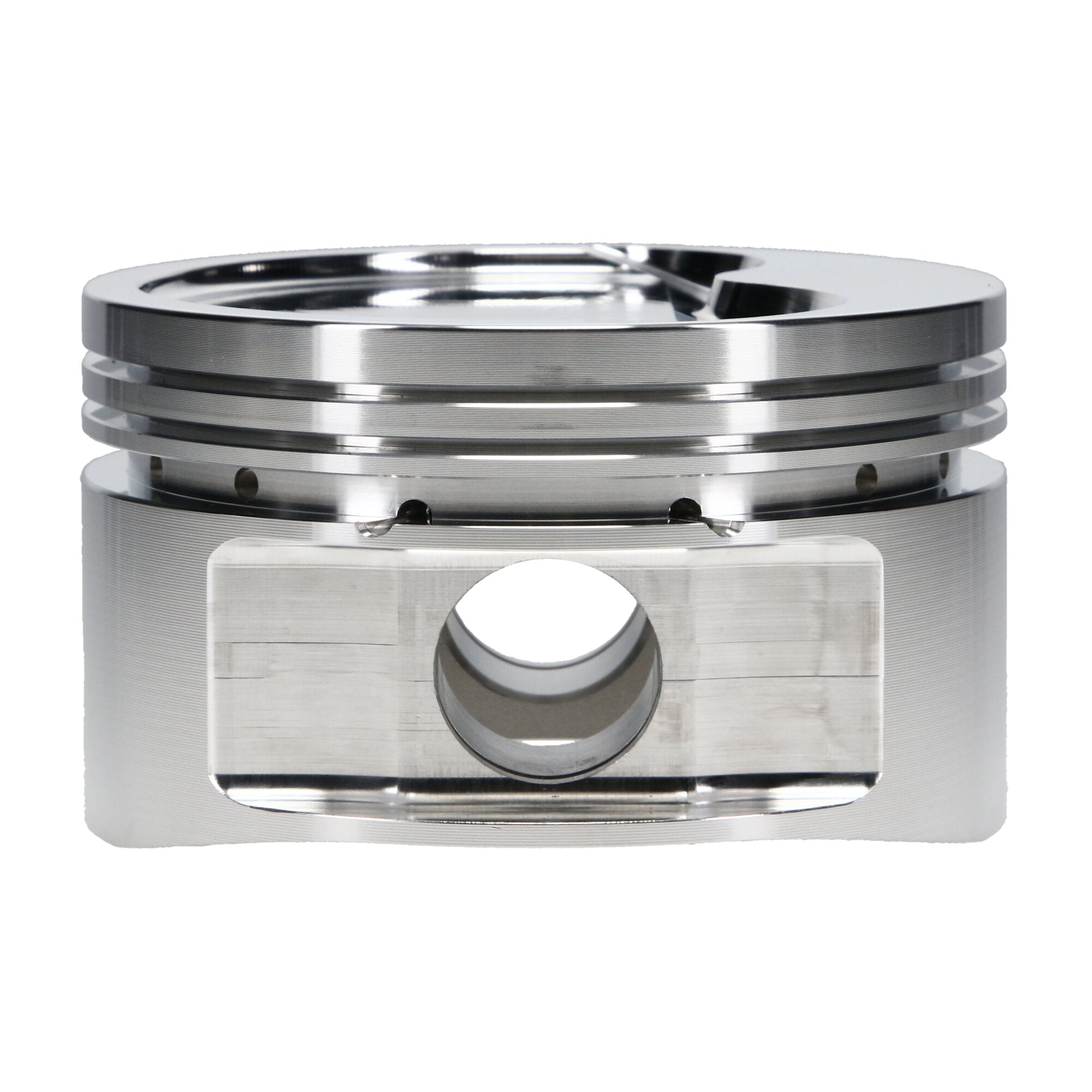

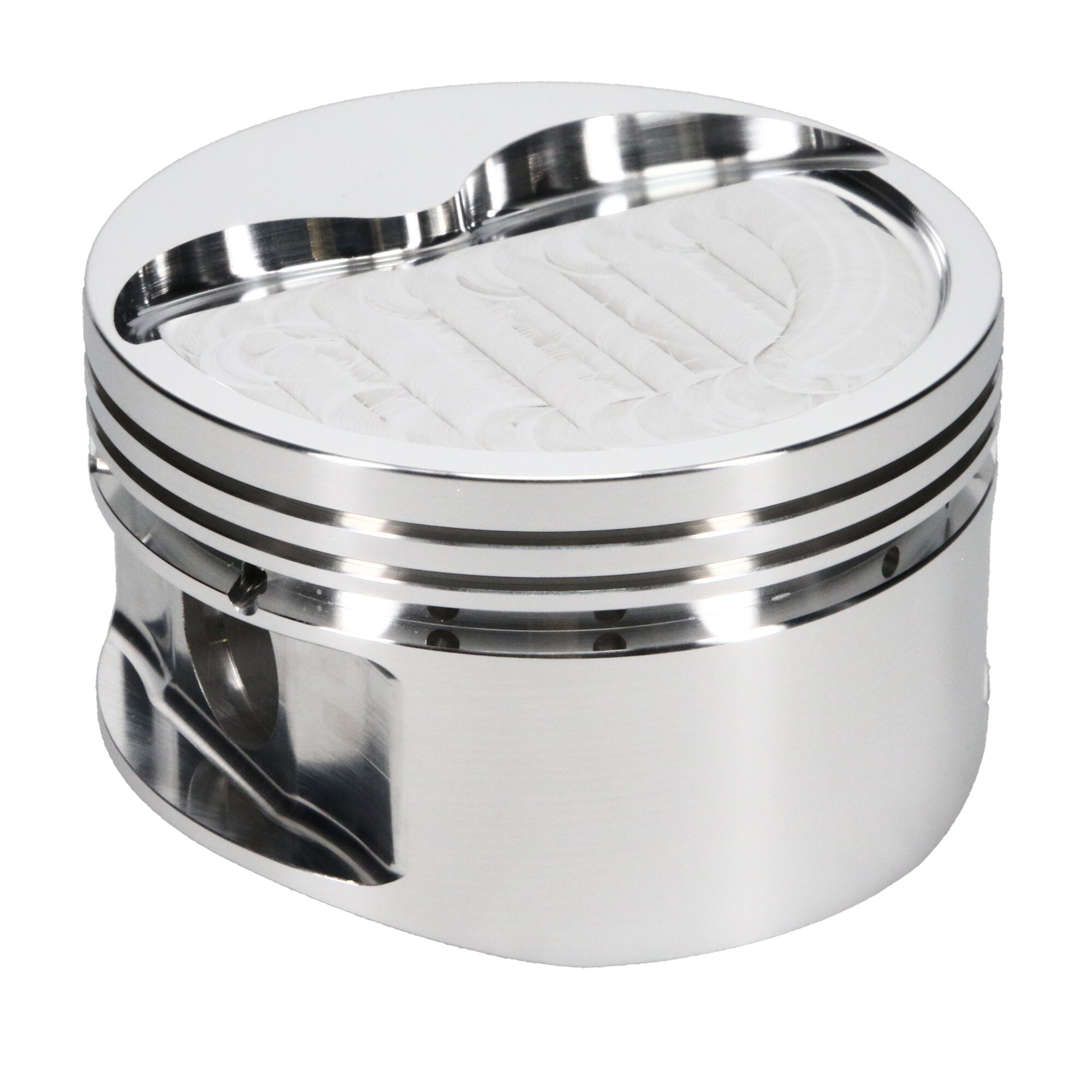

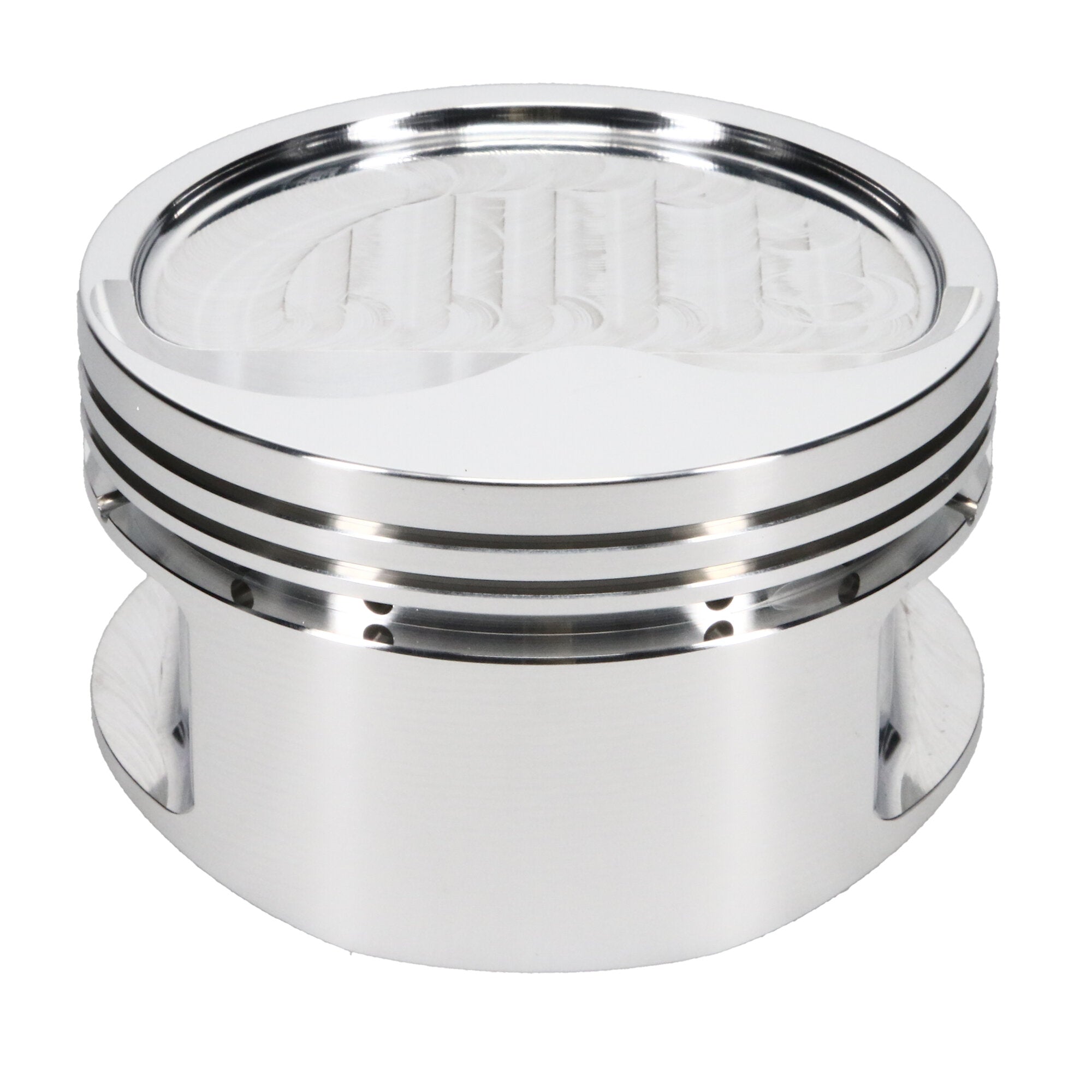

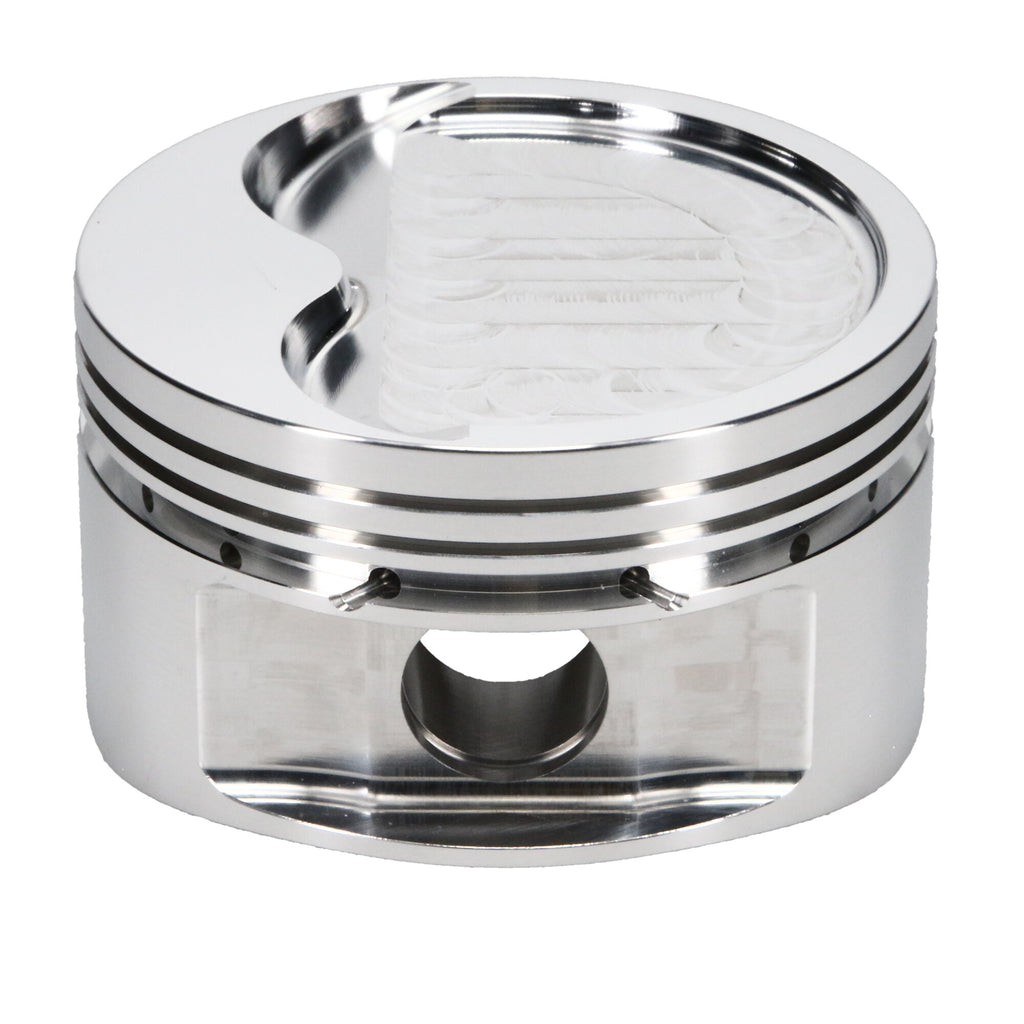

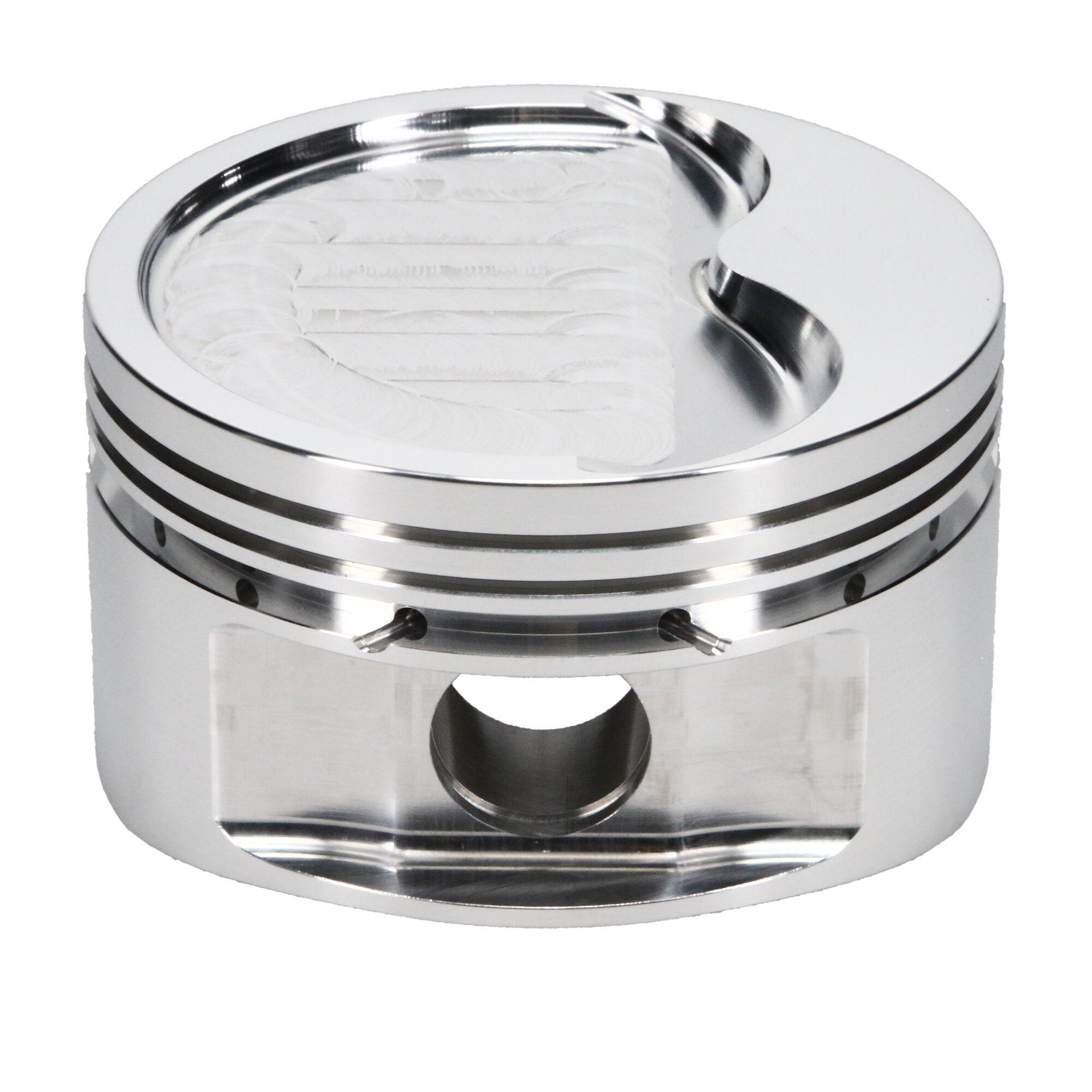

Piston Set, 2618, Inv Dome/Dish, 4.060 Bore, 1.665 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chrysler, Small Block Chrysler, 4.060 in. Bore, 1.665 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chrysler W-2 NASCAR CANADA, 4.060 Bore, Dish, Set of 8 |
| Piston Average Weight |
510 |
| Title |
JE Pistons - Chrysler, Small Block, 4.060 in. Bore, Piston Kit |
| Compression Height |
1.665 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.060 |
| Product Type |
Engine Piston Kit |
| Engine - Web |
Small Block |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0640 |
| Product Market |
Domestic |
| Piston Quantity |
8 |
| Cylinder Head |
360 WEDGE |
| Piston Material |
2618 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-042-CS |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
J10008-4060-5 |
| Add-On |
927-2500-15-51S |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
-11.00 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.500 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Make |
CHRYSLER |
| Piston Pin Length |
2.500 |
| Oil Ring Thickness |
0.188 |
| Engine |
Small Block |
| Ringset Included |
No |
| Piston Series |
JE Pistons |
| Title - Web |
JE Pistons Chrysler Small Block Piston Kit - 4.060 in. Bore - 1.665 in. CH, -11.00 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.927 |
| Make - Web |
Chrysler |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
