As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler NASCAR Canada W-2 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

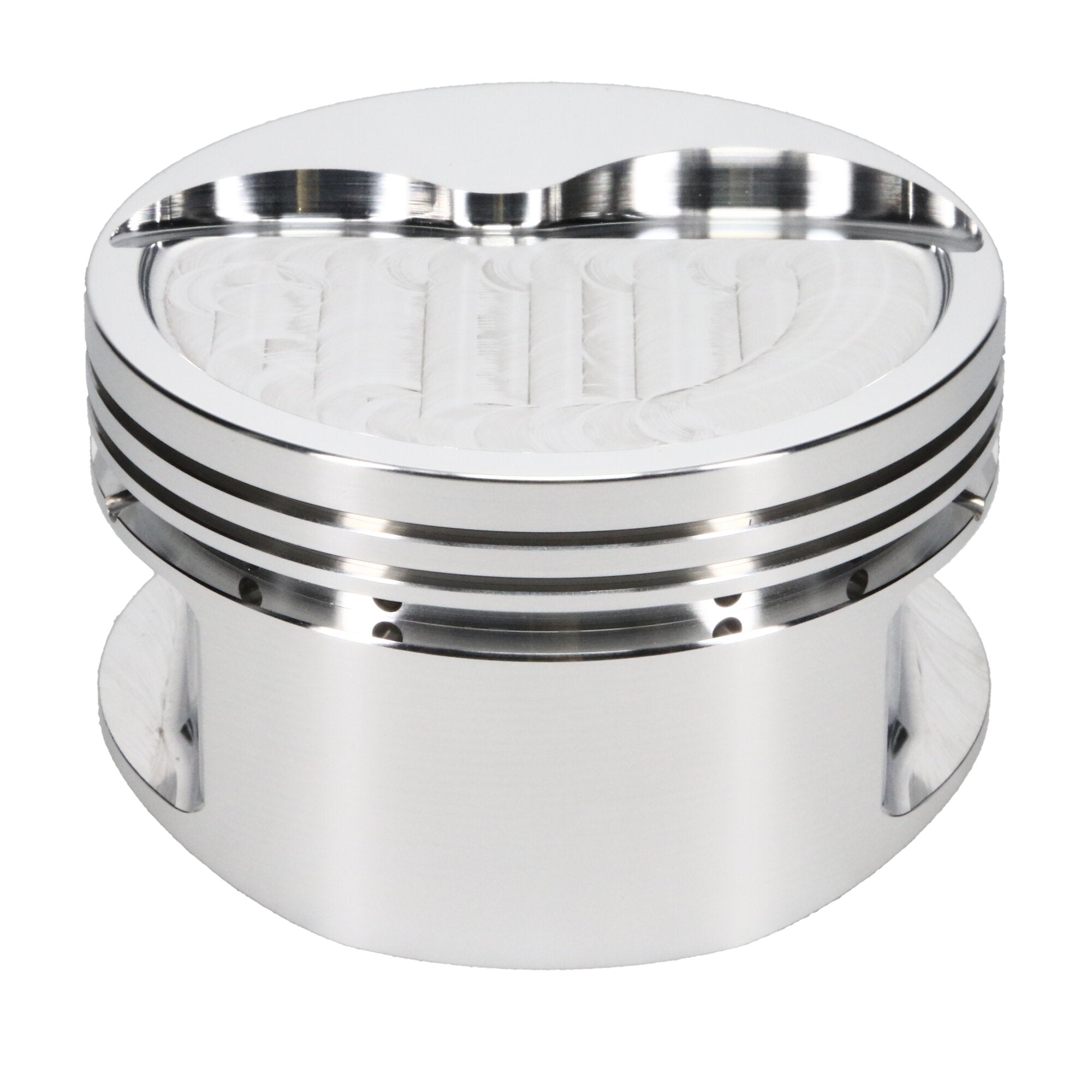

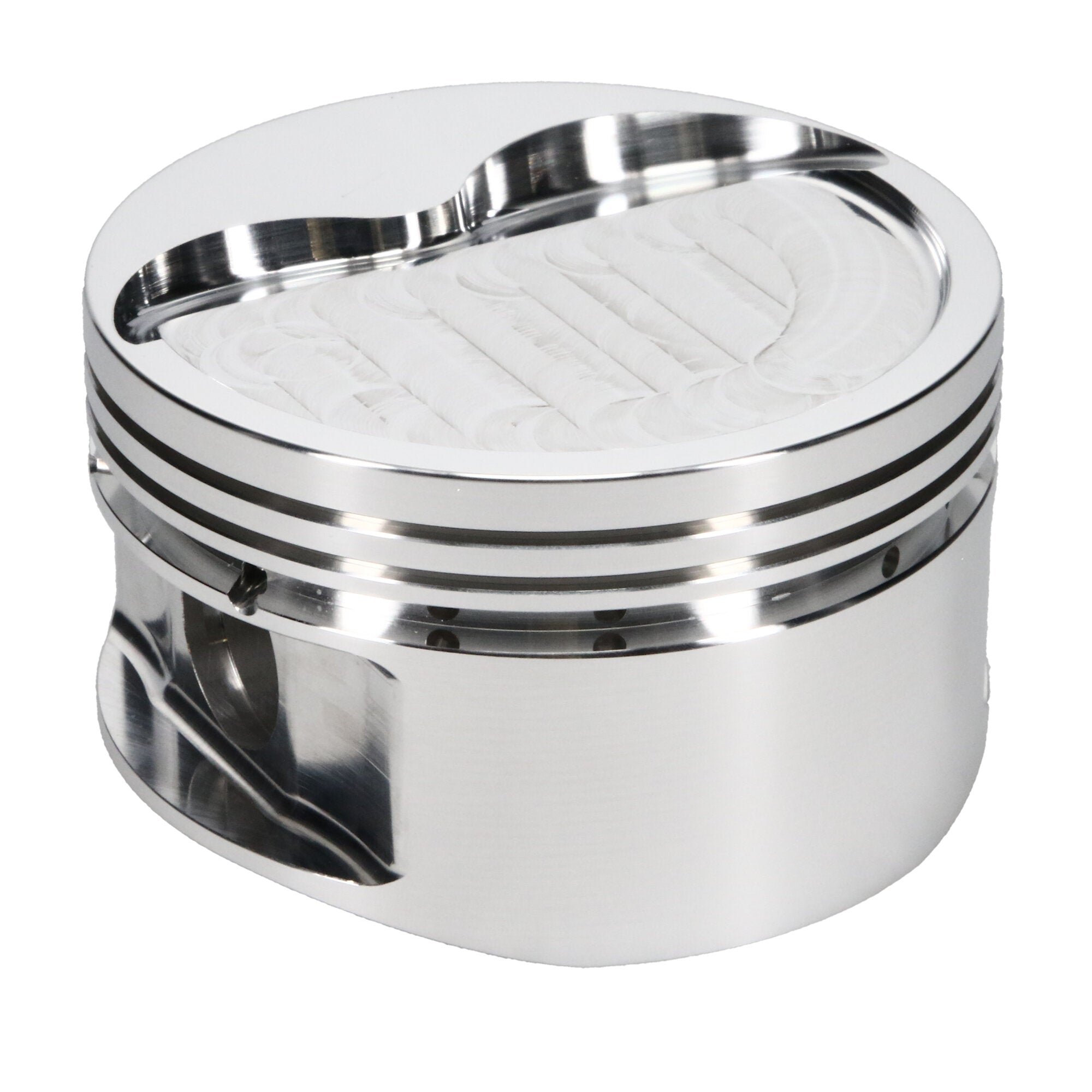

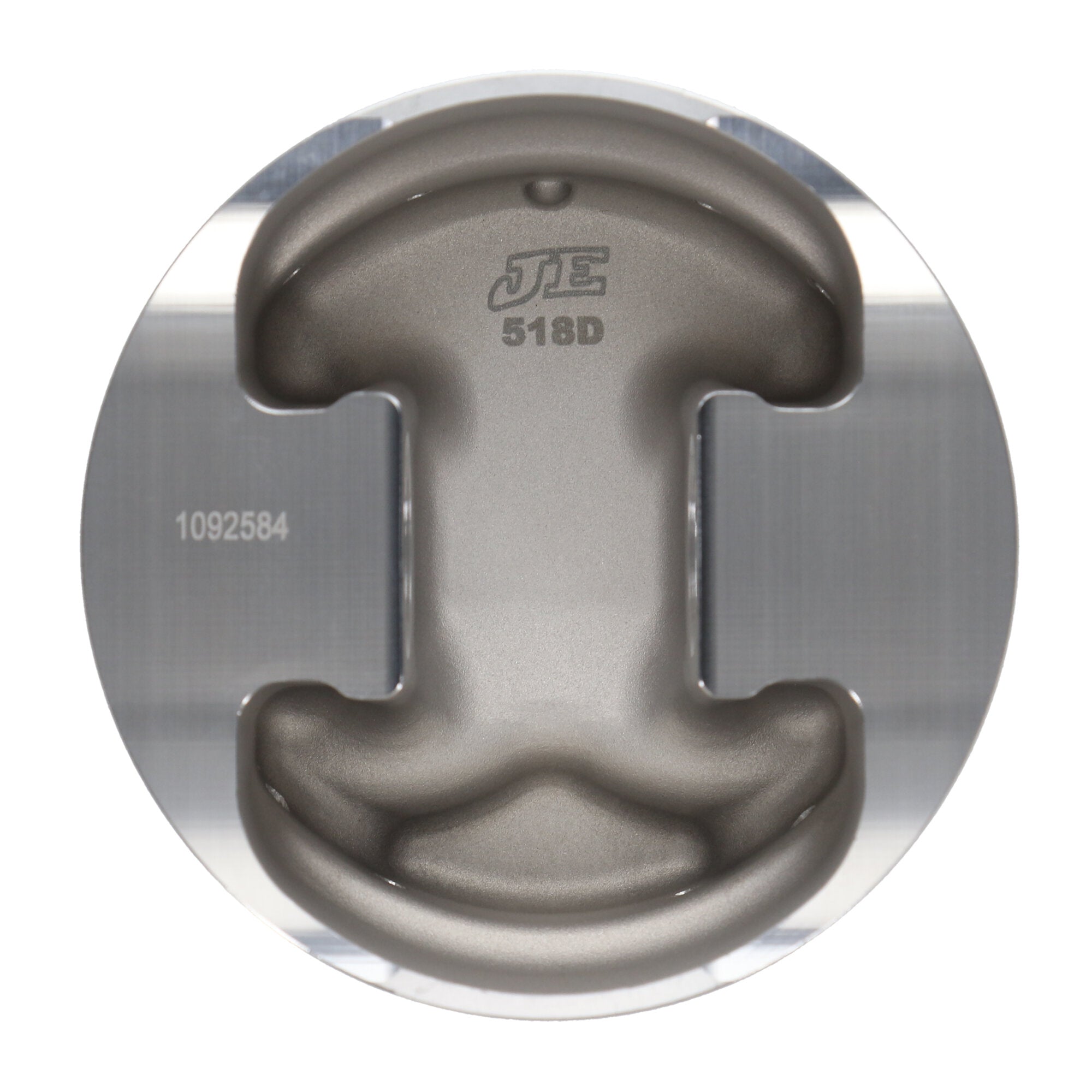

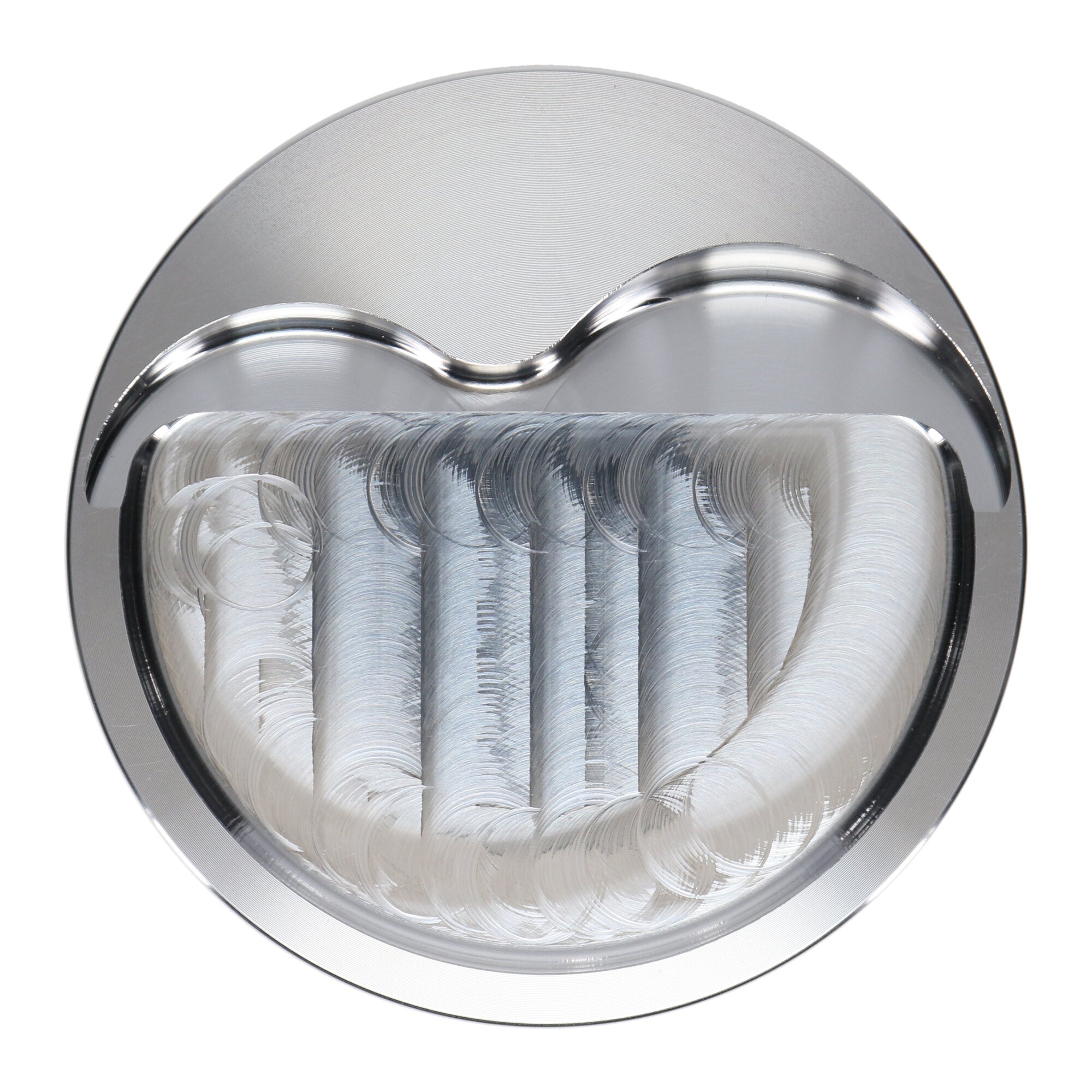

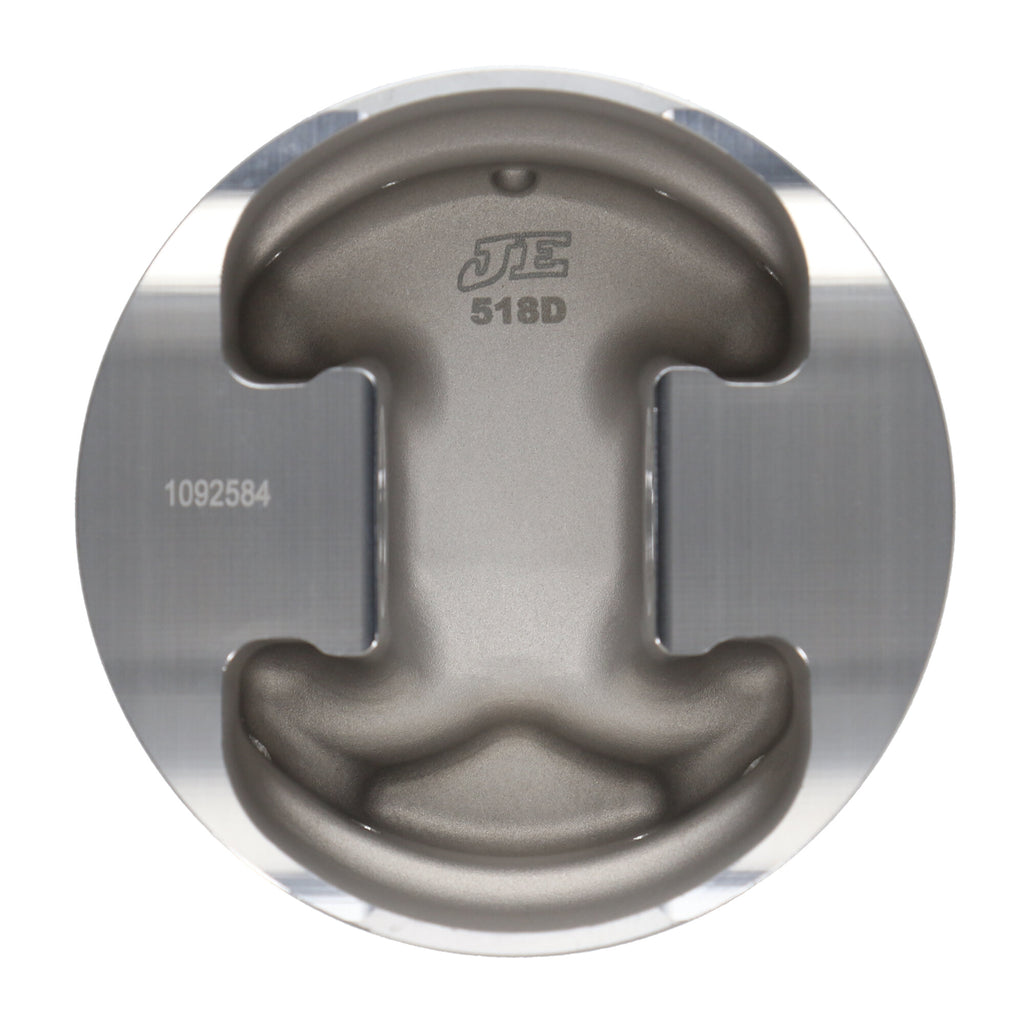

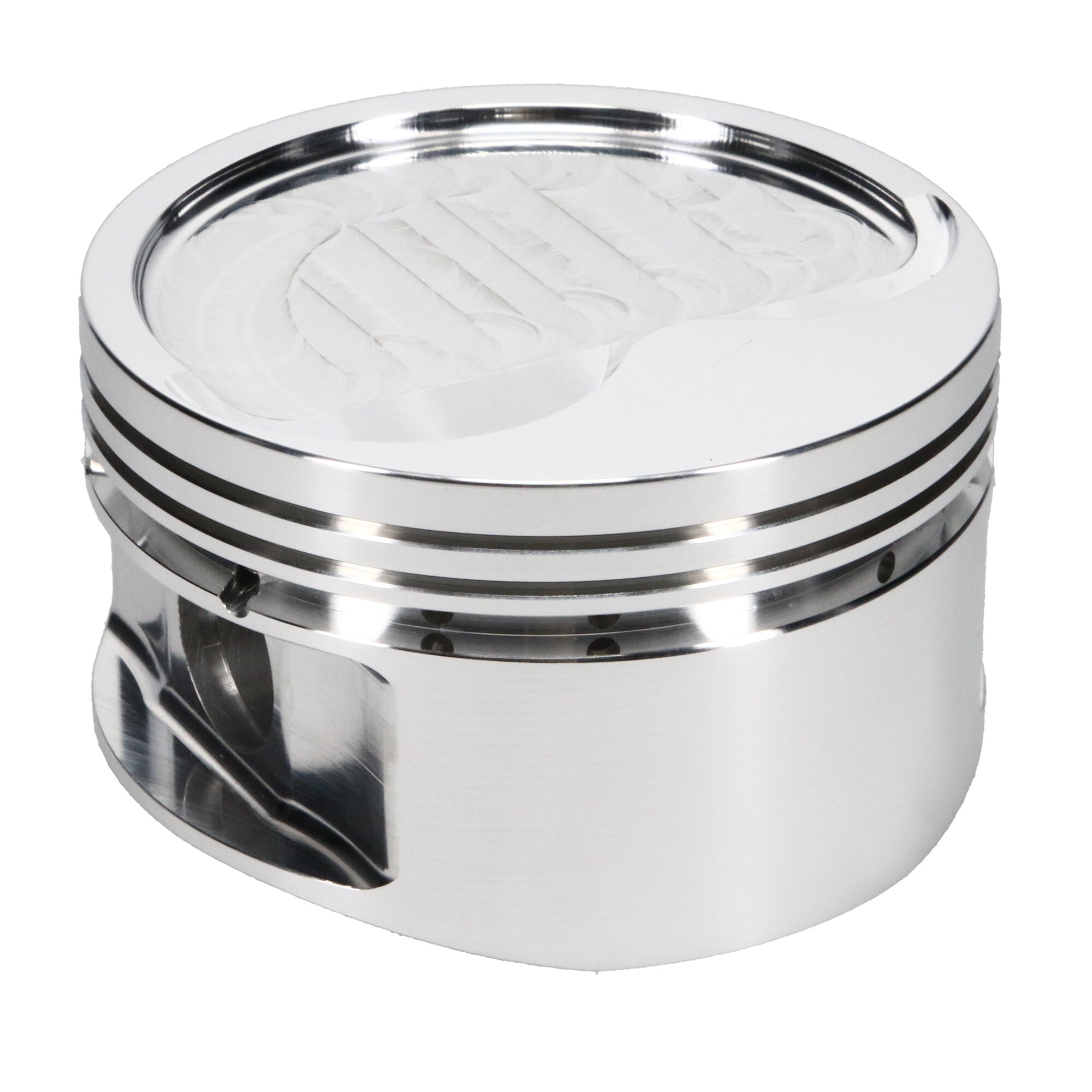

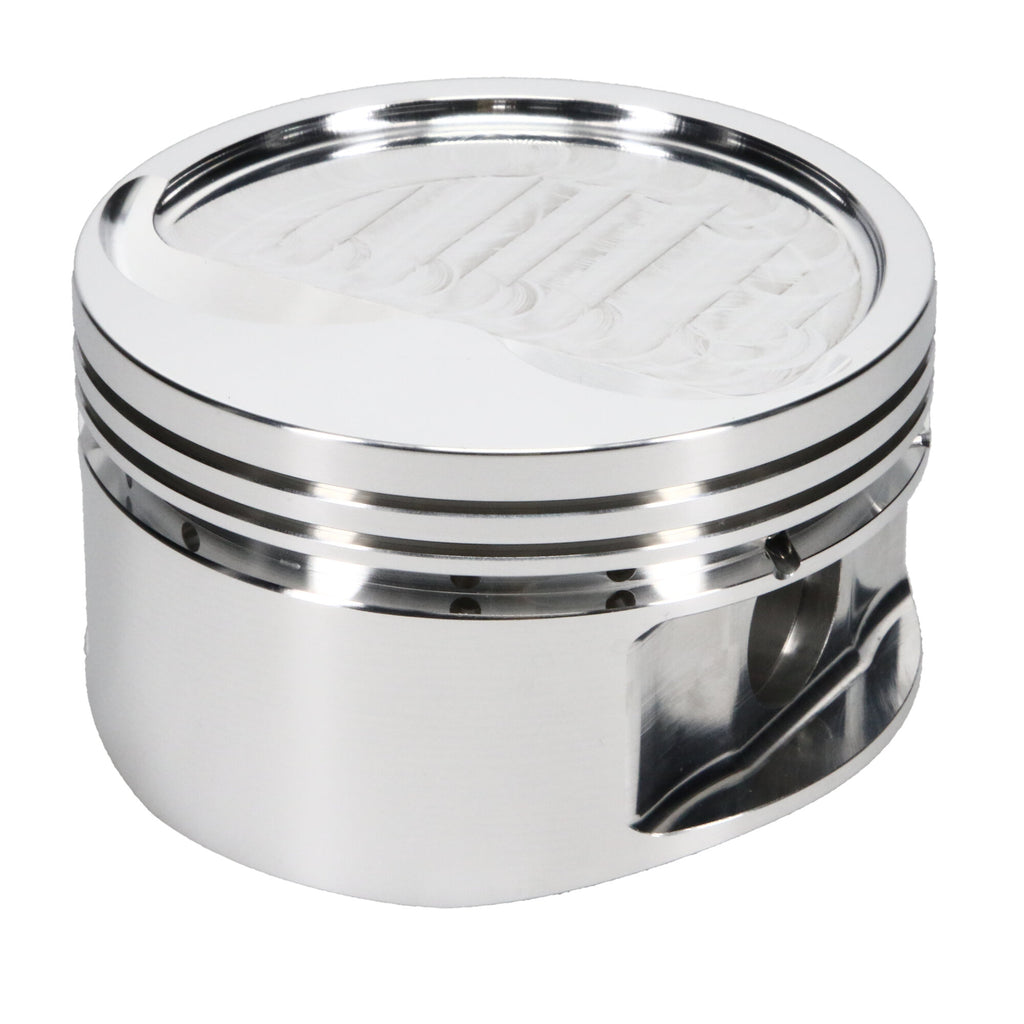

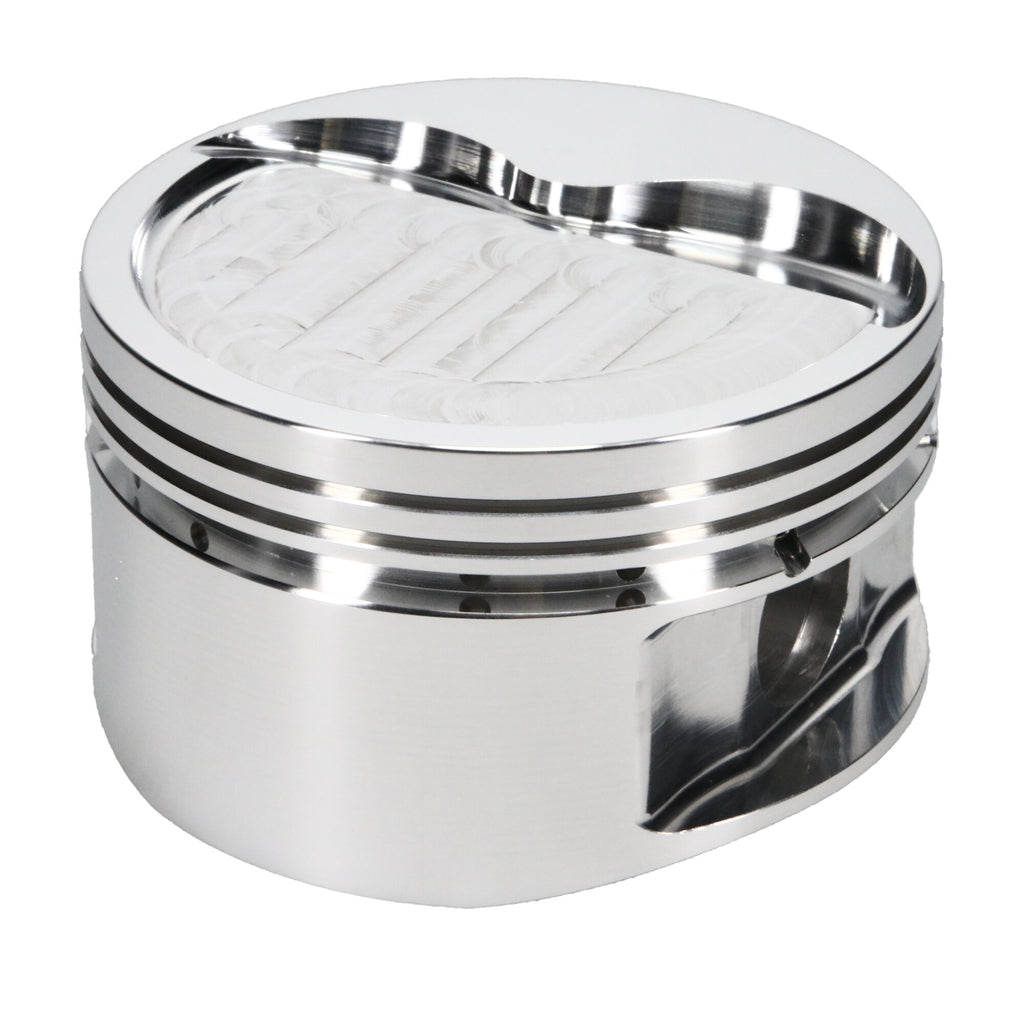

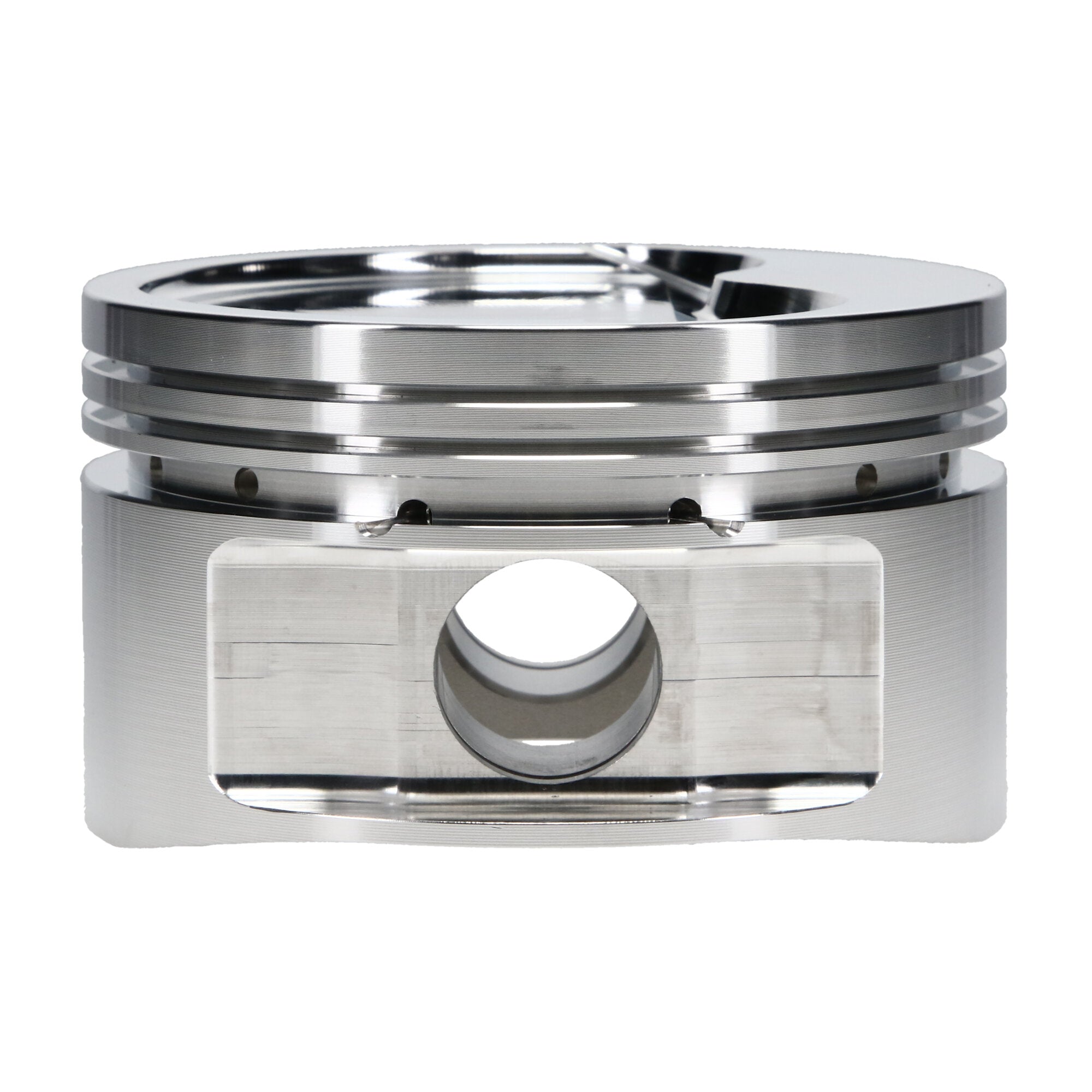

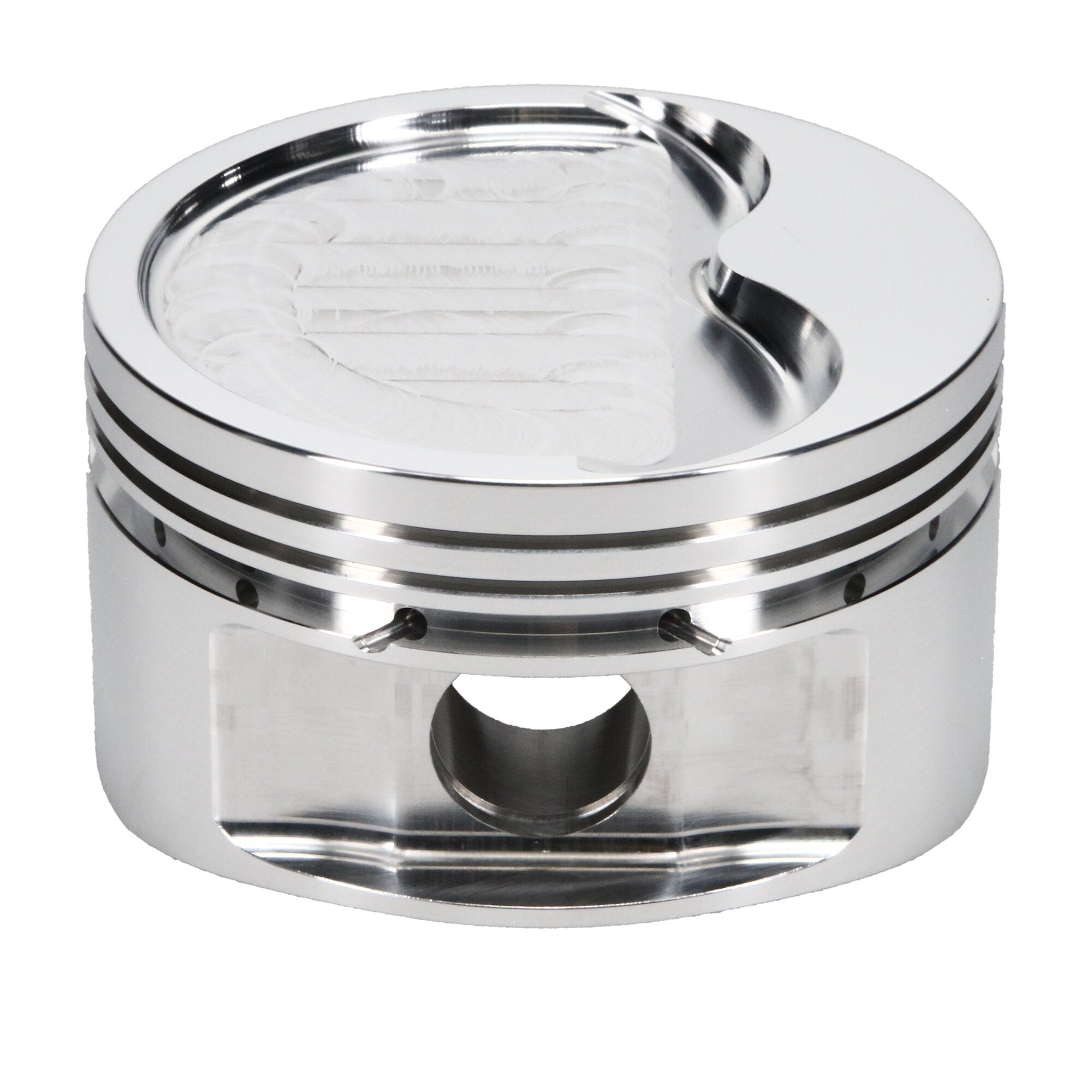

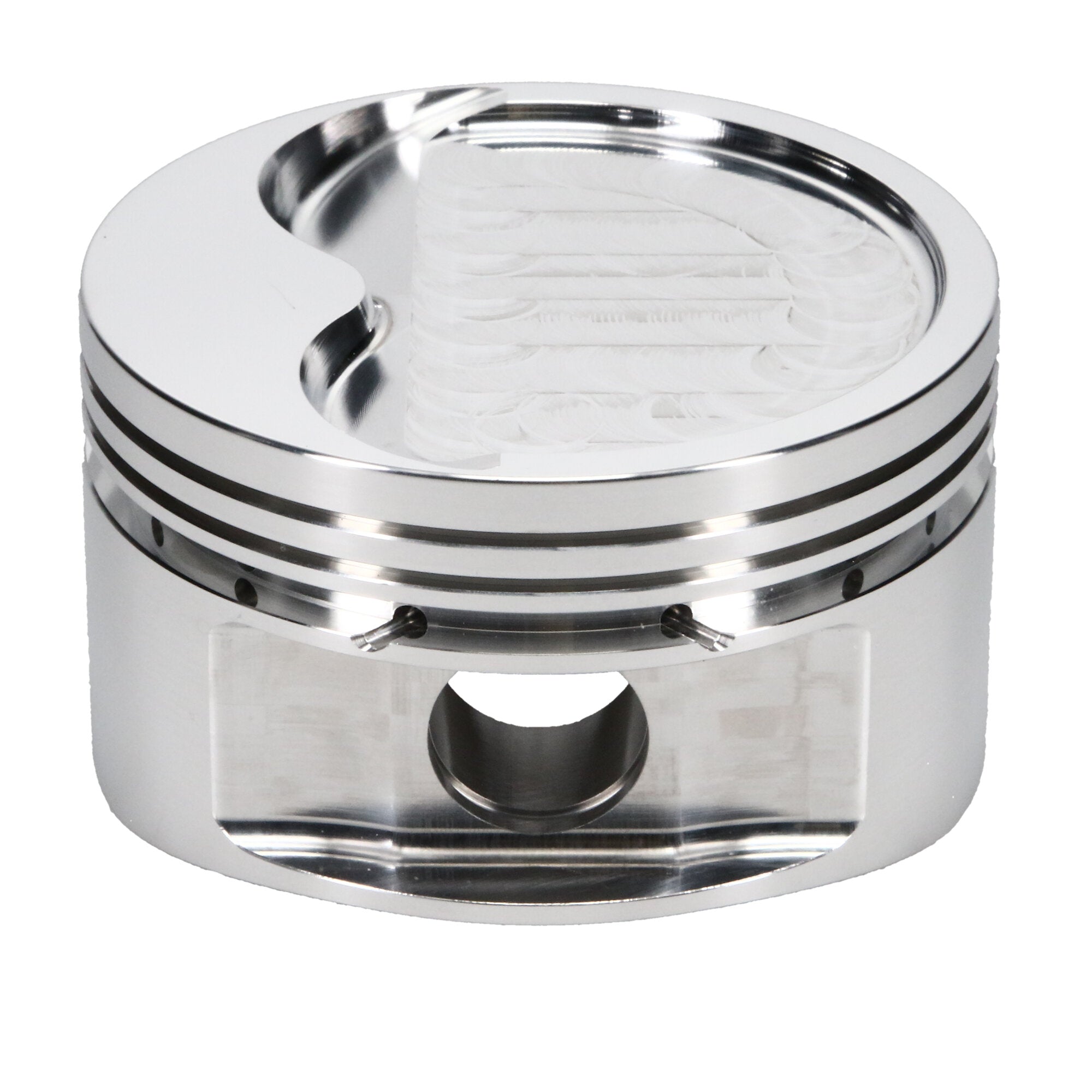

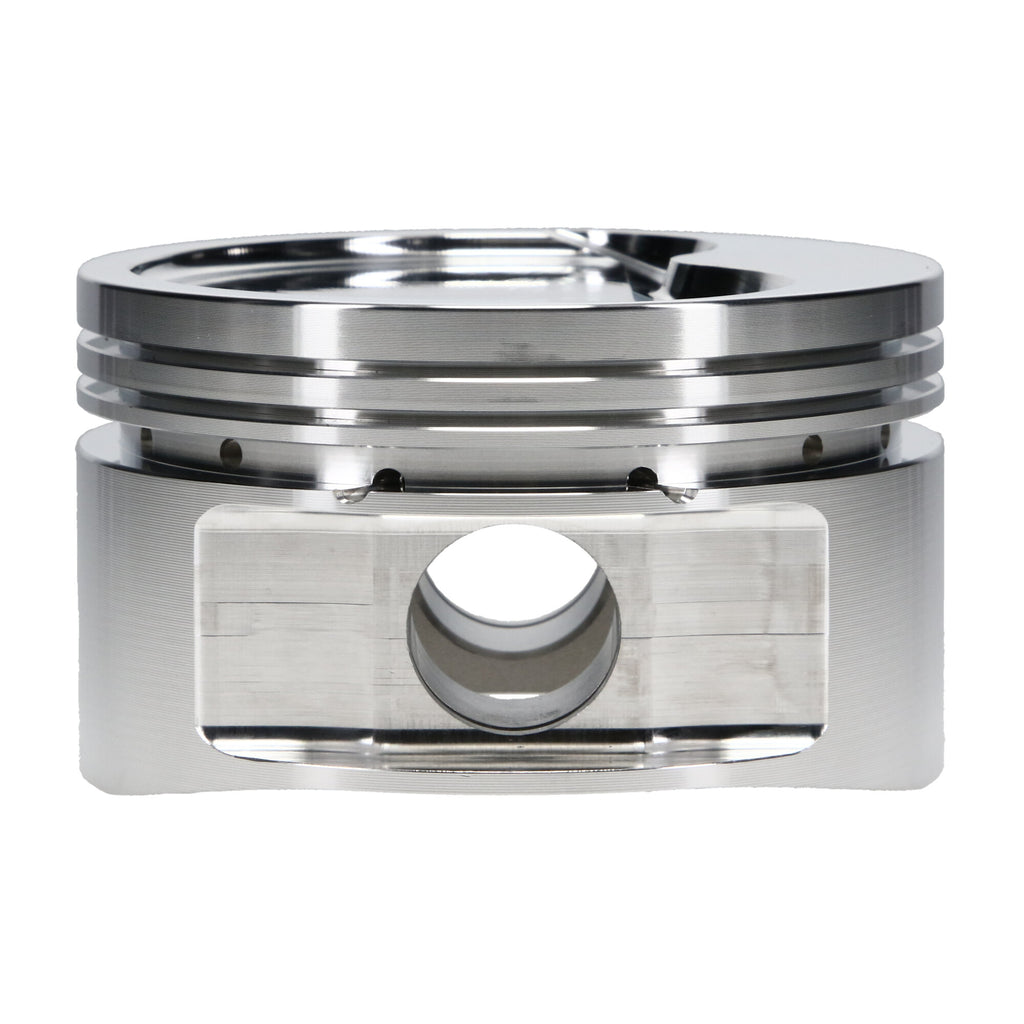

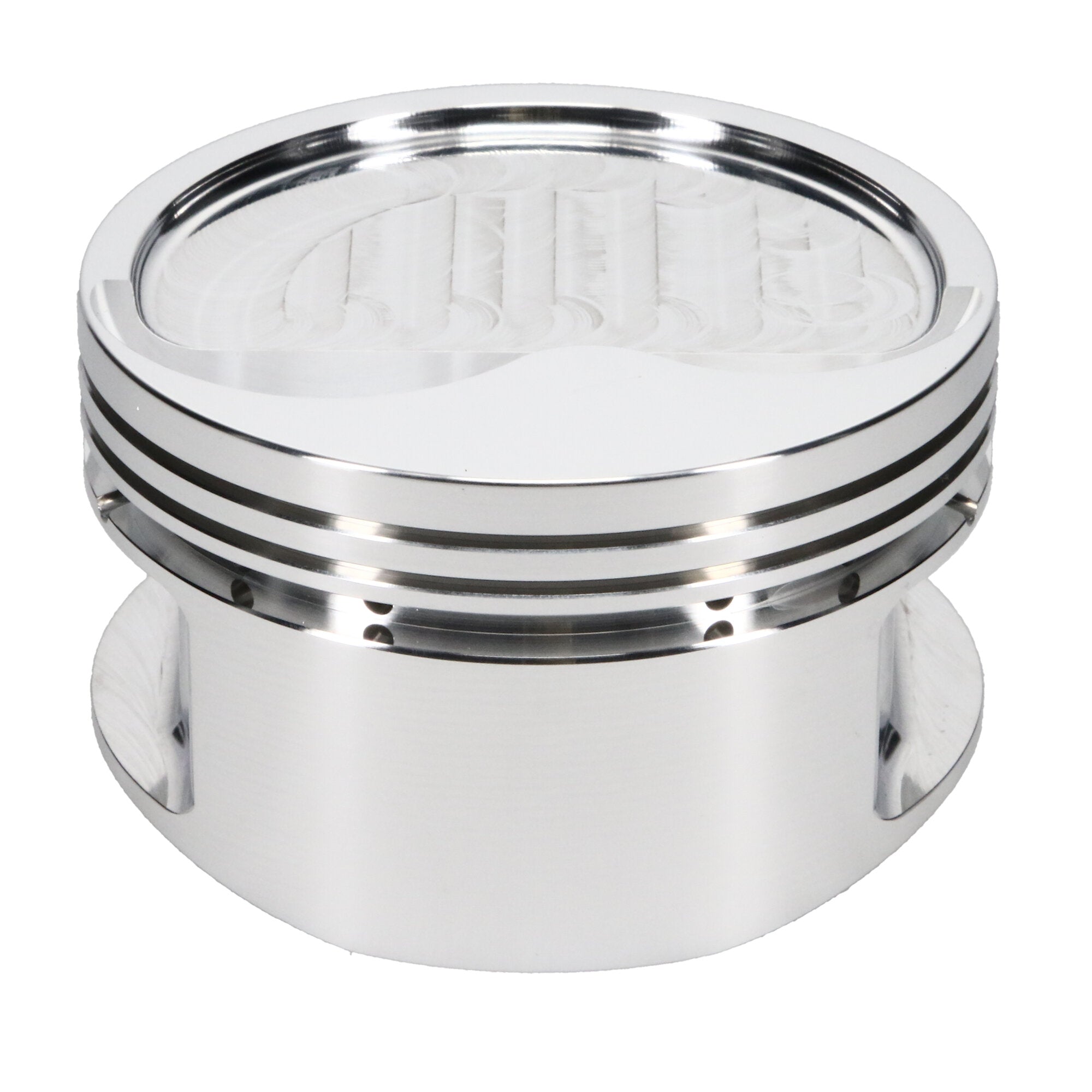

Piston Set, 2618, Inv Dome/Dish, 4.030 Bore, 1.665 CD, 0.927 Pin Dia, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler NASCAR Canada W-2, 4.030 Bore, Inv Dome/Dish, Set of 8 |
| Piston Pin Length |
2.500 |
| Piston Pin Wall Thickness |
0.150 |
| Engine |
Small Block |
| Piston Head Type |
Inv Dome/Dish |
| Wrist Pin Outer Diameter |
0.927 |
| Make |
CHRYSLER |
| Title |
JE Pistons - Chrysler, Small Block, 4.030 in. Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.927 |
| Product Market |
Domestic |
| Out of Stock Message |
Call for Availibility |
| Add-On |
927-2500-15-51S |
| Piston Quantity |
8 |
| Piston Volume |
-11.00 |
| Piston Material |
2618 |
| Compression Height |
1.665 |
| Title - Web |
JE Pistons Chrysler Small Block Piston Kit - 4.030 in. Bore - 1.665 in. CH, -11.00 CC |
| Bore Diameter |
4.030 |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Length |
2.500 |
| Make - Web |
Chrysler |
| Engine - Web |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
