Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Ford 390 FE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

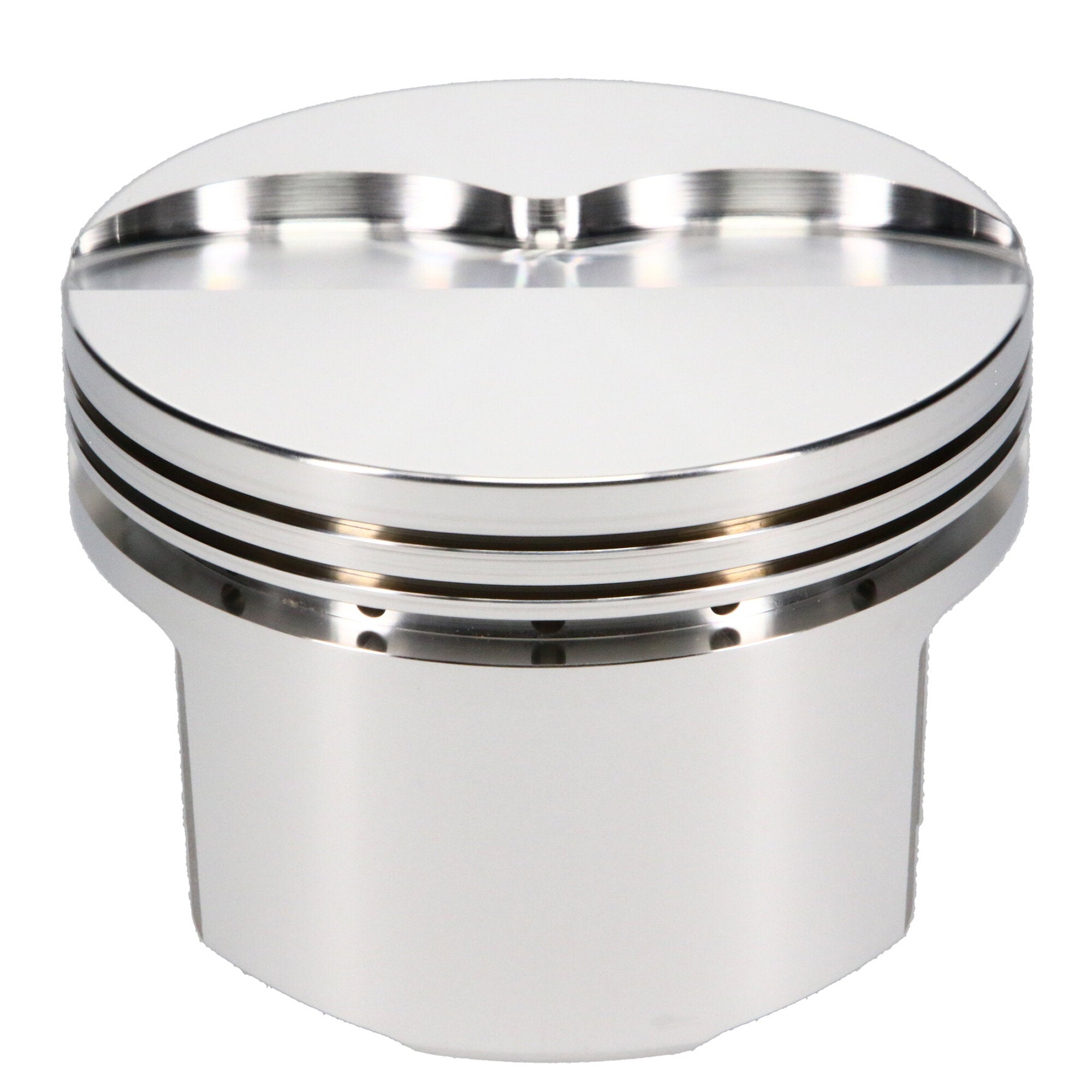

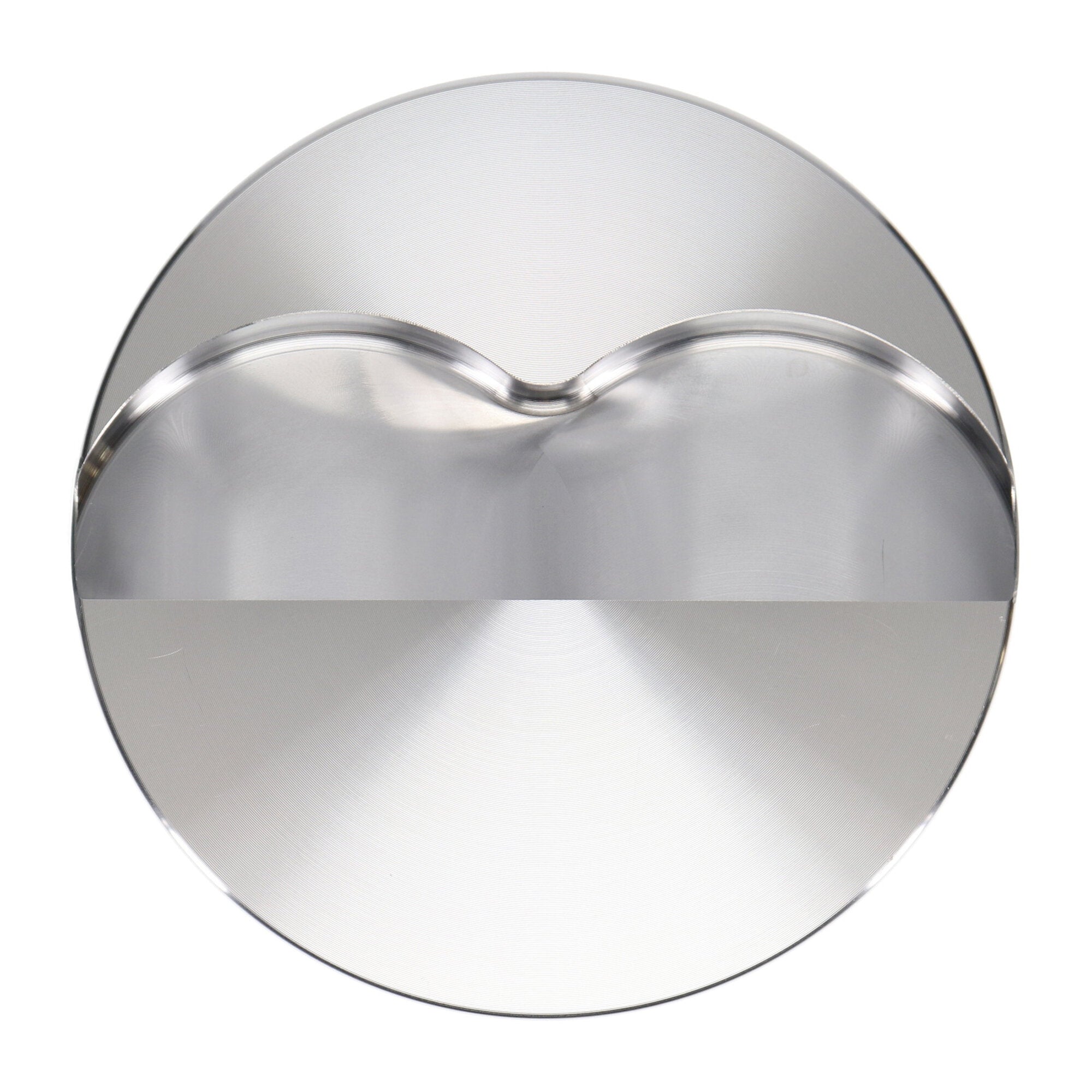

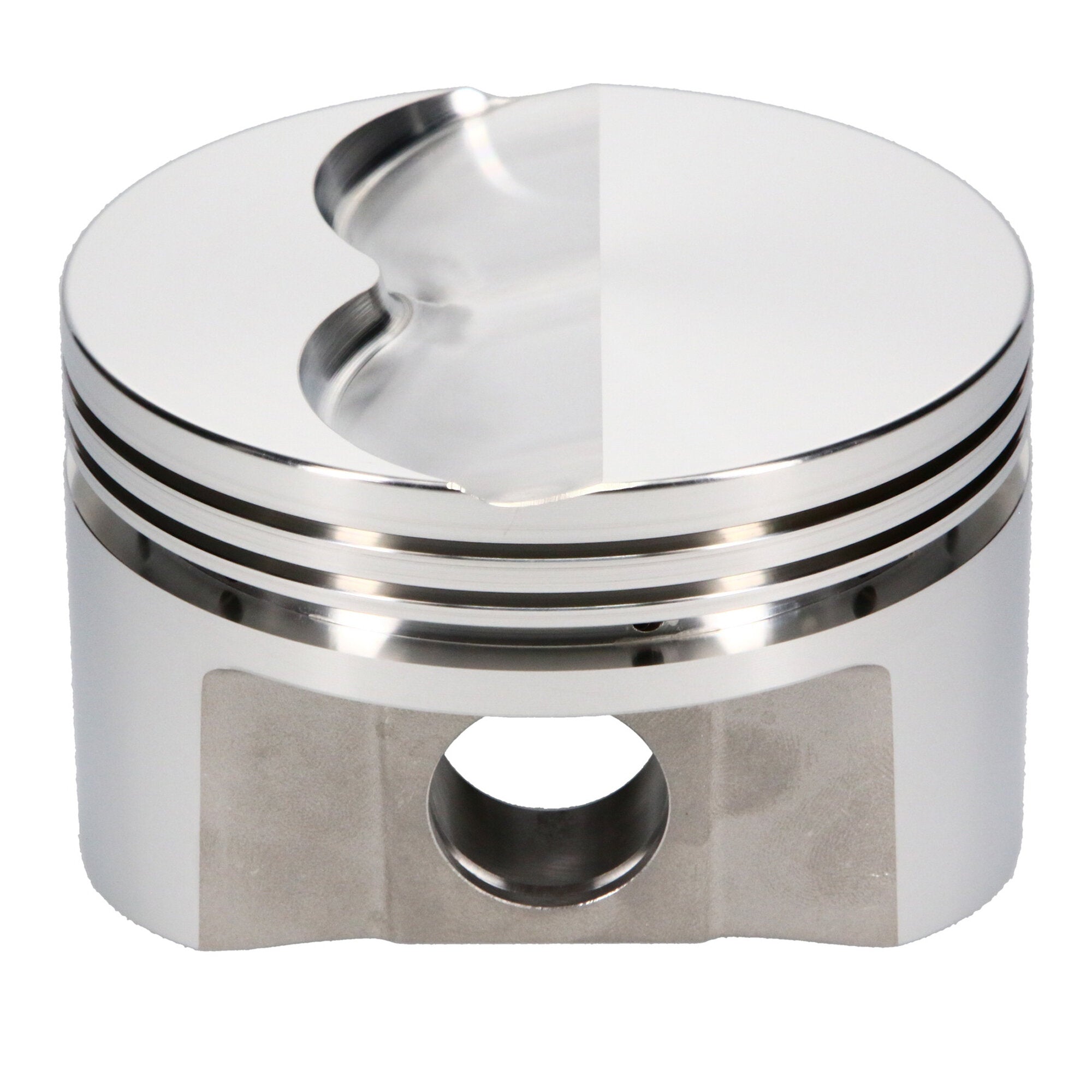

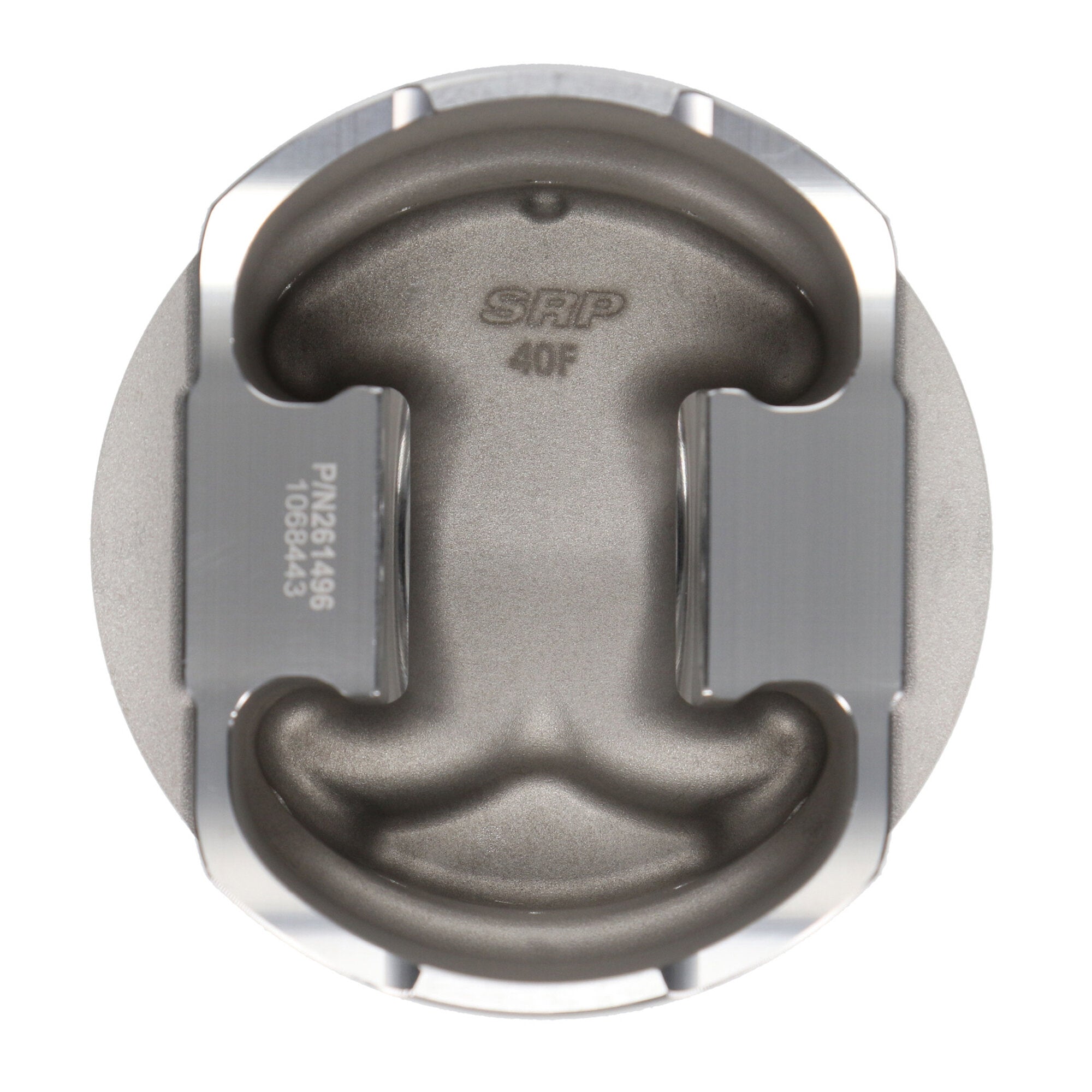

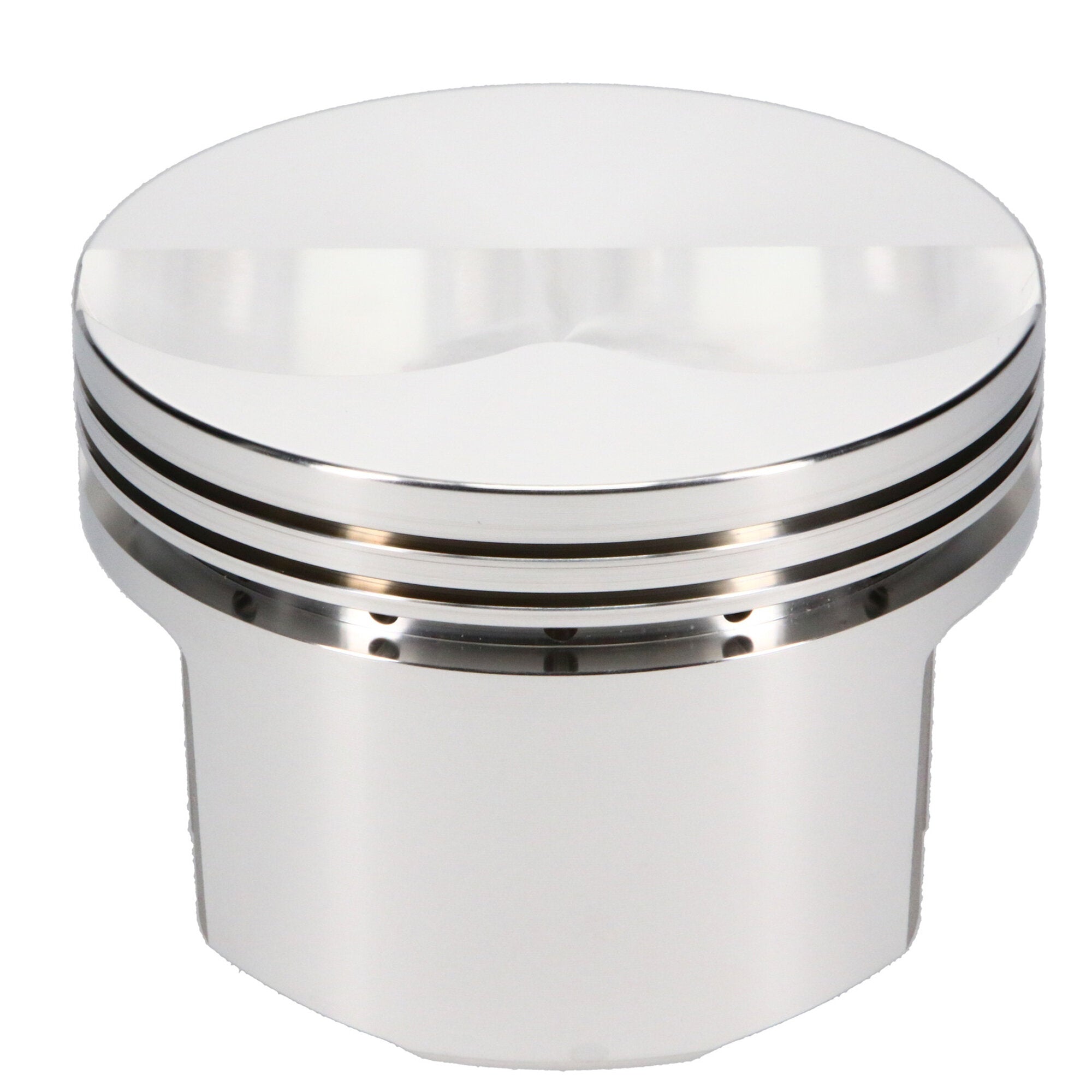

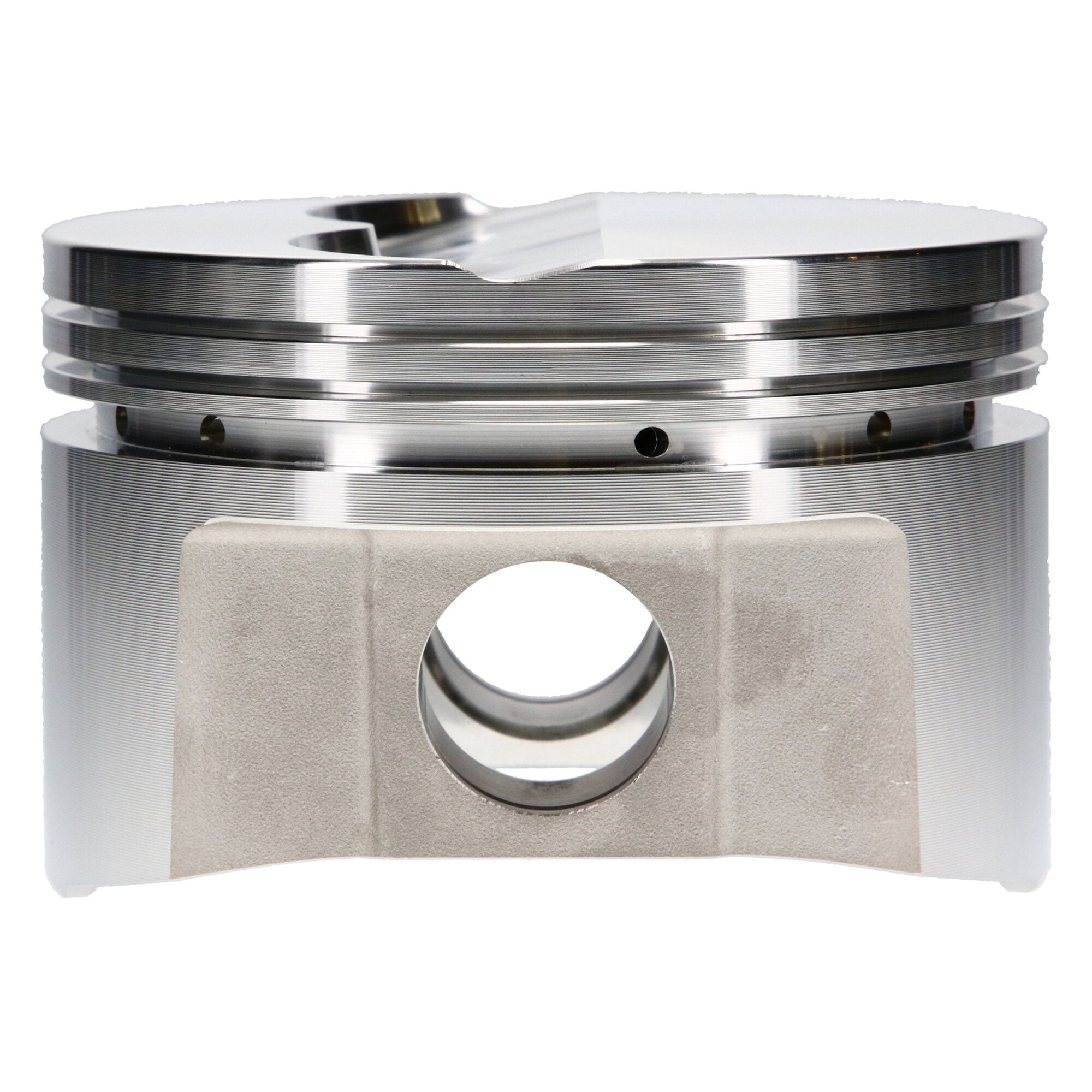

Piston Set, 4032, Flat Top, 4.080 Bore, 1.670 CD, 0.975 Pin, Set of 8. |
| Description_EXT |
SRP, Ford, Big Block Ford FE, 4.080 in. Bore, 1.670 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 390 FE, 4.080 Bore, Flat, Set of 8 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.975 |
| Piston Pin Length |
2.750 |
| Make |
FORD |
| Make - Web |
Ford |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.160 |
| Piston Head Type |
Flat |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.188 |
| Engine |
Big Block FE |
| Piston Series |
SRP |
| Wrist Pin Wall Thickness |
0.160 |
| Ringset Included |
No |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Add-On |
J100F8-4080-5 |
| Cylinder Head |
EDEL 6005/06 |
| Title |
SRP - Ford, Big Block FE, 4.080 in. Bore, Piston Kit |
| Add-On |
975-2750-16-51S |
| Bore Diameter |
4.080 |
| Product Market |
Domestic |
| Piston Average Weight |
534 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-042-CS |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0640 |
| Compression Height |
1.670 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Material |
4032 |
| Forging Type |
FSR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Engine - Web |
Big Block FE |
| Out of Stock Message |
Call for Availability |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.975 |
| Piston Volume |
72.00 |
| Title - Web |
SRP Ford Big Block FE Piston Kit - 4.080 in. Bore - 1.670 in. CH, 72.00 CC |
| Wrist Pin Length |
2.750 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
